Project Freeze My Ass Off (rear Poly Bush's Astra G)

[Daz]

Not a clue... Hammer?



[astra22bertoneauto]

I think you have to unclip it from in the engine bay but access is limited. have to remove abs pump i believe.



[evocarlos]

just had a txt its a 10mm thin socket from the engine bay then clips to the body and pull from inside

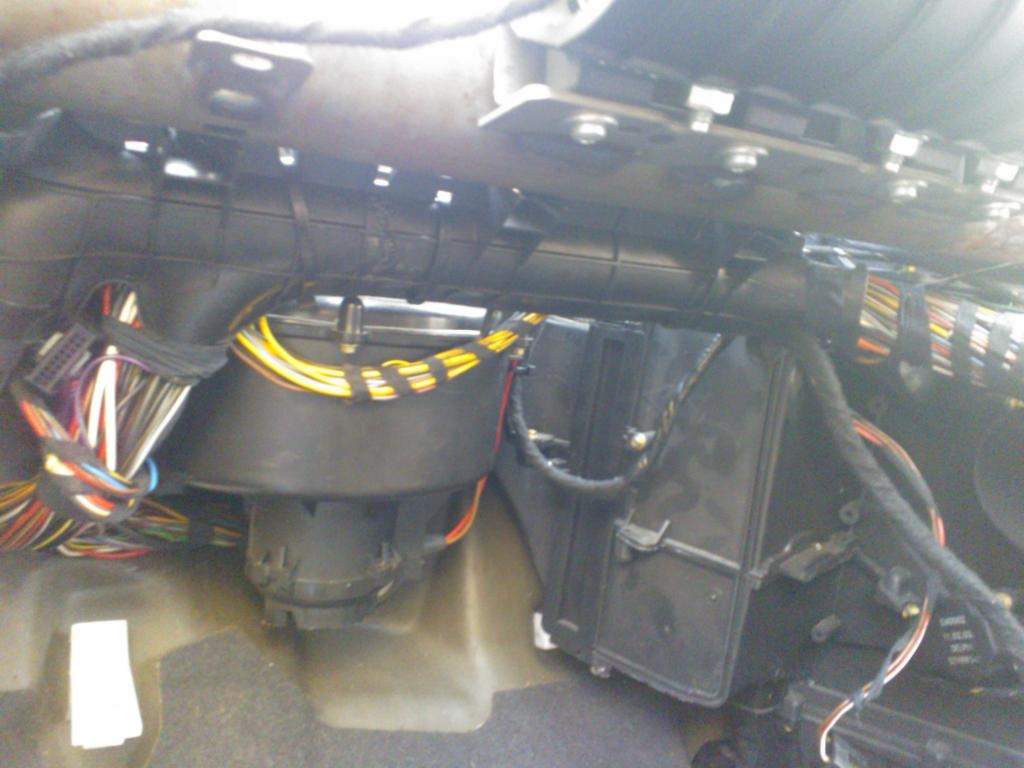

heres the cab loom
thoughts are "" oh fook ""



[Matt]

Rather you than me Carl, looking at all that scares the s**t out of me!



[corsaZ22se]

good work! takes me back to last year when i was stripping the vectra for the loom to make it fit the corsa. all worth the effort when its up and running.



[evocarlos]

Rather you than me Carl, looking at all that scares the s**t out of me!

its not to bad its all screws and bolts it all goes back together as long as you dont loose any
the wirings a bit of an arse

good work! takes me back to last year when i was stripping the vectra for the loom to make it fit the corsa. all worth the effort when its up and running.

thanks

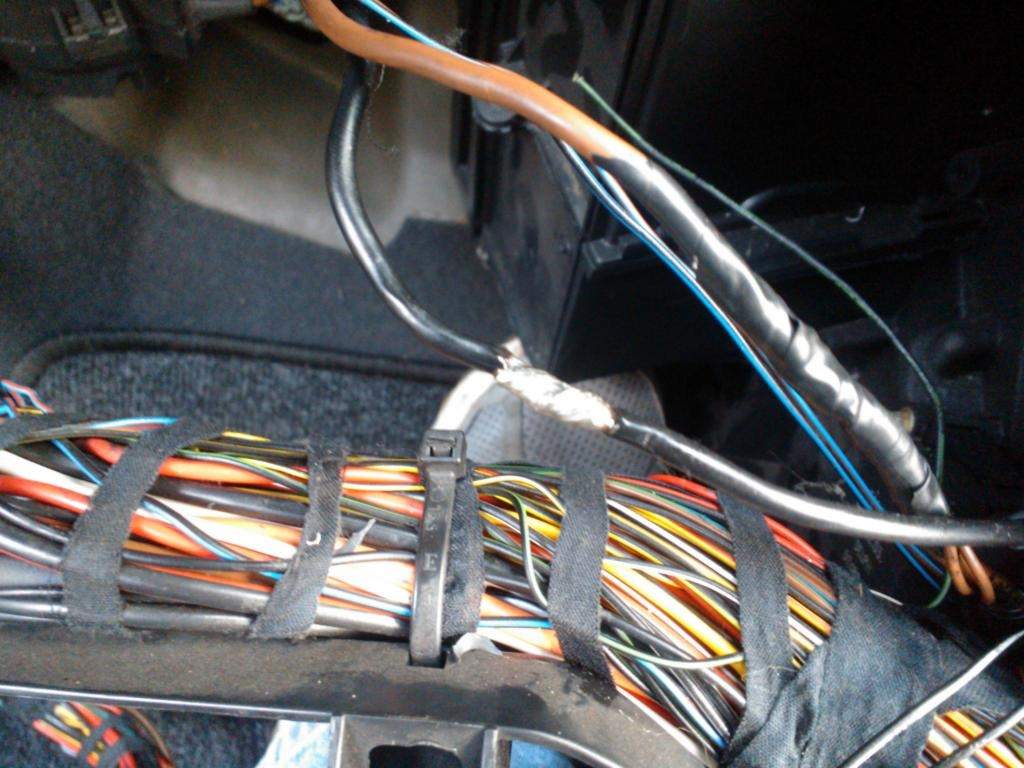

i find it funny that the standard loom has 5-1 wires that are crimped and wrapped in duct tape

looking at the 2 looms a/c vs c/c
the a/c loom has 6 wires
the c/c loom has 2 32pin plugs and a 4 pin plug

found some pics on another forum that shows the plugs

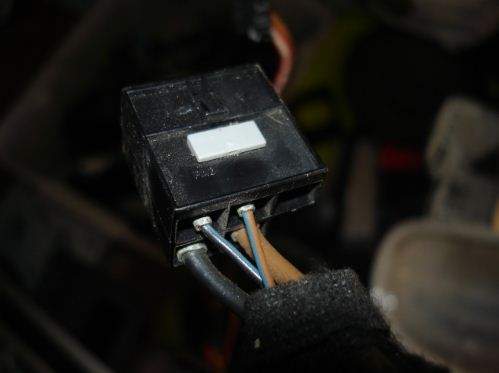

9pin a/c plug

5pin c/c plug

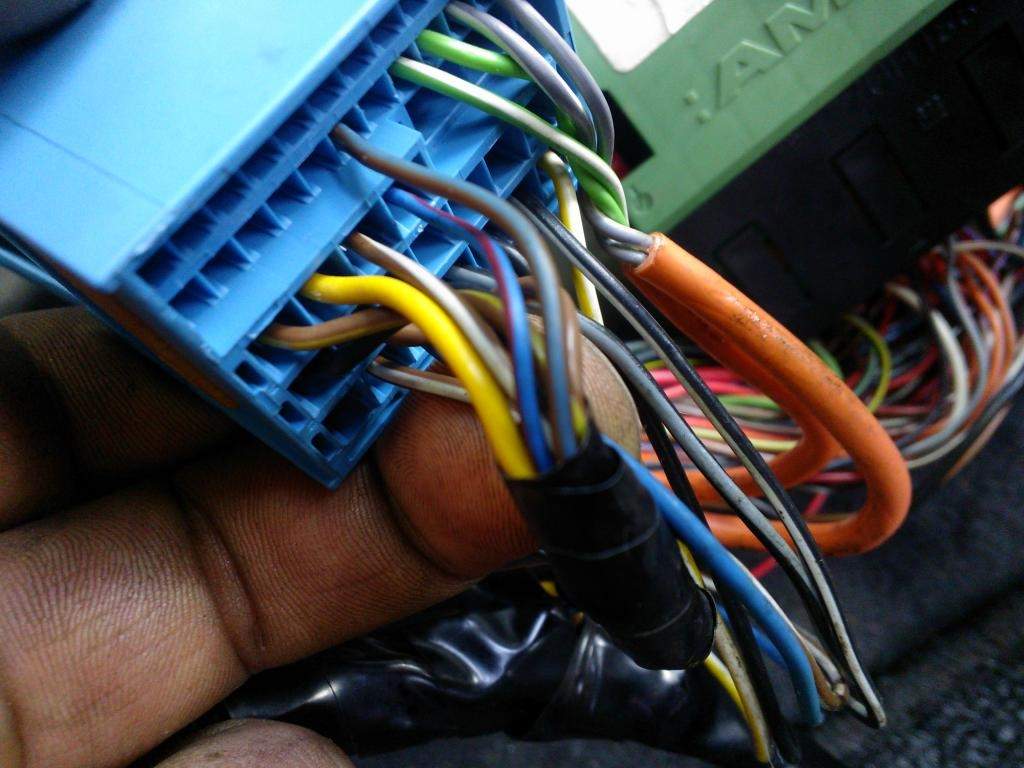

and then the 32pin plug for the c/c controller the 2nd 32pin plug that's blue is for all the sensors and motors on the air box

not many of the wires in the plug are used tho
Connections of 32 Pin Grey Plug of Electronic Climate Control

Pin 01 – + 12Volt (continuous voltage) – Red)
Pin 02 – Ground -> Brown
Pin 03 – Ground -> Brown -> Connect to Pin 2
Pin 04 – + 12 Volt (Ignition Signal) – Black
Pin 05 – Light Signal – Grey/Yellow –> Pin 05 of plug of old Manual Climate.
Pin 06 – Not used
Pin 07 – Not used
Pin 08 – Not used
Pin 09 – Not used
Pin 10 – Not used
Pin 11 – Not used
Pin 12 – Not used
Pin 13 – Not used
Pin 14 – Not used
Pin 15 – Signal Rear Defroster – Black/White -> Pin 02 of plug of old Manual Climate.
Pin 16 – Signal Rear Defroster – Black -> Pin 07 of plug of old Manual Climate.
Pin 17 – Controller of Blower – Black/Blue -> Pin 02 of the small (5 pins) black plug on the Climate Box (near the Blower).
Pin 18 – Controller of Blower – Brown/Blue -> Pin 04 of the small (5 pins) black plug on the Climate Box (near the Blower).
Pin 19 – Motor ECU - Black/Green -> Pin 01 of plug of old Manual Climate.
Pin 20 – MKM (Motor Clima Module) – Brown/Violet -> Pin 17 of MKM (front, left, behind bumper – only exists one wire with this color on MKM plugs, it’s only search for it)
Pin 21 – Speed Signal - Blue/Red -> (find it on TID/MID/GID/CID plug – Blue/Red wire, only exists one wire with this color on TID/MID/GID/CID plug, it’s only search for it)
Pin 22 – Rotation Motor Signal – Green -> Pin 20 of Instrument Panel (or Pin 06 of MID/GID/CID - Not TID).
Pin 23 – Not Used.
Pin 24 – Outside Temperature - Blue -> Pin 07 of TID plug, or 03 of MID/GID/CID plug)
Pin 25 – Not used
Pin 26 – Not used
Pin 27 – Not used
Pin 28 – Not used
Pin 29 – Not used
Pin 30 – Not used
Pin 31 – Diagnostic Signal – Brown/White -> Pin 12 of diagnostic plug.

Small (5 pins) Black plug on the Climate Box (near the Blower).(Blower's controller)

Pin 01 – + 12Volt - Black -> Pin 06 of plug of old Manual Climate.
Pin 02 – Signal from ECC electronic panel – Black/Blue -> Pin 17 from ECC (already connected by you on ECC 32 pin plug)
Pin 03 – Ground – Brown -> Pin 04 of plug of old Manual Climate.
Pin 04 – Signal from ECC electronic panel – Brown/Blue -> Pin 18 from ECC (already connected by you on ECC 32 pin plug)
Pin 05 – Not used.

2 Extra pins –> Blower voltage. Already connected on a Climate Box.

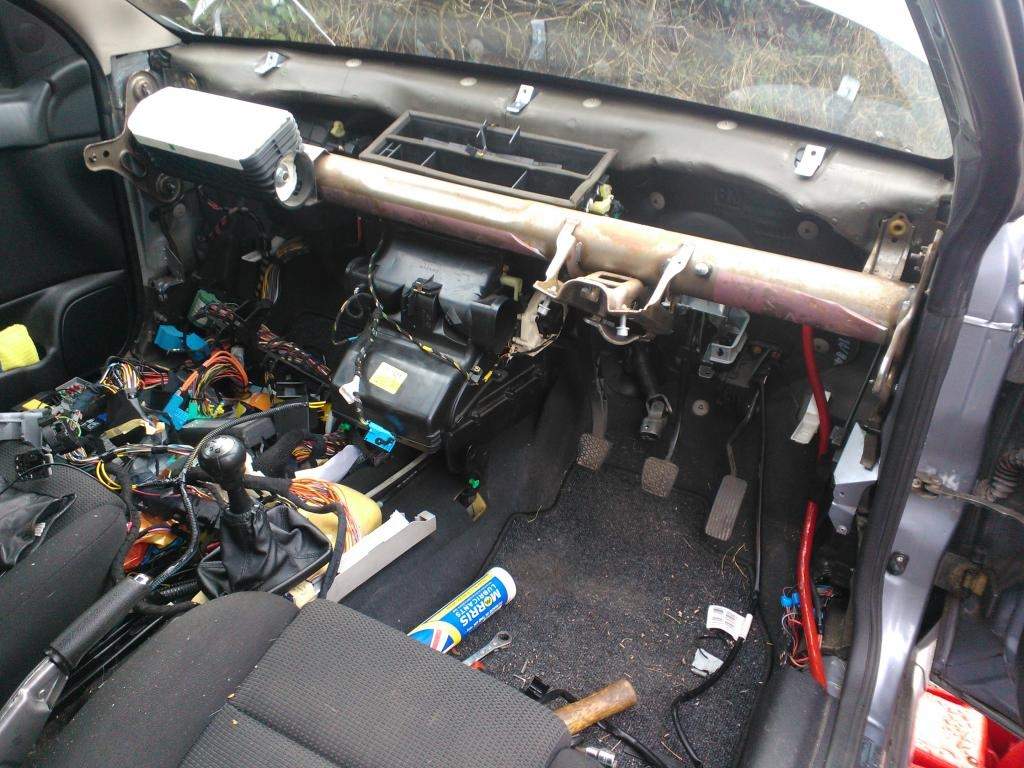

it gets better now the looms all disconnected i cant shut the window and theres a big hole in the dash and its now snowing



[corsaZ22se]

the earth/live wires joined in that way with duct tape look a bit messy, supprised me first time i found one like that. ever heard of heat shrink mr vauxhall??



[Sjdickso]

As said before I wouldn't know where to start with all that Carl, good luck with it.



[evocarlos]

air box and support beam are back in just need to get the drain screws back in then sort the wiring out
will post pics later



[astra22bertoneauto]

Once you've got it all installed you'll love it! Ive got climate on my black astra coupe but the orange leds in the display are horrible......



[evocarlos]

Once you've got it all installed you'll love it! Ive got climate on my black astra coupe but the orange leds in the display are horrible......

this im hoping for nice and cool in the summer and nice and warm in the winter
but as you say about the orange LED's ive got a 2nd controller coming so i can take it all apart and white LED it
http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=170994369005

back to the job inhand

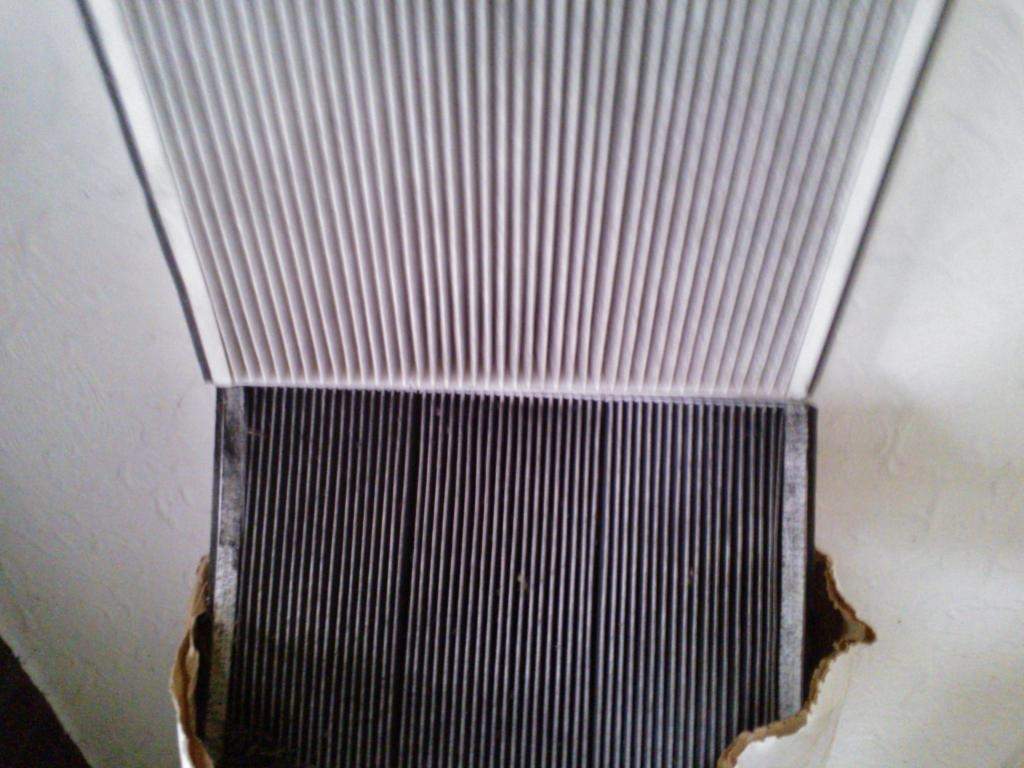

while the airbox's were out i took the new panel filter from mine and fitted it to the C/C air box
glad i did it was well dirty

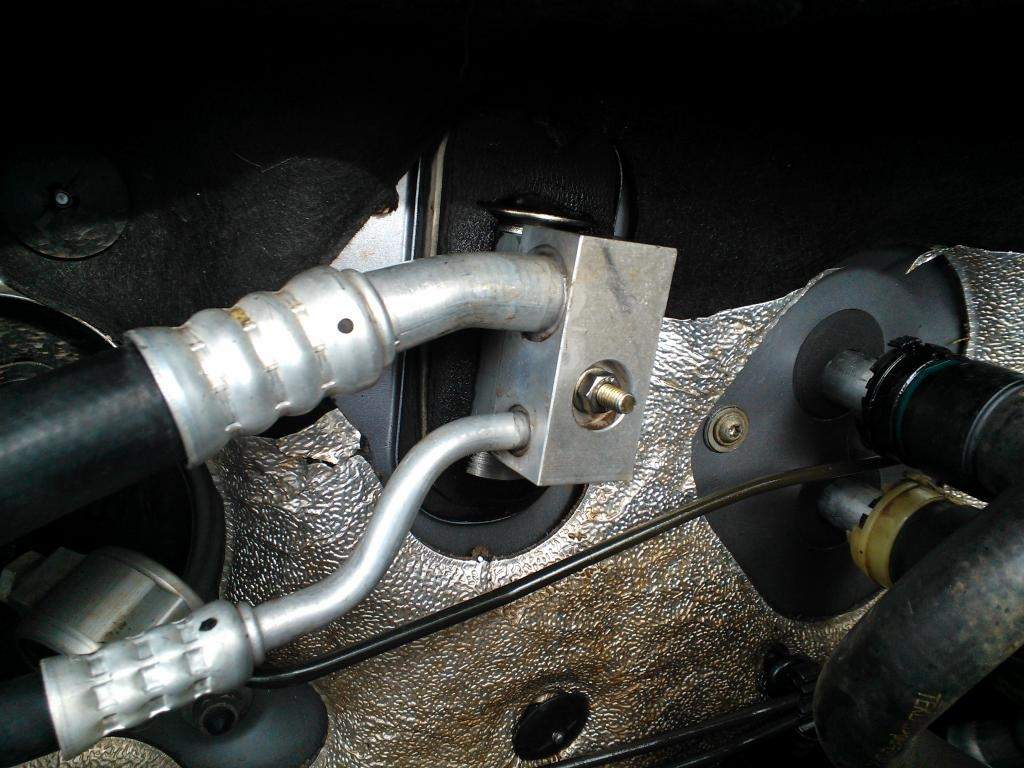

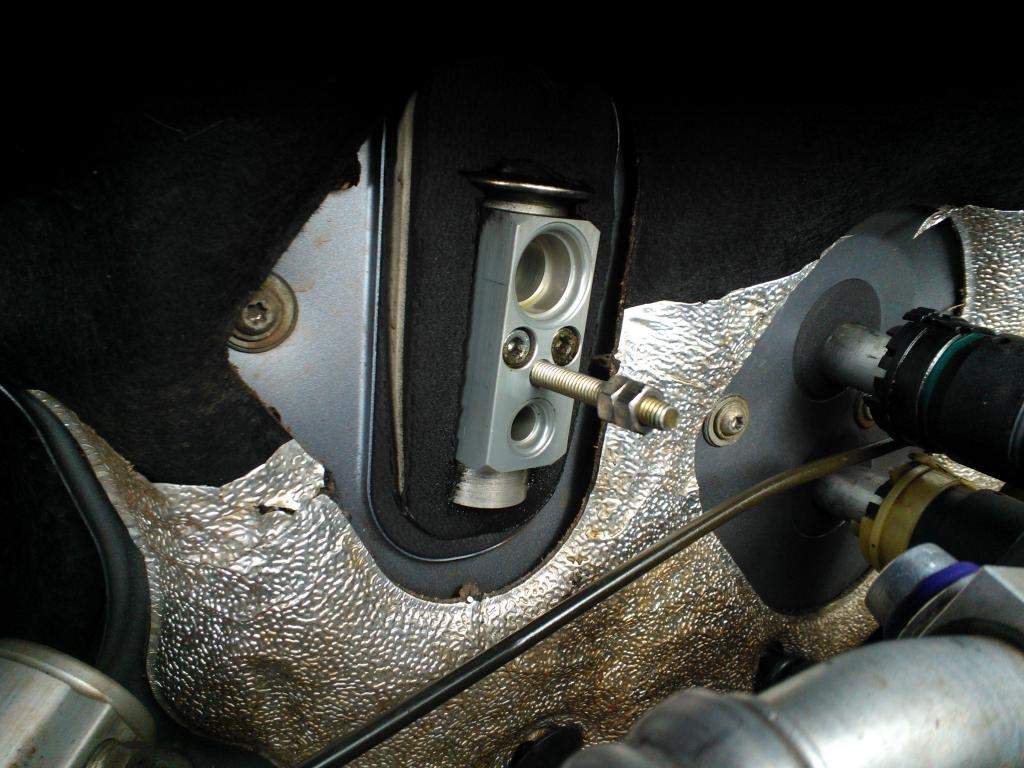

had an issue with the a/c pipes not locking down at a closer look the thred was bad so ive made use of the good thread that was deeper in the hole and fitted a stud

problem solved

heres the air box ,pedals ,beam back in im just in the house now to start the wiring

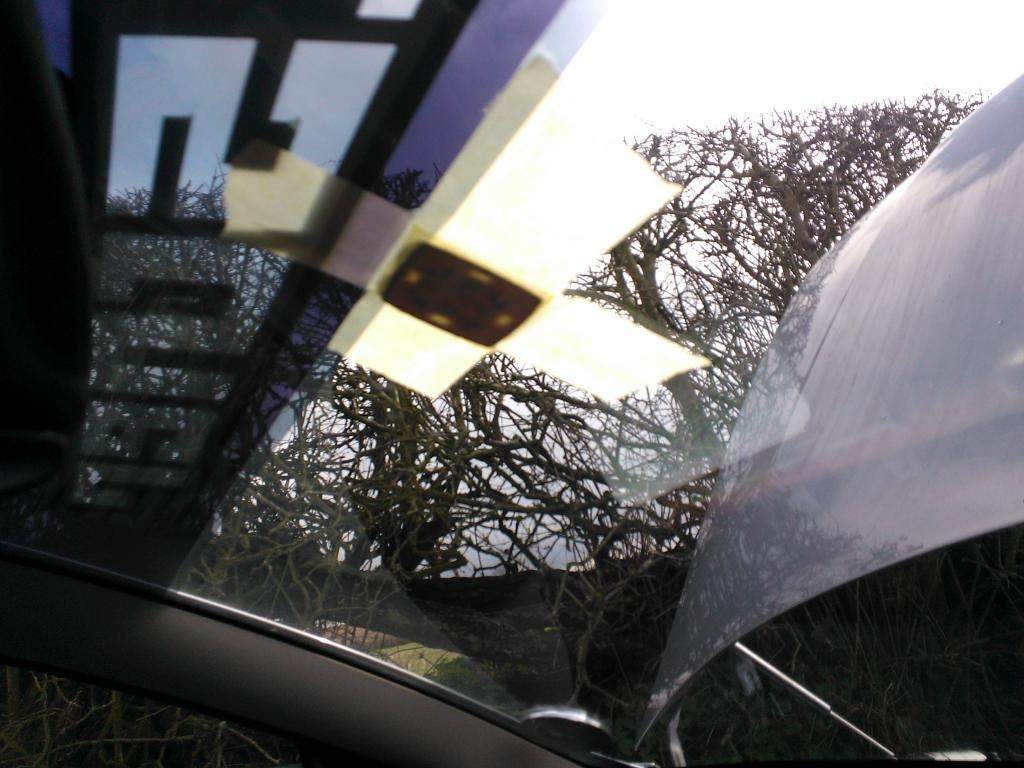

while i was thinking about it i glued my auto wiper sensor to the screen maybe they will work now its fitted

im going to use wires from the cabby loom to make the auto levels part of my loom so matching colors and removing pins

hope i can find all the right colors



[evocarlos]

so the wirings going well



[MikeS]

pmsl



[Matt]

so the wirings going well

What's gone wrong?



[evocarlos]

What's gone wrong?

nout yet im still soldering and trying to pick up the wires 5 left

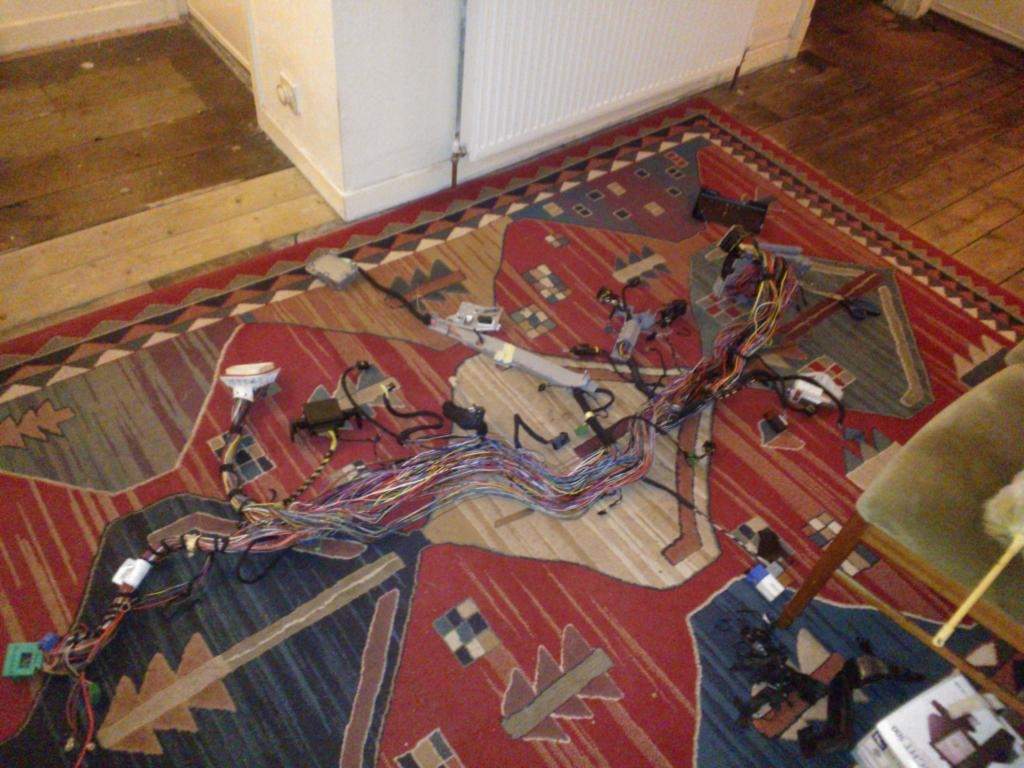

old bit vs new

good job i have a 1300w soldering iron

motor power and 2 control wires done

going back together slowly



[astra22bertoneauto]

Sounds like you've opened up a can of worms......but im sure you'll get there



[evocarlos]

Sounds like you've opened up a can of worms......but im sure you'll get there

car has no brown/volet thru bulk head connector need to fit one
also found the brown/white wire can go to pin 20 of the speedo plug
5 wires left its pitch black out side and cold but im still going for it

Pin 01 – + 12Volt (continuous voltage) – Red)
Pin 02 – Ground -> Brown
Pin 03 – Ground -> Brown -> Connect to Pin 2
Pin 04 – + 12 Volt (Ignition Signal) – Black
Pin 05 – Light Signal – Grey/Yellow –> Pin 05 of plug of old Manual Climate.
Pin 06 – Not used
Pin 07 – Not used
Pin 08 – Not used
Pin 09 – Not used
Pin 10 – Not used
Pin 11 – Not used
Pin 12 – Not used
Pin 13 – Not used
Pin 14 – Not used
Pin 15 – Signal Rear Defroster – Black/White -> Pin 02 of plug of old Manual Climate.
Pin 16 – Signal Rear Defroster – Black -> Pin 07 of plug of old Manual Climate.
Pin 17 – Controller of Blower – Black/Blue -> Pin 02 of the small (5 pins) black plug on the Climate Box (near the Blower).
Pin 18 – Controller of Blower – Brown/Blue -> Pin 04 of the small (5 pins) black plug on the Climate Box (near the Blower).
Pin 19 – Motor ECU - Black/Green -> Pin 01 of plug of old Manual Climate.
Pin 20 – MKM (Motor Clima Module) – Brown/Violet -> Pin 17 of MKM (front, left, behind bumper – only exists one wire with this color on MKM plugs, it’s only search for it)
Pin 21 – Speed Signal - Blue/Red -> (find it on TID/MID/GID/CID plug – Blue/Red wire, only exists one wire with this color on TID/MID/GID/CID plug, it’s only search for it)
Pin 22 – Rotation Motor Signal – Green -> Pin 20 of Instrument Panel (or Pin 06 of MID/GID/CID - Not TID).
Pin 23 – Not Used.
Pin 24 – Outside Temperature - Blue -> Pin 07 of TID plug, or 03 of MID/GID/CID plug)
Pin 25 – Not used
Pin 26 – Not used
Pin 27 – Not used
Pin 28 – Not used
Pin 29 – Not used
Pin 30 – Not used
Pin 31 – Diagnostic Signal – Brown/White -> Pin 12 of diagnostic plug.

Small (5 pins) Black plug on the Climate Box (near the Blower).(Blower's controller)

Pin 01 – + 12Volt - Black -> Pin 06 of plug of old Manual Climate.
Pin 02 – Signal from ECC electronic panel – Black/Blue -> Pin 17 from ECC (already connected by you on ECC 32 pin plug)
Pin 03 – Ground – Brown -> Pin 04 of plug of old Manual Climate.
Pin 04 – Signal from ECC electronic panel – Brown/Blue -> Pin 18 from ECC (already connected by you on ECC 32 pin plug)
Pin 05 – Not used

green done red not done or not there or not used



[MikeS]

Pin 20 – MKM (Motor Clima Module) – Brown/Violet -> Pin 17 of MKM (front, left, behind bumper – only exists one wire with this color on MKM plugs, it’s only search for it)



[evocarlos]

Pin 20 – MKM (Motor Clima Module) – Brown/Violet -> Pin 17 of MKM (front, left, behind bumper – only exists one wire with this color on MKM plugs, it’s only search for it)

ive just taken the pin with brown/violet from the bulkhead connector out of the cabby loom im hoping the engine bay loom has it already and makes connection
one in a million shot



[evocarlos]

Pin 22 – Rotation Motor Signal – Green -> Pin 20 of Instrument Panel (or Pin 06 of MID/GID/CID - Not TID).
Pin 31 – Diagnostic Signal – Brown/White -> Pin 12 of diagnostic plug.
Pin 01 – + 12Volt (continuous voltage) – Red) speedo plug pin 4
Pin 24 – Outside Temperature - Blue -> Pin 07 of TID plug, or 03 of MID/GID/CID plug)
Pin 04 – + 12 Volt (Ignition Signal) – Black ->pin 16 of MID/GID/CID plug

almost done
