So there I was enjoying the beautiful sunny weather blatting about the countryside when this decided to happen (n)

alternator adjuster - before

and after it decided to snap in half :whistle:

vocky

So an uprated version begins 🙂

I have so far made an alloy post to bolt to the sump.

I drilled an 8mm hole all the way through, then milled it with a 12mm bit to allow the allen key bolt head to sit inside and bolt the post to the sump. I also added a 45 degree chamfer so that the alloy post matches the sump mount diameter.

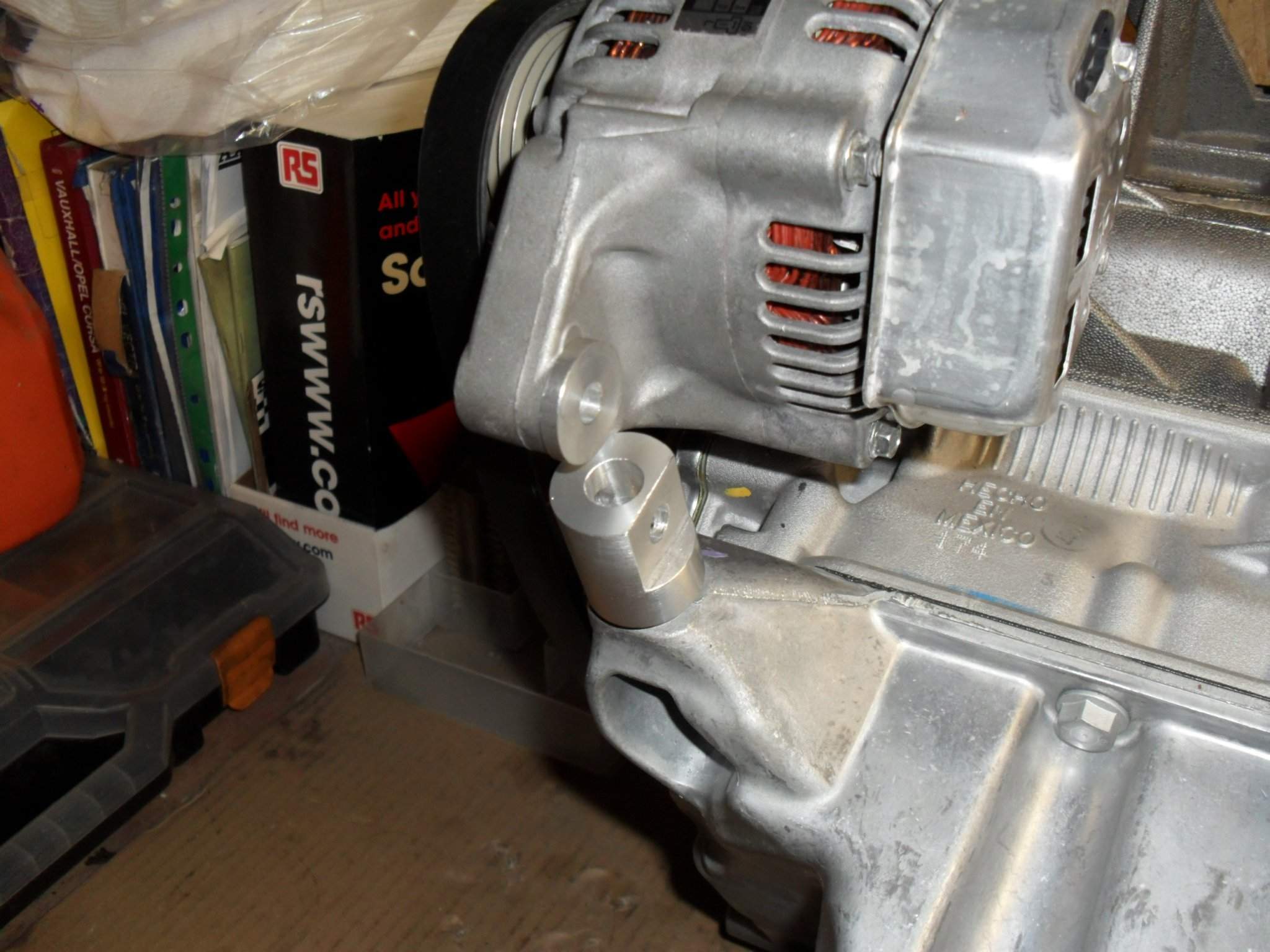

alloy post mounted to the sump

vocky

I have ordered a slightly longer drive belt and a new alternator adjuster mechanism, so once they arrive I will continue with the little modification 🙂

evocarlos

so i take it you used a different alternator for the t/b's ?

vocky

It's just a smaller Denso alternator, which saved about 5Kg in weight and being mounted lower down on the engine helps lower the centre of gravity by a tiny amount. Every little helps on a vx220 🙂

The itb's work fine with a standard alternator (y)

evocarlos

vocky said:
saved about 5Kg

are they really that different ?

vocky

evocarlos said:
are they really that different ?

I removed the standard belt tensioner, replaced the steel crank pulley for an under-drive alloy version and fitted the small Denso alternator = 5Kg weight saving

vocky

So to wrap this small mod up 🙂

Finished making the alloy post, just milled a flat for the tensioner arm on one side and a small flat for the fixing bolt on the other side.

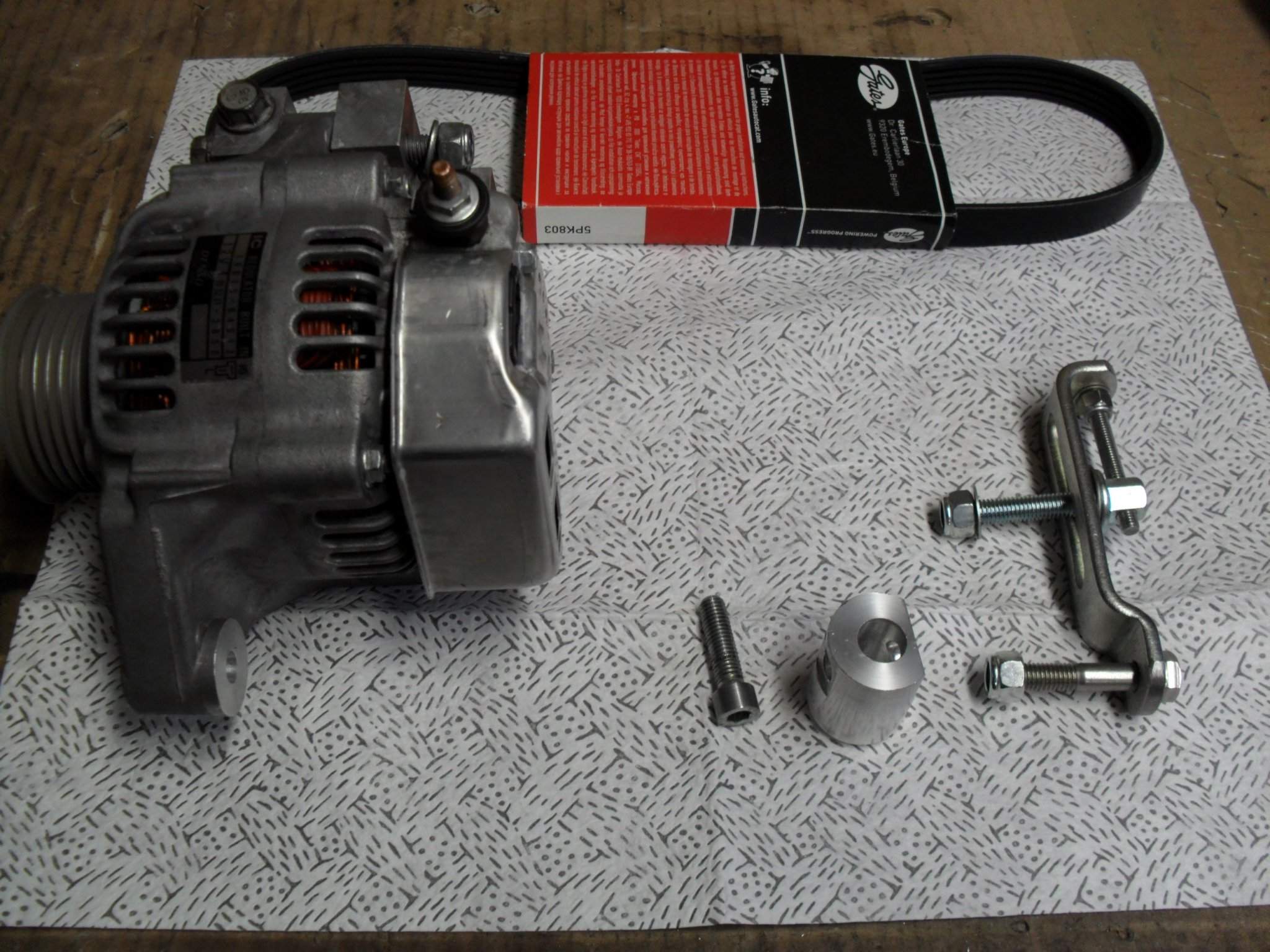

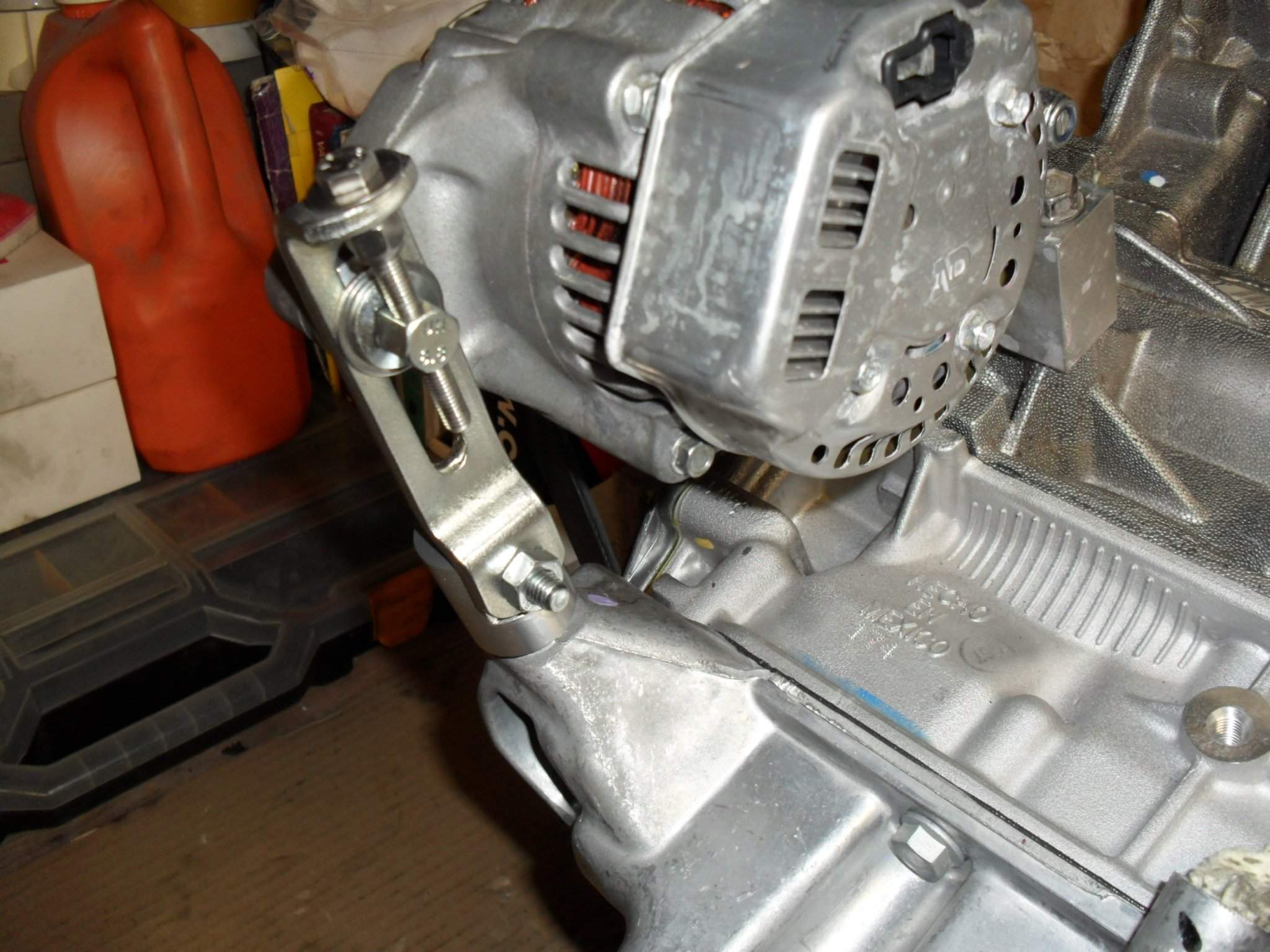

added a modified Volvo belt tensioner

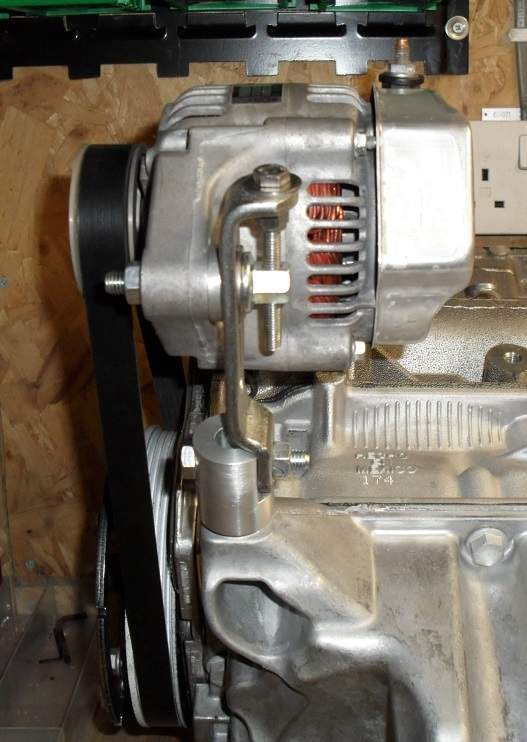

and fitted a sleeve into the Denso alternator to reduce the size of the fixing bolt from a M10 to a M8, I also added 4mm to the sleeve to act as a spacer so the Volvo belt tensioner fitted perfectly

Just used normal M8 nuts for the trial build, they will be swapped for nyloc nuts when it gets fitted to my vx220.

evocarlos

its certainly thinking outside of the box 🙂 i like it

vocky

Fitting the new tensioner was fun :mad:

vocky

I have replaced the Sachs suspension with Quantum suspension, which is more track focused 🙂

Matt

^^ It's outside!!!!

vocky

Matt said:
^^ It's outside!!!!

I had just got back from a two hour drive and thought I would take a quick pic on my phone 😃

And that was the second day in a row I had a two hour drive in my vx :eek:

David_Dixon

Awesome work there Vocky! (y)
