Marty's Z22SE Rebuild

Marty64

Hi, little help needed:

I try to put valve springs on head but i saw that OEM valves lock keepers have 3 grooves and Supertech valves have one groove :cry:
Have you a part number to order good valve lock keepers ? Or i may bought some L61 keepers ?
I saw some 5.5mm on ebay but my Supertech valves diameters are 5.92 and 5.96mm.

OEM Z22SE:

"Supertech" Needed:

Marty64

Hi, little help needed:

Today, I tried to put valve springs on head but i saw that OEM valves lock keepers have 3 grooves and Supertech valves have one groove :cry:
Have you a part number to order good valve lock keepers ? Or i may bought some L61 keepers ?
I saw some 5.5mm on ebay but my Supertech valves diameters are 5.92 and 5.96mm.

OEM Z22SE:

"Supertech" Needed:

Marty64

I think i found good ones:

Supertech KPR-6S-7 / 6mm / one groove
https://www.speedfactoryracing.net/supertech-performance-kpr-6s-7-6mm-single-valve-lock-conversion-2-per-valve

Someone can confirm me ?

Marty64

Valves lock keepers received from Supertech, go again :

ZZP #82 Valves springs set and valves stem seals

Hydraulic lifters:

Roller rocker:

Stage 2 Comp Cams:

Marty64

ARP Bolts:

COMETIC 87mm Head Gasket

Sump

Marty64

Hi guys,
Somebody told me that's better to apply sealent gasket on The sump instead of on The block due to the oil way. Do you think i have to do it again or it's ok like that ?

vocky

I always add the sealant to the sump, but either way works (y)

Marty64

Engine rebuild stop cause i broke my balance shaft bearing :cry:

Decided to start SC Pre Rad :

Decided so stop bugs and stones to enter in car :

Pre Charge Rad job done :

Marty64

Have some hassles when fitting timing chain:
I've broken a balance shaft bearing and a screw into the block.
After received part and tap a new hole for a larger bolt, i done timing/balance chains:

After, decided to put in place the TTV lightned flywheel. I'll put loctite 243 on thread as i seen in another project.

Now, i have to load chain pretensioner because i unleashed it by mistake.
But it did not load when i push it down and turning it clockwise 🙁
Do i have to open it and load it when open ?

KevinH

Best to put it back together so that the internal piston is all locked, assemble into body of tensioner then tap it against something hard to release it and then install.

Marty64

Tried that Kevin but it not activate.
*I have a Z20NET version

Marty64

I found an Evocarlos link to a Z20NET tensioner by open it:
http://www.cobaltss.net/forums/how-guide-43/how-change-timing-chain-tensioner-276244/

will that try tomorrow.

KevinH

GM recommend fitting the tensioner unactivated, then activating it when it's fitted in the engine, but due to possible non activation of the tensioner with it installed in the engine it is recommended to fit it activated, thus when installing the new chain kit ensure to prime the oil system first before starting, then the chain won't jump the exhaust sprocket when the engine fires and the tensioner is waiting for the oil pressure.

evocarlos

fit the tensioner activated it is the best and sure fire way to be sure its done 🙂

i did the head bolts to the gm torque guide 🙂 heres the sequence 🙂

Marty64

Thank You Carl,

I've open the tension and i could reactive it.
Fit on the block, tap on chain but don't seen anything move. Remove it and seen that it was out.
I finaly decided has you say to fit tensioner actived, i'm sure it's well done.

Another problem come : the B207 coolant nipple to head cylinder isn't the same as my z22se one 🙁
Do you know how to do, or part numbers to buy ?
It looks like a non standard thread size.
Do i have to tap a new nipple screw or maybe do with banjo or adpater threads ?

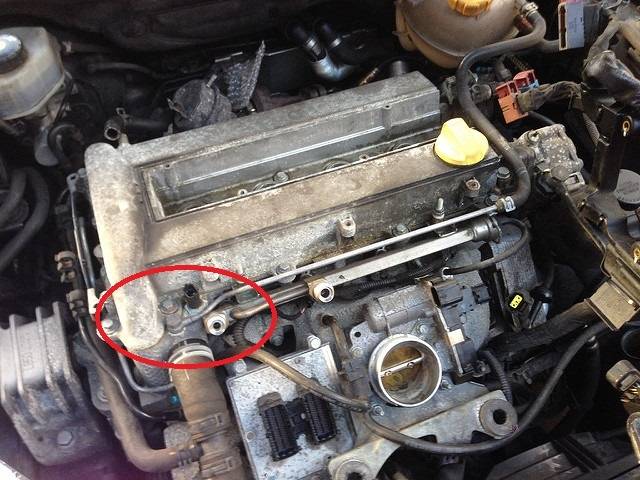

Not my engine, but this pic show you what i need:

evocarlos

i left the b207 pipe in place the connected the bleed pipe to the other end once i had cut the rubber pipe to suit

Marty64

I don't have the b207 pipe ! That's what i'm looking for Carl

evocarlos

Marty64 said:
I don't have the b207 pipe ! That's what i'm looking for Carl

i cant get you the part numbers the web site i uesd to get them has gone to shit
https://www.partsbase.org/opel/vectra-c-2002-2008-6--7-7-1-hoses-and-pipes-contd-z20net-lq8-petrol-engine/#p-ope-6336082

evocarlos

12787095 the pipe #17

12797711 BOLT, BANJO #15

55564532 GASKET, DUCT #21 x 2 required

Marty64

Thank you Evocarlos 😉
