astra g 6 speed conversion adventures

evocarlos

@[deleted]
heres how i made sence of the selectors

https://www.youtube.com/watch?v=MXsRfbOiBhE

evocarlos

just in time 🙂

9 x bearings,4 x seals ,3 x circlips,1 x selector shaft o ring

the box of bits

even came with a layout 🙂

evocarlos

restacked all the gears and selectors next stop 50 ton press 🙂

evocarlos

the press 🙂

all new bearings fitted and both packs rebuilt

new outer races fitted to gearbox case

gears installed

the new o-ring for the selector is the wrong size

selector arm installed

new races fitted to the outer gearbox case

it fits 🙂

now to try and figure out what bolt goes where 🙂

evocarlos

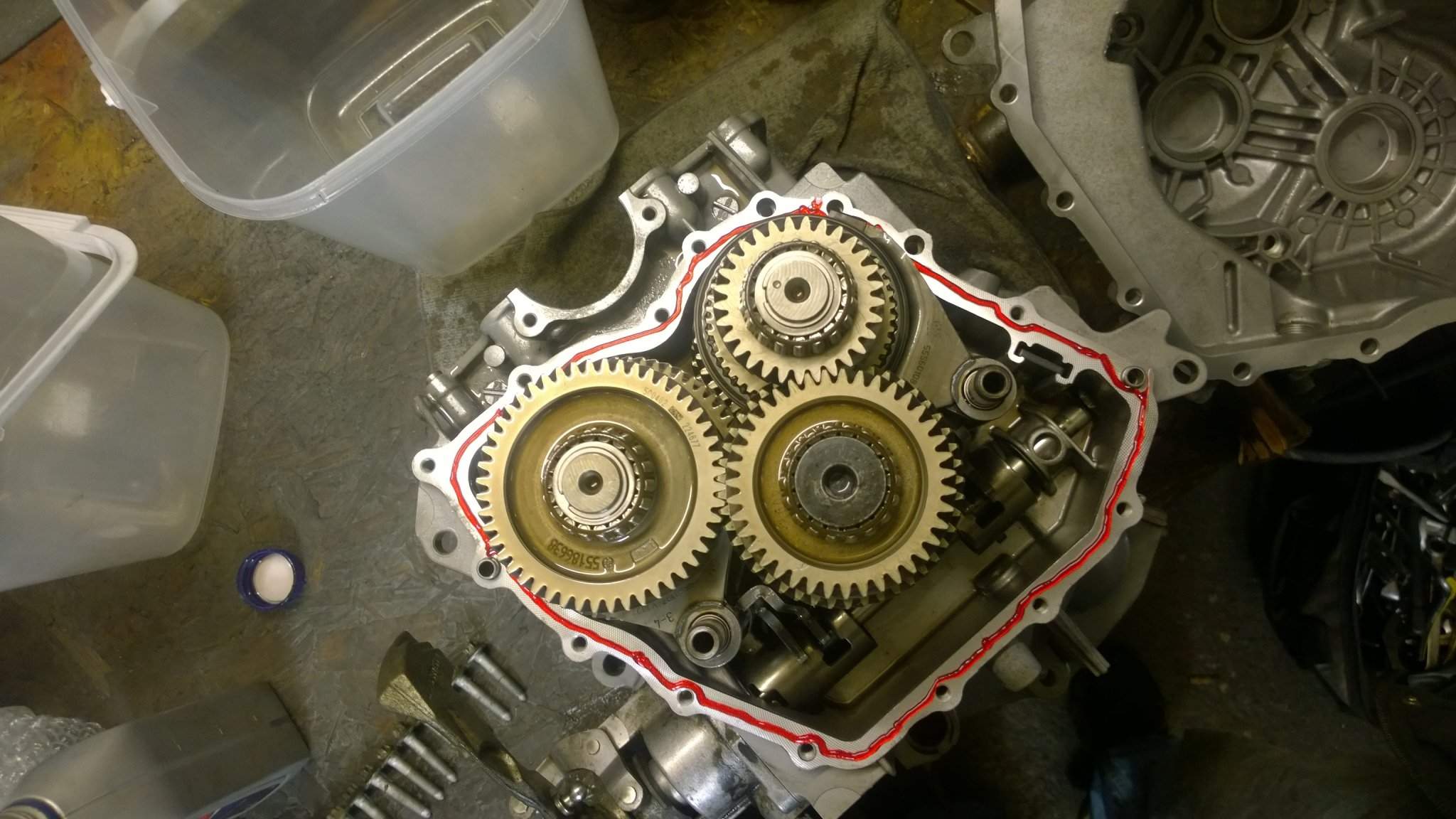

sealant applied to the case

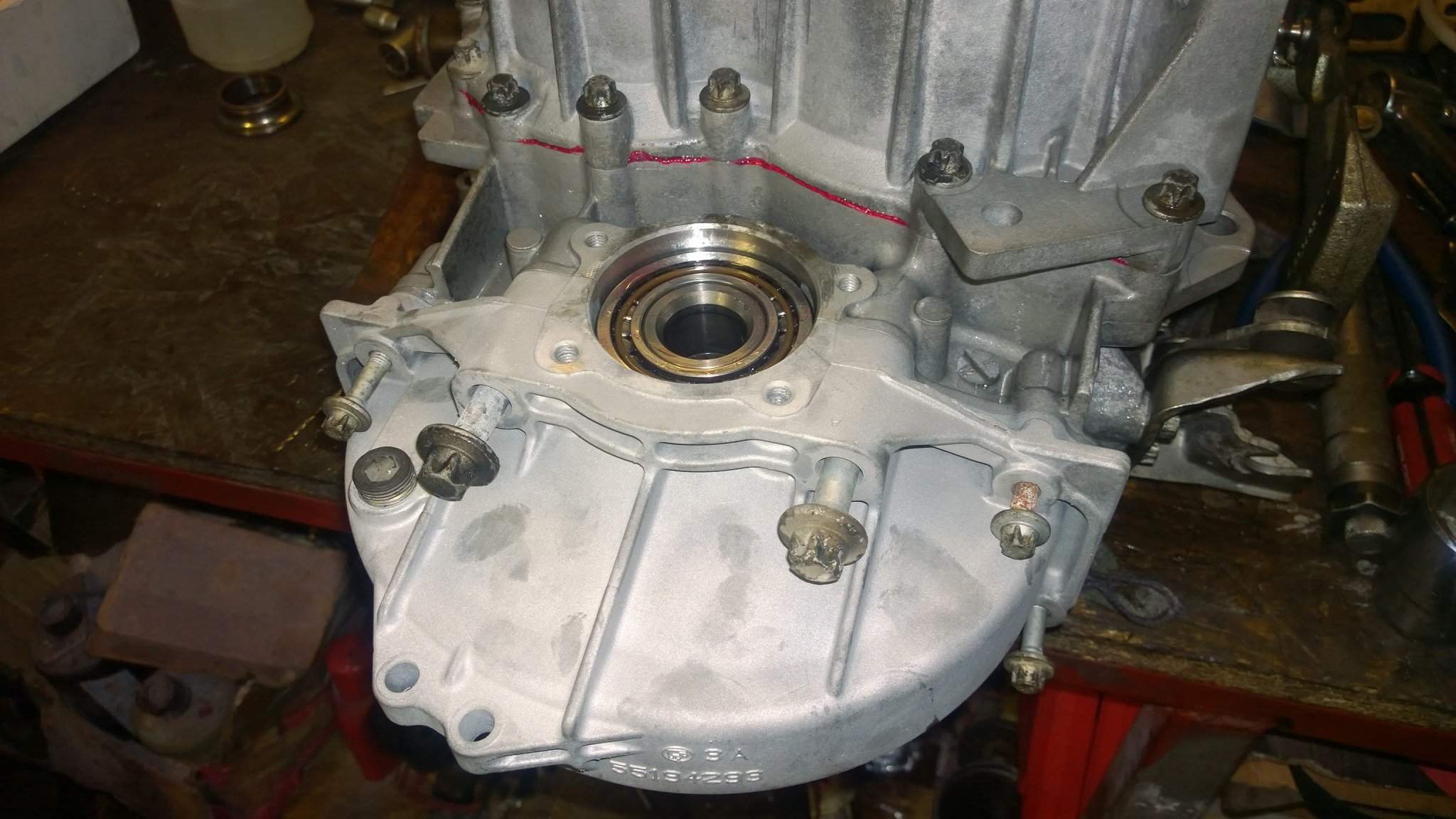

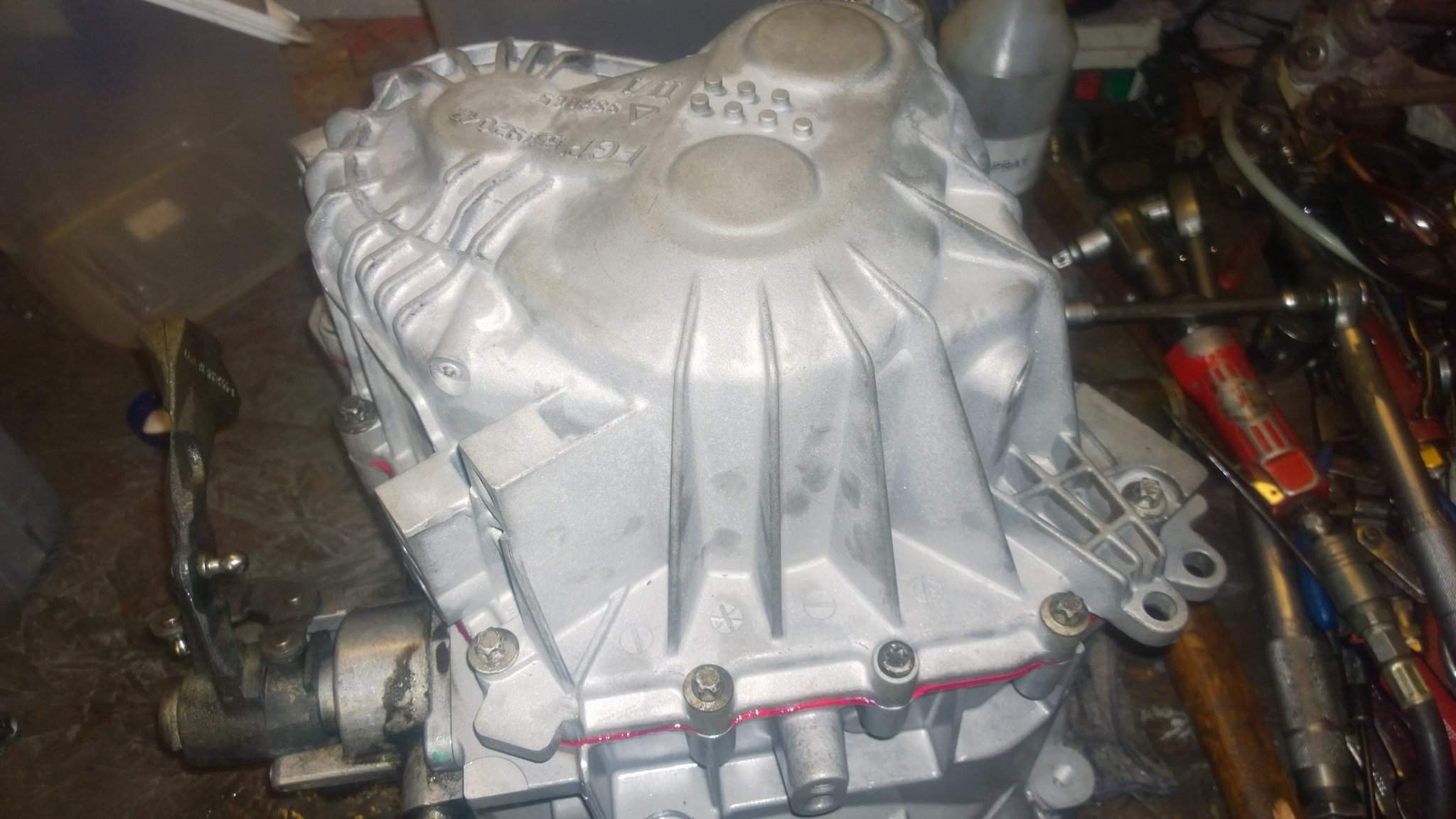

bolts in and torqued down

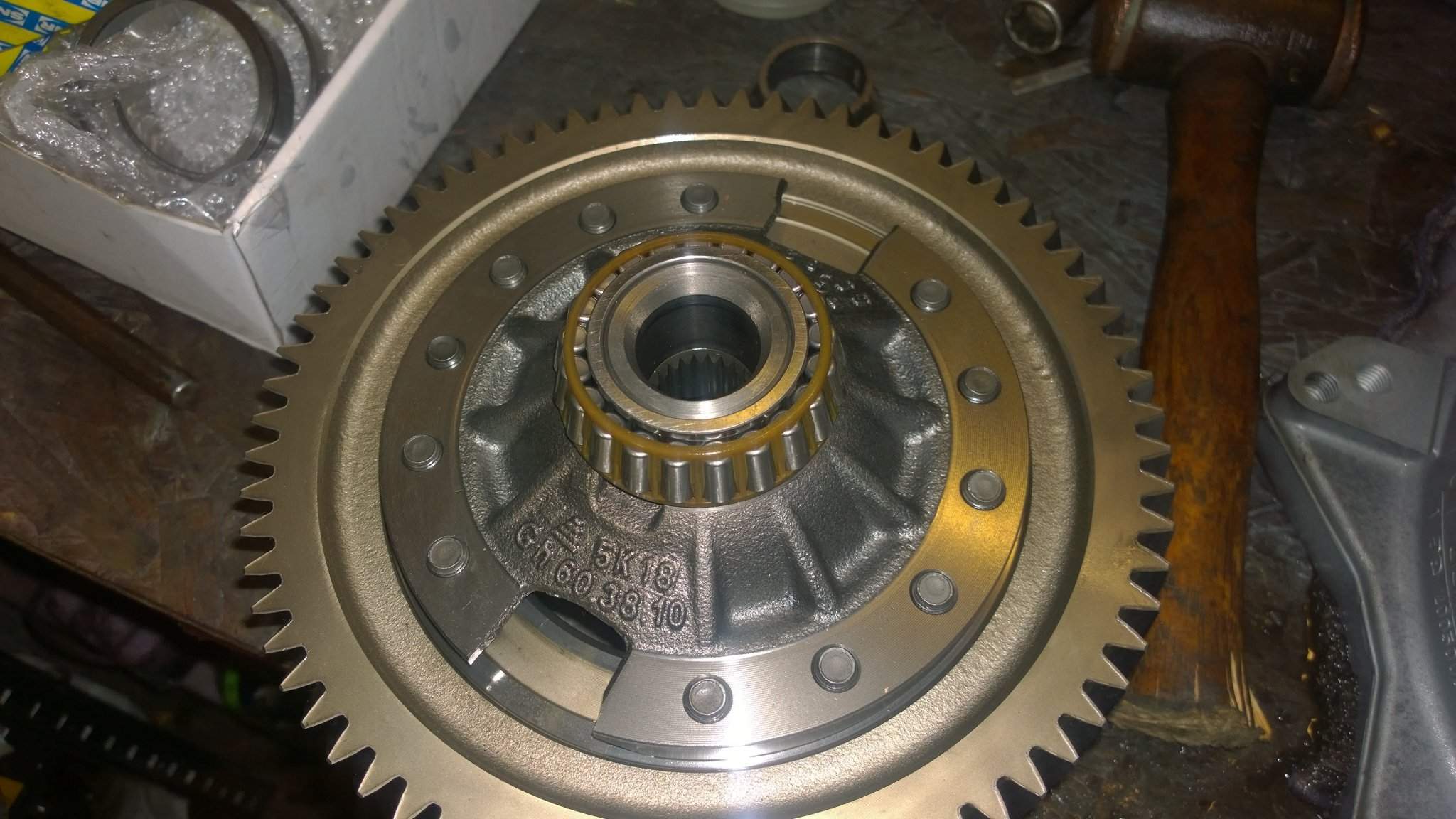

new bearings installed on the diff

diff installed

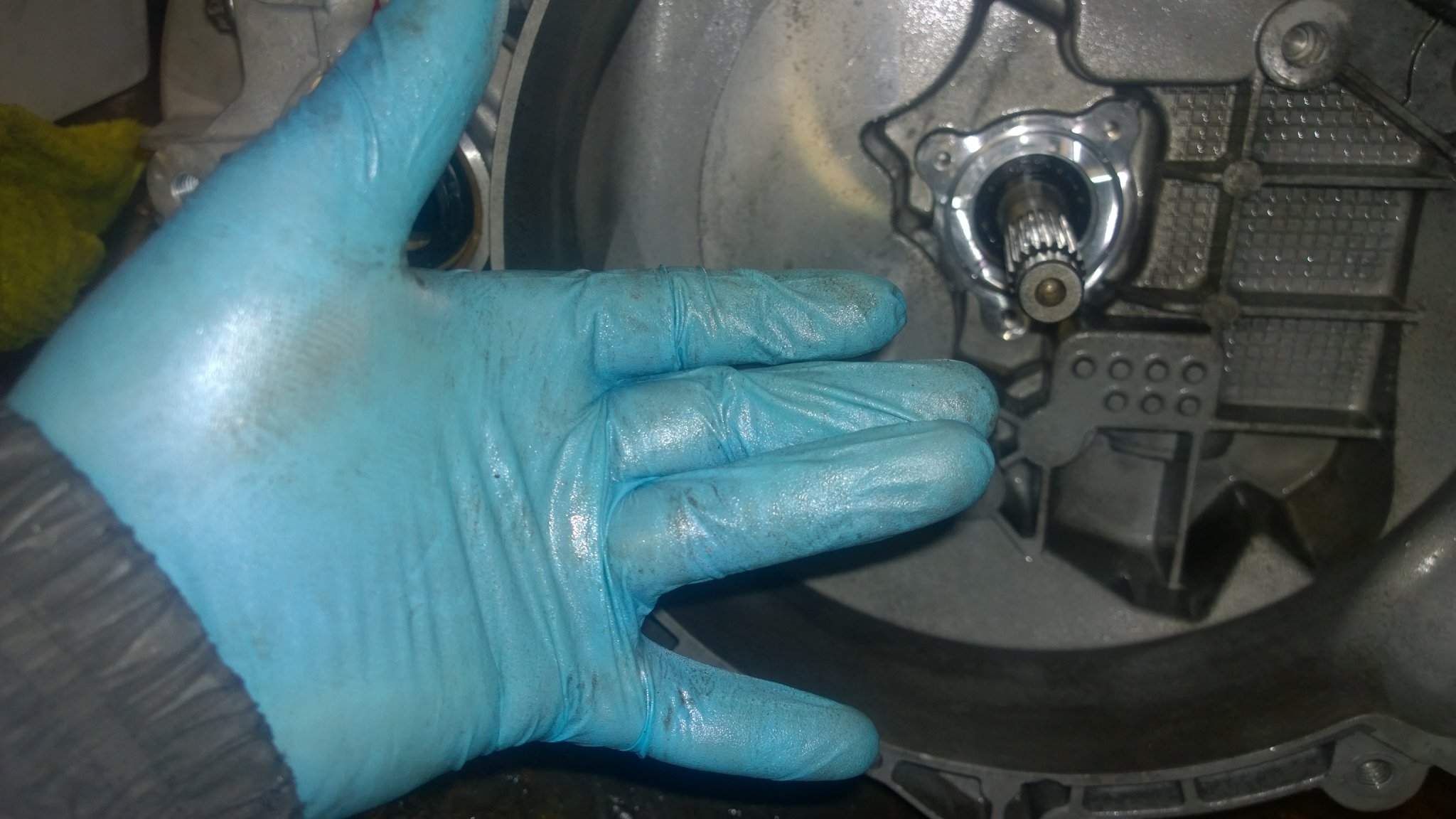

random spasm in my finger lol

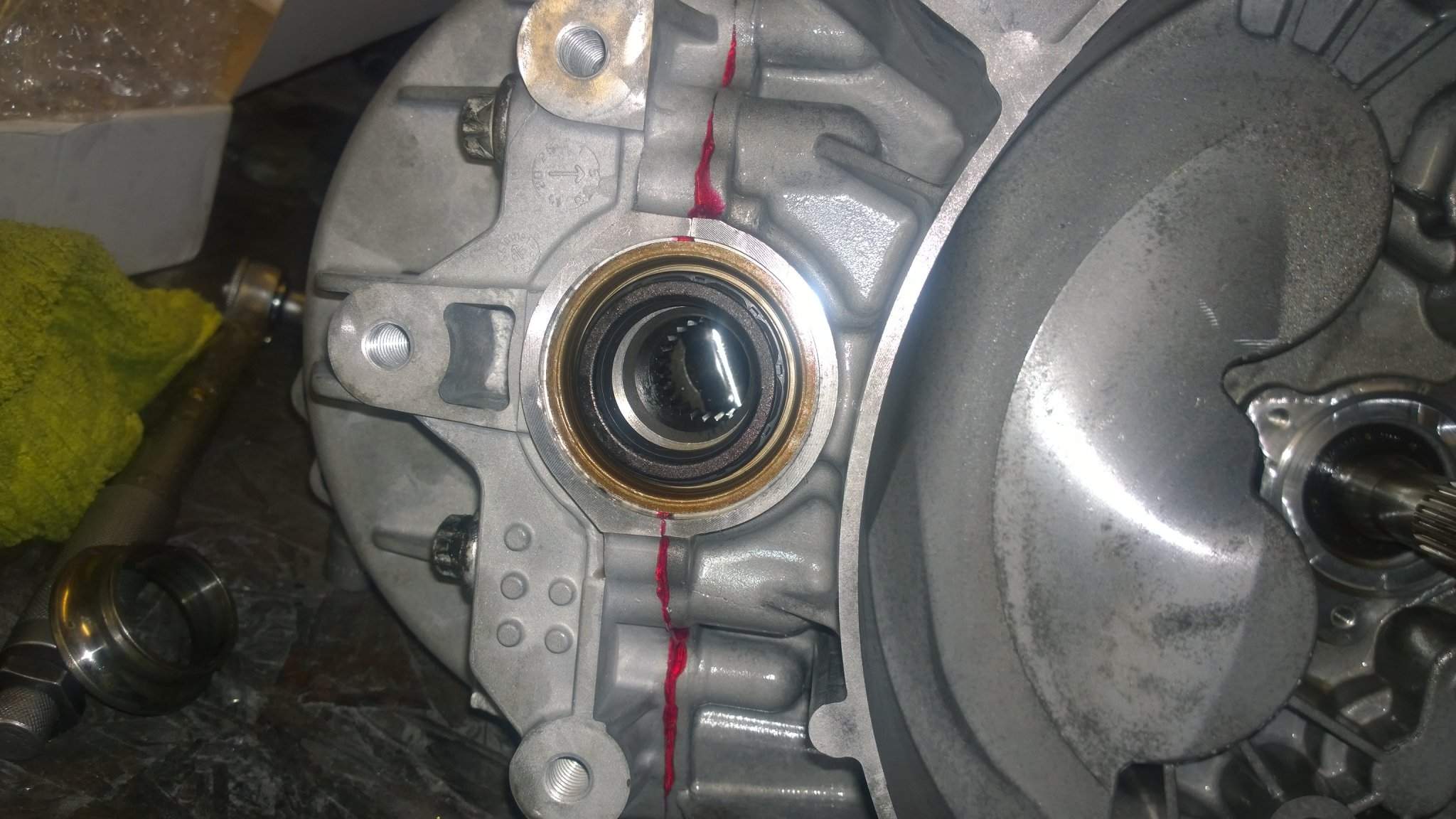

new shaft seals

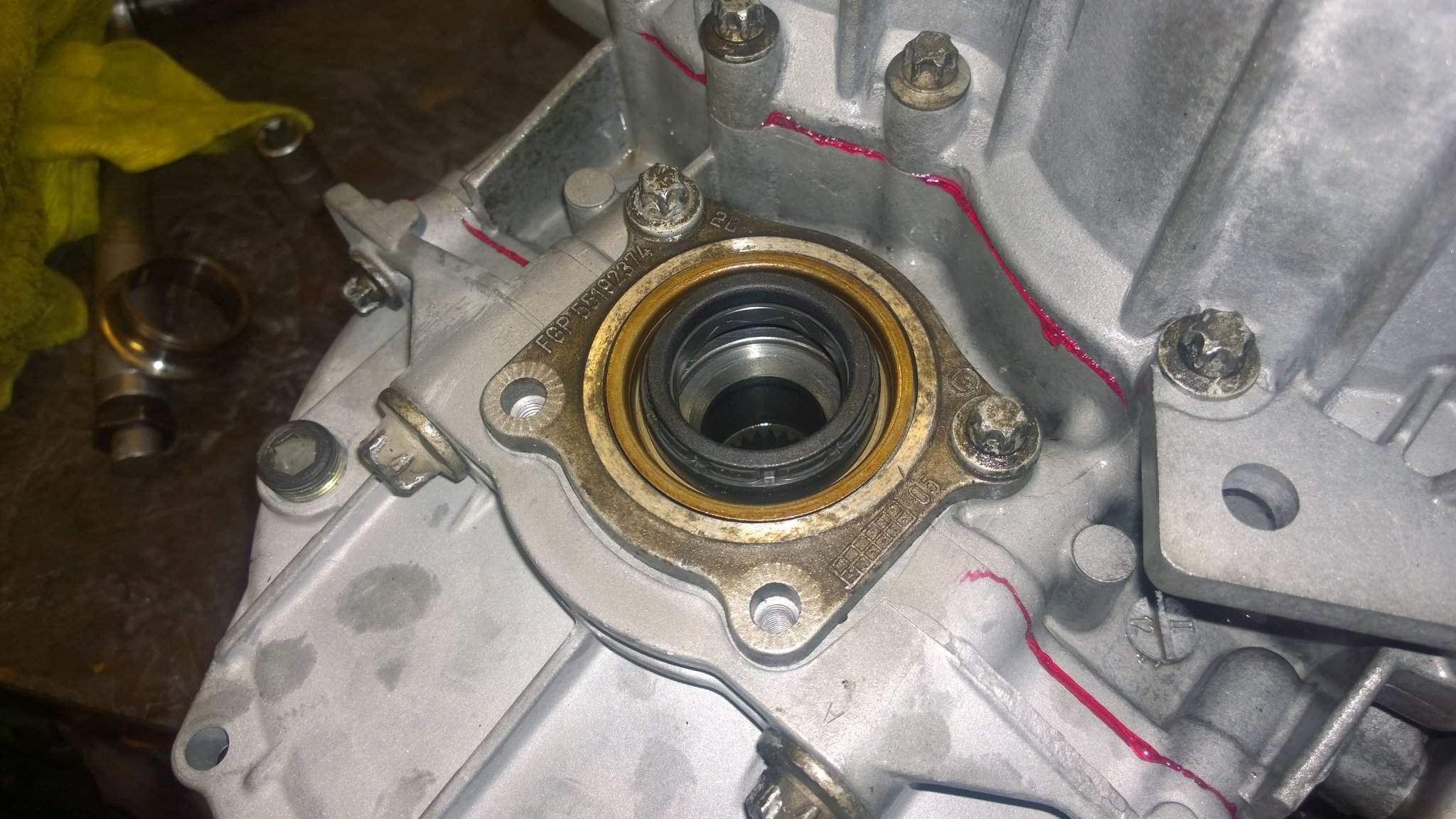

both sides (the oring was for this flange not the selector lol)

almost done

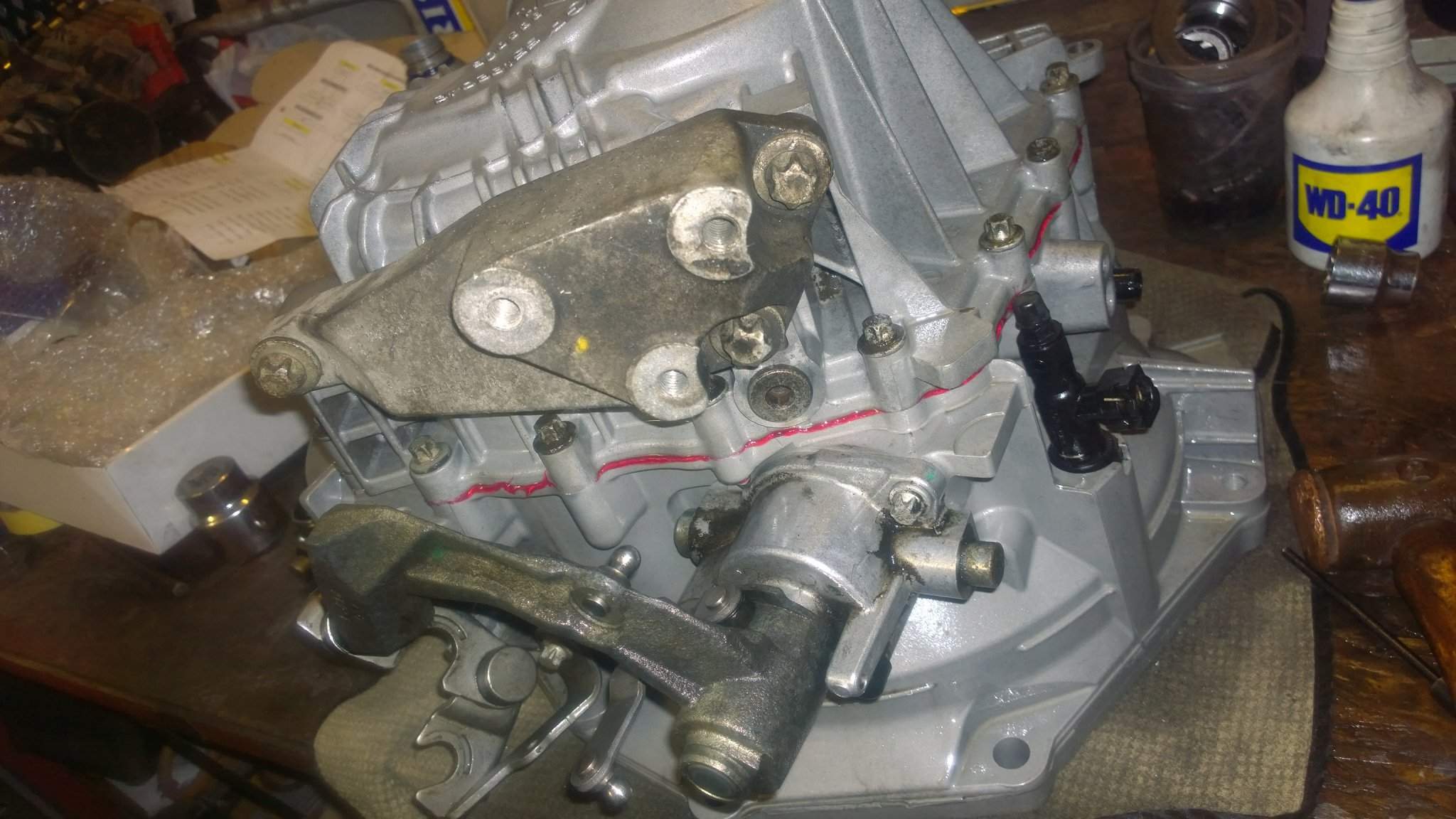

gear box mount installed ,plugs and csc pipework

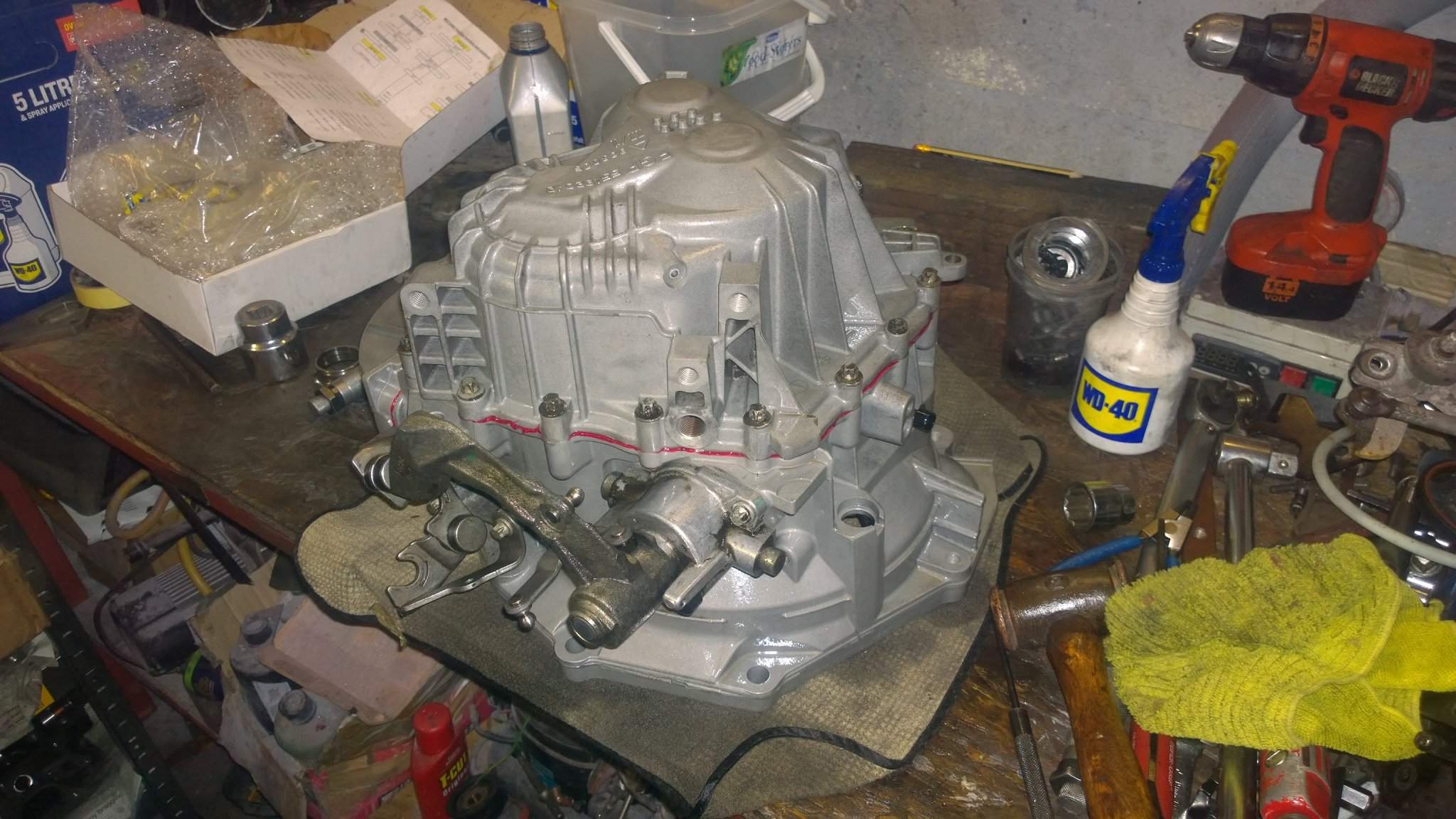

its done! 🙂

flatbeat

Looking good mate

Matt

Excellent work Carl. That's around £1.5k in labour you've just saved yourself there.

What oil are you going to be using for the box?

Dave_Gilbert

shit hot there mate.

well done as allways

evocarlos

thanks all

wont of been able to do it if the op happens in the morning so pulled my socks up and got it done 🙂

@[deleted] just GM atf

evocarlos

i had looked at the other options but when i put the oil in the f23 is made it real bad it runs better on atf even tho the f23 is knackered

evocarlos

@[deleted] what did you use in yours and was it beneficial to its running ?

@[deleted]
does this mean this one is the same as the vxr with the 3.83 f/d ?

Matt

This
https://z22se.co.uk/resources/m32-oil-change.2/

evocarlos

Matt said:
This
https://z22se.co.uk/resources/m32-oil-change.2/

£50 for 5l not bad i guess i plan on washing the box out again and then doing a 1000miles then swapping the oil

vocky

thats a Vectra side gearbox mount adaptor, you need an astra mount, £25 new from a dealer (y)

I used the cheapest Vauxhall gearbox oil, the box sounds loads better with that over the expensive vauxhall M32 g/box oil :confused:
Because the gearbox is behind you in a vx220 you can hear everything !

VXR is a type 1, so the ratios are different 🙂

evocarlos

i normally use D2 atf/mtf its £20 for 5l and easy to come by locally
http://www.morrislubricantsonline.co.uk/liquimatic-dii-atf-transmission-fluid.html

@[deleted]
take it im going to need the vxr mount to ?
mk5

mk4

in that list the zaffy b with the leh has the type2 with 3.94 🙂

i need to go in to you thread and see about the spacer for the csc it will save me a fortune on a new flywheel lol
still to get the centers changed on the clutch plates

evocarlos

m32 on the left and f23 on the right

box is in place but need the top and rear mount

the f23 one is all to cock

vocky

I had some astra H mounts, they went up the tip :oops:

You will probably need both the astra H side mounts, unless you can adapt them to fit

evocarlos

@[deleted] theses ones hehe 🙂

evocarlos

with the above brackets the box will fit as meant to and the shorter selector cables only thing i need now is a astra vxr stick the corsa one is all wrong lol
not bad for £70 for all the mounts even got 2 door rubbers to replace my split one

i now also have to remove the Vibra-Technic mount from my front mount and fit it to the vxr one :S

evocarlos

vxr top bracket fitted

vxr vs astra 2.2 mk4 same shape and size but the vxr has a longer piller down the center requiring a longer bolt

side mount got the normal pu18 treatment

wet finger and a nitrile glove to smooth it out

looks like the Vibra-Technics mount is a little smaller than the vxr mount so just filled that in with pu18 to 🙂
