astra g 6 speed conversion adventures

evocarlos

corsaZ22se said:
you going to replace all the bearings while its apart?

i am yes there cheap enuff at £180 for a full set of snr

dewismotorsport said:
My mates selling a quaife diff for a M32 if you fancy upgrading while its in bits

depends on the price ? can you find out for me

vocky said:
you should replace them as a matter of course whilst the box is apart, I used Timken in mine which have been fine (y)

thats the plan 🙂 after seeing the outer races of the inner bearings it was then a defo yes there getting done lol
going to go with the SNR the info on the net shows there now used in box's after 2006

the case is now in for cleaning will see what its like in a couple of days 🙂

dewismotorsport

Quaife Diff for an m32
as above quaife diff for an m32 gearbox (corsa vxr,astra vxr, zaffira vxr), its done around 4k miles and is like new

£400 collected from Plymouth or Portsmouth next week or £425 delivered

cheers rob

evocarlos

ended up sand blasting the case it did not come out as i had expected after the acid dip

much better

ordered the bearing and made a start to removing them

main input shaft bearings were a doddle

the bearings one the outer main shaft were easy

but i'm now stuck at this :s ?

@[deleted]
i will have to have a think about the diff will he go cheaper ?

dewismotorsport

Good work looks like new, be a shame to touch it with dirty hands.

I will ask him for you mate

dewismotorsport

Just got a reply and it's sold.

evocarlos

oh well 🙁

Dave_Gilbert

you sand blastered that yourself carl?

iv got 1 of them sandblasting guns, never used it but i would like to,

evocarlos

Dave Gilbert said:
you sand blastered that yourself carl?

iv got 1 of them sandblasting guns, never used it but i would like to,

yeah just a hand held gun asked the gaffer if i could do it in my booth at work i made a right mess lol

Dave_Gilbert

iv heard it goes everywhere, i dont think my 50l compressor would be able to keep up

evocarlos

next bit off cant do any more my pullers not long enuff 🙁

keeping them in the right order

stripping the races out of the casings little home made tool 🙂

it works like this

and leads to this

same goes for the 3 outer races the pretty much fall out lol

shimms

case modifcation

evocarlos

heres the pics of the modification from the interweb

evocarlos

sussed out not having a long enough puller 🙂 use 2

down to the bearing now

all parts for one shaft

and all parts for the other 🙂

corsaZ22se

just needs some one to come muddle them up! :LOL:

Dave_Gilbert

Yeh swap 3rd n 5th round hahaha

evocarlos

corsaZ22se said:
just needs some one to come muddle them up! :LOL:

don't worry i have a full schematic 🙂

Matt

So how does the case mod work to help with preventing the oil starvation?

evocarlos

Matt said:
So how does the case mod work to help with preventing the oil starvation?

good question i was lead to believe it guides oil into the bearing

evocarlos

bit more done but the bearings have not come
ive booked in with the local machine shop to use there 50ton press tomorrow as im off work for a days holiday but going to hospital on friday so might be out of action for 2 weeks

here what ive got done

diy parts was bin

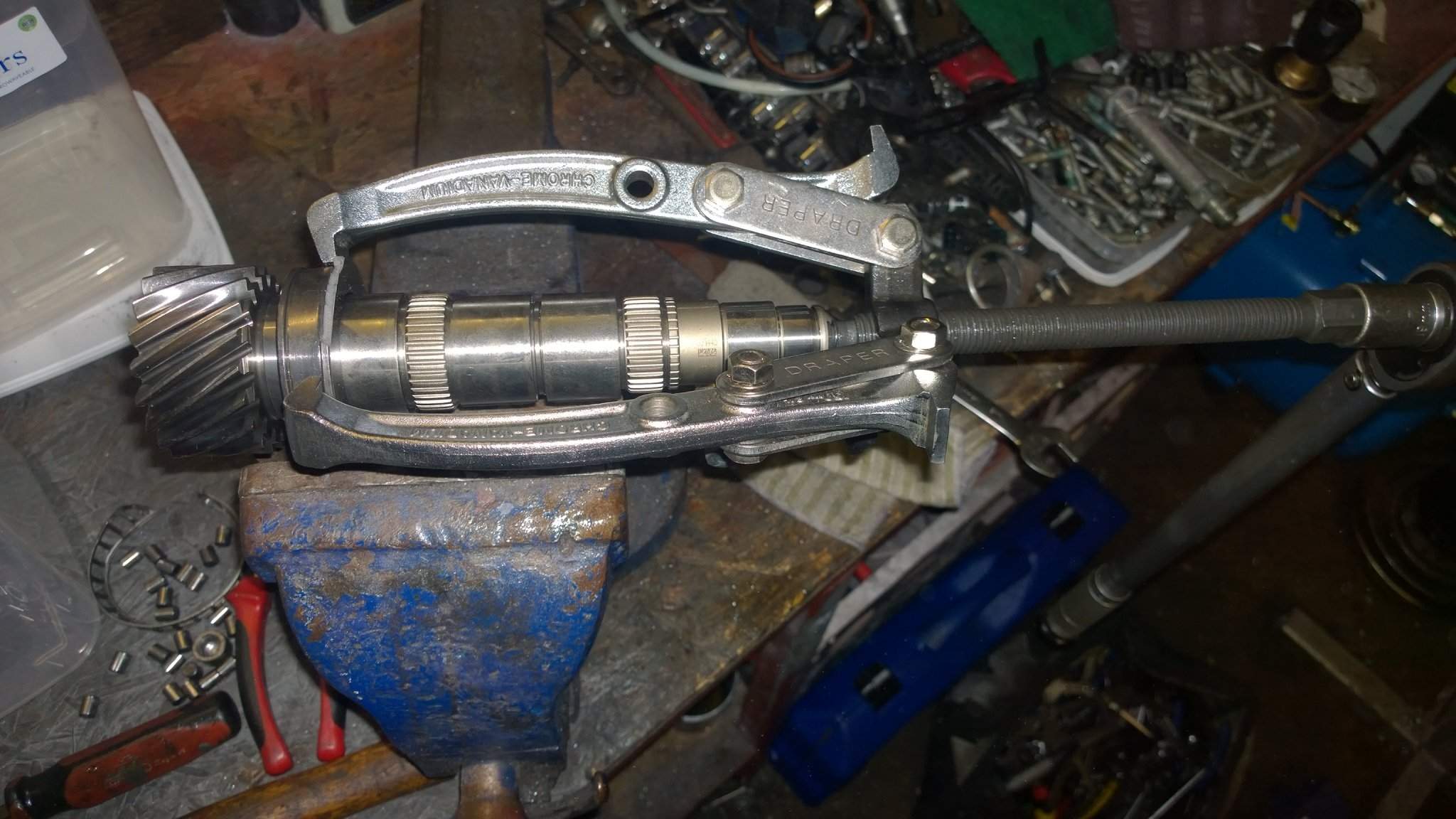

took the cap off the end off the pullers and clipped the cage on the bearing after a bit of braking it came off

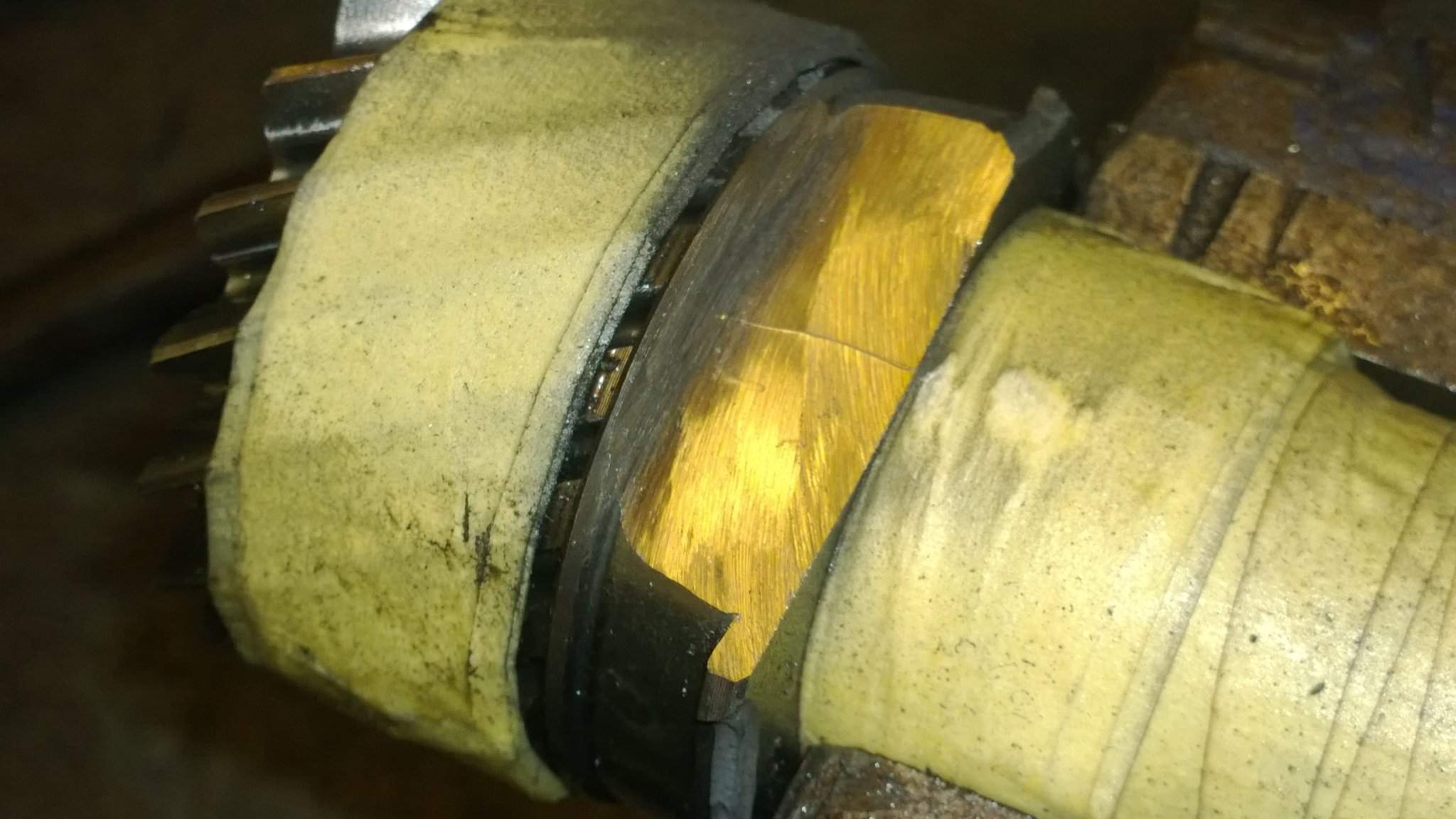

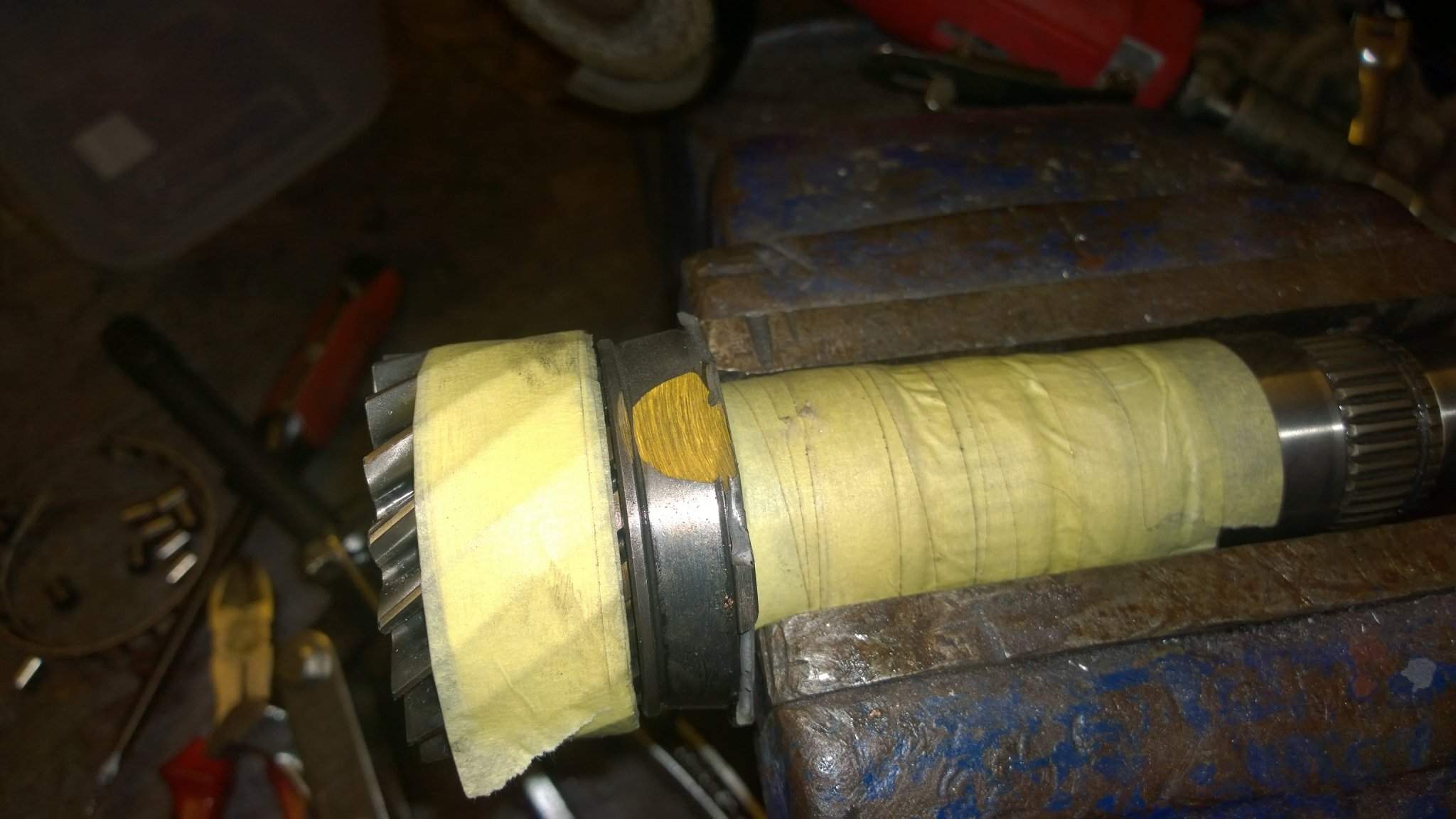

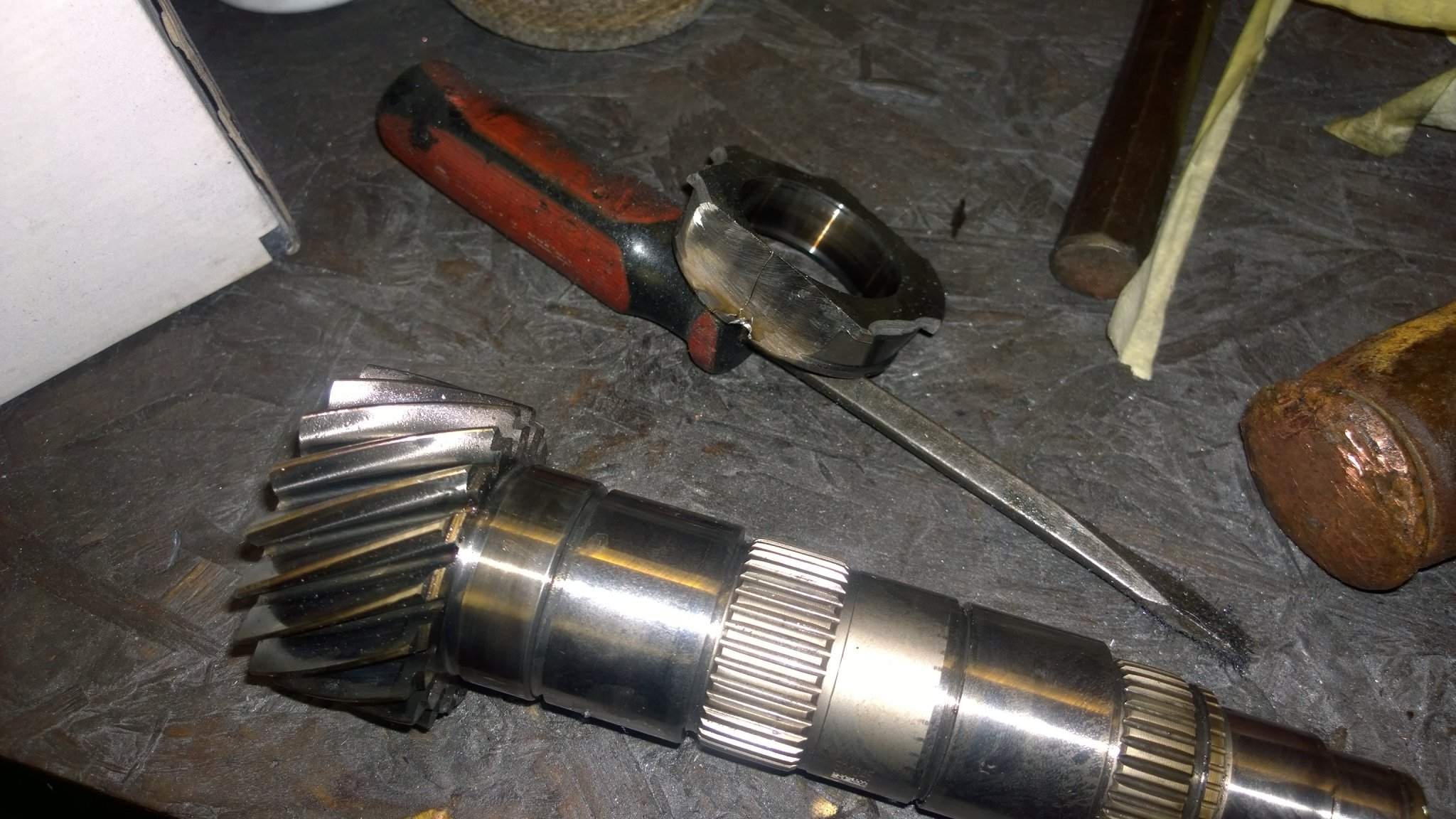

the 2nd one was a right bitch and just broke all the way round had to resort to the grinder

its a thick ass bearing and took some getting thru but when it got close to the end it cracked thru on its own 🙂

all off with no damage

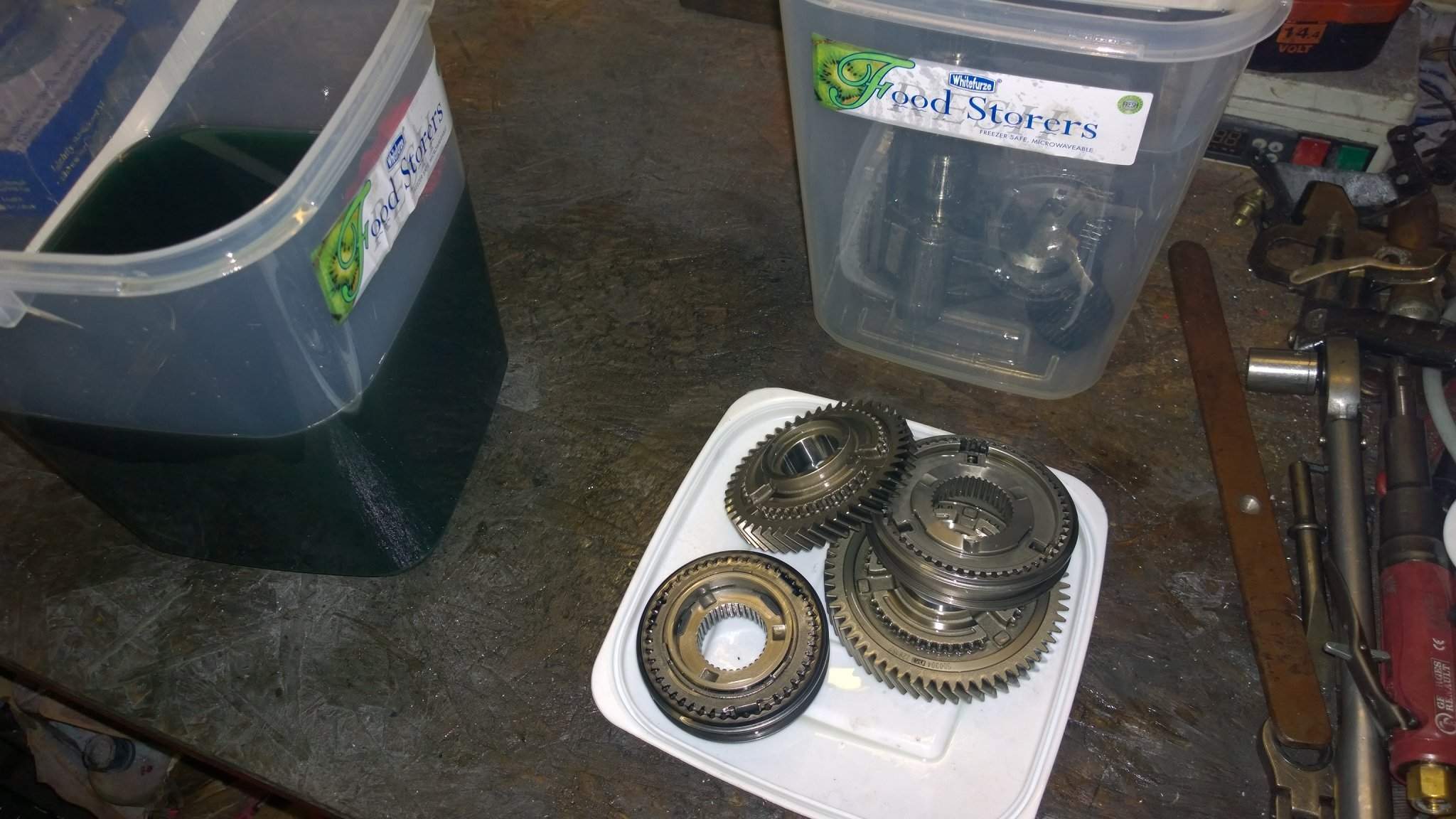

1st set of shaft parts washed and blown dry with the air line

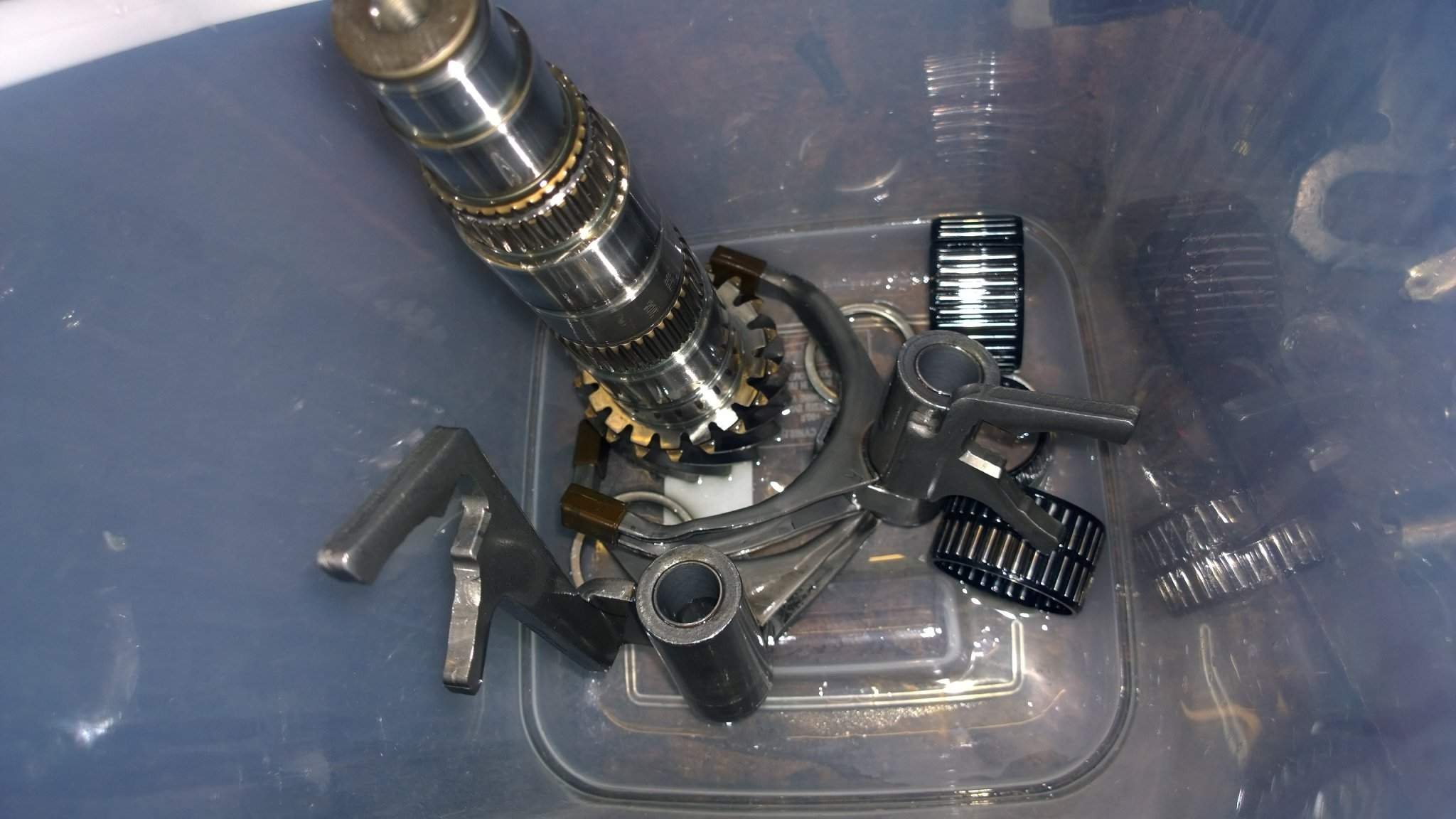

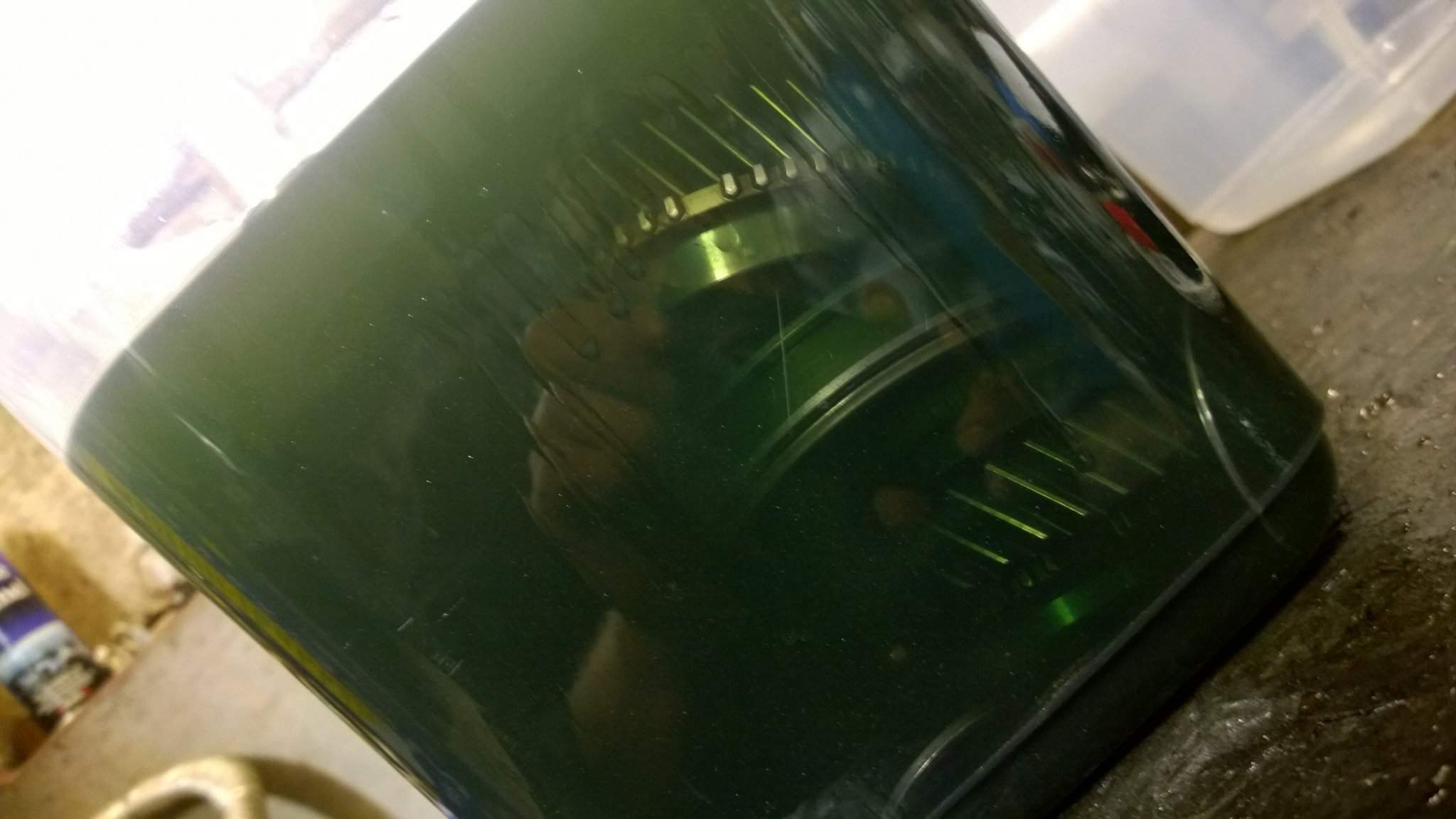

2nd shaft parts in there

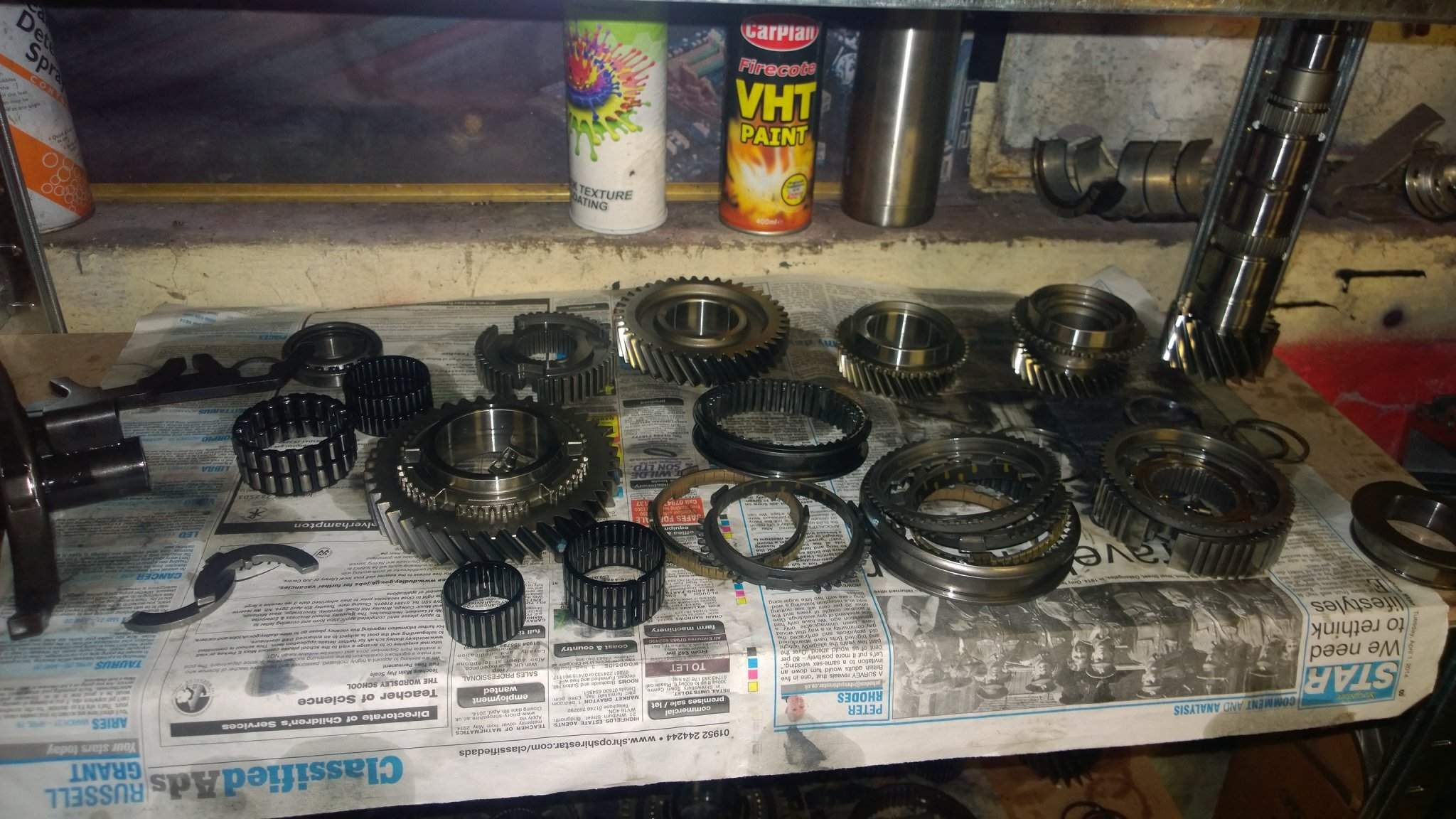

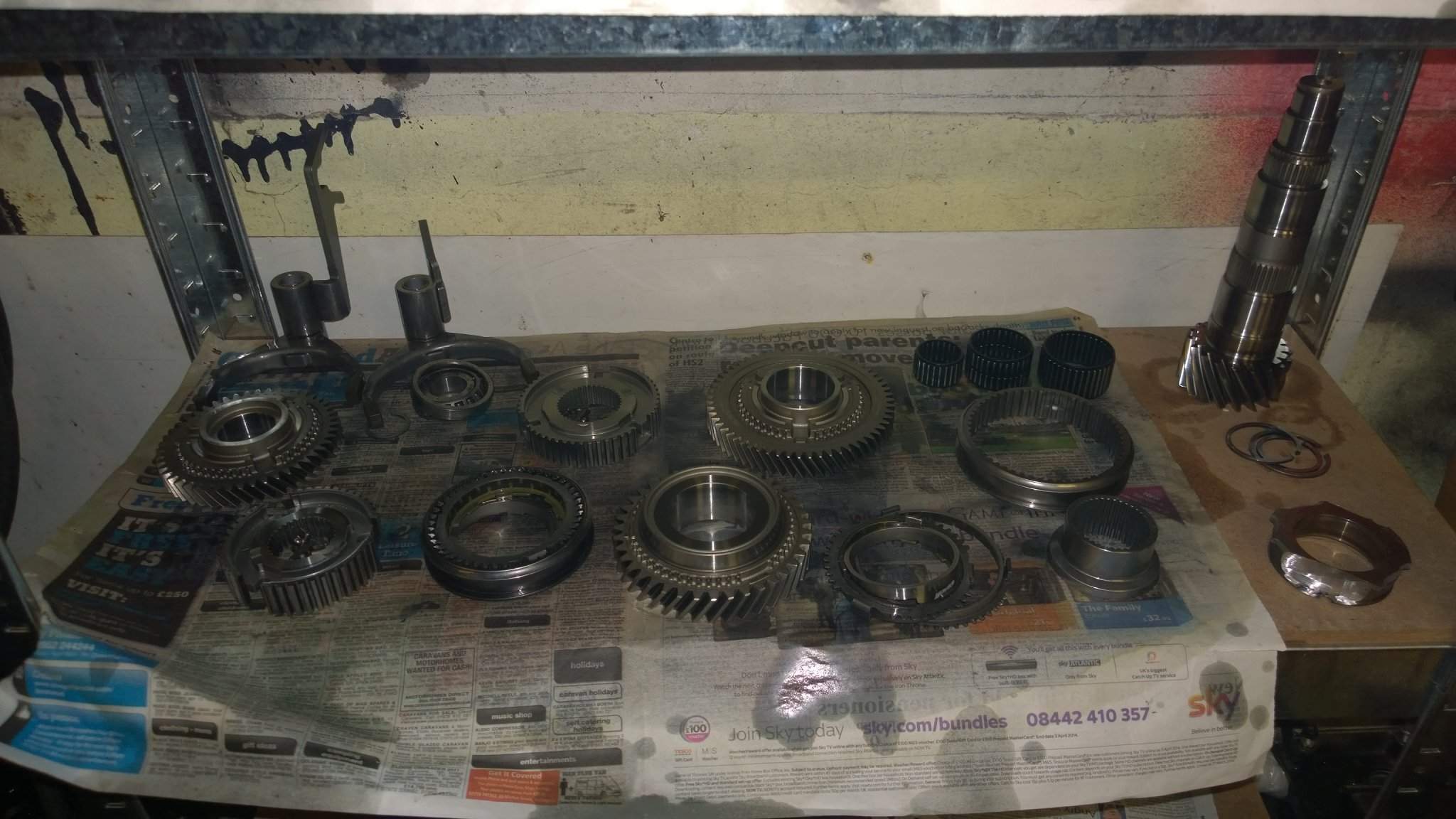

all the parts including the selectors all apart and laid out :confused:

and the 2nd one the same

heres hoping the new bearings come in the morning and i remember how it all goes back together lol

Matt

evocarlos said:
and i remember how it all goes back together lol

Now there in lies the tricky part

evocarlos

its not as bad as it looks
the gears will only go on where the needle bearing fits and the selectors go in between the gears 🙂
circlips to hold each gear on the shaft
the selectors go together easy once you push the balls in to get the ring on
3rd-4th

5th-6th

REV
