Project Freeze My engine Off (SAAB B207R Supercharged)

corsaZ22se

swap you for a turbo oil feed blank?

still sticky with chain lube and wrapped in oiled rags.

evocarlos

corsaZ22se said:
swap you for a turbo oil feed blank?[ATTACH=full]43603[/ATTACH]

still sticky with chain lube and wrapped in oiled rags.

cool will get 2 oil feeds blanks made up and let you know 🙂
i was just going to use a 20mm core plug but could get the blanks made easy my guy at work helps me out quite a bit 🙂

corsaZ22se

you mean the oil return plug? vocky made me one of them thanks.

evocarlos

corsaZ22se said:
you mean the oil return plug? vocky made me one of them thanks.

my bad got it the wrong way round 🙂

evocarlos

my drawing and dimensions 🙂

heres what i got a tapered top and space for the orignal o-ring 🙂

evocarlos

upside down z22se

hole where z22se used to live 🙂

crank and thermostat housing were the parts i needed 🙂

also stopped and got some socket adapters for the battery drill to help screw bolts in and out 🙂

i will have to measure the crank and polish the journals

corsaZ22se

not going for a brand new crank then?

Dave_Gilbert

you should have got the head off it aswell for a nice polish job n then fit it on mine for me:LOL🙁y)

evocarlos

corsaZ22se said:
not going for a brand new crank then?

lol where from 🙂

david gilbert said:
you should have got the head off it aswell for a nice polish job n then fit it on mine for me:LOL🙁y)

na not unless you wanted 12 bent valves 🙂

corsaZ22se

not easy to come by, bet that one was a lot cheeper than a new one!

evocarlos

corsaZ22se said:
not easy to come by, bet that one was a lot cheeper than a new one!

£20 for the shaft and the thermostat housing 🙂
took me under 3 hours to strip the block get it out and remove the crank
its in fairly good nick considering the hole lower block was full of water 🙂
will measure it up and give it a polish

corsaZ22se

bargin price, local breaker wants £50 but that's whole bottom end.
do you want the cams?

evocarlos

corsaZ22se said:
bargin price, local breaker wants £50 but that's whole bottom end.
do you want the cams?

sending you a pm 🙂

evocarlos

bought a set of digital calipers today and it was to much of a pain to read dads classic style ones

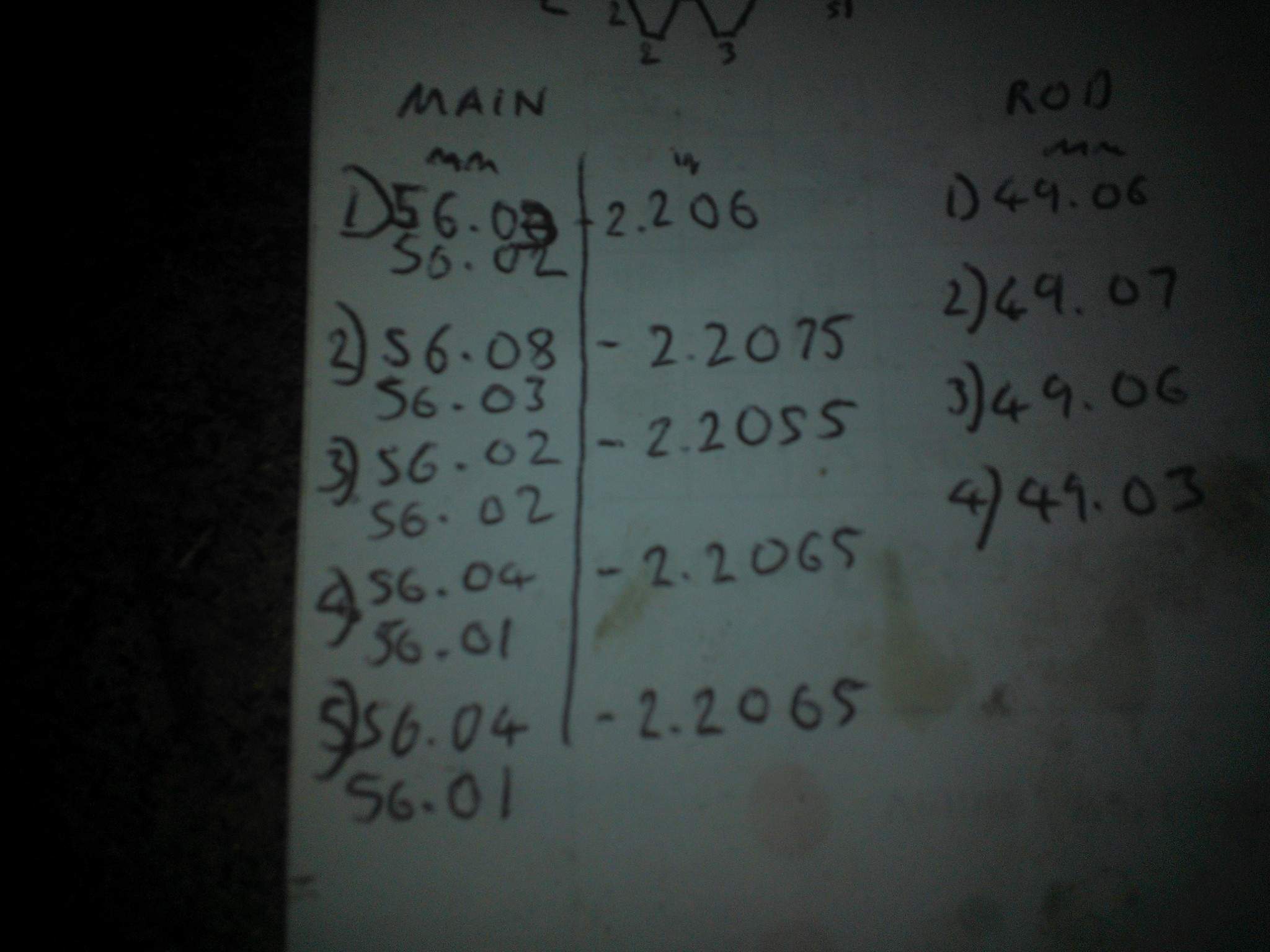

measured each journal on the crank

standard sizes from the gm build book

i then went on to clean the crank journals with carb cleaner and a scotch pad
looks much better it will get 90* measured after its all clean and see where i stand 🙂

evocarlos

cleaned up the other bits

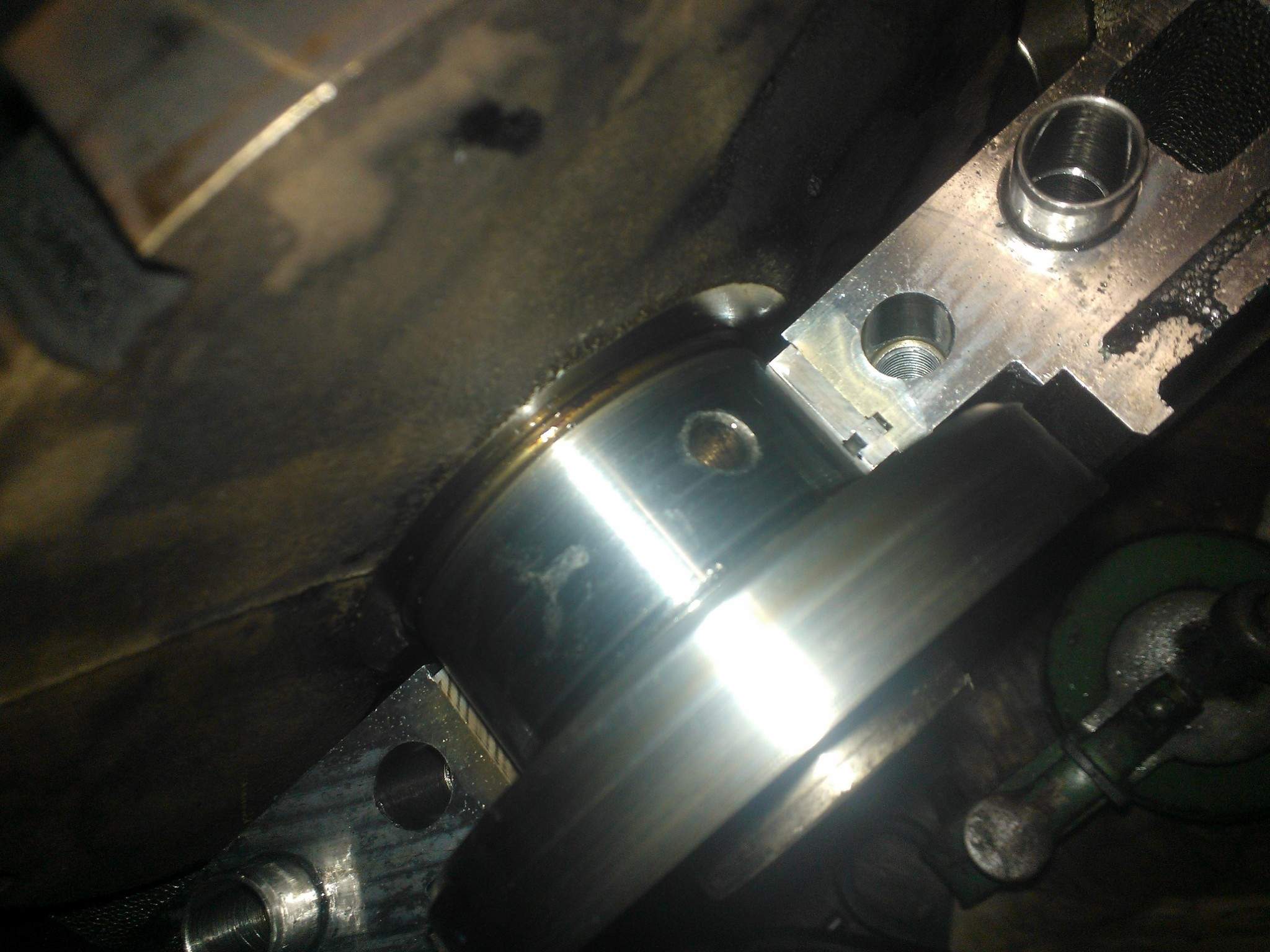

but found a bit of pitting at the flywheel end not sure if its a problem or not

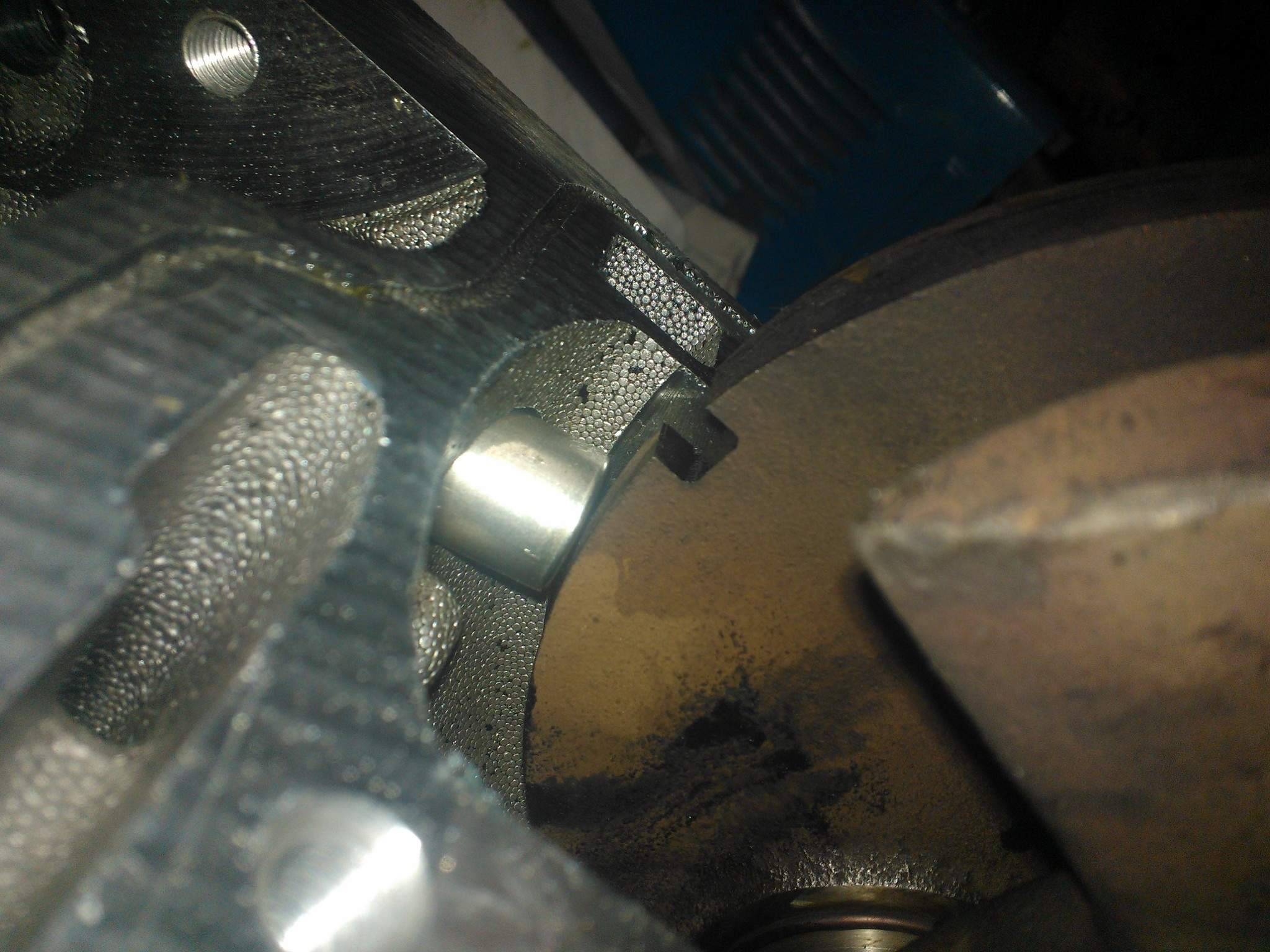

this is the sensor location @TDC

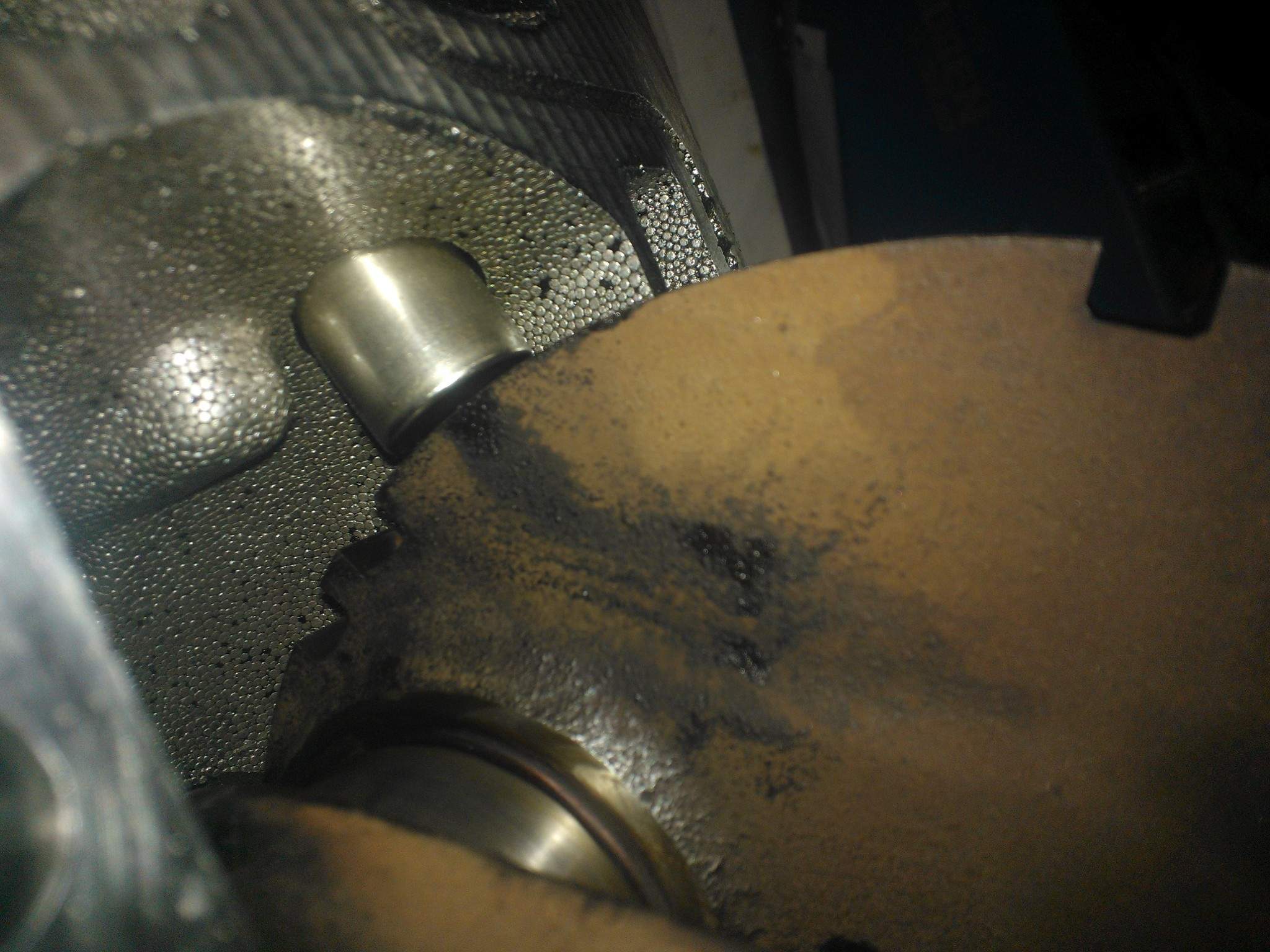

and shortly after TDC comes the sync pulse

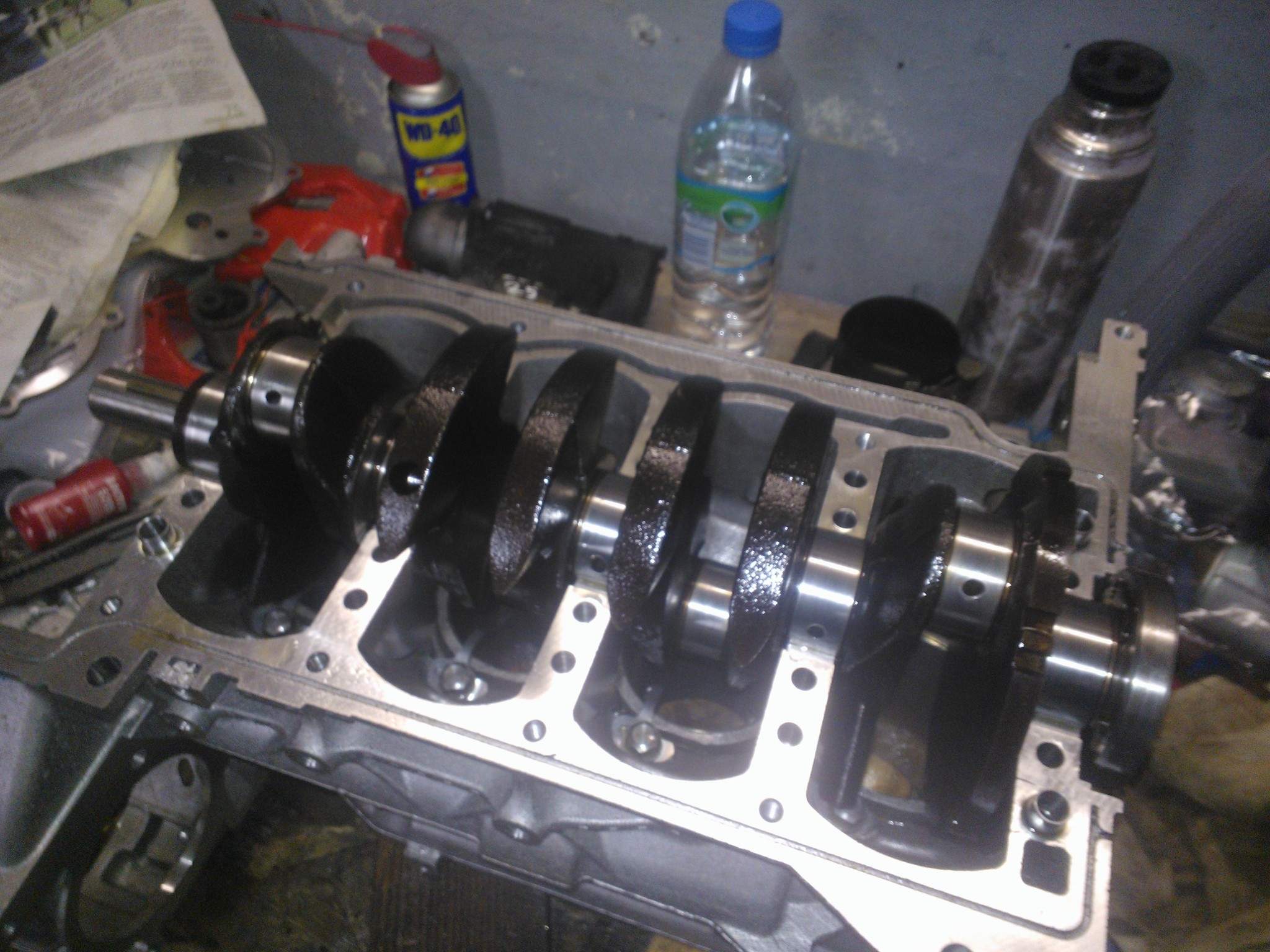

crank in and covered with wd40 so to keep it rust free till next time i get in the bat cave

measured the crank again and still get it to bigger than the spec's lol

evocarlos

2 MIC gage's ordered
ones a draper expert digital 50-75mm
the other is normal type but 25-50mm
have also bought the internal measuring devices so i can check the porting work to the head

evocarlos

1st set came

looks expensive 🙂

but not as expensive as this :S

Dave_Gilbert

special(y)

Sjdickso

You will need a second bat cave soon!

corsaZ22se

I do like the mitutoyo verniers used to use their stuff when I work in fabrication, we found it much more accurate than cheeper brands and better life span. (y)
