Project Freeze My engine Off (SAAB B207R Supercharged)

Daz86

You don't hang about do u .. All Looks brilliant (y)

evocarlos

bit more done lol
added a bit of pipe to the down pipe before the flexi so the flexi clears the subframe better
welder seems to be working better now

the jigsaw

evocarlos

hot hot hot!

there staying where they are so they got welded

bit of plate to fill the hole

also welded inside for better support and extra sealing

evocarlos

new tig welder is going to have to pay for itself lol

tidyed up the mig welds by going over them with the tig

will take some getting used to

Daz86

You don't hang about do u .. All Looks brilliant (y)

evocarlos

i do like it when the postman comes 🙂
shiny stuff

new ebp for the heaters

and the fic (fuel injector controller)

evocarlos

thought i would stress relive the manifold flange lol bad idea
cut a 1mm slot and after cutting it closed up had to tap it on the the head bolt it down put some stainless strip in then weld in on the front and the back
its stress relieved now lol

evocarlos

3.5" inward rolled and baffled tip

flange touches the heat shield on the auto leveling sendor

now to make up the gap

testing

tig time

im sure it will get better with practice

rest of the fittings came to so time to crack on and get the manifold done 🙂

chribo

It looks so mutch betther than the old one! I like it

evocarlos

down pipe finished
tigged on the inside 🙂

bit cackey on the out side

lambda bung

then to finish the manifold

nearly done and nearly out of gas again

evocarlos

had to swap back to the mig to get the last bit done was real low on gas 🙂
just need to whip over the inside with the die grinder and a carbide burr

evocarlos

here it is top side

bottom side

even got access to the lower bolts with a wobble socket

took the heat shield off the auto leveling sender

Sjdickso

Looks fantastic you fired it up Carl?

evocarlos

Sjdickso said:
Looks fantastic you fired it up Carl?

thanks i did 🙂
its loud and lumpy with lots of fuel 🙁

evocarlos

found the running issue the pipe was off the boost gauge map sensor

then made a heat shield its a copy of the original just shaped to miss everything and fit in place
i took the original mounting off the heat shield and pop riveted the new on to it all is well and temps are quite low down the back after a 10 mile drive

next step is to fit 2 new rubbers to the back box and then a different gasket to the downpipe i think the sheet steel on is blowing ive got a fiber one to fit and i also need to weld in the lambda bung for the wide band

milo

Take your on holiday from work to get this done so quick.

evocarlos

yep had a 12day holiday go back on monday :S

https://www.youtube.com/watch?v=PI7lVL4rbAw

evocarlos

the gasket was leaking now ive got a fiber one to replace it 🙂

and time to fit the wideband 🙂

Dave_Gilbert

U just cant leave it alone can u.

iv got a nail outside my house come n fix that for me.

evocarlos

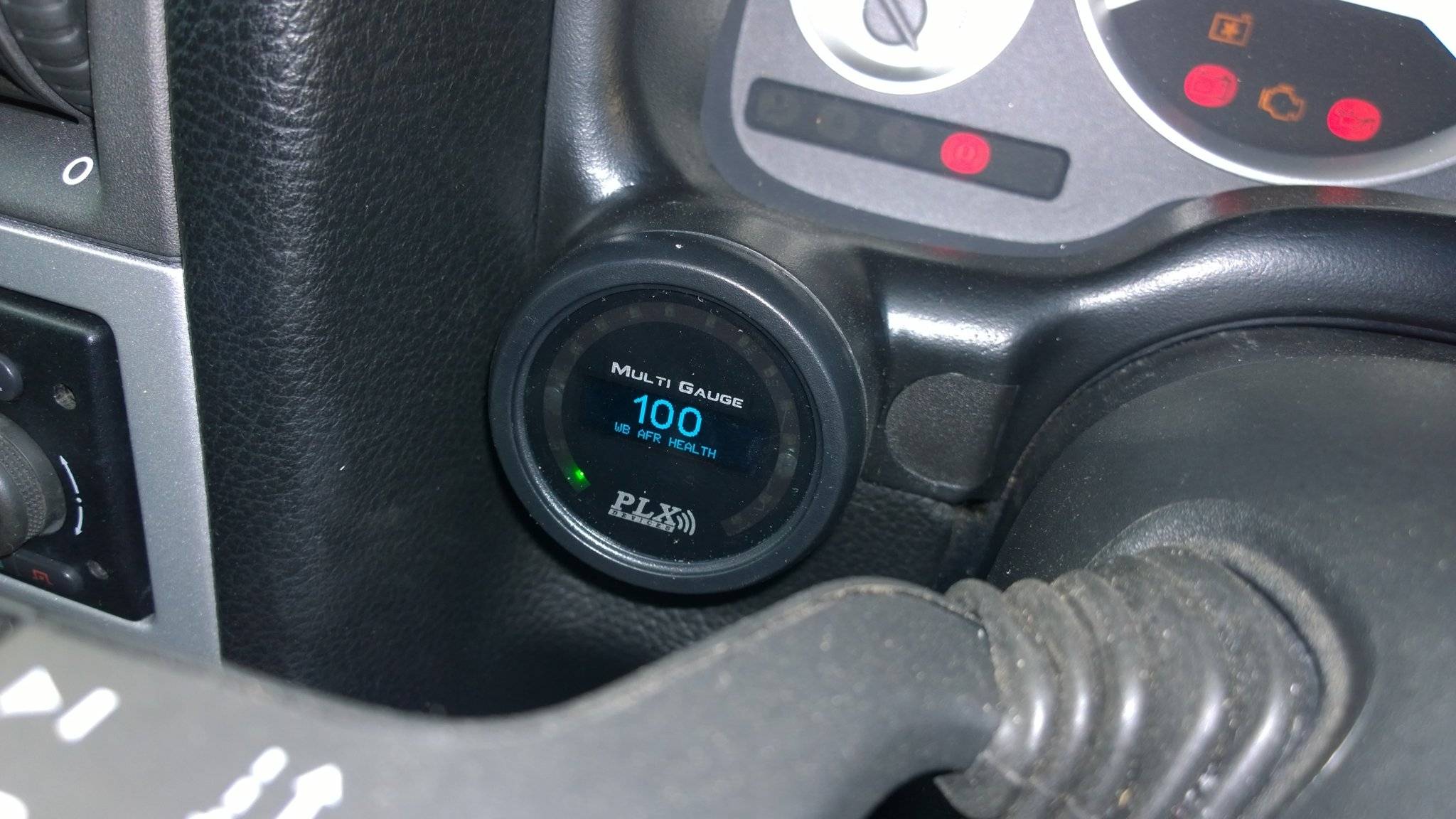

yay 100% sensor health that's the 1st time ive seen that lol

and for my next trick i will use the alternator exciter wire to trigger the relay for the booster pump and the charge cooler pump so they only run when the engine is running and not just when the ignition is on

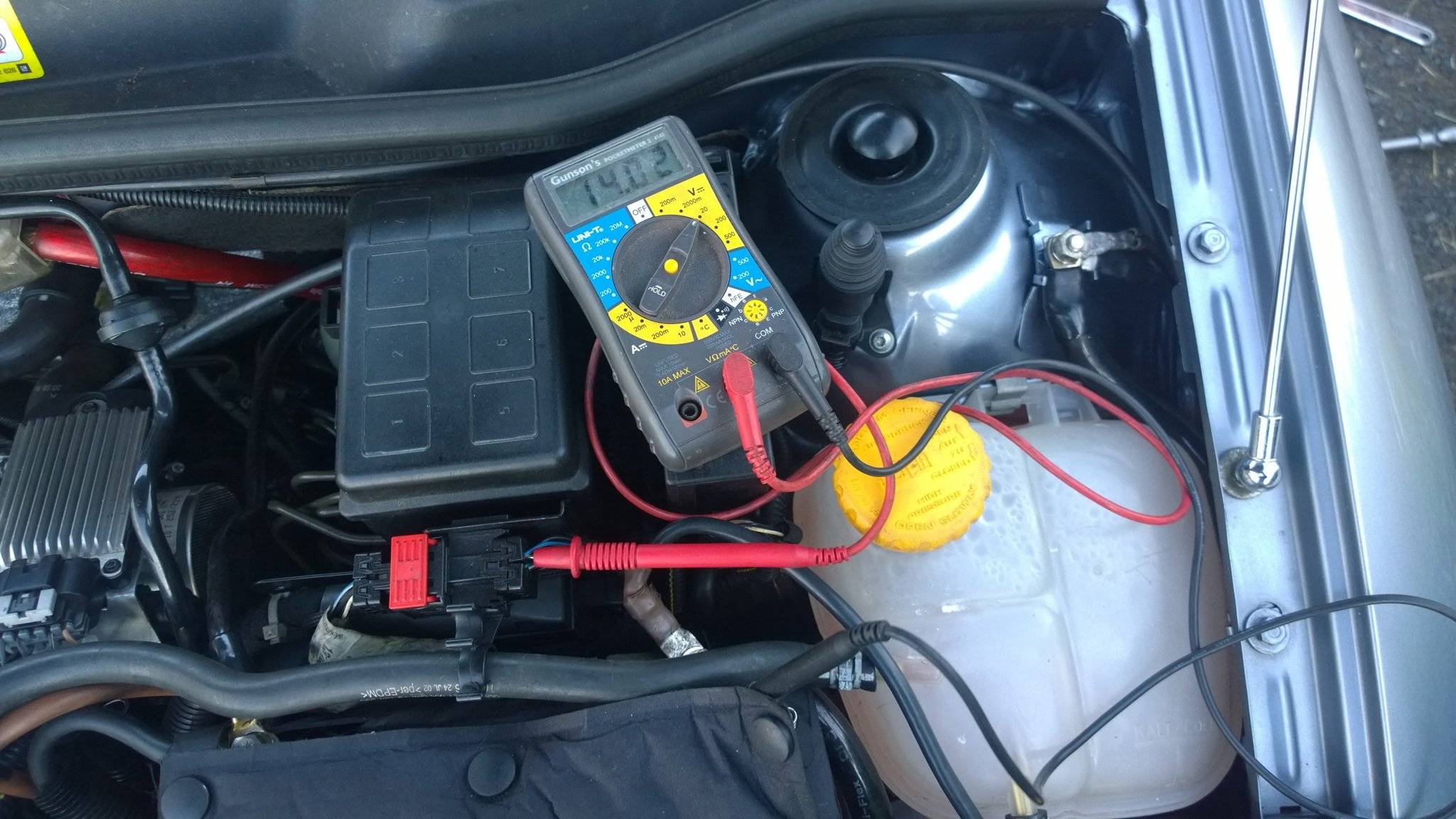

probing the wire with the engine running shows 14v

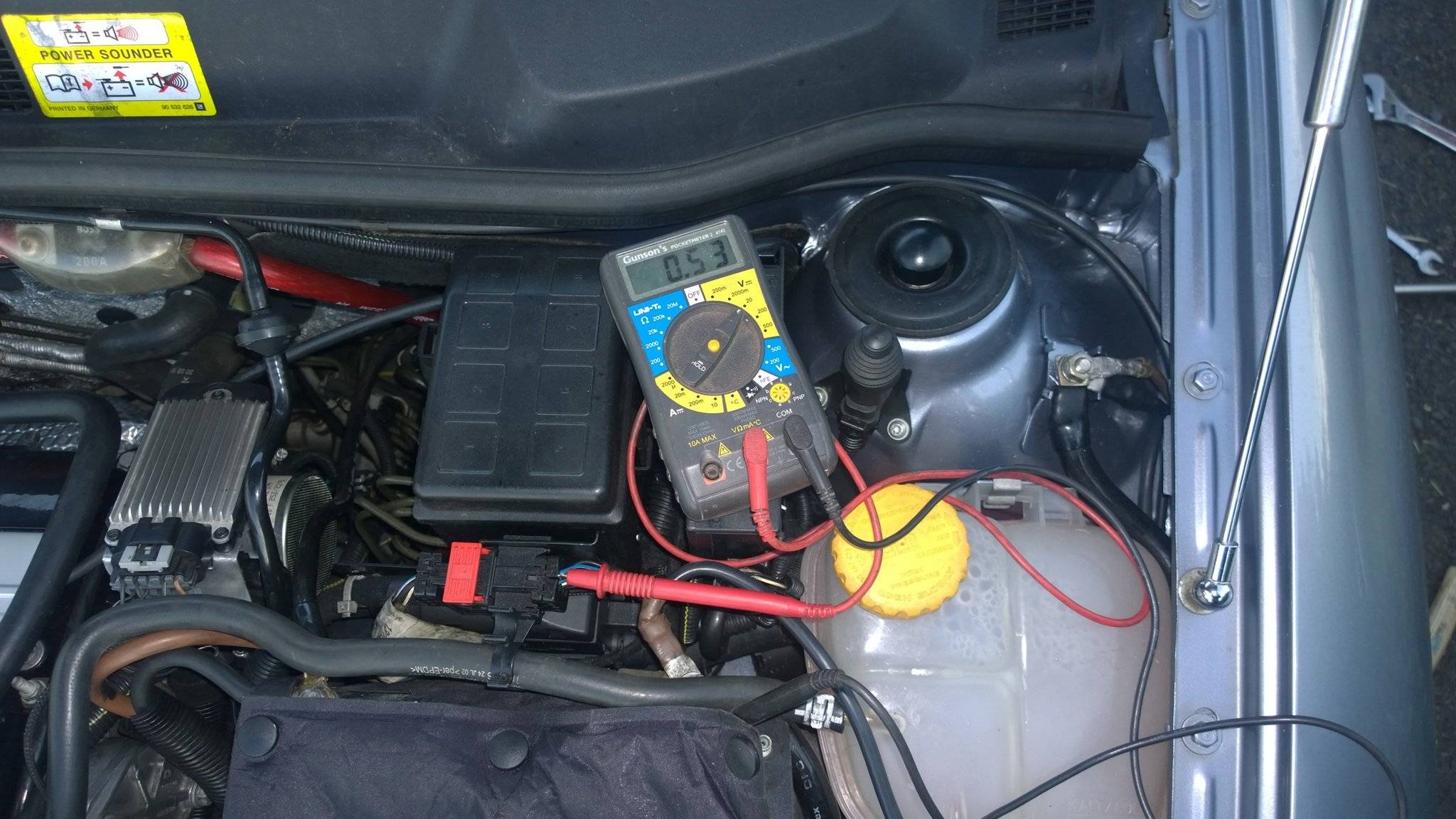

and with the engine off but ignition on 0v 🙂

time to drain the water again :confused:
