chribo said:
Well done Carl!
How did you wire now your coolant system? Is it like this but with the extra booster pump for the heaters?
The hose at your chargecooling tank looks realy tiny. Are you pumping the entire current through the tank?
thanks 🙂

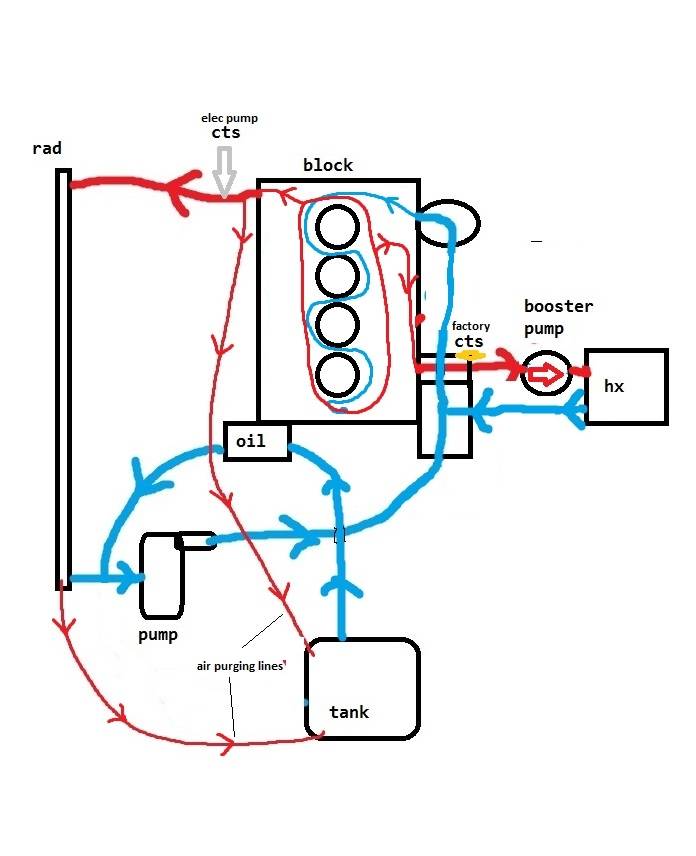

heres how it is set up now 🙂
the tank for the charger cooler
pumping water thru a tank does nothing to improve cooling only a larger rad can do that
so i chose to use the tank as a reservoir to keep the pump supplied with a head of water
the small pipe is connected to the top of the charge cool rad to continually bleed any air from the system 🙂

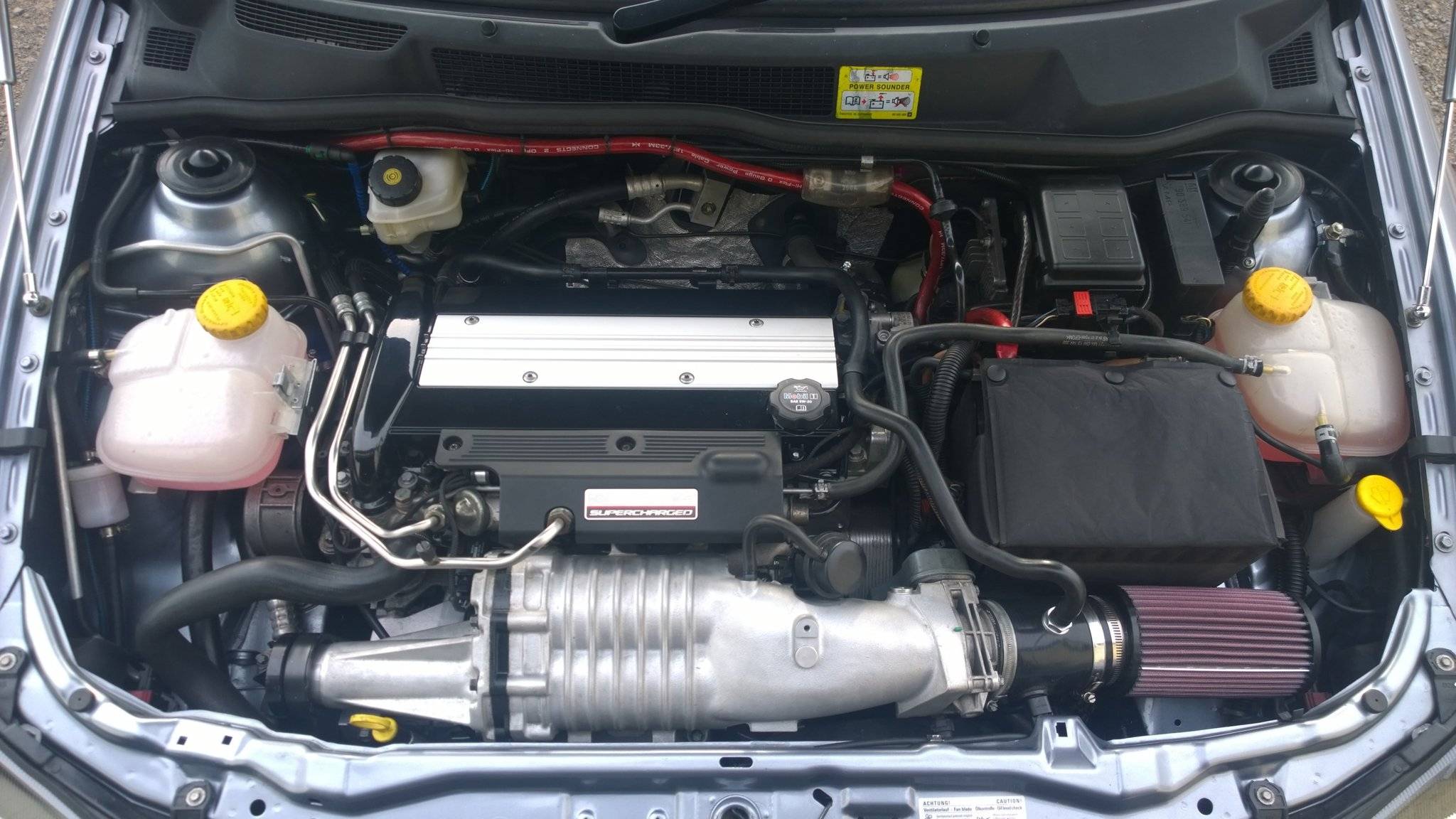

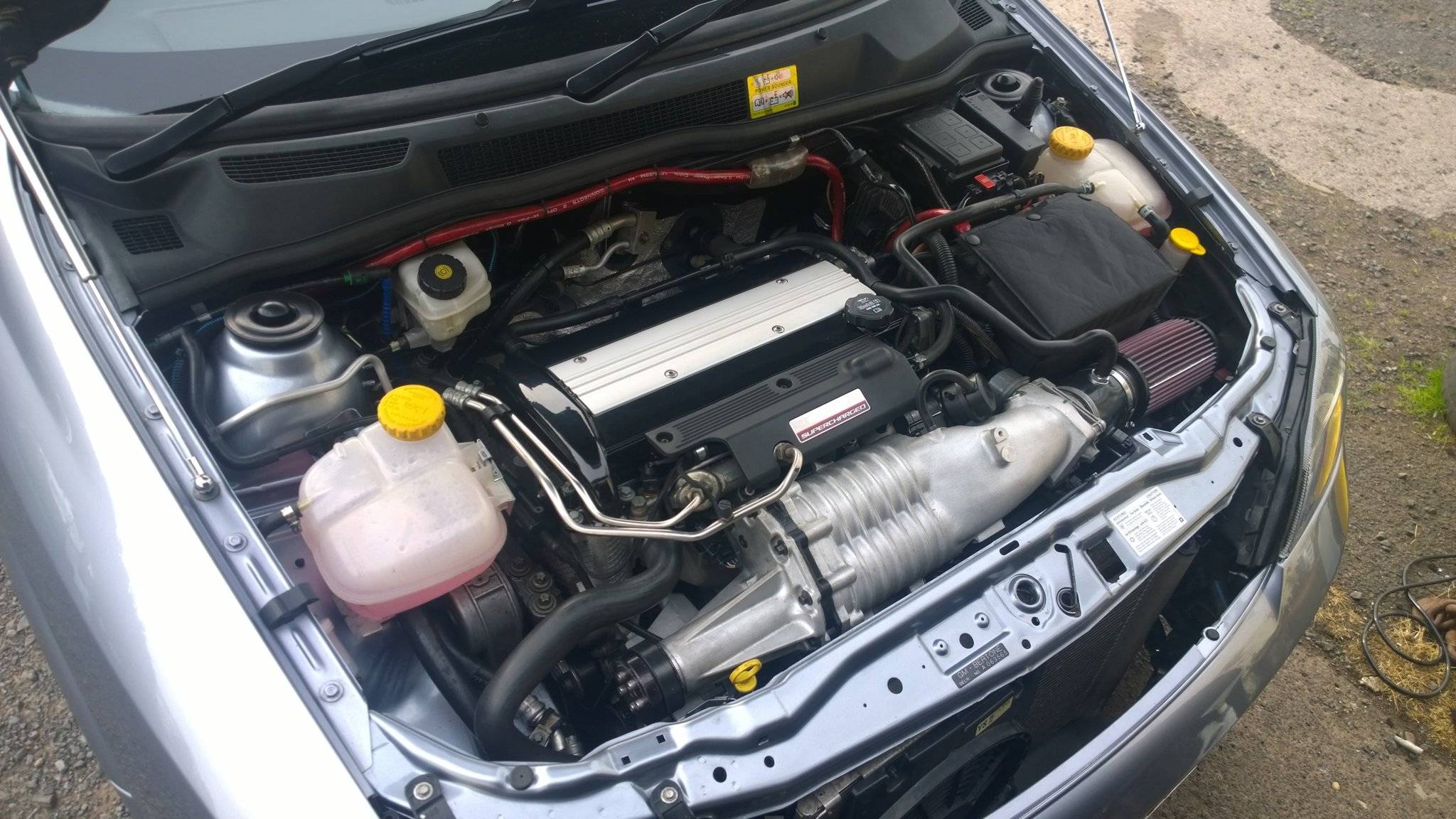

some work from today

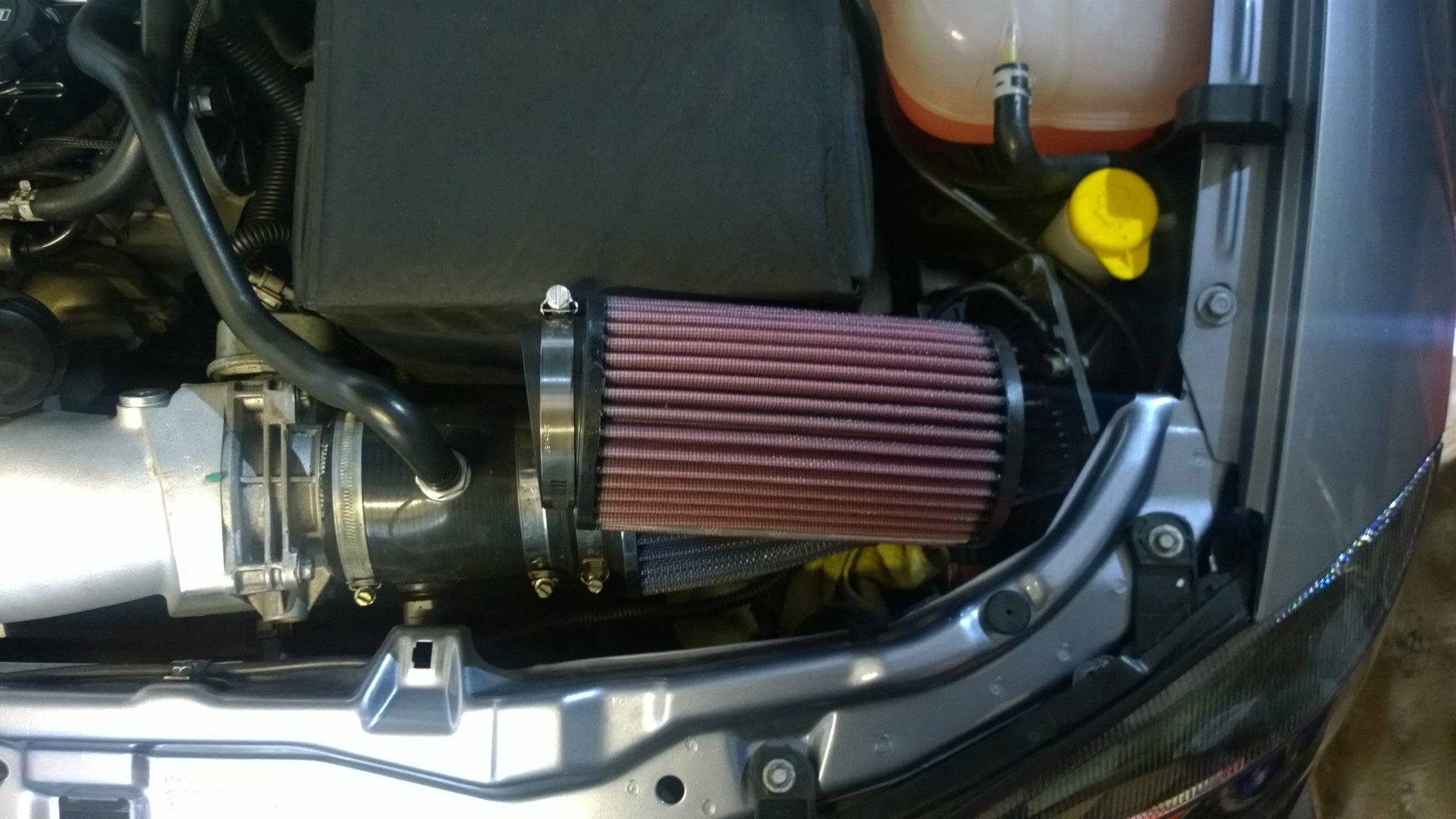

new not restrictive air filter thats 100% serviceable 🙂

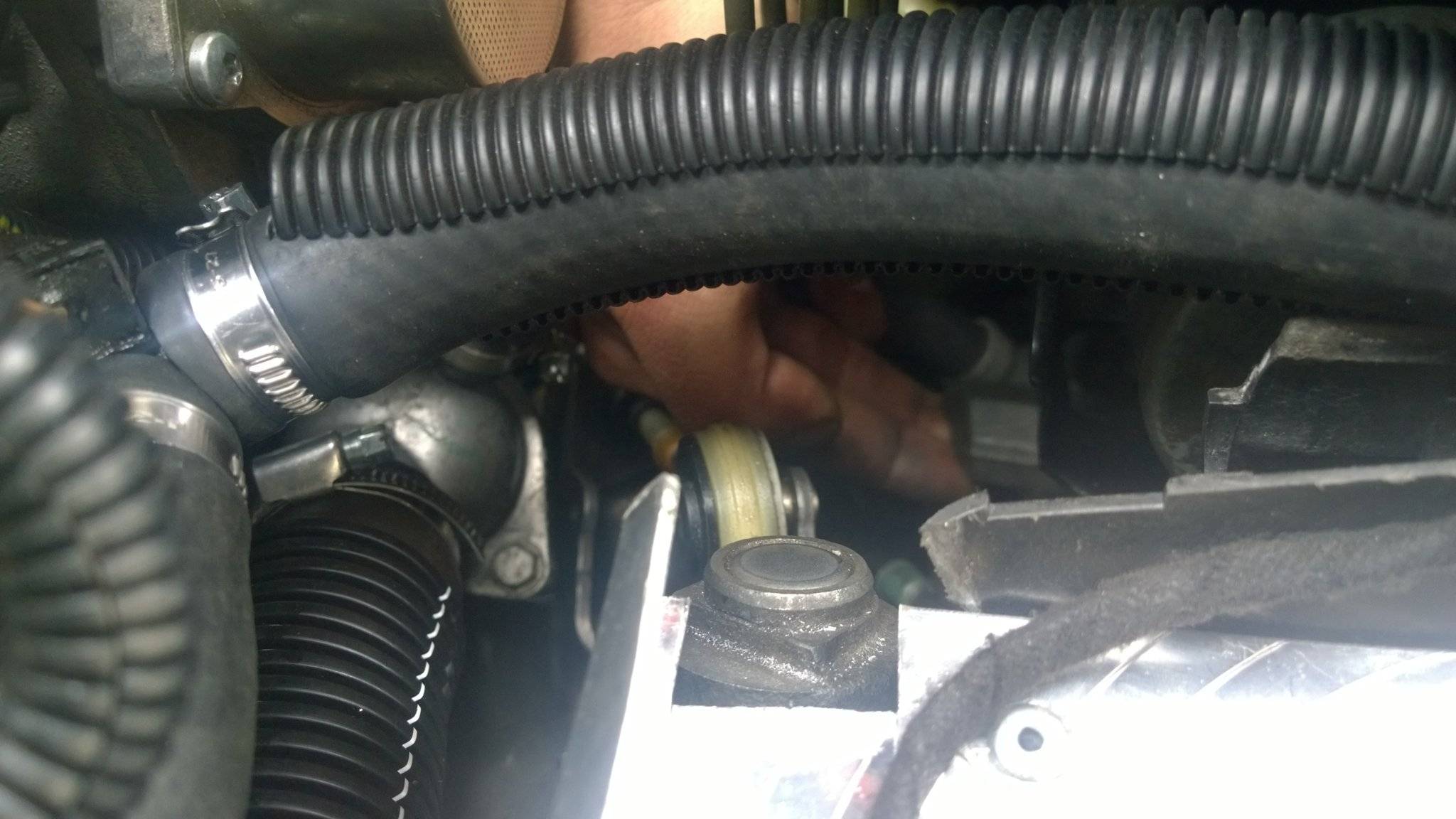

took the battery tray out and fixed the gear selector issue with it touching
now it misses 🙂

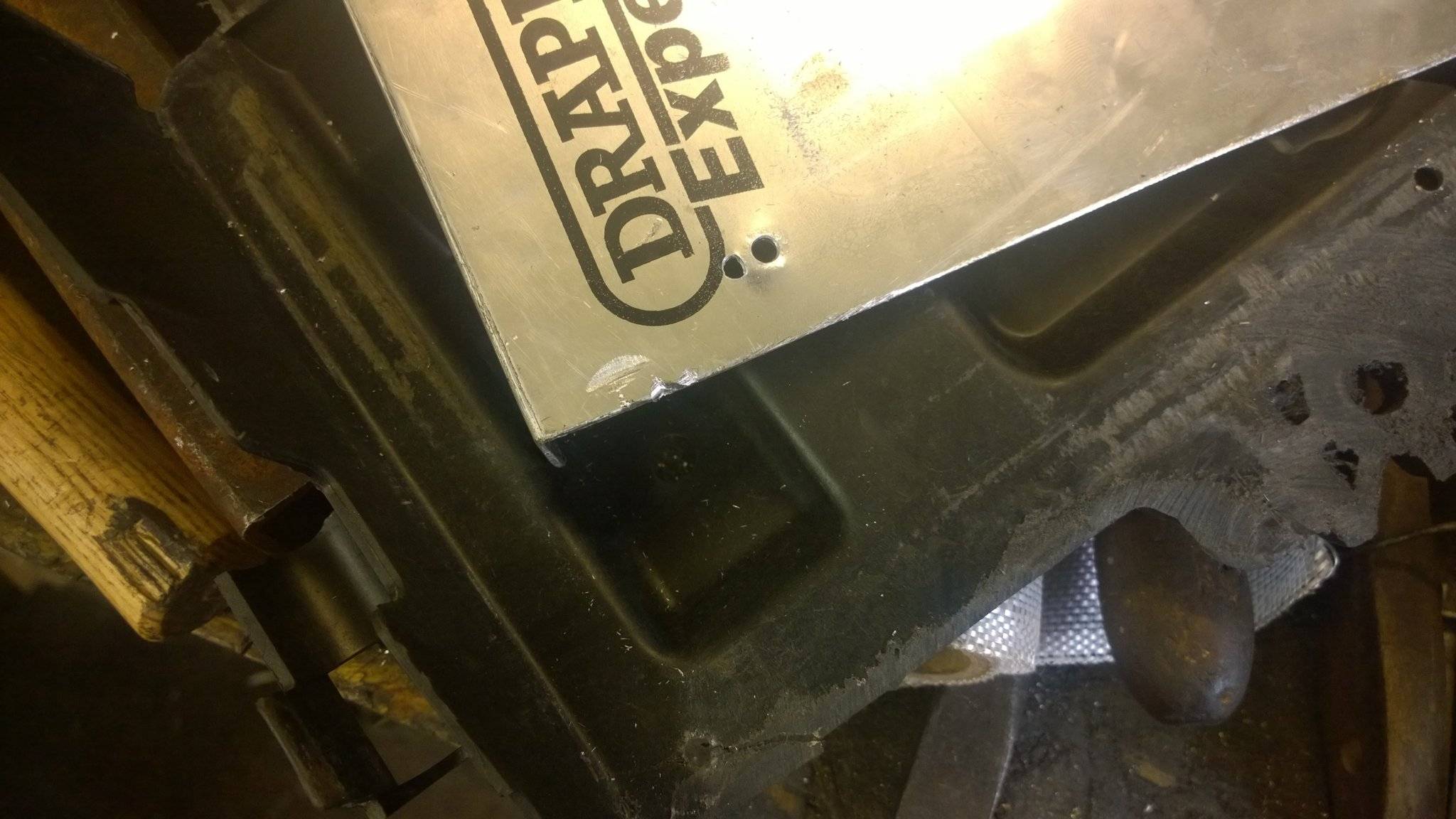

added a lip to hold the battery down and put the 50mm split tube on the rad hose

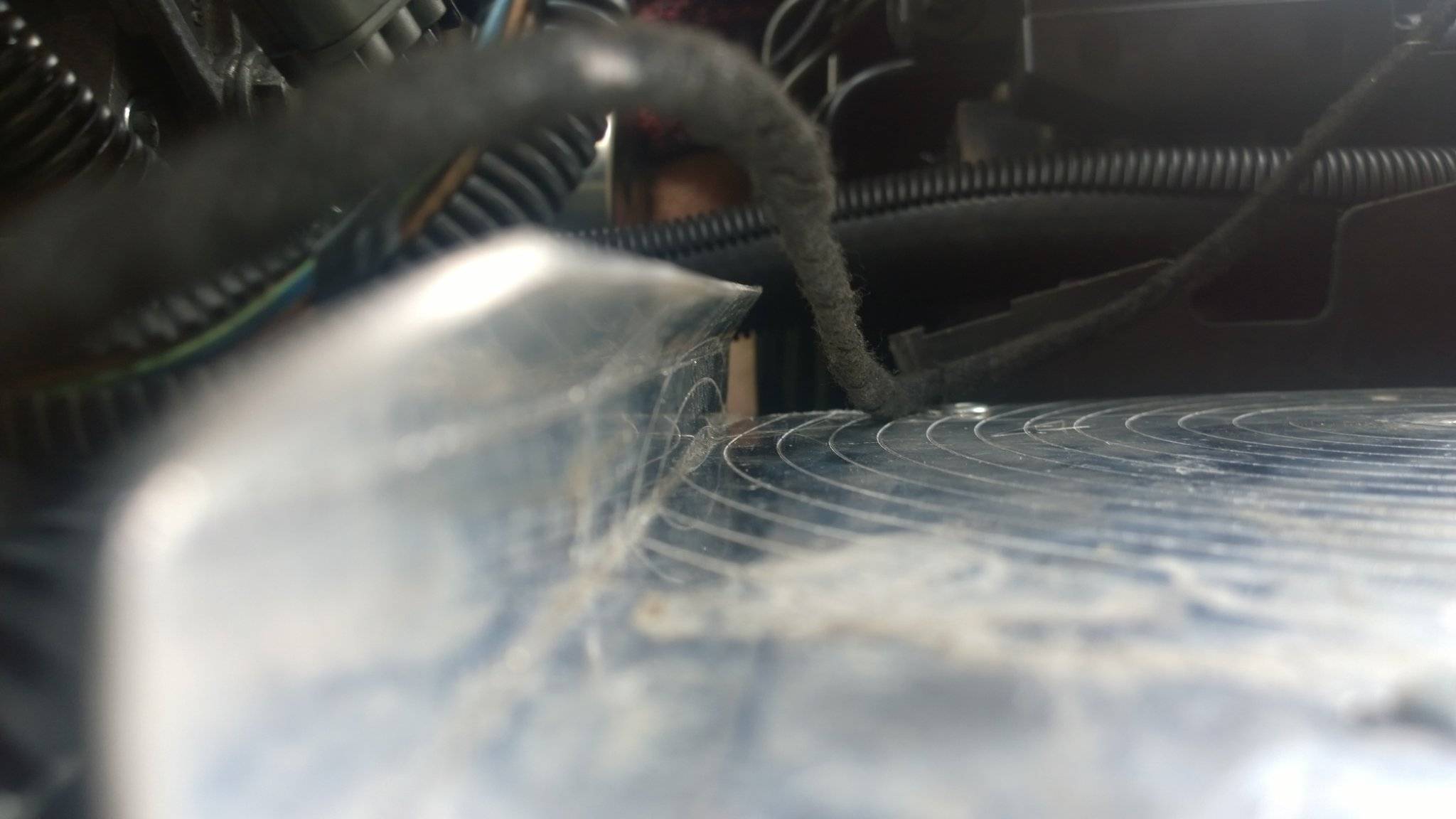

the lip 🙂

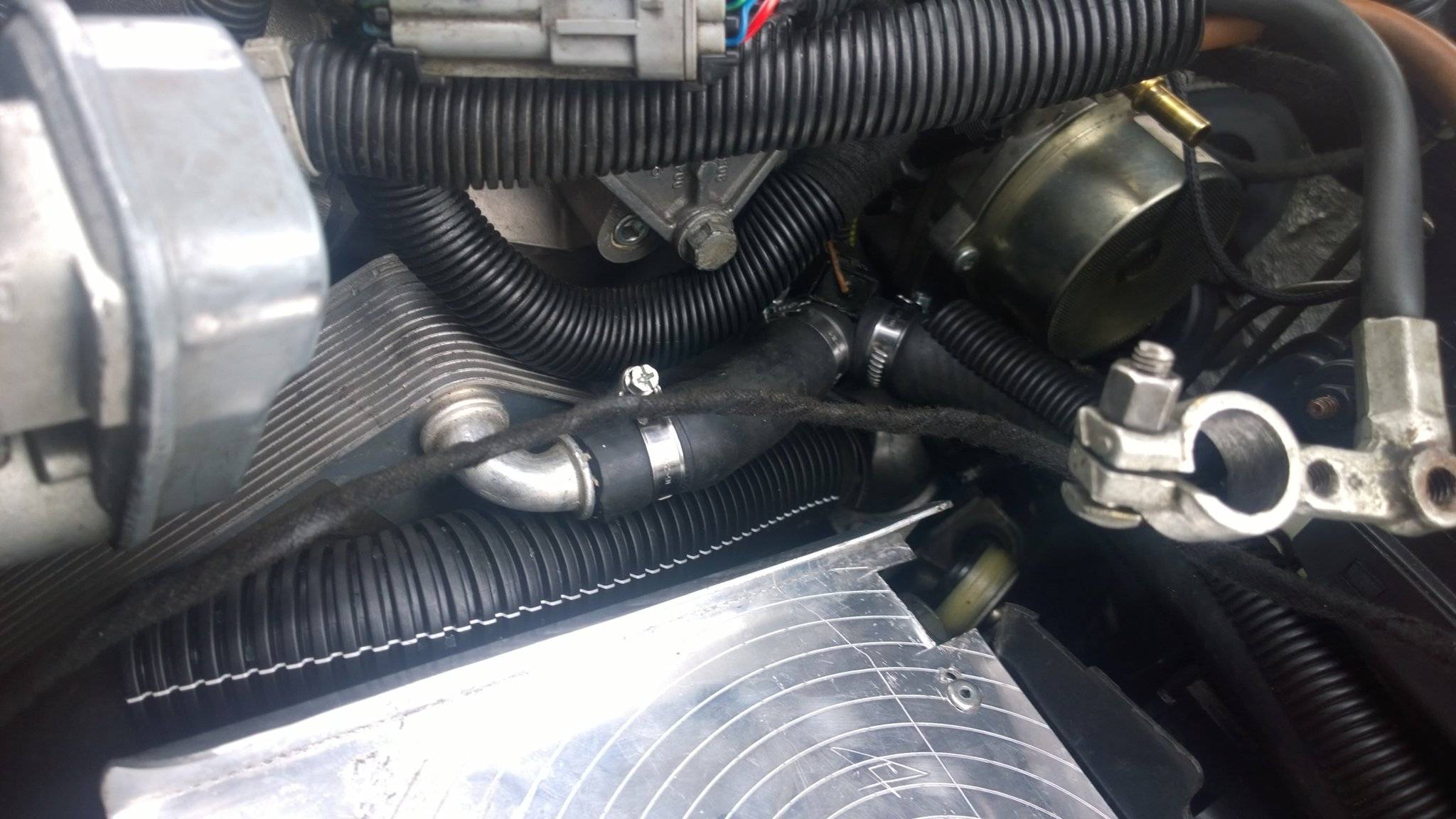

tidied up the loom and moved the ecu
now i just need to make a braket for the ecu and seal the down pipe flange
