Project Freeze My engine Off (SAAB B207R Supercharged)

corsaZ22se

turbo conversion?

KevinH

Who on earth would want to do a turbo conversion ? hahaha

Dave_Gilbert

I think hes turbo and supercharging

HarleyPete

Perhaps it's a super charged turbo lol

chill

Have you got link or part number for the oil cap please

KevinH

HarleyPete said:
Perhaps it's a super charged turbo lol

with SNECMA afterburner reheat ! 🙂

evocarlos

corsaZ22se said:
turbo conversion?

no lol superchargers where its at 🙂

chill said:
Have you got link or part number for the oil cap please

i got all the parts from jeff so dont know any pt numbers
the cap will better fit the engine bay and make it look more symmetrical with the 2 bottles
the repair plug is stronger than the factory bolt and i hear the #94 springs are ruff on the chain set so won't hurt to have some extra beef just there
the pipe and thermostat housing im hoping to gain some room down the back of the engine and then with the thermostat cap the extra pipe will help plum in the oil cooler

KevinH

Ah-ha ! (Norwegian band) - Jeff Reiland

corsaZ22se

more space for an equal length custom manifold then?

HarleyPete

Found this earlier and noticed the pic was the same as the one Carl posted.
Billet Oil Filler Caps.

KevinH

Wow ! That's some price for an oil filler cap (even though they are polished billet)

The following may be more realistic from guess who 😉:
http://www.ebay.com/itm/Cobalt-SS-2-0-LSJ-Valve-Cover-oil-capSupercharged-Ion-Redline-2005-2007-/121356978754

Does that mean you have to switch to Mobil 1 5w30 ? :eek:

Dave_Gilbert

shippings abit much isnt it for a small plastic lid?
I know americas abit far but $25 for post is abit much

KevinH

The front rail top repair bolts are an ingenious idea - I believe they were first made by a guy called Michael Brandt.

They just screw into the block and hold the guide rigidly in place, and as Carl says they are much stronger than the original bolts.🙂

evocarlos

corsaZ22se said:
more space for an equal length custom manifold then?

or an elec water pump 🙂 maybe i will need to see as the equal length half shaft is pretty close there

KevinH said:
Wow ! That's some price for an oil filler cap (even though they are polished billet)

The following may be more realistic from guess who 😉:
http://www.ebay.com/itm/Cobalt-SS-2-0-LSJ-Valve-Cover-oil-capSupercharged-Ion-Redline-2005-2007-/121356978754

Does that mean you have to switch to Mobil 1 5w30 ? :eek:

i almost bought the billet alloy pulley from there a year ago but never got round to it
yes mobil 1 5/30 will now have to be used lol

Dave Gilbert said:
shippings abit much isnt it for a small plastic lid?
I know americas abit far but $25 for post is abit much

£16 for 2 day air mail beats the shit out of the uk shipping costs i bet a standard yellow oil cap new in the uk is like £80 lol

KevinH said:
The front rail top repair bolts are an ingenious idea - I believe they were first made by a guy called Michael Brandt.

They just screw into the block and hold the guide rigidly in place, and as Carl says they are much stronger than the original bolts.🙂

rip michael brandt....

KevinH

The caps are only yellow so the WAGs have a clue where all the fluids go - as if they ever look under the bonnet !

evocarlos said:
£16 for 2 day air mail beats the s**t out of the uk shipping costs i bet a standard yellow oil cap new in the uk is like £80 lol

Oil filler cap (standard yellow) - Part #: 24454629 Vx dealers MRP £8.16 +VAT

HarleyPete

That only works if you have a dealer that sells parts nearby. My nearest one closed and was replaced by a Go Vauxhall but don't think they do parts.

chill

The oil cap is £7.19 incl vat from autovaux
24454629

There is no picture so could do with confirmation that it's flat on the top
As I'm modifying it to change the PCV system

KevinH

chill said:
The oil cap is £7.19 incl vat from autovaux
24454629

There is no picture so could do with confirmation that it's flat on the top
As I'm modifying it to change the PCV system

AutoVaux are about the cheapest online but unless you are near Wakefield, Yorkshire there will be delivery charges, however the part # is for the standard yellow oil filler cap. Try a google on 'vauxhall 24454629' then click 'images'.

HarleyPete said:
That only works if you have a dealer that sells parts nearby. My nearest one closed and was replaced by a Go Vauxhall but don't think they do parts.

Yes, Go Vauxhall are only a sales outfit. I believe your nearest parts dealer would be FG Barnes in Guildford (a bit of a trip). I'll 'pm' you Pete.

(I think we've digressed from this thread, sorry Carl)

evocarlos

looks like i spoke too soon

its a good job theres a brand new set of forged rod in the package as well as the parts on the previous page 🙂 hehe

evocarlos

parts came this morning

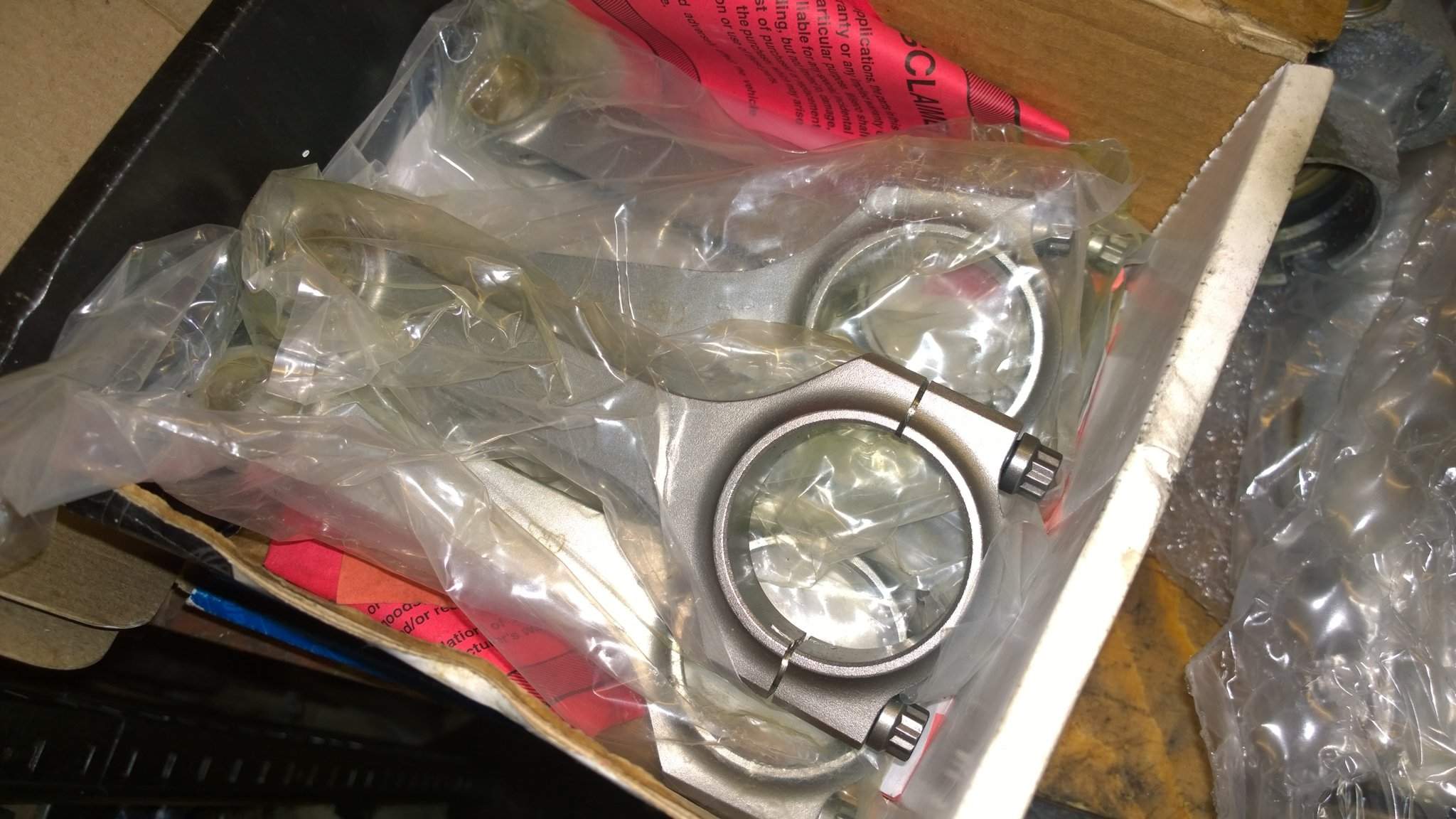

rods

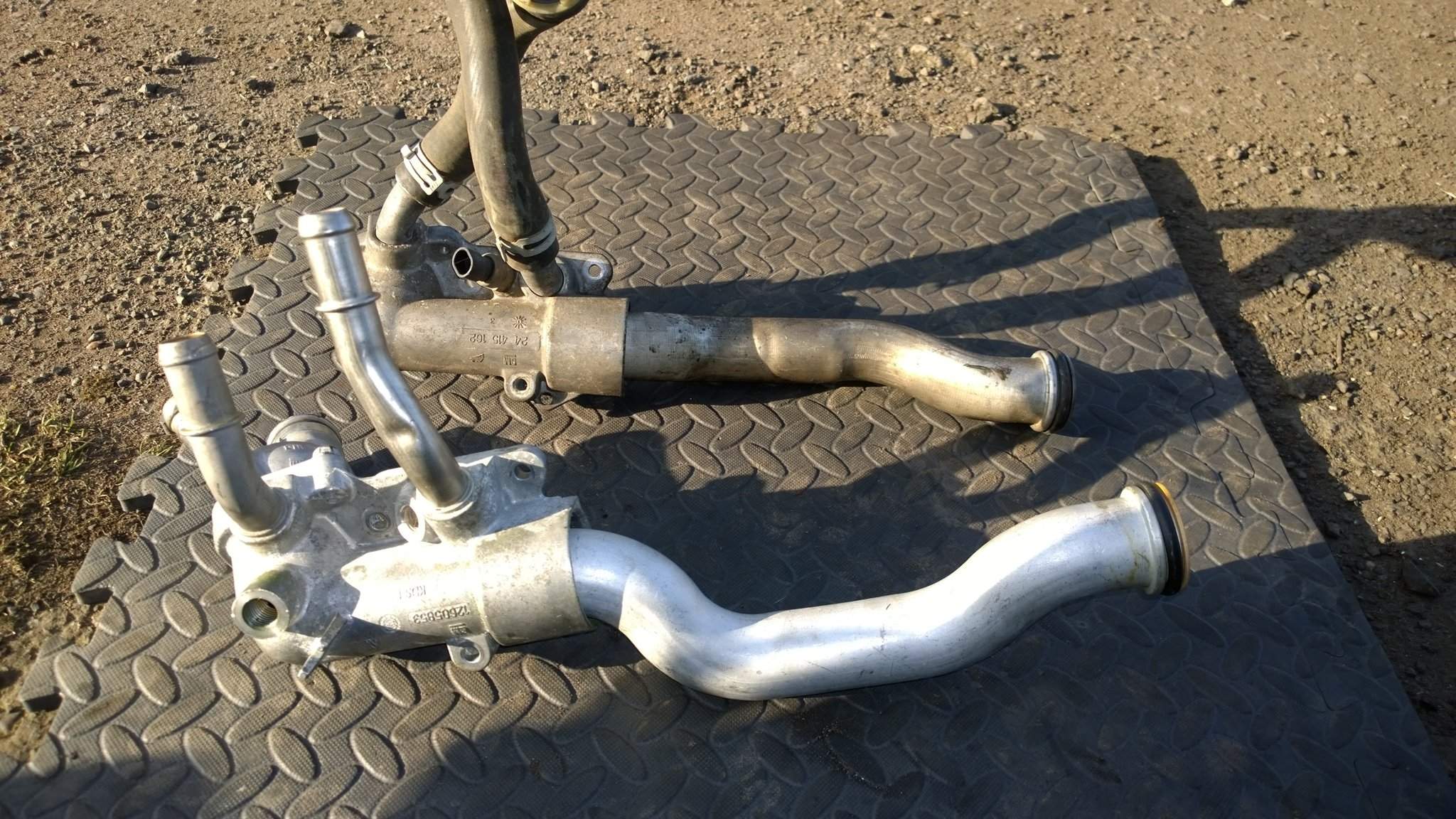

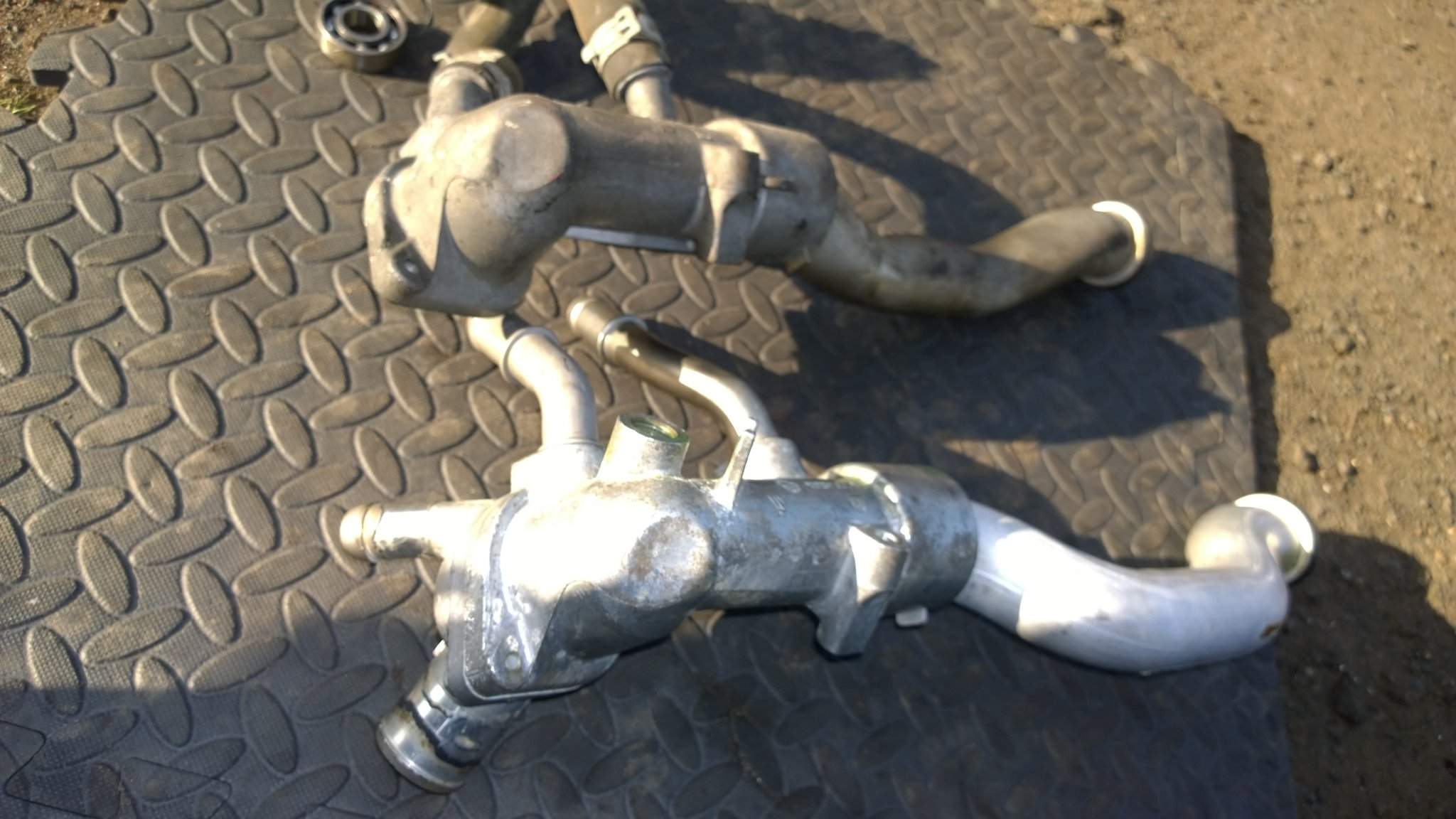

the thermostat housing and tube LNF at the bottom and z22se at the top
@[deleted] this will fit the f23 and it has a turbo water return 🙂 and the extra pipe for the oil cooler

it also looks like the thermostat cap is interchangeable with the z22se one (i need to confirm this)

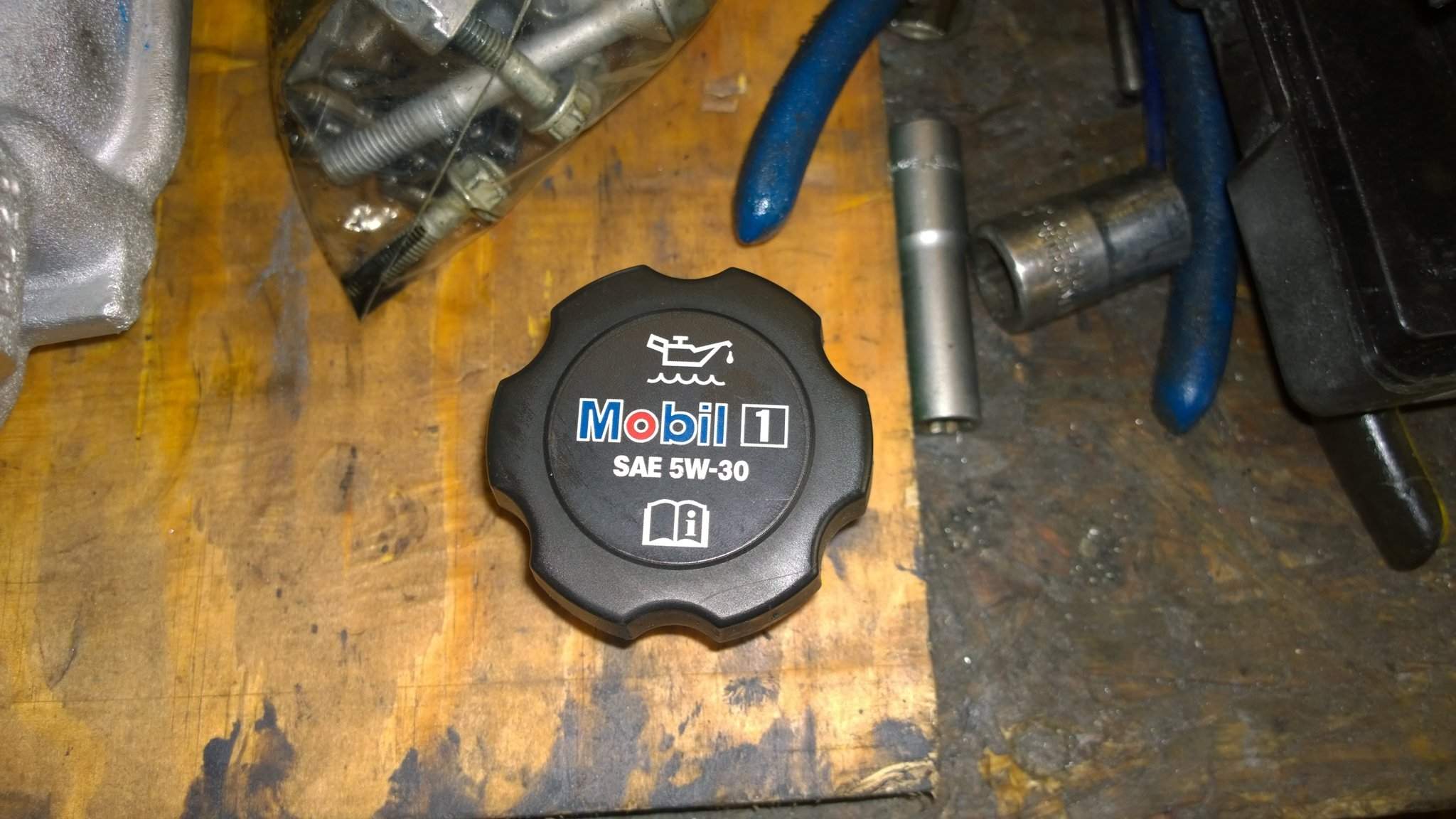

oil filler cap

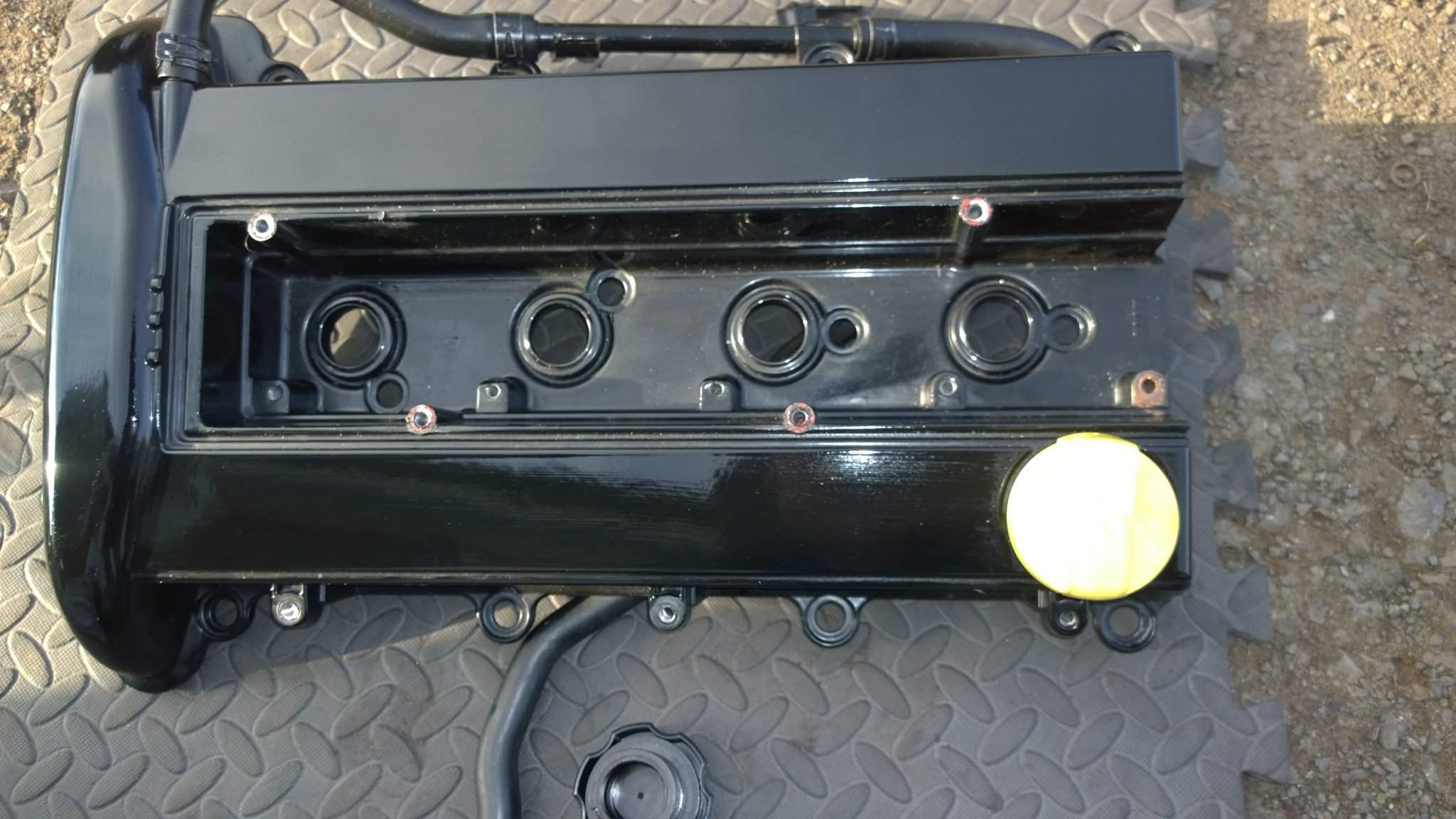

old

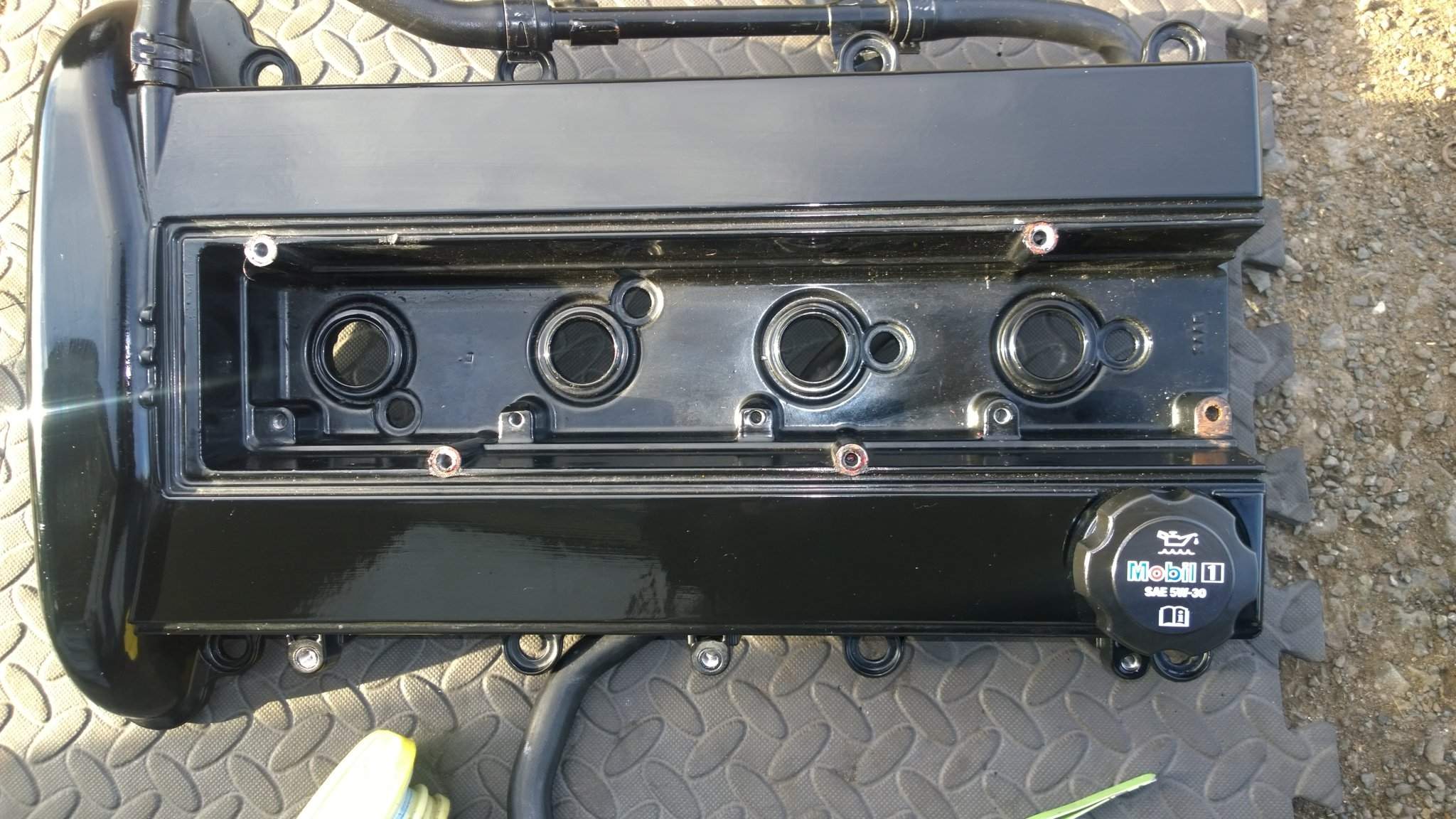

vs new 🙂

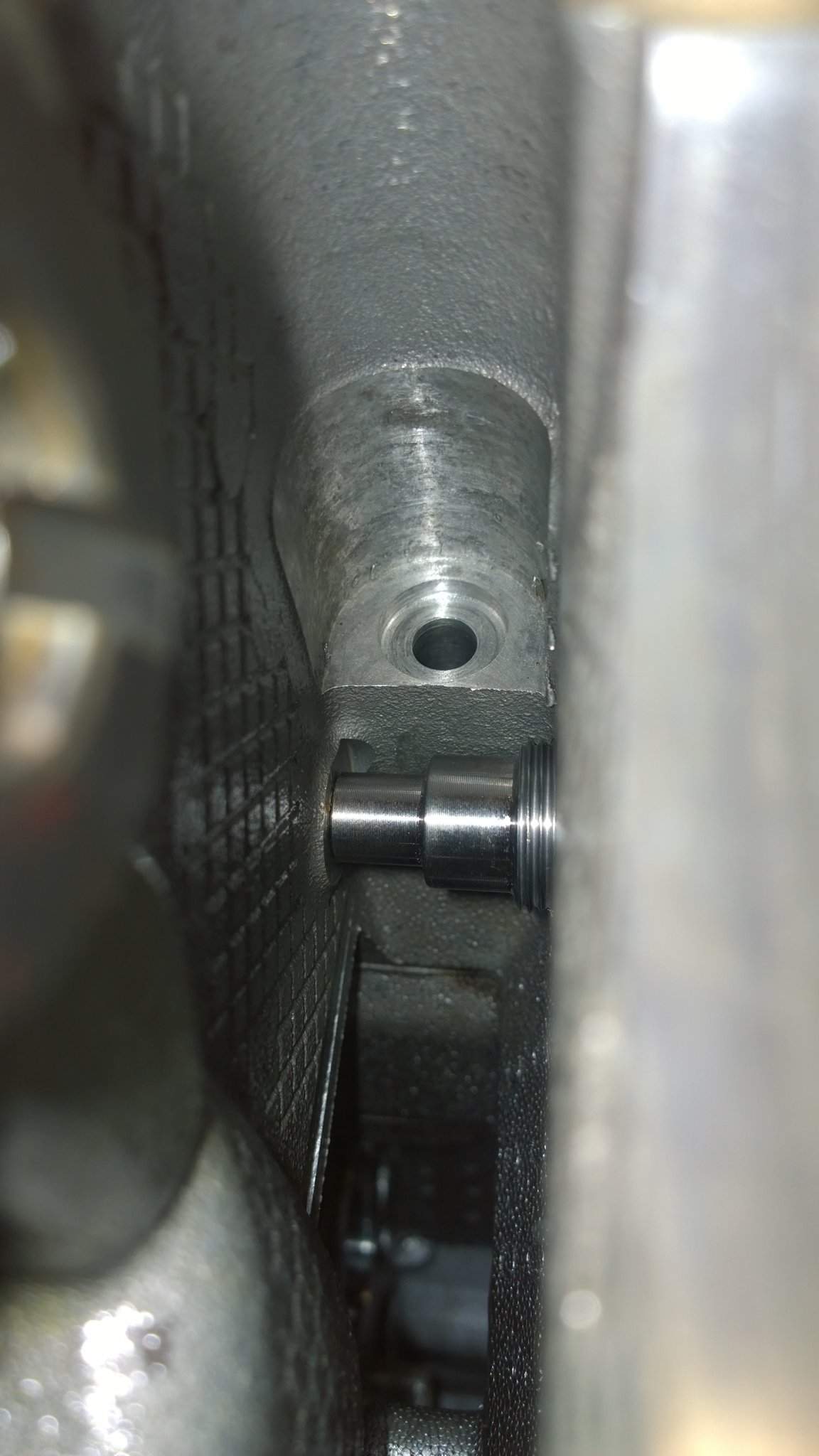

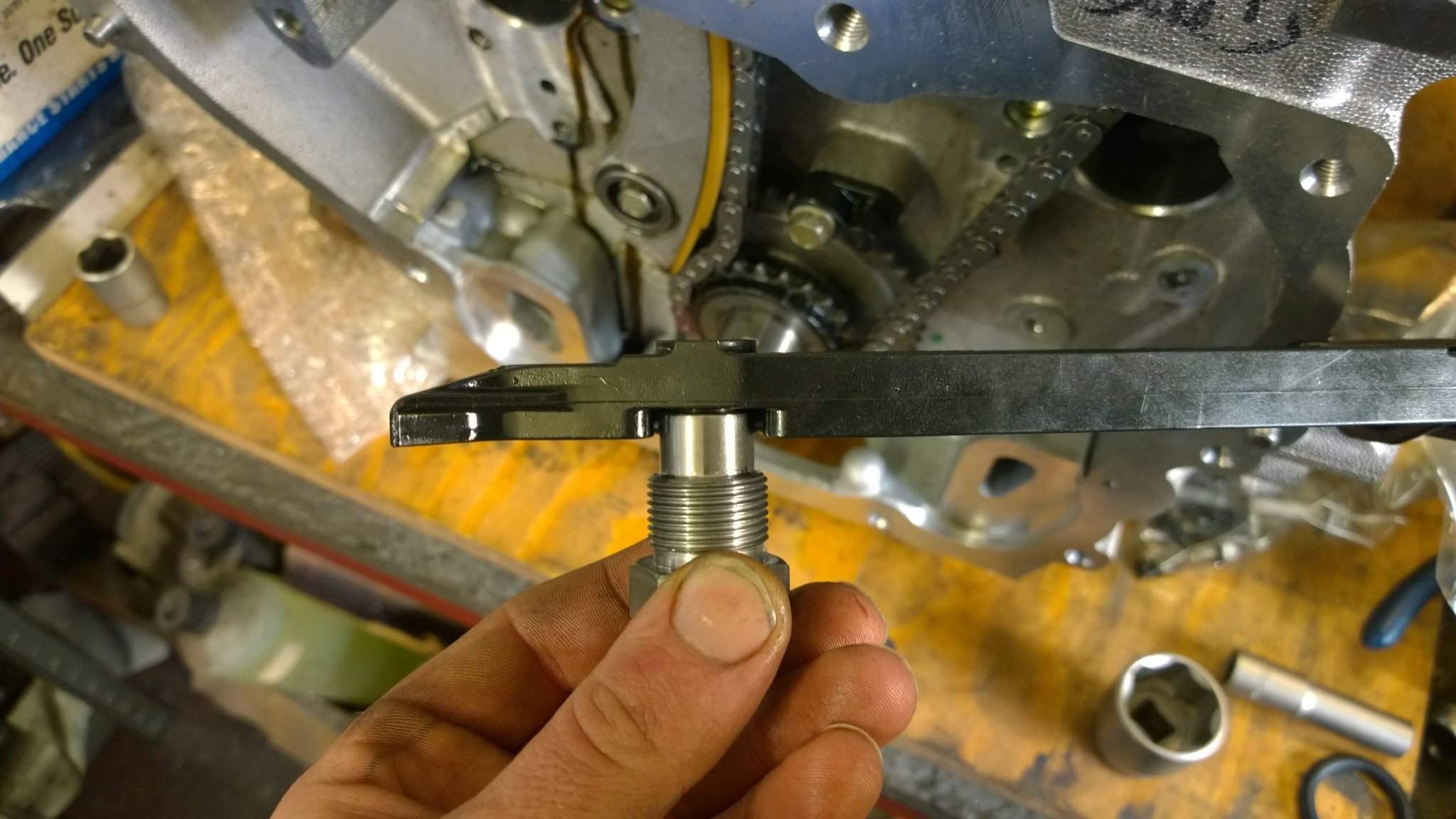

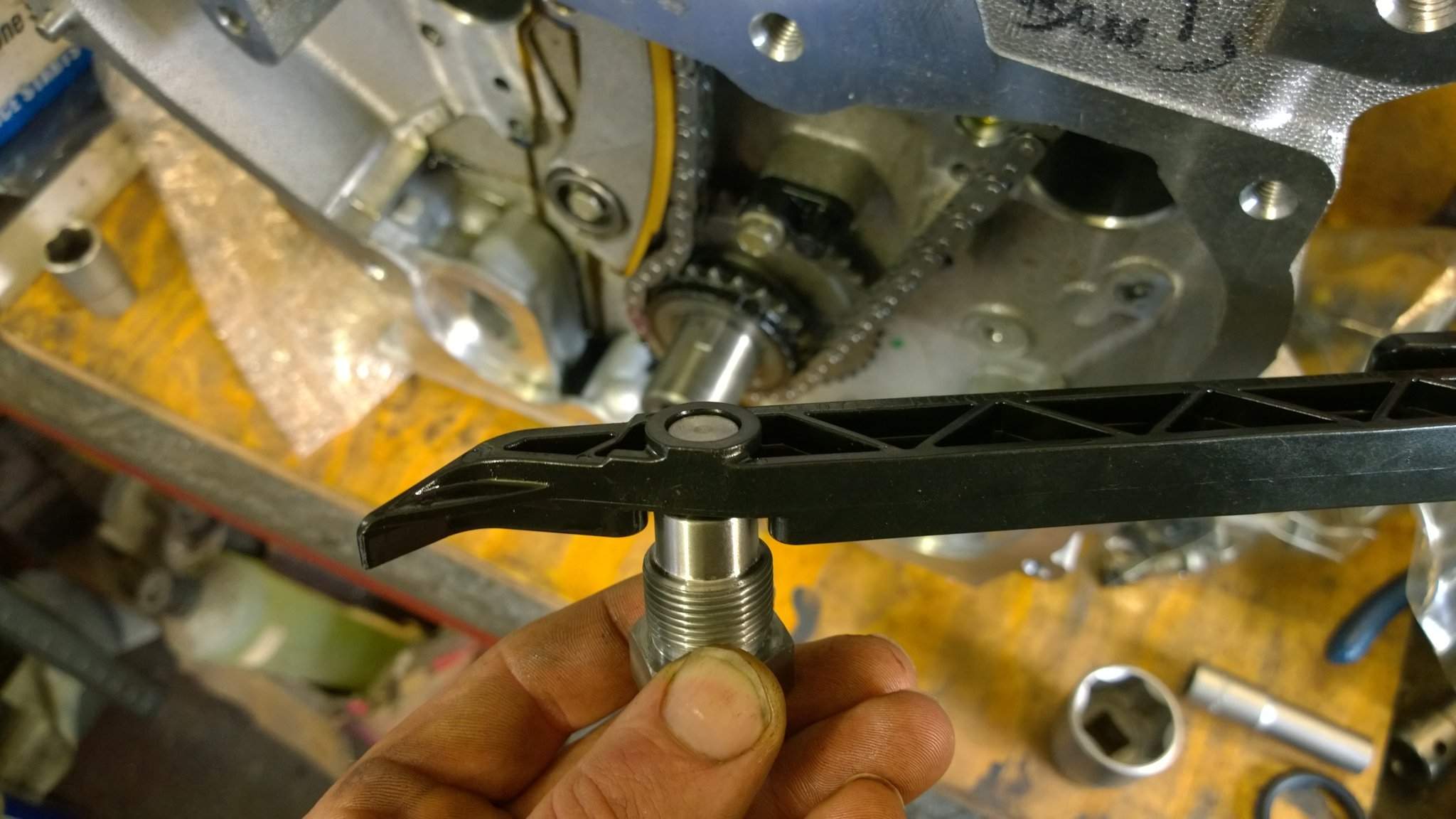

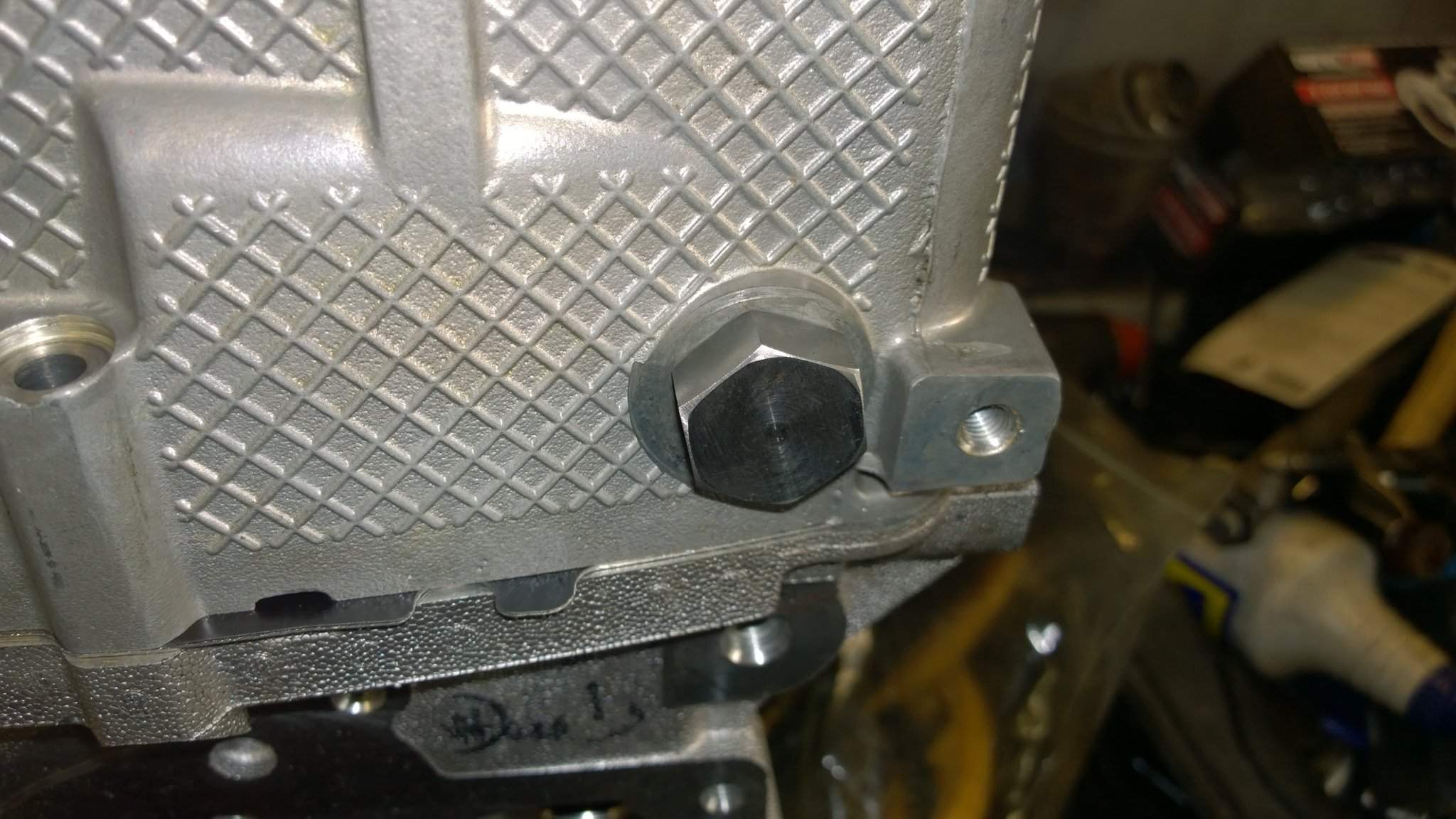

upgrade guide bolt / repair plug

did not quite meet the block with the guide in but would once tightened down

also theres a bit of a lip on the guide that hold it out a little

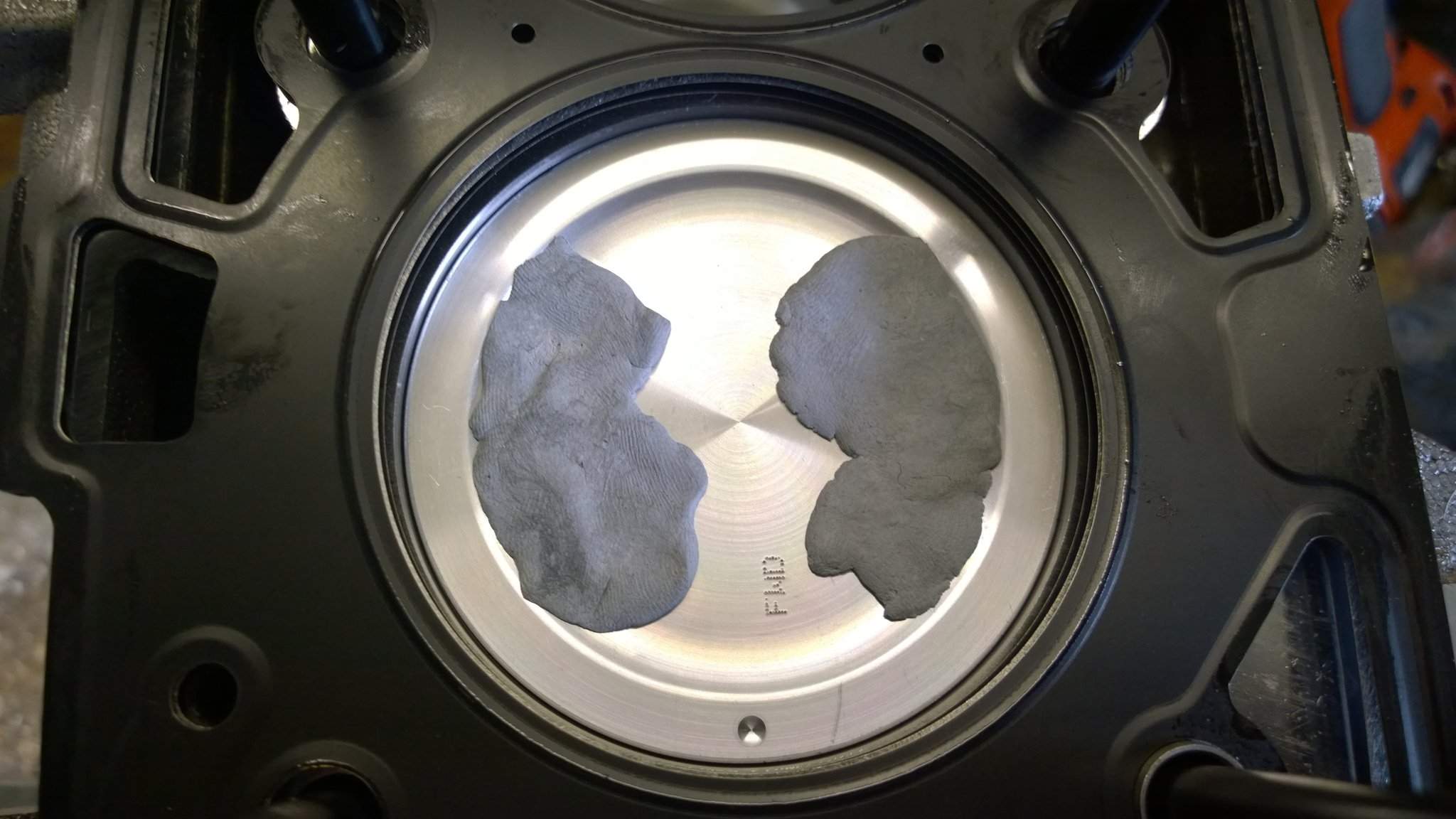

put some blue tack on the piston to check the valves were missing them at full height

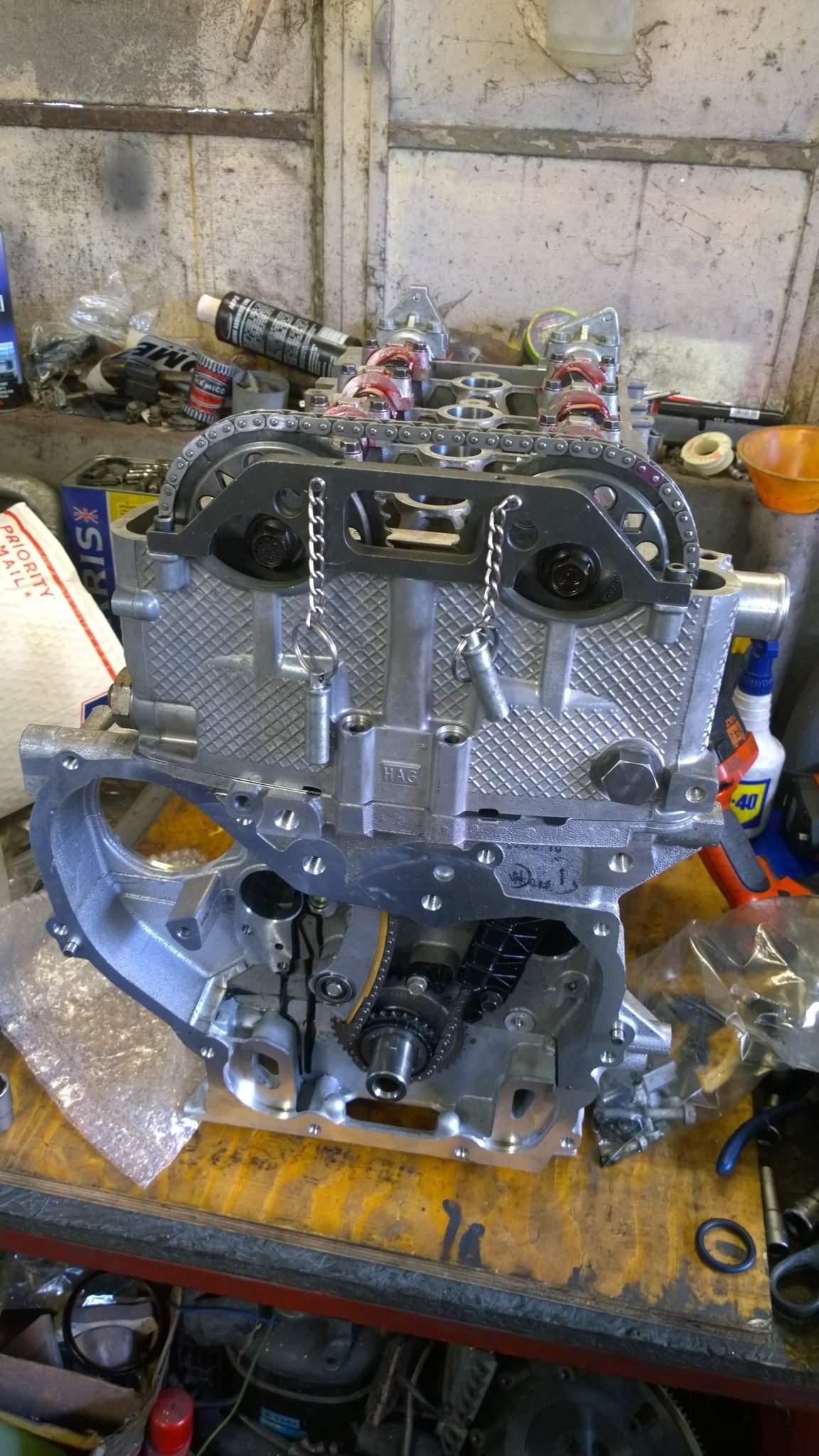

head went on and the chain all timed up with z22se sprokets 🙂

after 2 full turns and taking the head back off no marks on the inlet side 🙂
