Project Freeze My engine Off (SAAB B207R Supercharged)

vocky

is there supposed to be sealant on the oil track from the pump ?

nope, looks wrong at first, but they are all like it

vocky

you also need another oil way blanking plug as the saab turbo unit gets it's oil feed from there and obviously we don't need that.

oil way = 90537378

water pump drain / cylinder head temp sensor plug = 90537623

evocarlos

vocky said:
you also need another oil way blanking plug as the saab turbo unit gets it's oil feed from there and obviously we don't need that.

oil way = 90537378

water pump drain / cylinder head temp sensor plug = 90537623

cool will order a water pump plug 🙂
i got the oil feed blocked already have a scrap head with a load of them plugs in 🙂

yeah i was thinking about the sealant thought it would be better with it sealed shut
i also think im going to get some copper plate and weld up the extra holes in the trigger wheel if i can't find a good z22se crank

did you ever find any info about wedging the waterways ? or closed deck as they would call it in the usa

pottsey

so whats the deal with the trigger wheel then carl ,whys it not liked

evocarlos

its a 60+2 and the z22se ecu only reads 6+1 🙁
you think i can find a 6+1 external trigger wheel anywhere
it is easier to just fit a 2.2 crank at this point just to stop the messing with the trigger wheel
i also see the B207R pistons and rods fit the z22se crank 🙂 that would make my engine support over 300hp lol

corsaZ22se

Ive been looking at ways of getting cranks in from the US without incurring so much tax if any! 😉

evocarlos

cut balancer shafts ahh why not 🙂

evocarlos

corsaZ22se said:
Ive been looking at ways of getting cranks in from the US without incurring so much tax if any! 😉

think im going to use the one out my 2.2 unless i can sort this trigger wheel then i will just stick with the 2.0L 🙂

corsaZ22se

keep your engine complete and sell it to pay for the new one.

vocky

If you want to fit a z22se crank then you also have to use the z22se rods and pistons, well probably better to use Eagle steel rods and wiseco pistons - but you could use some z22se pistons as they are good for upto 300bhp.

The Saab 2.0 rods are too short for the longer throw of the z22se crank and the Saab pistons use a thicker gudgen pin (23mm) than the z22se rods (20mm), so cannot be used.

evocarlos

corsaZ22se said:
keep your engine complete and sell it to pay for the new one.

would keep it for spares 🙂

vocky said:
If you want to fit a z22se crank then you also have to use the z22se rods and pistons, well probably better to use Eagle steel rods and wiseco pistons - but you could use some z22se pistons as they are good for upto 300bhp.
The Saab 2.0 rods are too short for the longer throw of the z22se crank and the Saab pistons use a thicker gudgen pin (23mm) than the z22se rods (20mm), so cannot be used.

yeah thought as much 🙁 @[deleted] so whats the difference in rod length z22se vs b207R thought the crank gave the stroke ? had saw the pins are different in the above chart
will have to wait to get a rod and piston combo

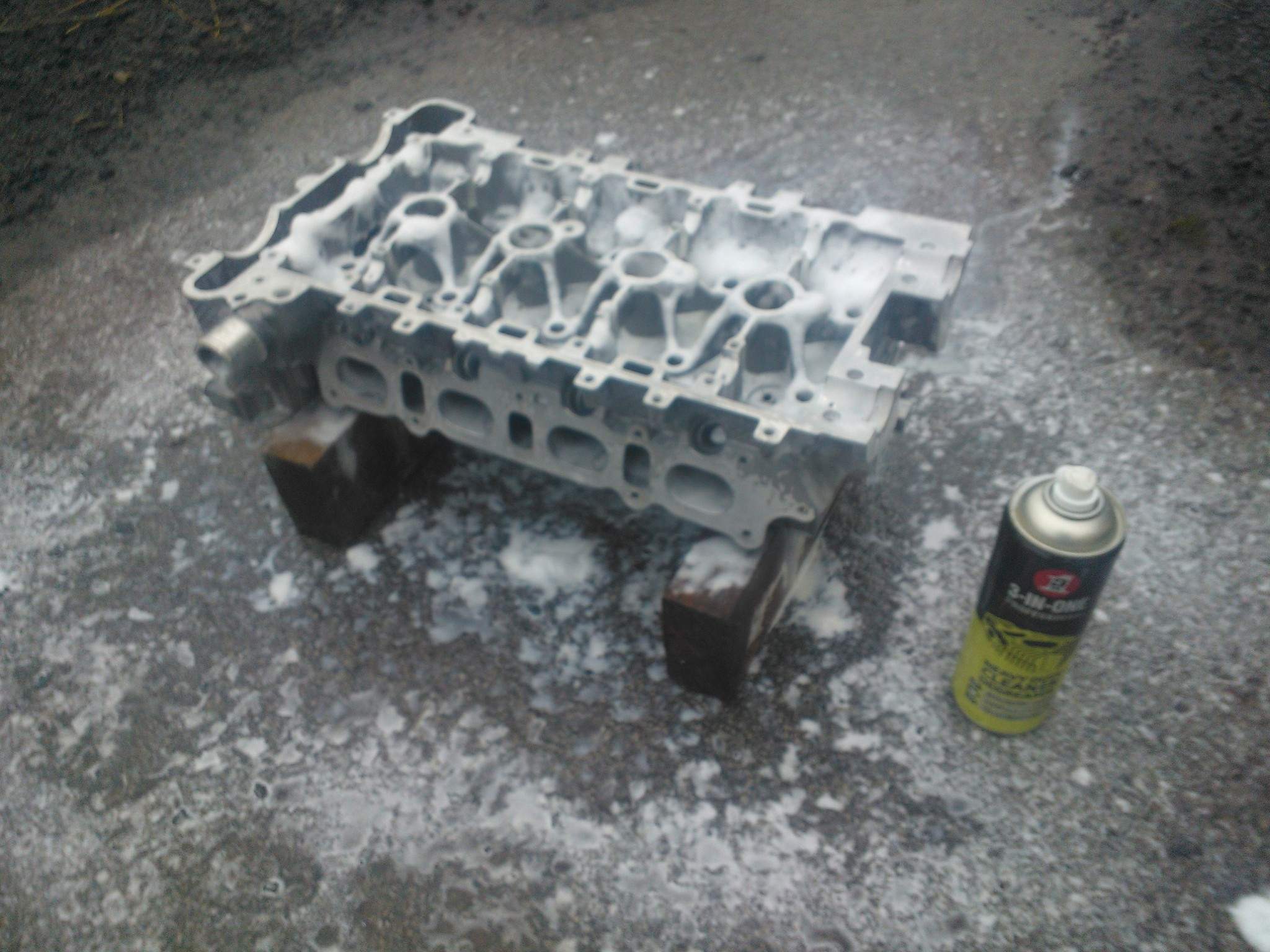

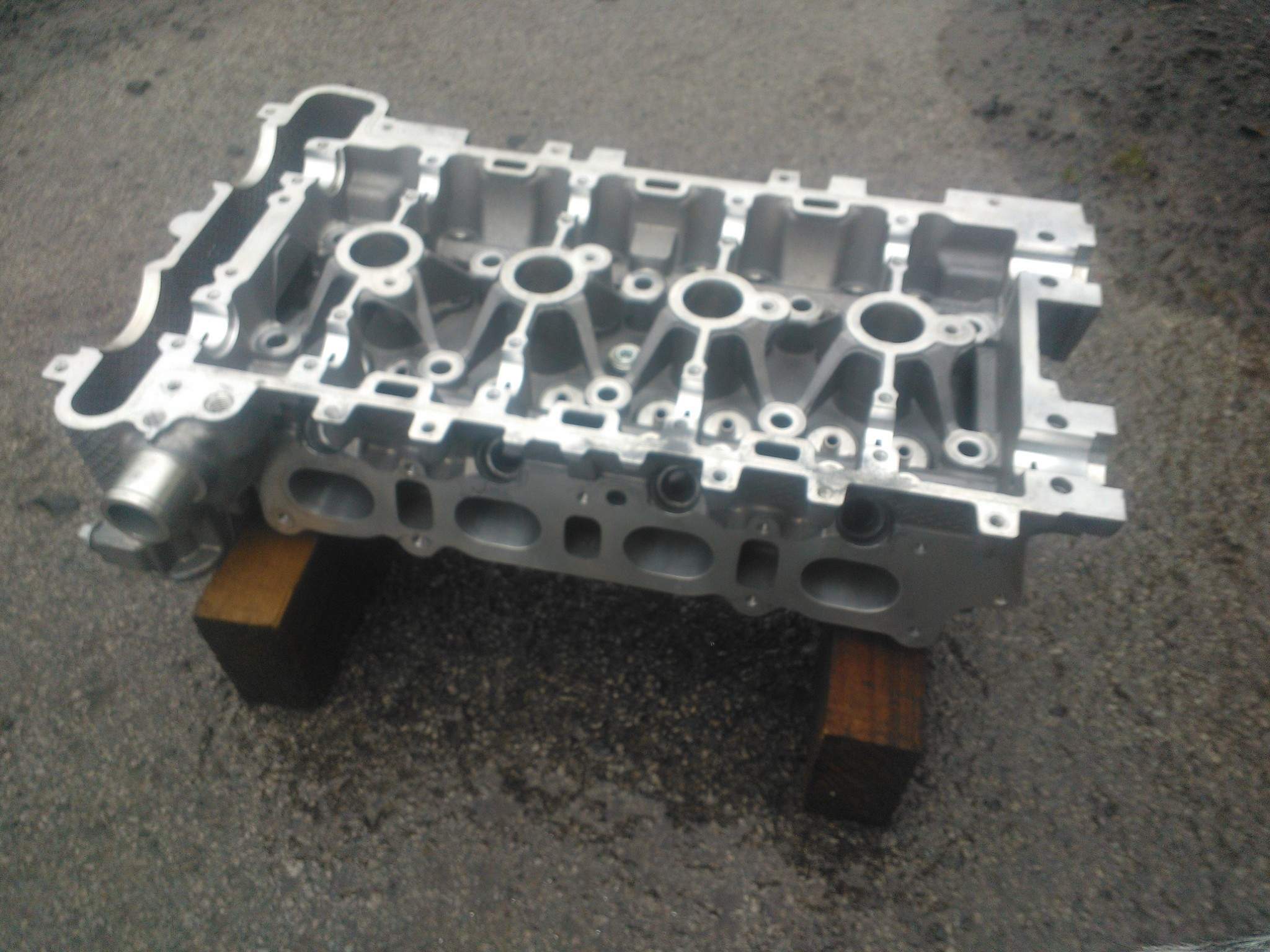

head wash time

degreaser and a jet wash 🙂

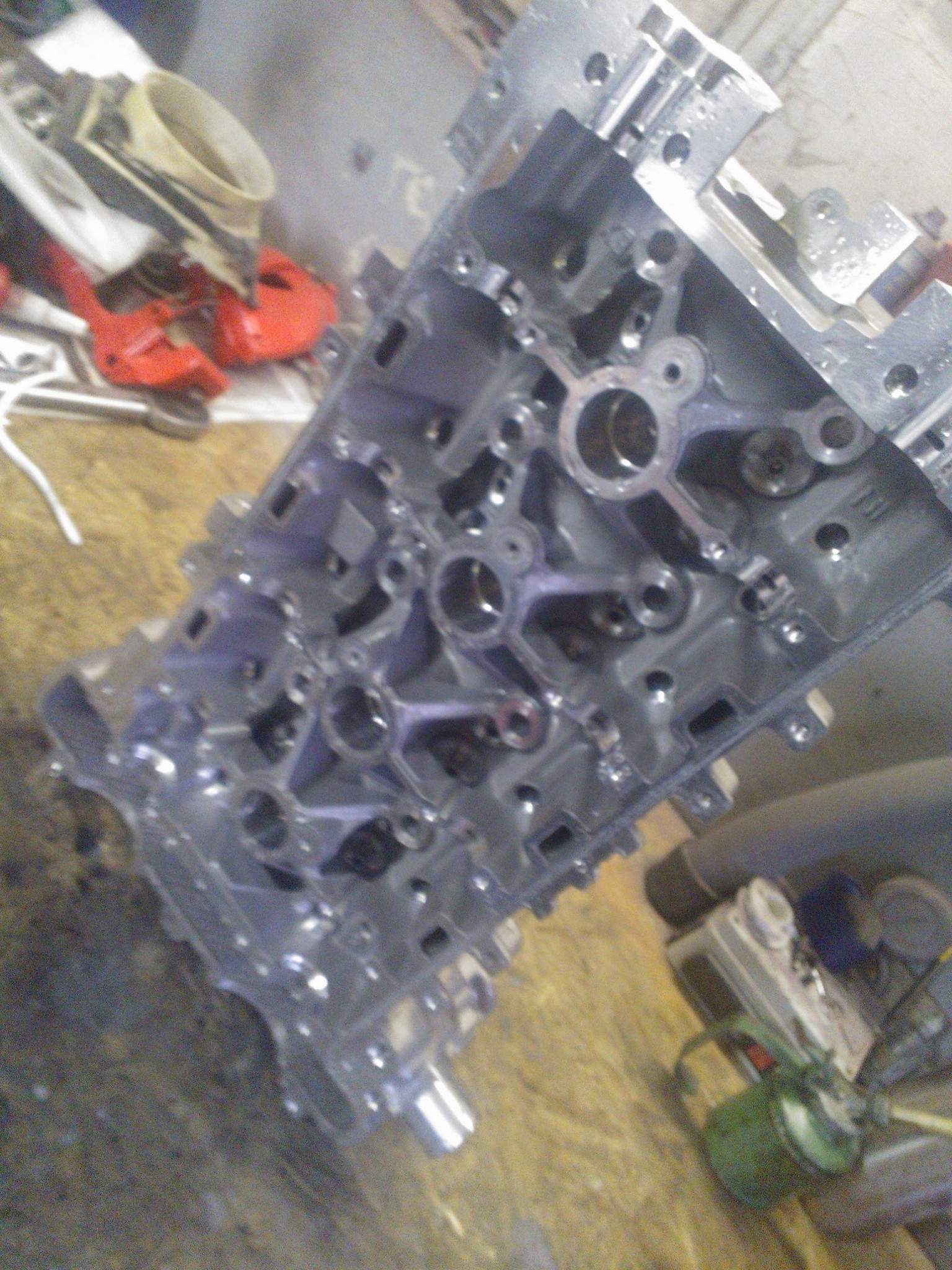

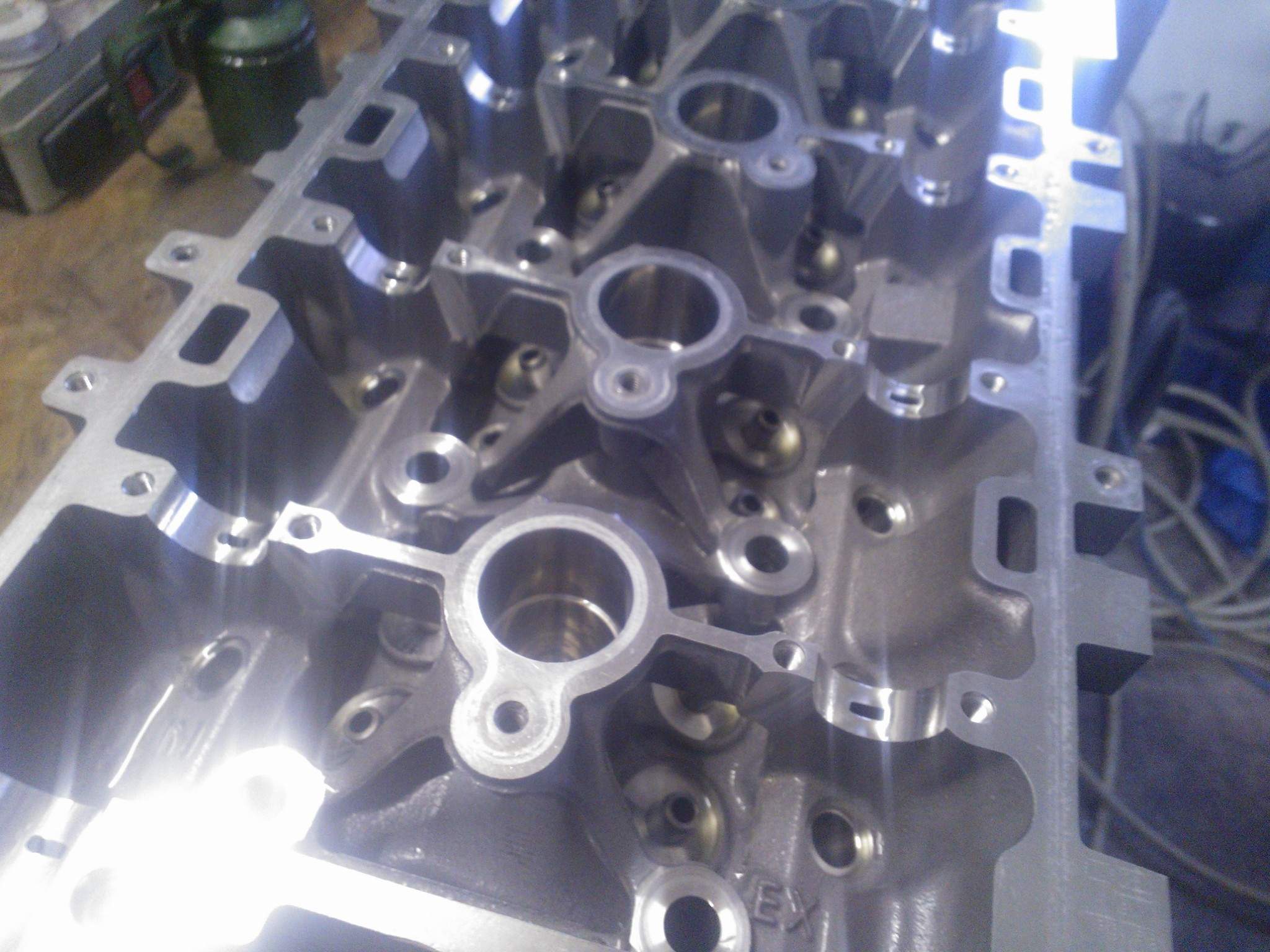

all clean now no more swarf

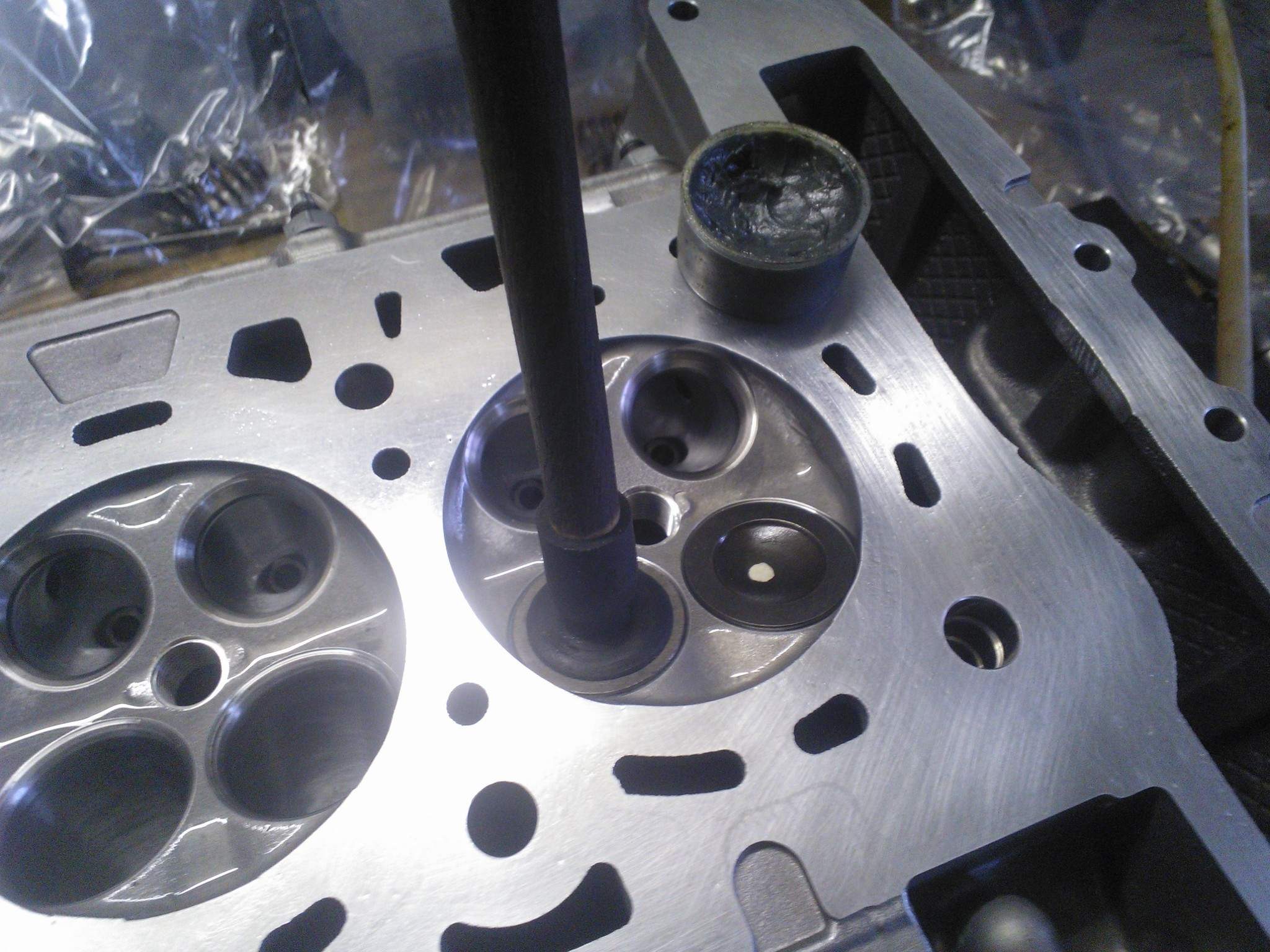

decided to grind all the valves in again just incase the seats were different from the polishing step

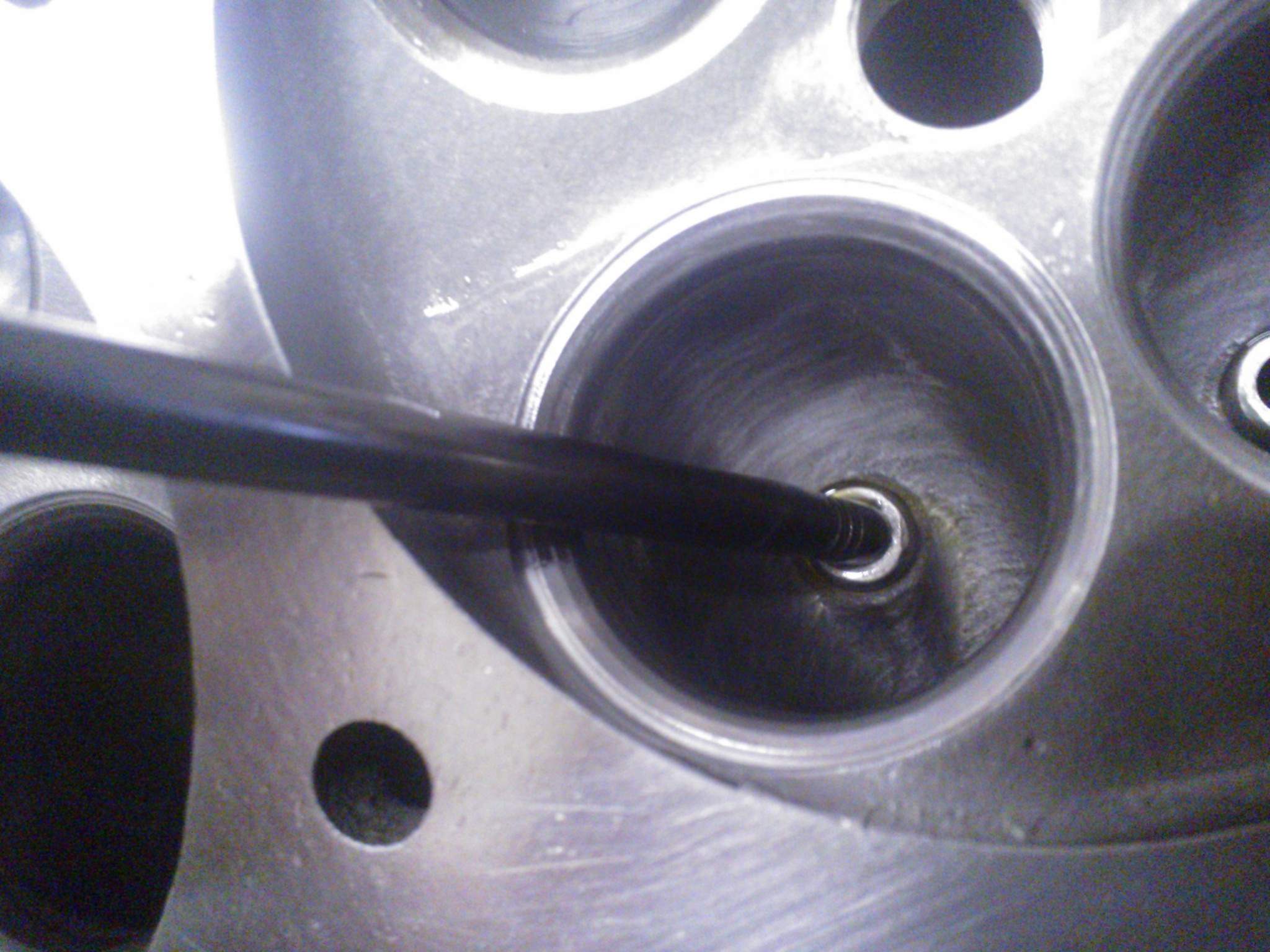

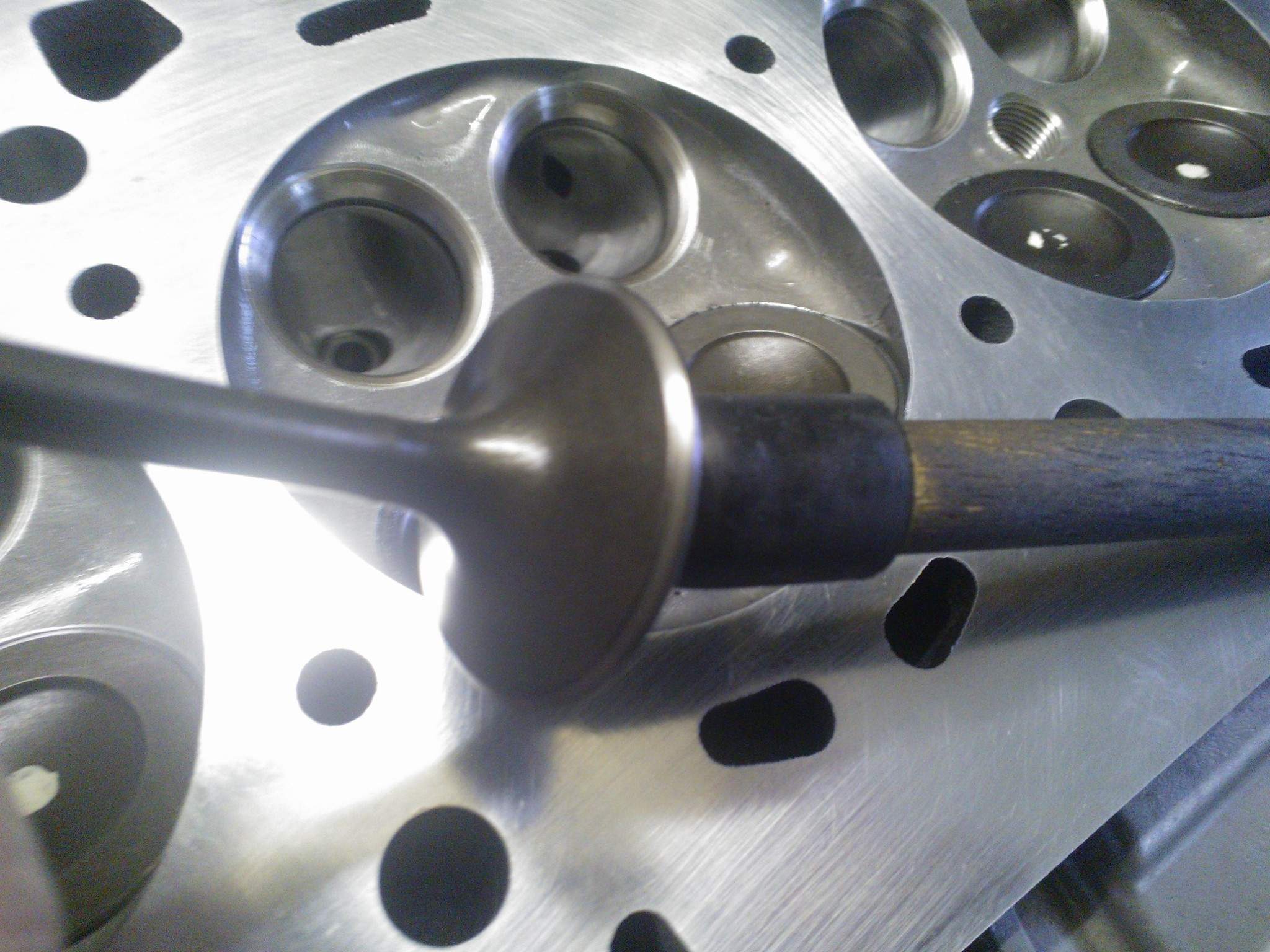

each valve got a lubed up

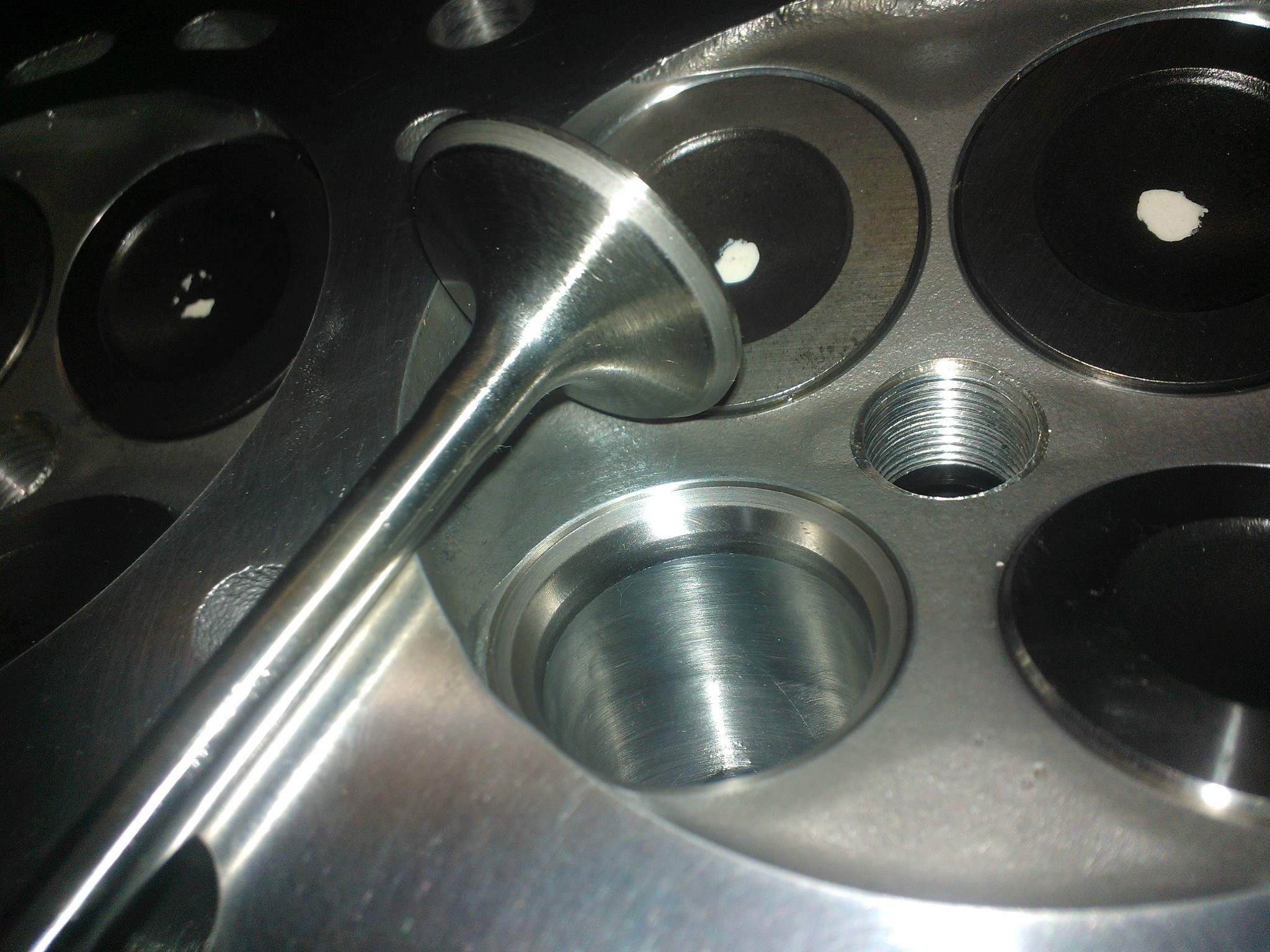

nice clean rim

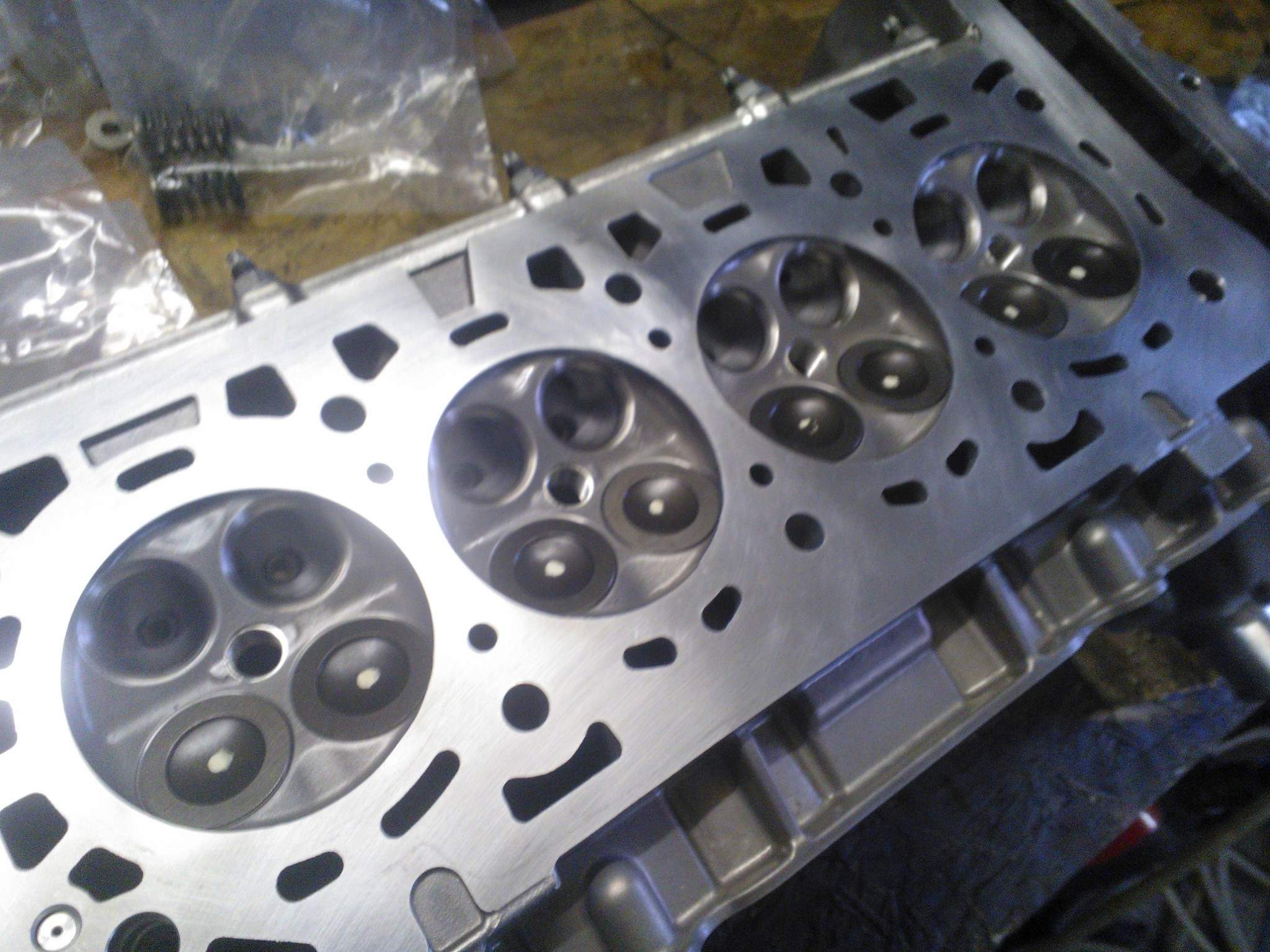

inlet side done

the exhaust side looked better from a grind in

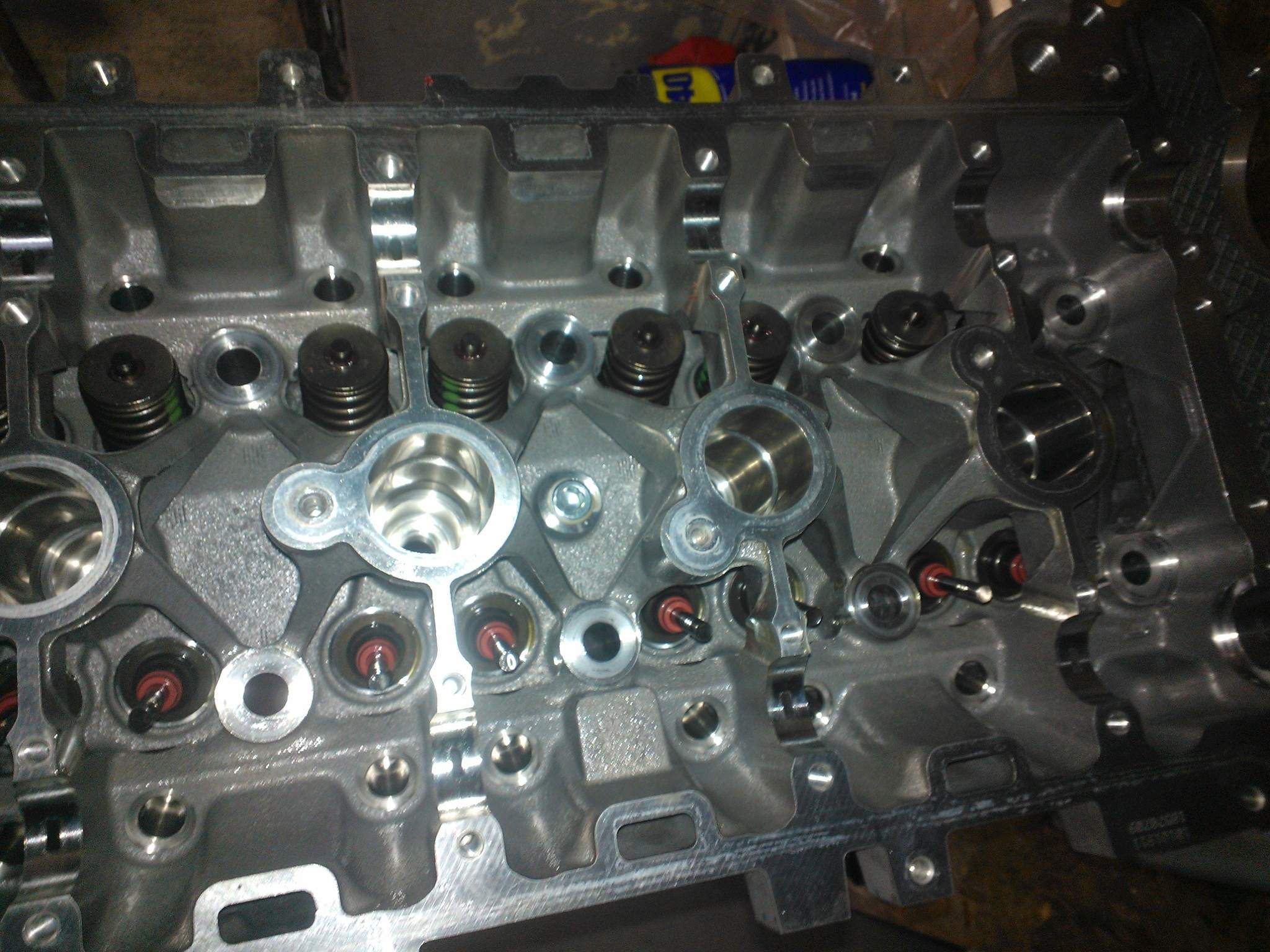

started to refit the valve springs

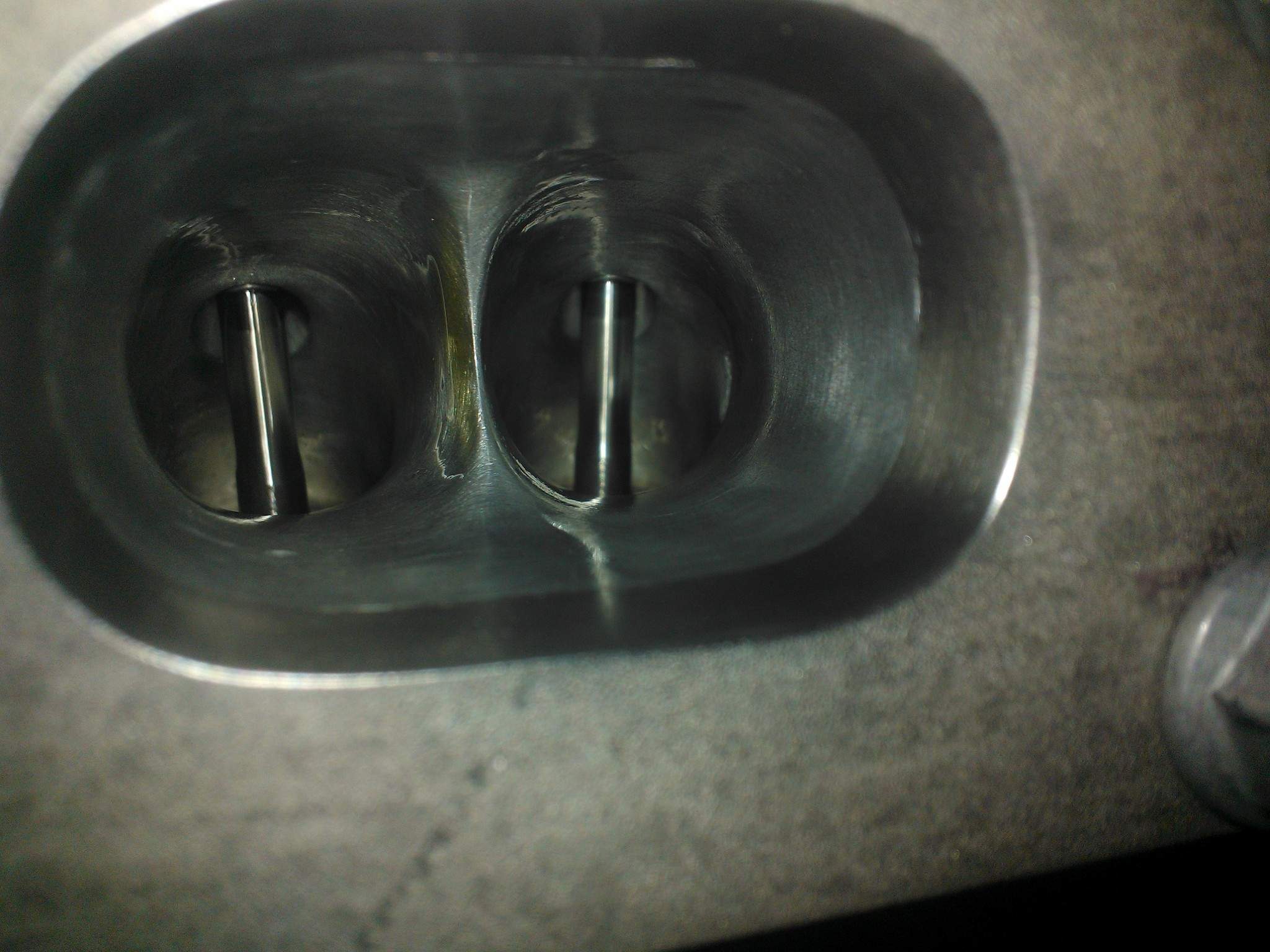

the ports should how help with flow

corsaZ22se

clean! 🙂
you didn't use the dishwasher then?

evocarlos

corsaZ22se said:
clean! 🙂
you didn't use the dishwasher then?

🙂
no we've not long had it and mom said i would get a thick ear if i tryed to use it 🙂

corsaZ22se

you shouldn't have asked her! :LOL:

Dave_Gilbert

evocarlos said:
🙂
no we've not long had it and mom said i would get a thick ear if i tryed to use it 🙂

next time do it wile shes out,(y)(y)

what you should do with your old engine is polish and port the head then I could come and visit(you know to say thanks for fitting the chains) then you fit it to my engine just for practice.(y)(y)

evocarlos

david gilbert said:
next time do it wile shes out,(y)(y)

what you should do with your old engine is polish and port the head then I could come and visit(you know to say thanks for fitting the chains) then you fit it to my engine just for practice.(y)(y)

yeah i could do that but it would cost some money 🙂

corsaZ22se said:
you shouldn't have asked her! :LOL:

i would of still got a thick ear lol

bored now run out of thing to do to it

Dave_Gilbert

evocarlos said:
yeah i could do that but it would cost some money 🙂

i would of still got a thick ear lol

bored now run out of thing to do to it

nice 1 how much do you recon??

evocarlos

david gilbert said:
nice 1 how much do you recon??

we will talk about it at some point 🙂

spent some time cleaning up the bottom cradle
before

after

sump side
before

after

the trigger wheel!

from what i can work out this one is a 60-2

the 2.2 uses a 7-1 trigger wheel (vockys pic from some time ago)

and it works like this ?

i dont like it!

Dave_Gilbert

nice 1 carl, iv been looking for a head but no luck so far.
so is it gunna be a mash up of an engine part z22se part SAAB?

Dave_Gilbert

just reading through that trigger wheel part(iv never had owt to do with owt like that) so is that like the distributor? in a way.
