Project Freeze My engine Off (SAAB B207R Supercharged)

corsaZ22se

smoooooooooth! (y)

evocarlos

gasket and stainless flange matched to the new ports

giving it a rest for awhile now my head hurts lol from the compressor and die grinder running

corsaZ22se

more time spent now = more fun when its done! 🙂

evocarlos

corsaZ22se said:
more time spent now = more fun when its done! 🙂

i hope so 🙂

@[deleted]
do you know the size of the core plug needed for the turbo oil drain ? dad seems to think its funny to hide the calipers from me

Matt

Not messing about there with the porting! I'd be shitting myself doing something like that to a brand new engine.

evocarlos

and thats the end of porting the exhaust side

i like the way it looks 🙂 no valve seats were harmed in the making lol

now just the inlet so smooth over its well matched to the gasket from the get go

evocarlos

Matt said:
Not messing about there with the porting! I'd be shitting myself doing something like that to a brand new engine.

🙂

Matt

Superb Carl! Do you just do the track down to the valve seat, and not touch where the valve sits in the head?

evocarlos

Matt said:
Superb Carl! Do you just do the track down to the valve seat, and not touch where the valve sits in the head?

well the seat is cut 3 ways and at different angles the 1st to angles i left untouched the 3rd angle is the same line as the port so that was blended in to the port bowl without touching the other 2 angles where the valve seats to
there has been quite a lot of material removed from the bowl area but lots have come from the port area i tried not to go to far in the bowl area as i don't want to break thru
once i had poo poo'd doing the 1st on the other 3 were cleared out much quicker than just the polishing to do went thru about 2m of emery cloth lol

lets just say thats one thing off my bucket list i've never done one before let alone a brand new one 🙂

corsaZ22se

you need to get a hobby! :rolleyes:

carson_sri

you dont mess around do you carl lol. cant wait to see it finished.🙂.

Dave_Gilbert

looking good carl, fancy doing a z22se head for mine😉

vocky

evocarlos said:
i hope so 🙂

@[deleted]
do you know the size of the core plug needed for the turbo oil drain ? dad seems to think its funny to hide the calipers from me

I usually make a blank in the lathe, but you can just measure the upper bore size of the hole

evocarlos

had a dabble at the inlet ports today

evocarlos

@[deleted] you asked so hope this helps 🙂
heres the inlets
before

after

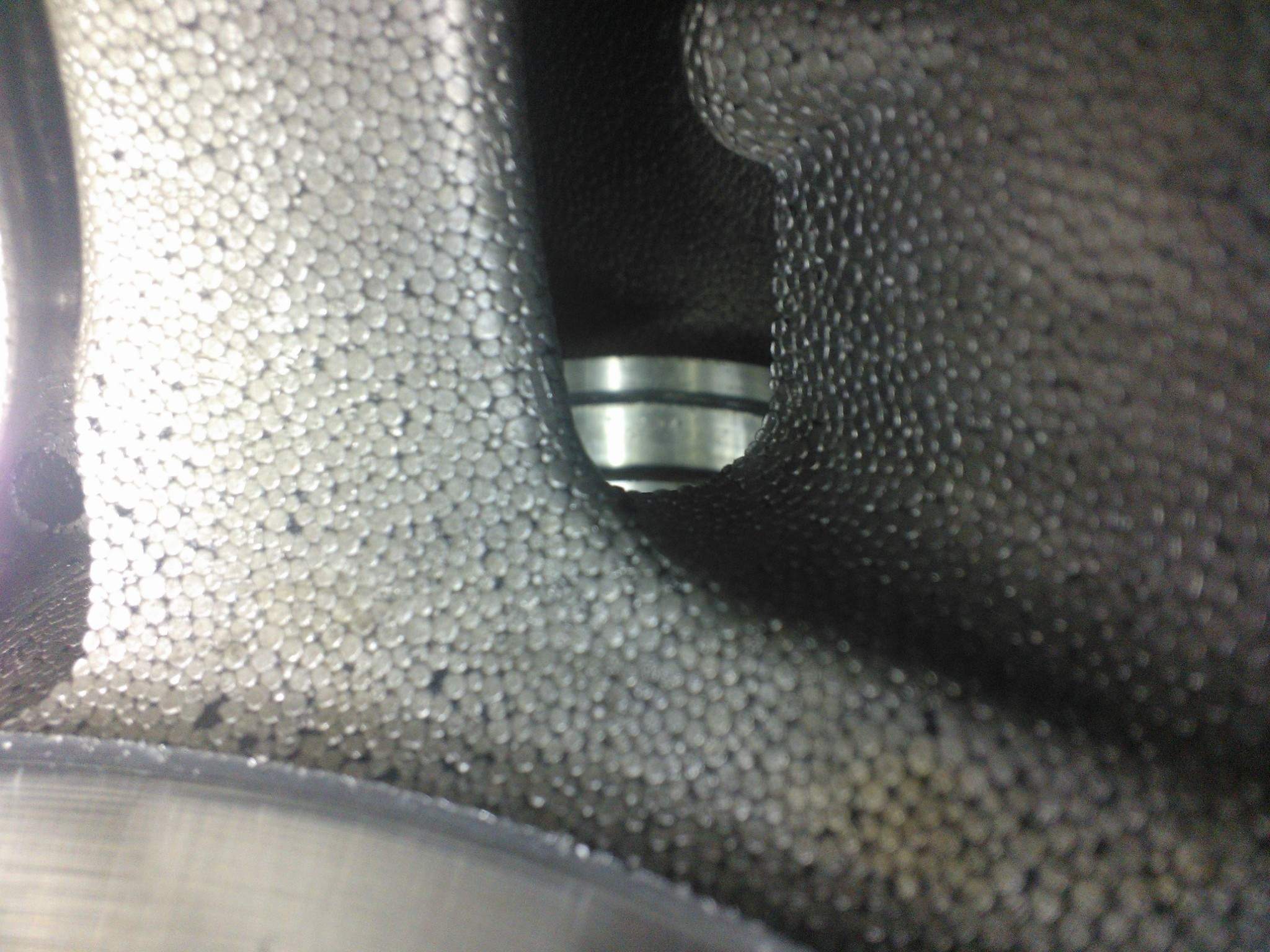

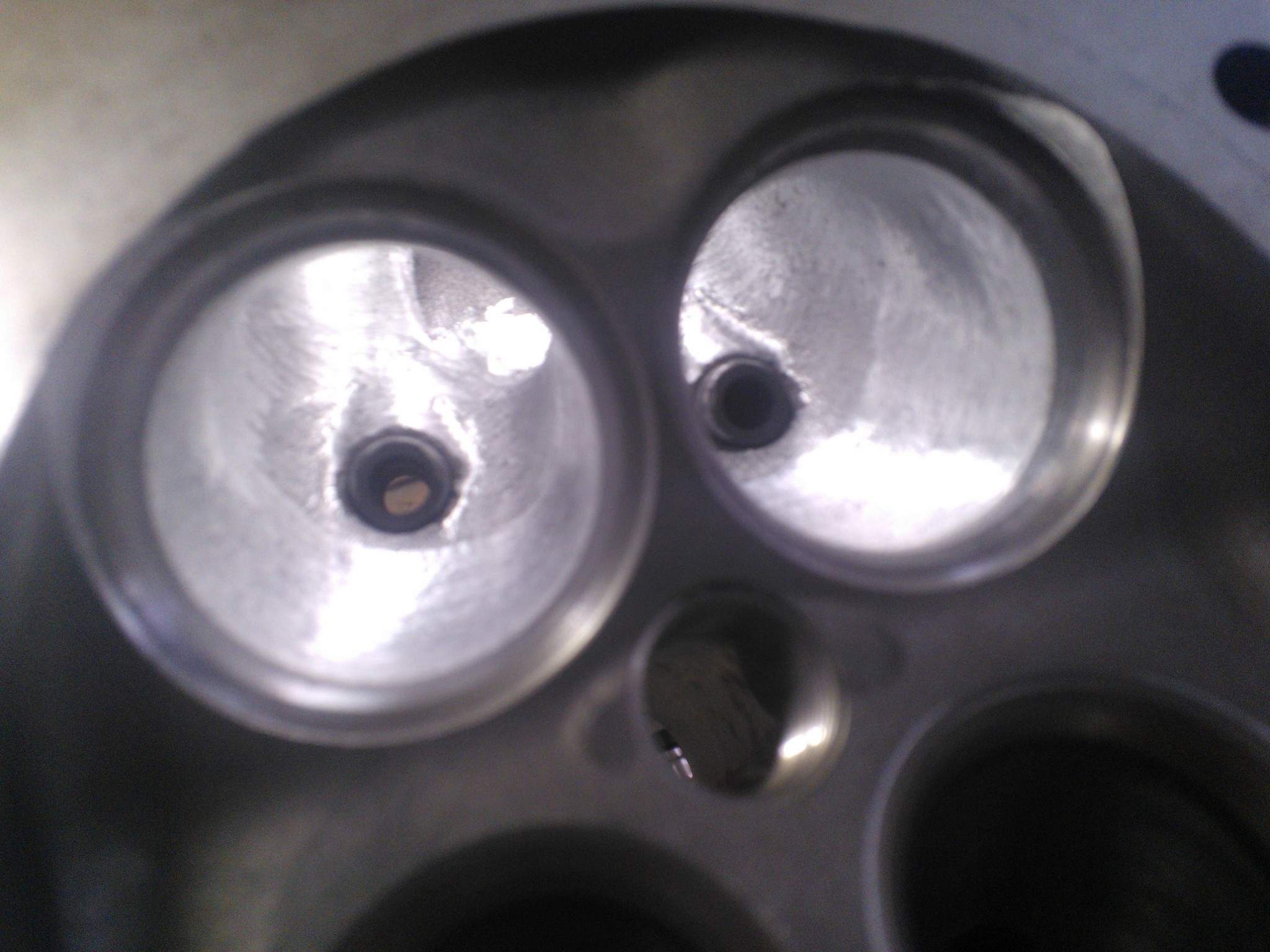

working up to the valve seat but not on it 🙂 this is before the polishing stage their is also not much work to be done inlet side

evocarlos

got bored and then a bit carried away with a strip of scotch pad in the home made flap wheel tool lol

can safely say the exhaust side is done 🙂

Dave_Gilbert

that looks shiny n smoooooooooth and looks like you went abit to far(is that a small hole)???

evocarlos

david gilbert said:
that looks shiny n smoooooooooth and looks like you went abit to far(is that a small hole)???

its a hole in the manifold flange 🙂
i think it more than enough now lol working on getting the inlet the same but run out of emery cloth

evocarlos

bit more done
inlet ports all done now forgot to take pics of the polished ports got a can of degreaser so will jet wash the head off tomorrow and get all the swarf off
might try and convince mom to let me put it in the dishwasher lol

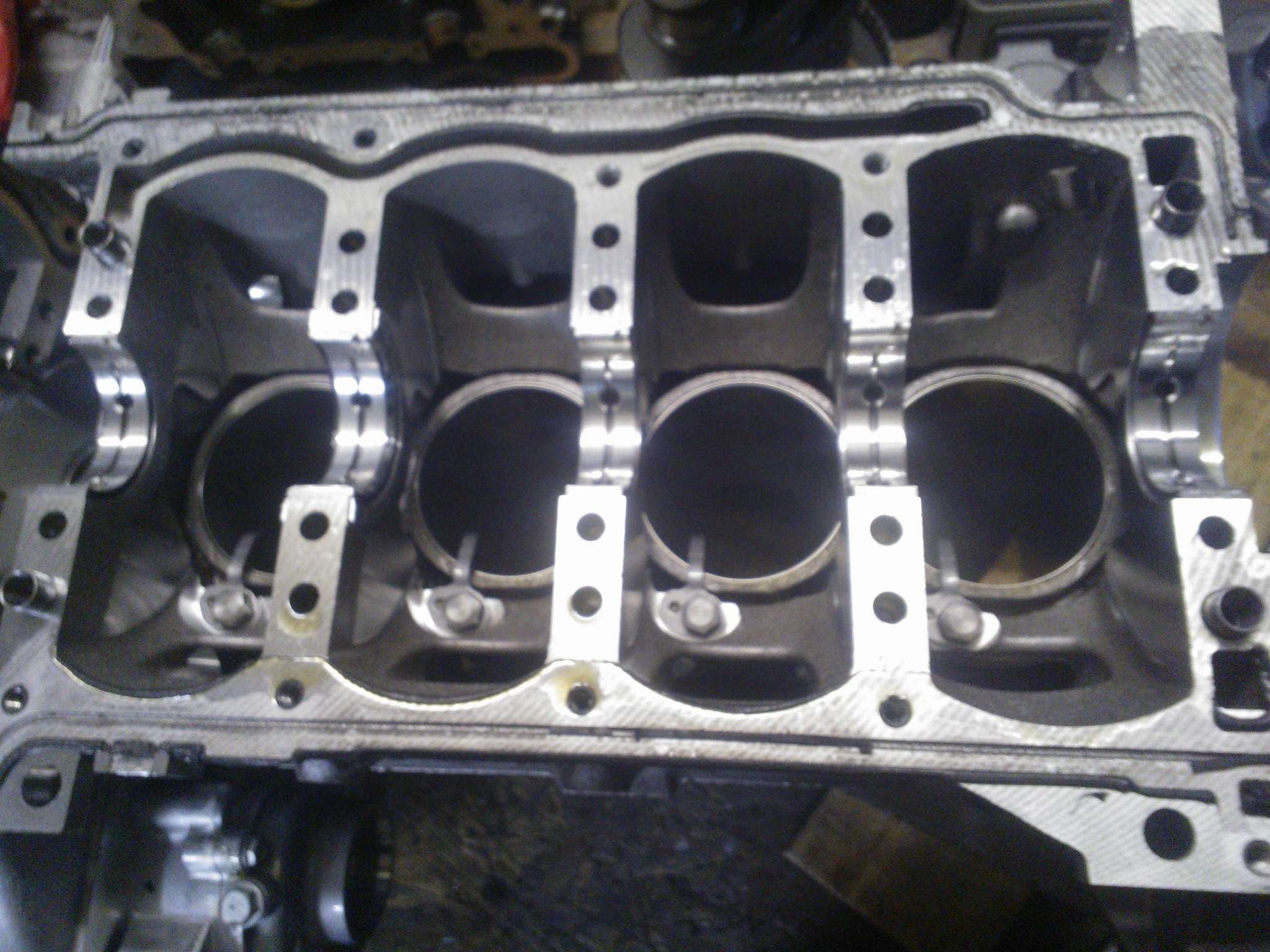

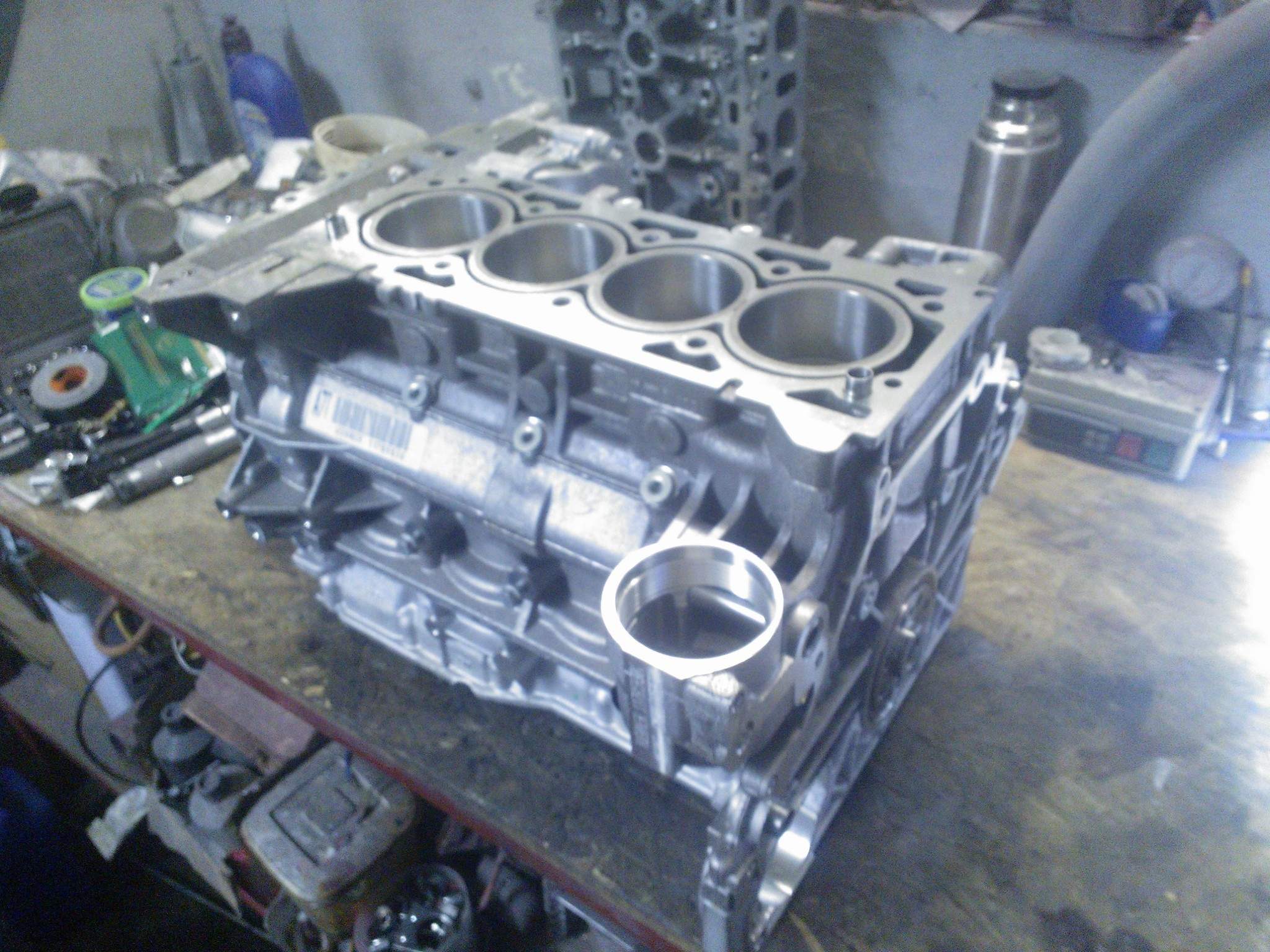

then the block got put on the table

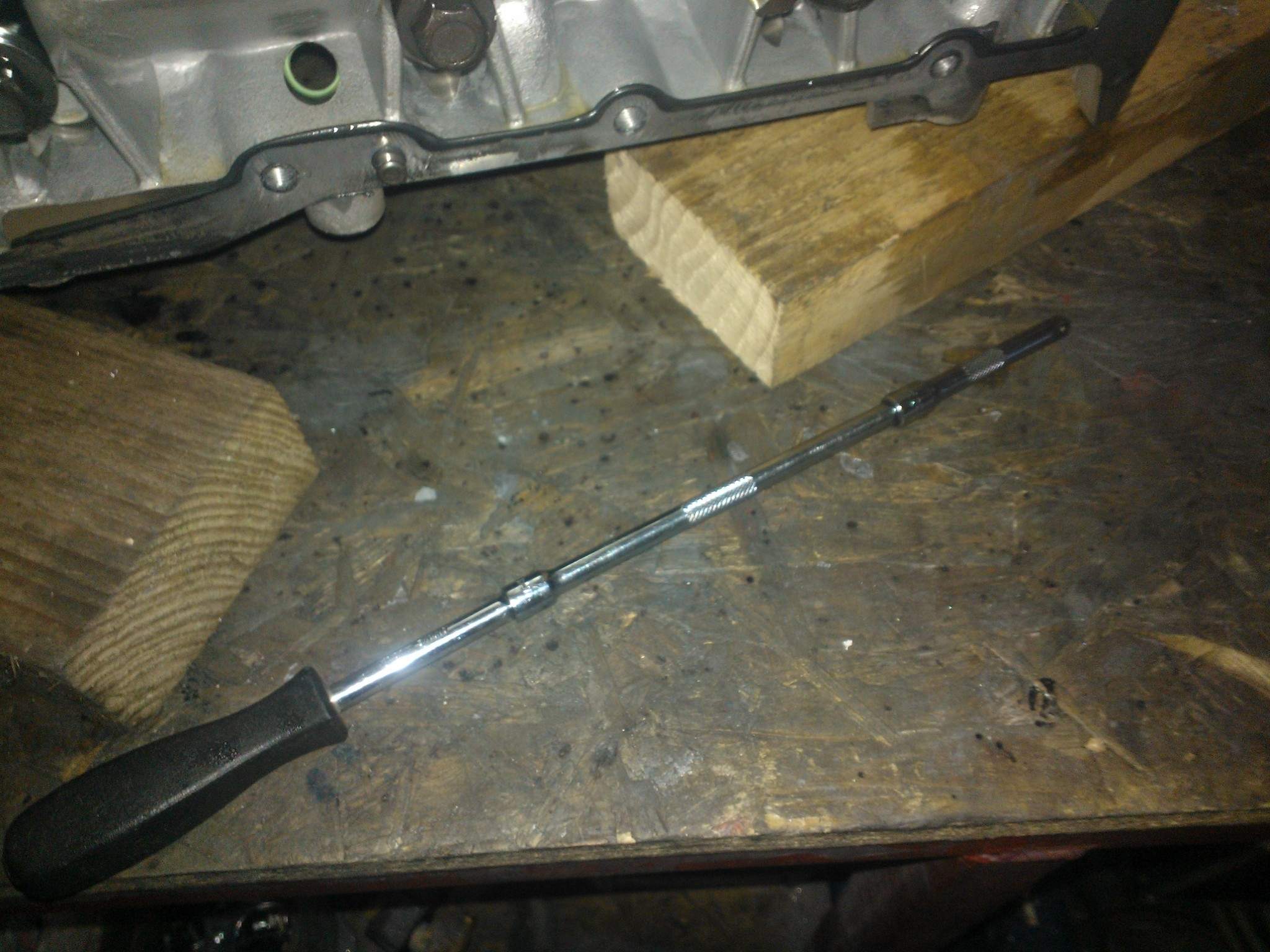

long thing for pushing out the pistons 🙂

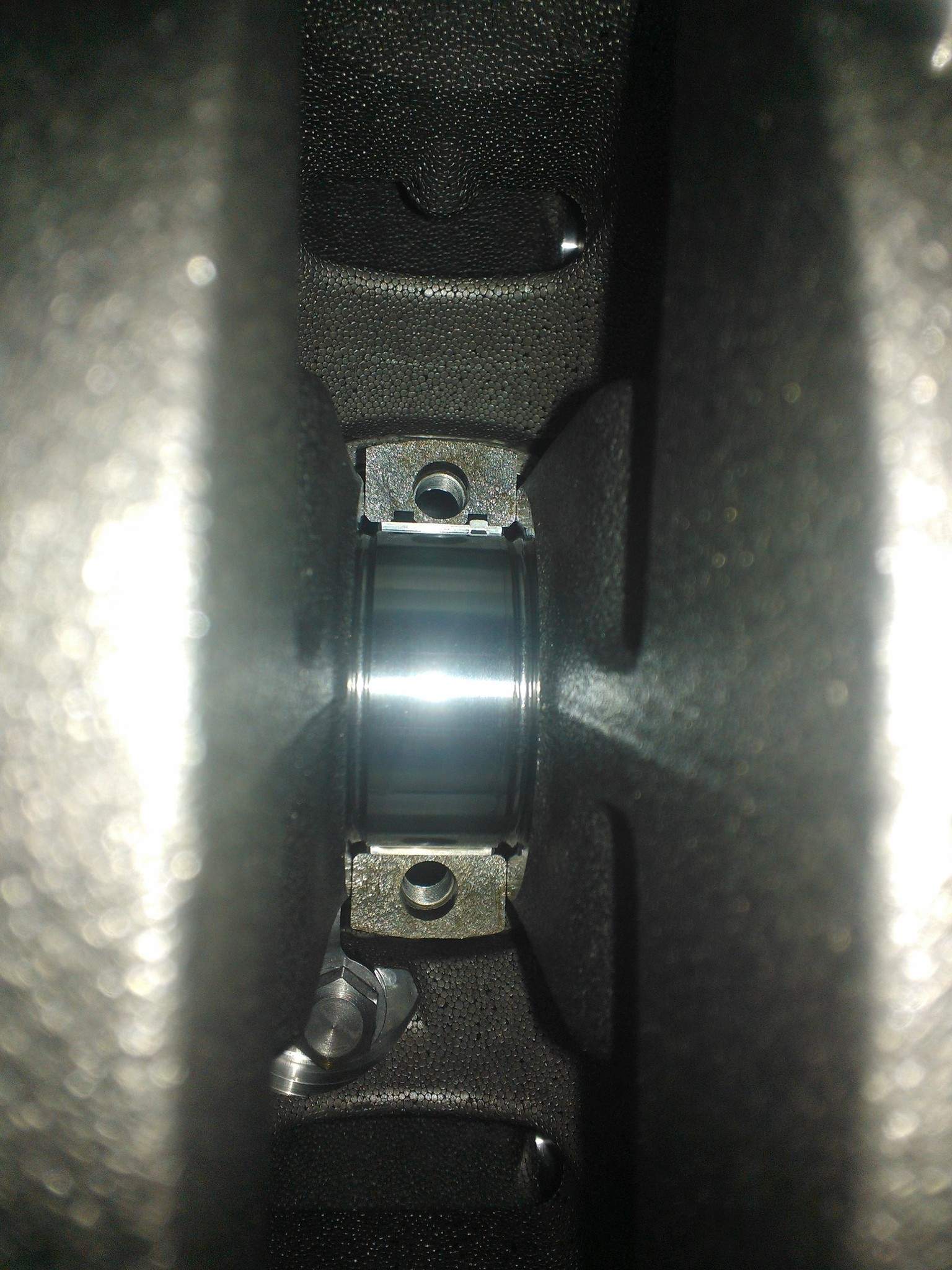

i like the way the con rods are broken in half at the bearing caps so they only fit that rod and one way round

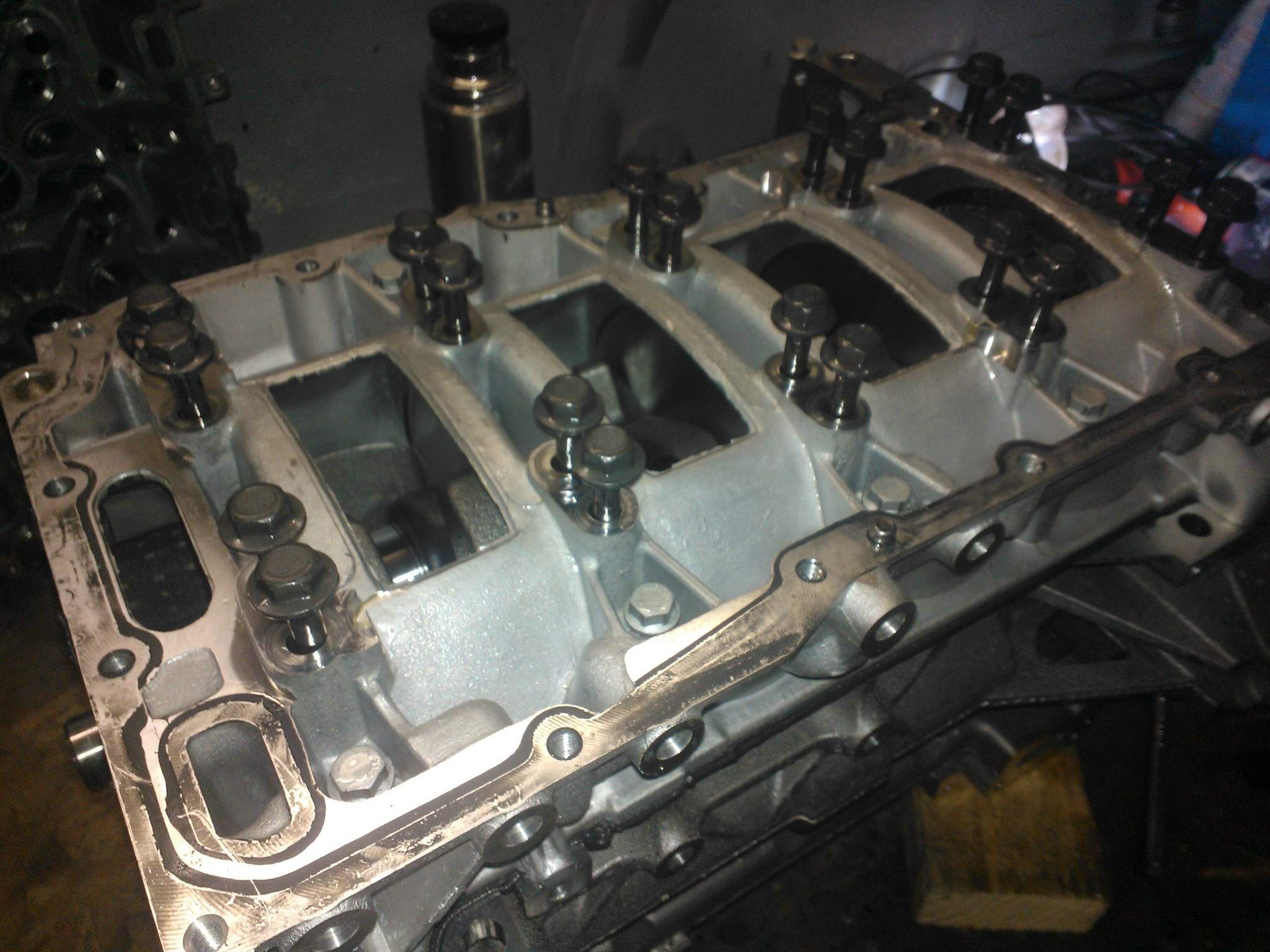

cradle bolts out

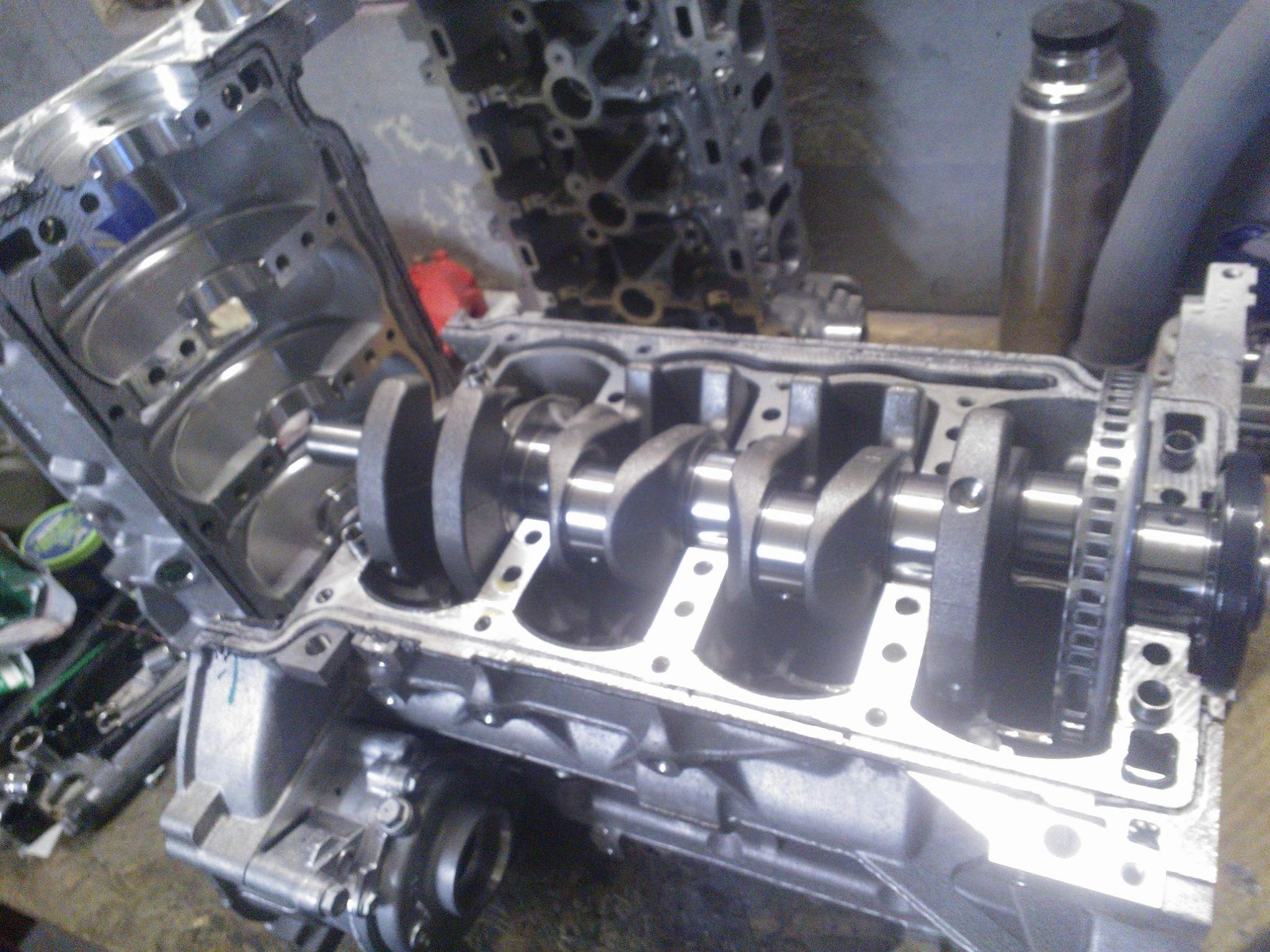

cradle off the dreaded trigger wheel

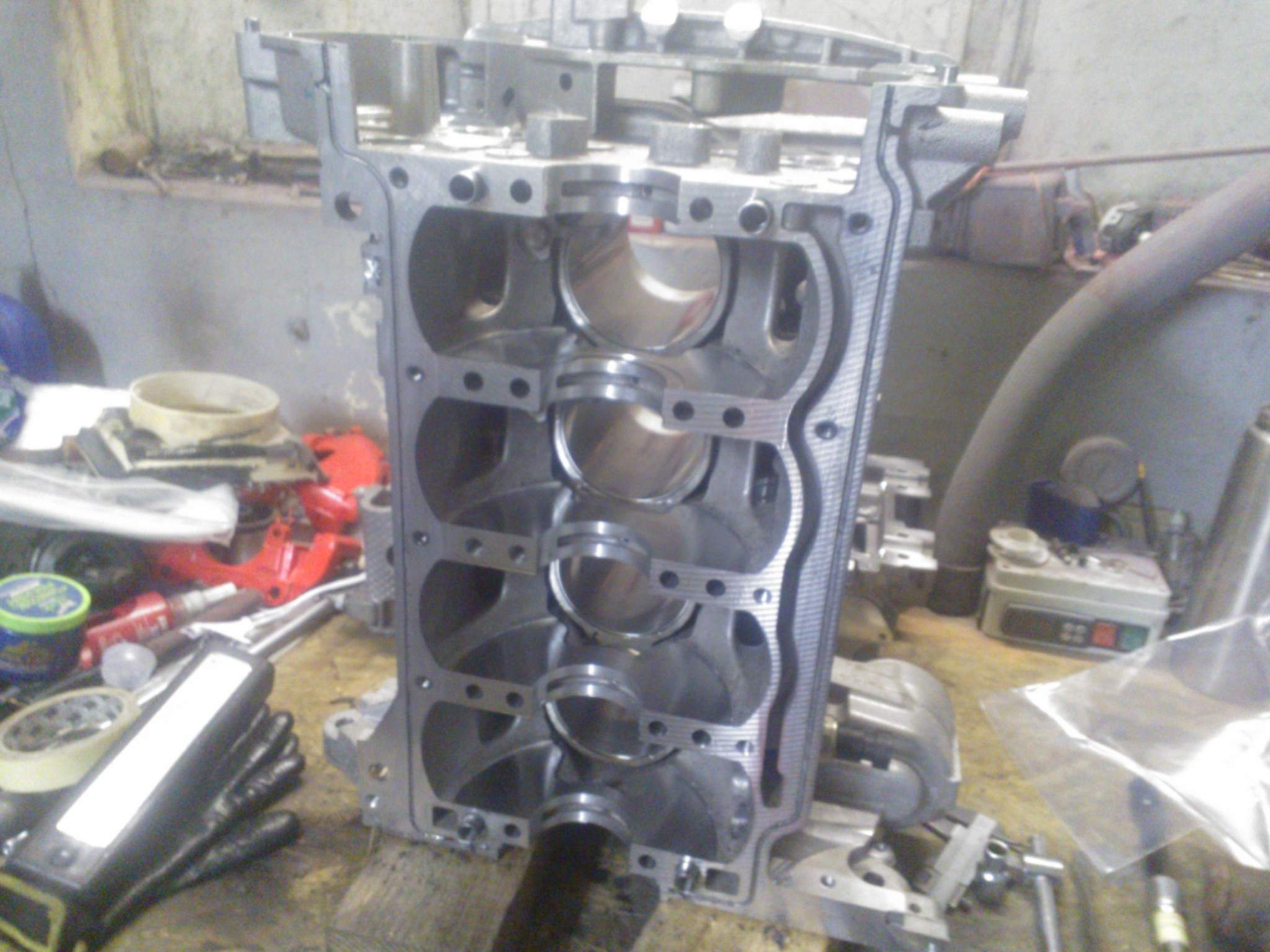

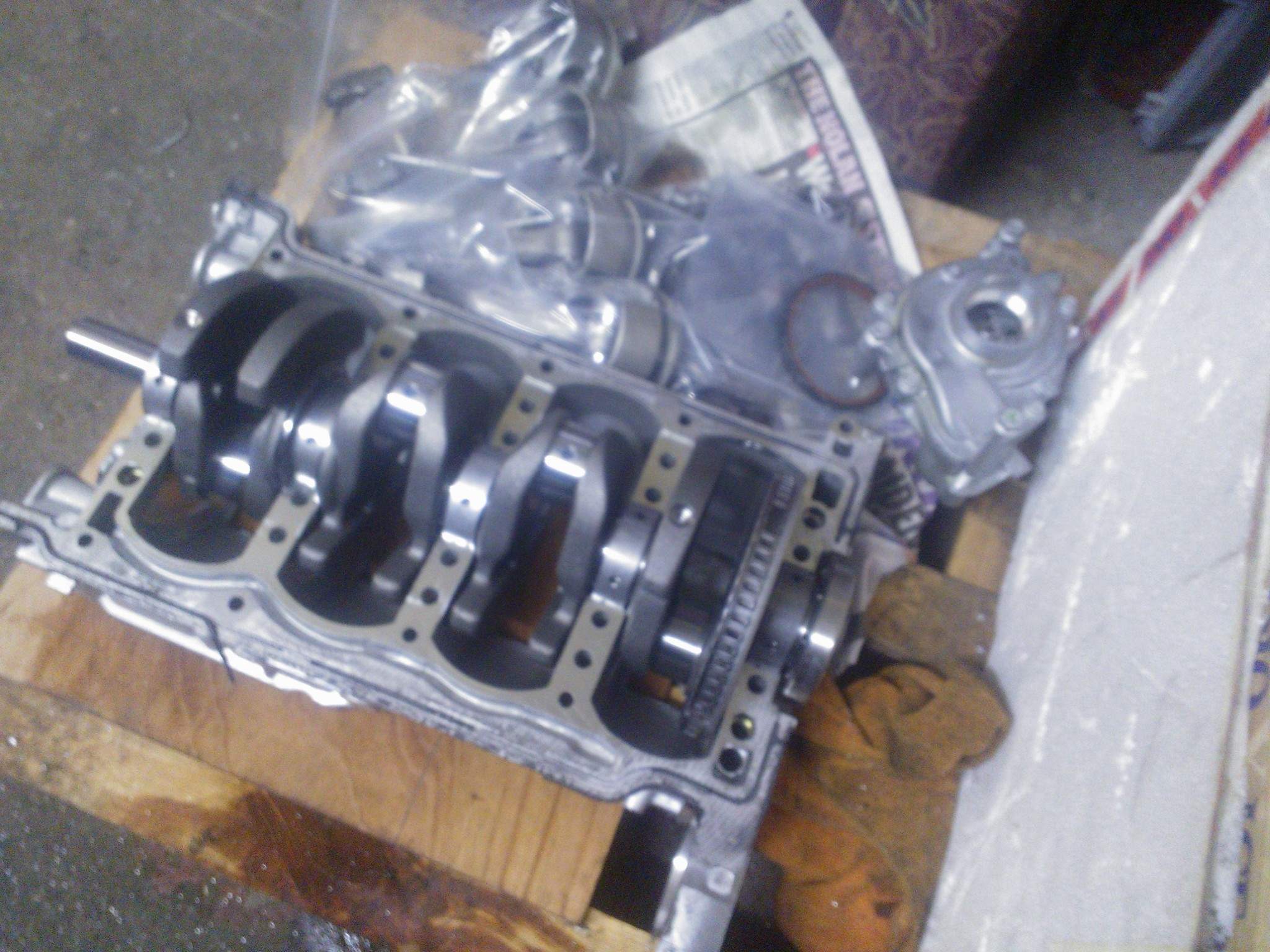

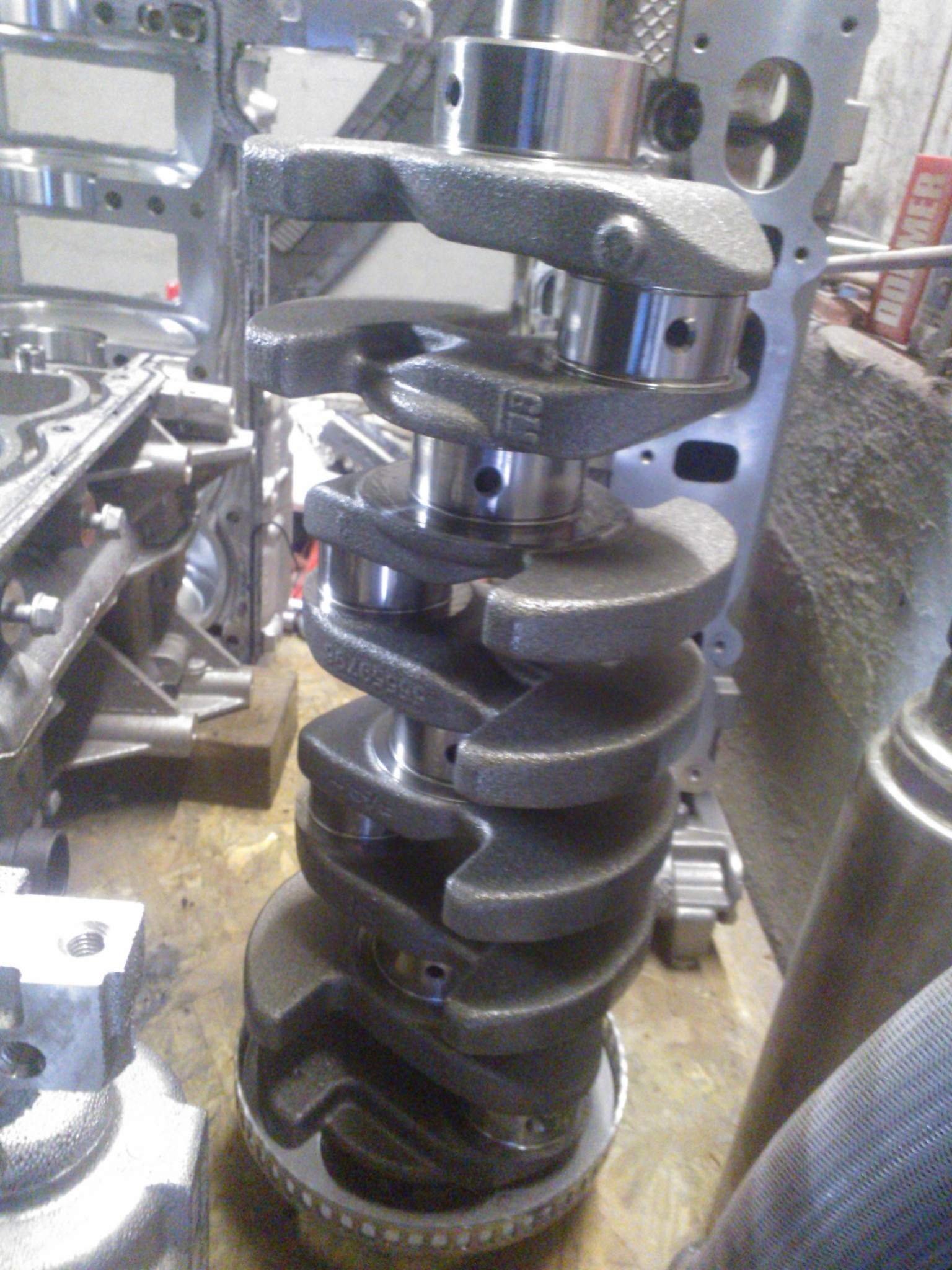

crank out

as as vocky once said ""lovely piston squirters"" 🙂
@[deleted] is there supposed to be sealant on the oil track from the pump ? only has sealant on the out side

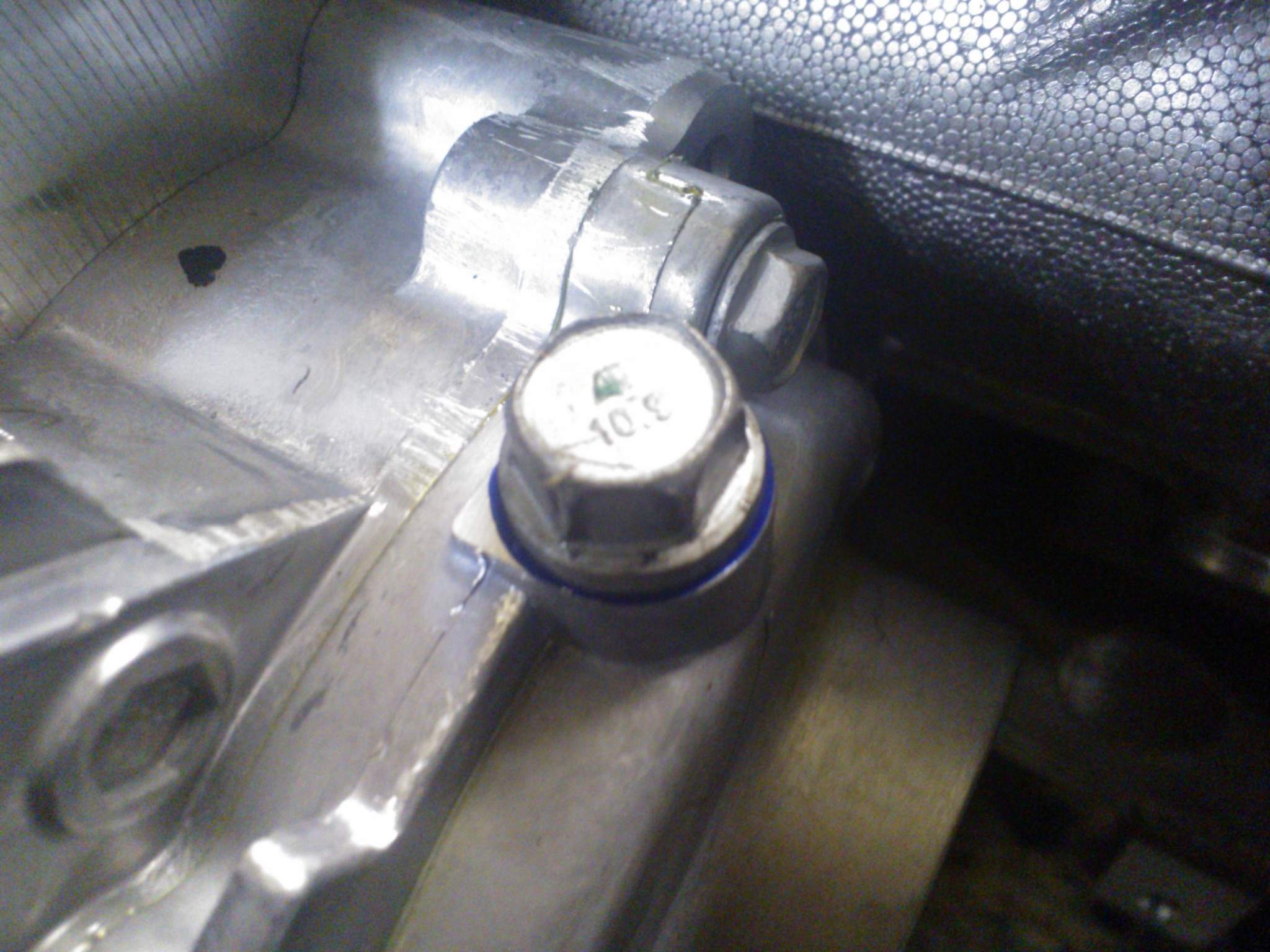

m12 x 1.5 is the size of the water pump plug need to get a bung for the temp sensor

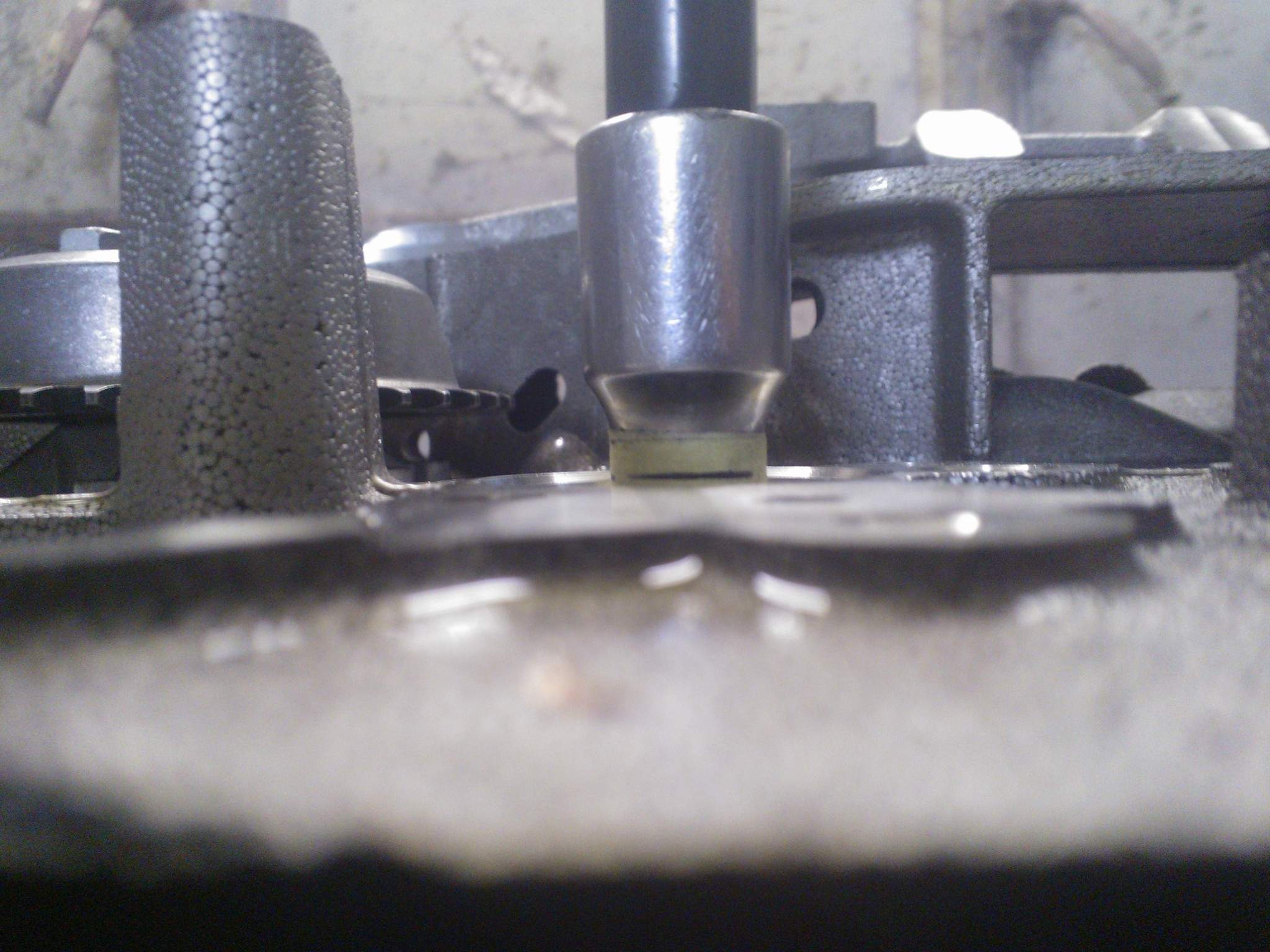

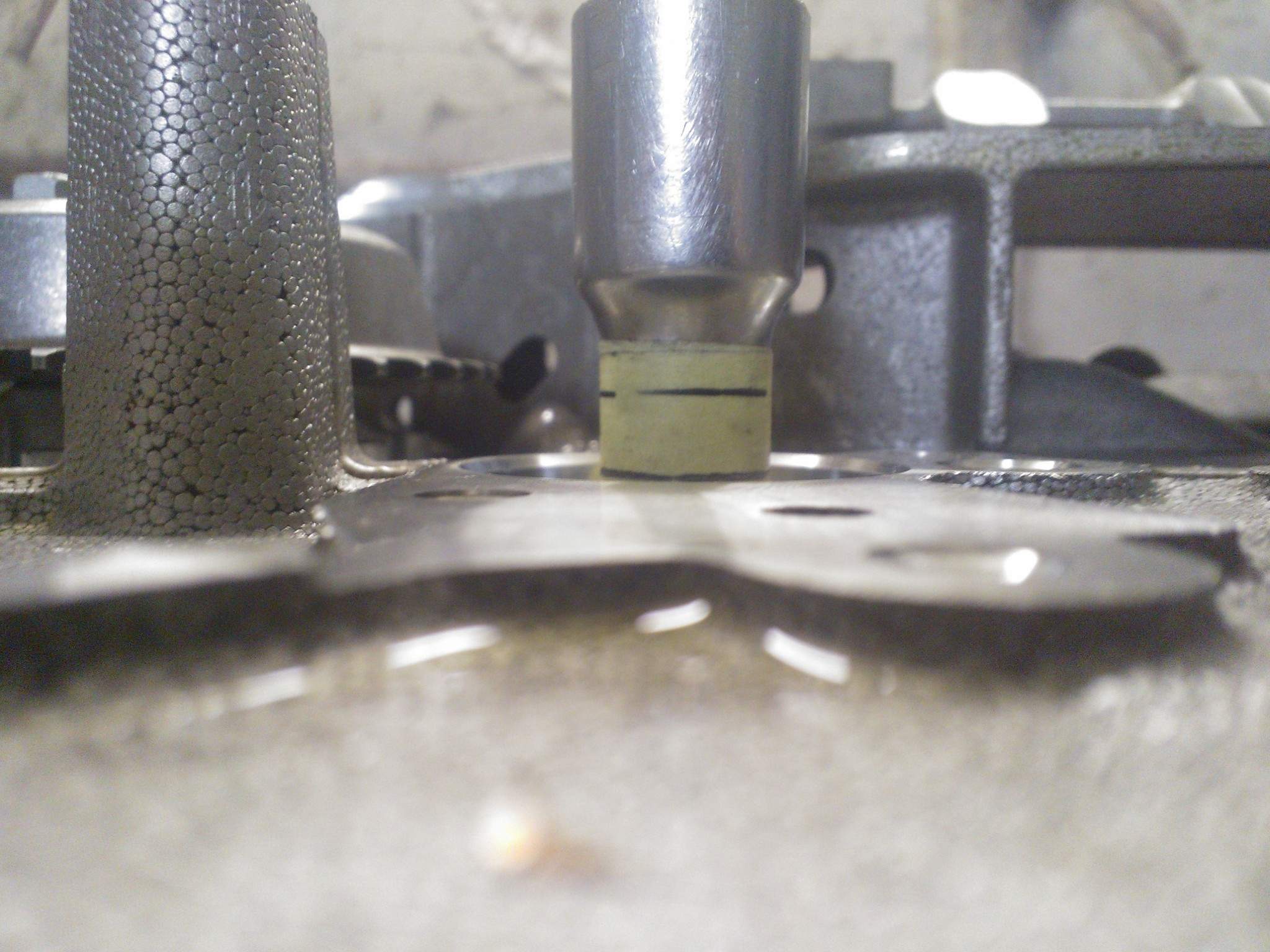

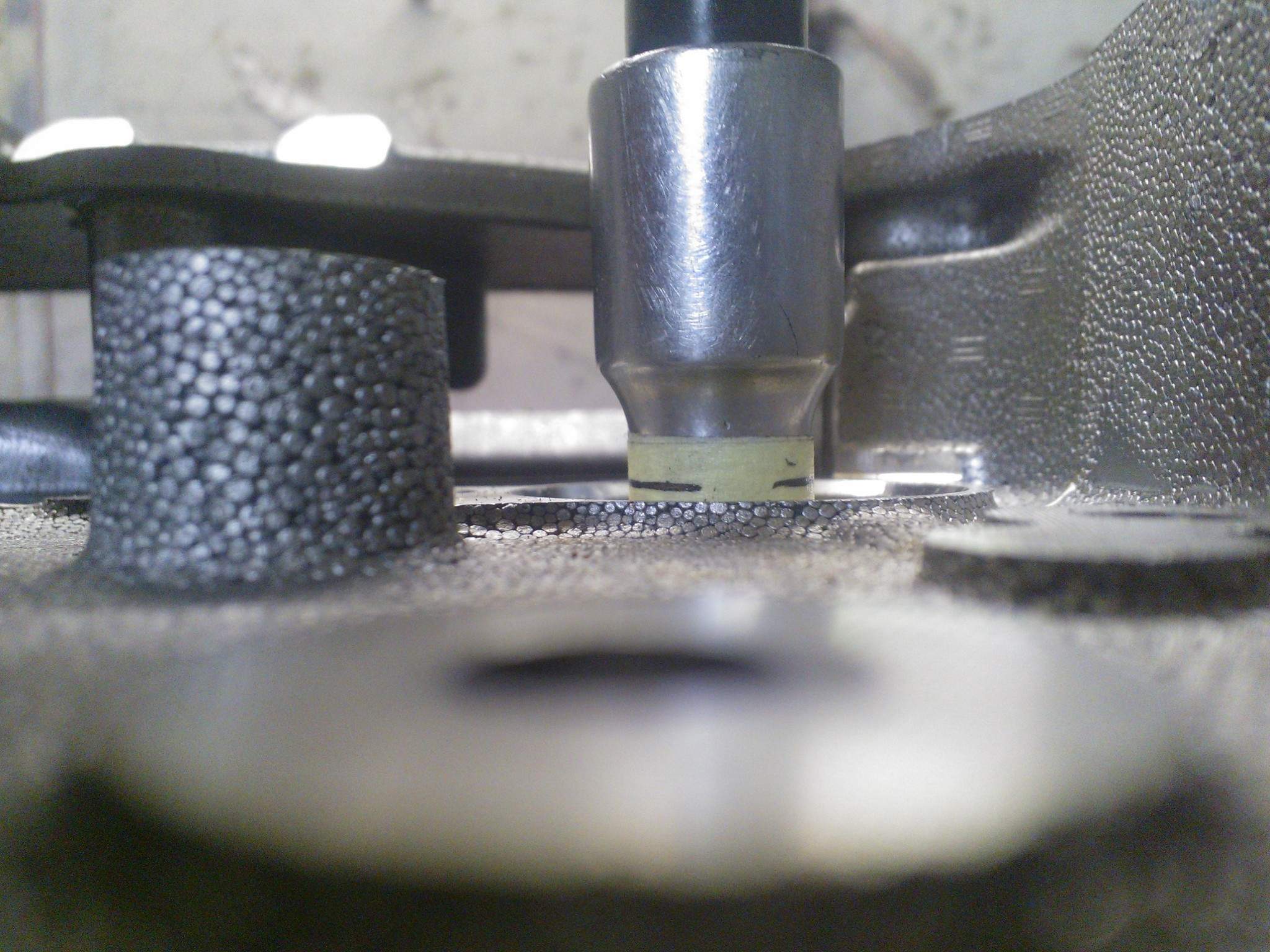

balancer shaft rear bearings pushed in 7.5mm

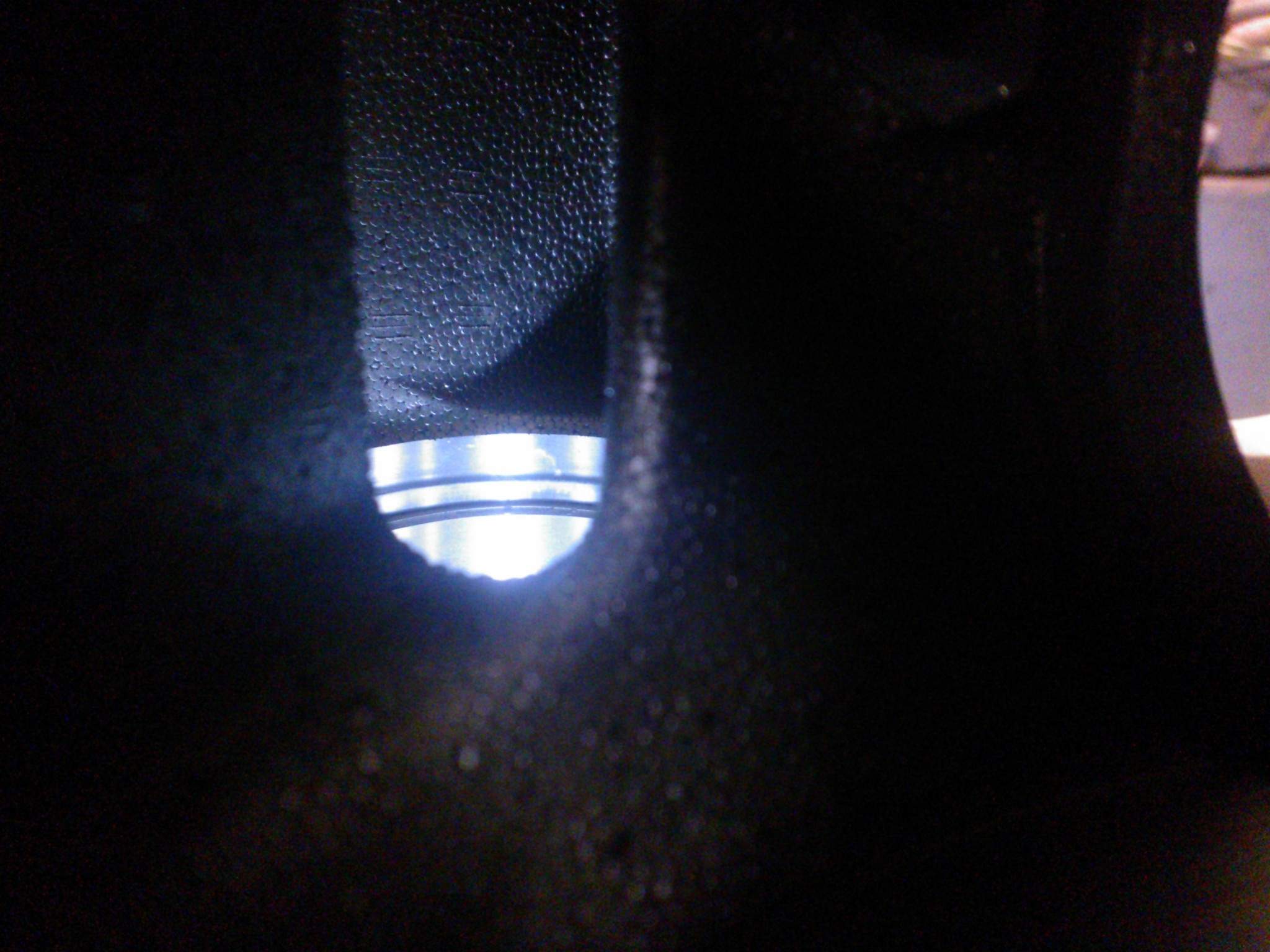

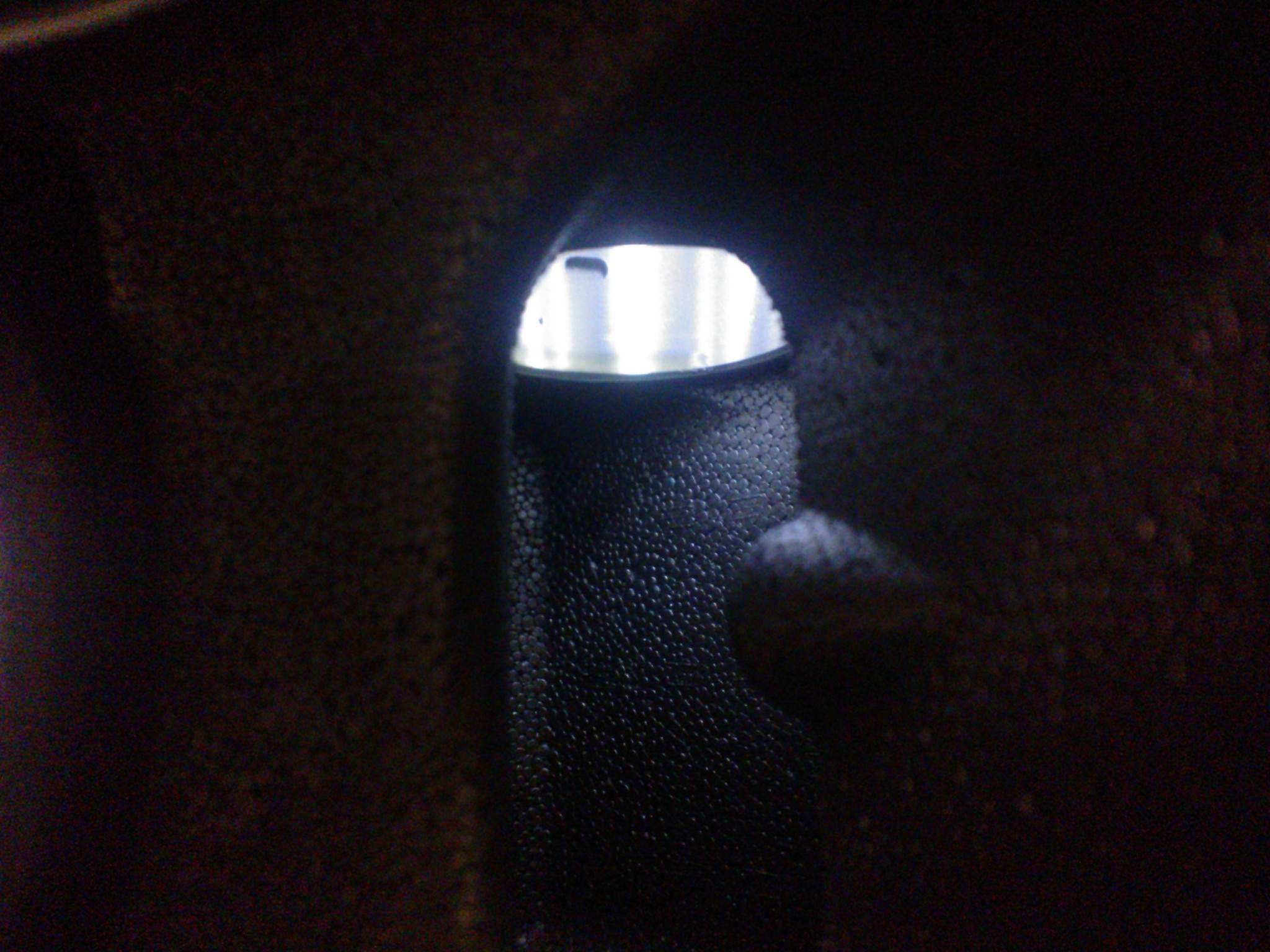

you can see the oil way is blocked

normal position

out

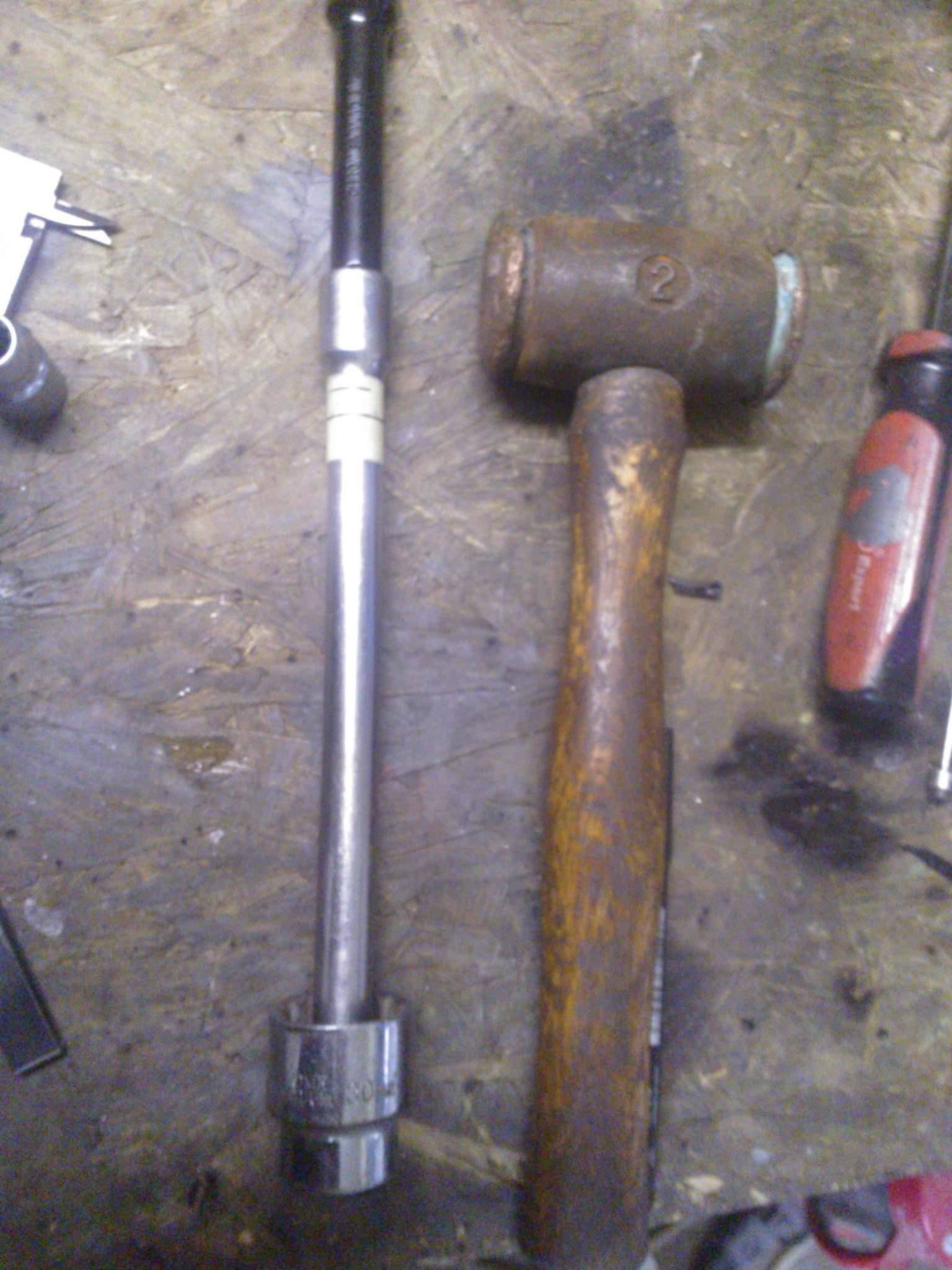

tools required
hammer,30mm socket reversed,extension bars

took all the sealant off with a glass razor

some of the block parts bagged up

Dave_Gilbert

dishwashers are great for cleaning car parts, i wouldnt put it in with all the pots though just a few mugs maybe(y)
