Project Freeze My engine Off (SAAB B207R Supercharged)

evocarlos

so heres the start to the new engine build 🙂

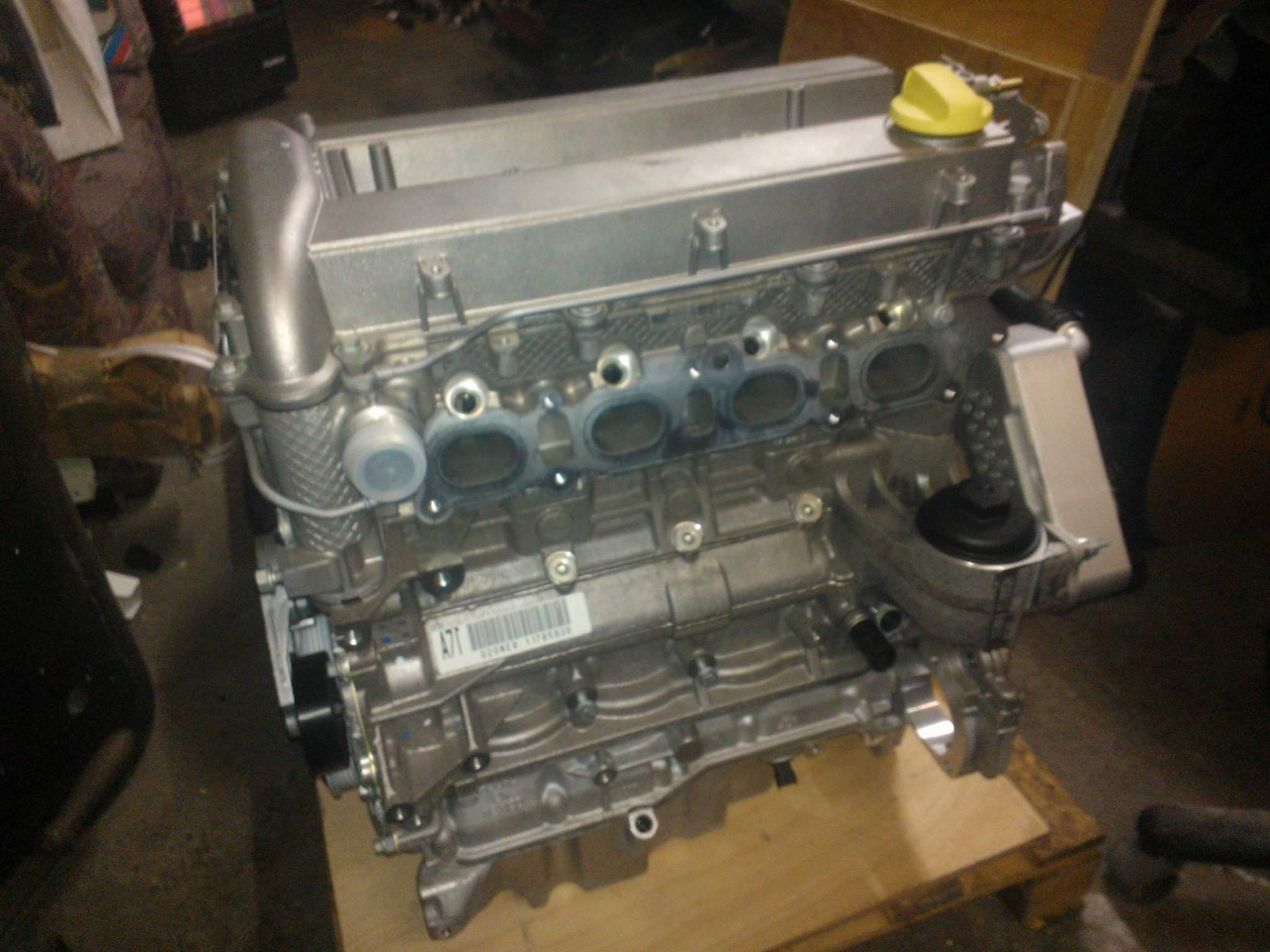

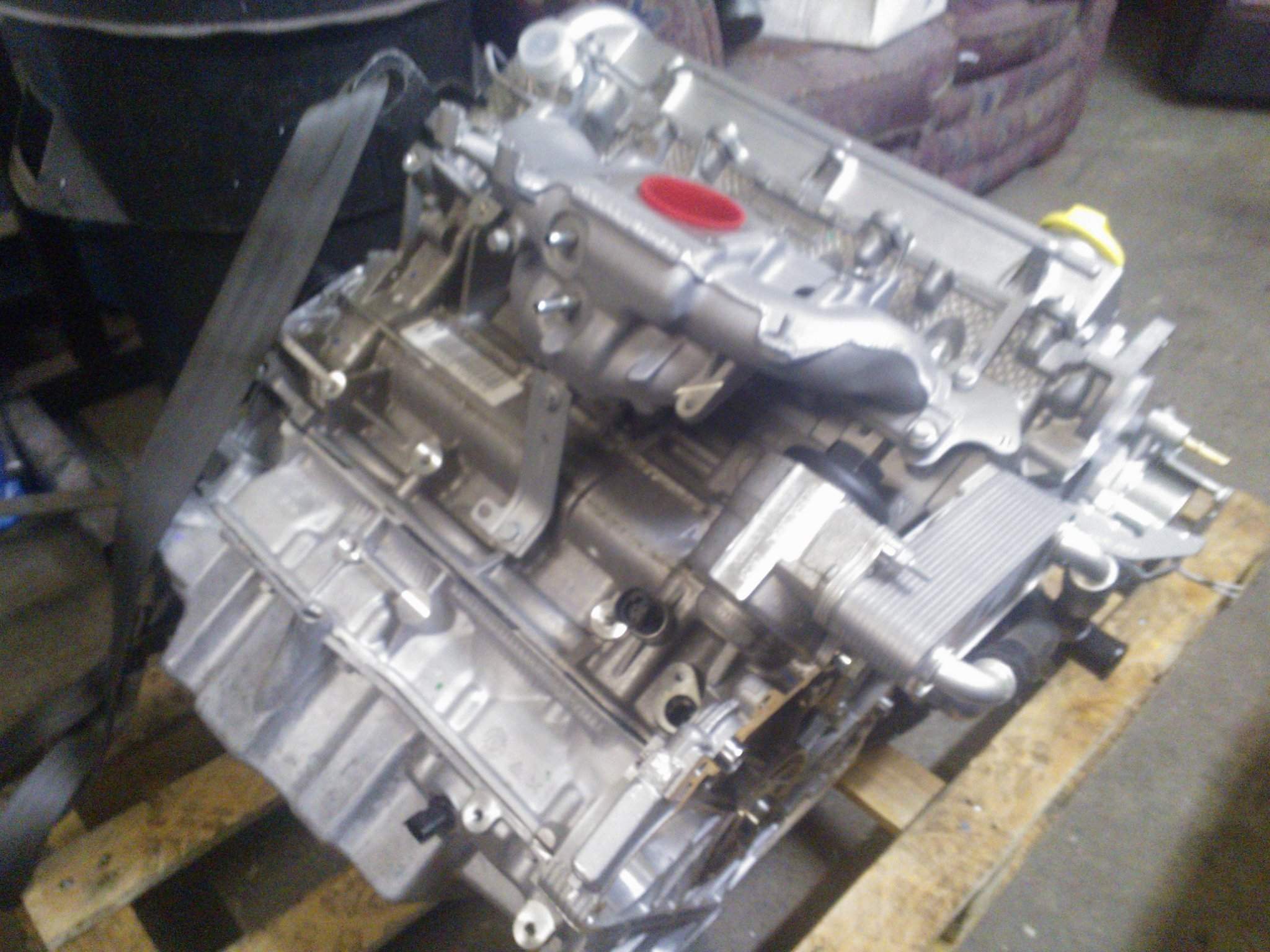

received a BNIB saab B207R to build up for my car
some pics 🙂

this may take some time need to save up for the bits to go inside 🙂

Matt

Excellent Carl, can't wait to see what you are going to do with this one (y)

vx-chris

Matt said:
Excellent Carl, can't wait to see what you are going to do with this one (y)

+1 on that one

evocarlos

woops

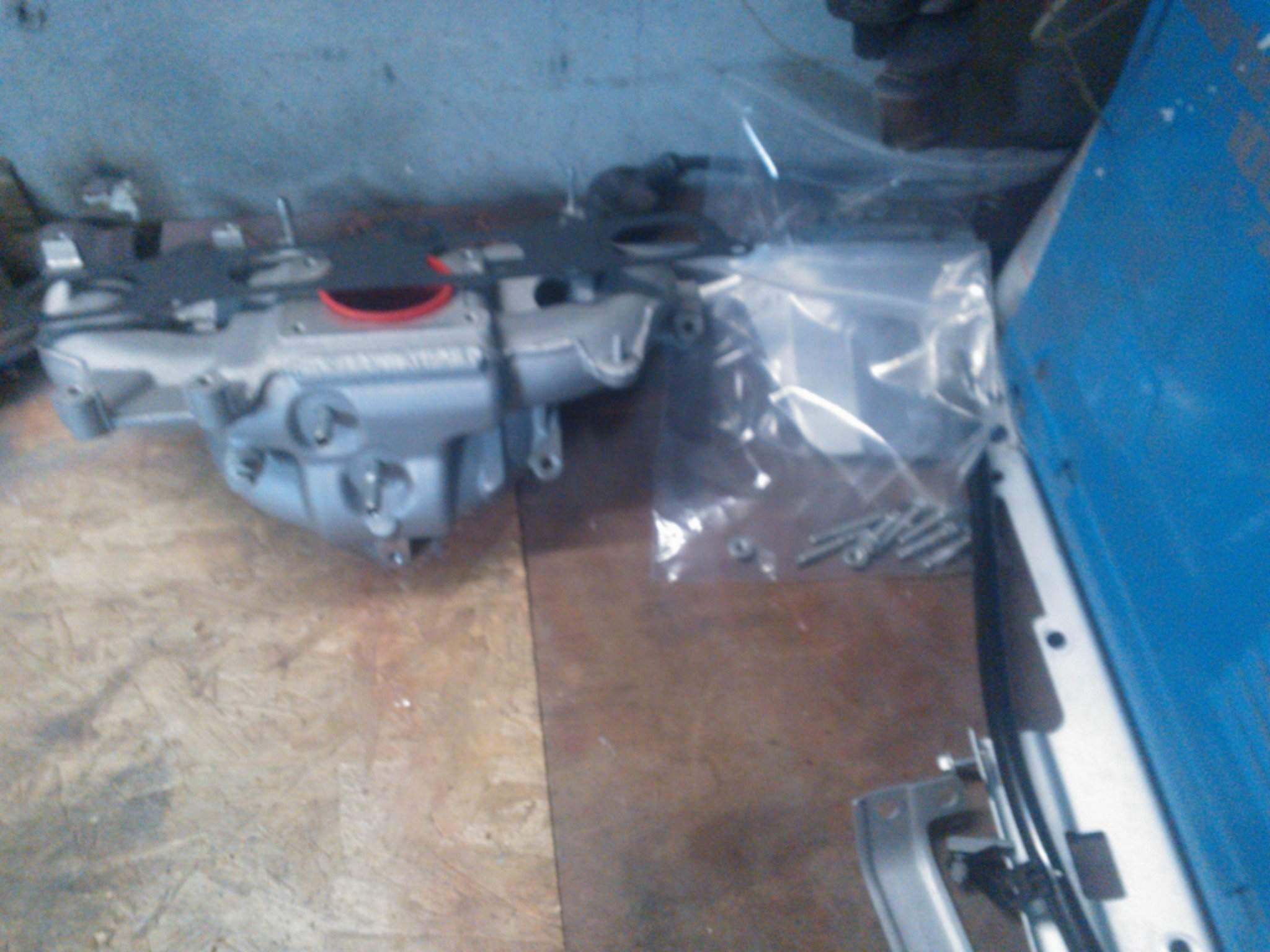

saab z20net inlet for sale 🙂

1st thing i did was drop a nut down the injector hole when taking the inlet off you can see the gasket markings 🙂

collecting the bits in bags and marking them up

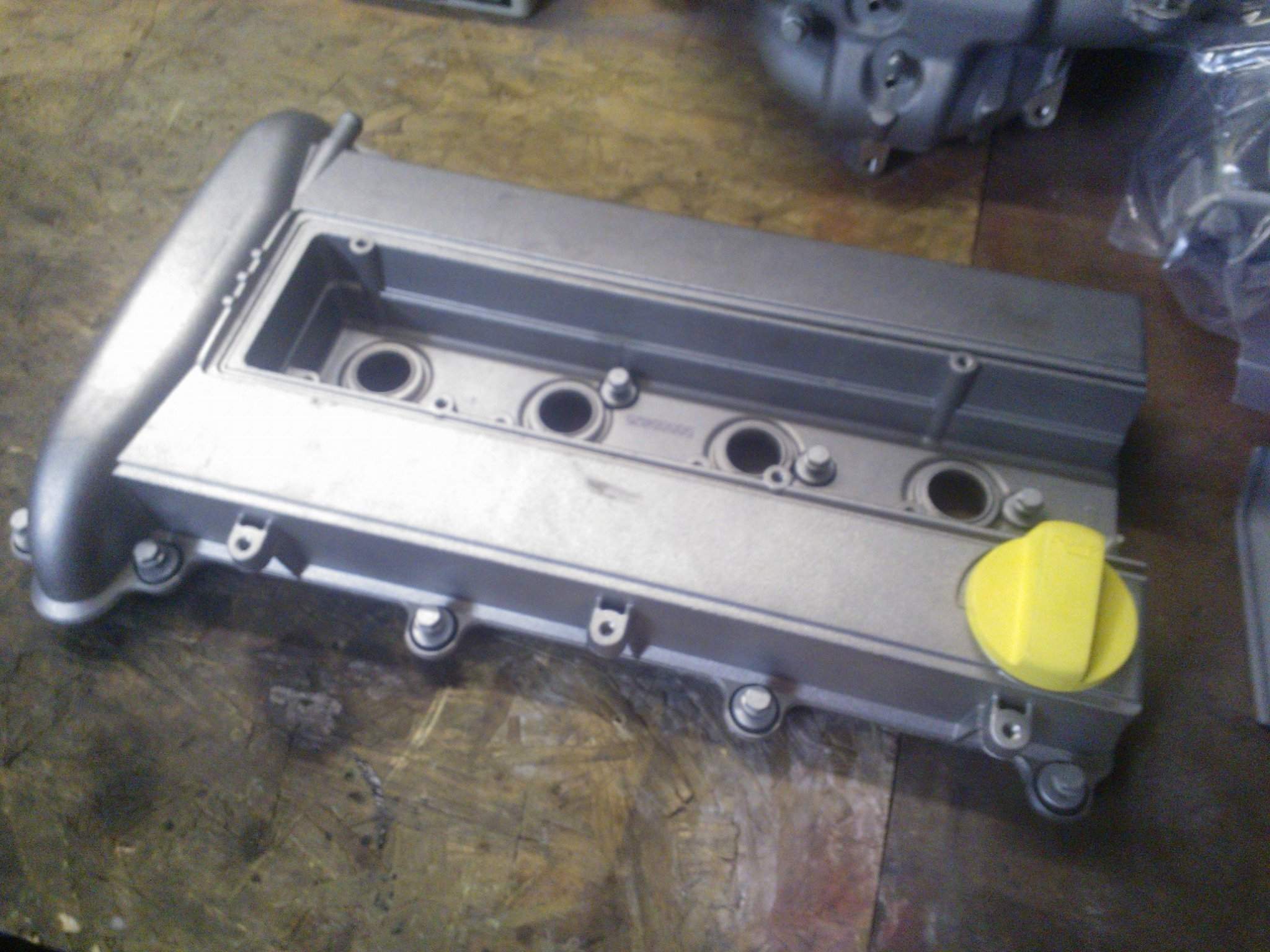

i might take the cover to my powdercoater mate and get it done in black

top clean as a whisle

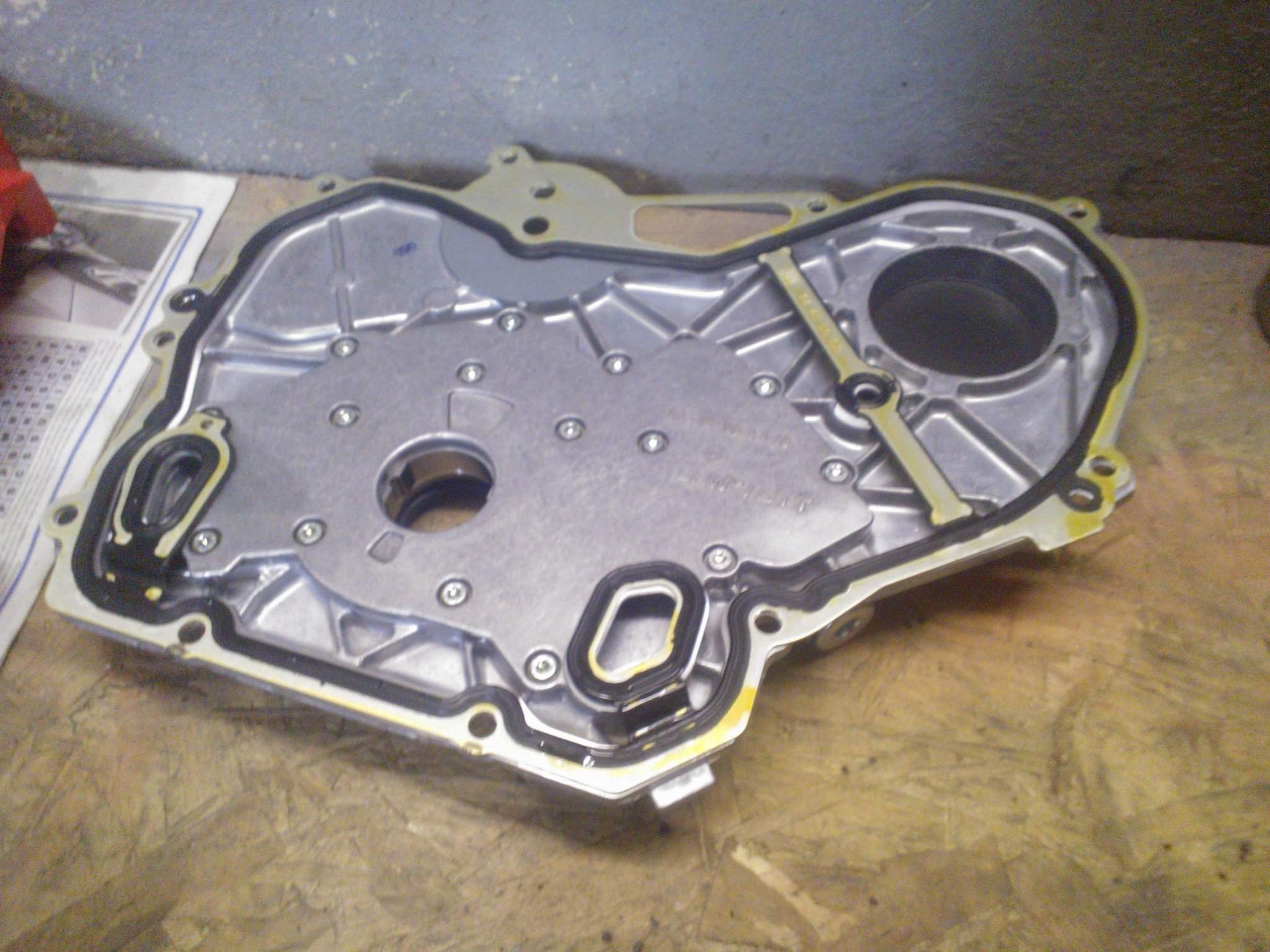

oil pump and timing cover

nice new genuine gm chains and to think there £280 to buy thats nearly half the cost of this hole engine!

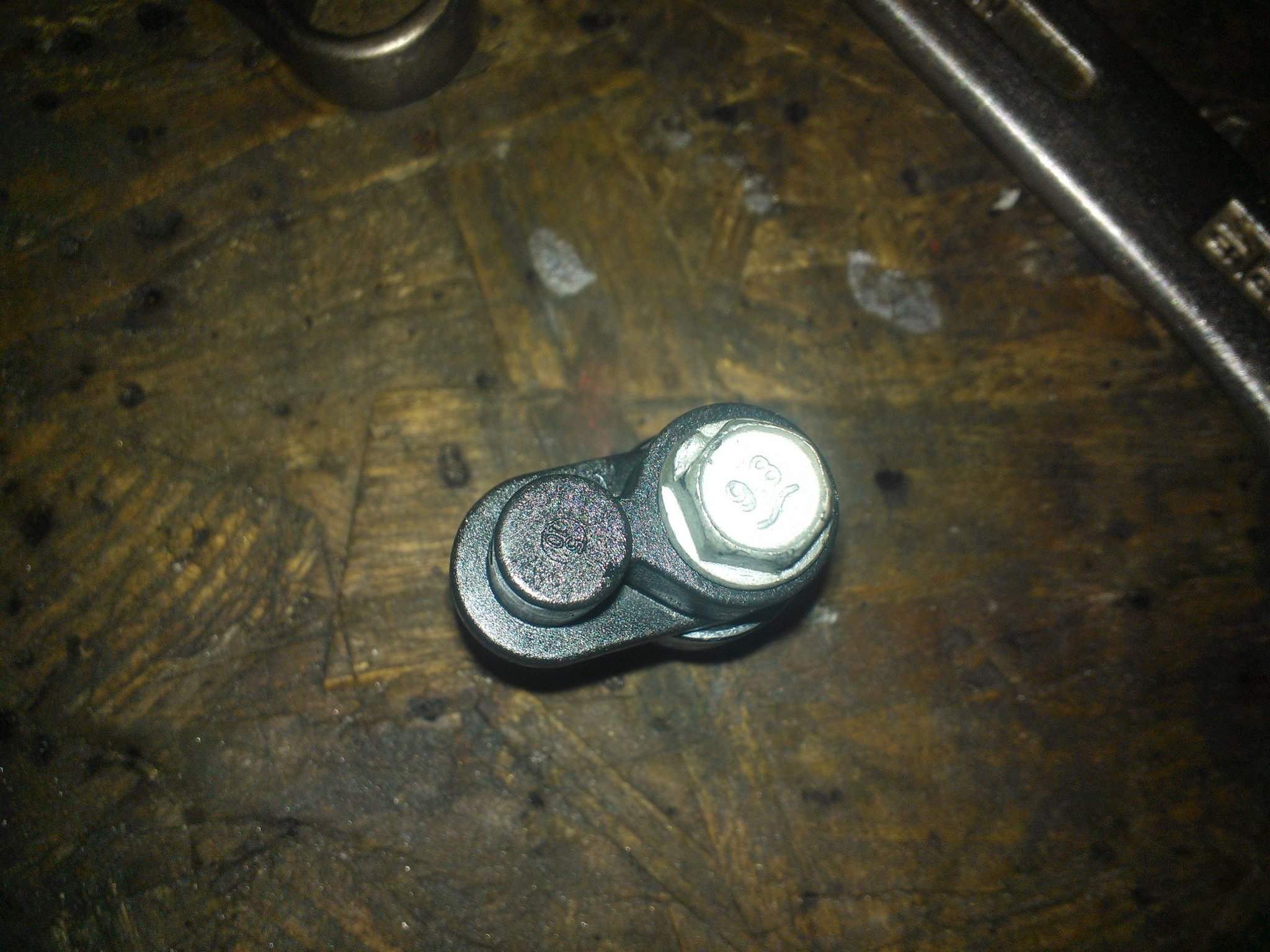

never seen this before there was a tag on the oil jet bolt

after 30mins of faffing trying to find my 15mm socket again the head bolt came out

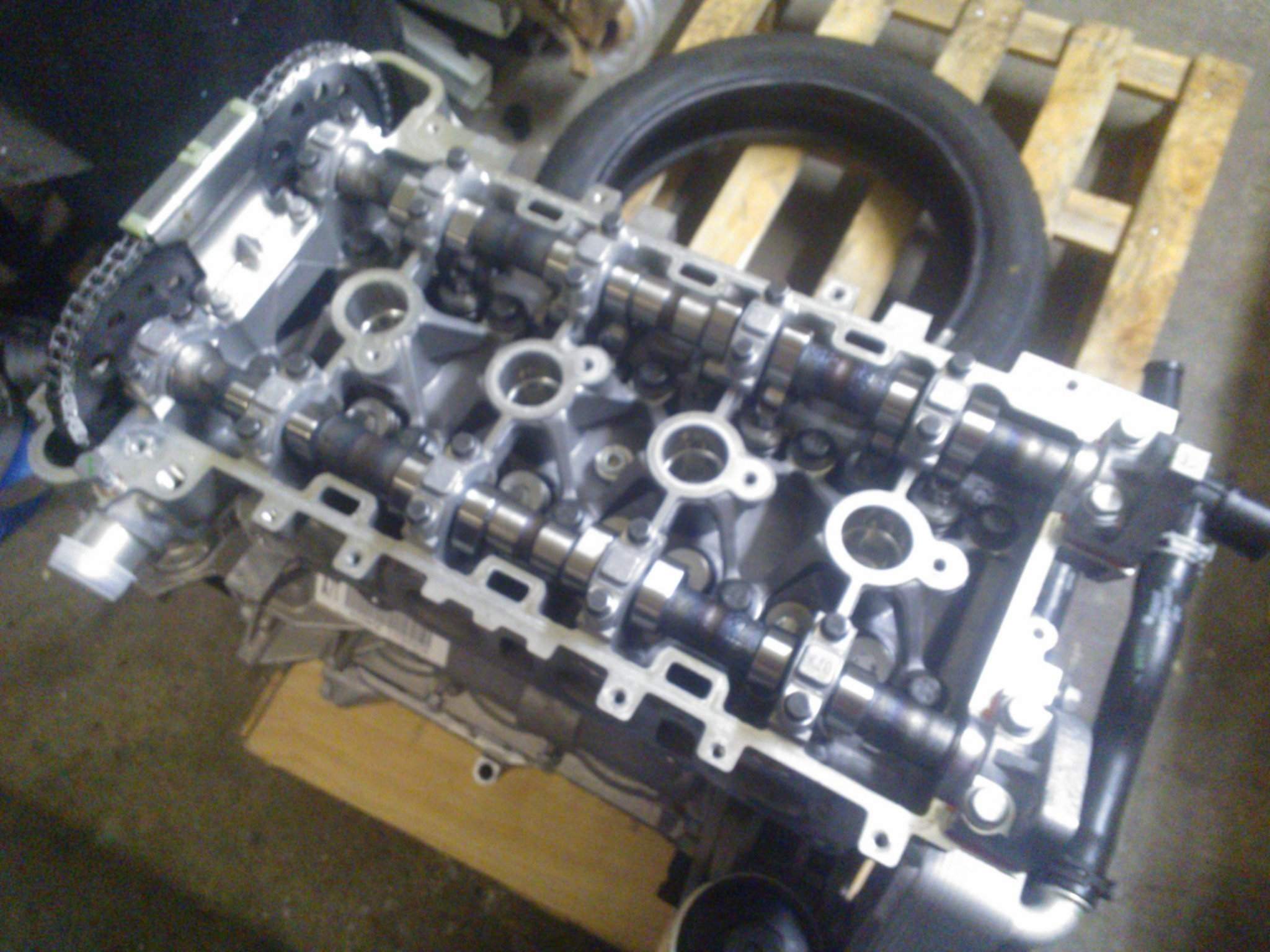

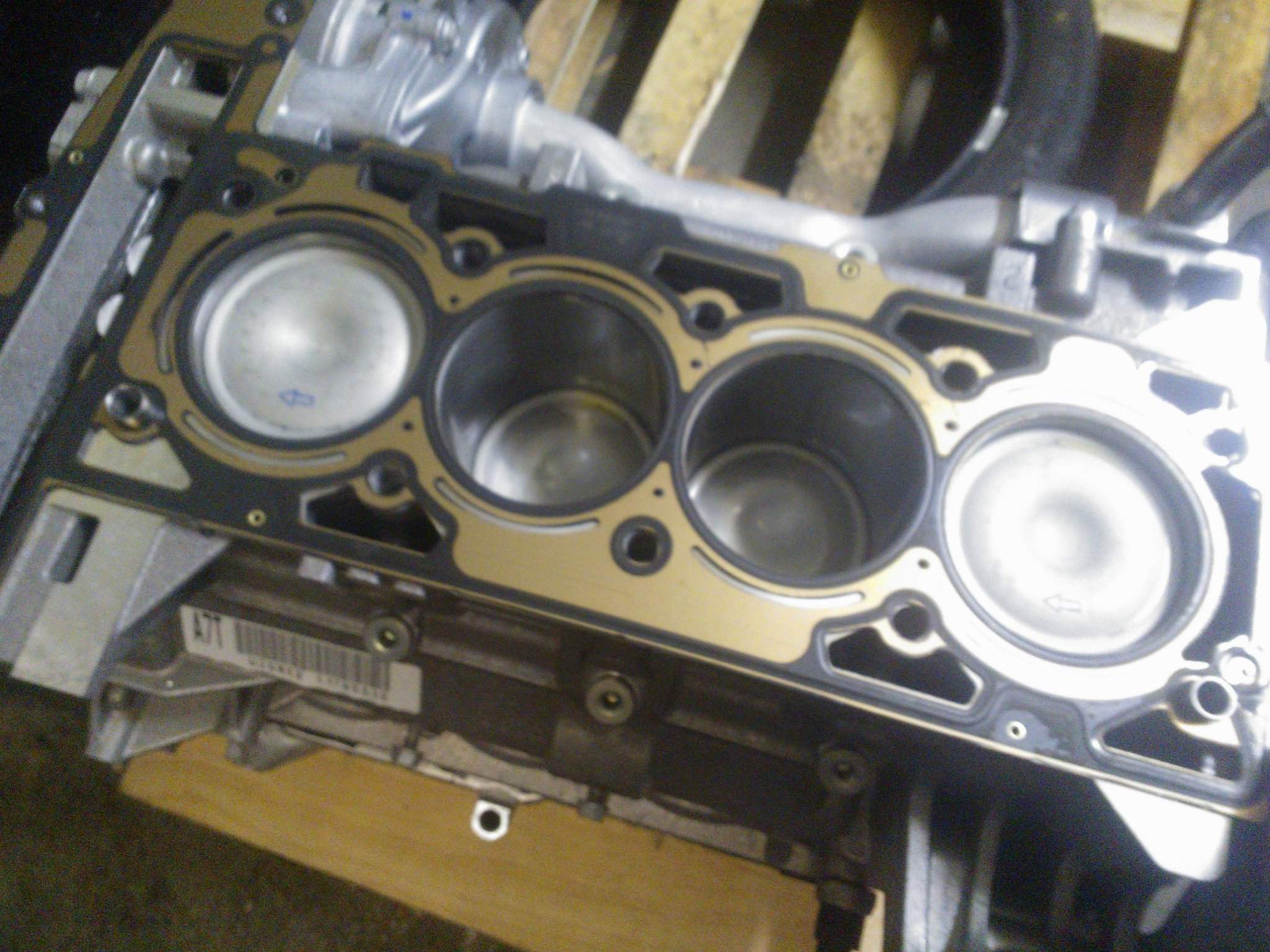

head off

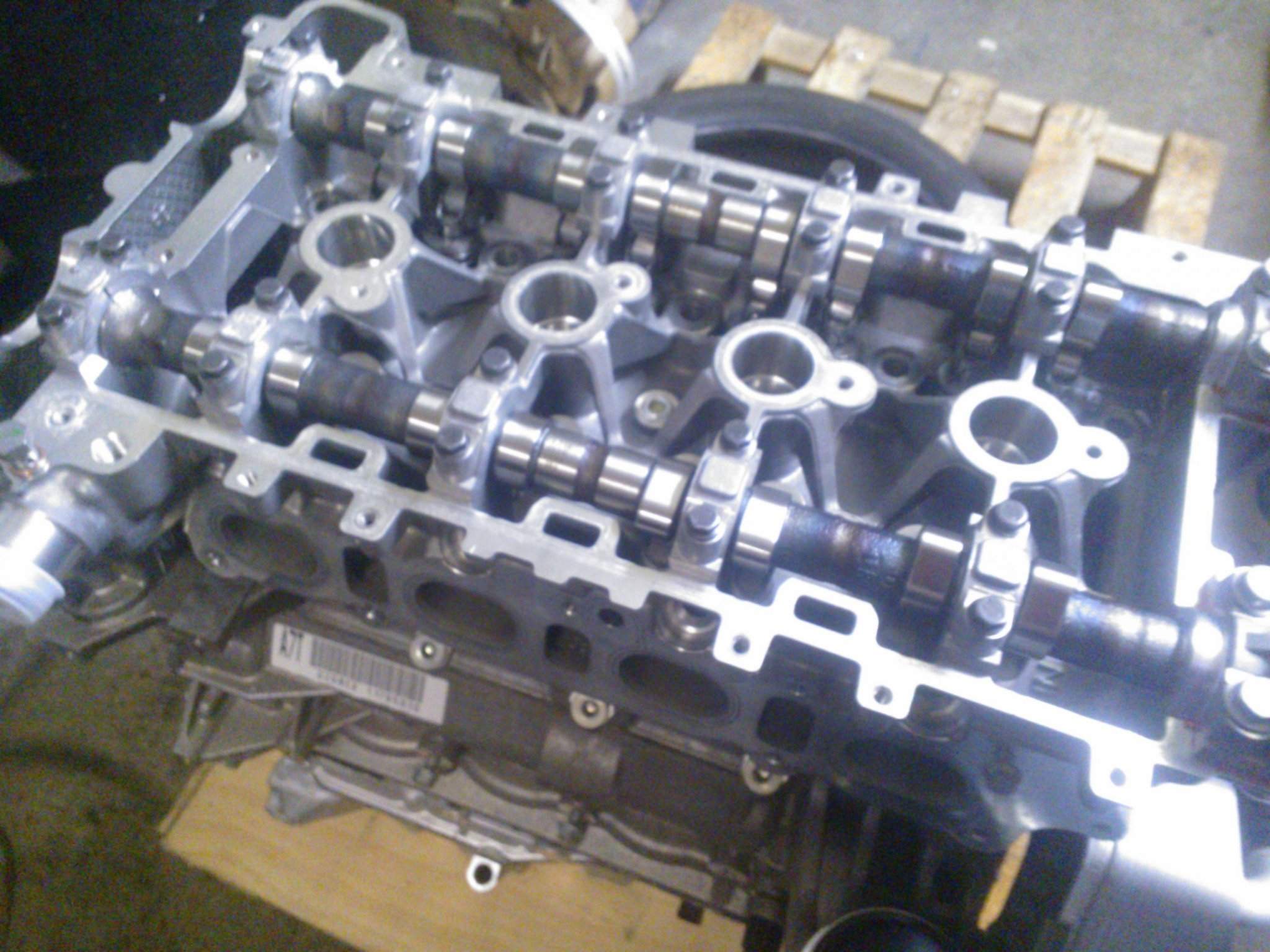

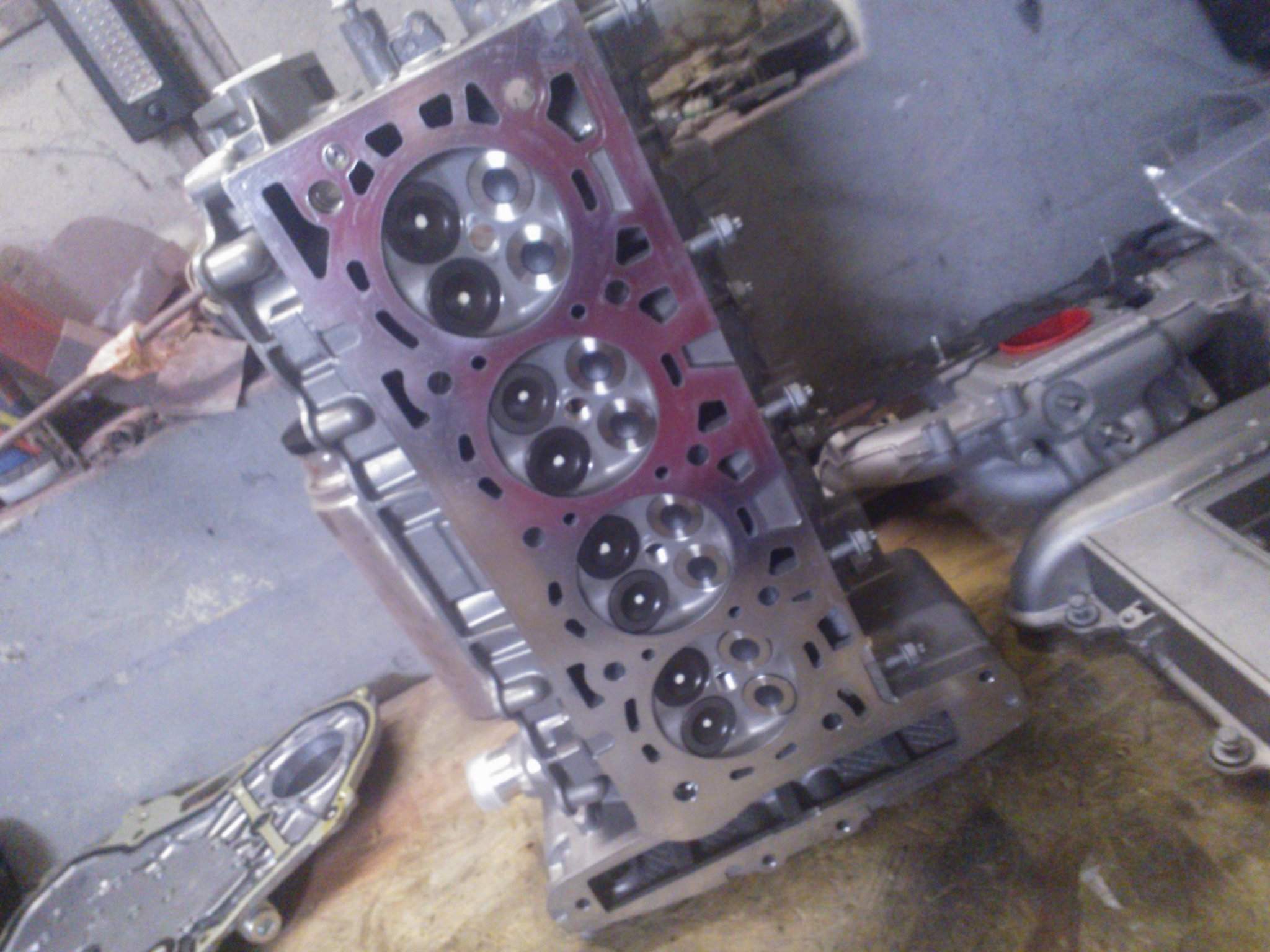

more shiny stuff

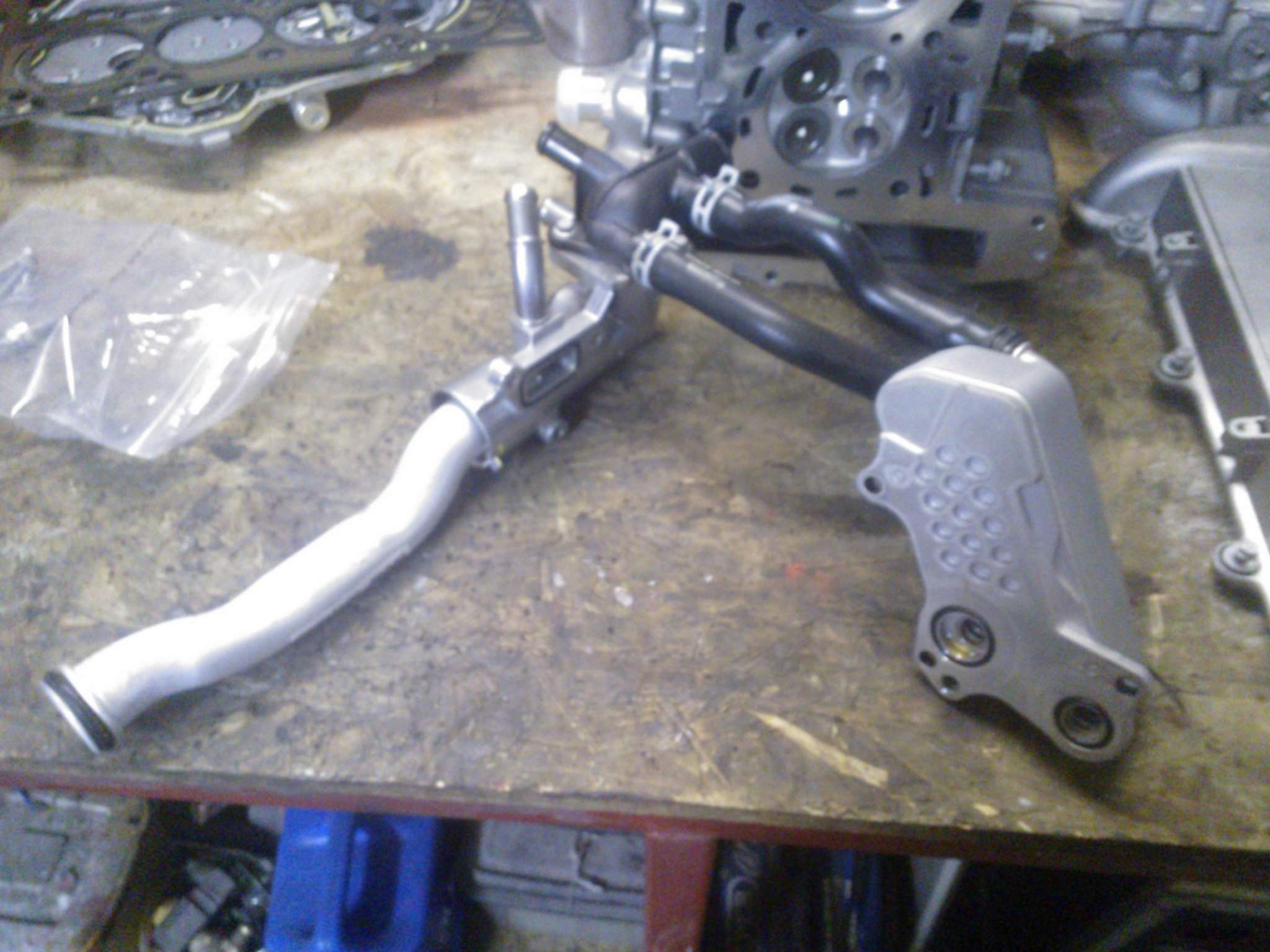

oil cooler and thermostat housing

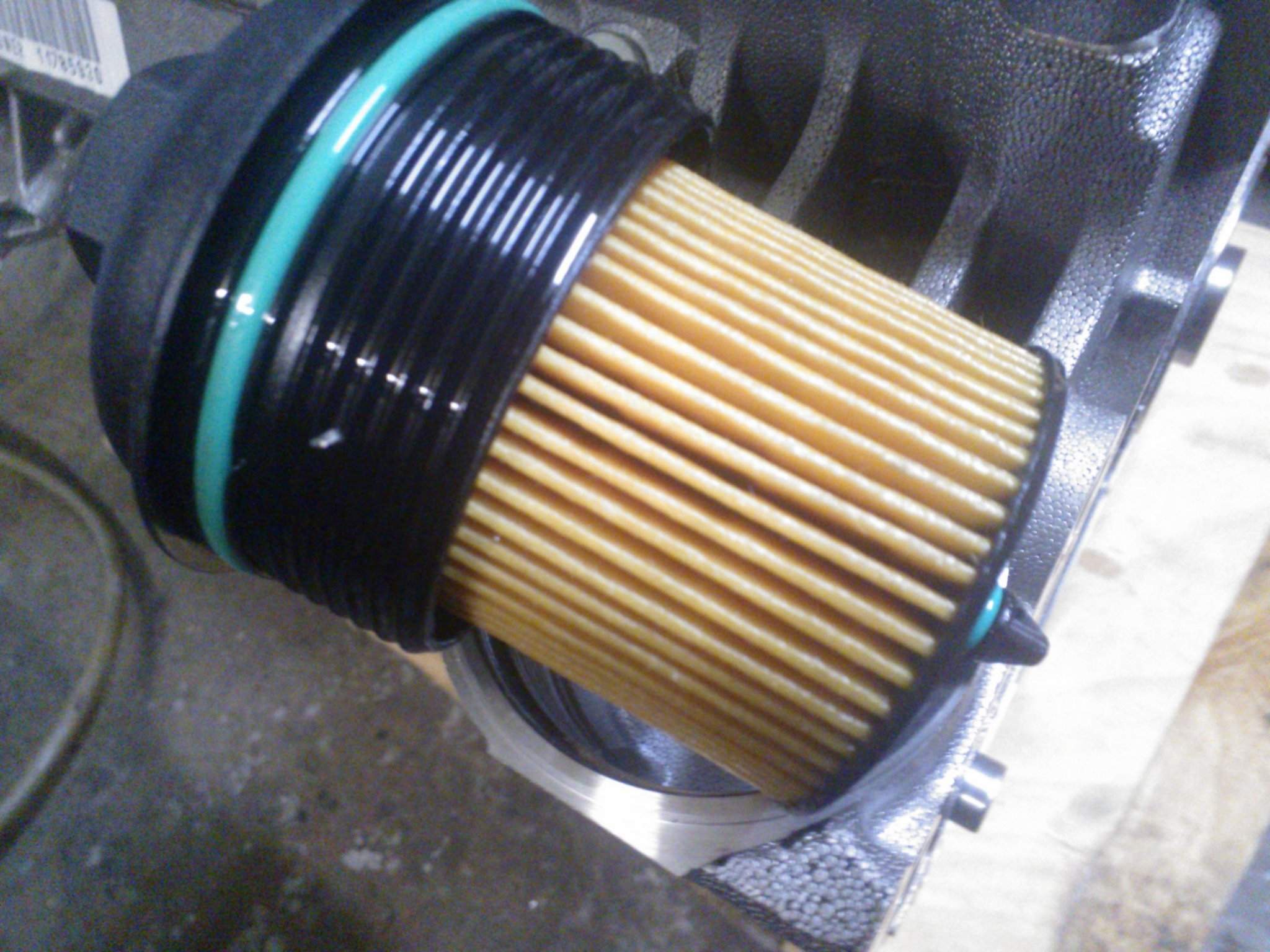

clean filter

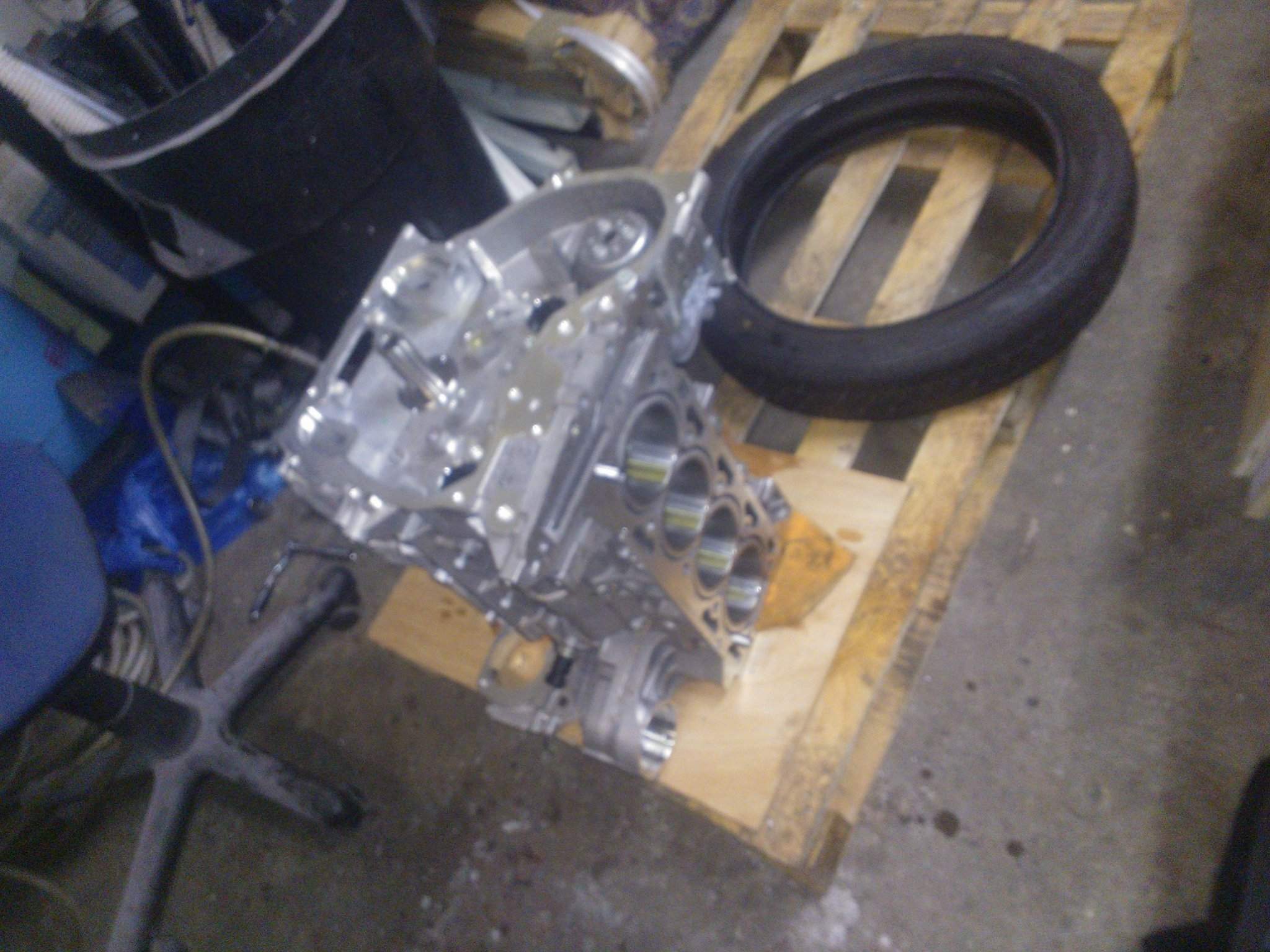

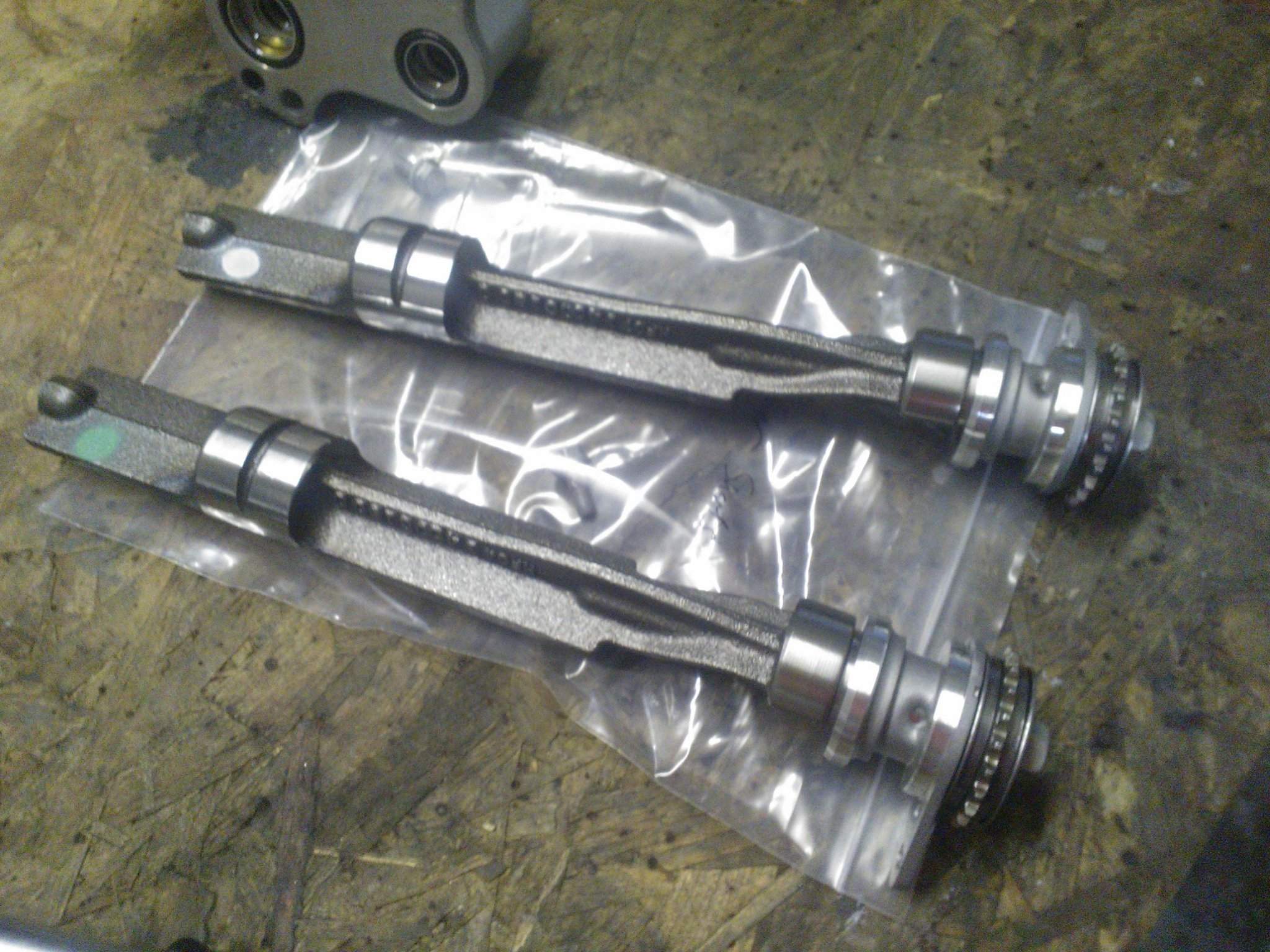

heavy things taken out

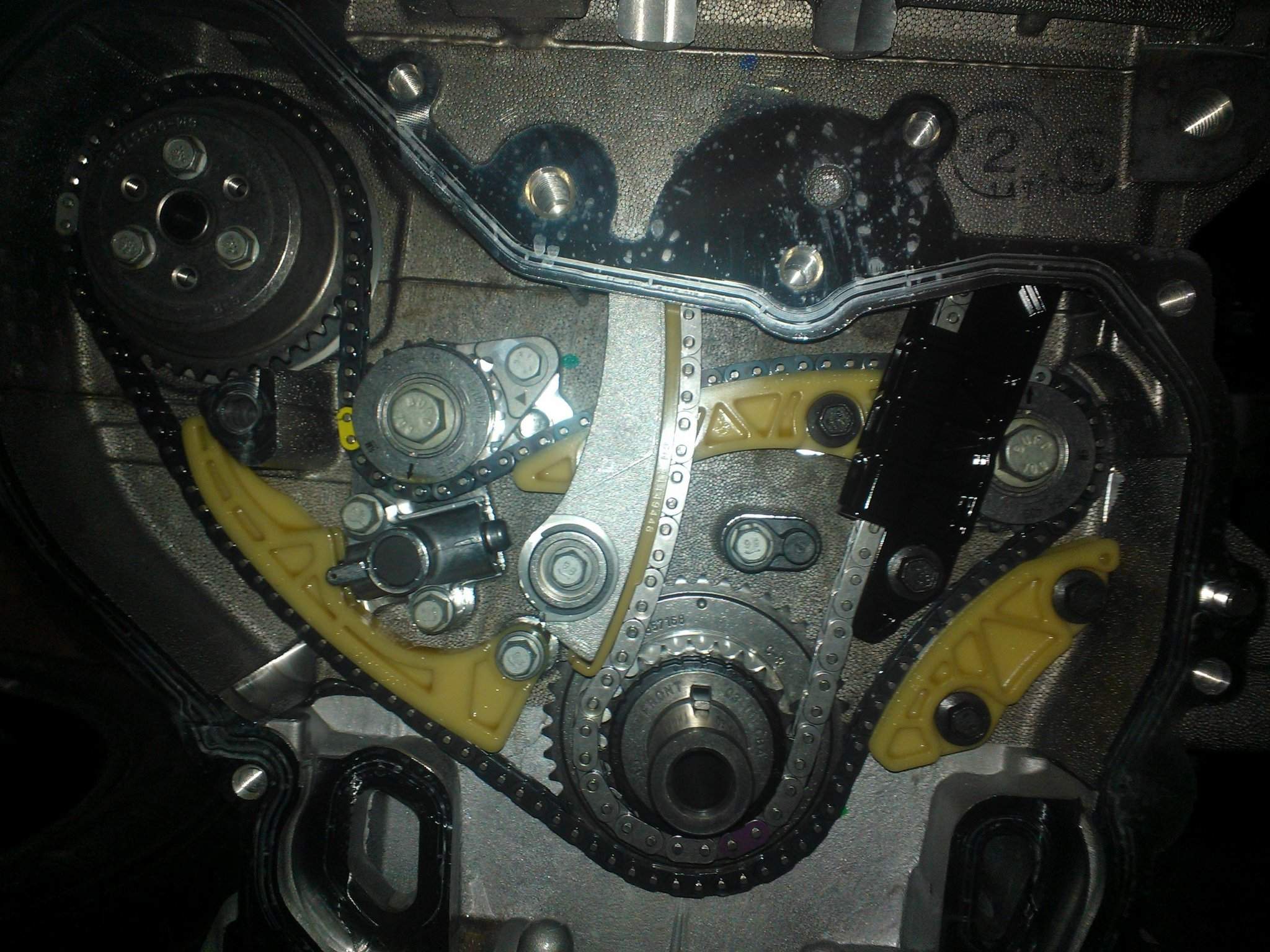

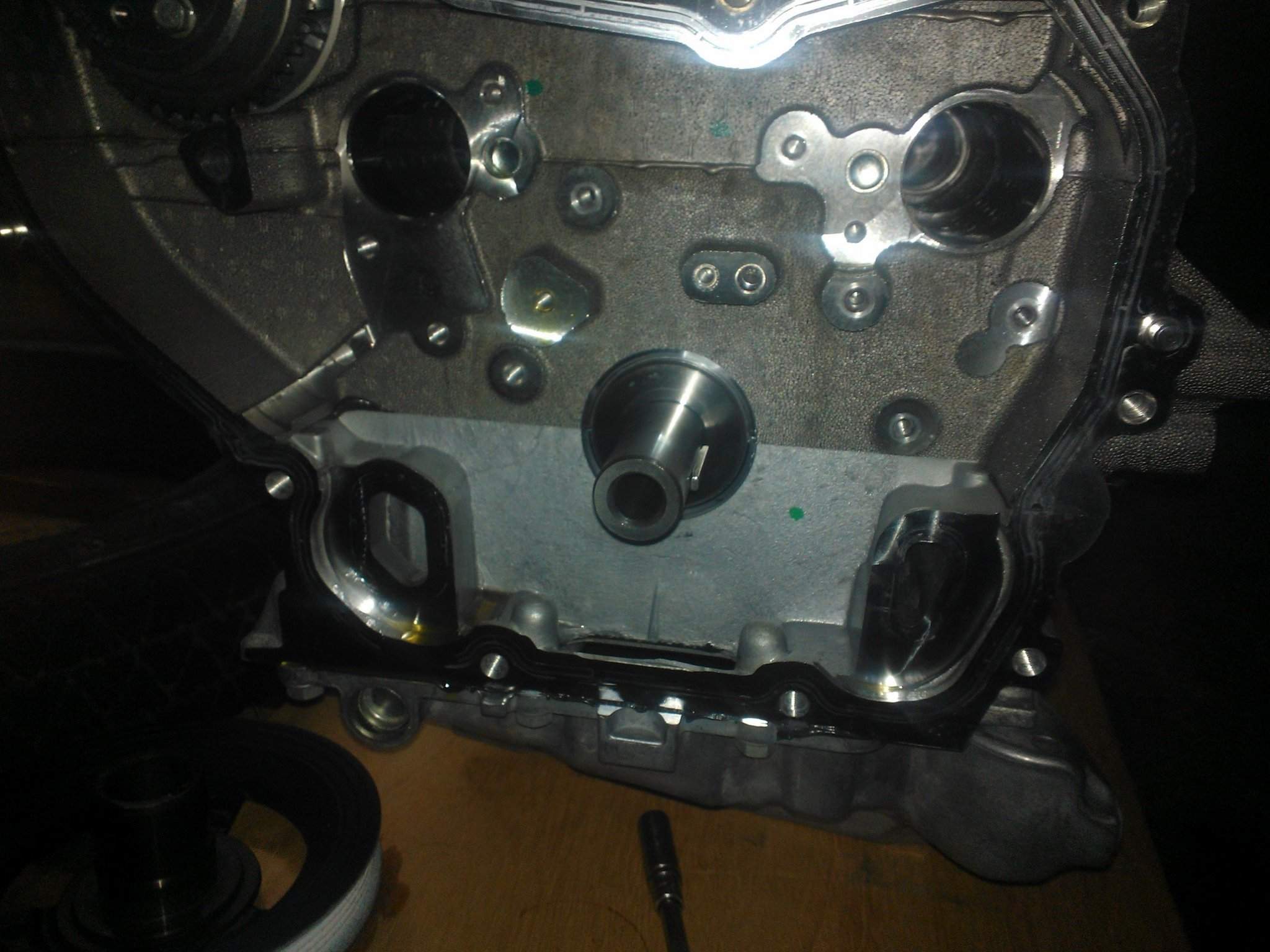

all timing gear removed

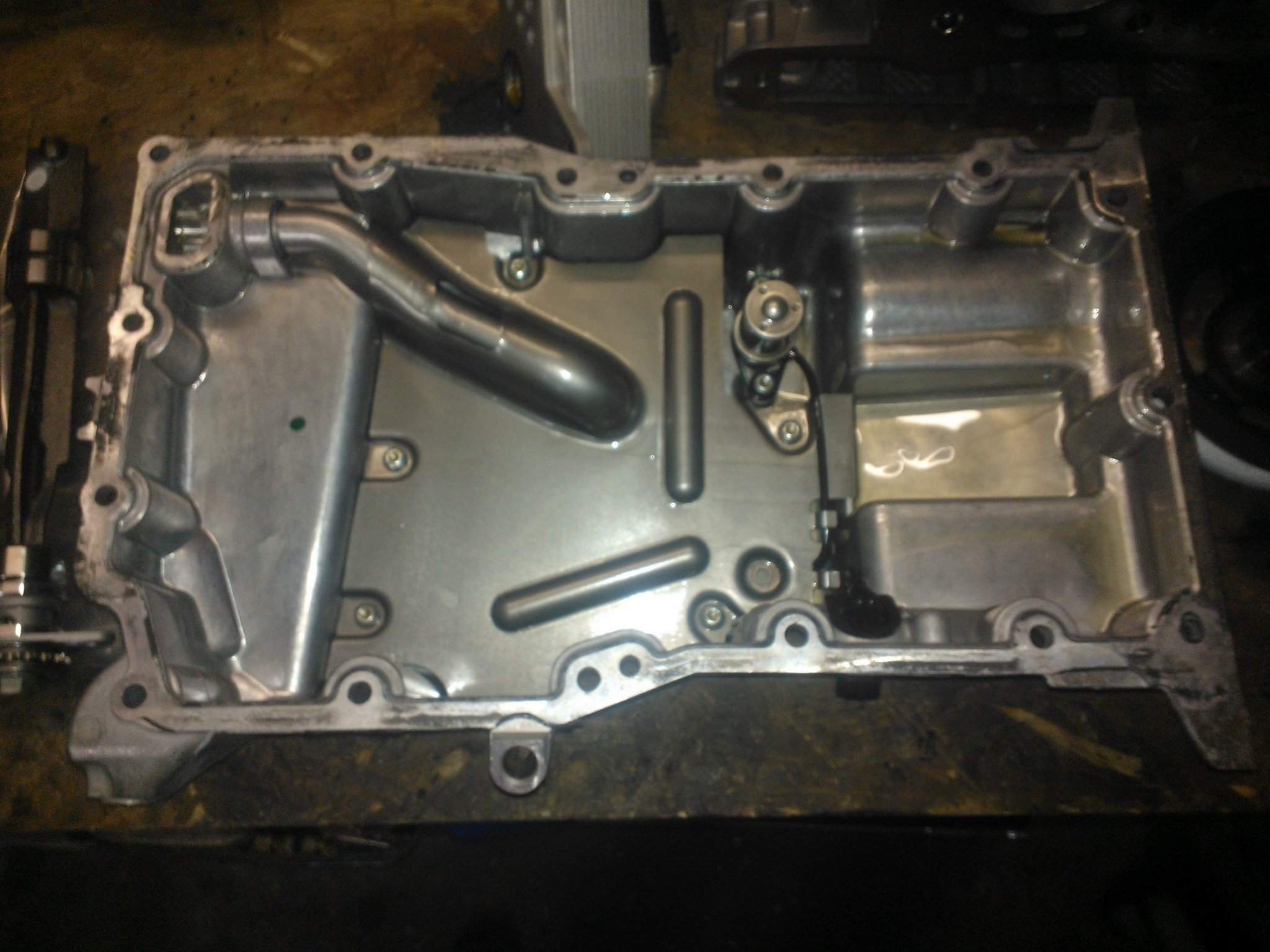

sump off its huge in comparison to the z22se

heres how i left it for the night

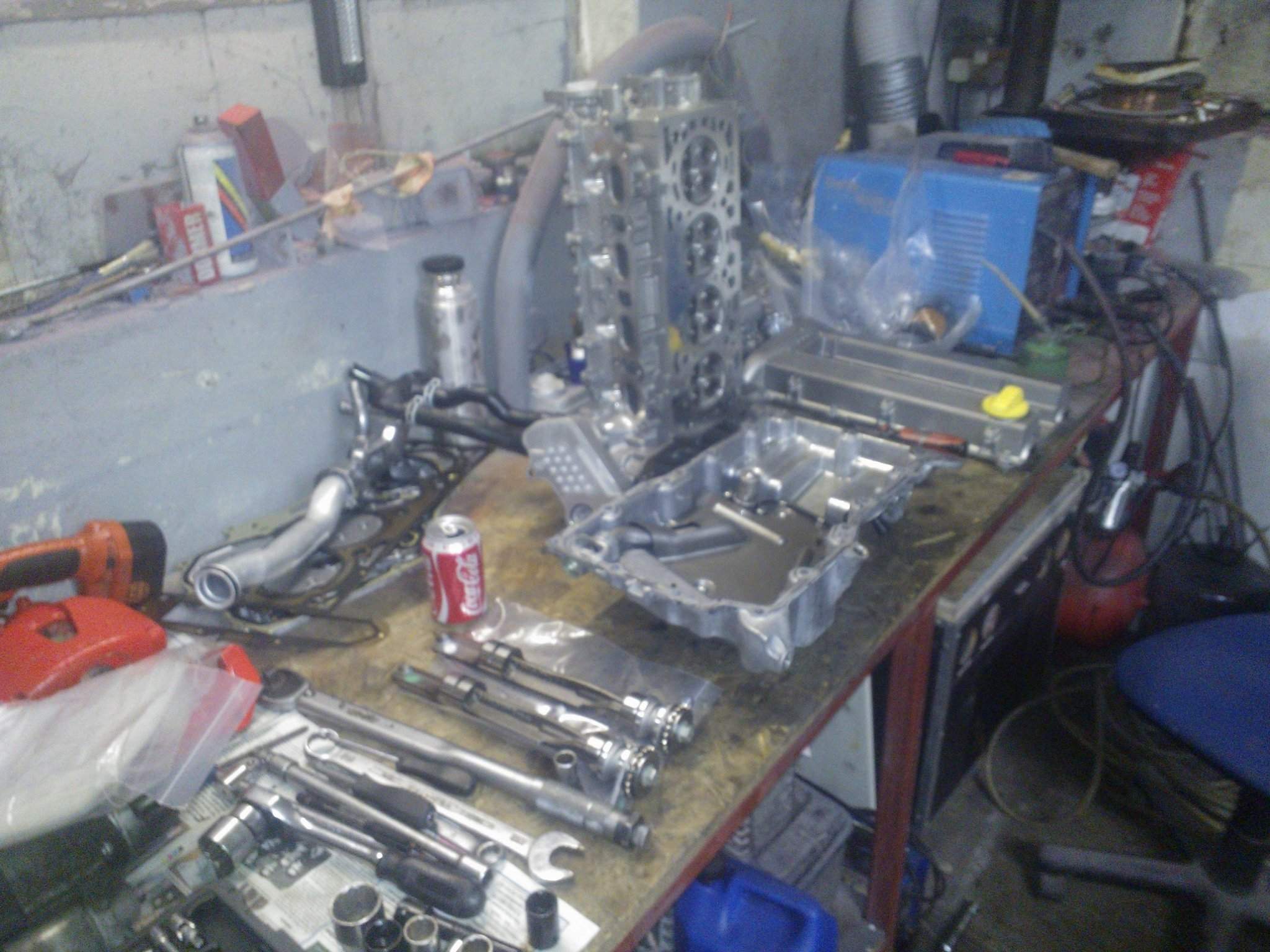

and all the parts bagged and collected on the bench now i can get to it

more some time soon 🙂

vx-chris

Don't hang about do ya lol(y)

Matt

peng12 said:
Don't hang about do ya lol(y)

Was just thinking the same myself!

evocarlos

peng12 said:
Don't hang about do ya lol(y)

Matt said:
Was just thinking the same myself!

so much easier to take apart when its just sat on a pallet
but the air rachet and impact gun made it lite work 🙂

corsaZ22se

nice one carl (y)
getting myself one of these lumps if they haven't sold out?

Dave_Gilbert

looking good carl, giz a shout if you want a hand. or just someone to pass you tools,

iv got a really nice quiet engine now so dont mind travelling. (y)

evocarlos

corsaZ22se said:
nice one carl (y)
getting myself one of these lumps if they haven't sold out?

not sure if the group buy is on still you would have to ask **ArticMonkey **on vx220.org the engines come from http://www.neobrothers.co.uk/complete-b207r-genuine-saab-engine-sport-p-3637.html?osCsid=gtcn61hhvnhqeumg7b241p5h45

david gilbert said:
looking good carl, giz a shout if you want a hand. or just someone to pass you tools,

iv got a really nice quiet engine now so dont mind travelling. (y)

thanks 🙂
will let you know when i need hand glad the cars running right now mate

had a mate chris pop over today to come have a look at the new engine hes a z20let lover 🙂
he helped me bag and tag all the parts to the head

each valve got a bag of its own (collets,spring,valve,retainer) all numbers up so they can go back in the same place

tools for the porting work

i've just started on one exhausts port atm

here you can see ive marked the gasket out on the head

still got alot to do lol

Dave_Gilbert

Looks like your gonna do a propper job on that, what difference are you expecting from porting the head BHP wise??

corsaZ22se

you really don't hang around carl (y)
ordered my new engine today.🙂

evocarlos

david gilbert said:
Looks like your gonna do a propper job on that, what difference are you expecting from porting the head BHP wise??

no idea but its gonna be more that it with the way they are there like half the size of the inlet ports lol

corsaZ22se said:
you really don't hang around carl (y)
ordered my new engine today.🙂

got nowt else to do lol
did you get a good deal ?
starter = £20
new gm tensioner = £25

vocky

the Saab thermostat housing doesn't fit onto the F23 gearbox, so just remove the new thermostat and the oblong seal from the side. These can then be used on a z22se thermostat housing.

Oil jet is just a dodgy bolt, rather than something special 😉

You need an extra oilway blank (where the turbo oil feed came from) and the cylinder head also requires a blank for the removed Saab coolant temp sensor, you can use the z22se water pump drain plug (y)

The turbo oil return requires a blanking plug, either a core plug or make one in a lathe from alloy.

The 10 large head bolts are scrap, but the head gasket should be okay

vocky

I am currently opening up the exhaust ports on two heads, I will take some pictures as you need to remove quite a bit more material 😃

Dave_Gilbert

vocky said:
I am currently opening up the exhaust ports on two heads, I will take some pictures as you need to remove quite a bit more material 😃

are they for a z22se engine? do you know the difference in horses roughly?

evocarlos

vocky said:
the Saab thermostat housing doesn't fit onto the F23 gearbox, so just remove the new thermostat and the oblong seal from the side. These can then be used on a z22se thermostat housing.

Oil jet is just a dodgy bolt, rather than something special 😉

You need an extra oilway blank (where the turbo oil feed came from) and the cylinder head also requires a blank for the removed Saab coolant temp sensor, you can use the z22se water pump drain plug (y)

The turbo oil return requires a blanking plug, either a core plug or make one in a lathe from alloy.

The 10 large head bolts are scrap, but the head gasket should be okay

thanks @[deleted]
you answered some of the questions i was going to pm you about lol
was looking at the turbo drain im not at work at the moment so cant get one made up but will when i go back
found the extra hole on the head when i took the air bleed pipe off 🙂 something i just need to get sorted as i go lol
i was going to bin the bolts and fit arp studs there only £88
can the oil cooler still be piped in with the z22se stat housing ?

vocky said:
I am currently opening up the exhaust ports on two heads, I will take some pictures as you need to remove quite a bit more material 😃

i found some pics but they're way opened up
i would still like to see yours so i know not to take to much out 🙂

vocky

apart from the gasket shape (keep yours to the z22se exhaust gasket shape) those pictures are very good to use as a guide, but without making a new exhaust manifold flange it's pointless making the ends more square.

evocarlos

vocky said:
apart from the gasket shape (keep yours to the z22se exhaust gasket shape) those pictures are very good to use as a guide, but without making a new exhaust manifold flange it's pointless making the ends more square.

ive tried to keep it to the oval shape

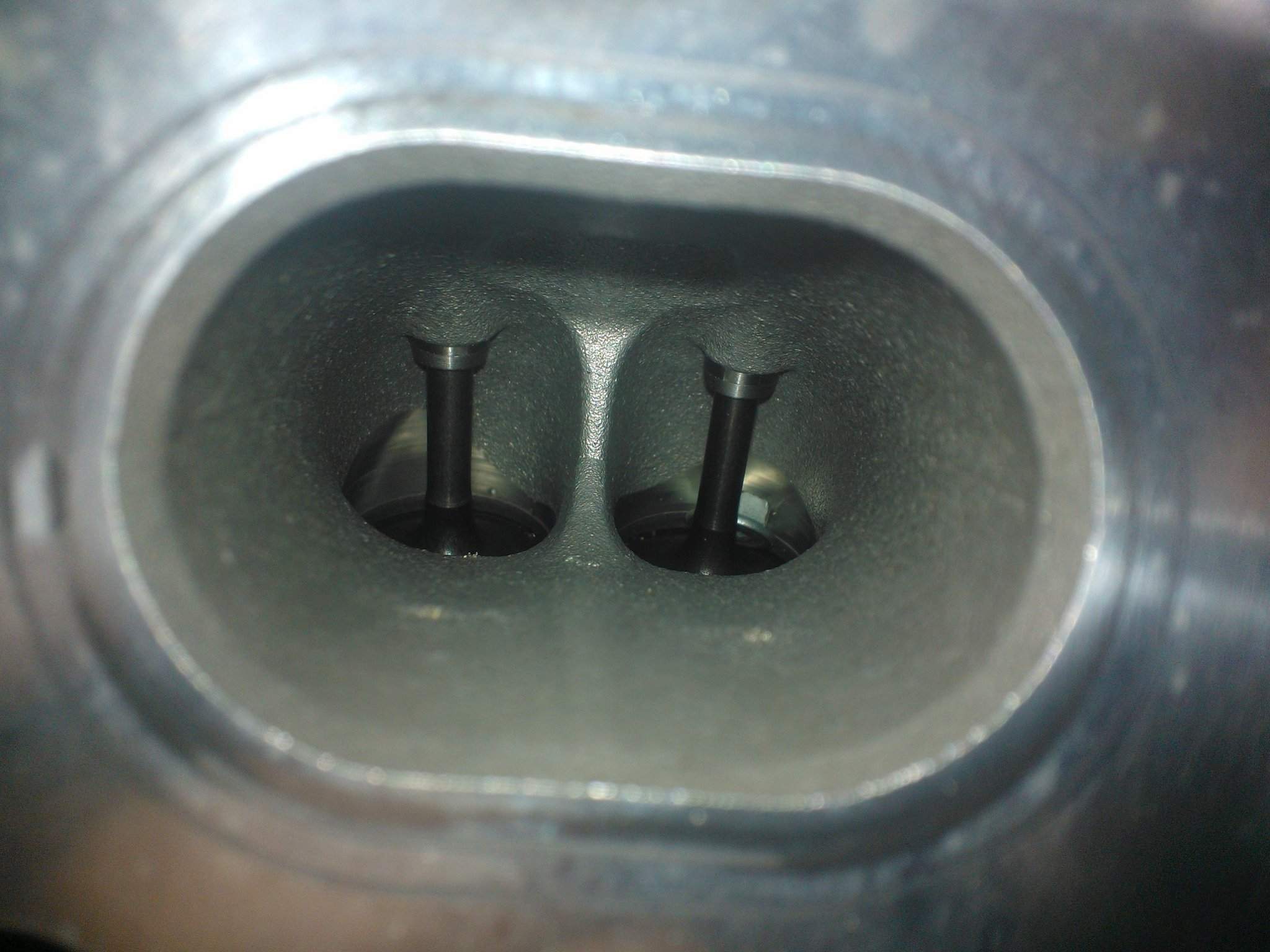

before

somewhere in the middle lol

still need to work on the right side and do the valve end

@[deleted] working from your pic ive not gone that big on the hole its about 1-1.5 mm bigger than the z22se gasket

evocarlos

some pics of the porting work
