Project Freeze My engine Off (SAAB B207R Supercharged)

MikeS

this is what the crank sensor picks up I think

evocarlos

david gilbert said:
nice 1 carl, iv been looking for a head but no luck so far.
so is it gunna be a mash up of an engine part z22se part SAAB?

looks like it might be a 2.0l supercharged 🙂
what about this 🙂
http://www.ebay.co.uk/itm/Saab-9-3-93-9-5-B207E-TURBO-ENGINE-PETROL-2002-2007-/221302778825?pt=UK_CarsParts_Vehicles_CarParts_SM&hash=item3386ac6bc9

david gilbert said:
just reading through that trigger wheel part(iv never had owt to do with owt like that) so is that like the distributor? in a way.

a distributor well yes and no

the trigger wheel provides information to the ecu for when to fuel when to spark and at what point the pistons are at in the 4 strokes of the combustion cycle 🙂
each notch in the trigger wheel represents a point in the rotation the ecu can work out and as mike said its all feed tru the crank sensor to the ecu 🙂
a distributor would just send a spark from a coil thru the spark plug lead at the right time to make the engine fire

Dave_Gilbert

yeh thats what i thought, about fueling and position but yeh makes sence,

n i ment a mashup on your engine.
its looking good

Dave_Gilbert

Any more progress on the engine? (y)

evocarlos

david gilbert said:
Any more progress on the engine? (y)

dead stop
back at work now but got no funds to buy parts 🙁

ordered
new crank sensor
plugs for the rear oil gallery
o-rings for the injector insulators
and water pump plug

Dave_Gilbert

sounds good, get some chains done to fund it. (y)(y)

evocarlos

david gilbert said:
sounds good, get some chains done to fund it. (y)(y)

i need more people to commit to getting them done and coming over 🙂

put the cams back in today even used the right kind of sealant on the end caps 🙂

its the same anaerobic sealant as on the supercharger so had some in stock 🙂

both cams in and fitted with z22se sprockets
put the timing tool on to hold them in the right place 🙂 at some point the inlet cam will be swapped for a z22se one

vacuum pump reinstalled without the bracket i then spent 15 mins looking for the cover to the inlet cam in the box of bits for the engine
then i remember that it did not come with one lol

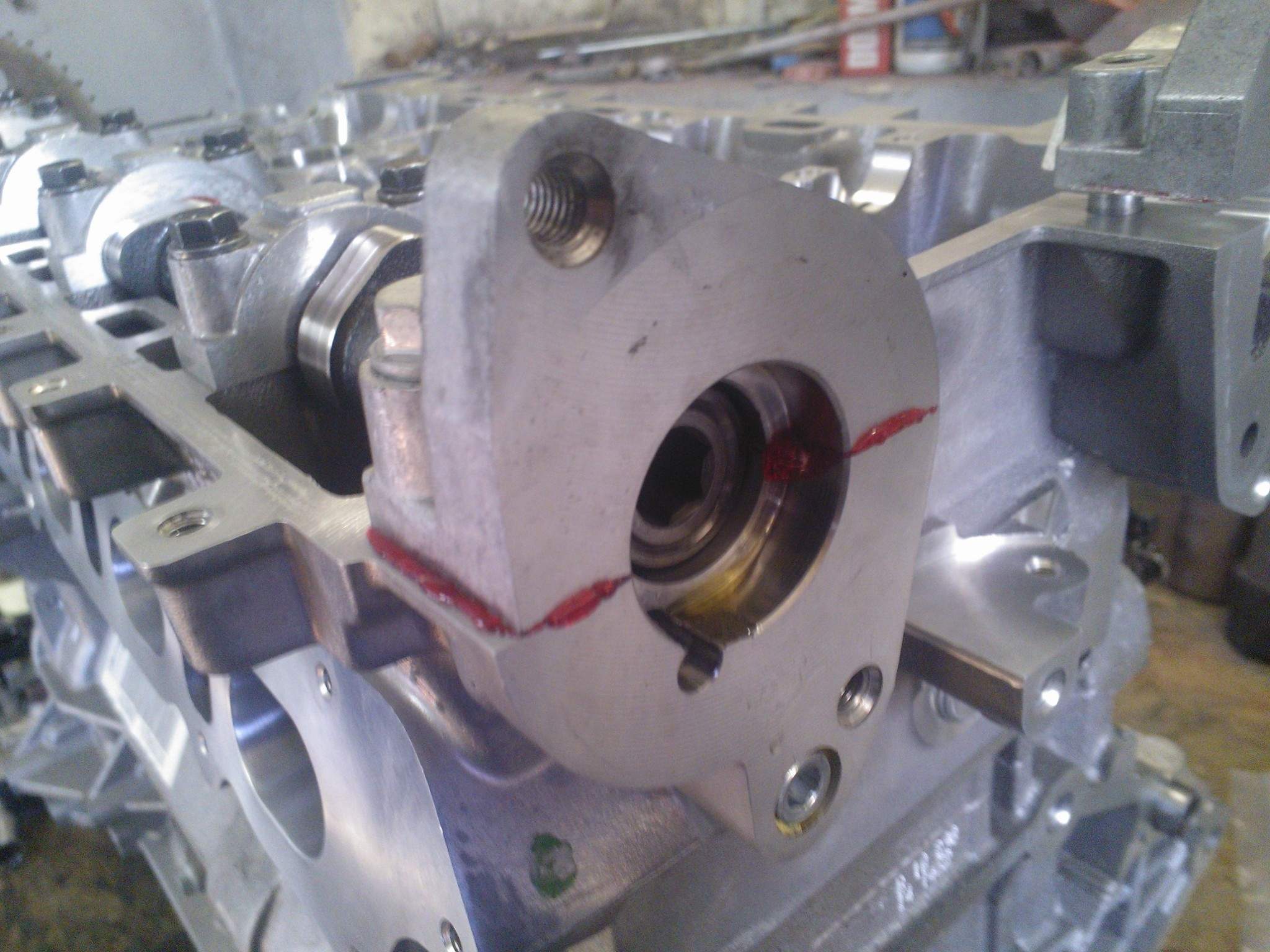

found a z22se one in the box of spares cleaned it up and fitted it

then found a clip on for the vacuum pump this will get used for the brake servo with a one way valve

trigger wheel should be like this even tho this is not accurate in the location the sensor should go to notch 5 when the engine is at TDC on #1 cylinder

just got the alloy top cover for the coil pack off ebay £15 shipped 🙂

tried to call me mate about powder coating the rocket cover but hes not available 🙁

Matt

evocarlos said:
back at work now but got no funds to buy parts 🙁

That usually stops people from having fun!

evocarlos

vocky said:

oil way = 90537378

i ordered gm = 11588547 from the insignia
#8 on this page http://www.partsbase.org/opel/insignia-2009--5-4-6-cylinder-block-plugs/
7 of per block same as the count on the z20net so one missing lol

Dave_Gilbert

evocarlos said:
i need more people to commit to getting them done and coming over 🙂

put the cams back in today even used the right kind of sealant on the end caps 🙂
[ATTACH]43101[/ATTACH]

its the same anaerobic sealant as on the supercharger so had some in stock 🙂
[ATTACH]43102[/ATTACH]

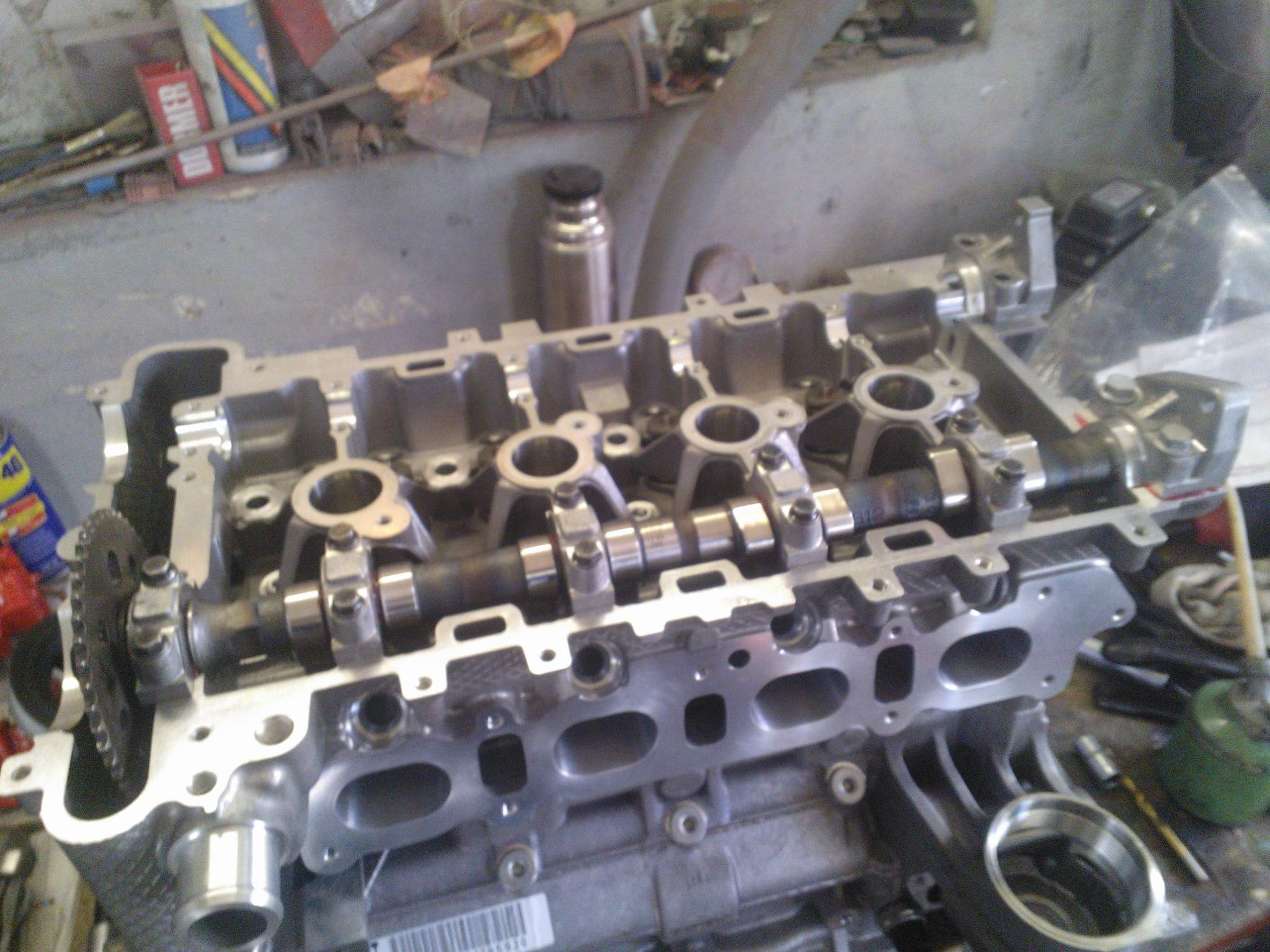

both cams in and fitted with z22se sprockets

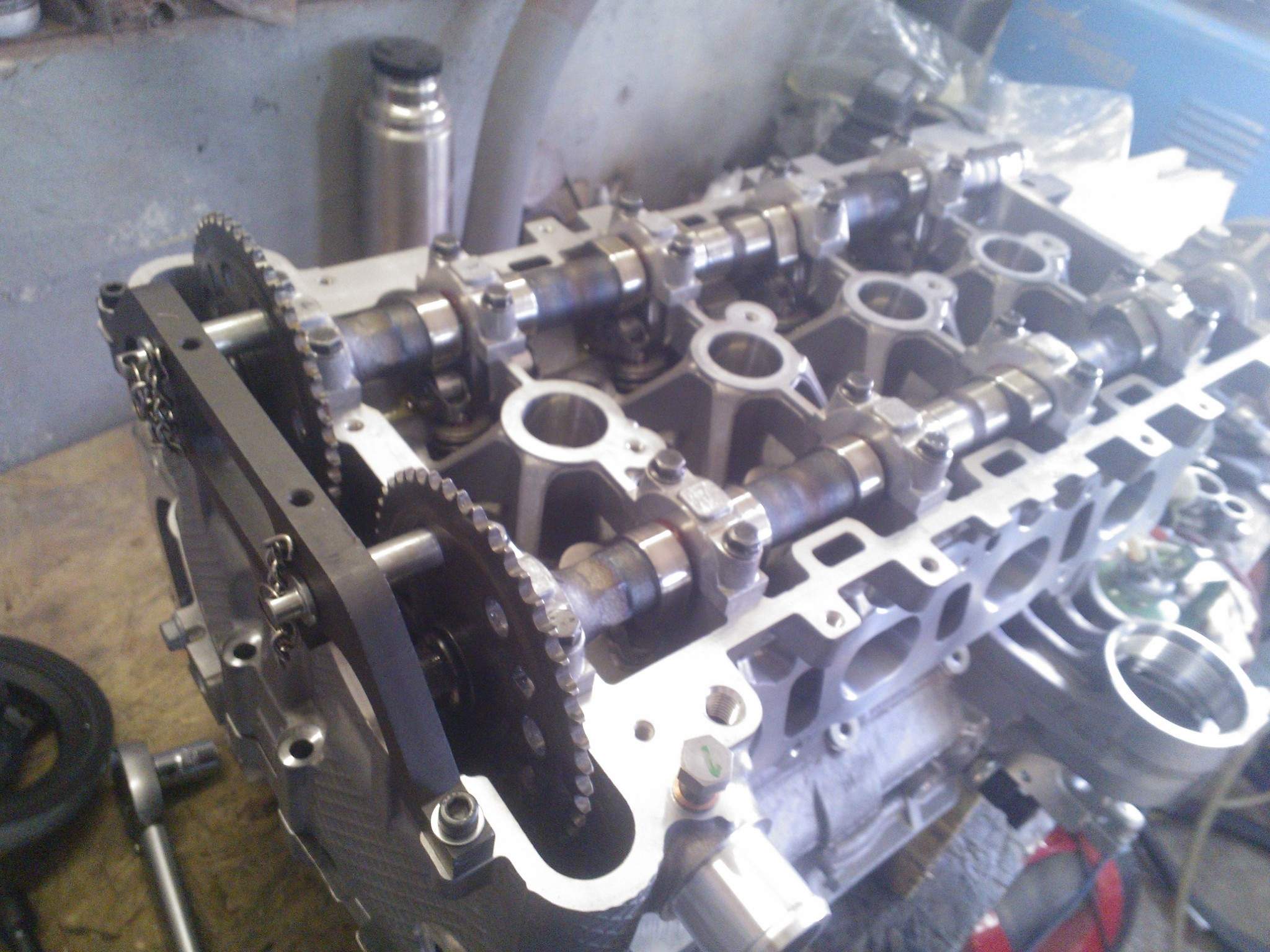

put the timing tool on to hold them in the right place 🙂 at some point the inlet cam will be swapped for a z22se one
[ATTACH]43103[/ATTACH]

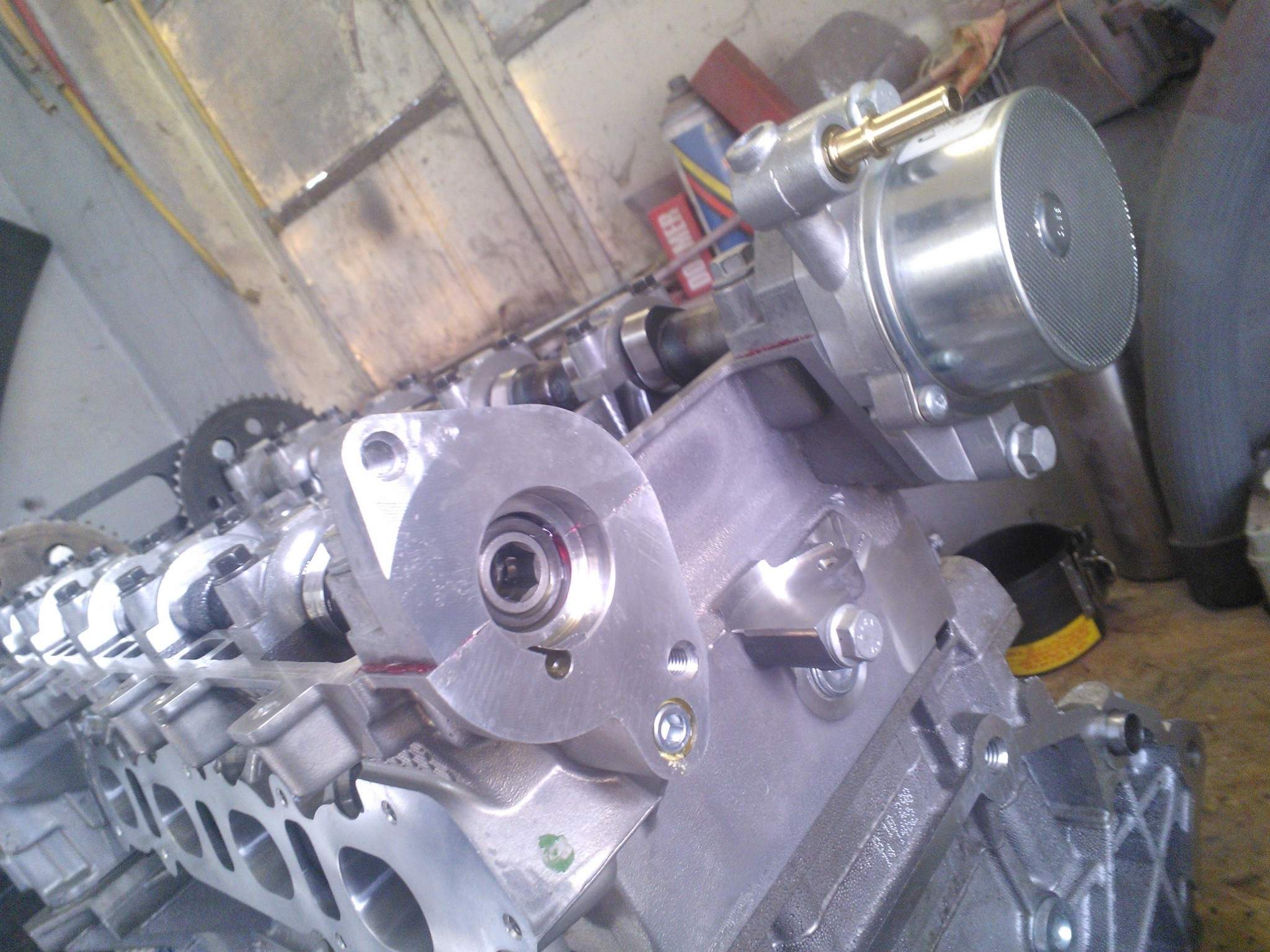

vacuum pump reinstalled without the bracket i then spent 15 mins looking for the cover to the inlet cam in the box of bits for the engine
then i remember that it did not come with one lol
[ATTACH]43104[/ATTACH]

found a z22se one in the box of spares cleaned it up and fitted it
[ATTACH]43105[/ATTACH]

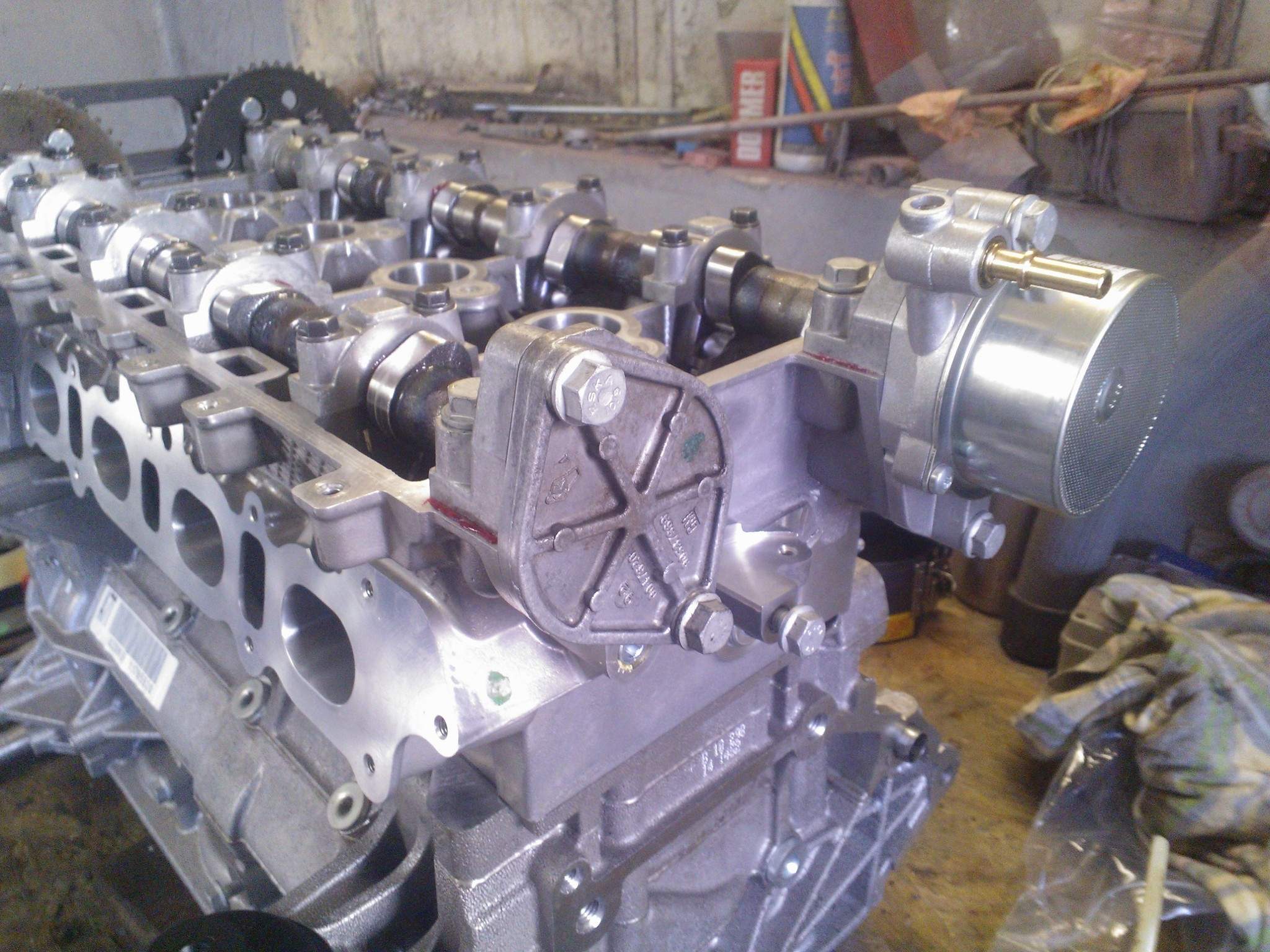

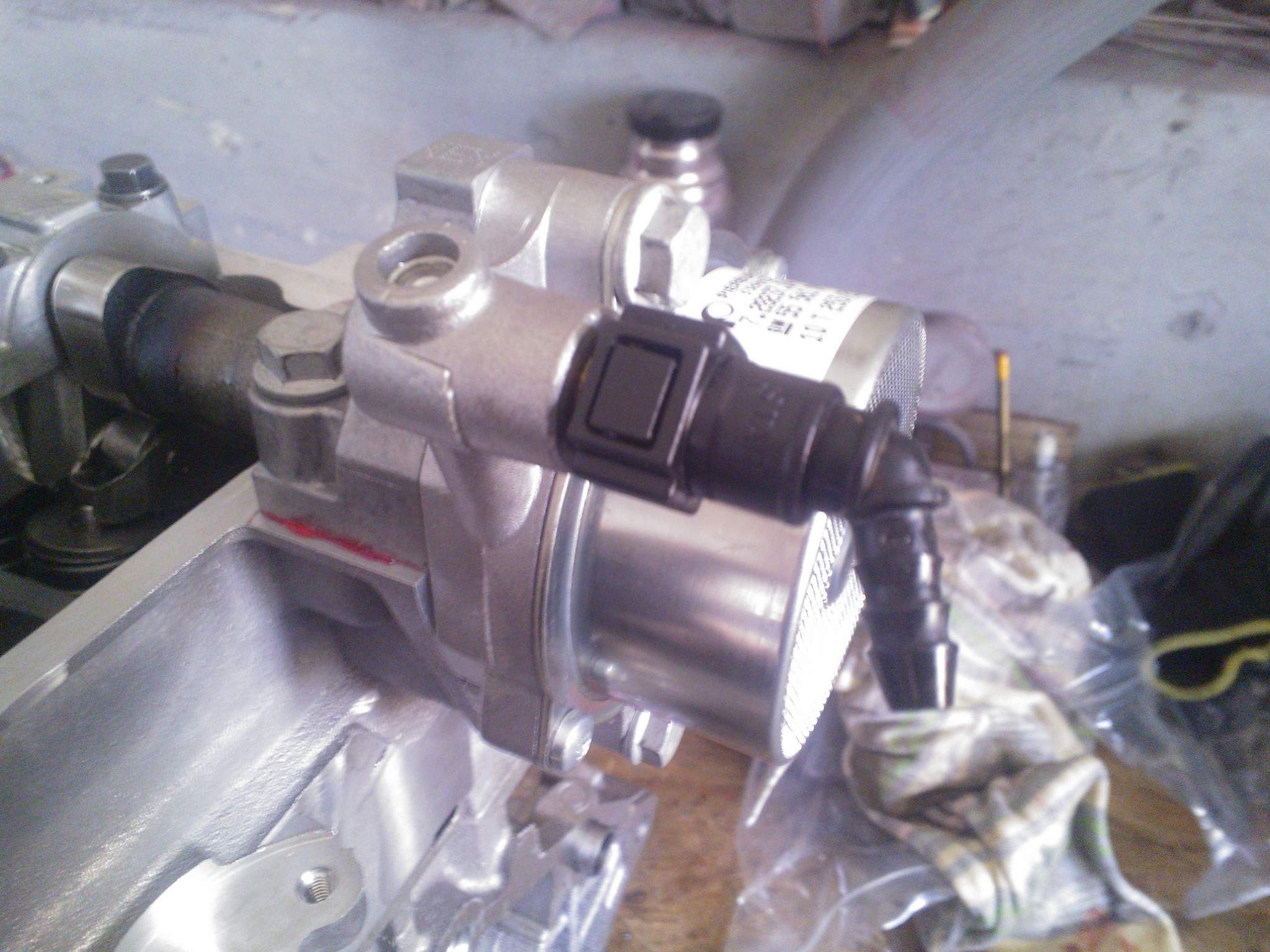

then found a clip on for the vacuum pump this will get used for the brake servo with a one way valve
[ATTACH]43106[/ATTACH]

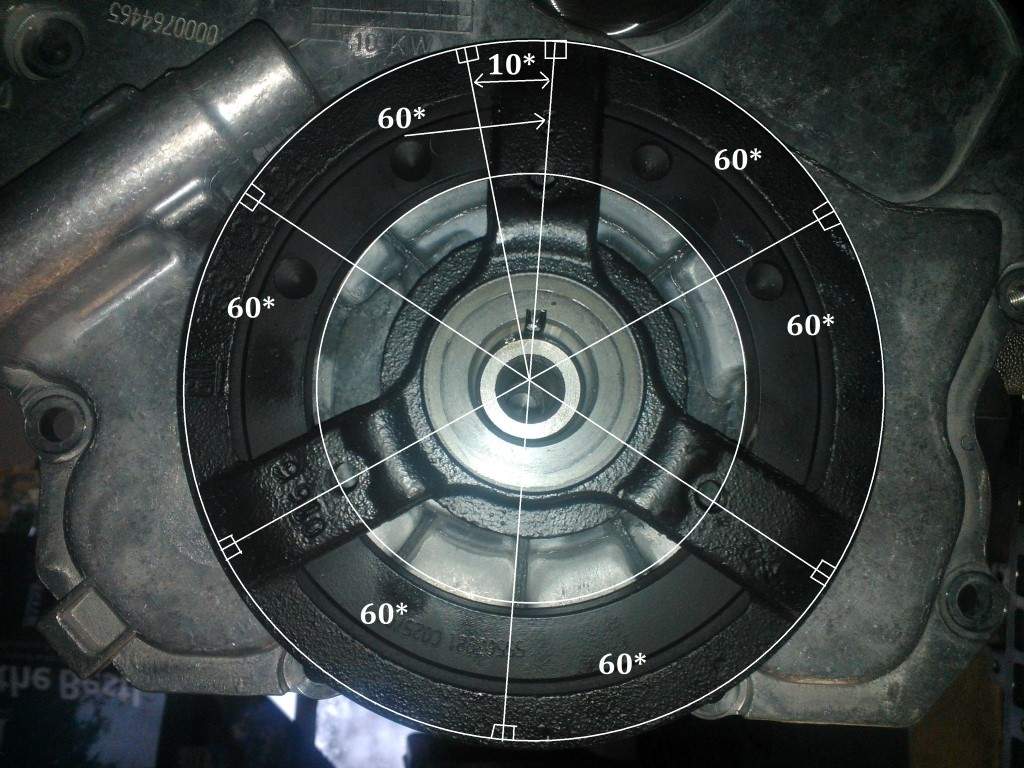

trigger wheel should be like this even tho this is not accurate in the location the sensor should go to notch 5 when the engine is at TDC on #1 cylinder
[ATTACH]43107[/ATTACH]

just got the alloy top cover for the coil pack off ebay £15 shipped 🙂

tried to call me mate about powder coating the rocket cover but hes not available 🙁

its all coming together now. your doin a grand job, nice 1

evocarlos

Matt said:
That usually stops people from having fun!

problem is im now at the point where every day im getting pain from different areas think the work load is to much :S

david gilbert said:
its all coming together now. your doin a grand job, nice 1

that's still just the head 🙂 i just put it on top of the block so it was at working height 🙂 going out later to do some work with a drill to the block 🙂

went to B&Q finally got dad to come in the car lol 🙂
come back home with these 6mm and 8mm alloy rod

Dave_Gilbert

i bet your dad loved it, what you doing to the block??

corsaZ22se

nice work (y)
is that sealant like Loctite 515 or 574?

evocarlos

david gilbert said:
i bet your dad loved it, what you doing to the block??

poor mans cylinder supports 🙂

corsaZ22se said:
nice work (y)
is that sealant like Loctite 515 or 574?

🙂 its the 5800 for alloy to alloy faces
http://www.henkel.co.uk/fullproduct-list-loctite-4995.htm?countryCode=uke&BU=industrial&parentredDotUID=productfinder&redDotUID=000001FW6U

Dave_Gilbert

oko_Oo_O(y)

corsaZ22se

cheers for that (y)
have to see if I can get any from work? im sure john deere recommend it somewhere? must need it for a 'warranty job'! :LOL:

corsaZ22se

got loads of 515 and 574 in the van. 🙂

evocarlos

david gilbert said:
oko_Oo_O(y)

let me explain 🙂

z22se(L61)/z22yh/z20net(b207-LSJ)/a20nft all have open cylinders around the waterways
this can be an issue for running high boost as they break out into the waterways the same as a z20let would over 350hp (even tho some people refuse to admit it 🙂)
heres the ecotec block with no support

heres how they can go lol this is a rare case but why take the risk 🙂
its not like you have to spend £700 supporting the cylinder liners 🙂 not unless you go darton liners

the LE5 block the ecotec gen3 has added support from the factory so i will try to replicate it
it looks like this

corsaZ22se said:
got loads of 515 and 574 in the van. 🙂

they both look like they will do the job 🙂 i used the 5800 as it is whats on there to start with and i have a tub from rebuilding the supercharger as thats all thats ment to be used for the charger close face tolerances and all that 🙂

Dave_Gilbert

thanks for the expansion makes sence now(y)(y)

like you said its not gonna cost alot and wile your there you mares well.

corsaZ22se

with your crank sensor could you not get the crank pulley machined and use an external sensor. keep the 60-2 trigger wheel on the crank incase you decide to go stand alone ecu in the future?
