Project Freeze My Ass Off (rear Poly Bush's Astra G)

MikeS

me too, cant wait to see em in a coupe

evocarlos

had to loosen the airbag to slot the leather back in

new retrofit flat blades mine were 7 years young but needed changing

all on its tod

it was more of a job than i 1st thought the recaro bottom runner was rusty quite bad so stripped my seat down and fitted the undercarriage to the recaro

there big and comfortable 🙂

evocarlos

think i broke it 🙂

heres me playing with the z20net tensioner

evocarlos

all out

i hate spiders this little bugger come right up to me where i was sat on the floor size comparison with the wheel bolt lol

riddle me this im sure this aint right the tensioner dont even hit the rail can it be that its made up with oil pressure ?
(click for video)

evocarlos

been working on the back end of a merc c180 kompressor most of the day with dreaded squeaky bushes got that sorted now to move on to my car lol

swollen rubbers need to buy some silicon grease

oil pump case

this fell out 🙂

next one's gonna be a bit more difficult

pottsey

your balance chain is a lot tighter that what mine was ,mine was literally hanging off the bottom cog ,could also see where it was hitting the metal on the bottom

evocarlos

pottsey said:
your balance chain is a lot tighter that what mine was ,mine was literally hanging off the bottom cog ,could also see where it was hitting the metal on the bottom

was it noisy then ? my car sounded like an old push rod fiesta when i got home from work thursday

pottsey

yeah just a bit ,i'll tag you on my video on facebook

evocarlos

close but not wanting to come out had to undo all the subframe bolts and then the steering rack to get the extra inch

and they're OFF!

now to make the idlers

my arm was knackered after cutting the too shafts

no posh lathe shite here 🙂 just pure skill and burnt fingers

and then a clean up with sandpaper and thinners

i've impressed myself🙂

pottsey

excellent work mate ,it gives you a sense of acheivement when you do something like this (y)

Matt

pottsey said:
excellent work mate ,it gives you a sense of acheivement when you do something like this (y)

Especially at that time of night!

pottsey

Matt said:
Especially at that time of night!

:eek: dedication or insomnia lol

evocarlos

pottsey said:
excellent work mate ,it gives you a sense of achievement when you do something like this (y)

its @[deleted] fault 🙂 it is good to do something and not make it a pile of poo

Matt said:
Especially at that time of night!

it was early for me lol 🙂 im sure the neighbors were happy me with the air rachet at 12:30 oh wait i don't have any neighbours hehe

pottsey said:
:eek: dedication or insomnia lol

bit of both lol and prolly just the red bull was going to do the bearings but it was to dark

in other news 🙂

Track & Trace
Please come back later
Your item has reached the delivery office and is out for delivery.
We can confirm that your item left the delivery office this morning and should arrive shortly if it hasn‘t been delivered already.

evocarlos

its done
had some issues getting the bearings to move had a word with @[deleted] he gave the heads up thanks for that buddy 🙂
i had also put the wrong socket on the extension bar 28mm and not 30mm

engine low hope its not pulled any cables

7.5mm in

and the front one

pottsey

glad to be of assistance mate (y)

evocarlos

have to say thanks to @[deleted] for the great service yet again
my advice to anyone needing chain kits or bits for the z22se go here https://z22se.co.uk/shop/ genuine parts at lower than gm prices

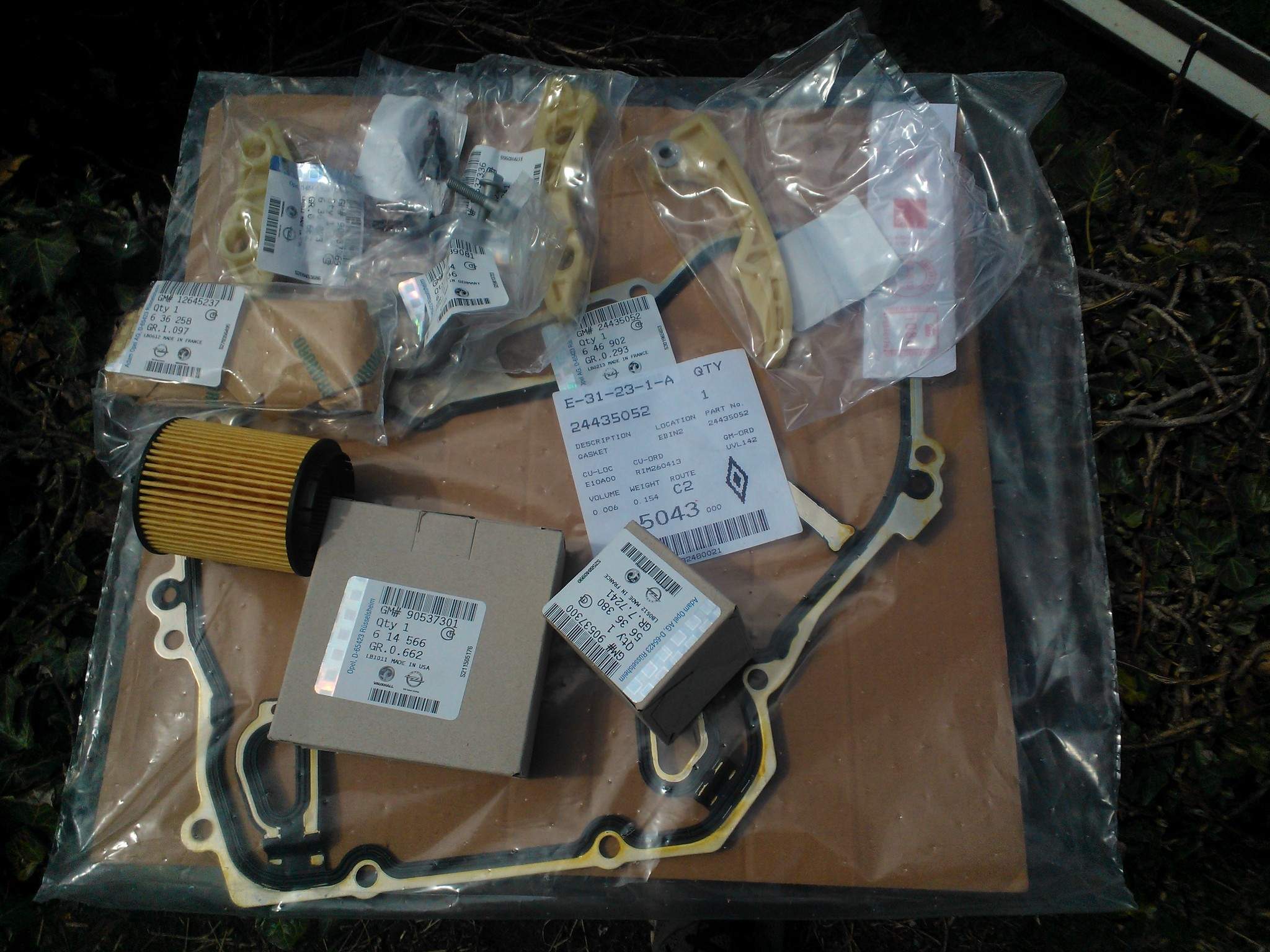

new balancer chain came

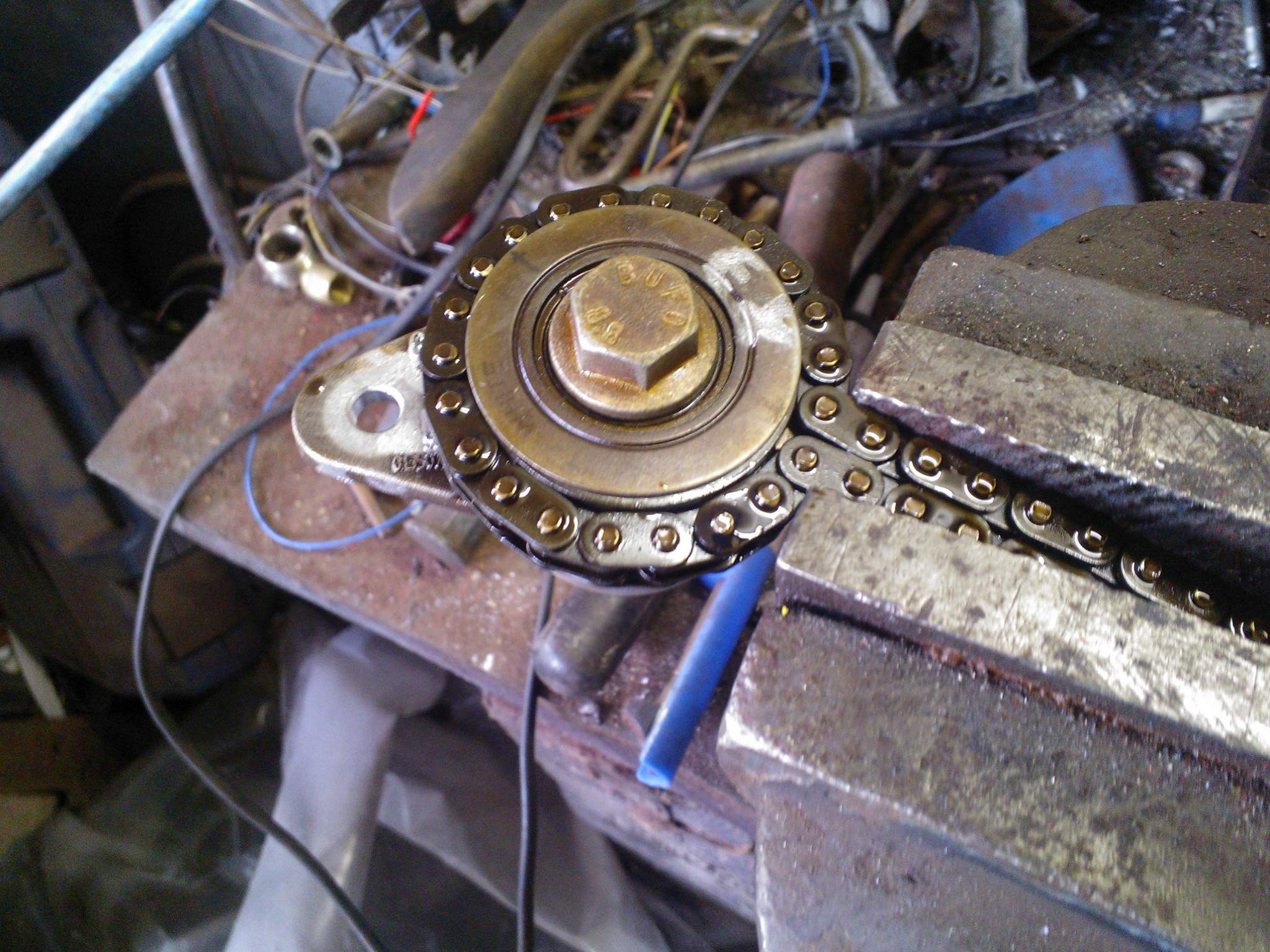

stud locked the bolts on the idlers used the old chain in the vice to hold it still while tightening

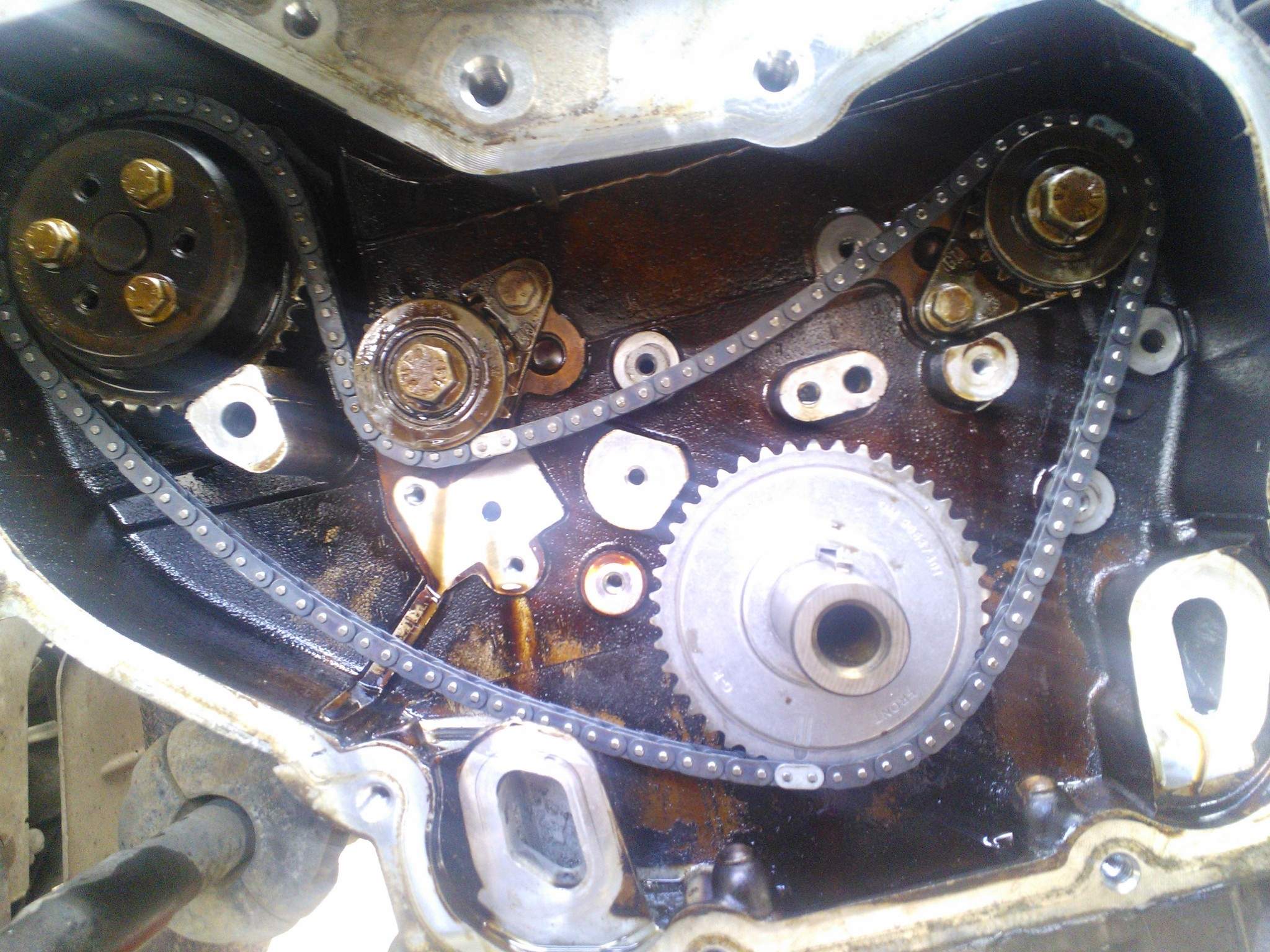

and fitting still timed it up even tho the shafts are cut

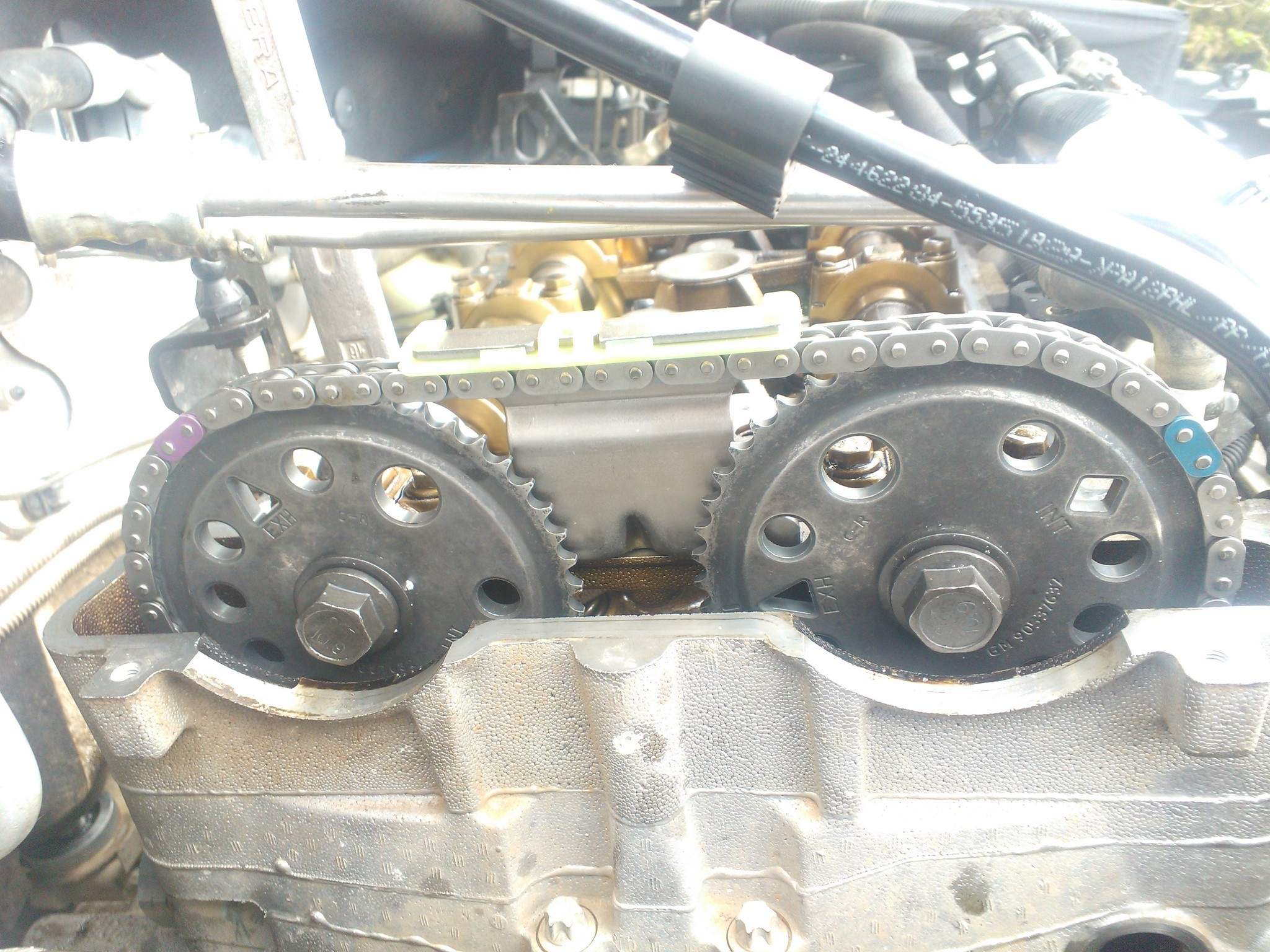

cam sprockets

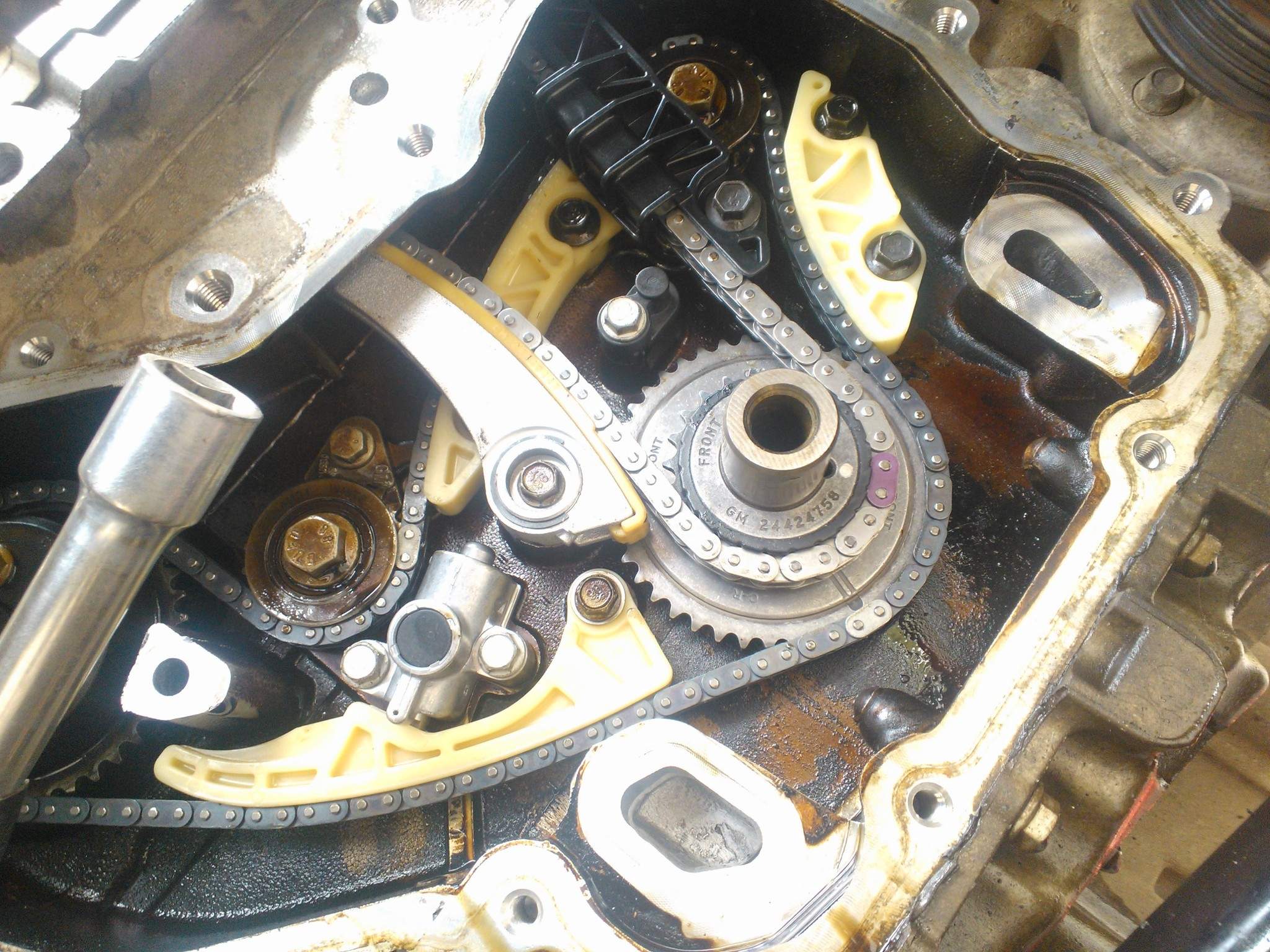

bottom end

have to say fitting a chain to this engine is real easy its like they made it fool proof with the colored links

more later got to pop out to get new oil and then do the ARB bush's

Matt

Sterling effort Carl (y)

evocarlos

thanks matt
right
all the subframe bolts are in but need torque wench settings for them
all the lower engine is built up just need to do the cam bolts and the crank bolt found this info on the forum heres a refresh

Daz said:
cam bolts 85nm's + 30 degree's

Daz said:
crank bolt 140nm + 40-50 degree's

new oil bought going to flush it thru with the oil stuff again to clear any shit thats in the sump
not long now

front engine mount separated from the metal

new power flex ARB bushes fitted

pulley back in

and back up level 🙂

Matt

ARB connection link retaining nut 55nm
ARB to subframe 20nm
Lower arm balljoint clamp bolt nut 50nm
Track rod to swivel hub S1-30nm
S2 - further 90degrees
s3- another further 15degrees
front engine mounting/torque link to subframe 55nm
Lower balljoint to low arm 35nm
Subframe mounting bolts S1- 90nm
S2- further 45deg
s3 - further 15deg
Rear Hub assembly to trailing arm 50nm
Source

evocarlos

Matt said:
Subframe mounting bolts
S1- 90nm
S2- further 45deg
s3 - further 15deg

thanks 🙂
omg that like 160nm for the sub frame gonna need a bigger bar lol
