6 speed conversion

vocky

JohnnyN said:
Does this mean that your Courtenay lightened flywheel is now defunct?

cryb..

as Shania Twain would say "you must be joking right?" :lol:

vocky

finally finished the 'gearbox end' of the gear change mechanism, I still need to sort the gearlever end but that's quite easy 🙂

the problem is that the gate selector operates 'back to front', so when you select 1st you would get 5th, 2nd - 6th, 5th - 1st, 6th - 2nd :?

EDIT: pivot assembly only required for the vx220 models

at least three options available:

1 - pay £1100 for the complete lotus linkage :roll:
2 - make a new bracket and feed the cable from the other side of the gearbox
3 - make a pivot assembly

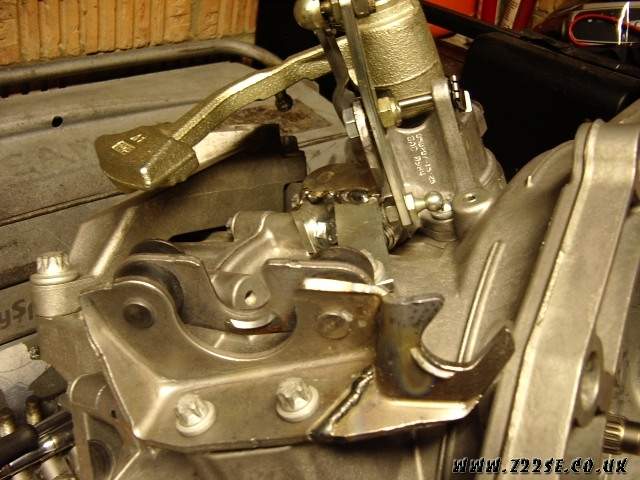

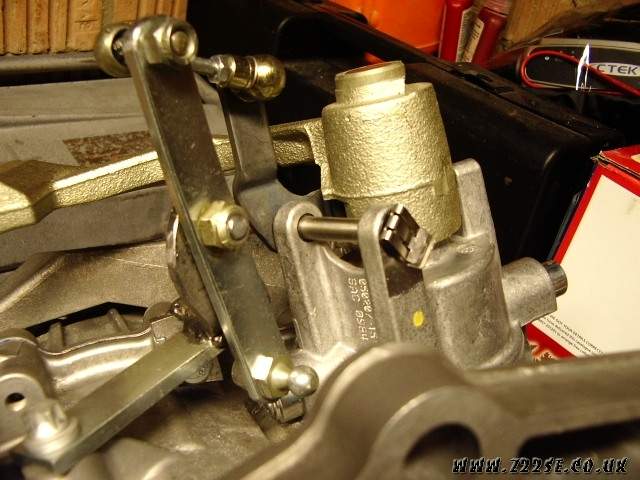

I decided to make a pivot assembly...

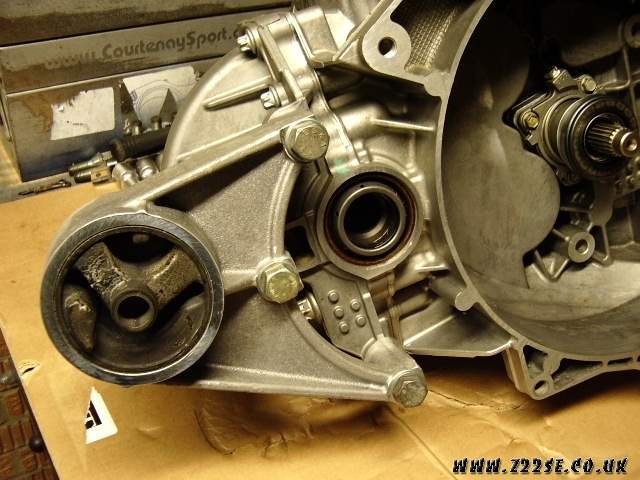

also checked the new mounting fitment 🙂

vocky

alanoo said:
Now you just have to hope that Europa S wishbones are the same length as our VX ones otherwise you should have some issues with the driveshafts :/

'hub to hub' they are identical 🙂

although the diff is slightly off centre compared to the F23, so the shafts are different lengths to the F23 units.

they also fit both the M32 gearbox and vx220 hubs 😃

luna_s

good work 😃

JohnnyN

I like the gratuitous Courtenay Sport advertising in the background of the above piccy. pmsl..

And I've just realised the stupidity of my above question about the flywheel. :oops:

I will go and hang my head in shame. :roll:

vocky

that's my son's toolbox, it's covered in various stickers :lol:

vocky

been removing various parts to allow the gearbox to be removed :roll:

so that's both driveshafts, nearside rear suspension, air intake pipework, coolant tank bracket and a few other bits..

I modified the cv heatshield too, quite easy - drilled and taped a hole in the new gearbox mount, fitted a bolt from the otherside, added a washer and nut to lock it in place then drilled a hole in the heatshield after removing the unused original hole section.

JohnnyN

Nice work Obe Wan!

thumbup

adie2_2

Looking good vocky, did you use " the force" at any point :lol:

vocky

Only when Johnny is about :lol:

I have now also removed the exhaust system and sorted the flange joint at last, it just wasn't quite right.

vocky

getting there.......

vocky

Hmmm KEVLAR drool.gif

fitted the new uprated clutch + cover

offside driveshaft fitted and cv heatshield

plenty of clearance

gear cables on

nearside driveshaft fitted

JohnnyN

Bloody fantastic work there Neil. That looks mint.

thumbup

Daz

Not taken long at all that neil....are there anymore vx's with a 6speed ?? or is ures the only one..

rabidh

looks great. everything went in without hassle?

So when are you starting Vocky motorsport? I'm sure you'd have plenty of customers for all the stuff you've done!!

adie2_2

Grand job vocky,looks good.happy days :razz:

Daz

rabidh said:

Vocky motorsport!!

I like it.... 😃

vocky

Not taken long at all that neil....are there anymore vx's with a 6speed ?? or is ures the only one..

the only vx220's with a 6 speed that I've heard about are all in europe, one has the saab z2.0net turbo engine + 6 speed F40 box and there's one or two vx220 Turbo's notsure.gif

as far as I know mine is the first 2.2 with a M32 6 speed gearbox 8)

vocky

rabidh said:
looks great. everything went in without hassle?

So when are you starting Vocky motorsport? I'm sure you'd have plenty of customers for all the stuff you've done!!

the only hiccup was the gearbox bracket, mine is from the donor vectra and I think I need an astra bracket instead, luckily I bought the Lotus passenger mounting bracket as that is required too :roll:

Matt

Fantastic work as always Neil.
