My speedster project

alanoo

Ok guys, time has come !

First, here are the upgrades already done to my VX220/Speedster... all in the chassis 😉
Nitrons 1-way
TD Race 1.2
Yoko A048R LTS
Uprated adjustable ARB
Nylatrons wishbones SB
Eliseparts alu belled discs
Carbone Lorraine brake pads
Unibal toelink kit

And here is what is planned to my engine; starting from next week !

Wiseco 10:1 pistons (+ cylinder head skimmed to reach 11.5:1 CR)
Eagle rods
Schrick camshaft kit
GM Adjustable cam pulleys
Balanced crankshaft
SiValves waisted stem valves
Some headwork of course
2.4 manifold
2.4 TB
2.0 SC injectors
balance shafts deletion
Light flywheel (Steel one from Motoconcept)
2Bular 2.5" full system (exhaust line + manifold)

All controled by a Skynam Sybele Challenger4+ standalone ECU

Some pics as a teaser

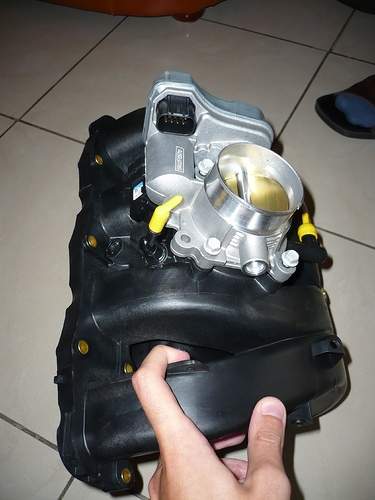

The already known 2.4 manifold an TB :

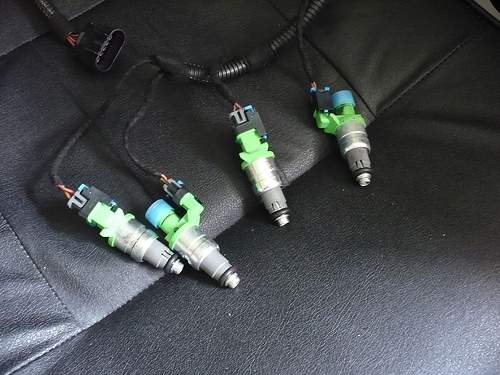

The 2.0 sc injectors

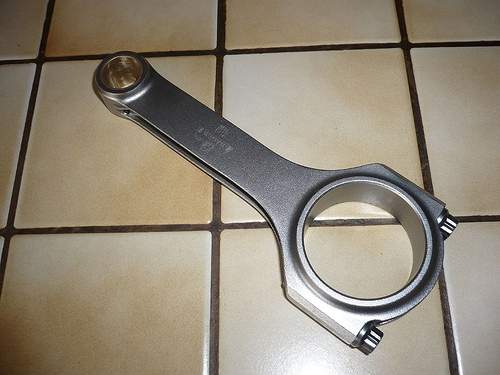

The 520 grams Eagle rods

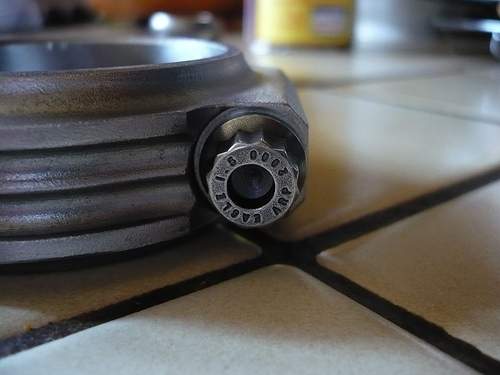

With their ARP 2000 bolts

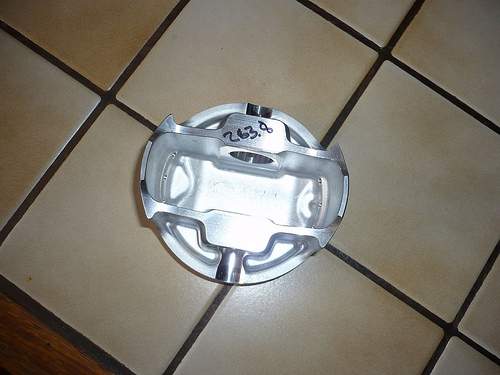

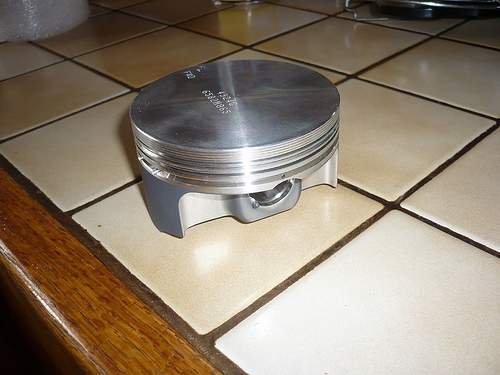

The 283 grams Wiseco 10:1 pistons (that will be replaced by high compression ones later in the project)

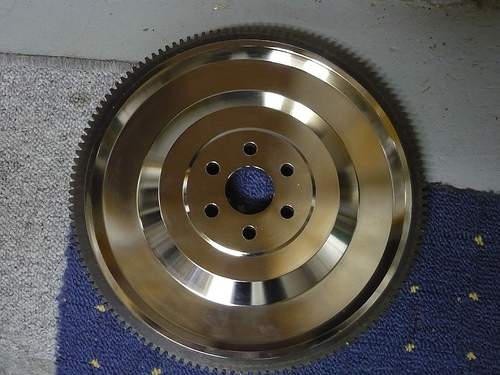

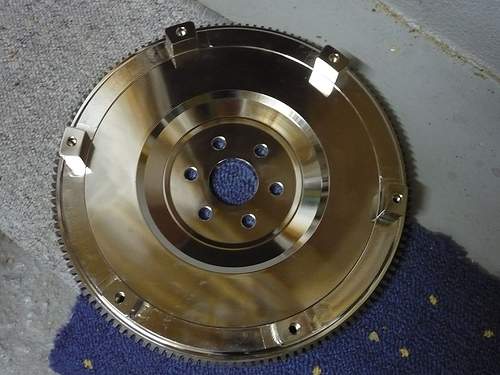

Flywheel from Motoconcept, which I think is the same as Courtenay's one

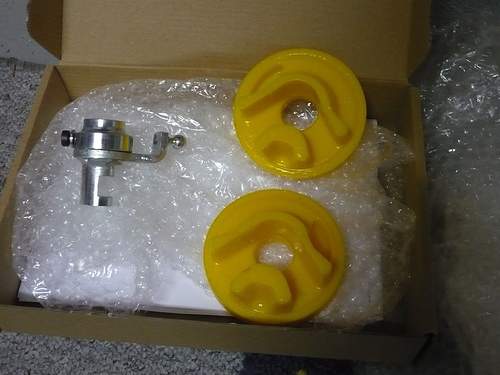

Quickshift and Powerflex inserts

Schrick kit already received too, but not pictured (directly sent to my best friend (motor engineer) location)

More to come soon !

JohnnyN

There's some well engineered components there mate. Good stuff!

;-)

markv

Cool!! 😃

I see another >200bhp coming cheers..

Mark

vocky

new bits drool.gif

should be a nice performer once together 8)

alanoo

After day one

Cylinder head removed
Gone for measuring and work on it for Schrick kit fitting

vocky

try and remember to do all the little jobs whilst the clam is off 🙂

like fitting uprated engine mounts, check side engine mounts, fit oil catch tank etc

alanoo

Yep of course vocky, I think I'll have to make a list of all kind of maintenance I have to do too (regreasing unibal toe-links, fitting the nylatrons at rear wishbones...).

I will go with lightening some things in the engine compartiment too, like the water tank fixing, the fuel vapor depolution system...

Also...

For anybody that wants the pics in bigger sizes, you can find them here : http://www.flickr.com/photos/alanoo/set ... 228930082/

alanoo

Second day of work :

Done via the "engine on the floor" method.
Simplier than lifting up the engine, especially when you don't have the good tools, but leaves a few marks on the subframe dunno..

alanoo

Just learnt the Wiseco pistons axles will receive a free DLC coating

😃 drool.gif

alanoo

Third day of work

All the bits from the bottom end

Adios amigos :lol:

vocky

are you going for the short chain method notsure.gif

idler gears dunno..

alanoo

Idler gears

According to my best friend, who is an F1 engineer, the loss in power would be anectodical (1 hp at max)

slimvince

Nice! drool.gif
...high compression pistons...
Any particular brand? CR? Thinking about this too...
What do you think is the max CR you can have without the need for another ECU or a piggyback?

alanoo

I think they will be Wiseco ones again.

They can do pistons for the eco up to silly CR, Karo from carcustoms told me he already ordered some 13.5:1 pistons from them.
I think I'd go for 12 or 12.5:1...
Anything higher than the stock CR would need another ECU, I heard that even with the 11:1 wossner items some had knock problems :?

vocky

alanoo said:
Idler gears

According to my best friend, who is an F1 engineer, the loss in power would be anectodical (1 hp at max)

that's good news, I was thinking the same, very little loss in power 🙂

2-20

I assume that the neutral shafts sold by GM would also create very limited power loss.
Yes, they are heavier than idler gear but the mass is close to the axle .
Am i correct here ??

Also, what is a DLC treatment and what is the weight of stock rods ?

Thanks

vocky

it's not so much the weight of the neutral balancer shafts, just the mass of them turning dunno..

I have not seen any rolling road tests of the power gains, it would be nice to compare the two versions :roll:

2-20

vocky said:
it's not so much the weight of the neutral balancer shafts, just the mass of them turning dunno..

I have not seen any rolling road tests of the power gains, it would be nice to compare the two versions :roll:

Yes and if i remember correctly an important point when you try to accelerate a rotating mass is the distance of the mass to the center of rotation. This is directly linked to the inertia of the system.
An infinite mass located exactly at the center of rotation would spin effortlessly.

exmantaa

It has also to do something with price.
Neutral balance shafts from GM are not cheap...
The idler gear conversion can be made cheap (If you can.)

But I still don't like the idle-gear conversion because of possible wear by the load/momentum put on this single bearing by the chain tension. A short chain version would be so nice and simple.

Frank

vocky

there is hardly any load, just a chain running around 🙂

a guy in the usa has done over 25,000 miles and reports no issues 🙂

ps: did you have a manta A (ex manta a) notsure.gif

I had a manta A 1.9 SR 8)
