My vx220 project

JohnnyN

Lucky you've done a lot of it yourself. You'd be up around what i've spent otherwise.

pmsl..

vocky

JohnnyN said:
Lucky you've done a lot of it yourself. You'd be up around what i've spent otherwise.

pmsl..

I dread to think what the labour charges would have been for mine :wtf:

alanoo

Got a pic of the M32 z22se flywheel ?

vocky

alanoo said:
Got a pic of the M32 z22se flywheel ?

it's been designed and is currently in production, pics as soon as it arrives :thumbup:

update;
I have removed the front suspension, fitted the new track rod ends and fitted the new adjustable anti-roll bar with poly bushes.

I also have removed the old ball joints and bushes from the wishbones :thumbup:

vocky

I fitted the new ball joints and bushes today

the new front tyres fitted

all done (y)

next job is to remove the rear clam.... again :confused:

JohnnyN

Looking great Neil. One thing that i'm a little puzzled by though, how have you ever worn out the front tyres or did they just rot away due to lack of use?? pmsl..

Matt

As said, some good work there Neil.

vocky

JohnnyN said:
Looking great Neil. One thing that i'm a little puzzled by though, how have you ever worn out the front tyres or did they just rot away due to lack of use?? pmsl..

I have owned the car almost three years and have never changed them, they still had over 3mm tread left but had started to crack, so time for a new pair :thumbup:

update;
I removed the rear clam yesterday and today moved the webcon ecu from the boot to the bulkhead, I also moved the yellow starter relay from the boot to the bulkhead. Now I only have the rear light loom going to the boot :thumbup:

That makes the rear clam removal a much easier task :clap:

JohnnyN

I must be getting it confused about the tyres. Did you have them removed for powder coating or something??

vocky

I had all four wheels refurbed, fitted two new rear tyres and reused the fronts as they had 5mm thread still (y)

update;

I removed the rear suspension and M32 gearbox yesterday, today I swapped the M32 internals from a 3.94 V2 to a 4.17 V2, I'm still looking for a 4.17 V1 but I'm not prepared to pay £2k for one :wtf:

the 4.17 V2 equates to a 4.55 F23 8)

some pics

the finished z22se M32 4.17 V2 😃

Matt

Bloody hell Neil, doing something like that would scare the living shit out of me!

vocky

not really done much recently, been very busy with other stuff, but a few pics (y)

the new rear wiring loom socket

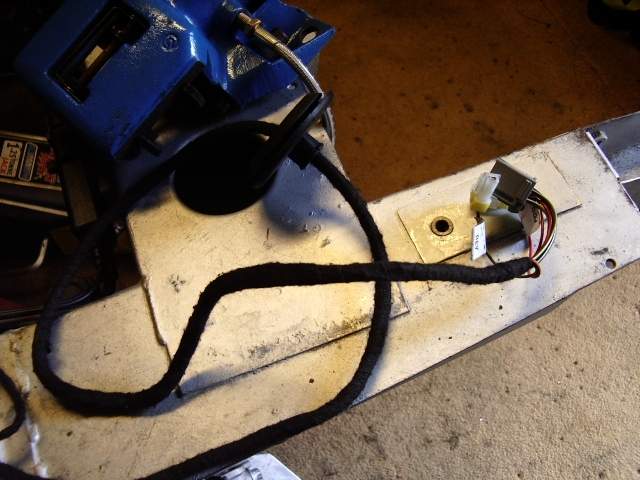

the car loom before the plug was fitted, I seem to have lost the pic of the new plug notsure.gif

the relays and ecu moved from the boot

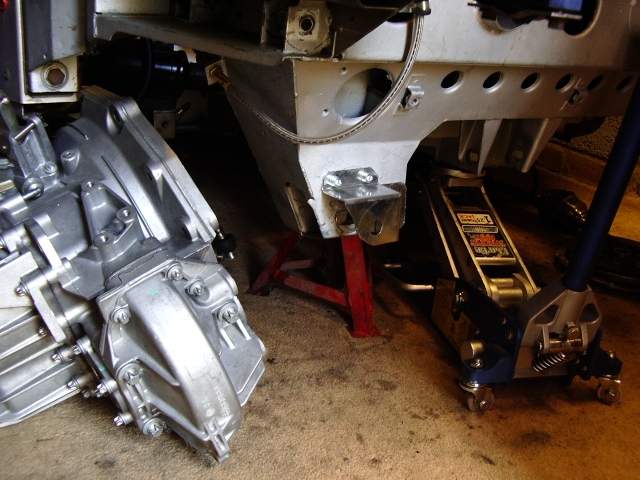

gearbox ready, still waiting for the flywheel 🙁

Sjdickso

Not been busy, you are always changing somthing.

Tazmad

Looking good Neil :thumbup:

How the hell do you fit all the info in your head
and parts in your place notsure.gif

Very impressed keep up the good work :clap:

alanoo

What is the smallish box below the yellow starter relay ? notsure.gif

vocky

alanoo said:
What is the smallish box below the yellow starter relay ? notsure.gif

that is the reset button and led indicator for my Innovate air/fuel gauge, I hide it out of the way so it's not pressed accidently - which would mean the lambda sensor had to come out to be re-calibrated :thumbdown:

I have removed the original ecu and fuel pump relays, so just the yellow start relay left from the factory loom

The three new relays below the alpha ecu are; rad fan, fuel pump and ecu

alanoo

You can replace the yellow relay by a normal one if you want (it works), then you can put all the 4 of them in a clean relay box :p

JohnnyN

Fantastic as always Neil! I need to find some new words to describe your work. Fed up with saying the same thing over and over. Maybe I should try it in a different language! pmsl..

Отличен

;-)

vocky

alanoo said:
You can replace the yellow relay by a normal one if you want (it works), then you can put all the 4 of them in a clean relay box :p

ooohhhh, I like that idea :clap:

it's on my 'to do' list 😃

vocky

JohnnyN said:
Fantastic as always Neil! I need to find some new words to describe your work. Fed up with saying the same thing over and over. Maybe I should try it in a different language! pmsl..

Отличен

;-)

Поэтому благодарю вас
