right here's some pic's and the story so far 😃
I bought the bottom end off a guy on vvoc, he had replaced the head gasket and fitted a brand new timing chain, but the very next day realised the head was cracked, so he decided to go z20let :shock:

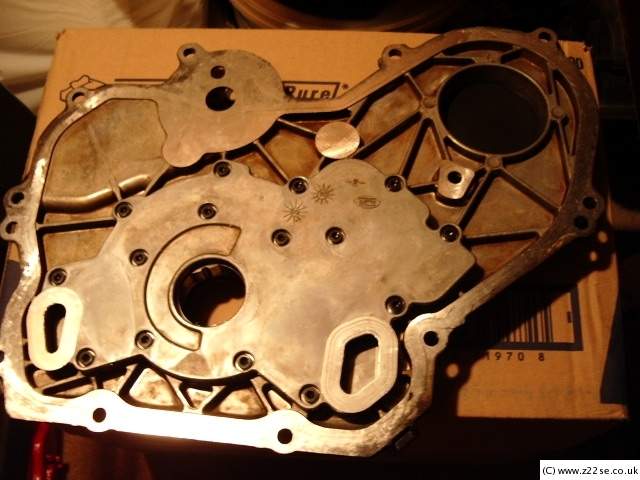

The timing chain cover has the oil pump built in, I've already stripped and inspected the oil pump, no damage, a few small marks but that's to be expected (any gouges means replacement), so that was reassembled
then the brand new timing chain was removed, this will get re-used 🙂

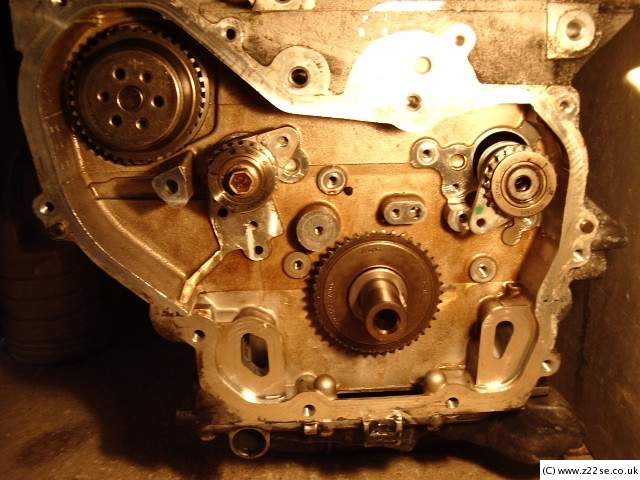

next the water pump/ balancer shaft chain was removed, this was the original chain.
next the bolts were removed from the chain cogs

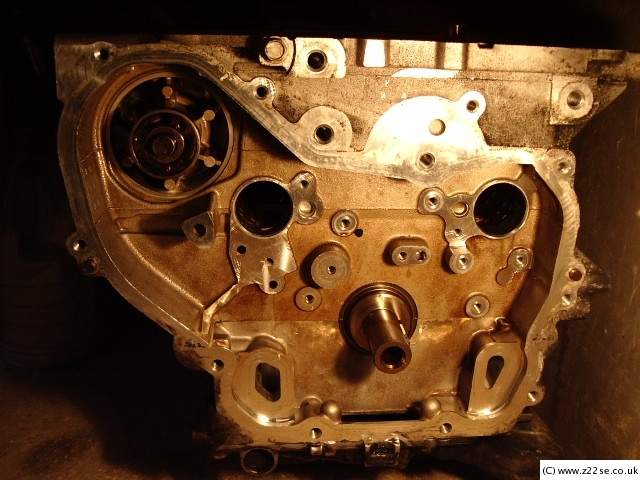

then the cogs and balancer shafts were removed

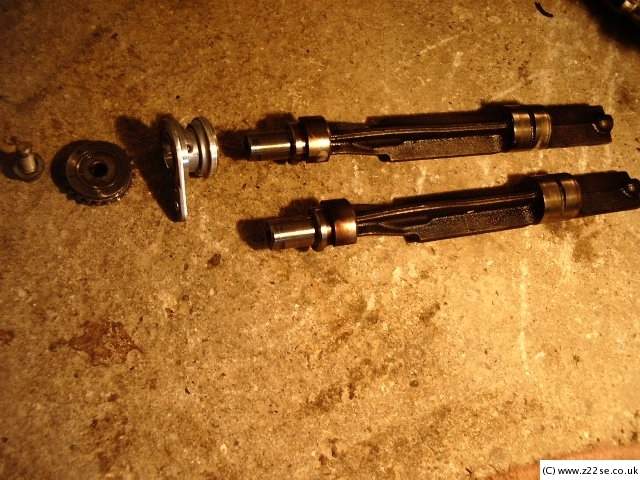

here's the 2kg each balancer shafts
