Building a Z22NES

chribo

Hey there,

heare is my actual project:

I got some parts to change some details on my supercharged Z20NET. Im planing to build a Z22NES.
I´ll use a 2.2 Crank & Rods in an Z20NET Engine. So heare are the first pictures from today. I worked onely 3 hours after work today but i think i have done a lot:

Done:
All parts removed from the engine (excludig the exhaust mainfold)
Let out the wather & oil
took apart the catalysator
removed the wiring
prepareed gearbox for the expansion

Tomorrow i will remove the axle and the engine :-)

Dave_Gilbert

Z22Nes as in a z22net supercharged?

I like it, im building a z22set or a z22se turbo lol.

if u need any help theres all the info you need here.

chribo

Hey Dave

Jup you got it! The first engine was a Z22SES but i damaged the pistonrings (Sorry i dont know if this is the right word??)
Then i bought a Z20NET and transformed it to a Z20NES. And now i bought an eagle 2.2 crankshaft so im going to Z22NES :-)

Buy the way heare is my first Thread: https://z22se.co.uk/threads/german-astra-g-cabriolet.20326/
I think it was in the wrong section^^

Matt

chribo said:
I think it was in the wrong section^^

I can move the thread to the Projects section if you want?

chribo

Hi Matt,
thank you for your offer. That would be great!

Some News heare:

Day two: After 7 hours work (at day 1+2) the engine is out an ready to transport and the car is also back on his wheels.
Im getting faster every time i remove the engine^^

heare some pictures:

Removed axle. Ok the axlecarrier is a little bit improved but it worked

Ready for the transport:

Now i drive a double engine astra caravan with over 400hp :-)

Tomorrow i´ll drive to Imhof Performance for the engine rebuild.

chribo

Heare is what i have done the last Days:

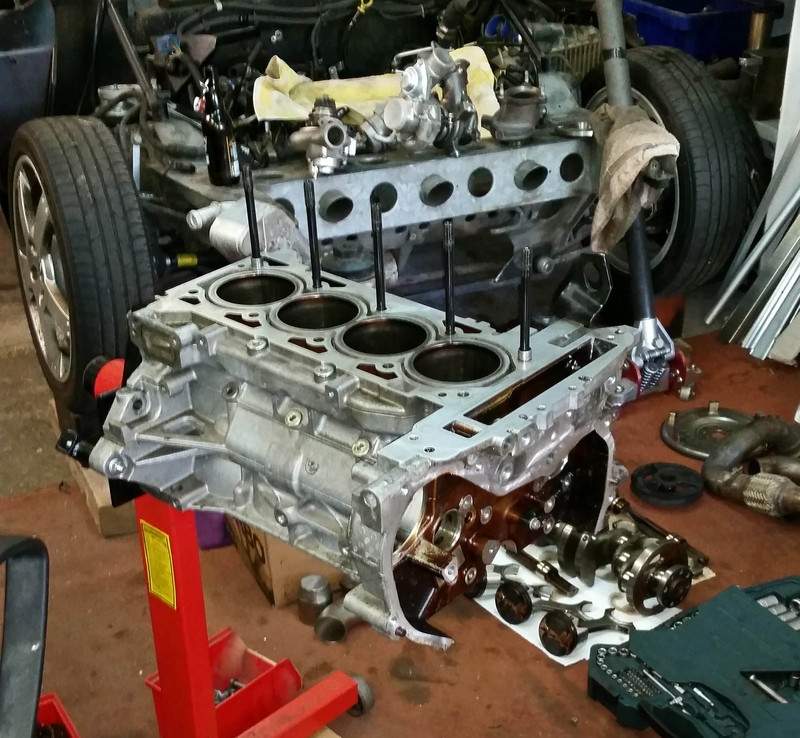

Stripped down the engine to the Block and made a bracked for the cranksensor:

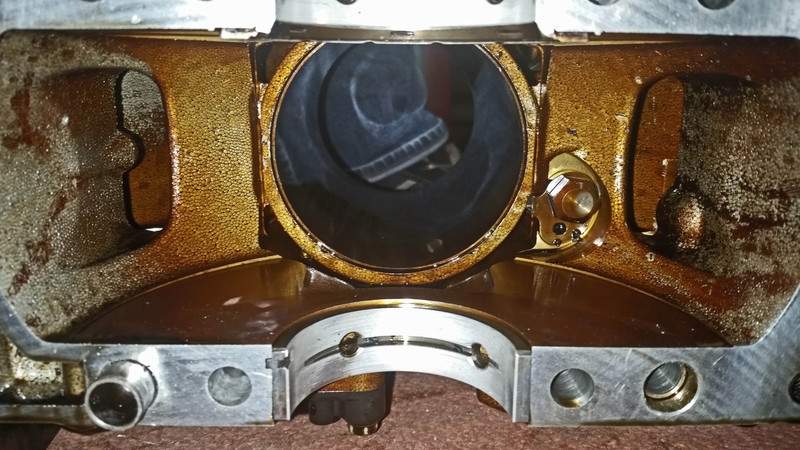

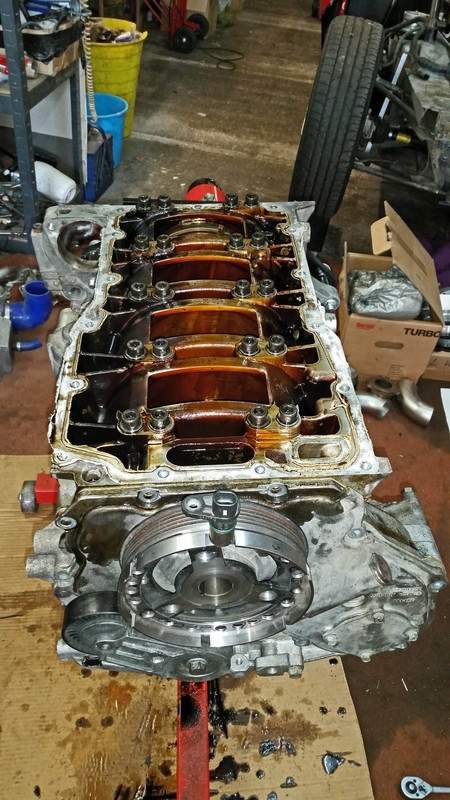

removed the bottem block and the crankshaft. Also i cleand all sealings

Now the Bad News:

I found something missing :-(
The Pistoncooler of cylinder 1 broke off. I dont knew why.

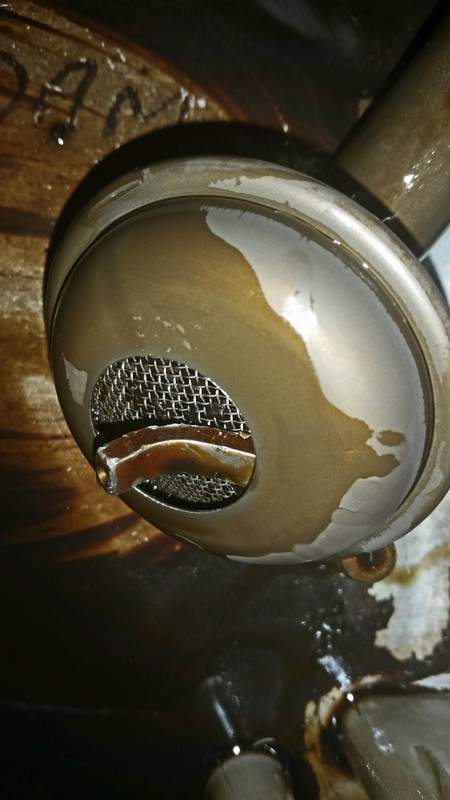

Found it in the sieve of the oilpump:

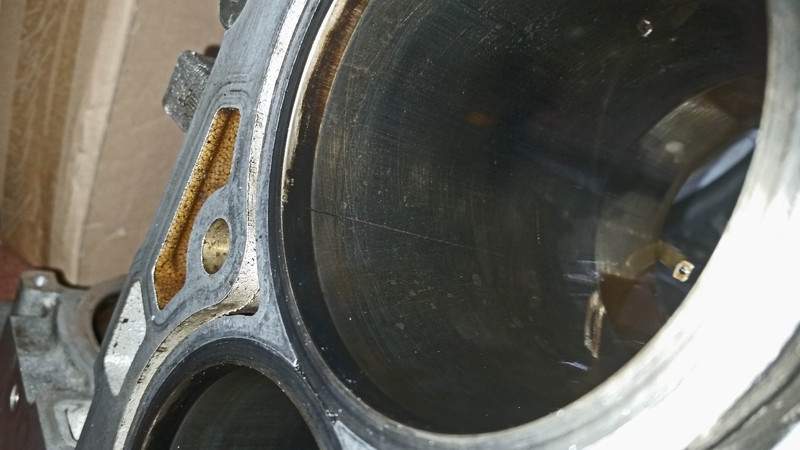

But ther was a little part missing. I didn´t found it but i found a scratch in the bush of cylinder 2 whitch size matthers the with missing part:

I already tried to hone it but the scratch is to deep.
So next work is to build a tool to exchange the damaged bush :-(

Dave_Gilbert

Hi mate im building a z22se turbo with net parts

im having trouble with the trigger wheel n crank sensor. how have you done yours?

Why are you mounting externally? When you have the engine apart

evocarlos

Dave Gilbert said:
Hi mate im building a z22se turbo with net parts

im having trouble with the trigger wheel n crank sensor. how have you done yours?

Why are you mounting externally? When you have the engine apart

he was originally running a z20net crank with a z22se trigger internal and external by the looks of it
hes got the z22se ecu

yours is the 60-2 dave and the z22se is 6+1 🙂

Dave_Gilbert

I thought se was 36-1

i will stick with my £72 tuesday at the earliest plan dammm.

evocarlos

nope 6+1 🙂

Dave_Gilbert

Ohhh whats a 36-1 for then haha

chribo

Hi Dave,

i have to go to an external trigger because i got a 2.2 forged Eagle crankshaft. At this crank is no chance to place a triggerwheel internal so i use a external triggerwheel.

I had an 2.0 crank with internal triggerwheel for the z22se ecu. I´ll sell the old parts soon if you are interested contact me

chribo

Some Parts arrived :-)

ZZP Stage 2 Cams & and the new Sleve

chribo

Yesterday i got all the parts back. The Sleeve is drilled and honed and the block got planed also. Today i´ll clean everything a little and tomorrow the parts get back together but at the moment the trunk of my dayli looks like this:

evocarlos

is that a davies craig pump i see ?

chribo

Hey Carl I think it is the same like yours. A mate had one unused from a rally car build. So I bought it.

chribo

The Eagle Crank at her new home:

The block, crank, pistons and coils are fitted now. Today ill replace the cams and fit the block and head together. Mybe tomorrow the engine will go back in the car

chribo

I fitted the chamsahfts yesterday and heare are the pictures:

Before:

While:

After:

They look so good in there :-)

chribo

New Day new work:

Fitted the IAT Sensor

Cleand the Laminovas. The 3 on the right side are still dirty. There was so many Oil in there...

Chainhouse is ready:

Engine is going back home:

Dave_Gilbert

I like the balance delete. Very tidy and all that weight saved.
