Z22EVO build #2 B207R supercharged

evocarlos

so here is the start to the 2nd engine for @[deleted]
it will be a close replica of the #1 build 🙂

it started as a conversation at pvs then today i found a lorry parked in the village with an engine on the back lol

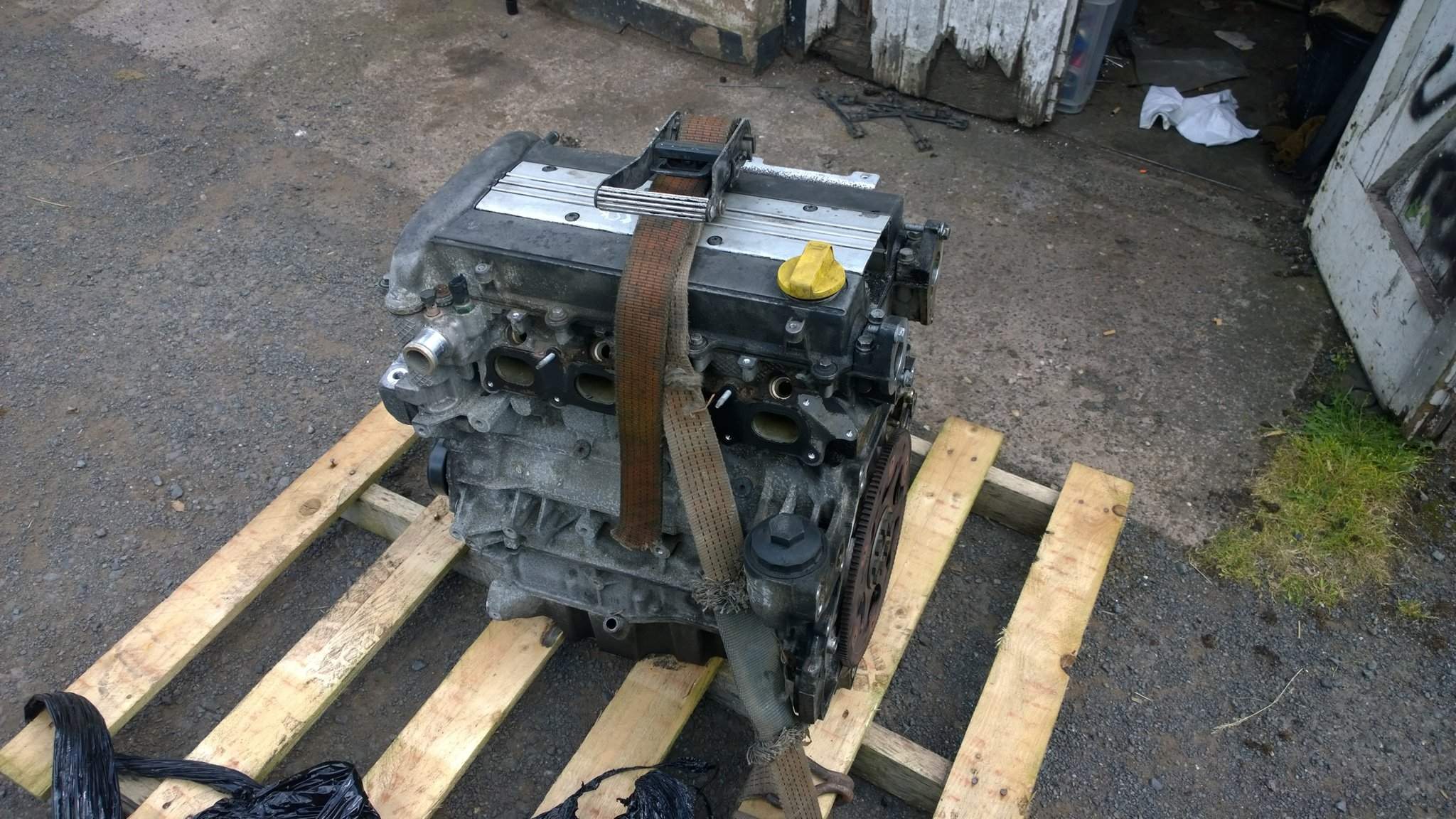

delivered at 3pm and stripped by 6pm

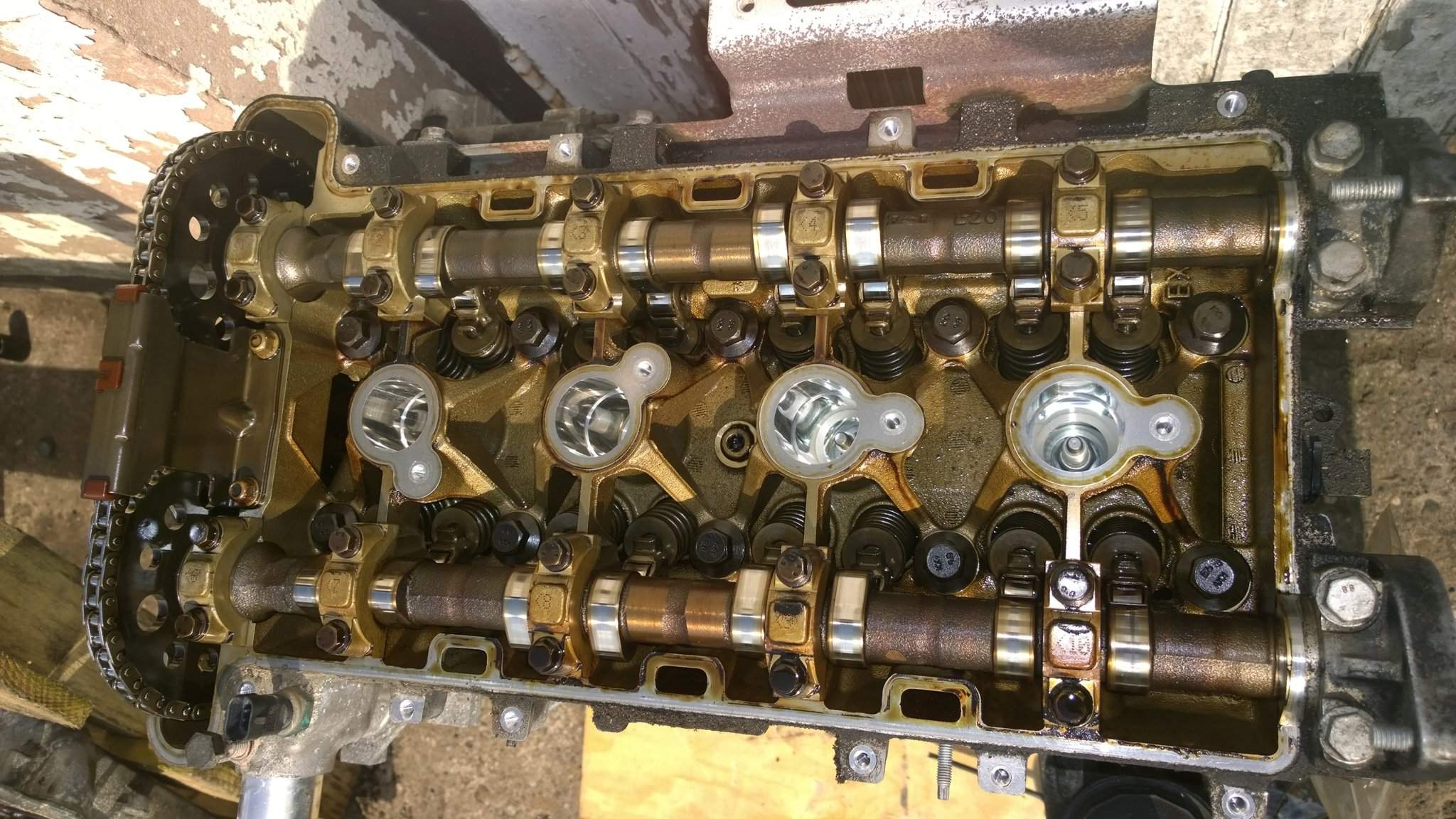

the top came off and it was all nice and clean golden color inside

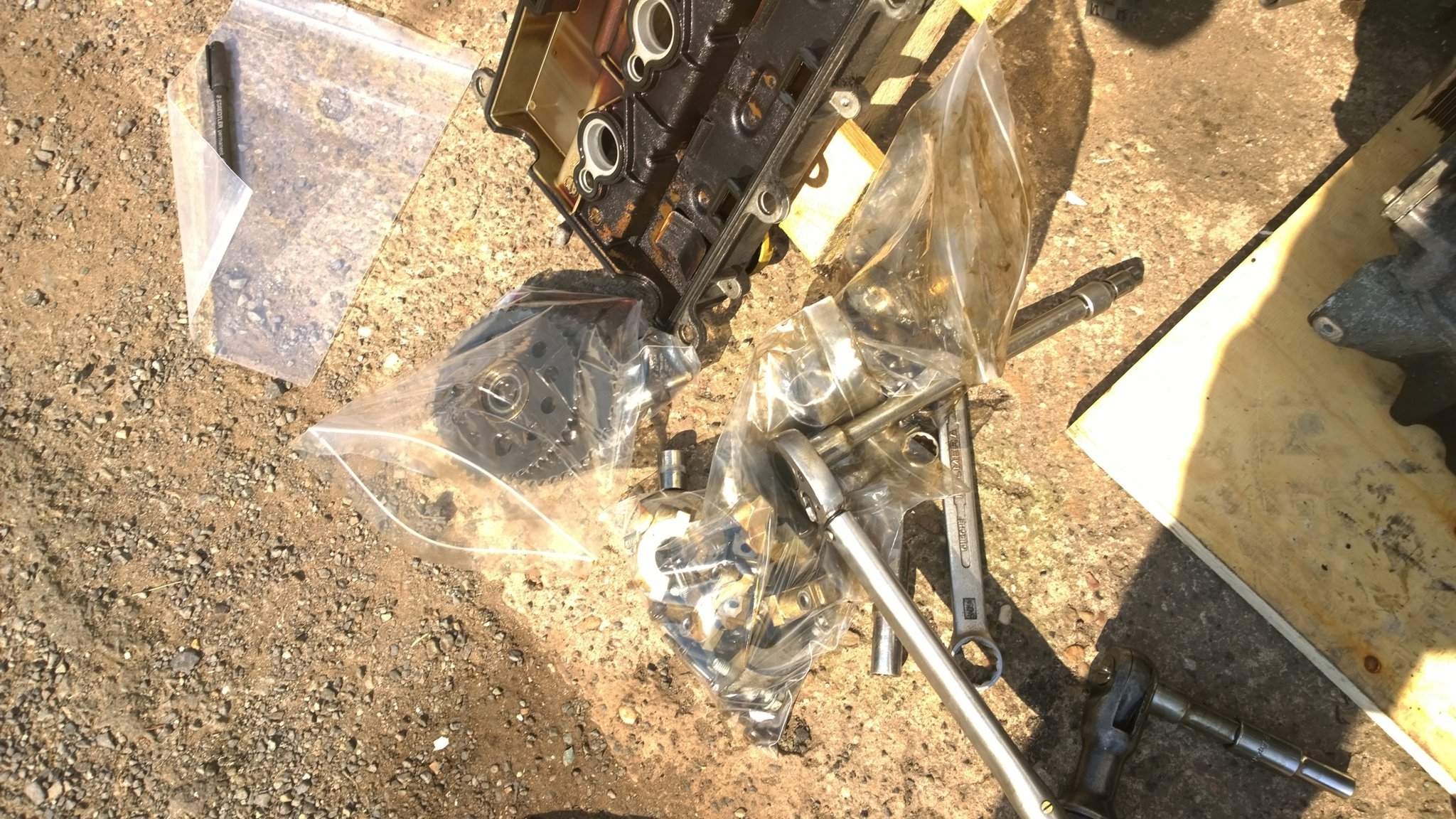

parts collecting

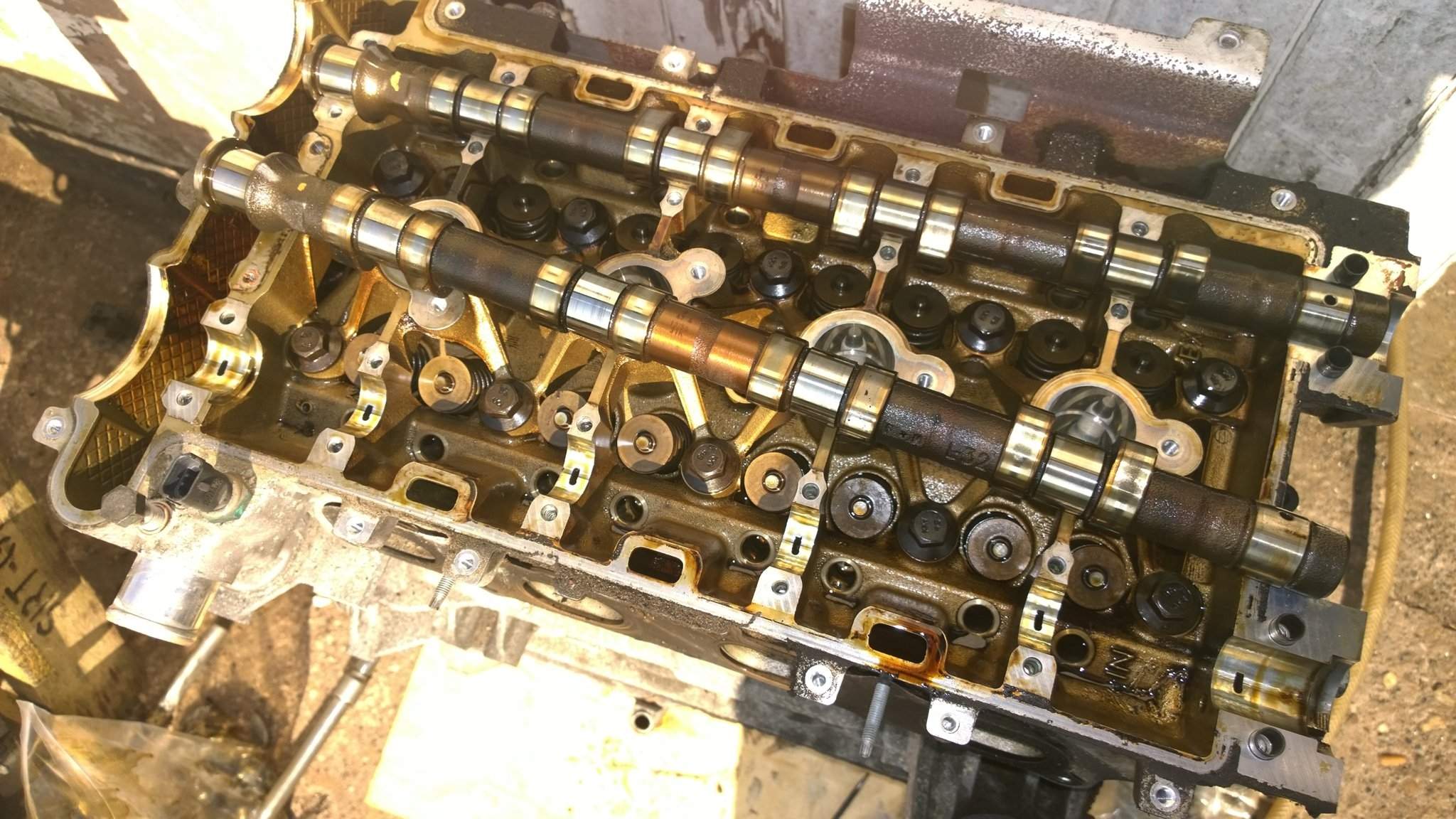

cams, rockers and tappets out

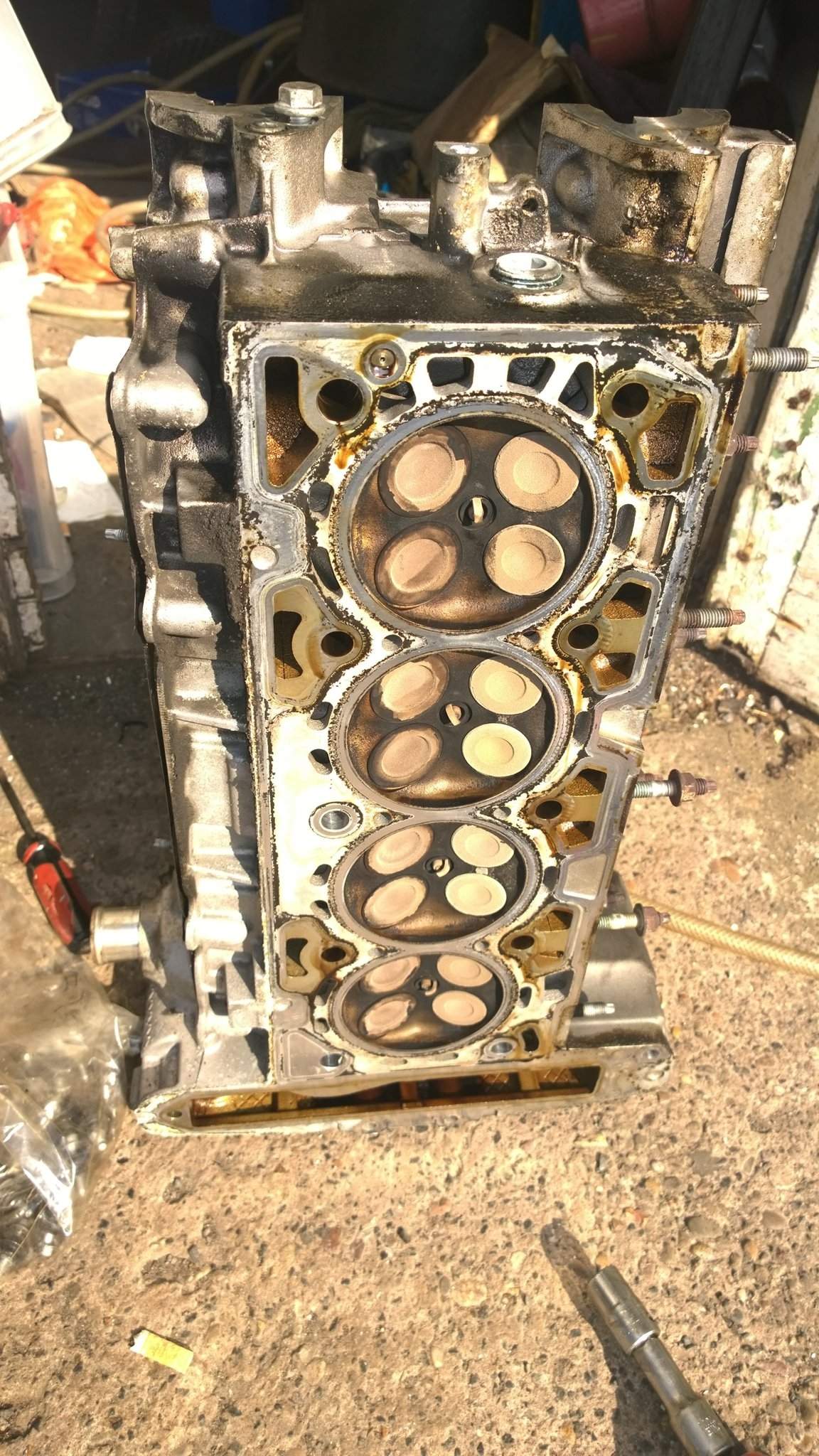

head off all looking good for 85k

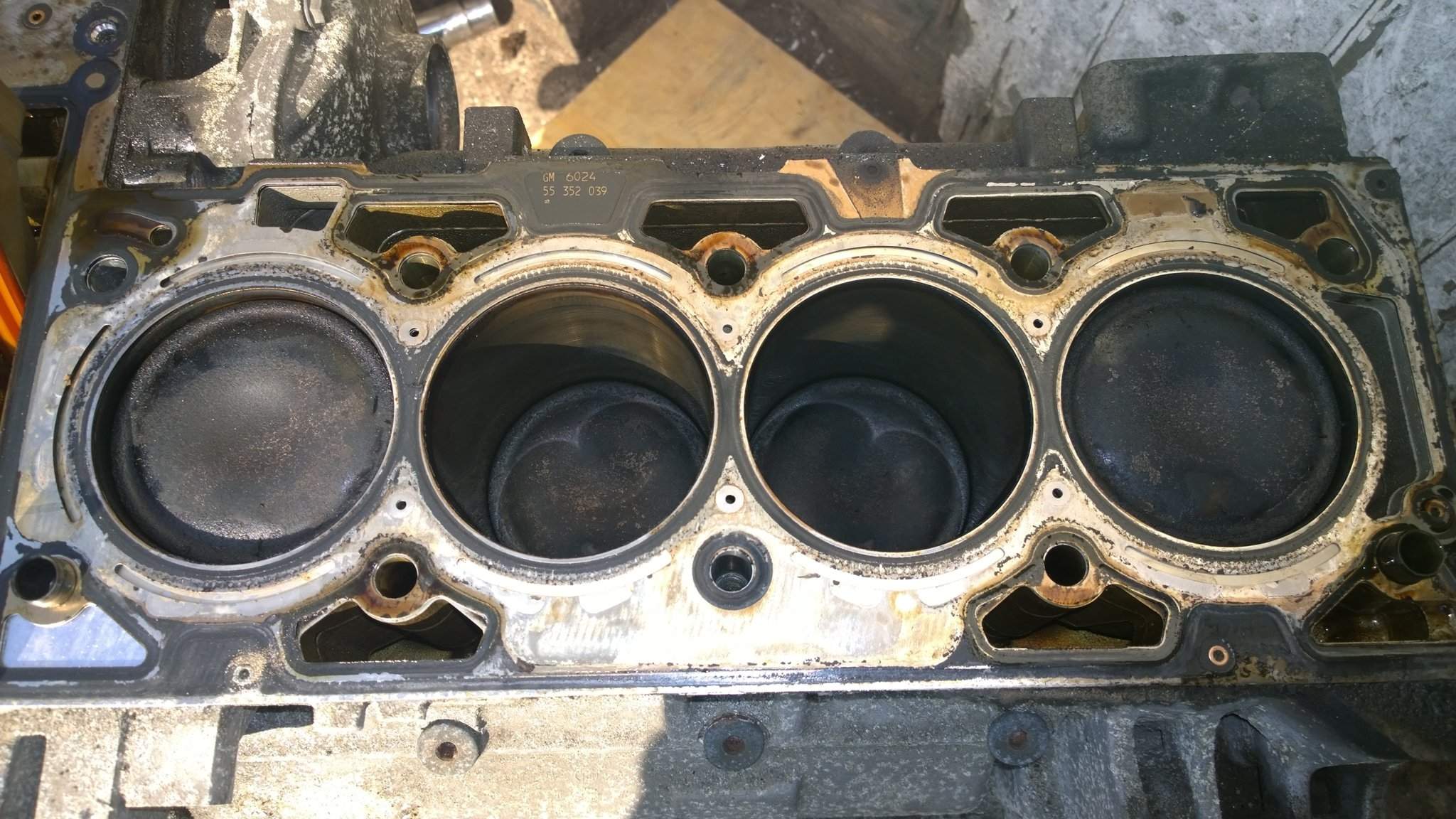

the pistons

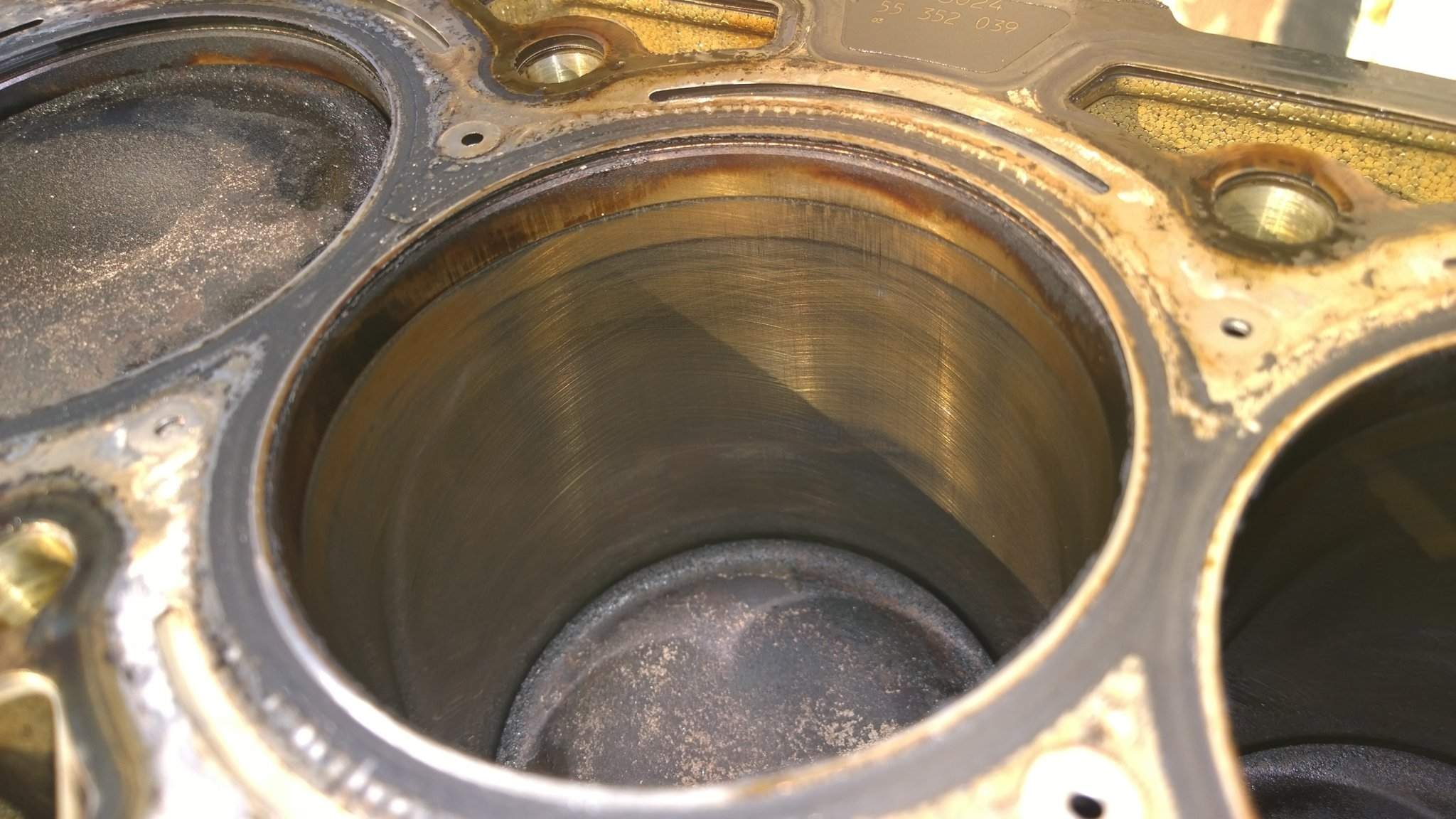

the bores look good to that must be the oil squirters keeping them lubed

more cleanliness in the bottom

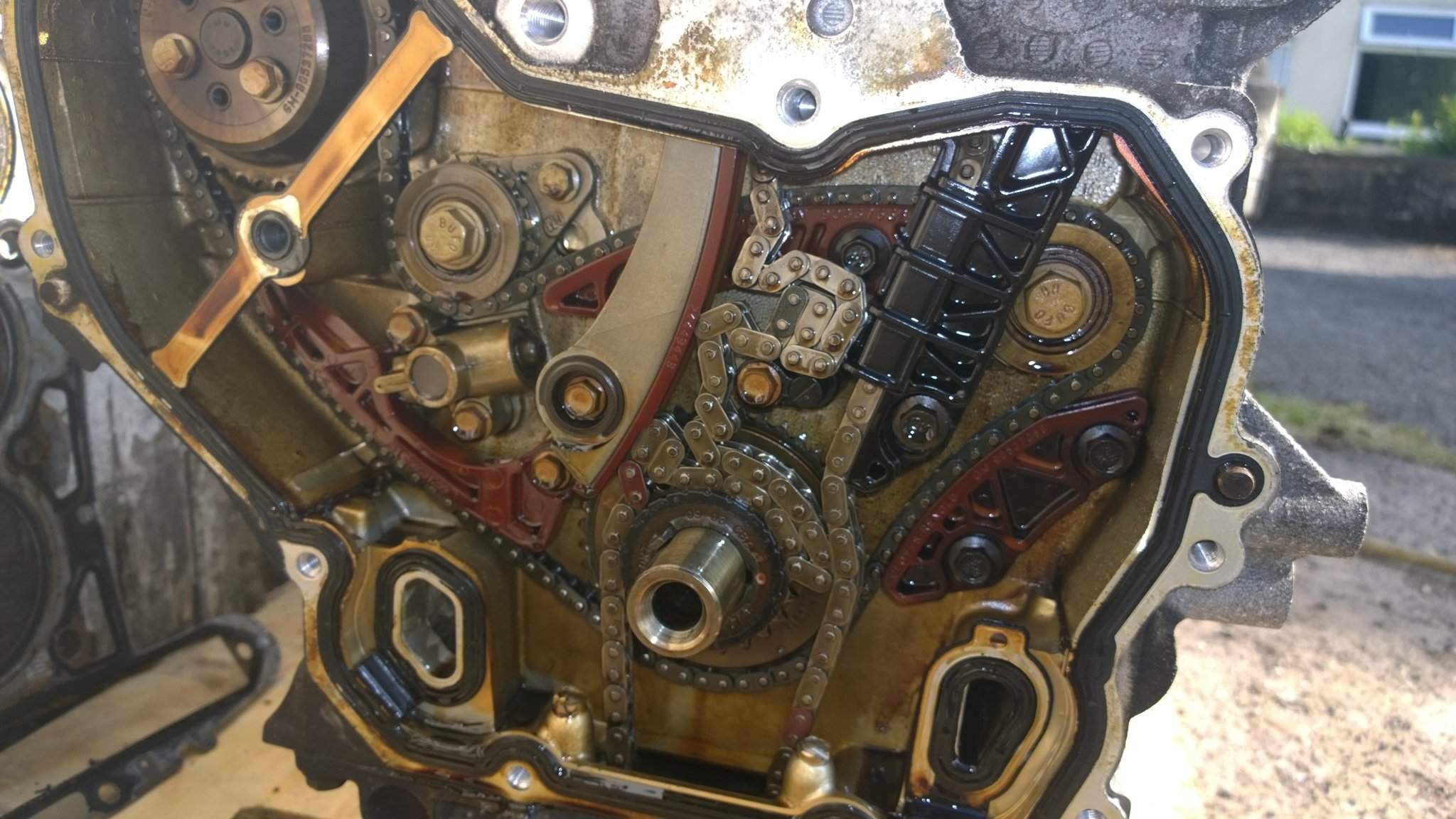

its clean here to but now ive looked at the pics i could swear the balancer shafts were out of time

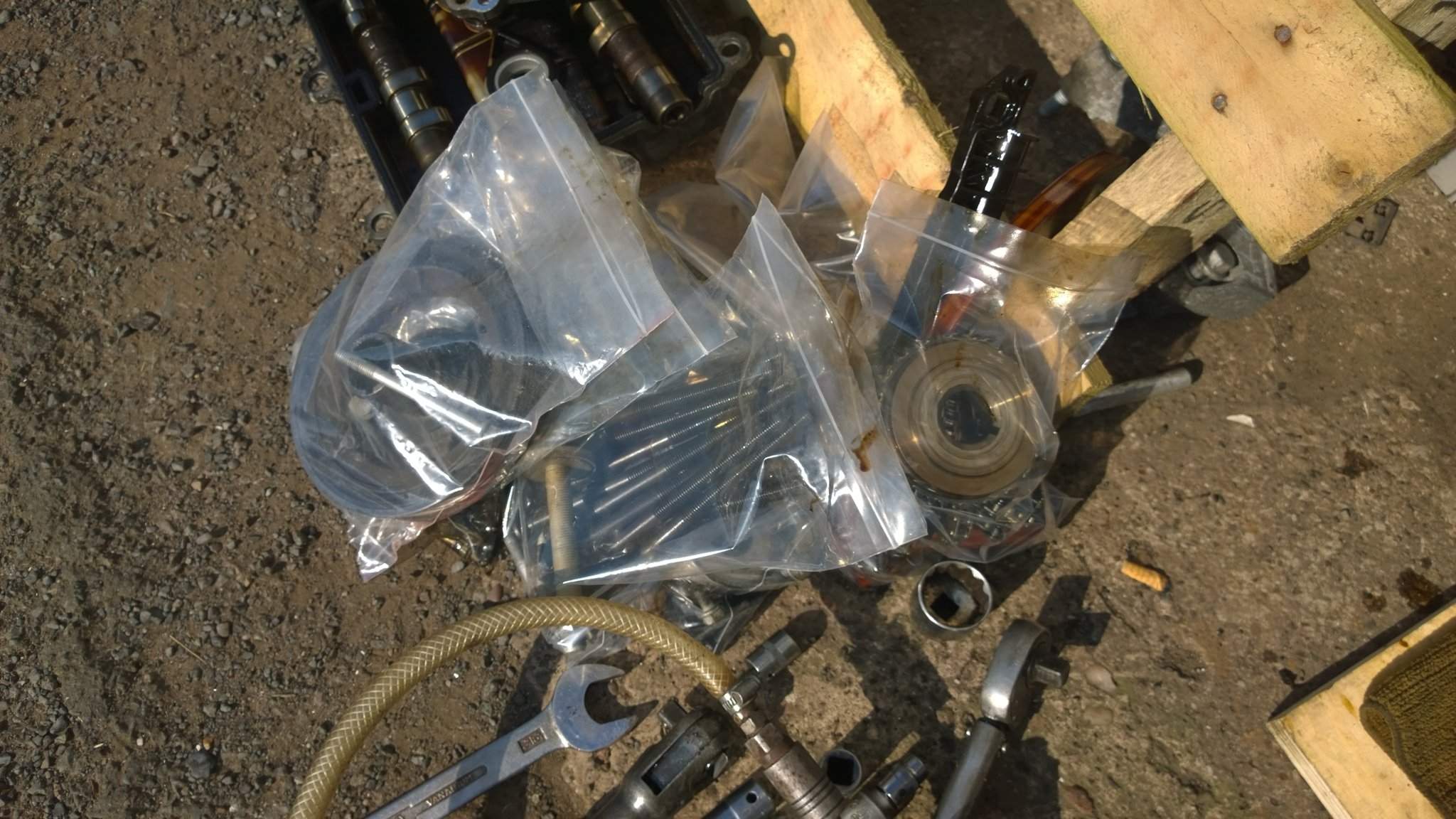

more parts in bags

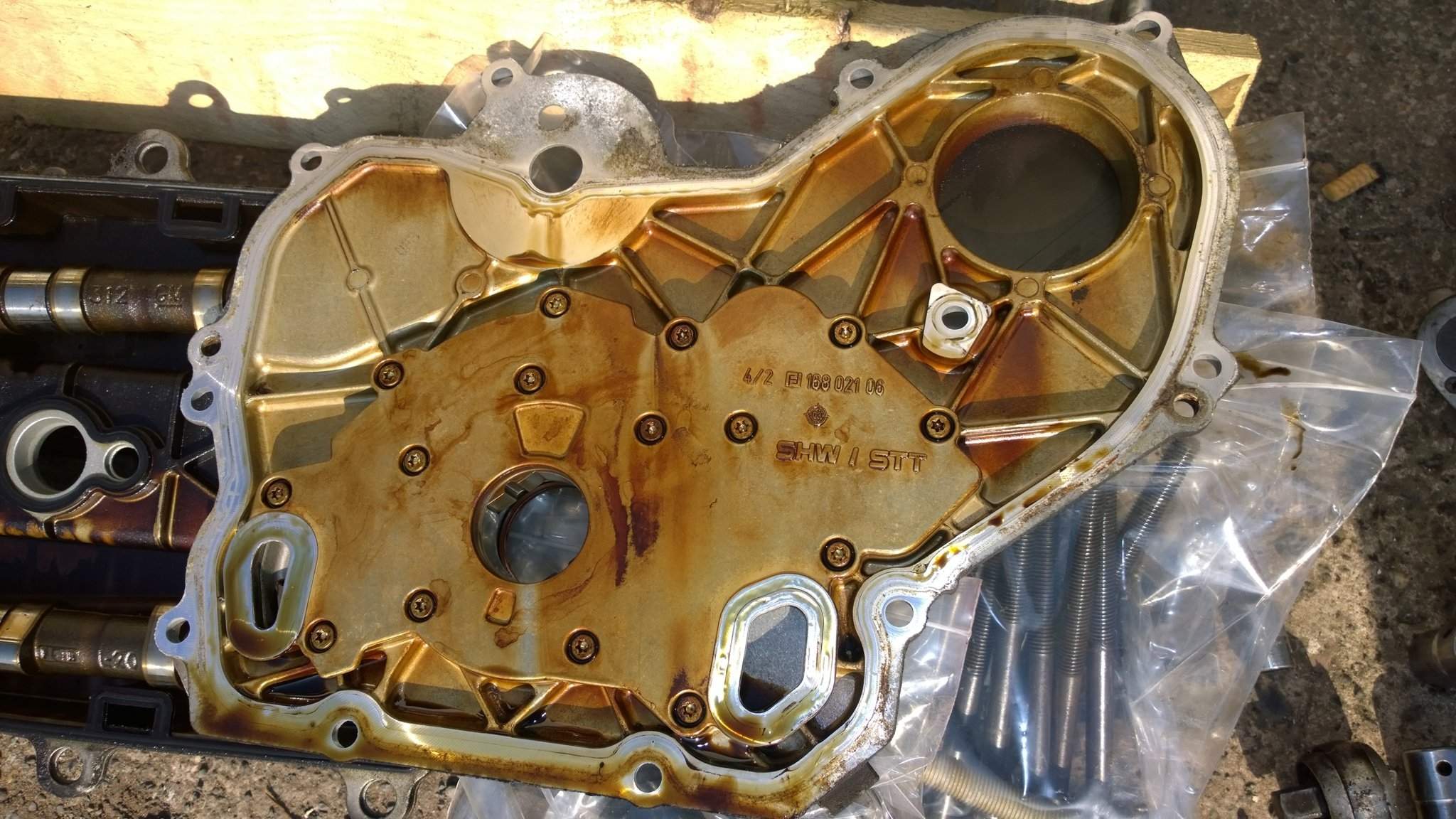

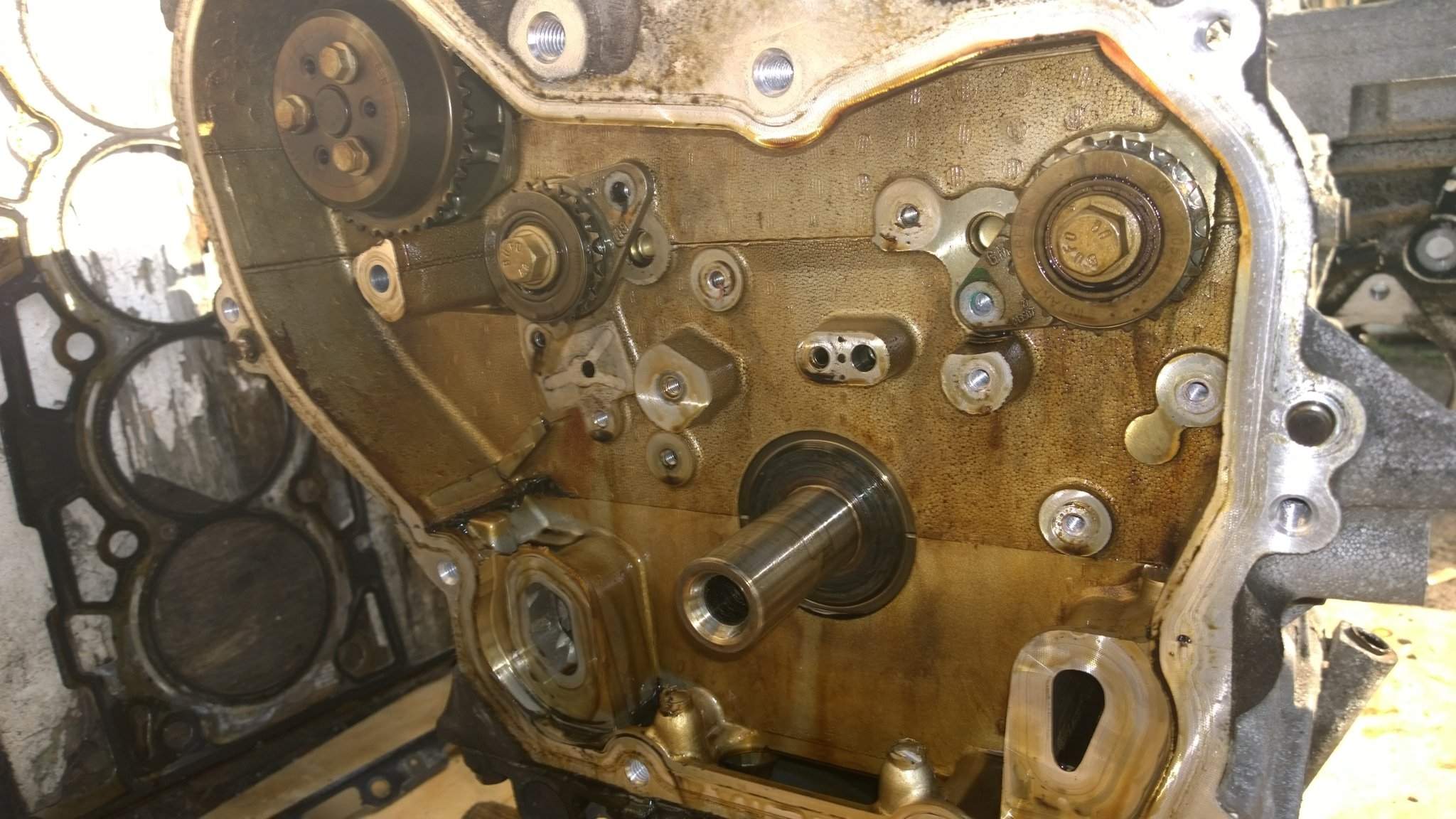

timing gear out

also sourced a 2.2 crank and block thats to be stripped tomorrow to check condition

much more to follow 🙂

Dolby

Nice Project. I follow this.

jbaggaley

No more beer for me need even more car parts than my current engine.

Lsj cams on route.

evocarlos

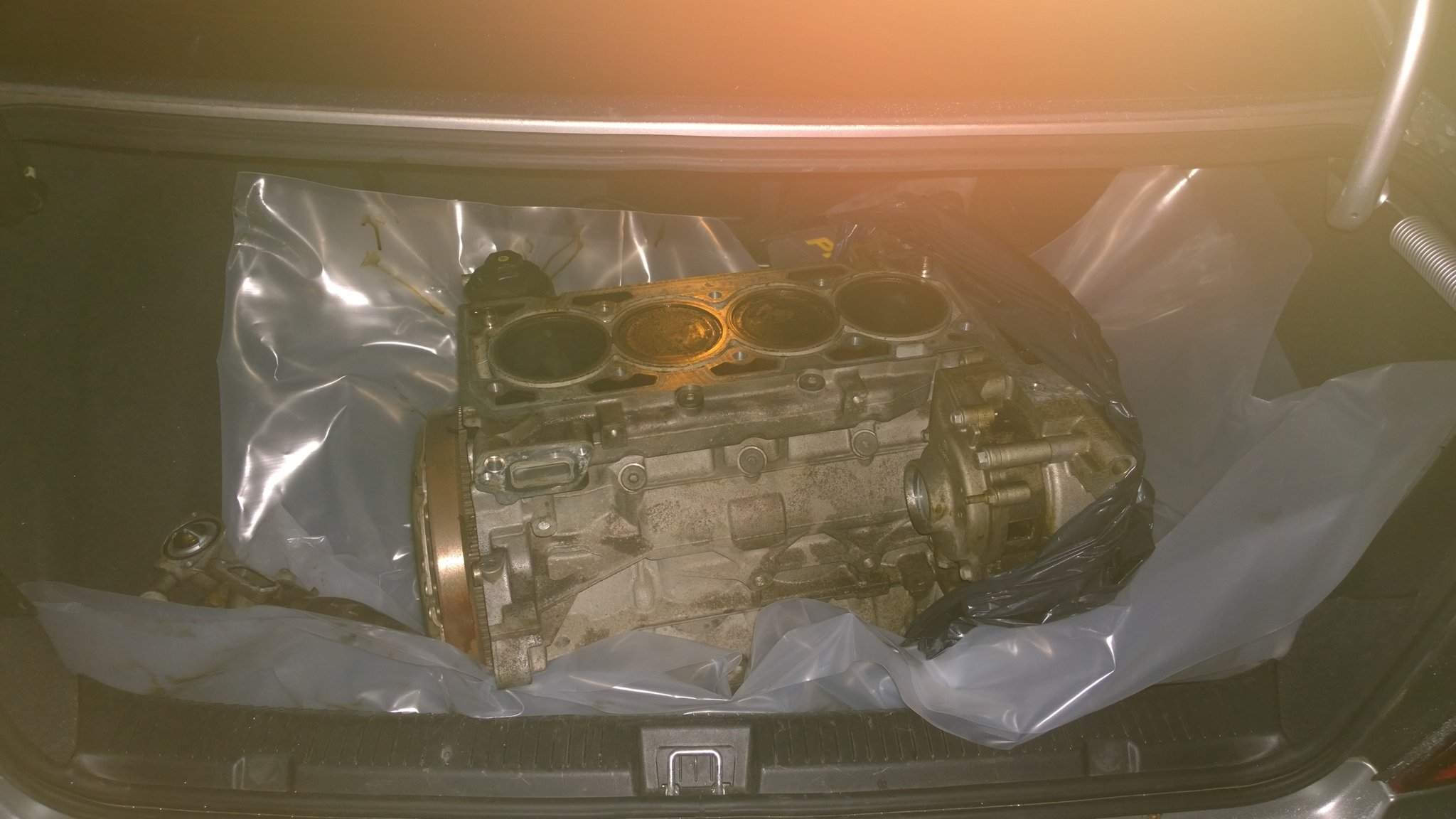

z22se short block picked up last night ready for strip down for the crank

cranks out

55.99x on one end

55.99x the other end 🙂

will get a full 3d measure of the crank and then see how it looks 🙂

Dave_Gilbert

your a machine.

Sjdickso

What's the time frame on this project?

evocarlos

Dave Gilbert said:
you're a machine.

thanks 🙂

Sjdickso said:
What's the time frame on this project?

if all the parts were here it would of been done friday lol
it is all down to funding now the other parts required are all new everything that needed sourcing i have
its to be ready for october so it can be installed and and then rolling roaded in november 🙂

evocarlos

had a closer look at the crank and then polished the main journals with a scotch pad and carb cleaner 🙂

big end journals look quite good

the mains look better now they have been polished a bit 🙂

evocarlos

thats good enuff for me 🙂 +/- .002 variance

evocarlos

rod journals look good to 🙂
and just so you guys know im not cheating ive put a * next to the number thats displayed on the micrometer

evocarlos

batcave cleared out and the new block moved in

the 2.2 crank was placed in a lower engine block with lithium grease on the journals to keep them tip top

2.2 thermostat housing

balancer shaft spares to make a del kit with

sump was removed nice and clean apart form the moth on the right side lol

heres a 2.2 sump in comparison to the 6l saab sump

lower cradle off lol whats the need for new bearings thought this was supposed to have done 85k

old style crank with weights missing ""pics shit""

nice and clean journals

Dolby

Nice pictures. (y)

evocarlos

shafts out

dirty surface

crank out

started to clean the surface

evocarlos

more block cleaning removed the rest of the gasket

and then wiped the honing tool down the bores to clean the crap off and even the top rim where the 2.0 rings never hit

Dave_Gilbert

looks like new(y)

Dolby

This is new. 😉

Dave_Gilbert

NEEDS A GOOD CLEAN ON THE OUTSIDE, SO IT MATCHES THE INSIDE, LOOKS GOOD TO SAY ITS DONE AROUND 85000 MILES, YOU NEED TO CHANGE YOUR NAME AGAIN TO CARLOS CUSTOM TUNING SERVICES HAHAHA.

evocarlos

Dave Gilbert said:
NEEDS A GOOD CLEAN ON THE OUTSIDE, SO IT MATCHES THE INSIDE, LOOKS GOOD TO SAY ITS DONE AROUND 85000 MILES, YOU NEED TO CHANGE YOUR NAME AGAIN TO CARLOS CUSTOM TUNING SERVICES HAHAHA.

going to wire brush the outside and picked up the paint for it today 🙂

caps ?

Dave_Gilbert

sorry id just been on ebay n me passwords in hire case(caps) hahaha

evocarlos

crank in the block for the time being you will see why 🙂
also cleaned all the sealant out the groves

well 2 different tools and the same measurement it must be right 🙂

still have one side to clean

heres the other side 🙂

core plug for the turbo oil drain hole

nearly fitted

end cap for the inlet cam

think im now waiting on parts lol
