Project Freeze My engine Off (SAAB B207R Supercharged)

evocarlos

my new inlet manifold 🙂

check list in a @[deleted] style with my poor speeling 🙂
gone a few of these done today

evocarlos

impressive it made it rabow color 🙂

evocarlos

few more bits done
charge cooler pump bracket had to be cut to miss the oil level sensor and added a spacer to match the spacers on the block

drives shafts almost level

vectra c a/c pump cleaned and painted had to give the clutch a right good blow out there was rust inside make a row all good now tho

csd_19

Brilliant seeing how it's all coming together carlos, have to love a good mechy project!

evocarlos

on to plan b with the a/c pump

bilberry wheel cleaner on my old one

not bad 🙂

shortened the wire to the reverse switch

a/c pump and pipes fitted

inlet dipstick and alternator fitted the nut spacers kept falling off so they got superglued in place

front view

charger on

new bracket drilled tapped and spaced out even used an old valve guide seal to center it on the bolt

and belt fitted 🙂

evocarlos

water pipes to the inlet done

fuel and top part of the loom fitted 🙂

Marty64

evocarlos said:

new bracket drilled tapped and spaced out even used an old valve guide seal to center it on the bolt
[ATTACH]60366[/ATTACH]

Hey ! That's a good tip (y)

chribo

Hey that looks verry well! What for a bracket is this holding the whaterpumpe and the intake mainfold?

evocarlos

chribo said:
Hey that looks verry well! What for a bracket is this holding the whaterpumpe and the intake mainfold?

thanks 🙂
the pump bracket ?
its the standard LSJ bracket for the pump

Dave_Gilbert

That tensioner set up looks so tidy

milo

U going to get it mapped this time? 😉

evocarlos

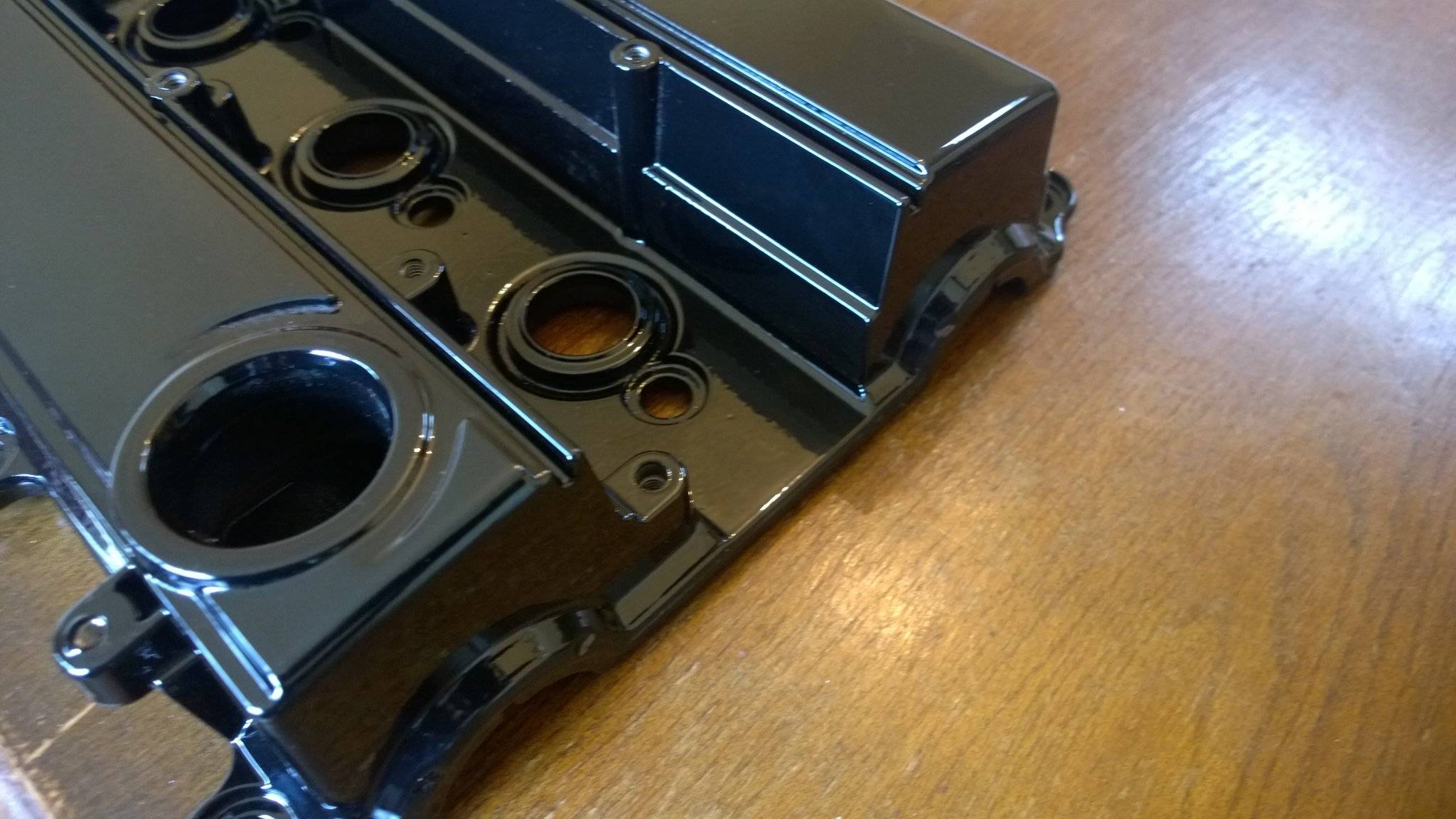

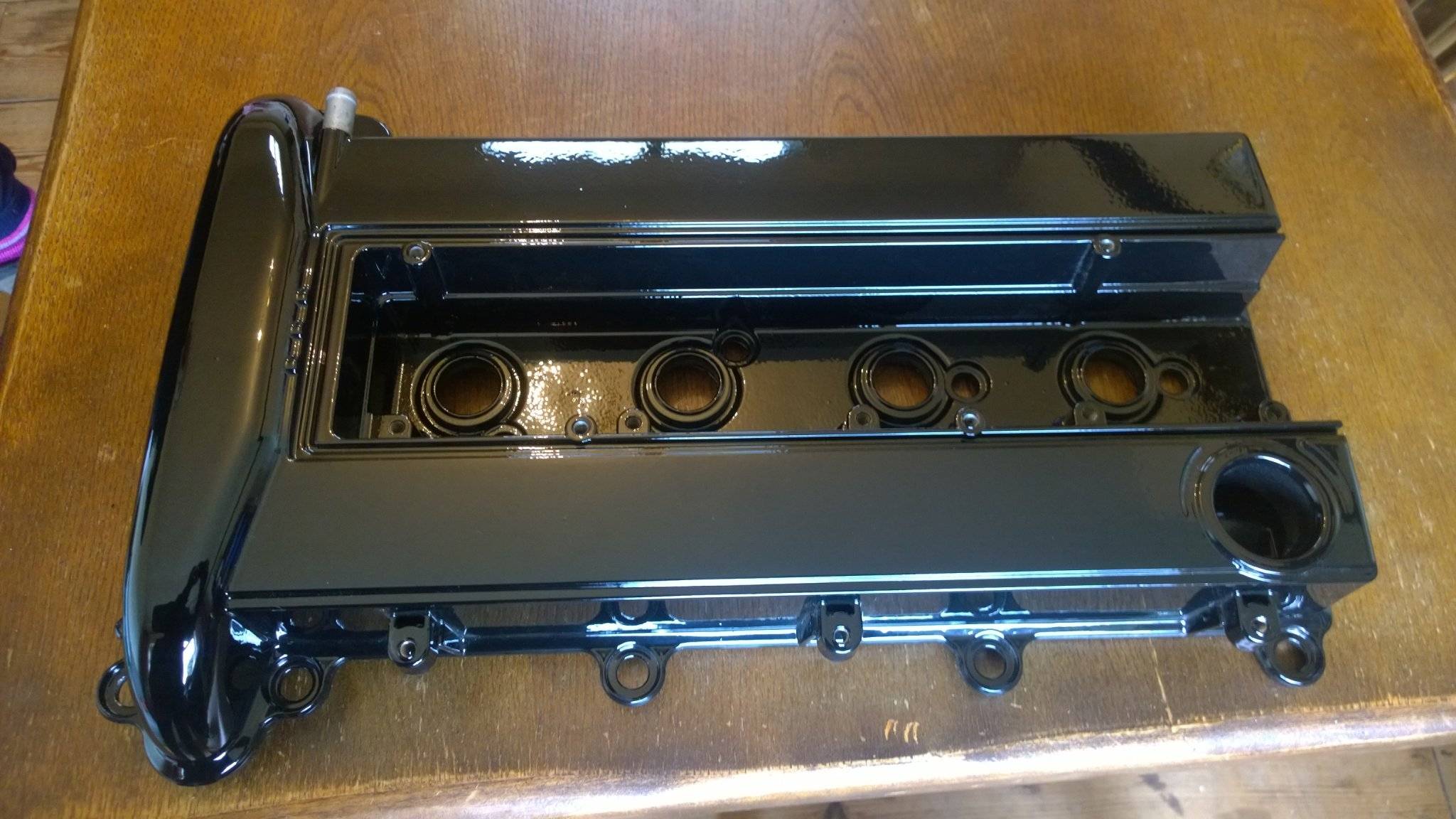

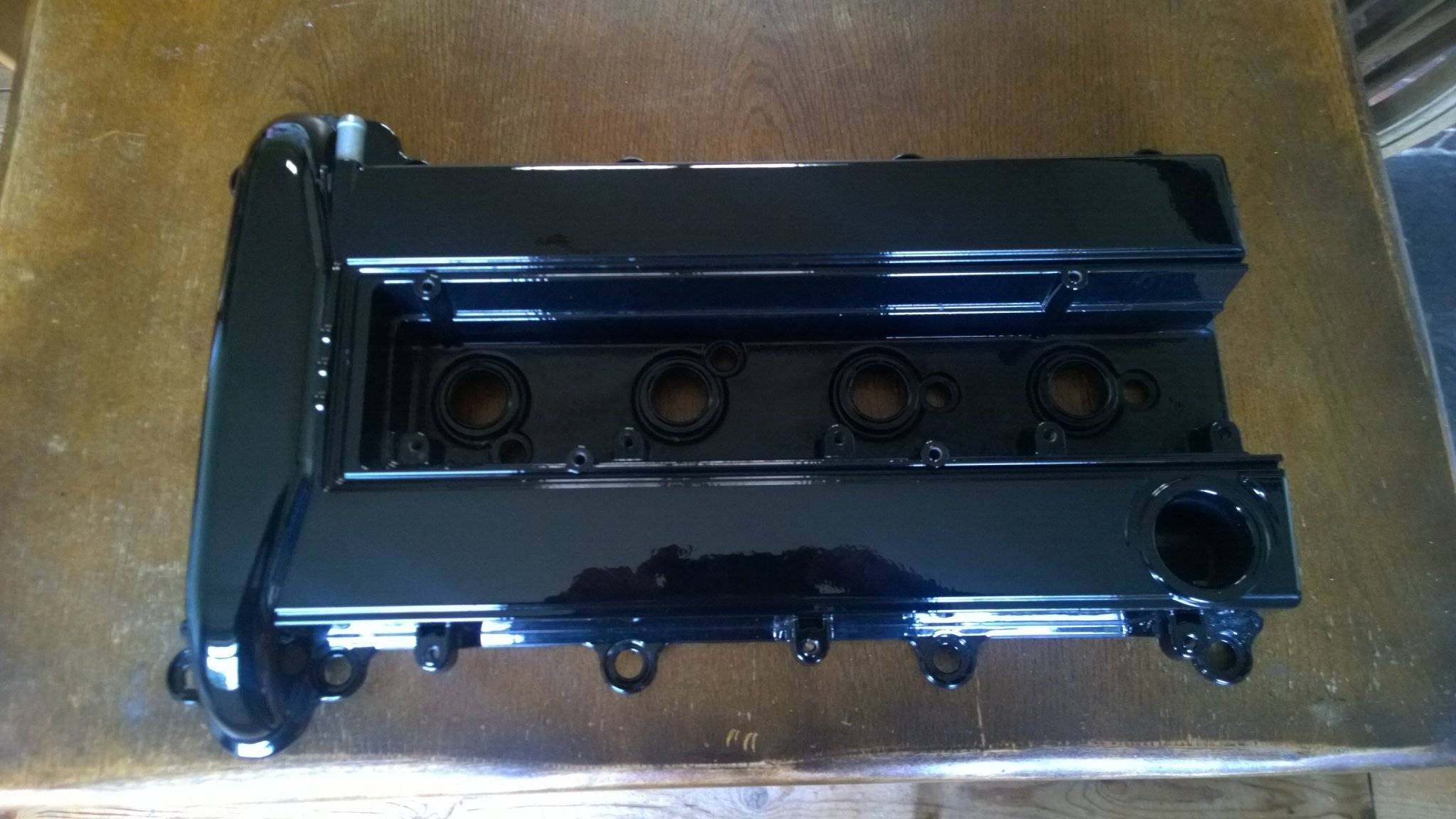

new rocker cover 🙂
fresh powder

its now an evo part and not marked saab 🙂

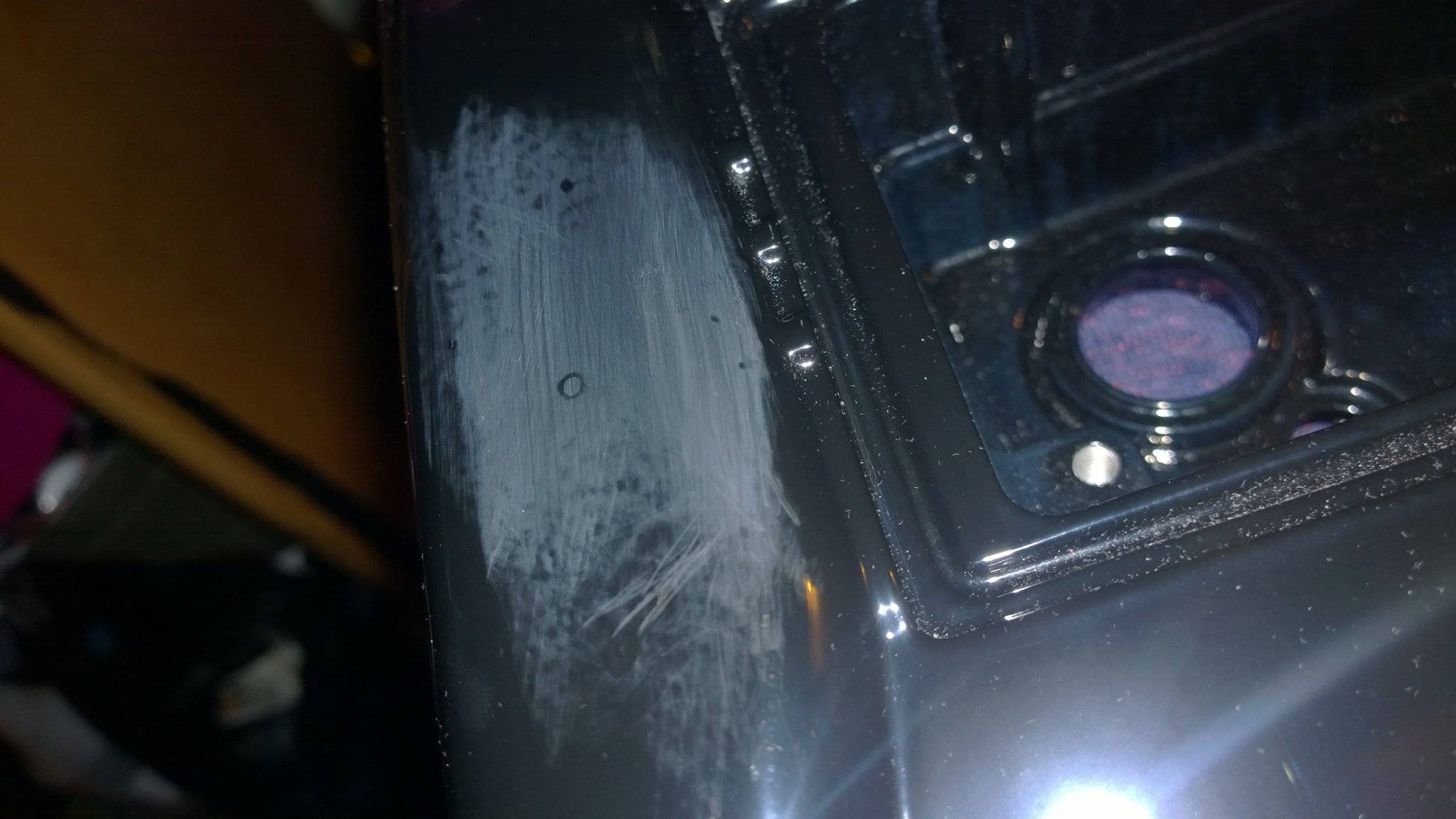

there was a few pimples to be removed

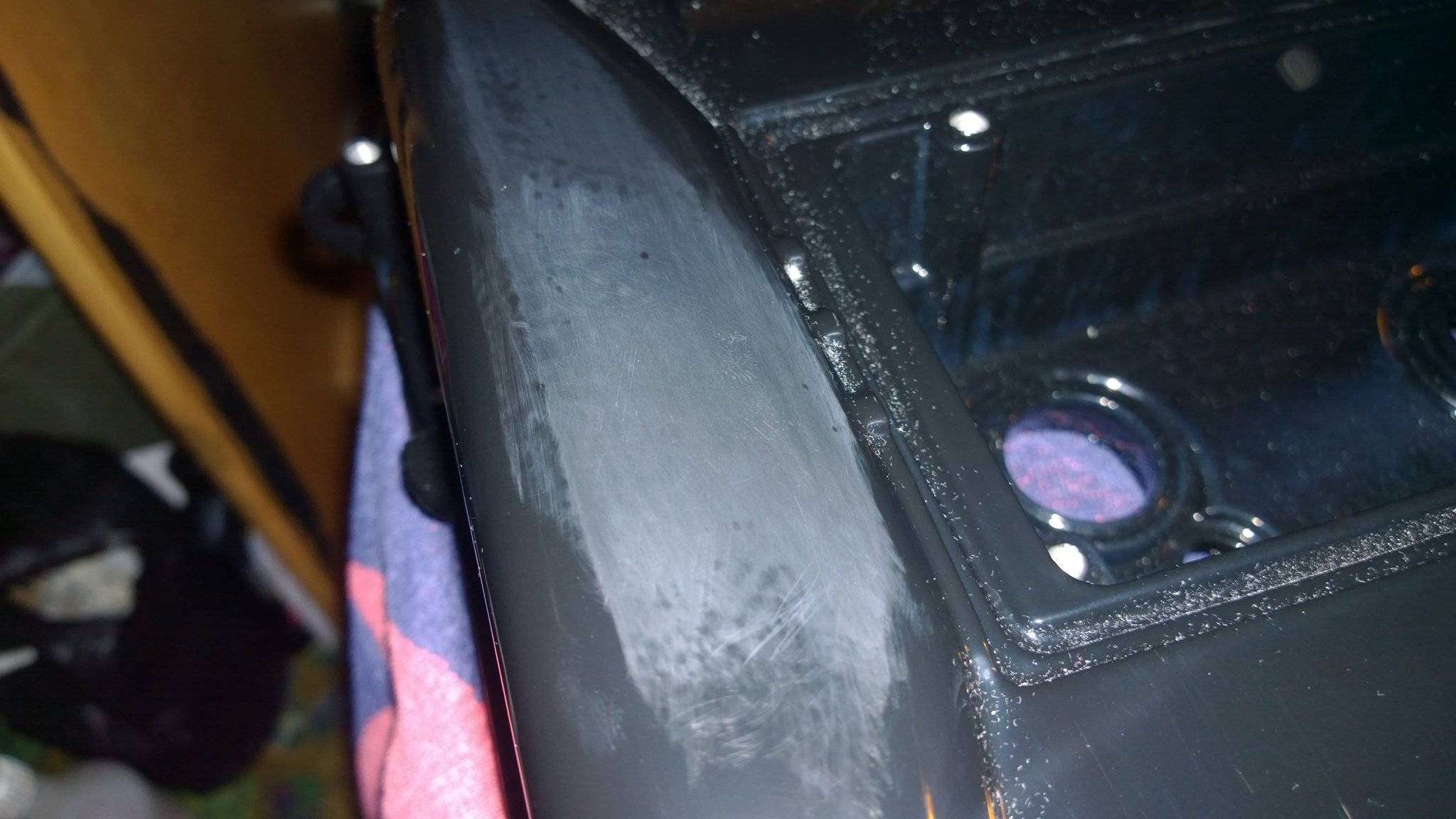

2000 wet and dry

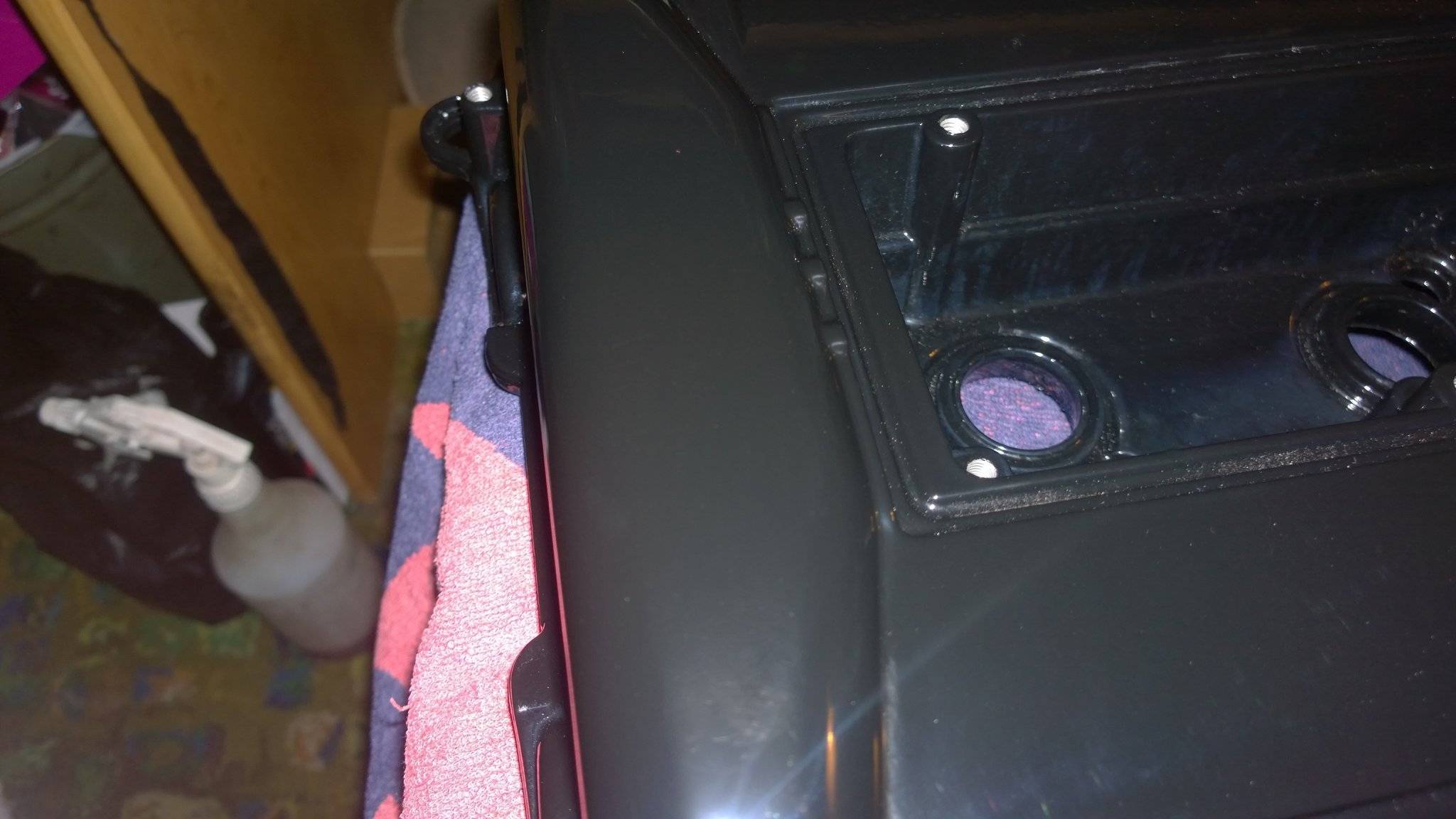

polished with megs scratch x 2.0

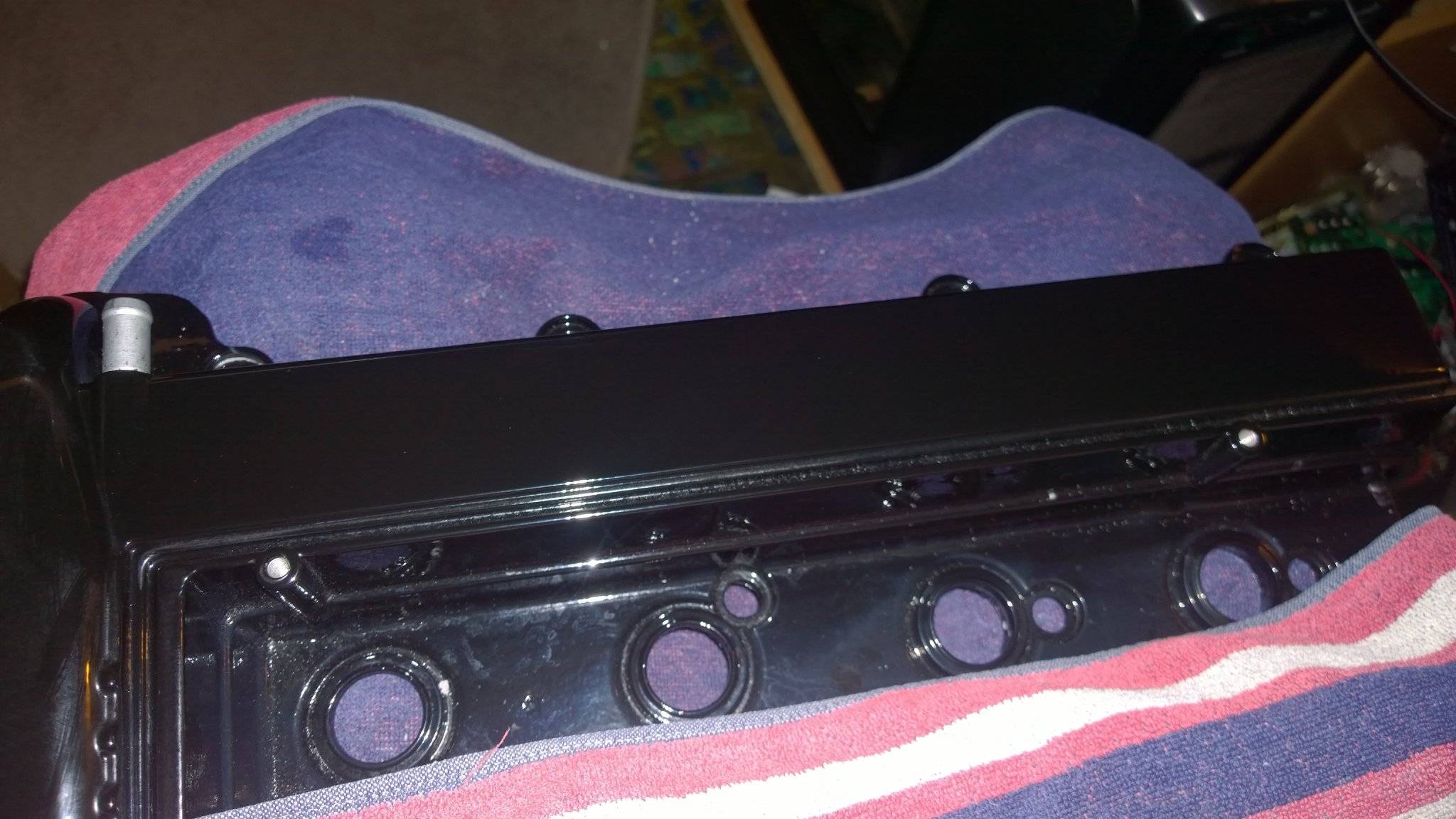

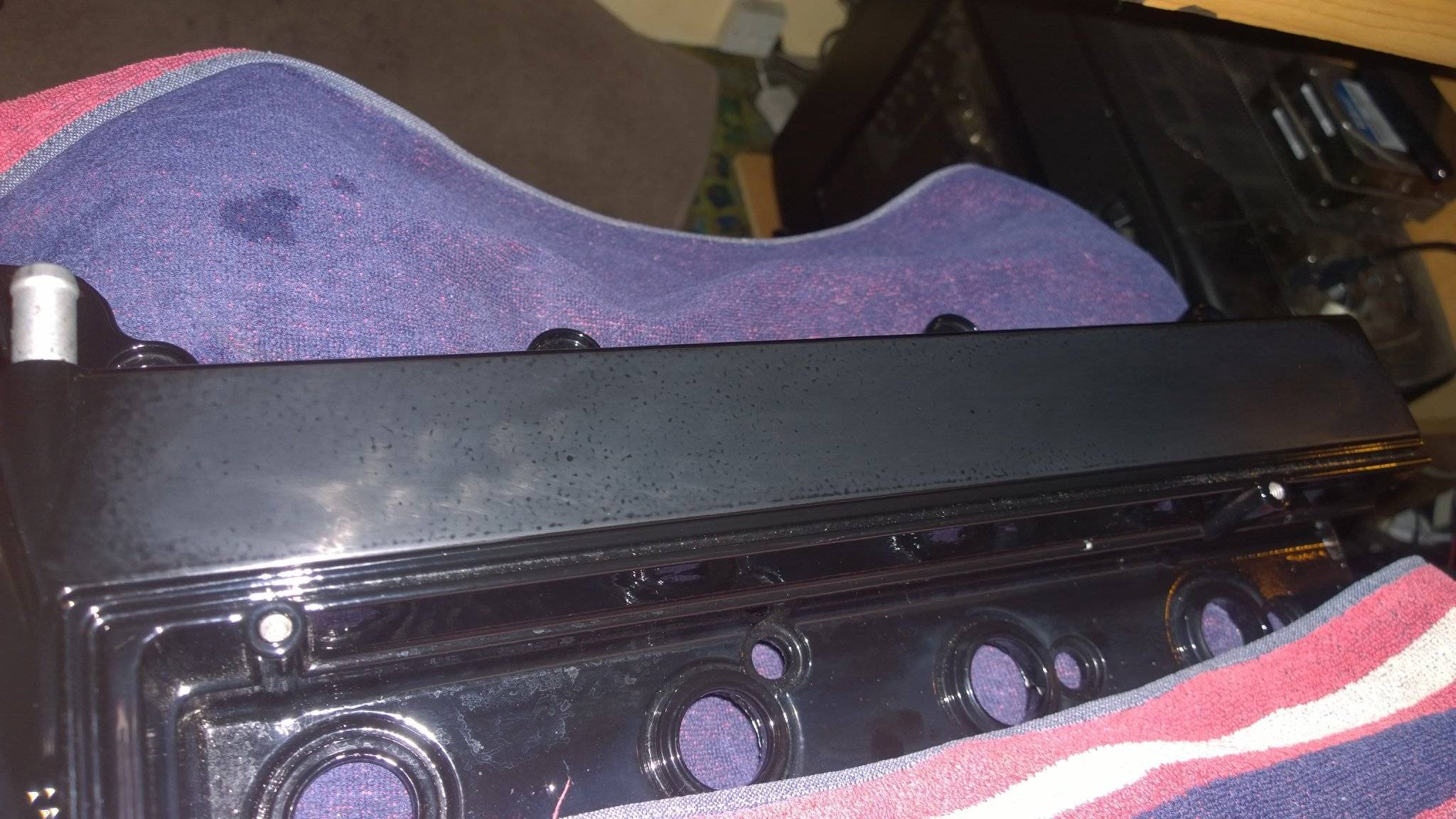

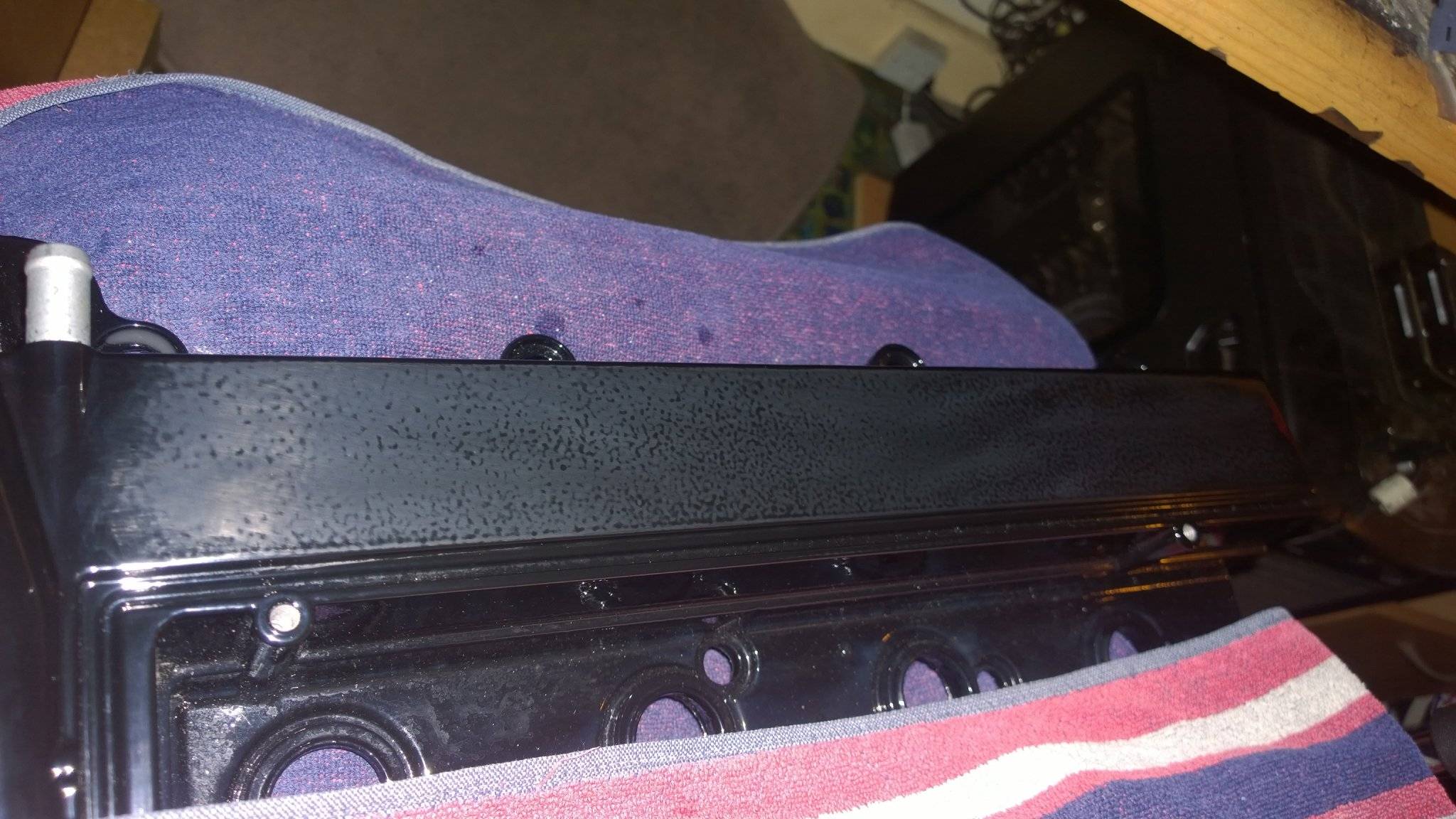

same for the back and front wet sanding

polished with megs ultimate compound and megs ultimate polish on the das with a 60mm pad

all done and its now on the engine but no pic of it on the engine as my battery went flat

KevinH

Great result ! - professional finish (as usual). (y)

KevinH

Come on then ! We all know it's running 😉

You can show us the vid now ! :LOL:

evocarlos

ask me again tommorow 🙂

evocarlos

far to many vectra c front rad hoses in this car now ive got 3 of them :S

milo

evocarlos said:
far to many vectra c front rad hoses in this car now ive got 3 of them :confused:
[ATTACH]60430[/ATTACH]

Well at least vec c are good for something :ROFLMAO:😃
(line is cast and waiting for his first bite)

Dave_Gilbert

Mines keeping the road dry outside my house, has been doing a fantastic job for about 5 weeks now n counting.

evocarlos

new toys
led fuses
black wax oil
5l of nitro+
2kg fire extinguisher
gas soldering iron
shit load of stainless jubblies

finished off the water pump circuit and filled it up

water wetter going in

after running the pump the bottle kept filling do to the shortcut from the heater matrix to the pump
so made some alterations to the heater feed and return and its all working fine
will have to see if i get hot water to the heaters after its running

pump running 100%

evocarlos

coils in
