Project Freeze My engine Off (SAAB B207R Supercharged)

evocarlos

vocky said:
ring gaps is really boring :ROFLMAO:

it is when you sat down and fitted all the rings then had to remove them all to gap them! lol

vocky

plenty of practice then :whistle:

evocarlos

vocky said:
plenty of practice then :whistle:

🙂 thumb nails ftw hoping to get them gapped and fitted later on
what's your best advice to fit the retaining clip with out stabbing yourself in the finger or getting blinded by flying clips ?

evocarlos

shells in the rods

rings gapped with a makeshift ring grinder lol

1 in

2 in

all in 🙂

almost messed up looked at the spec sheet on the rods it said for the arp bolts 43ft lb ive never used the ft lb scale before on the torque wrench went to do the bolt up and thought thats not a lot when i looked it was on 22ft lb's lol
the top rings were gapped at 0.015" - 0.38mm
the 2nd rings did not need any grinding they were all already 0.018" - 0.45mm

will get the sump washed out and back on then fit the head 🙂

corsaZ22se

good progress! do you have a target date to have it in the car?

evocarlos

corsaZ22se said:
good progress! do you have a target date to have it in the car?

🙂 28 days 6 hours 32 minutes 12 seconds

evocarlos

sump washed out with v power hurd it makes them clean out faster lol
and fitted to the block with the new magnetic sump plug

head on

arp threads/washers/nuts lubed up and ready for 80ft lb's in 3 steps i did 30-56-80

chain gear on and timed up

brum brum 🙂

and after too turns off the crank to check there was no issues

5M1THY

Good work you've done loads since last week lol

corsaZ22se

great scotts! 🙂
what are you going to do with the other 27 days then? :LOL:

evocarlos

corsaZ22se said:
great scotts! 🙂
what are you going to do with the other 27 days then? :LOL:

it may not look like it but there still so much to do 🙂
ive now got to try and get the engine off the stand on my own with a bad neck so i can fit the flywheel ,clutch,oil cooler,thermostat housing
then ive got to make the manifold ,modify the LSJ coils ive got coming to run on from the z22se ecu
clean up the starter motor and fit
then clean out the spare garage so i can get to the telegraph pole in the rafters to get my engine out to fit this one :S

corsaZ22se

if you was closer I would lend you my crane. 🙁

evocarlos

corsaZ22se said:
if you was closer I would lend you my crane. 🙁

tie it to your roof and come right now lol

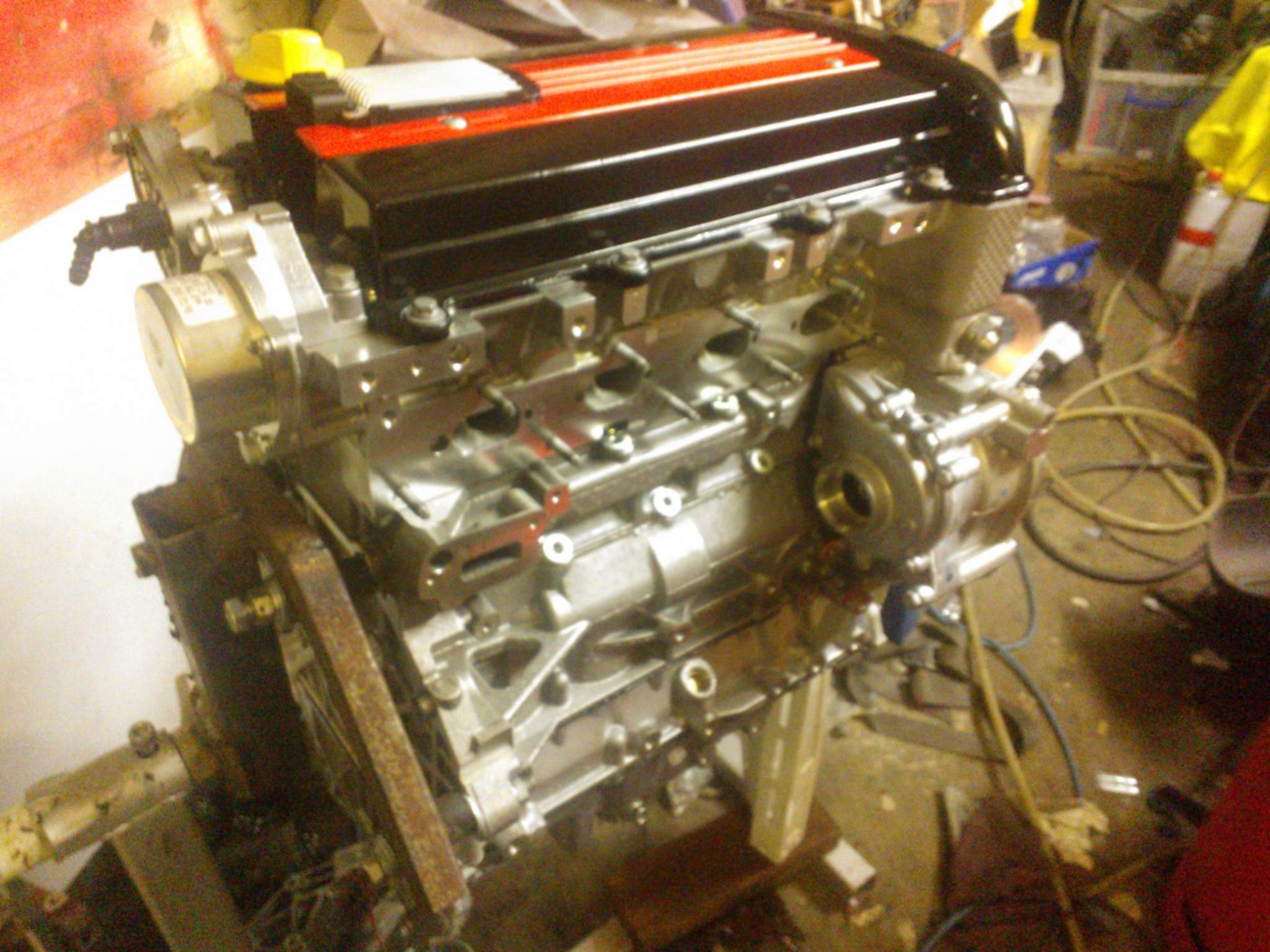

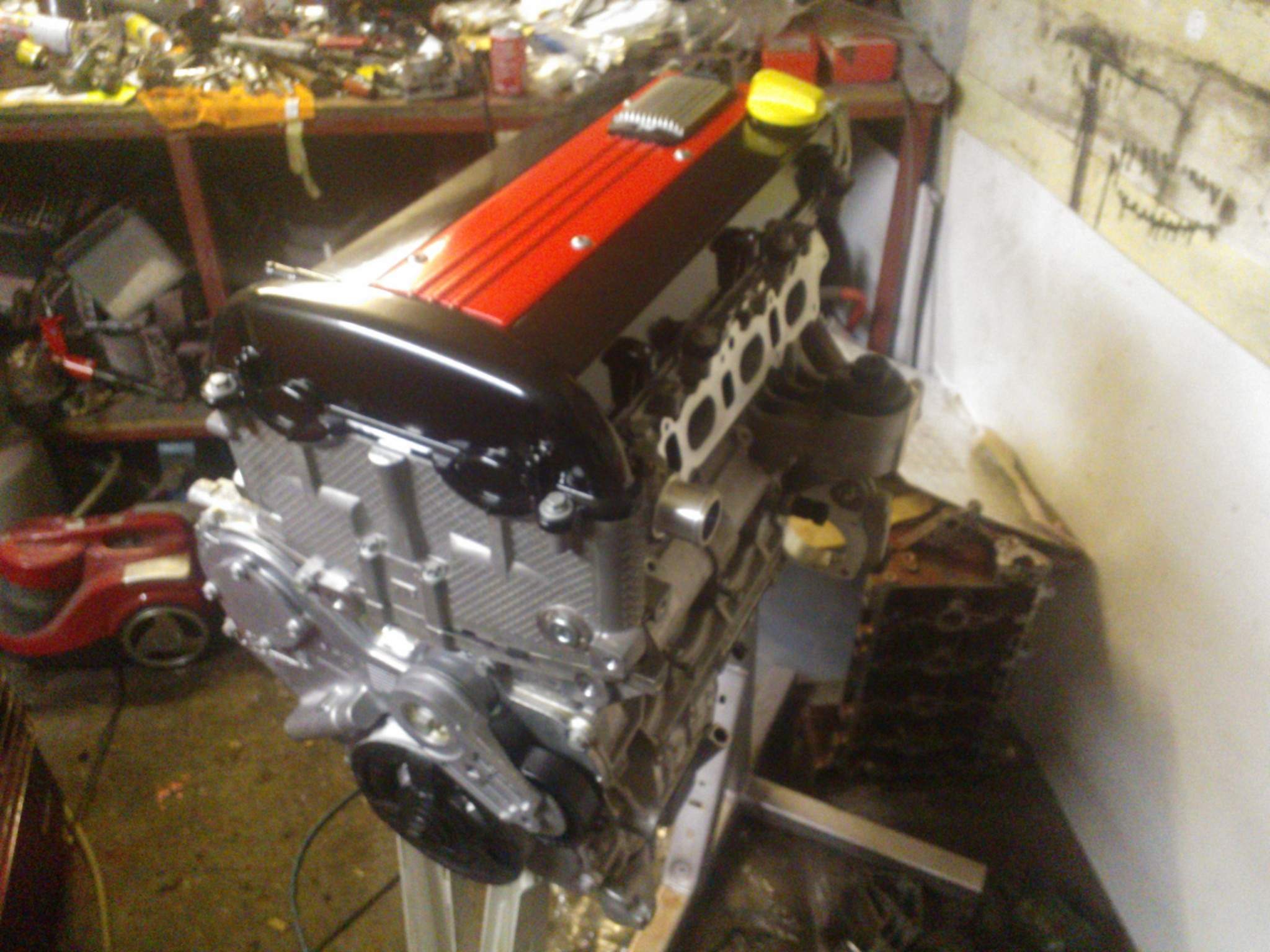

front side

back siide

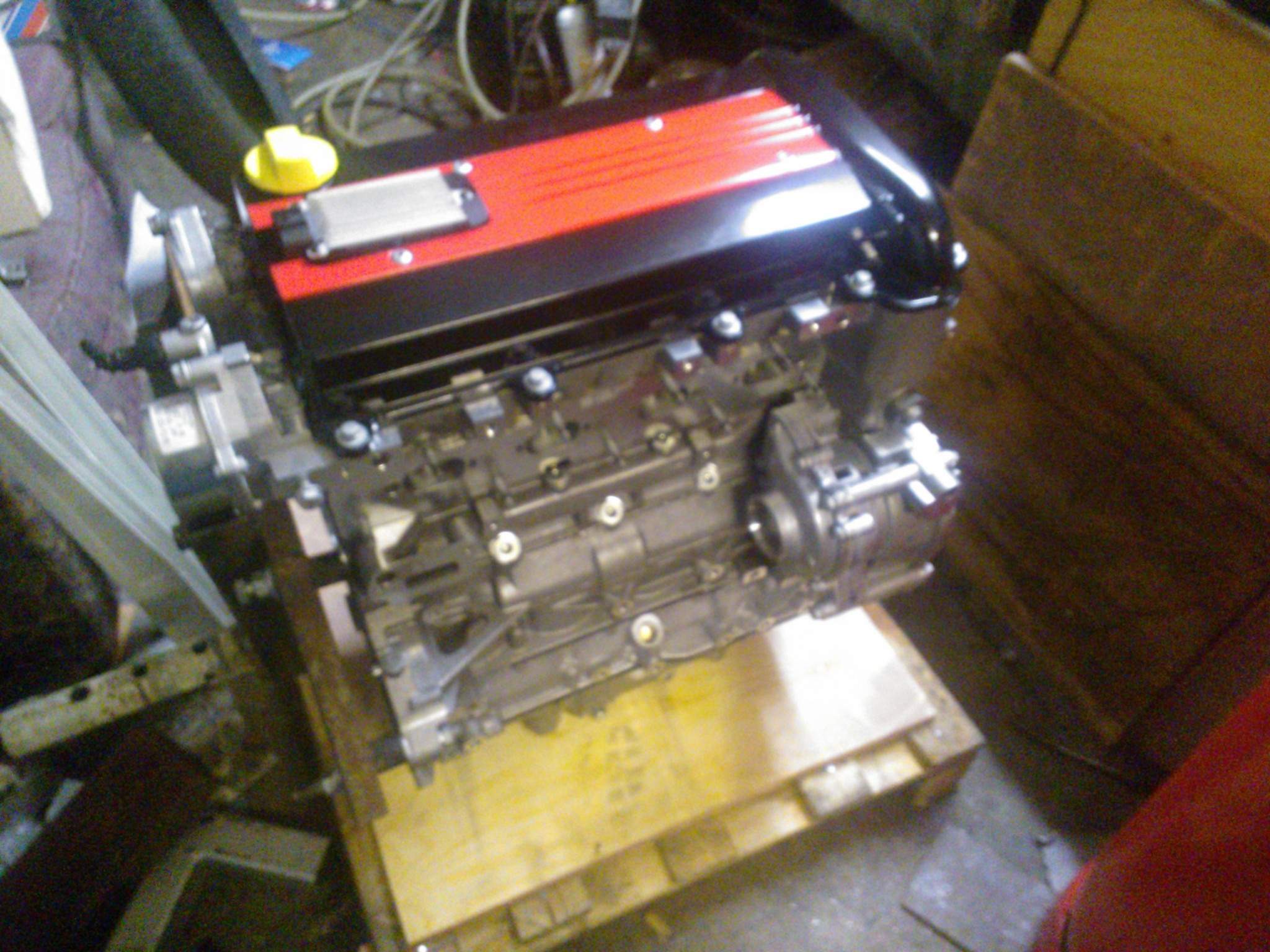

almost lost a kidney moving this from the stand to the pallet

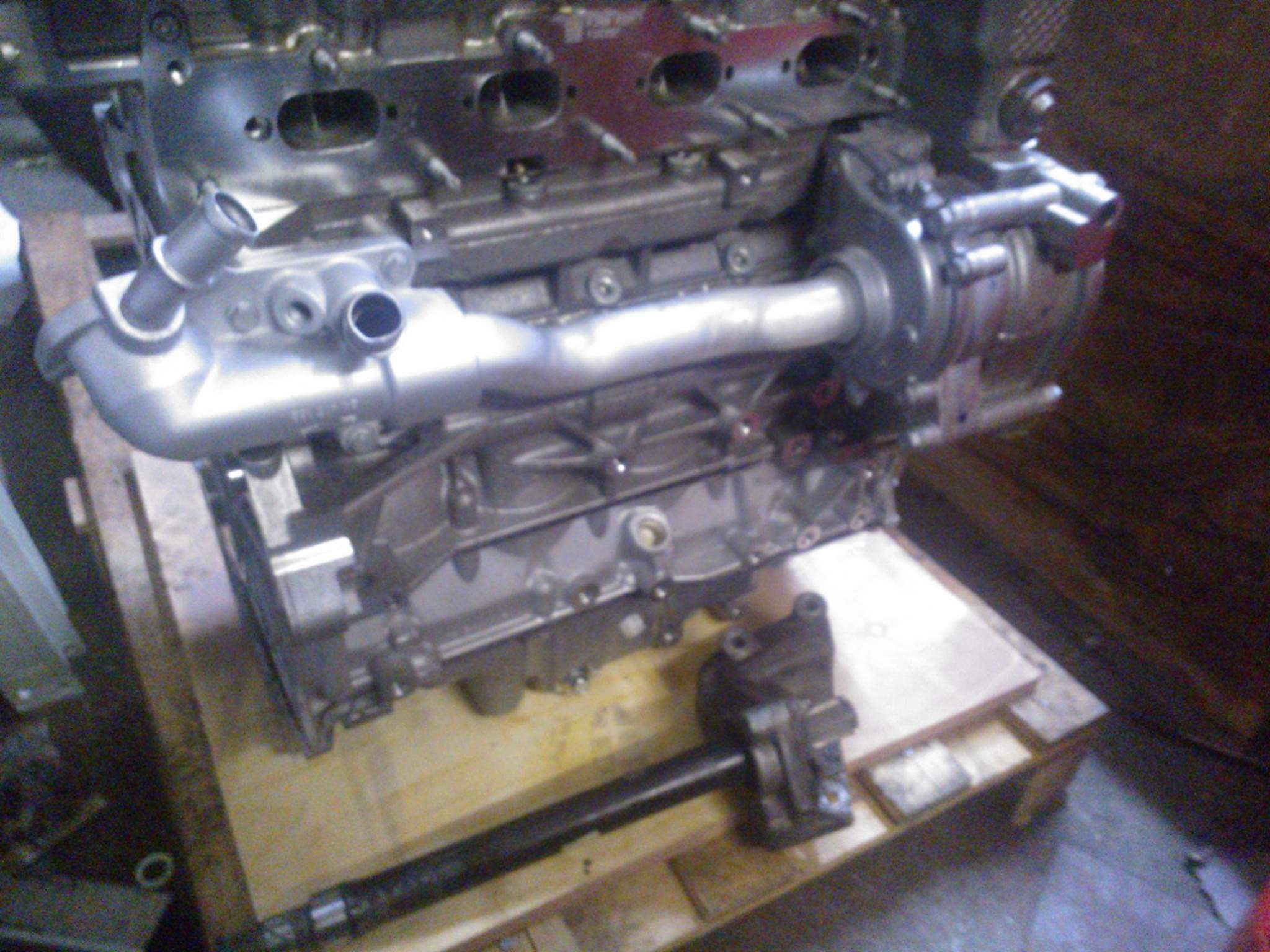

z22se thermostat housing and tube vec c half shaft at the bottom

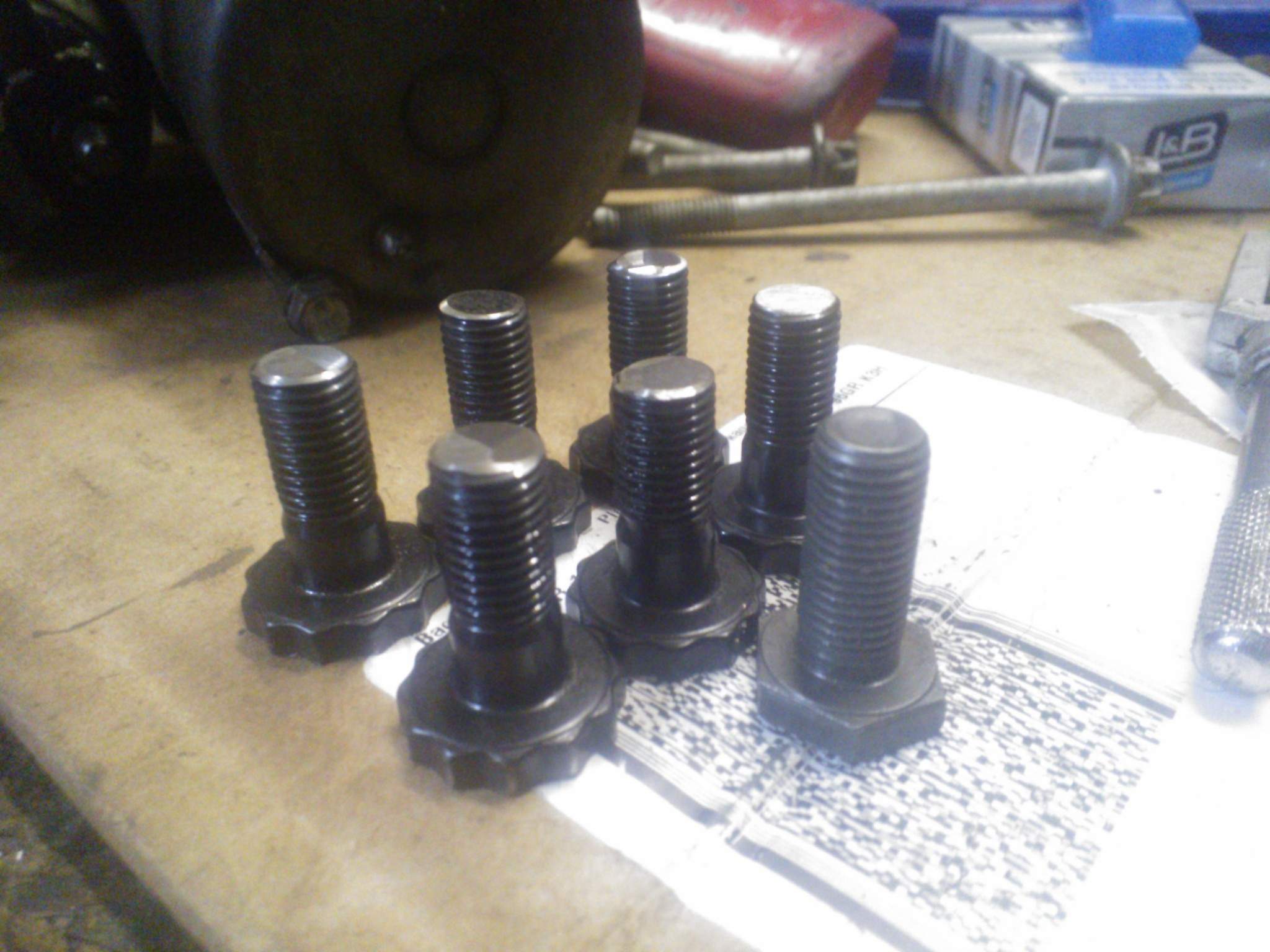

some more work to the ARP fly wheel bolts they were a bit long so ground them down by .5mm

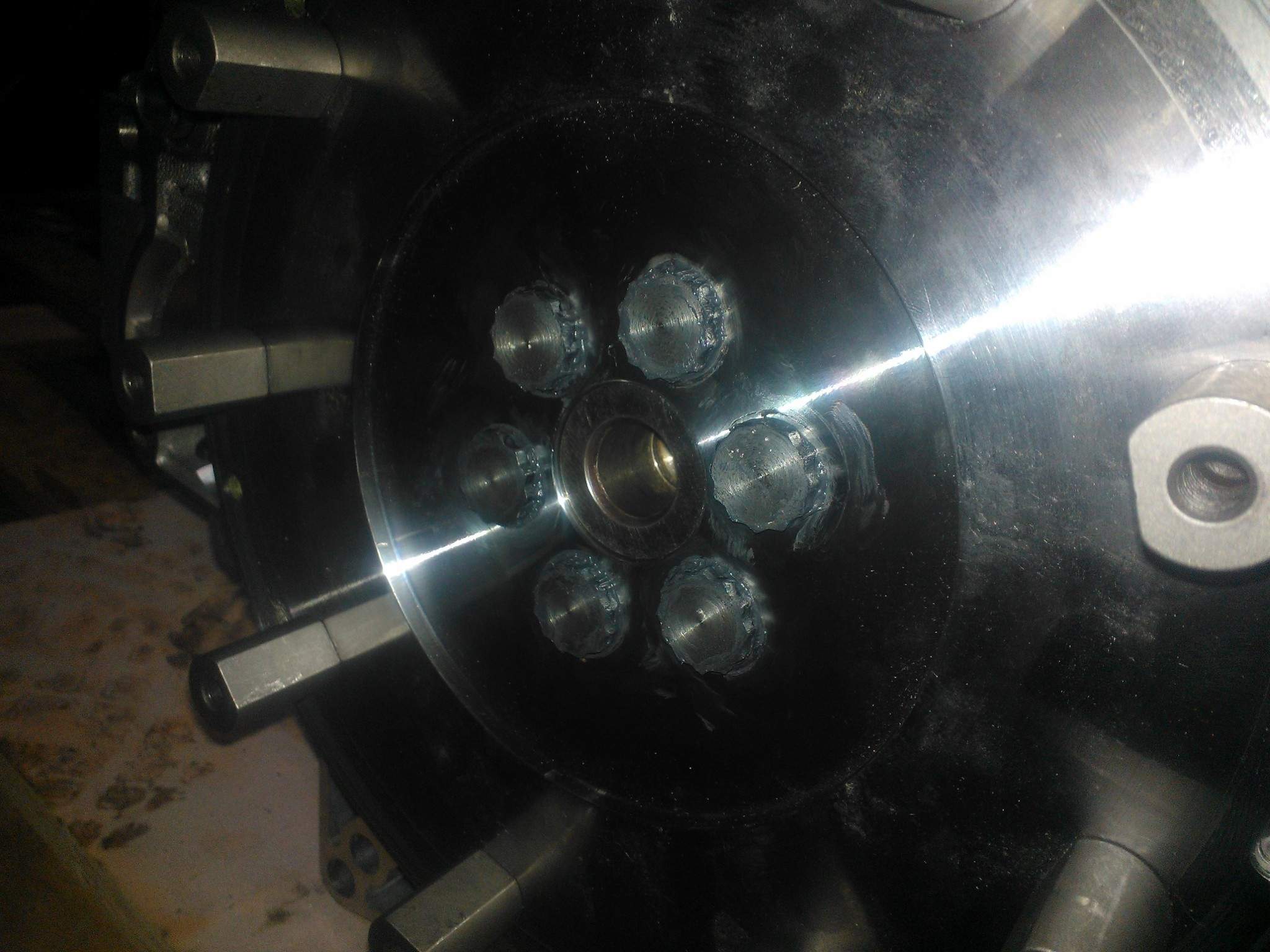

lubed up and thread sealant on the bolts then torqued up to 70ft lb's

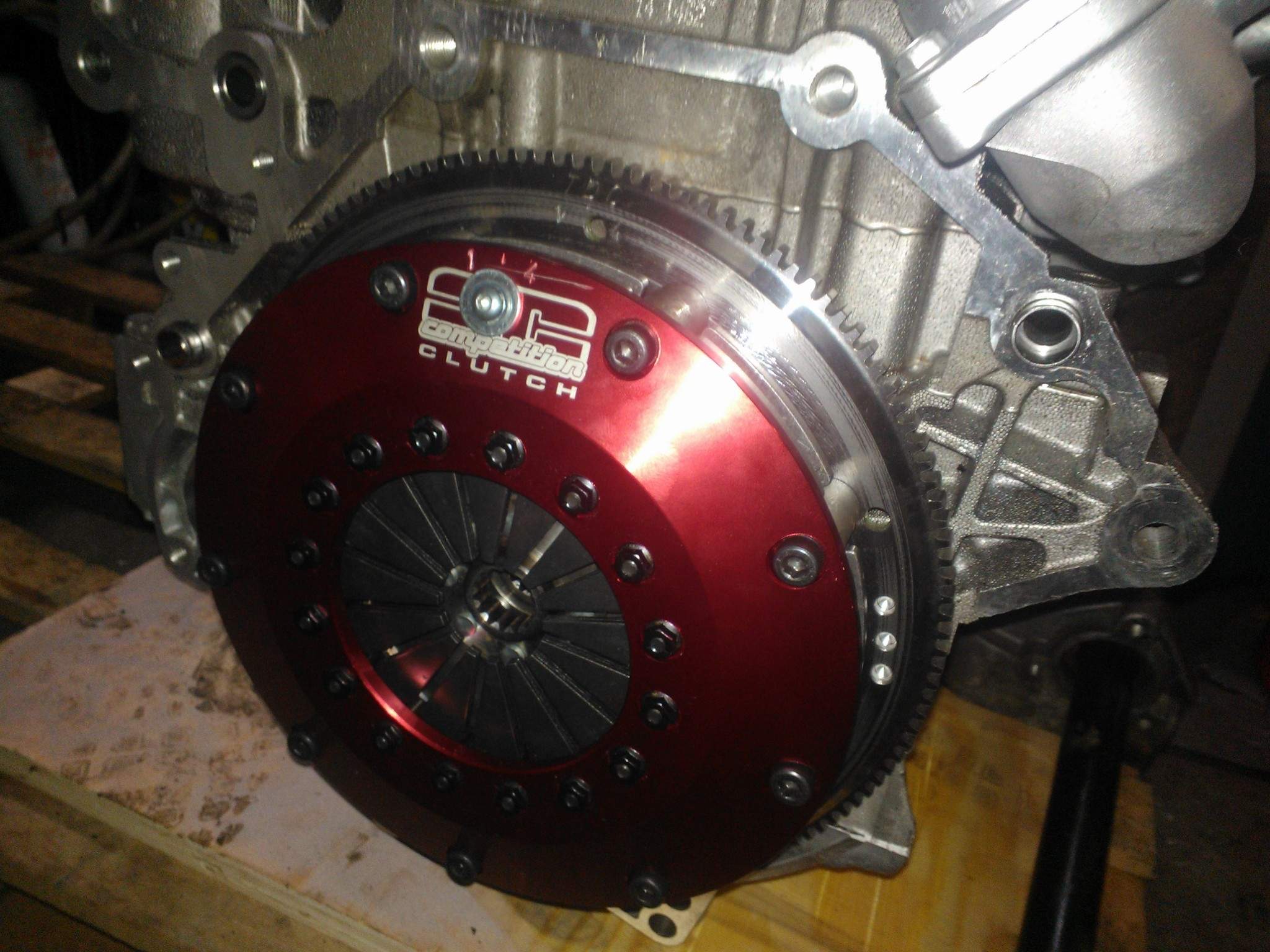

clutch plates aligned and bolted on

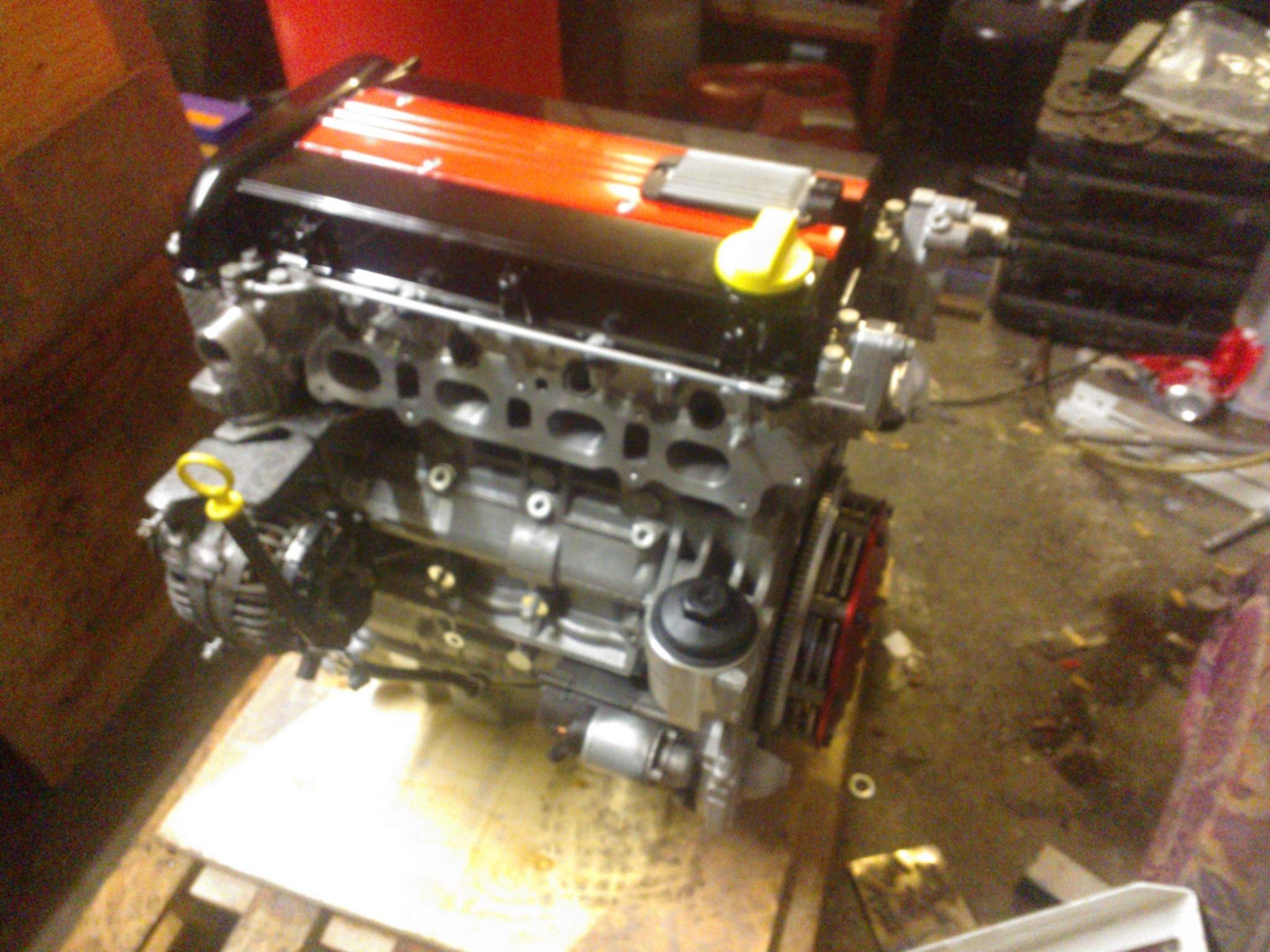

starter fitted and a spare alternator just for show

hmmm this might get fitted today lol

Matt

Oh that looks sexy now it's all put together. :lurking:

evocarlos

ahh what the hell its going in tomorrow 🙂 old ones coming out today

milo

All I see on your photo bud is the roof? Lol

evocarlos

milo said:
All I see on your photo bud is the roof? Lol

refer to the last line in post 350 🙂

evocarlos

got distracted banger racing in the field with the mowers

back to work
@[deleted] maybe this pic will shed some light 🙂

milo

It does in deed my friend

5M1THY

I love the writing on it 'scrap' lol

corsaZ22se

why put it on the roof? just slide it in the back of the van, why use my car when ive got the works van! :LOL:
top work carl, you will be back at courtenays very soon at this rate! im aiming for 4/6 weeks depending on getting a pre rad made.
