ok i started this in my project thread but found it to be a bit over whelming so here it is just the Self Leveling system thread 🙂
pics

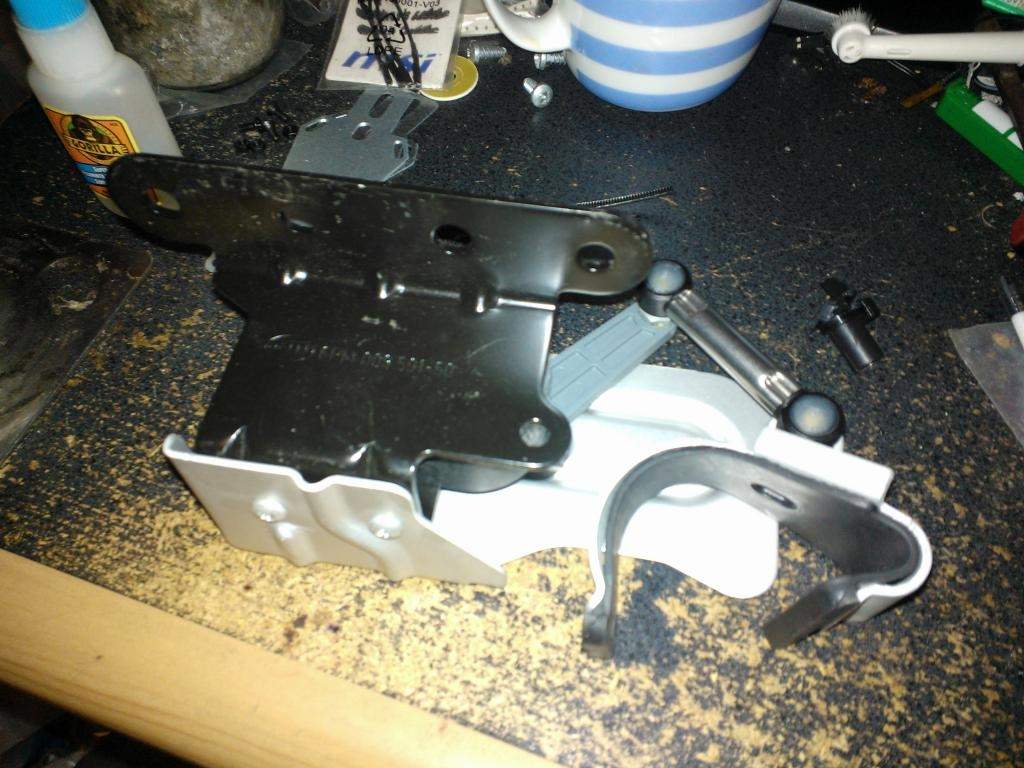

sender and bracket

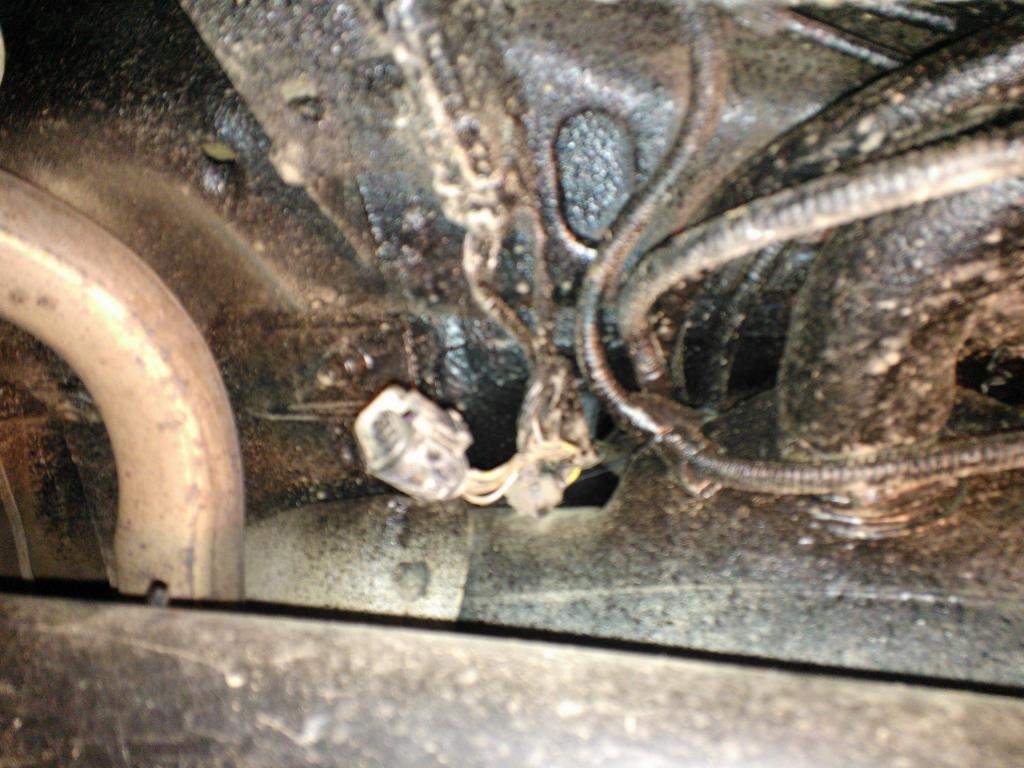

sender plug above fuel tank

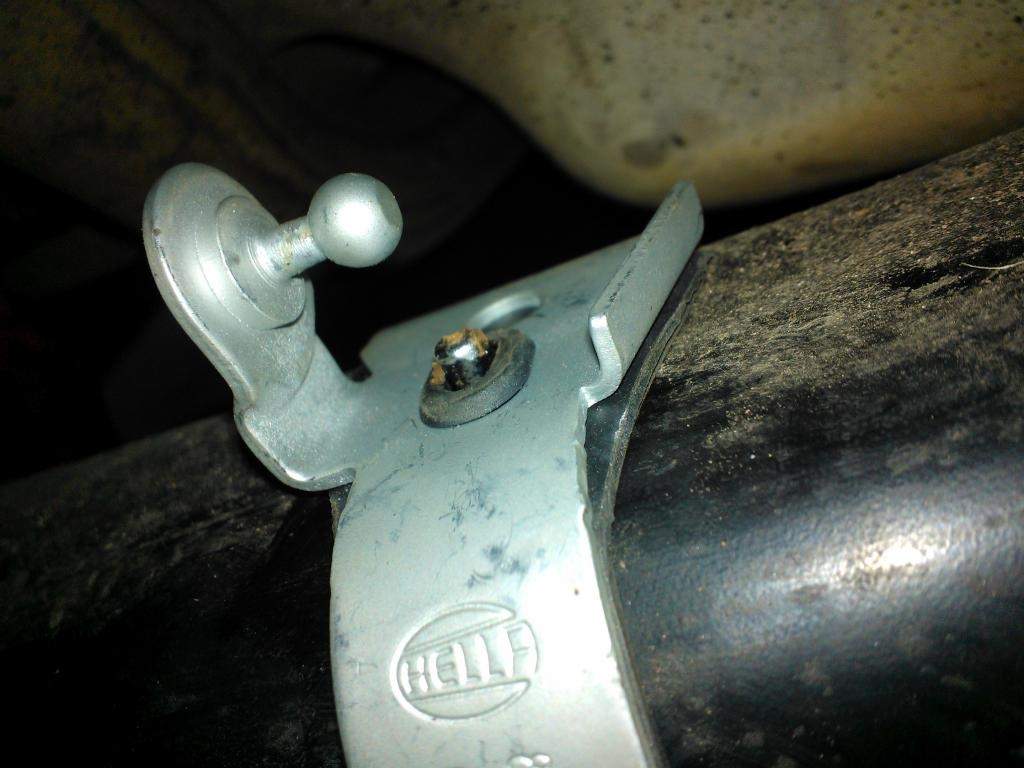

bracket fitted to rear beam

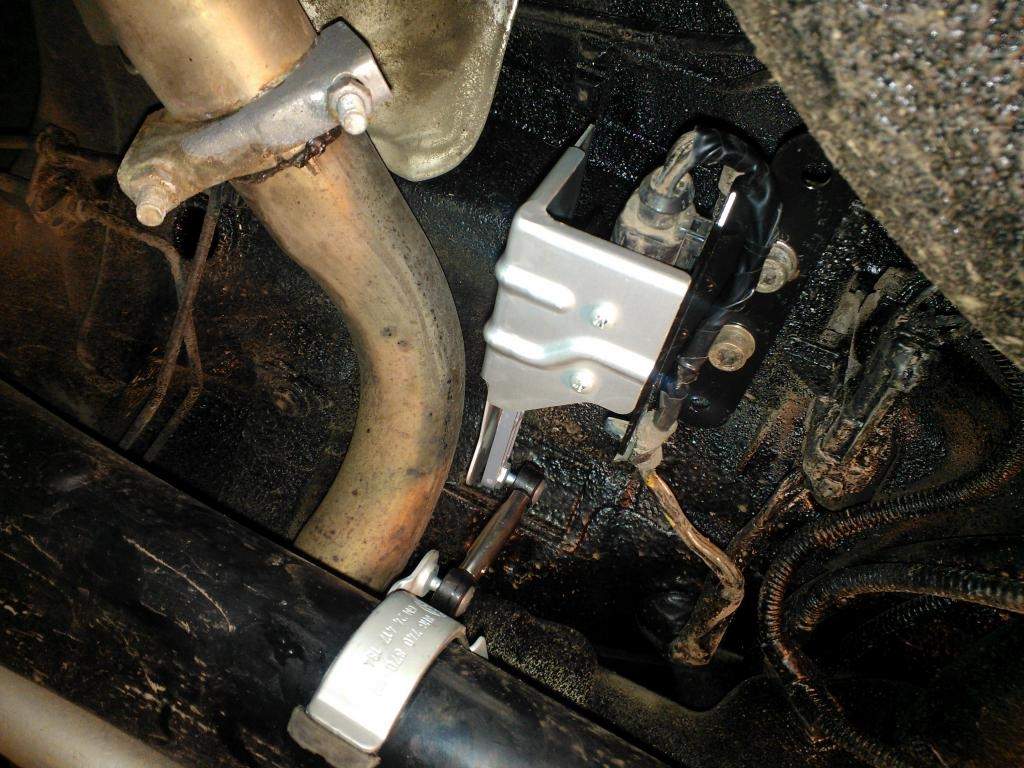

sender + bracket fitted and plugged in

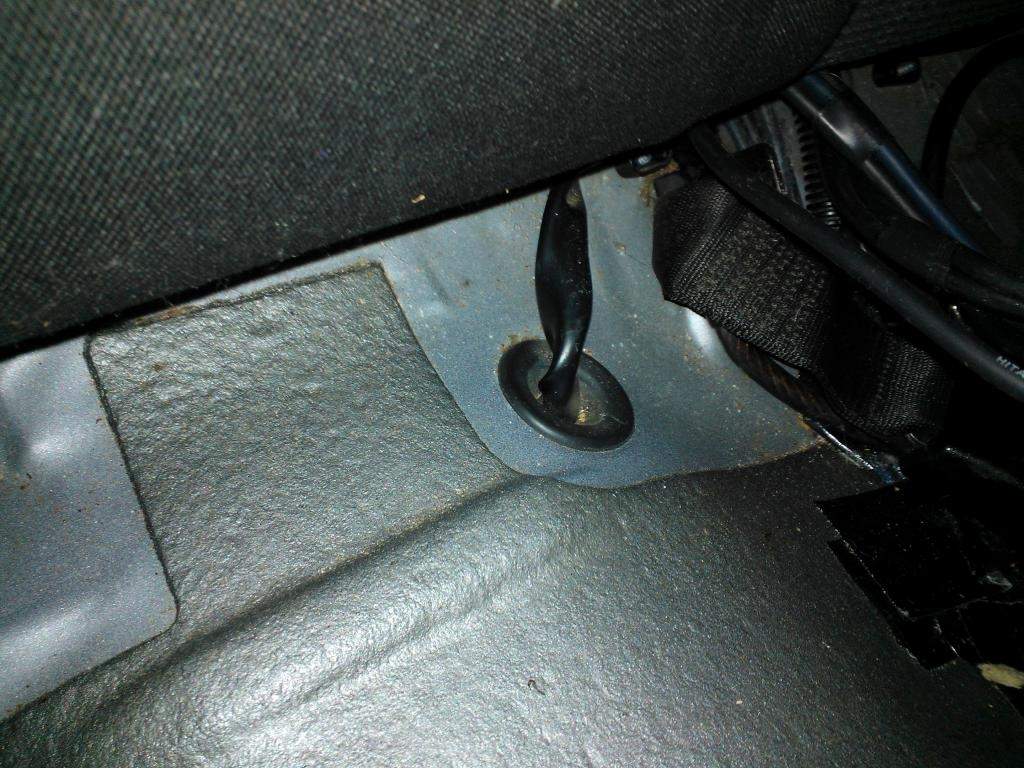

loom from outside to inside under back seat
it runs down the passenger side of the car to the front foot well

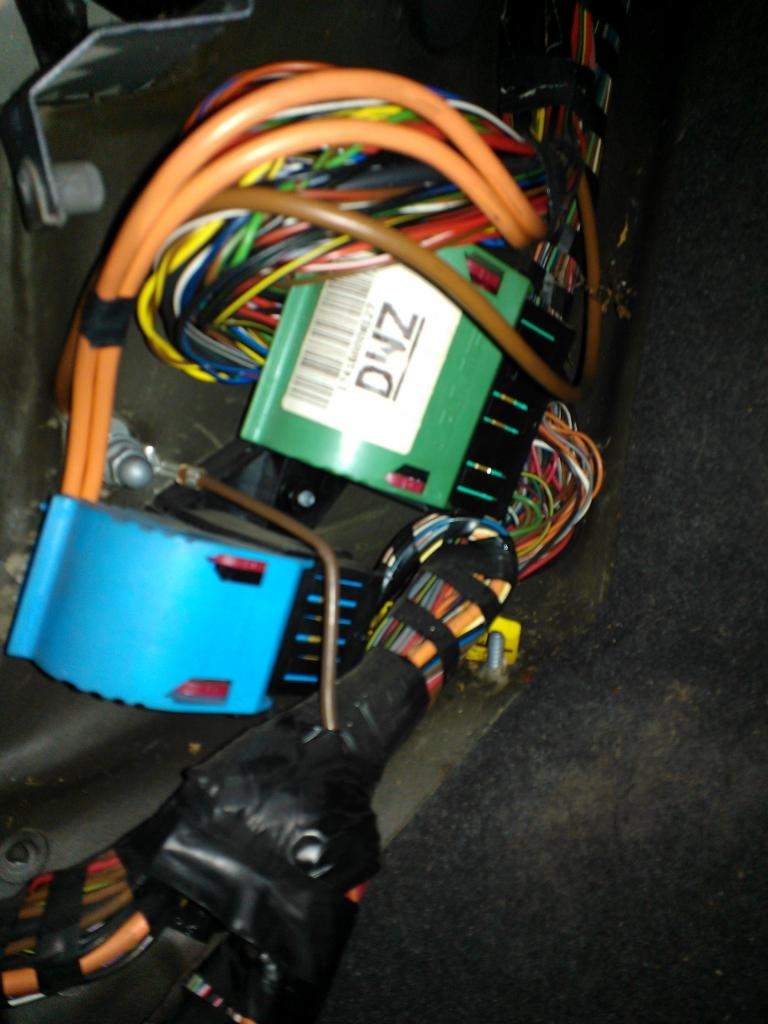

where there is 2 plugs
the wires in the rear loom go to the blue plug and stop there

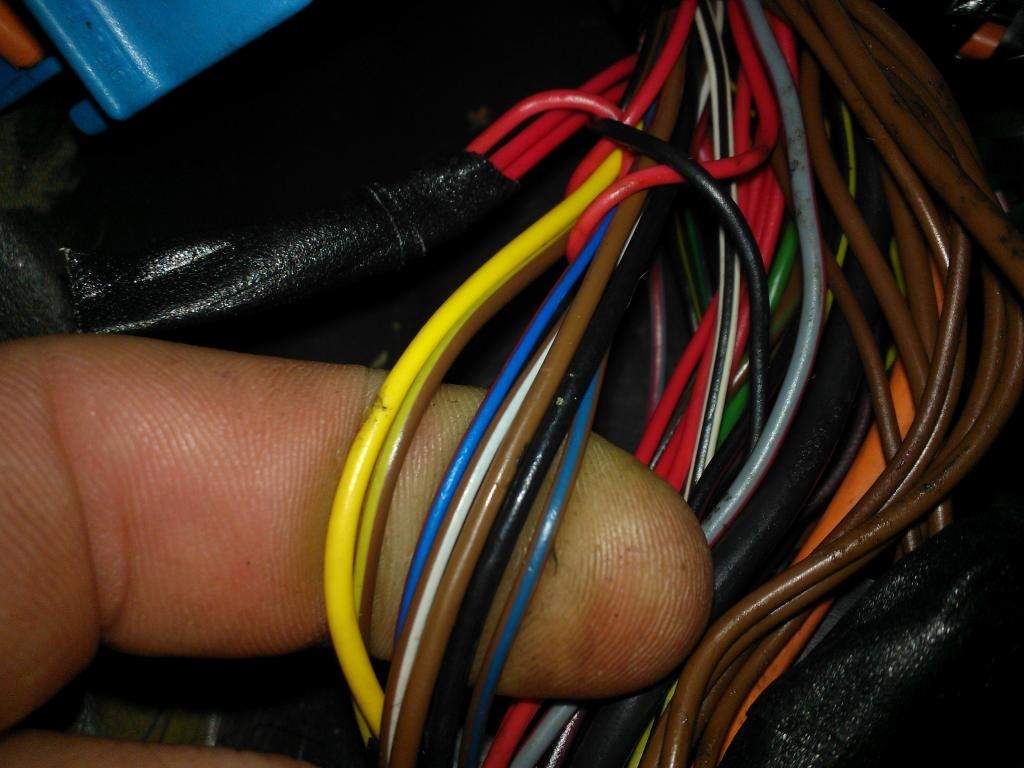

other pics for reference

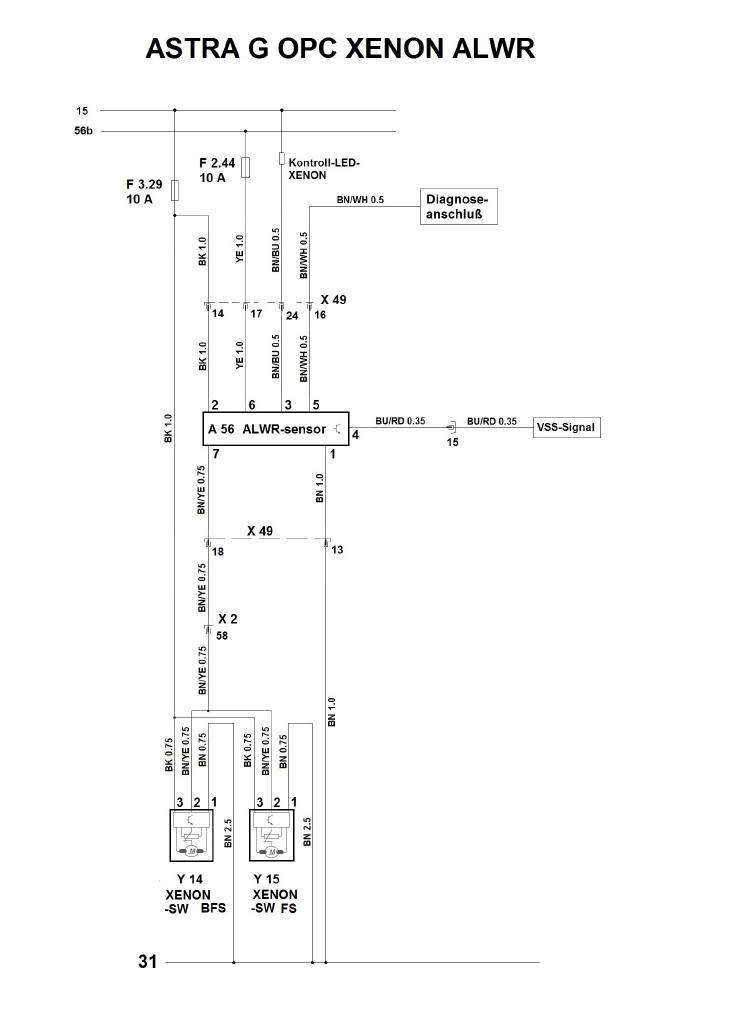

all important wiring diagram
its quite simple if you dont have the wiring already installed its just a case of making a 7 wire loom with a plug to fit the sender
then
- Pin 1 Ground (terminal 31) ----------------------------------- light switch Pin 12 - (brown)
- pin 2 Supply voltage (terminal 15) -------------------------- light switch pin 4 - (black)
- pin 3 Warning lamp ---------------------------------------------instrument cluster pin 15 (Brown / blue)
- pin 4 Tachometer signal -------------------------------------- instrument cluster pin 27 to (blue /red)
- pin 5 Diagnosis -------------------------------------------------- Immobilizer control unit PIN (6 brown / white)
- pin 6 Light signal (pin 56) ------------------------------------ light switch pin 13 (yellow)
- Pin 7 Output to the actuators ------------------------------ light switch pin 8 - (! cut from switch then connect to sender) (brown / yellow)
- Pin 8 -------------------------------------------------- ------- Not used
