Project Freeze My Ass Off (rear Poly Bush's Astra G)

evocarlos

its a tight fit :S

corsaZ22se

we like it tight! 🙂
its better to use pure argon when mig welding stainless. used to do it at work years ago found you needed loads of volts to get a good weld. sure you will do a great job going by the rest of your work! (y)

evocarlos

yeah i only have a hobby mig so its got 3 settings on/high/off lol but using disposable pure argon bottles

evocarlos

having to miss the vvoc RR meet cars not road worthy yet lol

after a few cups of tea i set about mounting the charge cooler rad

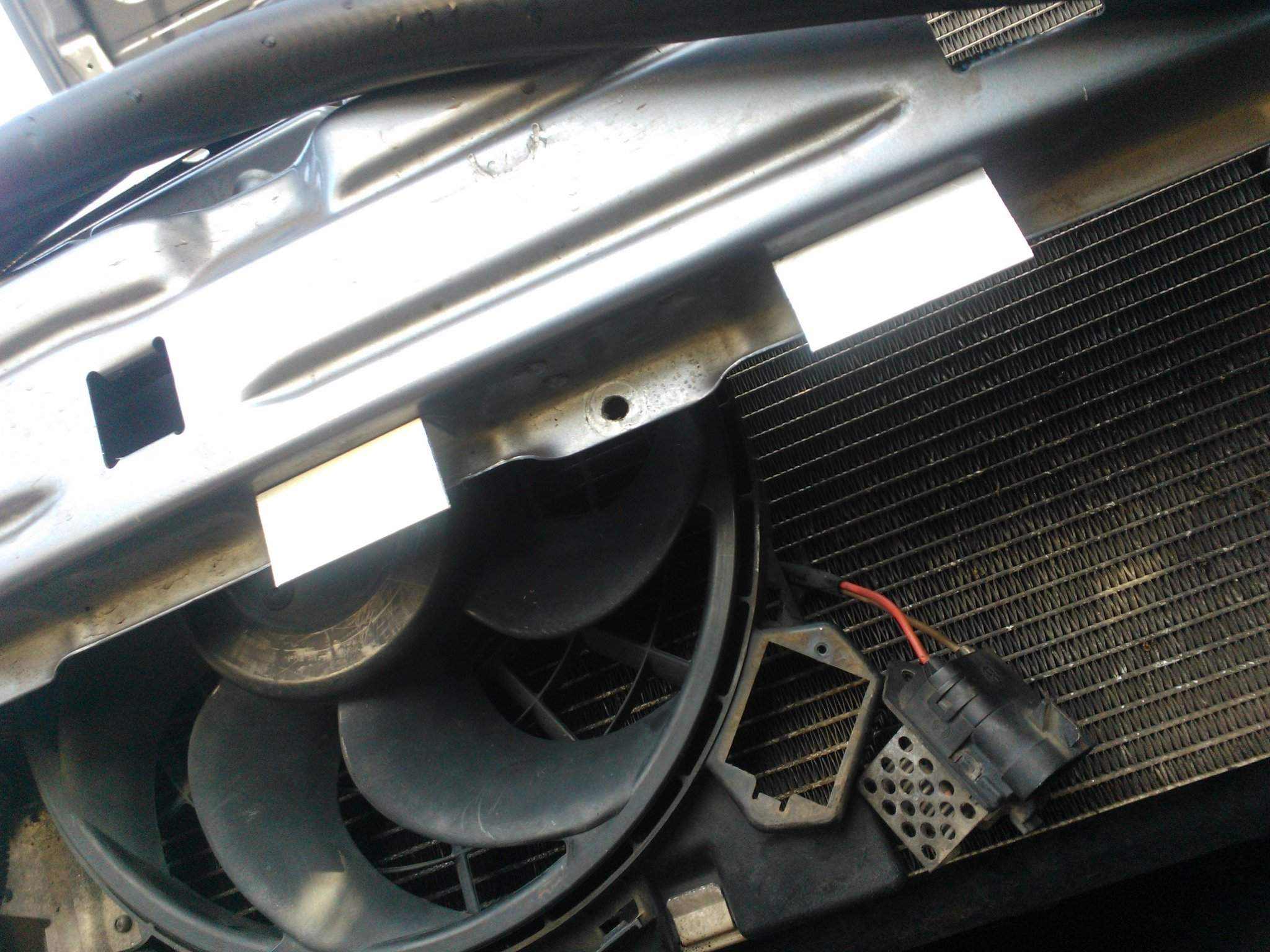

heres what i have up to now

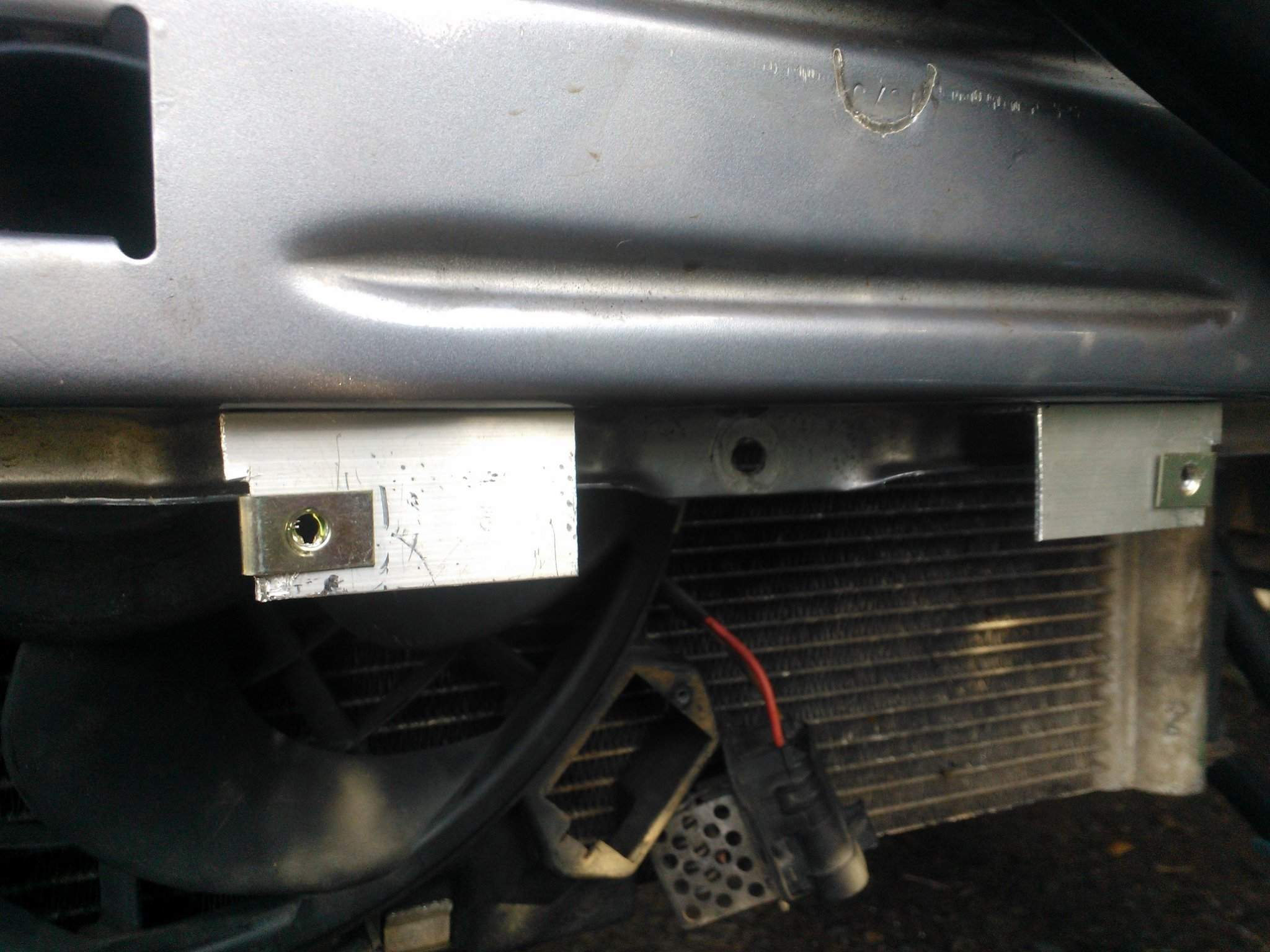

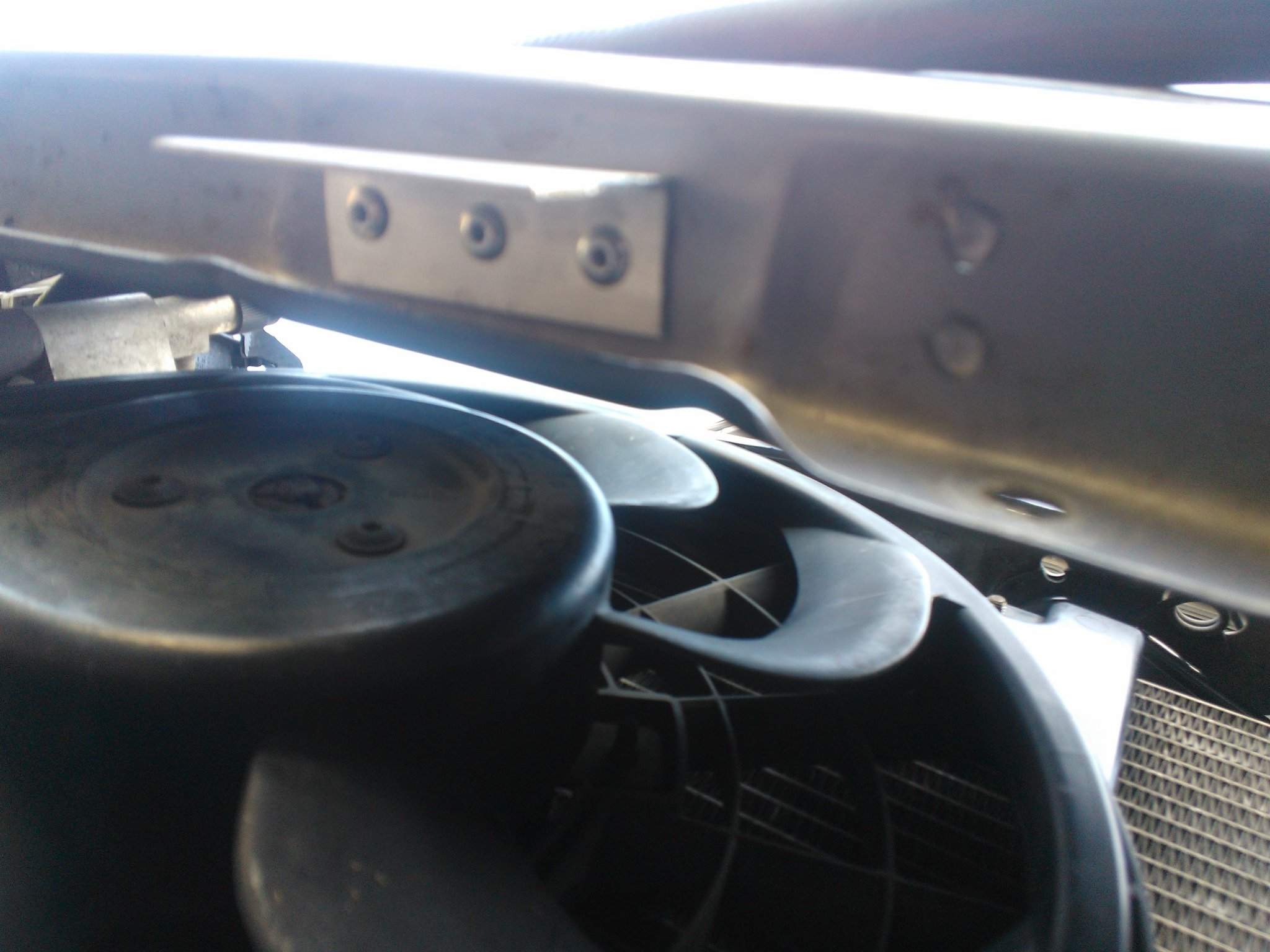

alloy angle pop riveted in place

what knots clips fitted

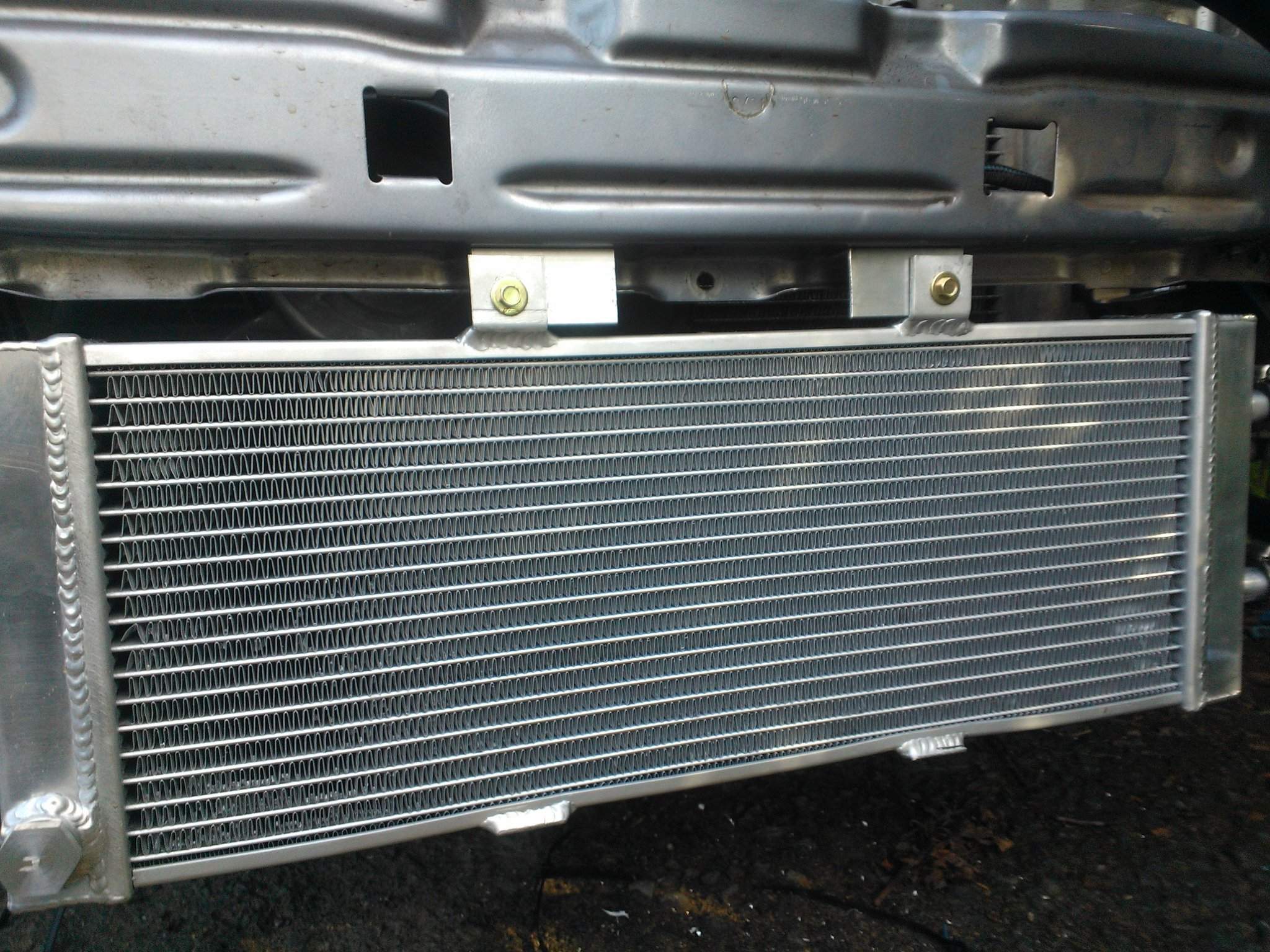

its on just need to sort out some lower fixings

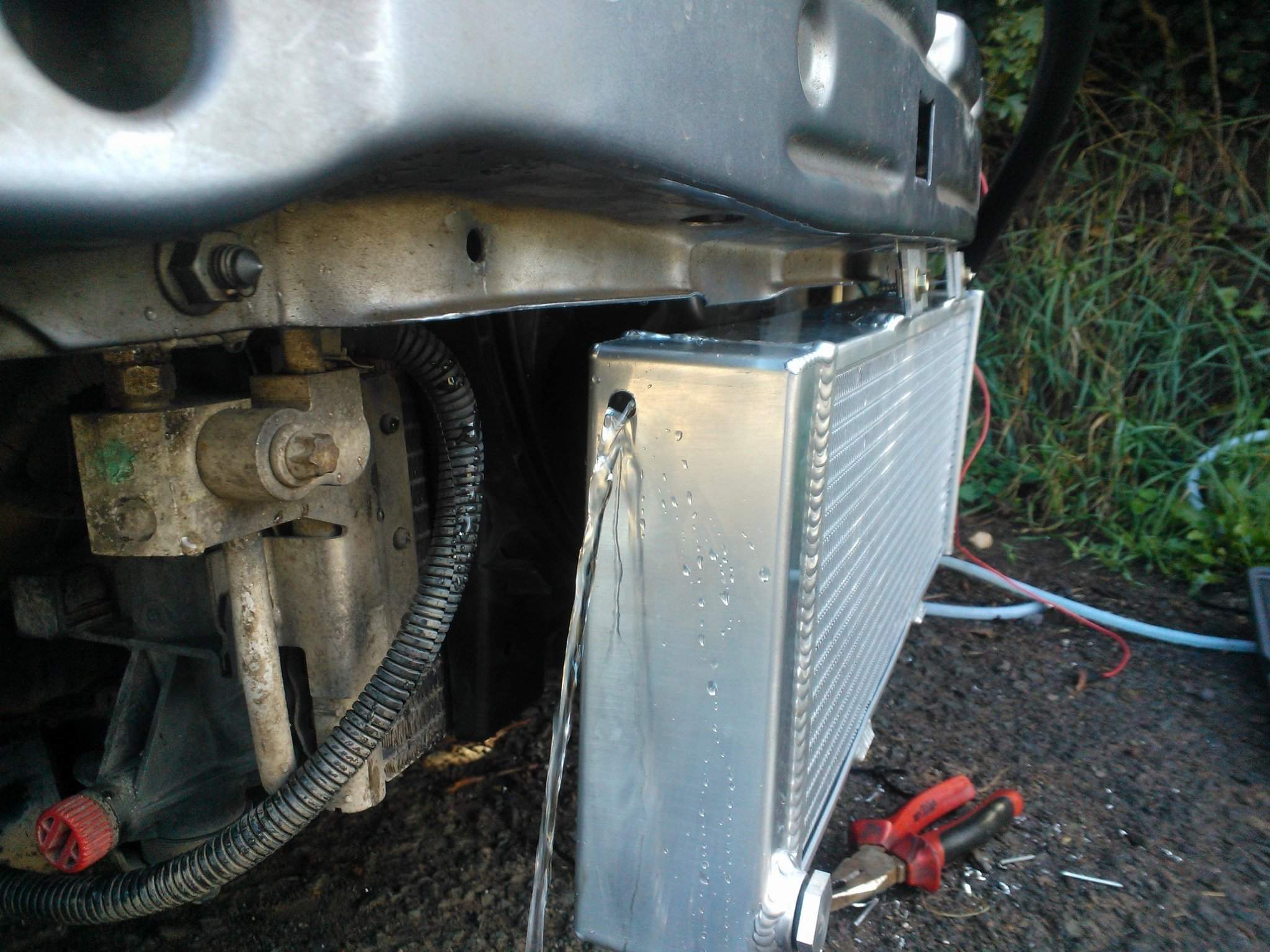

heres how to destroy a £170 water rad 🙂

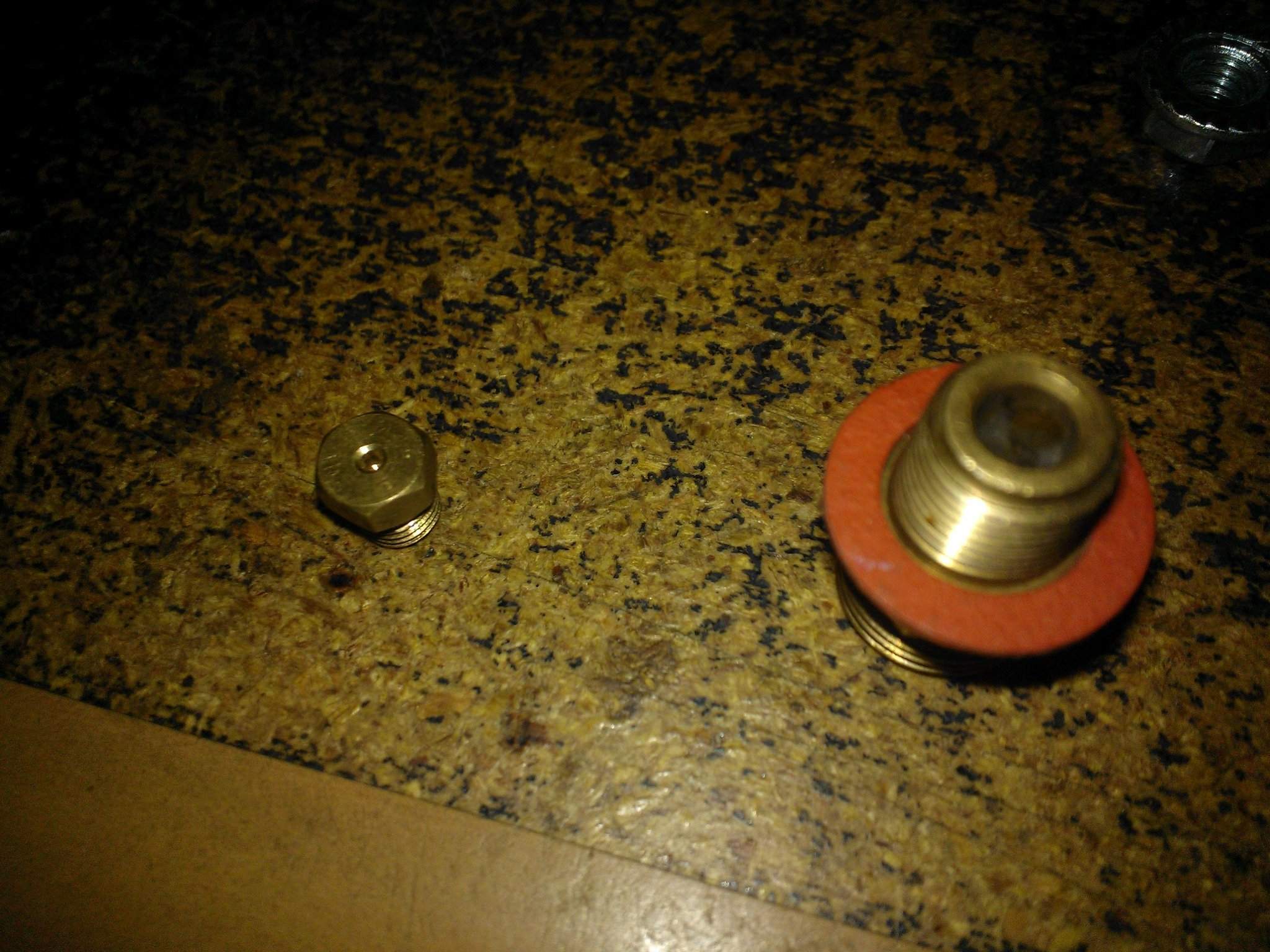

dont panic it's only the air bleeder 🙂 found a gas jet 106 that pretty much the right size
with the stated orifice supposed to be 0.040" so its 1.016 in millimetres my jet is 1.06mm close as fuck it is to swearing 🙂
tapped the hole out to 1/8npt and found a brass fitting to suit 8mm pipe i went with brass to stop the copper/alloy galvanic reaction

evocarlos

restriction jet fitted in to the end of the vx220 bottle pipe

1.5 bottles of gm long life going in 🙂

tidied the pipe work up some

wires for the pump to the relay box (2 red ones at the front)

gm relay and fuse holder from a 1.7td astra pins removed 🙂

just came in for some lunch then its back to work
todo list

fit/make lower brackets
make relay turn pump on only when engine is running
move A/C fan resistor
refit bumper

vx-chris

Just the re-map to sort after all that mate?

evocarlos

peng12 said:
Just the re-map to sort after all that mate?

got to make a stainless manifold and 3" zorst system yet but its all going to plan now 🙂

evocarlos

relay wired in

back in realy box

the clearance of the charge cooler to the a/c fan

its all back together now time for a test drive 🙂

crappy pic but this is how it looks in the bay now

also the setup of the charge cooler was self bleeding after about 20 seconds 🙂 it will constantly remove air from the system when it gets in to the rad 🙂

milo

what bhp and torque u hoping to get once its mapped??

evocarlos

enuff to make the con rods cry 🙂

milo

250bhp?

evocarlos

milo said:
250bhp?

they would not last long at 270 🙂

milo

nice

milo

enough to make Astra vxr owners worry :whistle:

evocarlos

milo said:
enough to make Astra vxr owners worry :whistle:

it do that now 🙂 well before i fitted the cooler so defo now

Matt

Nice work Carl, engine bay looks really tidy considering all the extra bits in there now

milo

Does look gr8 bud.

evocarlos

Matt said:
Nice work Carl, engine bay looks really tidy considering all the extra bits in there now

thanks 🙂 trying to keep it oem looking

milo said:
Does look gr8 bud.

thanks 🙂

well just been for a spin
Q: what does a front mounted air to water rad do you ask
A: makes it go like fuck thats what!

so much pulling power now and its backfiring every gear change when doggin it sounds great

milo

evocarlos said:
thanks 🙂 trying to keep it oem looking

thanks 🙂

well just been for a spin
Q: what does a front mounted air to water rad do you ask
A: makes it go like fuck thats what!

so much pulling power now and its backfiring every gear change when doggin it sounds great

Need a video bud!! 🙂

PowR_Remap

Needs a video!
