Project Freeze My Ass Off (rear Poly Bush's Astra G)

Dave_One

Good stuff Carl.

I haven't read through and the title hadn't bought me here before but................ Climate Control as well as Auto Leveler - I'll be looking to you for guidance on these soon, lol.

I'll have to check through and get a list of what I need for the Climate Control (I have a new Air Con Rad to fit, then regas, so I may try and tie this all in together 🙂.

And thanks to Matt for pointing me to this thread 😃

Cheers,
Dave

evocarlos

hey Dave the link to the c/c installation i put in my garage thread 🙂 under interior / exterior mods tab

the info for auto levellers has been updated in the thread and is correct there now working

the parts required for the Climate Control are
dash sensor
C/C air box and fan
C/C controller unit ( i have a spare)
a plug from the MID with 2ft of wires (i have one spare)
new pollen filter (worth changing while out)
new dash console to fit C/C controller

the wiring is further back in the thread but you may also need to add a wire to the bulkhead connector and then to the cooling module behind the bumper if you dont have one installed

good place to look for info is -->HERE<--

the parts you will have to find on the net or try cs autos and give chirs a shout

Dave_One

So do you think I could get away with my current dash loom then, and just add the extra wires? Or will the best option be a dash loom upgrade?

Also, should all Dash Looms be interchangeable (obviously, some wires will be extra and not needed, depending on fit)?

Cheers

evocarlos

your current loom will suffice as long as you have A/C if you dont have A/C then get a loom with then mod that
the loom i had was a Cab loom and not a direct fit so modification was the best way its just a few wires soldered in at the stereo wiring and speedo wires

Dave_One

evocarlos said:
your current loom will suffice as long as you have A/C if you dont have A/C then get a loom with then mod that
the loom i had was a Cab loom and not a direct fit so modification was the best way its just a few wires soldered in at the stereo wiring and speedo wires

Good news there. I'll get reading in a bit - much to the wife's annoyance, lol 🙂

evocarlos

just had op-com on the car seams to be many stored codes in a few items most from the battery being low and disconnected
airbags
low voltage ?
cooling module not sure on this one

they have all been cleared will check them again soon 🙂

also did a screen test on the C/C controller

evocarlos

swapped the fan motor for my old one is seams less noisy finished up the loom tidying and then refitted the glove box and lower trims
ball ake was i had to remove the motor resistor pack to plug the motor in
it was back to far in the dash and could not see to plug it in
big ass heatsink

cars booked in for an A/C recharge @ 3 monday with my local vx £36

evocarlos

its not called project freeze me ass off for nout lol
rear springs

old vs new also was to lasy to take the wheel off

nickel plating did not last that long that will teach me for trying to do me dads brake clipper and wreck the solution with cast iron particles

evocarlos

well ive just taken the car out for its 1st drive since i went on my road trip i have to say C/C is awesome 🙂
needed to go and get fags i set off then half way there the abs light started flashing on and off intermittently thought i had mashed the plug when fitting the springs
but looks like the T/C wire that was flopping about on the floor was shorting to the seat rail lol its a smooth ride now and much more comfortable inside

there's that much paint on this centre trim i cant do anything with it and it looks gash roll on the morning when i get my white led's so i can fix the C/C display 🙂

Dave_One

Carl, I'm so, so jealous mate. Well done - good effort. Much respect from me 😃.

evocarlos

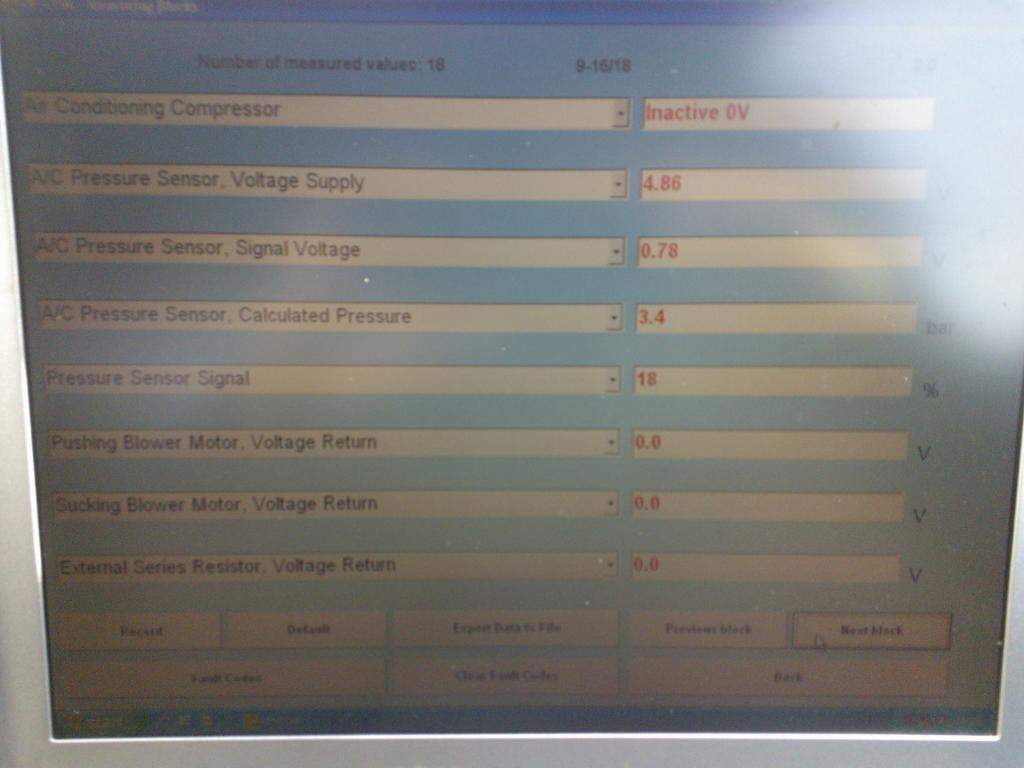

went for a trip down to vx for a a/c recharge and i found out why i could not get the a/c pump to run

the a/c pump would not run due to pressure in the system was low all good now

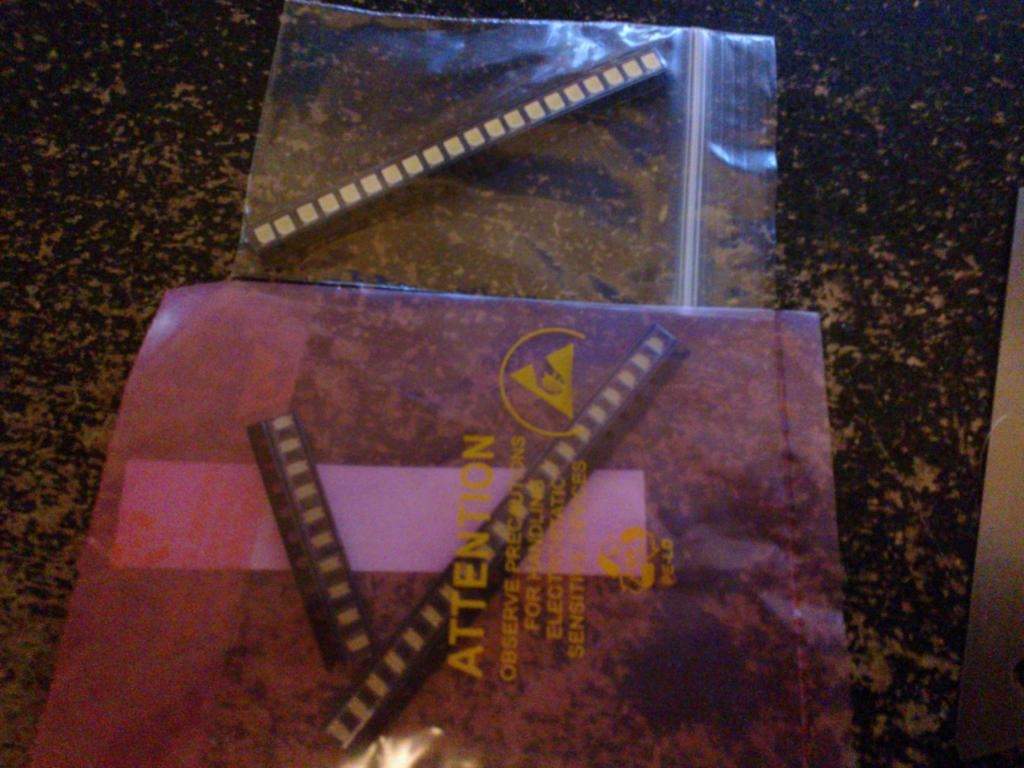

and finally the LED's turned up

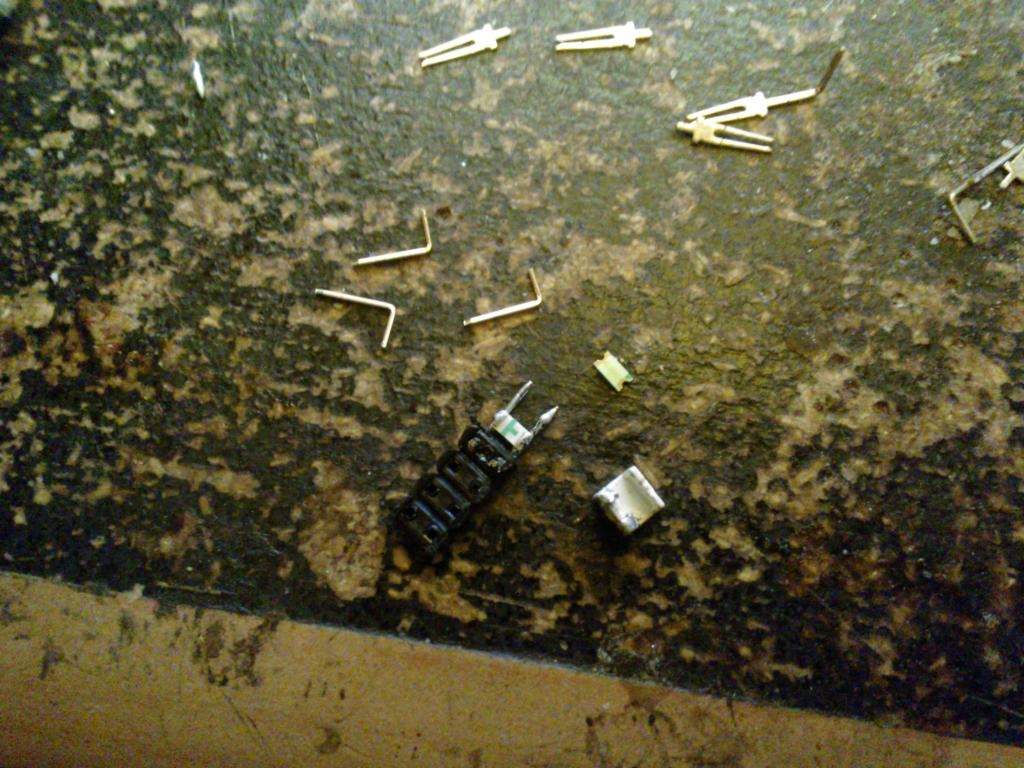

old vs new

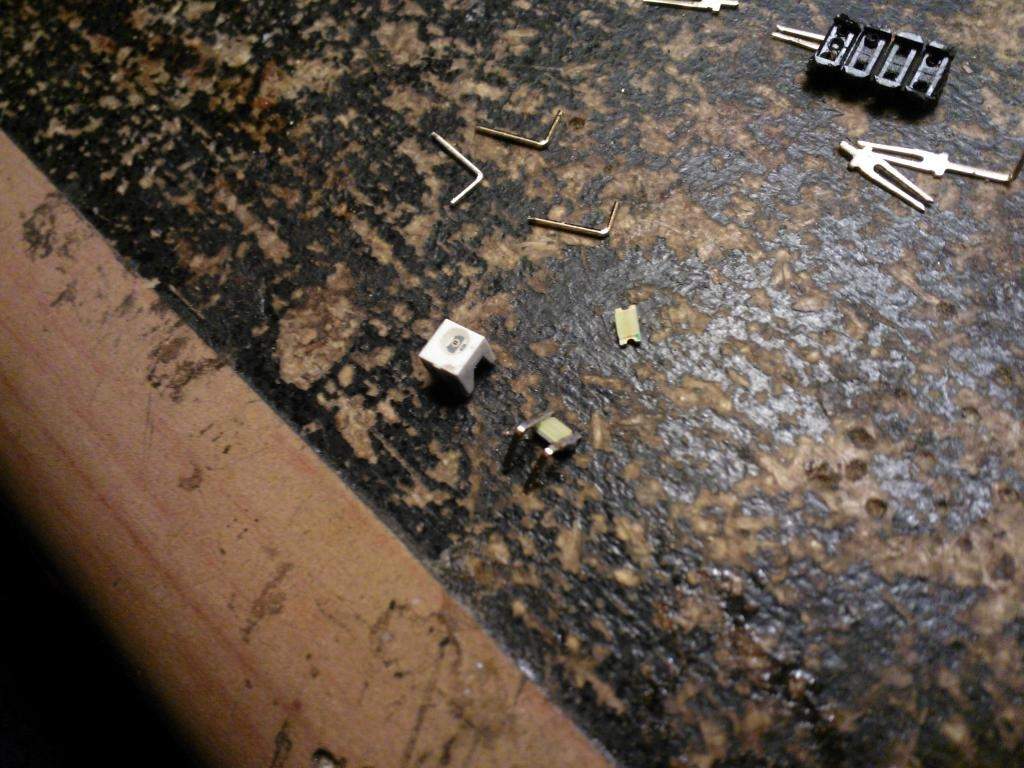

jig and new LED setup

the new LED's look like this

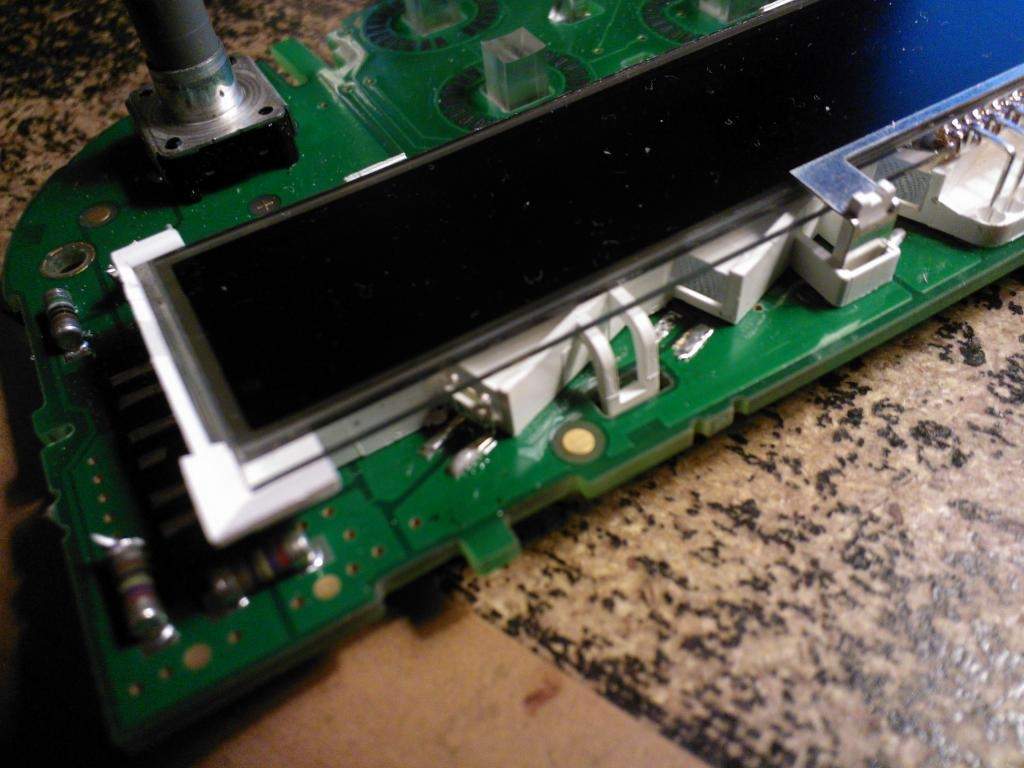

one in place on the C/C controller

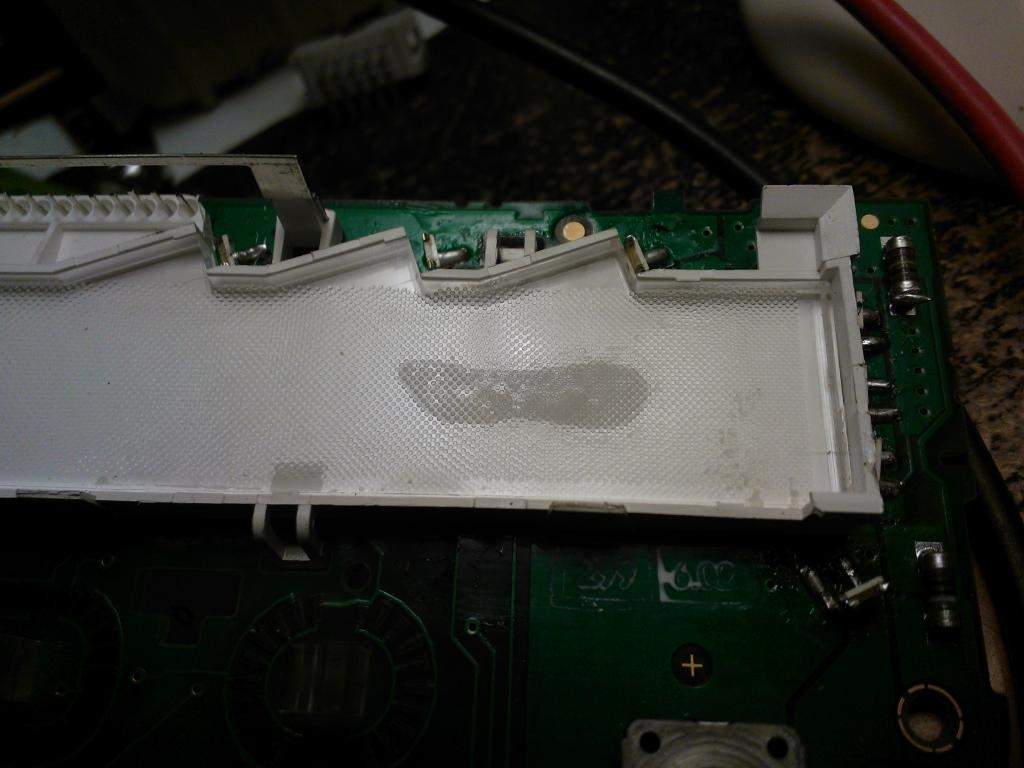

all done 1st test was not so good looks like some flux got under the screen 🙁

ploppy

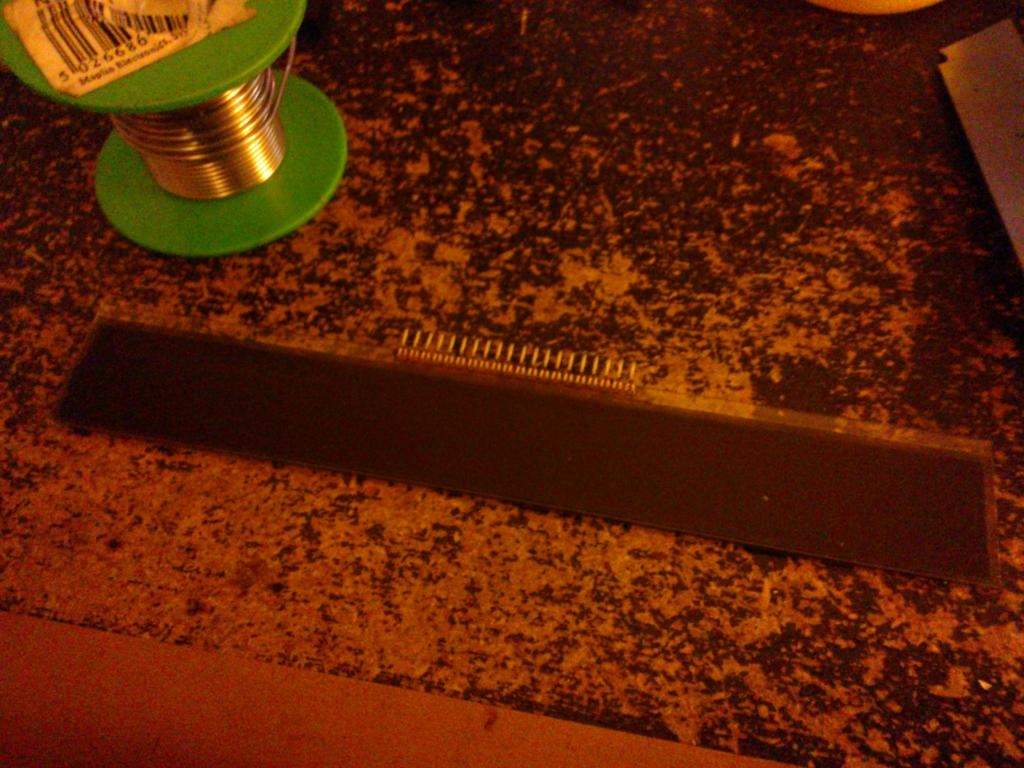

endded up cutting the screen out it was easier than unsoldering all the pins

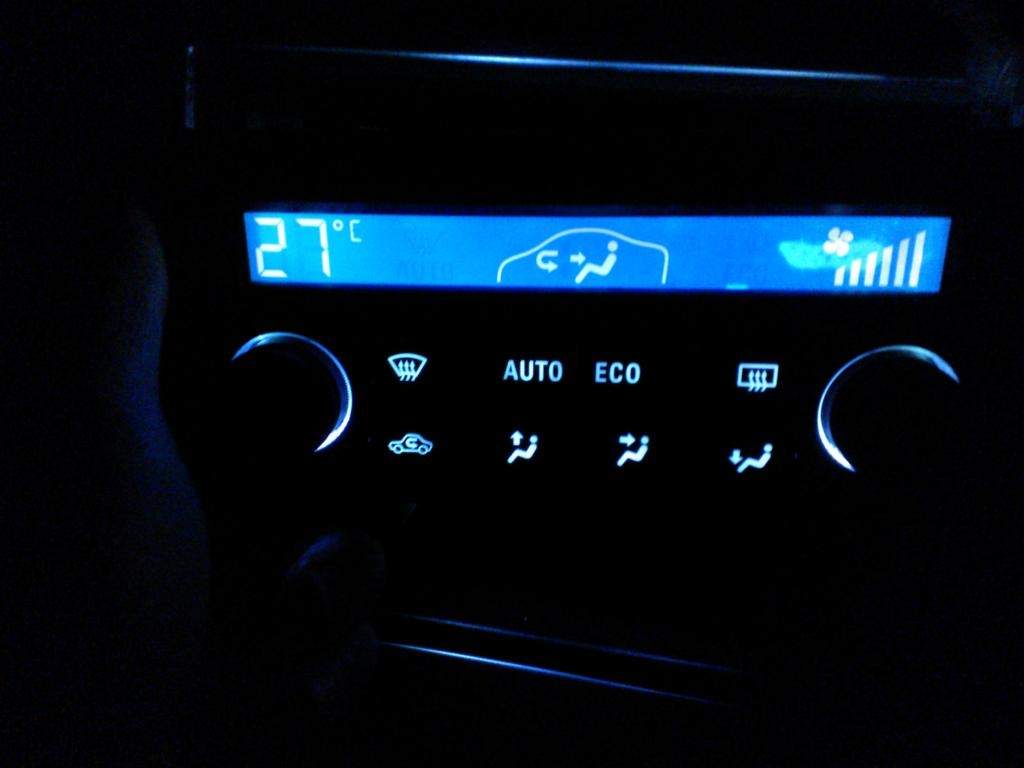

side lights on after the rebuild

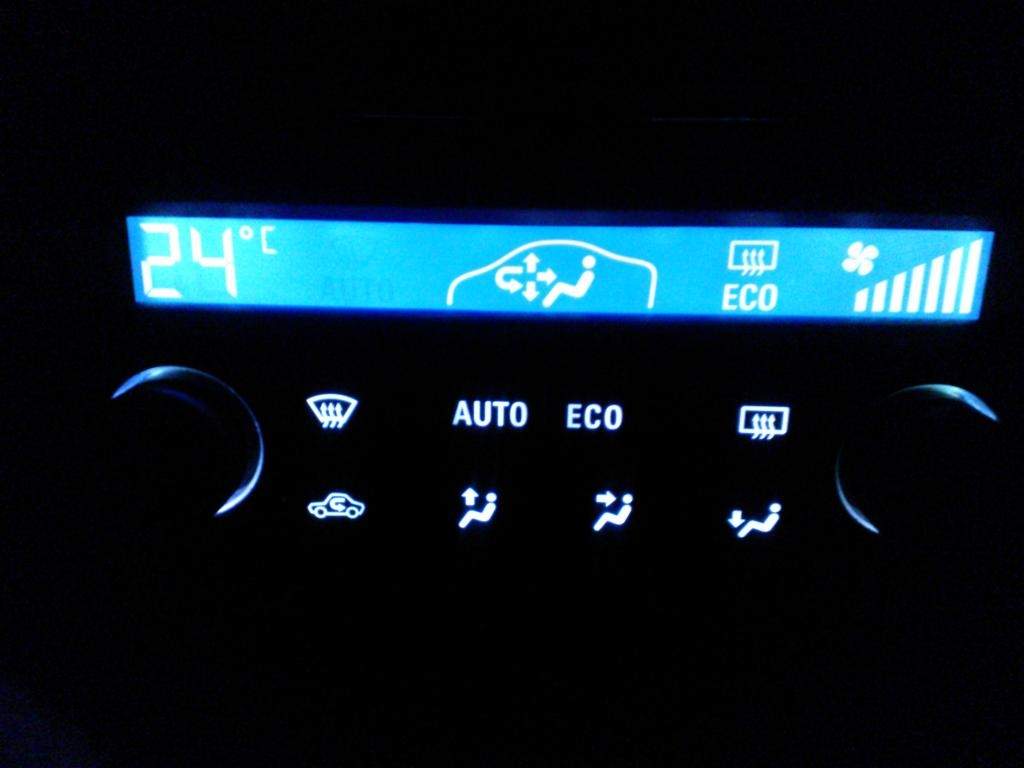

and the final look 🙂

while at vx ive ordered the full headlamp washer kit but not the relay or the hose as its sold in 10m lengths and is £9.60 per meter

MikeS

leds has knocked a good 5 yrs off its age m8 🙂

evocarlos

MikeS said:
leds has knocked a good 5 yrs off its age m8 🙂

it sure has 🙂
before and after

speedo and headlight switch next

Sjdickso

It's amazing how changing a colour to somthing makes it look so much fresher, as Mike said its knocked years off off it.

Matt

That does look so much better. I hate the orange/yellow look of the original buttons

evocarlos

Matt said:
That does look so much better. I hate the orange/yellow look of the original buttons

ive never like the orange i went with white as not many have done
and cant stand the other colors blue and red looks to tacky

Matt

evocarlos said:
ive never like the orange i went with white as not many have done
and cant stand the other colors blue and red looks to tacky

🙁

evocarlos

Matt said:
🙁

i retract my statement 🙂
but i meant in the mfd in blue/red look bad imo
im not quite sure how white leds make the background on the C/C controller blue ?

Matt

to be fair, I tried doing my MK4 in blue, and it didn't look very good at all.

evocarlos

new dash trim came

also had a play with a headlight switch

frankinLED
