Air/Fuel gauge

vocky

couldn't resist one of these drool.gif

arrived this morning, only took 3 working days from the usa :shock:

rabidh

Is it one of those with a programmable output for the ECU?
I always wondered whether being able to fool the ECU into running slightly richer would improve power on a modified car...

vocky

I think you can :oops:

LC-1

http://www.innovatemotorsports.com/products/db.php

slindborg

rabidh said:
Is it one of those with a programmable output for the ECU?
I always wondered whether being able to fool the ECU into running slightly richer would improve power on a modified car...

thats the plan 😉

Vocky, something along the lines of $400?

the LM-1 is an awesome bit of kit but not pretty for use in the car all the time lol

Europa_Blue_SE1

Nice one vocky think I'll be treating myself to one of those when you fitting it mate???

vocky

slindborg said:
Vocky, something along the lines of $400?

$289 delivered :shock:

£150 ish

http://search.ebay.com/search/search.dl ... %3D1&fgtp=

vocky

Europa Blue SE1 said:
Nice one vocky think I'll be treating myself to one of those when you fitting it mate???

not sure, probably in a few weeks dunno..

I need to take the downpipe off to weld in the lambda bush.

n17ves

It will be interesting to see the how your car was setup .....

Am I right in think you can adjust the A/F with this, i.e. adjust the ecu to suit the injectors?

vocky

I bought it to monitor the a/f ratio's

Plus it's a prerequisite for a standalone ecu 😃

alanoo

Even with your mods and your "not ideal" remap it is a must have vocky 😃

2-20

One question
Can you use the signal of a wideband to feed directly the stock ECU when there is also a 0-1v "narrowband "output ?

markv

The LC-1 has 2 programmable outputs. First output is set to emulate a narrowband sensor, so you can connect that to your stock ecu. Second is default setup to be 0-5V for full range lambda values. Both output are fully programmable, so you can choose which ever values you want.

Mark

(Mine is not on yet, been laying around for a couple of months, still sorting out a custom display...)

Yello

There is also the Zeitronix wideband system, I`ve mounted one on my car today, together with an Apexi SAFC-NEO to adjust AFR. The Zeitronix unit has an narrowband output to replace the original narrow-band, and here you can centre the A/F anywhere between 9.6 and 21.Read more on:

http://www.zeitronix.com/questions/NBpoint.htm

Im finish with all the connections but haven`t tried it yet, will come back with some screenshots tomorow.

vocky

thats my other plan, use an Apexi safc to adjust certain points of the map.

Yello

Have just been out for a test ride, the Wideband logger and SAFC seem`s to function like they are supposed to. Was realy easy to setup and use, the worst thing was to route the cables were I wanted them.

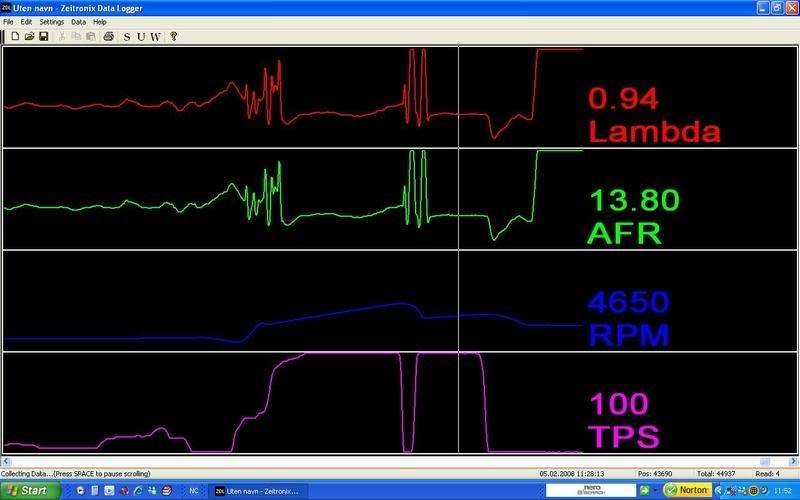

Here`s a screenshot from the datalogger:

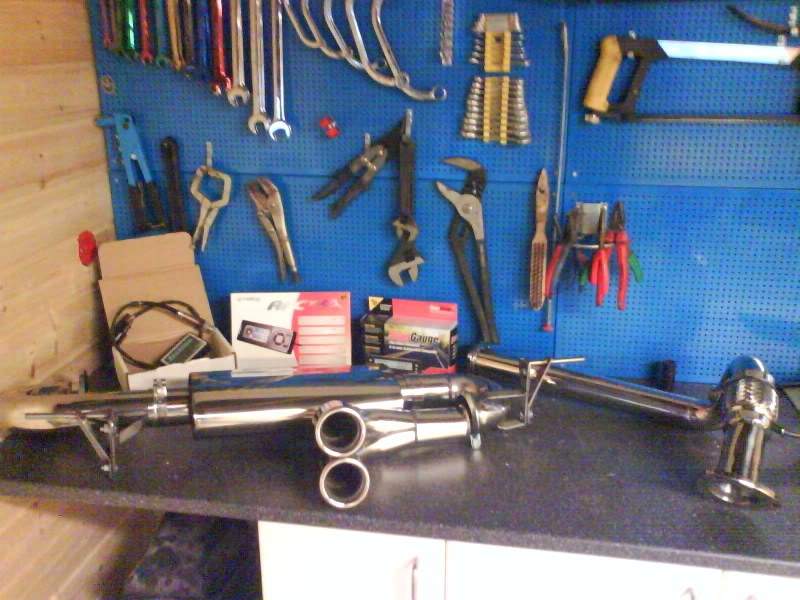

What I mounted yesterday 😃

The Larini is LOOOUUDDD :?

vocky

NICE 8)

but loud :lol:

my modded 2.5" milltek is still too quiet 🙁

alanoo

Is the new SAFC-NEO model still limited to 16 points correction only ?

Yello

Yes its 16 point correction in pro mode and 8 point in amateur mode. The SAFC-2 only had 12 point correction, so its getting better 🙂

vocky

fitted the gauge, but not wired up yet :roll:

Europa_Blue_SE1

Looking good vocky what's the other dial???
