urgent leather seat question

DBcoup

if i replace my seats with leather heated ones with side air bags and pre-tensioners what do i need to connect them up? I mean is it a Tech2 jobbie as mine are just basic black cloth seats.
Urgent answer required please.... 😃

vocky

if you don't have side airbags then leave them disconnected dunno..

but if you already have them it's just a case of disconnecting the battery for 30 minutes and swap over the seats 🙂

DBcoup

Thanks neil is wiring up the heated seats a big job? going to pick them up tommorrow woohoo.gif

vocky

you could have the wiring already in place, if you do it's plug and play 😃

well when you fit the switch :lol:

DBcoup

I think from memory i have a yellow and purple plug underneath just doin nothing notsure.gif

vocky

yellow is probably airbag

purple could be the heated seat plug

if you haven't got side airbags don't plug them in, the airbag ecu will throw up the dash light.

to make them work requires a lot of work and a new airbag ecu :roll:

DBcoup

Thanks for that...im all excited now christmas has come early for me!!..well it has cost me £450, but it is black and in good nic.

DBcoup

Forgot to ask Neil am i right in thinking that if the heated seat wiring is already in the car it will be behind the panel under the ashtray just needing the switches connecting up?

baldie87

what work is needed to get the side air bags wrking?

cheerz

vocky

if the underseat wiring is there then the dash wiring should be too 😃

to retro fit side airbags you need....

side airbags, door sensors, air tight door seals, a new door loom, a new dash loom, a '4 airbag' ecu

it really isn't worth the hassle :roll:

planty

The wiring is there if it is a 2.2. vectra, take out the blanking plate where the buttons would go and see if you can see the connection behind, mine was all there, from the dash to the seat, i have also taken loads of photos, whice can be see on another website..

baldie87

bloody hell sounds like a lot of work man have to let us know how you get on

cheers..

vocky

fitting the seats is easy, just disconnect the battery for 30 minutes before swapping the seats

DBcoup

Ive just got back from picking the seats up and am going to fit them tommorrow, but before i plug anything i shouldnt in can anyone shed any light as to what cables are what? I know the green one is the pre-tensioner.

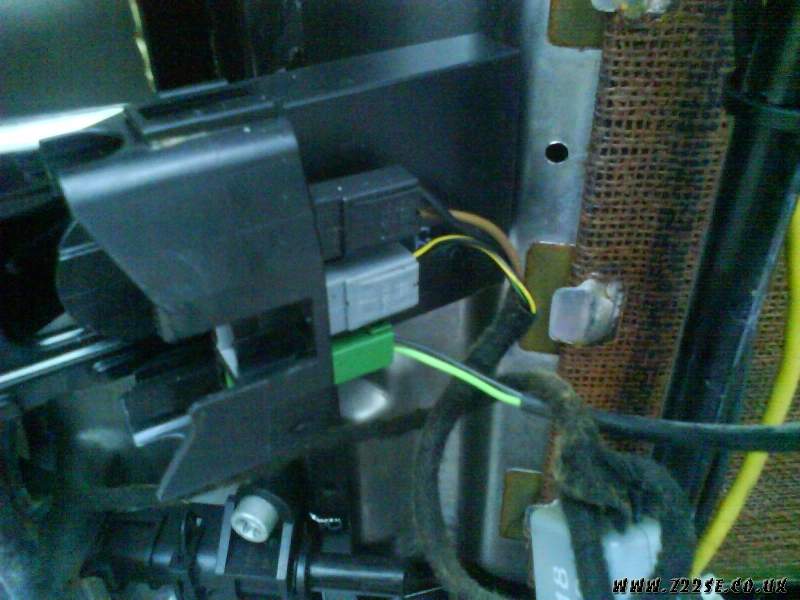

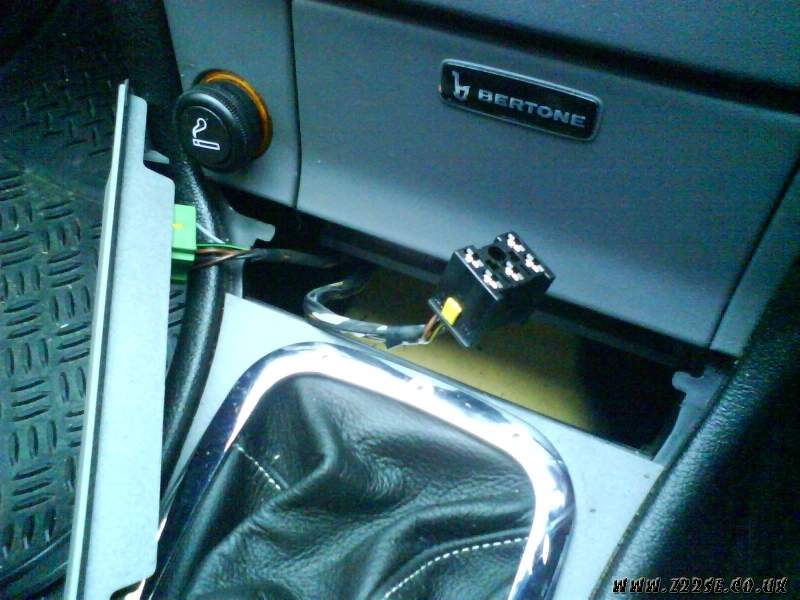

This is what is behind my centre console:

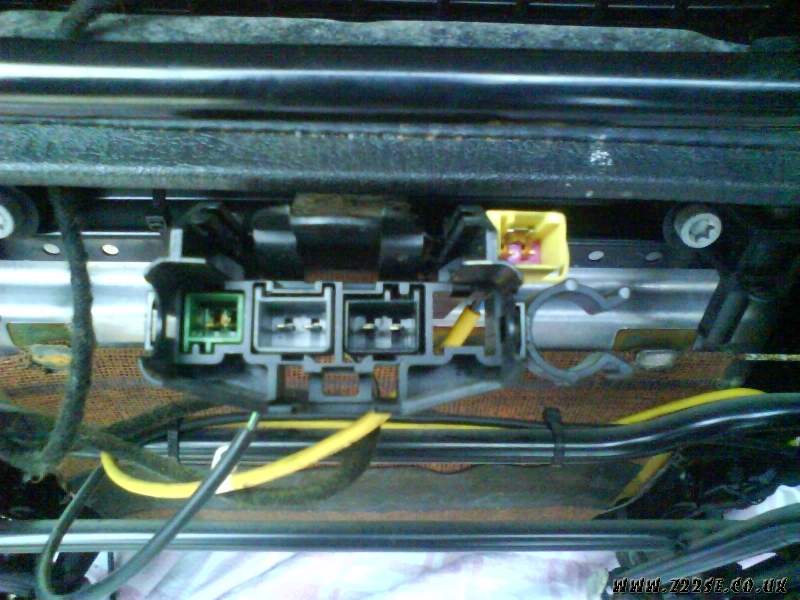

This is whats under the seats;

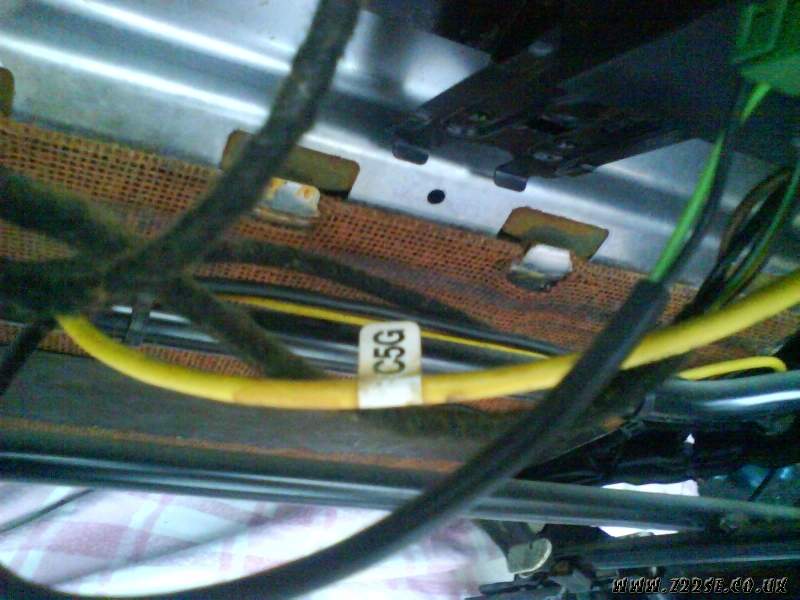

This is a sticker on the yellow cable:

I have wiring under my seat that consists of a green socket (connected pre-tensioner) 2 sockets doin nothing, and a yellow socket doing nothing, my problem is that theortically i could connect them all up under the seat but i just wanna double check which is the airbag? As i could do without a trip to VX to get ripped off.

baldie87

where bouts did you get seats from

DBcoup

A guy in Coventry, he stuck em on ebay yesterday, in 2 hours he had 12 watchers and 4 offers. He was asking £495, i rang him and said ill pick em up today for "£450 and he agreed. I got back at 11:30 and have been cleaning them all afternoon coz they were filthy but apart from usual wear n tear they come up nice. I have been lookin for months for some and though xmas is a good time coz everyone needs some extra dosh!

vocky

the yellow is the airbag, don't connect it

the centre console wiring plug could be the heated seat button wiring
