Sourcing Cheap 100 amp Alternator for VX220

andyroo

Signs are pointing to me having a 120 amp alternator, and I cant take the car apart and leave it cos its me daily drive; so I am thinking of just buying a 100 amp alternator and selling it on if I dont need it.

Can anyone point me in the right direction? If I were to go to the scrappys which models will have the correct alternator in?

TIA

Andy

Muncher83

I just went to a scrap yard and got a 100 amp alternator from a pretty new looking Vectra 2.2. Cost me £50 and it's a pain to remove.

vocky

I wonder how much courtenay could get the usa spec alternator for notsure.gif

it should fit without any mods dunno..

2-20

vocky said:
I wonder how much Courtenay could get the usa spec alternator for notsure.gif

it should fit without any mods dunno..

Yes it could be the best.
Any pics of US installed alternator ? Why are they shorter ? no suppressor on them ??

vocky

nickabdn

Is there any way pf telling which alt I have without dismantling everything as I also use the car as a daily drive and would just like to take it apart the once!

vocky

have a read of this thread

https://z22se.co.uk/viewtopic.php?t=6913

slindborg

wouldnt the Us alternator rotate the "other" way though?

as c0urtenay bang on about getting a US S/C kit not working right as the UK alternator wont turn the correct way with the belt assembly etc.

vocky

the 2.0 sc alternator has a different rotation than a 2.2

the pics above are from a standard 2.2 ecotec 🙂

JohnnyN

slindborg said:

as c0urtenay bang on about getting a US S/C kit not working right as the UK alternator wont turn the correct way with the belt assembly etc.

Is there some sort of issue with you and the chaps at Courtenay? You appear to be quite negative about them in your wording on various posts that I have read on another different site? I just find it a bit unhelpful. With all due respect, you are obviously fairly competent with your knowledge of cars and their mechainical and electrical workings, as are also the engineers at Courtenay. I don't ever seem to see them being negative about an indiviual on this forum such as yourself so why be negative about them? Maybe i'm bias as I have a good relationship with them, but I have yet to hear of any other complaints from other members.

Courtenay has been very good to the members of this site and are our sponsor. That goes a long way in my book.


slindborg

c0urtenay have mentioned.... happier now? :p (as youve read i have poor regard for most UK "tuners" but thats not for this thread lol)

Vocky,
"the 2.0 sc alternator has a different rotation than a 2.2 "

But it was mentioned in the slating of my DIY S/C for well under £5K comments, that the S/C kit spins a UK alternator the wrong way.... inferring that an S/C kit fitted to a Us engine would run fine, and a UK one to run incorrectly.. ie implying the US one spins the other way to a UK one (regardless of 2.0 and 2.2 flavours).

vocky

the 2.0 sc alternator goes the other direction and uses a double sided belt

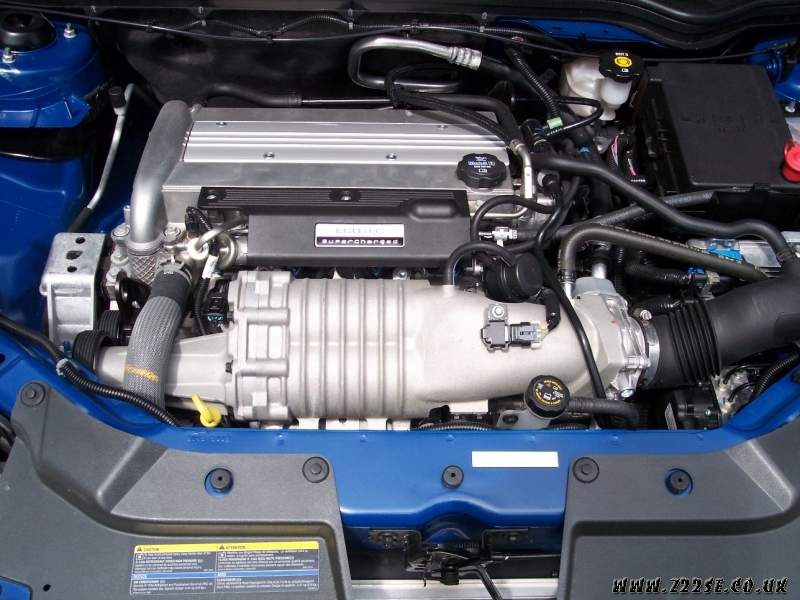

this is a factory fitted 2.0 sc engine - note the sc drive belt

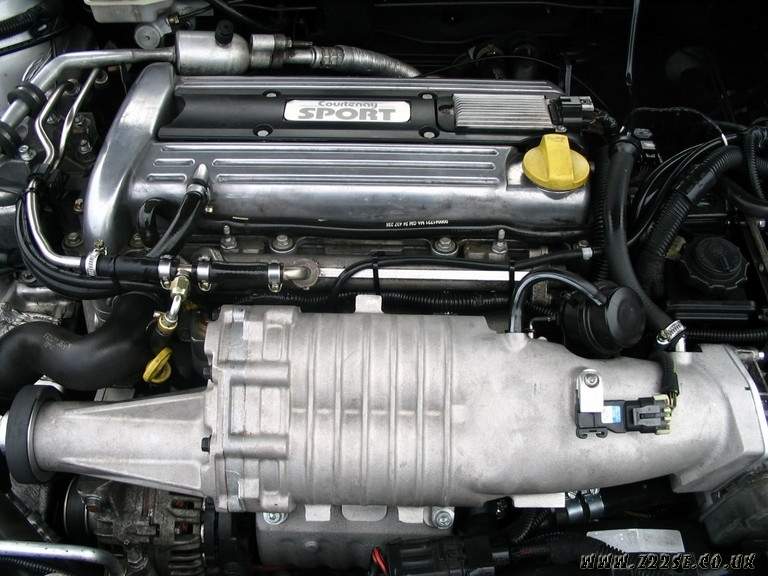

courtenay only use a single sided belt so must retain the standard alternator - note the sc drivebelt

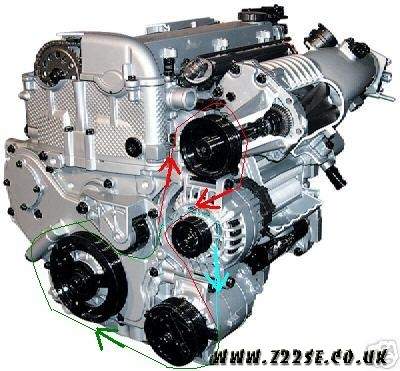

here is a pic showing the different directions, Green is common, Red is 2.0 sc, Blue is 2.2

slindborg

ahhhhh cunning 😉 I stand corrected on that one 😃

vocky

I was originally going the sc route so figured out pretty much all that was required.

then 200+ na power came along :lol:

slindborg

indeed, S/C would only be needed for 300+ now lol.

vocky

amazing how things have changed 🙂

long gone are the days of needing a sc to break the 200 bhp barrier :lol:
