inside a throttle body

vocky

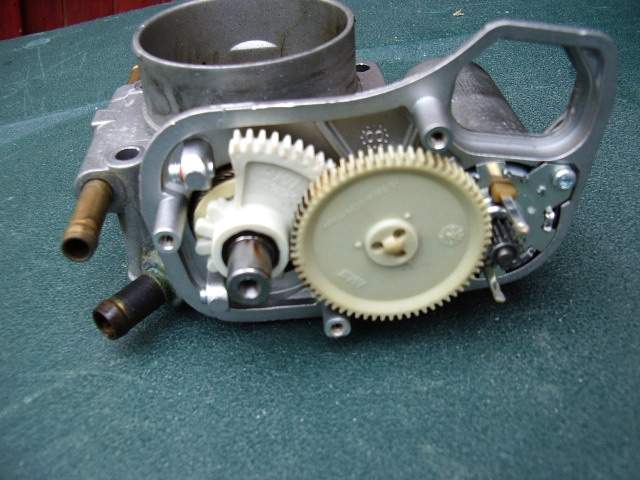

thought I would post a couple of pics of inside the throttle body 🙂

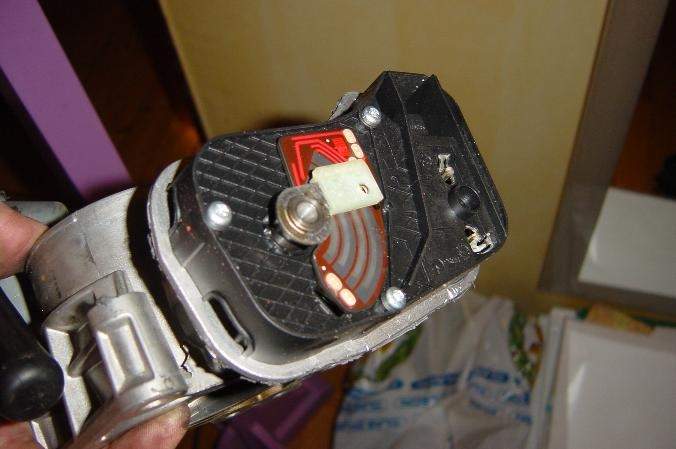

I have removed the potentiometer pcb, wiper arm and plastic housing, the tb is actually from a z1.8, it was the cheapest tb I could find to get a plug for my 68mm TB adaptor wiring loom :roll:

here is a z22se potentiometer pcb, wiper arm and plastic housing

Andy

how did you manage to get them apart Neil, thought they were sealed.

vocky

they just have the metal cap 'crimped' over the electrics to keep the water out 🙂

a little persuasion with a screwdriver soon had the cap off, I wouldn't want to remove the cap on a good tb though dunno..

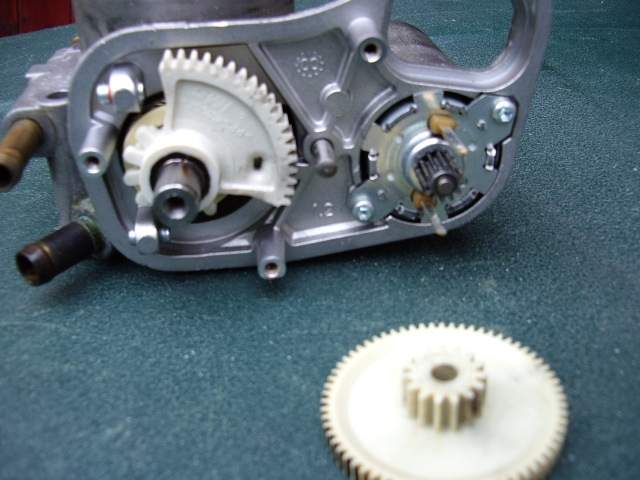

I will strip the rest down and post some pics 🙂

this is actually a "don't pull a tb apart because it will never work again" thread :lol:

Andy

ah right i see.

Blue_2_2

I took one apart with the idea of having the body rebored

I used a hacksaw on the crimped edge and then a
pair of screw drivers to open the case like a tin of beans (lol)

they come apart quite easily, but putting them back togther is a f'ing pain!

vocky

not really a viable option dismantling and then rebuilding the tb 🙁

Blue_2_2

Agreed!

I took one apart and couldnt get it back togther 🙁

thankfully the black plastic plug came in handy 😃

vocky

2198cc said:
thankfully the black plastic plug came in handy 😃

snap :lol:
