total closure of windows on astra From key fob

evocarlos

hey Right so i trying to make my car close the windows from the key fob when i tell it to dead lock not sure how i going to do it so i thought i would ask u guys.
any info will be most aprecated plus i was thinking may be a universal total closure relay wired up to the dead lock wire or can it be done with just wires??? i have no idea where to start cheers carl..

rushy

Do your windows not just go up when you hold the lock button down for a few seconds?

JohnnyN

LMF do a total closure unit that is just a 2/3 wire splice into the wiring loom down in the drivers footwell. I fitted one to mine about 12 months ago. It took 10 minutes to fit. I think they're about £20.

Matt

I bought mine from E-Bay, cost £8 including delivery. I've just had a look now, and the person who I bought mine from is no longer a member.

EBAY said:

Seller total-closure ( private )
no longer a registered user

Was a piece of piss to fit though, as Johnny said, 3 wires, jobs done.

JohnnyN

Couldn't find the kit on the LMF website but they are still for sell, they are £29.99.

thumbup

itsonlymoney

easy to fit! I have pics from when I fitted mine if they'll help

Rob

evocarlos

hey Ive done it got the closure relay from lmf the instructions that came with it were very straight forward making it easy to fit its just there was 2 black and blue wires and i chose the wrong 1 first just swapped them and it worked fine... 😃

Matt

I made that exact mistake as well, I chose the wrong wire, and couldn't figure out why it wasn't working.

dodger

I thought i did a "how to" on fitting this, i sure it's on this site.

EDIT - here https://z22se.co.uk/guides/totalclosure.pdf

evocarlos

dodger said:
I thought i did a "how to" on fitting this, i sure it's on this site.

EDIT - here https://z22se.co.uk/guides/totalclosure.pdf

yes and it was helpful but there is two black/blue wires on the 24pin plug and one does work and one dont i just swaped to the 2nd wire and it worked fine.. 😃

Matt

Roger, is the how to guide you did for the Astra, or the Vectra?

dodger

the guide is for a Astra hatchback as i believe that the coupe wiring is different and vectra is different altogether.

Matt

Wish I'd read your guide when I did mine then, as the instructions I was sent were for the Vectra and the Zafira, both totally different again to the Astra.

xinitialz

u can make it yourself for just a few £'s

some chap has made several ones and im waiting for mine to arrive by mail cheers..

here is info bout how he made it... too bad its in dutch but if u know a lil about electronics im sure it could be helpfull

http://test.jellemampaey.be/auto/schakeling/index.html

memphis2008

http://cgi.ebay.co.uk/Window-Closure-Mo ... 0099914186
is this one any good guys? think i'll do mine

Matt

Thats twice what I paid for mine. The ones which most of us have fitted are just a little black box, with 3 wires hanging off the.

evocarlos

in a blue peter style of things
Heres 1 i made earlier

ive made 10 fitted one to my mates astra the central locking module did not have a black/blue wire so had to use the red/yellow now the windows shut on one push of the key fob witch he wanted lol
9 left ...

xinitialz

did my link help u out then? i hope it did ^^

not to mention u dont have to pay 10£ for something that costs almost nothing to make urself

mine has alrdy arrived and its so fucking sexy to see my windows roll up lol

trisha

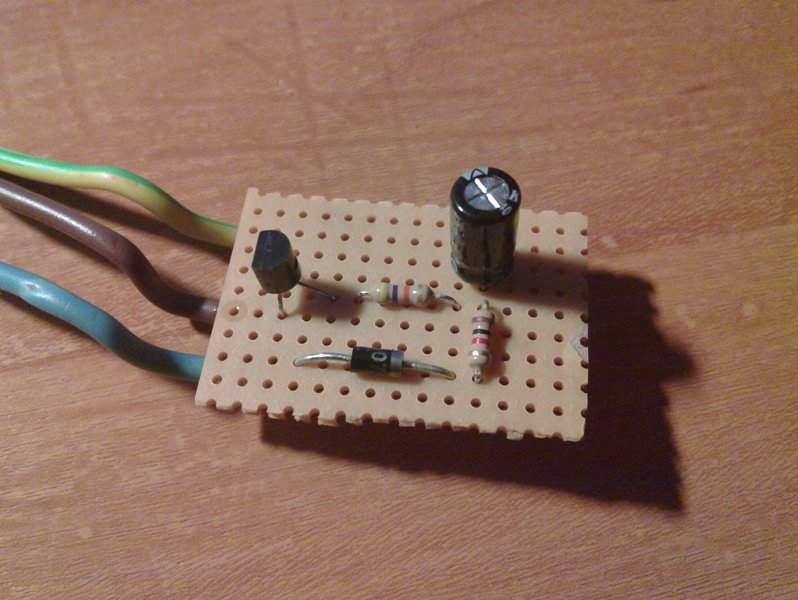

i have made one module like this with 3 wire.

but i can't figure how to connect.

evocarlos

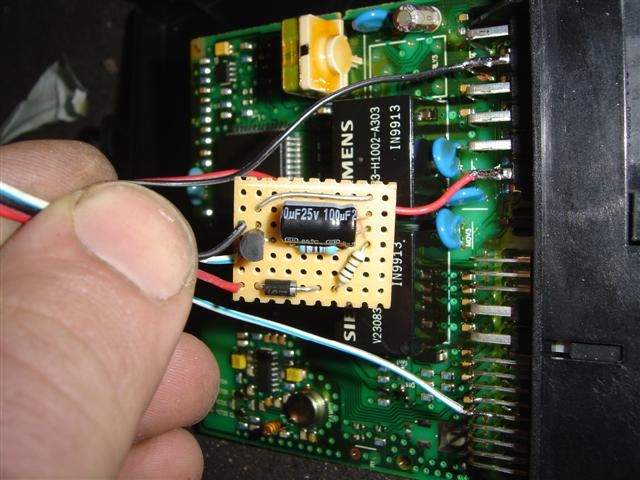

you could remove the top cover on you central locking unit and solder it in direct like i have done in this image

wires in my pic are

black = gnd
red = +12v
blue/white = blue/black - (dead lock/central locking trigger)
but!

evocarlos said:

ive made 10 fitted one to my mates astra the central locking module did not have a black/blue wire so had to use the red/yellow now the windows shut on one push of the key fob witch he wanted lol

in your case

blue = +12v
brown = gnd
yellow/green = blue/black - (dead lock/central locking trigger)

its prolly best to have a look at this pdf also https://z22se.co.uk/guides/totalclosure.pdf

its been like 2years since i have been on this fourm so consicder your slef honnerd with my reply hehe 🙂

i do hope the info helps
