engine mount

ob_one

does anyone know the part number for the engine mount for 2001 zafira z22se auto vauxhall say have 2 but not sure which
one

ob_one

drivers side sorry

KevinH

Hi @[deleted],

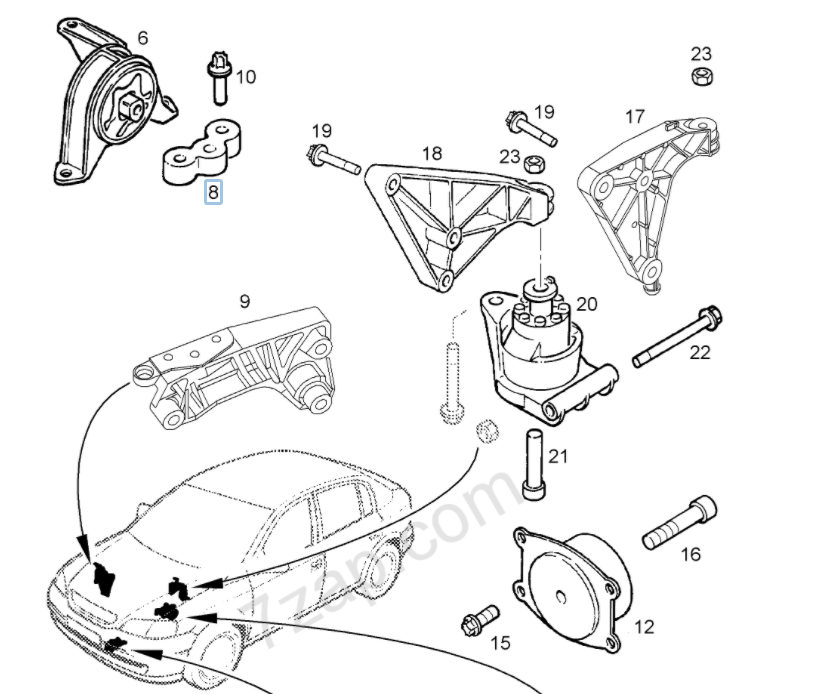

Looks like Vauxhall are correct, No. 8 in diagram is showing two part numbers, so I would imagine it depends on your VIN number as to which one is required. Do you know if there is a part number stamped on it?

Referring to the diagram above;

90539246 - Bracket, Right Engine Mounting
92097031 - Bracket, Right Engine Mounting (IDENT CF) (RAYONG)
9156986 - Support, Right Engine Mounting
9223092 - Screw, Torx, M10 X 55, with Washer, Bracket to Support (x3)

Hope this may help 🙂

ob_one

cheers mate I was looking to get number 6 the rubber is slit

ob_one

KevinH

No. 6 is listed under 'Front Engine Mounting', for some reason :confused:
GM Part # 9227958 - Bush, Hydro, Front Mounting, RH

ob_one

thank you so much rang a vauxhall dealer today and they said they can't give out part numbers

KevinH

@[deleted], No problem, glad to be able to help other members.
For some reason the dealers parts departments don't like giving out part numbers.

corsaZ22se

You can use this for part numbers @[deleted]
http://www.catcar.info/opel/?lang=en&l=bWFya2E9PVZYfHxzdD09MTA%3D

ob_one

cheers mate that is handy
