B207 - NA

vocky

Not built that many NA engines using the B207 engine as the base.

This one is getting z22se crank, z22yh pistons and rods - to increase the CR to 11:1, balancer delete, open up the exhaust ports, 2.4 inlet manifold and a WeaponR exhaust manifold. So should be fun 😃

45 minutes after arriving :LOL:

vocky

head is now fully stripped 🙂

I have also finished the balancer delete on the block.

I have fitted blanking screws to the exhaust auxillary take off oilway and the Saab PCV hole - I have drilled a 2mm hole to reconnect the PCV (z22se hole is in the middle of the large hole, so the gasket can fall out)

cavaddict

Got 196bhp out of mine Neil having done pretty much what you're about to do although I used the Z22SE bottom end. Be interesting to see how yours goes.

vocky

yh pistons all cleaned up and I got the weight down to 0.6 grams difference between them all. It could have been 3 grams difference between the heaviest and lightest !

vocky

crank arrived today, it has freshly polished journals too 🙂

vocky

rebuilt the bottom end today

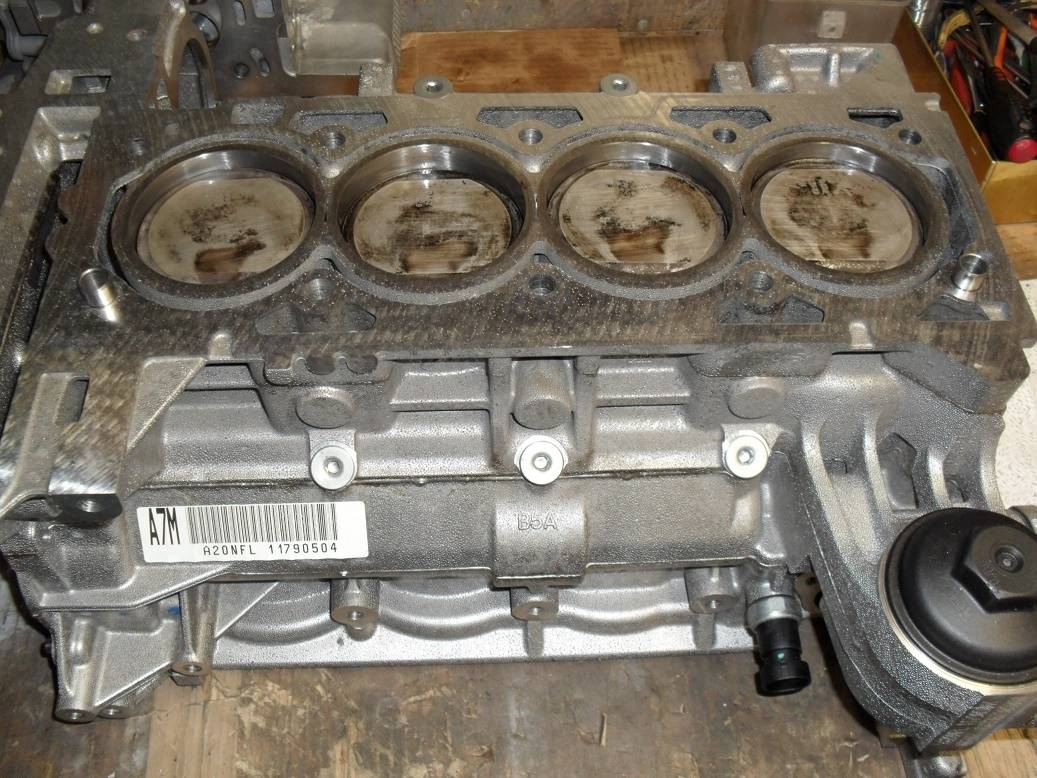

z22yh pistons and rods fitted, used some new z22se rings I had laying about

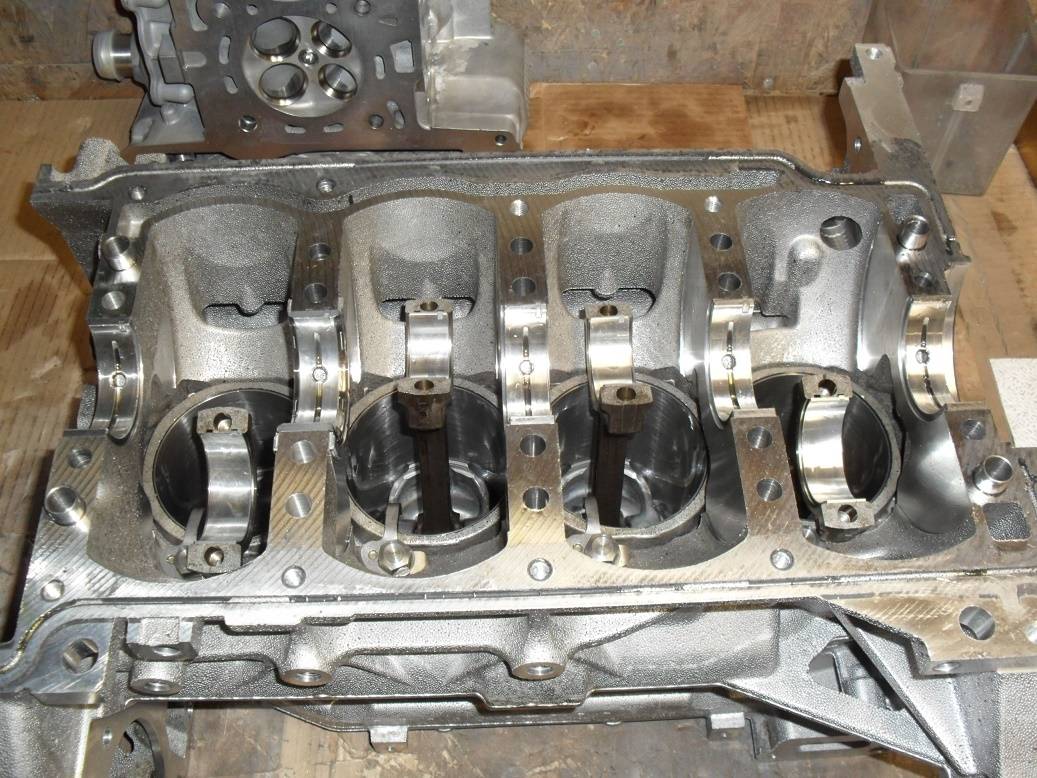

new bearings - oil jets need modifying for z22yh pistons

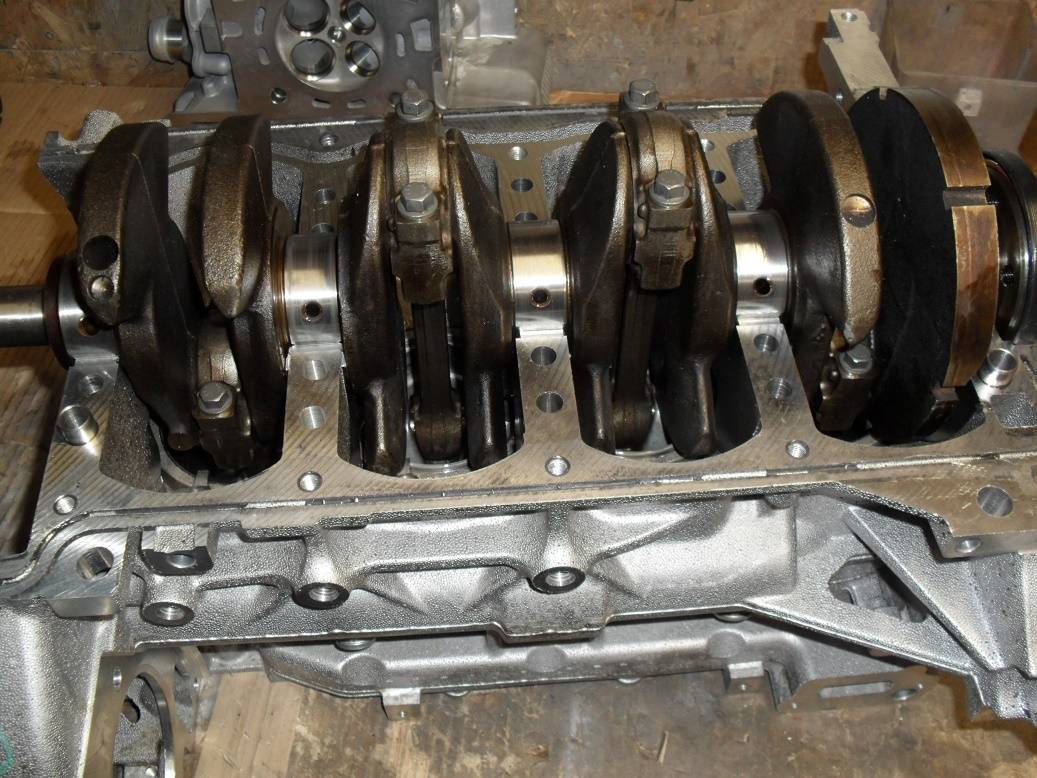

freshly polished crank going in

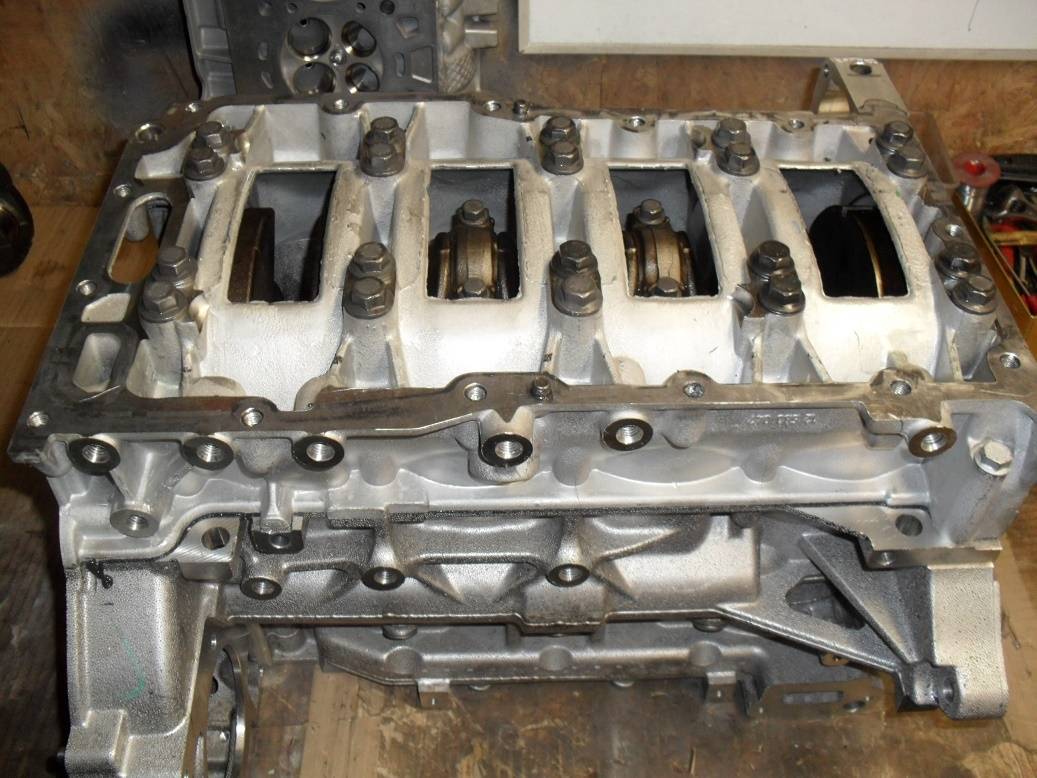

craddle bolted on

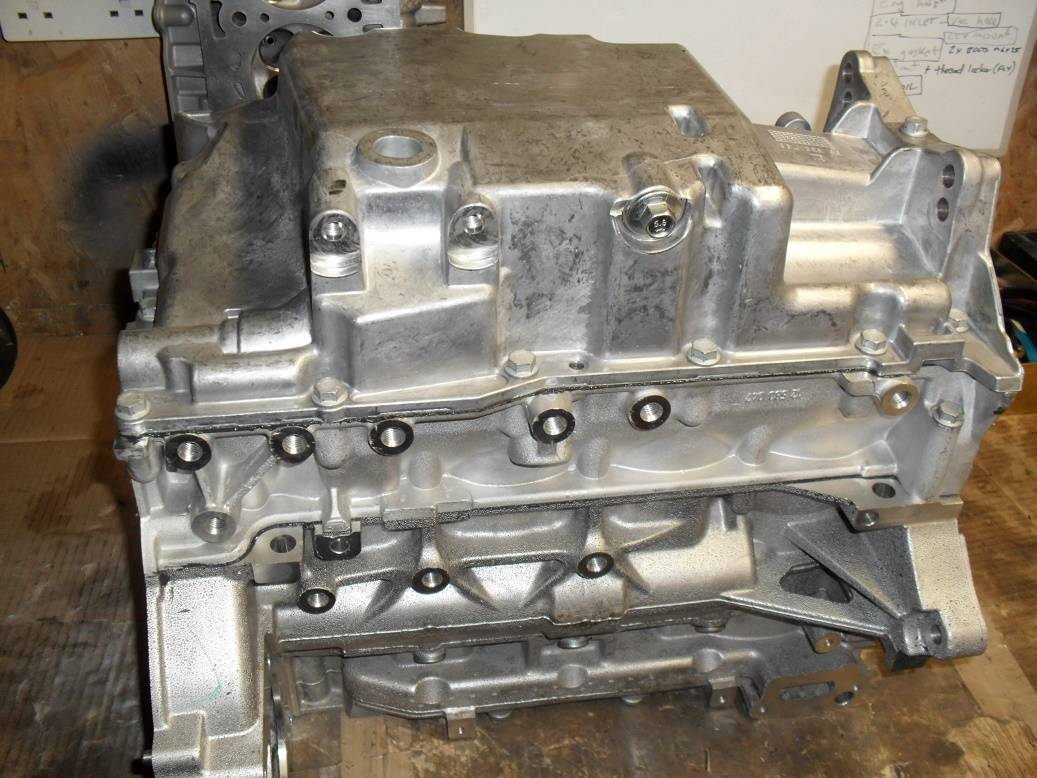

saab sump

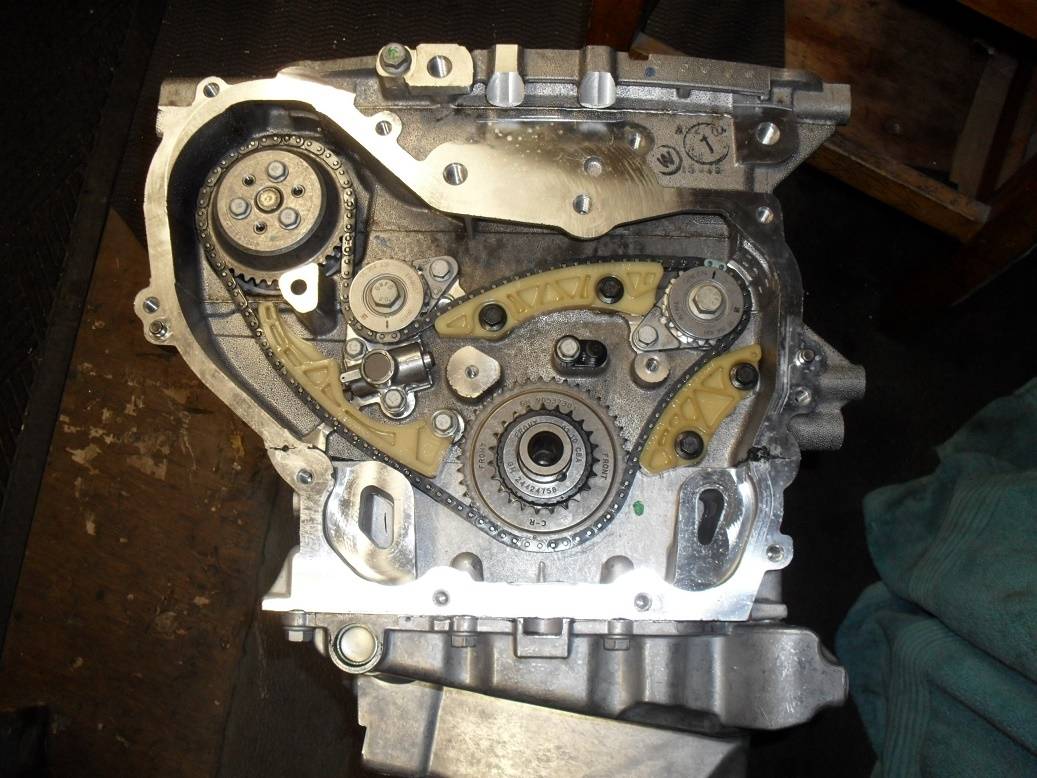

water pump and chain fitted, balancer delete already completed

figo126

nice work ,,,,,,

ob_one

😉 lovely

vocky

Just got the head to port and I have sent the cams to Piper, so they can work their magic 😃

figo126

what do piper charge if you don't mind me asking,,,,

vocky

They are £453.01 delivered, plus £10 to send the cams to them

VX22BP270

http://www.pipercams.co.uk/pipercams/www/product.php?pid=VX22BP270

CompCams are currently about £750 delivered to your door, including shipping and import duty

Project_L850

Do you fancy turning it into an 8.5k rpm screamer and putting it in an old touring car!!! 🙂🙂
Seriously though what are you going to put it in?

TFD

Really interested in the outcome of this build! You make it look so easy,

vocky

Project L850 said:
Do you fancy turning it into an 8.5k rpm screamer and putting it in an old touring car!!! 🙂🙂
Seriously though what are you going to put it in?

the z22se crank / rod ratio only allows a maximum of 7800 rpm and it's going in a zafira 🙂

vocky

whilst the cams are away at Piper I opened up the exhaust ports, refitted the valves and then bolted the head back onto the block

vocky

I had a delivery today, was not expecting them back so soon 🙂

vocky

Fitted the Piper cams with z22se cam sprockets and the B207 chain kit.
The Piper cams are designed to use standard z22se sprockets.

Engine ready for install, it's going to have the z22se cam cover from the original engine

corsaZ22se

these would go nicely on that engine 🙂

vocky

installed this engine yesterday, pig of a job due to a WeaponR exhaust manifold and fitting a 2.4 inlet.

I forgot how 'ticky' Piper cams sound, I guess removing 1mm from the base lobe rather than adding metal is easier for them.

corsaZ22se

i never like the idea of re grind cams.
keeps the costs down though.
