z22se SC

vocky

I picked this engine up earlier and it is getting a full rebuild with Wiseco 8.9:1 pistons, Eagle rods, new genuine chains and water pump, bearings, gaskets, etc

I whipped the cylinder head off to check all was still good. I have heard the engine running so knew it was okay, but always worth another check 🙂

It was removed from a vx220 and was replaced with a forged z22se engine.

valves all good and running sweet before removal

ready for stripping

vocky

Engine is now fully stripped, head has been ported and waiting to go to the machine shop.

Plus I am waiting for parts from the usa, so not much to do.

vocky

just collected the cylinder head from the machine shop, three angle valve seats, valves faces have been remachined and a slight skim of the head

Exhaust ports opened up and the SC cams in the background from ZZP

inlet ports also opened up a little

valves refaced. seats recut and a light skim

vocky

Dbilas valve springs arrived today, so I rebuilt the cylinder head with a new set of genuine valve stem oil seals

And the head complete with SC cams

vocky

the pistons and rods have finally arrived from the states, the pistons have been on back order from Wiseco

vocky

I collected the rebored block yesterday and started the rebuild 🙂

I managed to get the pistons and rods less than 0.5 grams difference in weight, the Eagle rods were all within 0.1 grams of each other.

pistons and rods fitted

brand new genuine bearings

polished crank, craddle and brand new genuine rear main oil seal added

vocky

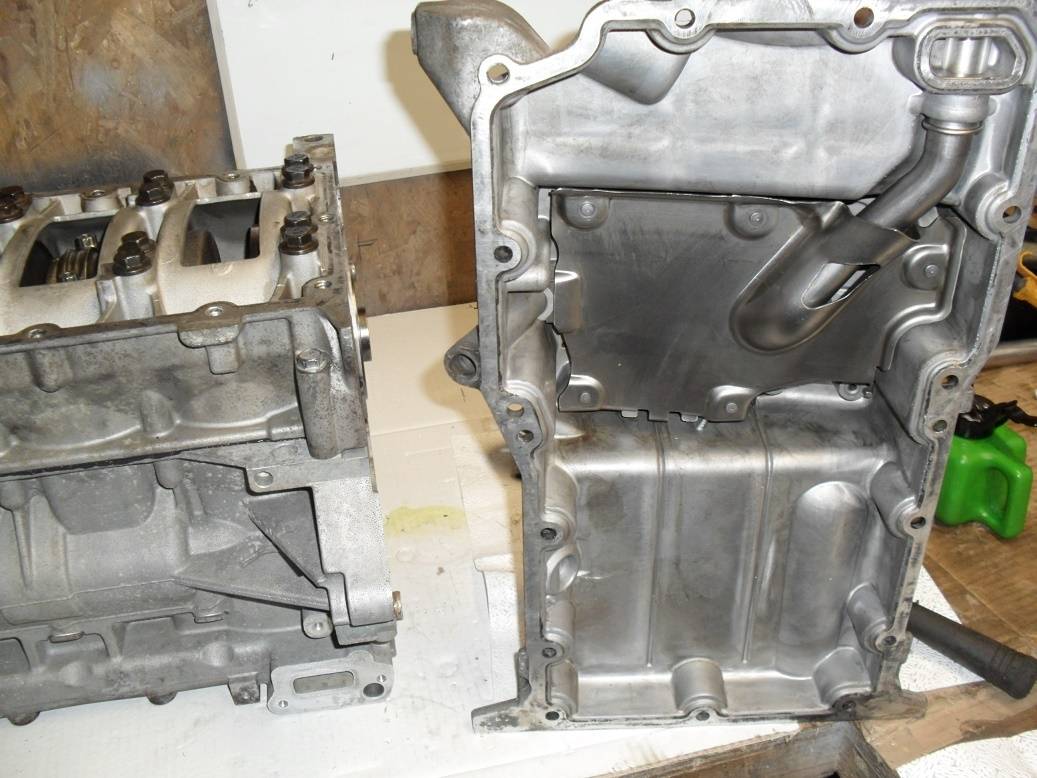

I had the sump cleaned by the machine shop in their engine parts washer

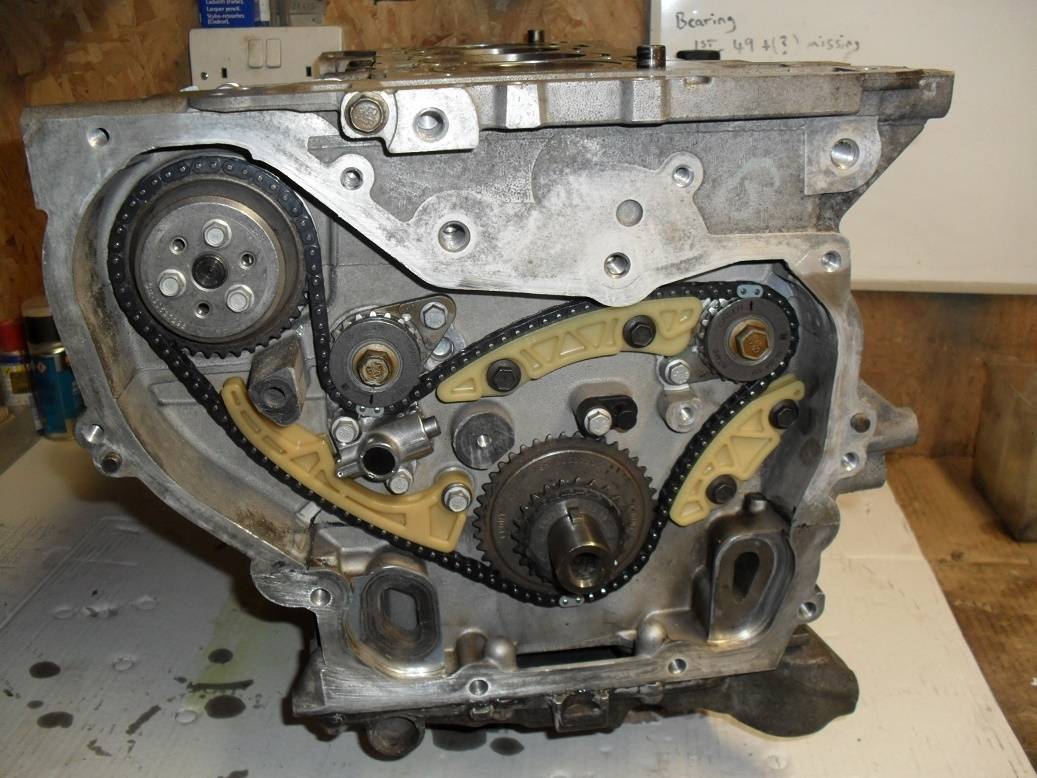

sump fitted, brand new genuine coolant pump, balancer delete and brand new genuine chain kit fitted

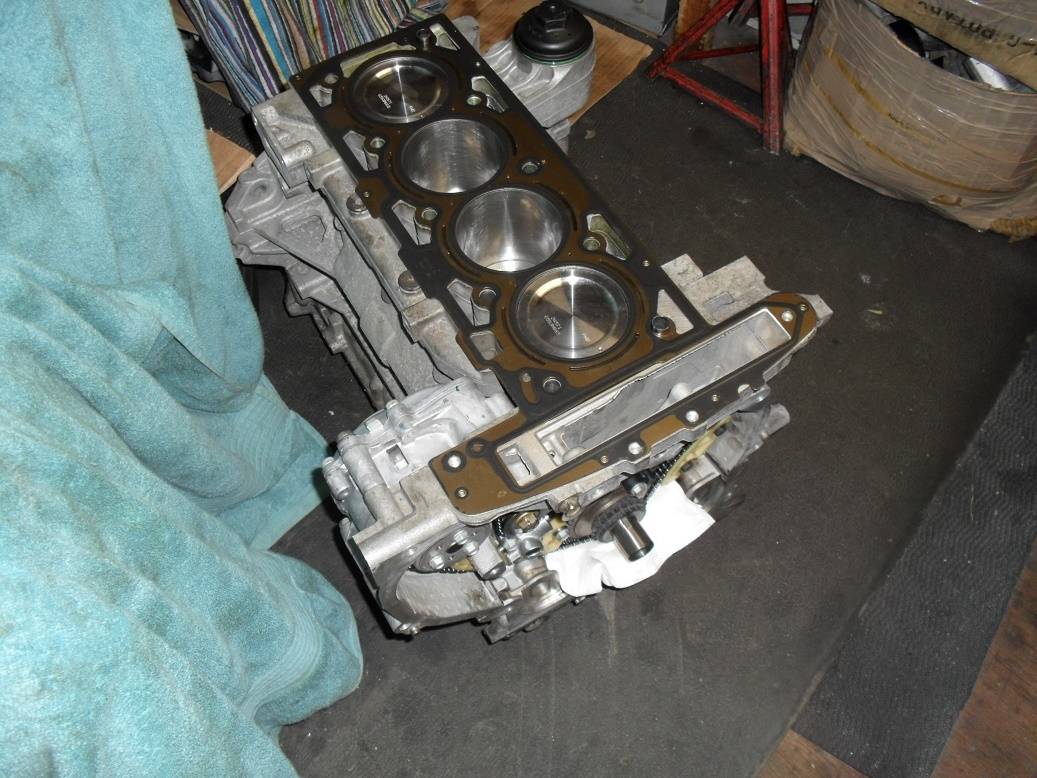

genuine Saab B207 head gasket, I prefer using them on SC engine builds as it lowers the CR a little bit more

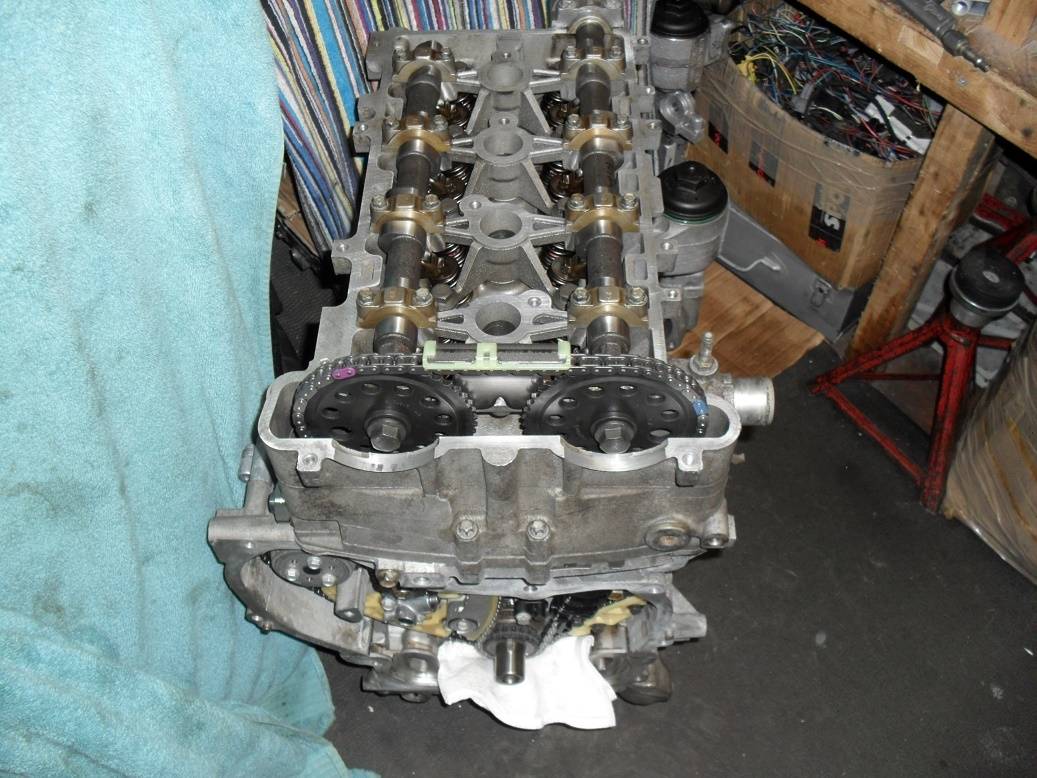

Brand new Saab B207 genuine cam chain kit fitted - these have the adjustable cam sprockets otherwise are identical to the z22se chain kit.

I ran out of time to do any more yesterday, not much more to do and it will be finished 🙂

vocky

cams vernier'd today 🙂

vocky

Finally this engine is finished 😃

New genuine - oil pump gasket, cam cover gasket set, cam cover bolts, oil filter, oil pressure sender, EGR blanking plate, EGR gasket and crank bolt (y)

vocky

waiting to be collected and shipped to Germany 🙂

vocky

on it's way 😃
