2.4 vvt with a few tweaks

vocky

So this engine started life in a Vauxhall Antara, which ended up in the breakers and the engine on ebay 🙂

VVT head is extremely heavy :confused:

So best thing to do is remove it 😃

It is having an external trigger wheel and a Saab head, then a SC :cool:

evocarlos

2mm overhang into the cylinder with the 86mm head ?
does this one have the same crank your using in your vx engine ?

vocky

overhang will be reduced, same as I did with my cylinder head for it's 90mm bore.

Yes, same crank as my 2.5 (y)

Rosssco

Eggggcellent....

figo126

want one ,how much if you don't mind me asking ?

vocky

was originally up for nearly £2k, but sat on ebay for ages and sold for well under a grand

vocky

finished the trigger wheel today

and a picture of the adaptor required to use z22se camshafts and cam cover on the saab head

vocky

new OEM 2.4 head gasket added

figo126

very nice what she going into ???????

vocky

figo126 said:
very nice what she going into ???????

a vx220 🙂

Dave_Gilbert

love the trigger wheel setup, so much more tidy than mine.

vocky

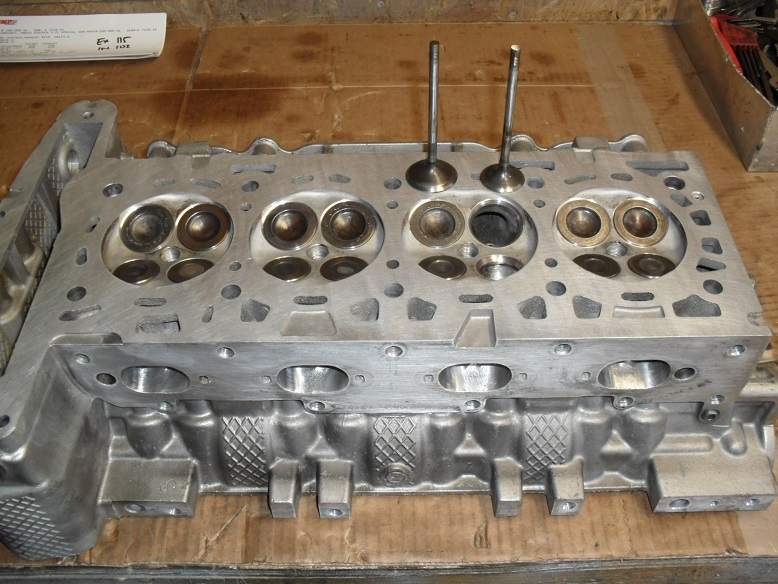

the cylinder head needed some machining, so a quick skim, valves cleaned up and refaced, plus the valve seats were recut

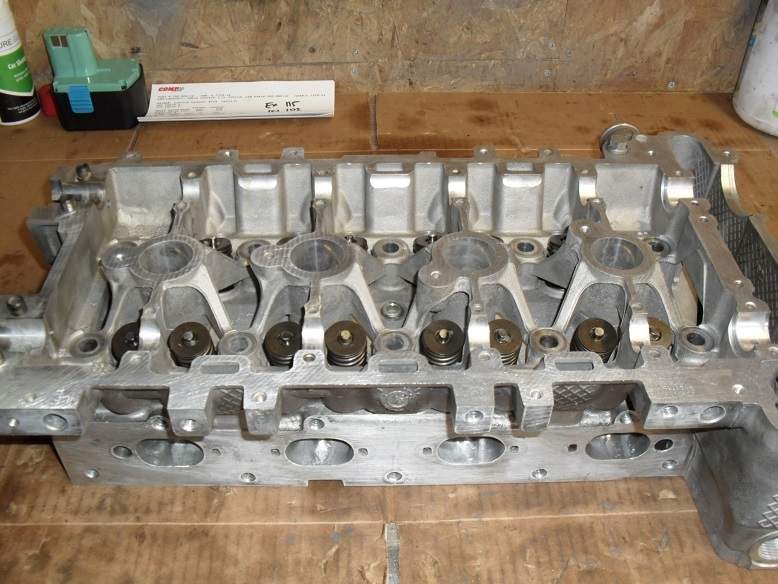

added some brand new valve stem seals and new Saab valve springs

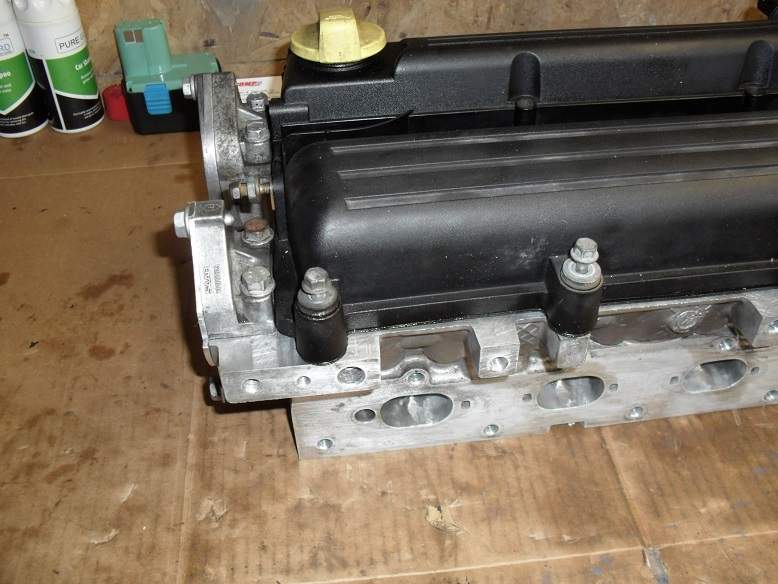

checked the z22yh plastic cam cover for fit

still waiting for the head bolts to arrive, then just need to refit the timing chain and oil pump, etc

5M1THY

Awesome work as always

vocky

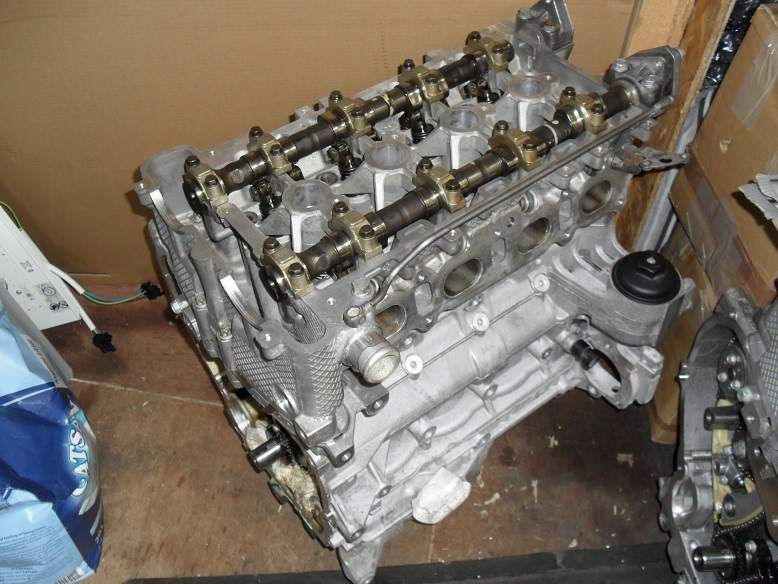

genuine head bolts arrived today, so fitted those and finished the build 🙂

Brand new genuine cam sprockets, sprocket bolts and upper chain guide - 2.4 stuff is totally different (n)

IsaacZ22

Hola! Estoy interesado en hacer un 2.4 y necesitaría información.
¿Se podría instalar la culata z22se sin modificación en el bloque LE5?
Los errores de traducción (ya que soy de España) son grandes, pero por lo que he podido entender, habría que poner un adaptador en la polea del cigüeñal LE5 para que pueda leer el sensor del cigüeñal z22se, ¿no?

stevieturbo

Answers from the original people in this thread might be slim.

I believe you could use the Z22 head on this block.

If you are using the standard ecu then yes you would need the 6+1 crank trigger wheel to be in place. External is the only real option unless you retain your existing 2.2 crankshaft.

If you are using a good aftermarket ecu, then you should be able to use any crank trigger you want

IsaacZ22

No me ha quedado claro, no entiendo la necesidad de mover el sensor de cigueñal al exterior.
de todas maneras me esta resultando imposible encontrar un motor por aqui, tuve la oportunidad de adquirir un motor completo por 500 euros y lo deje pasar.
