a z22se head im playing with

evocarlos

ive got a couple of z22se heads so time to play with them 🙂

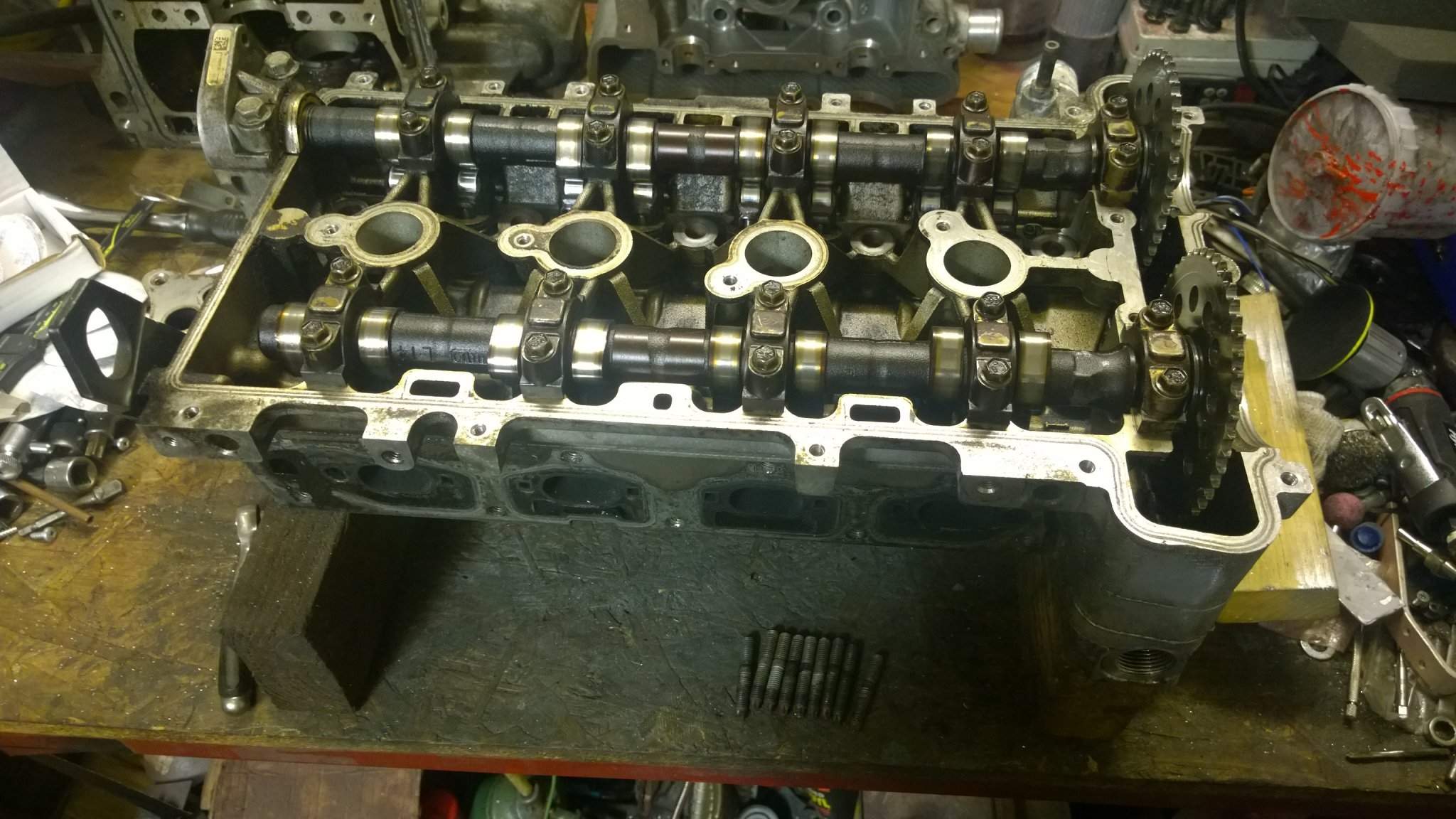

the strip down ready for porting and skimming

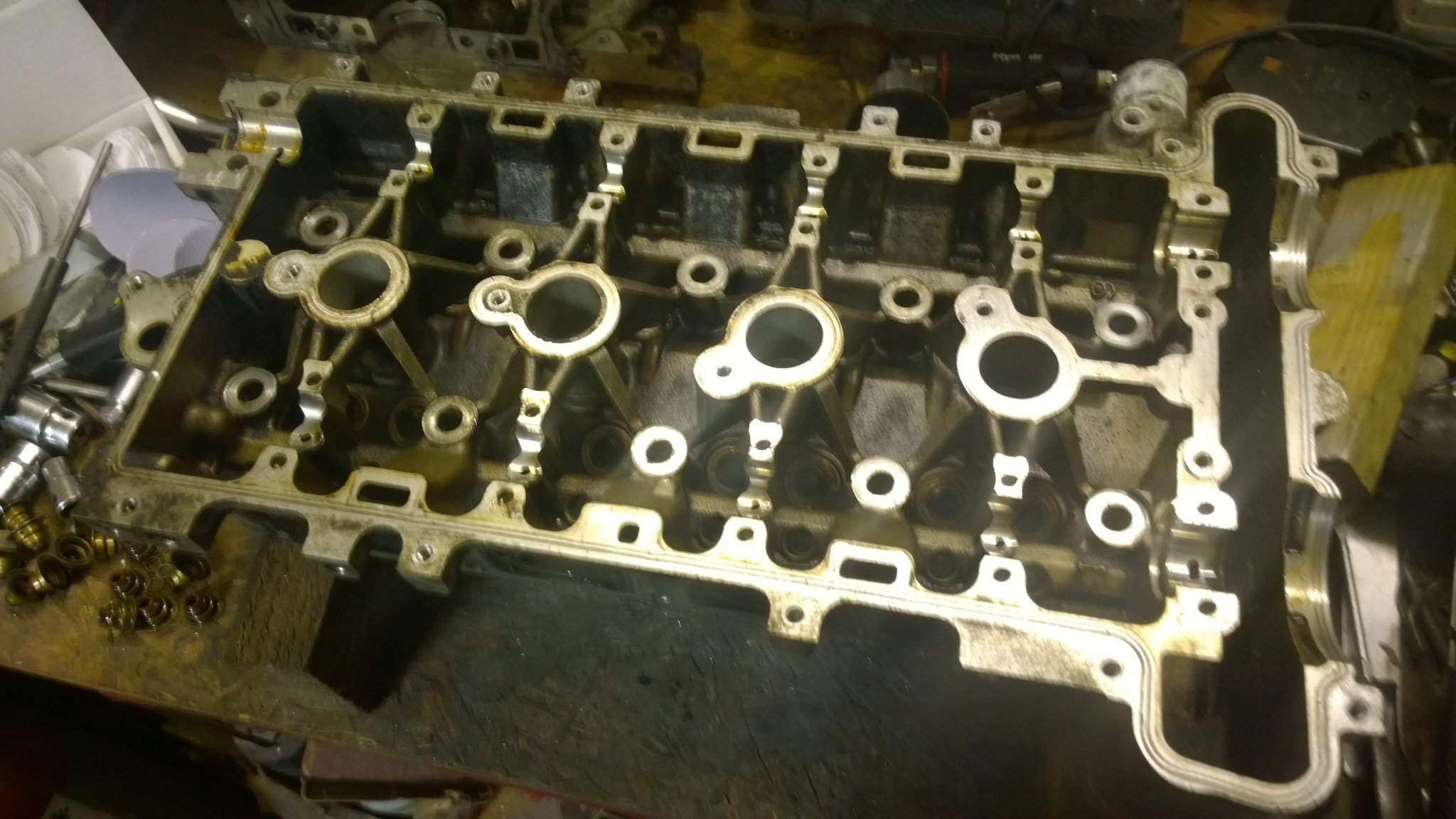

all out

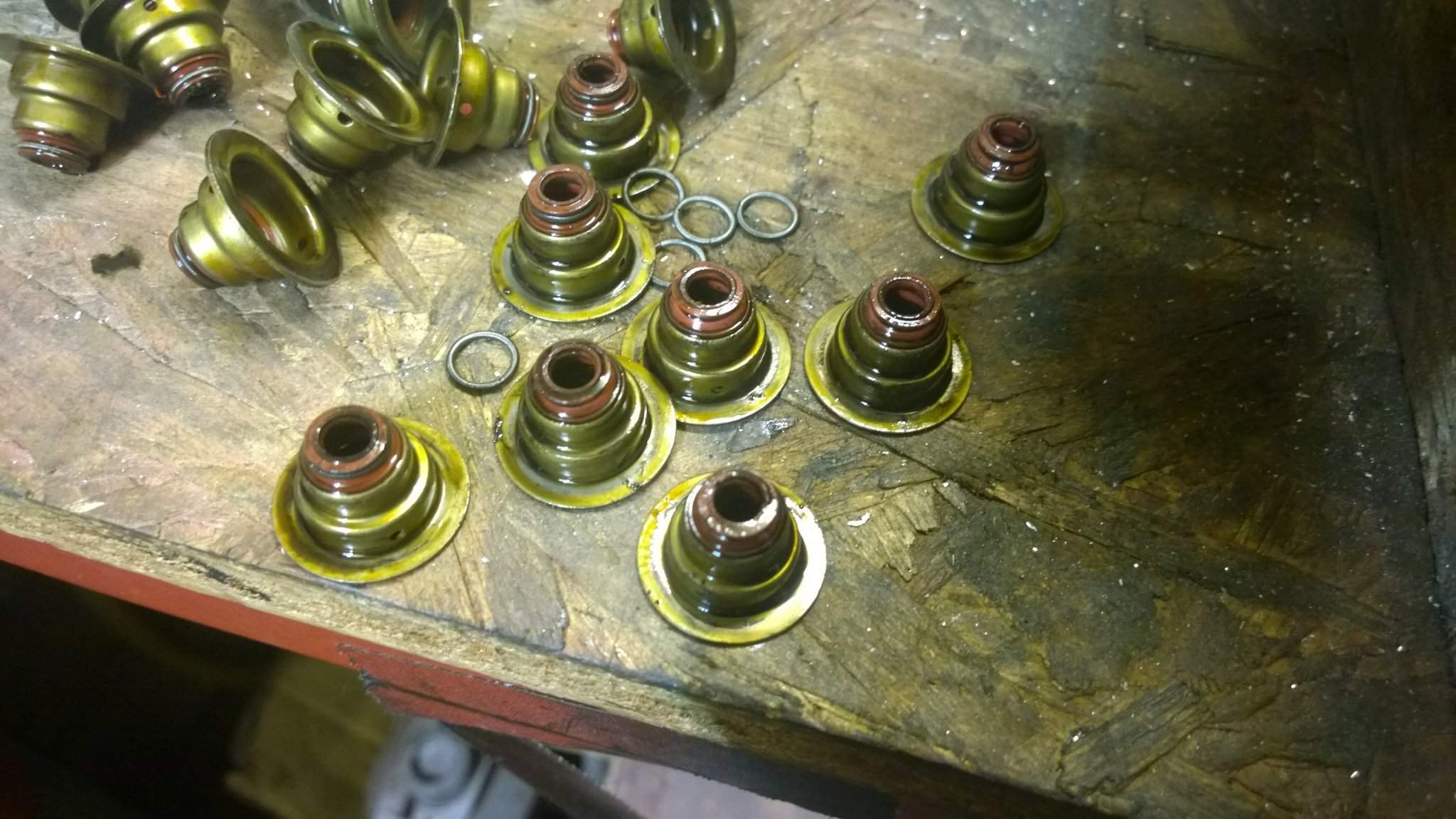

the inlet side valve seals were shafted the rubber has gone hard

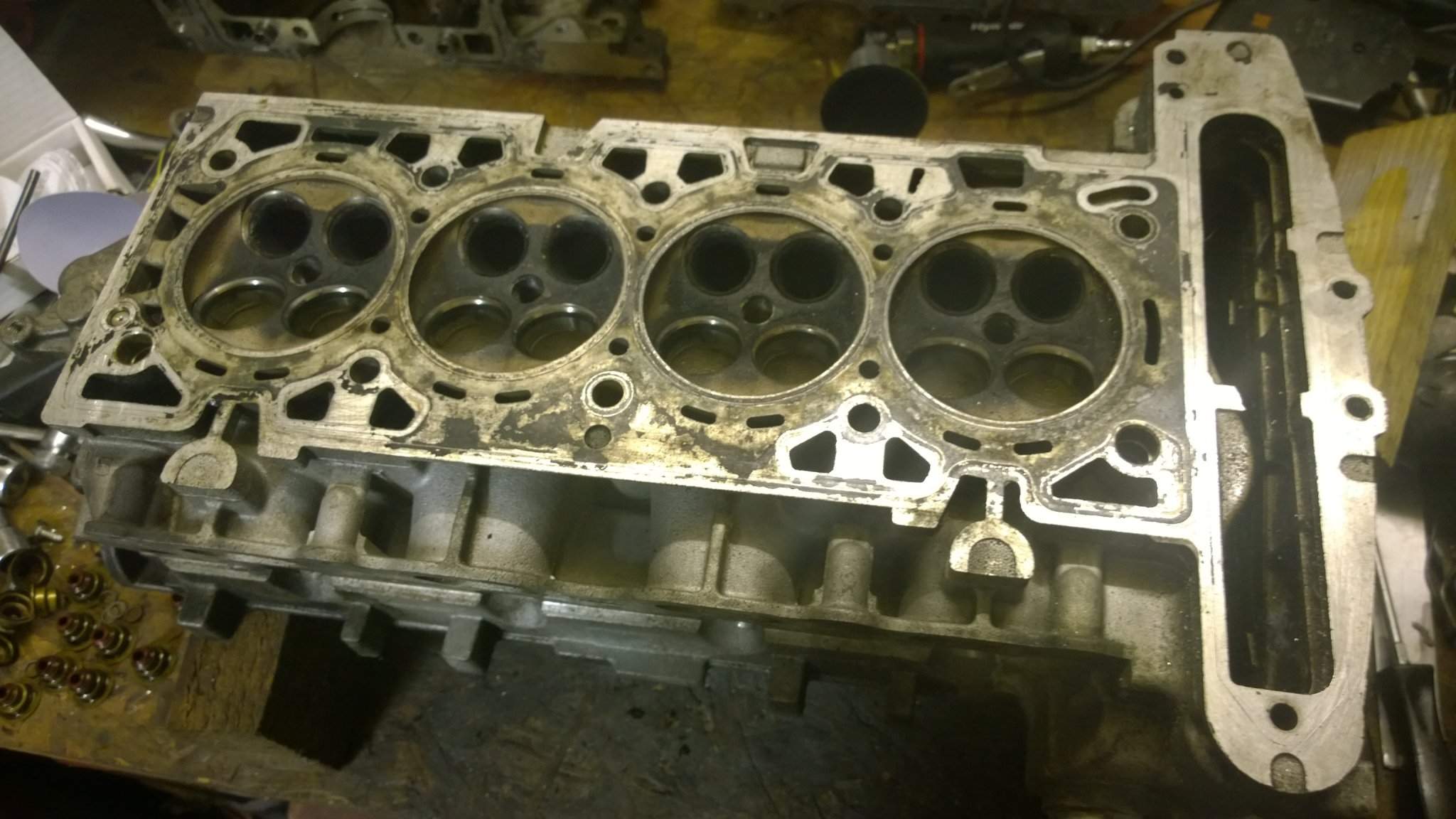

it needs a good skim its looking sorry for its self

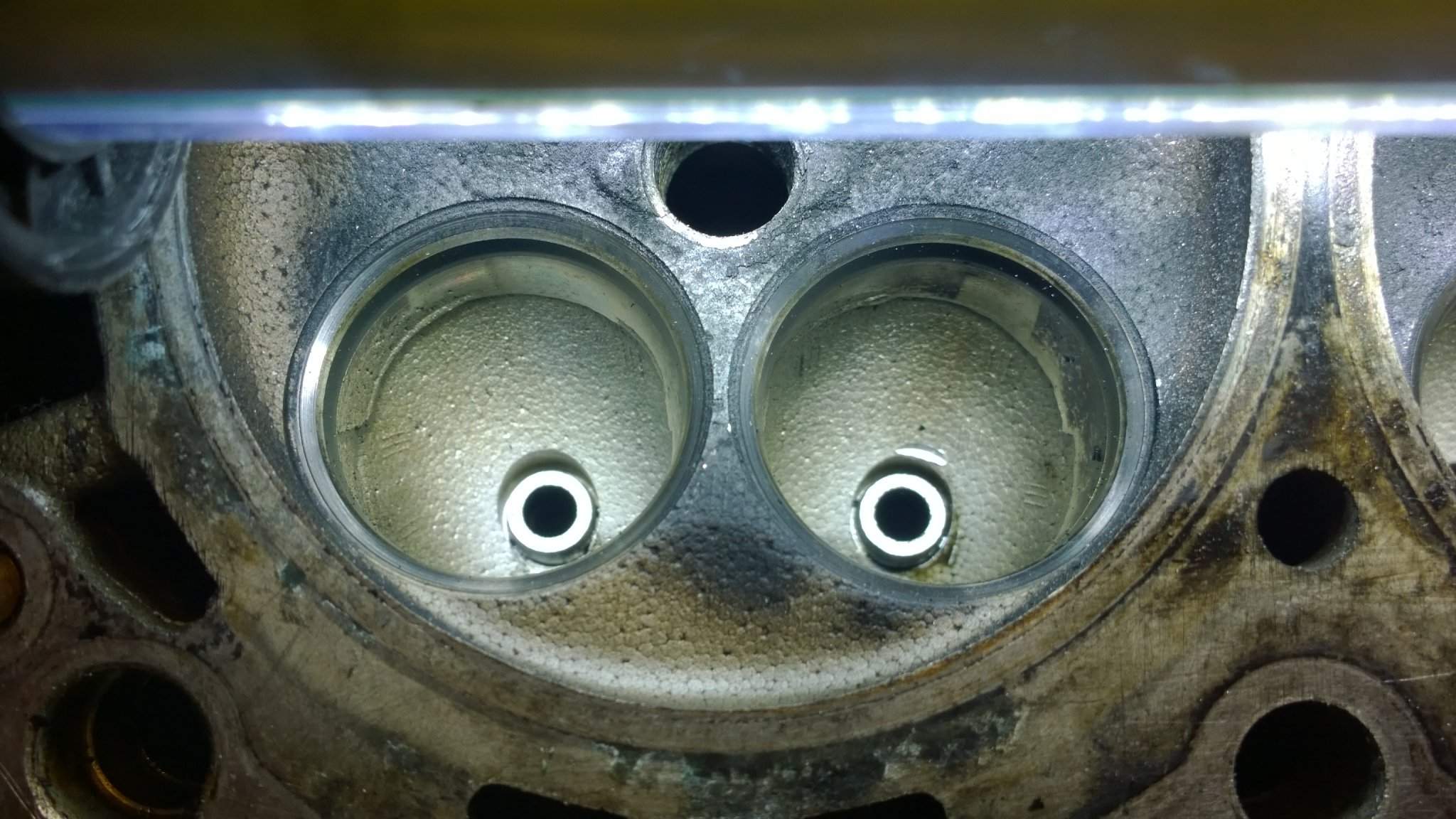

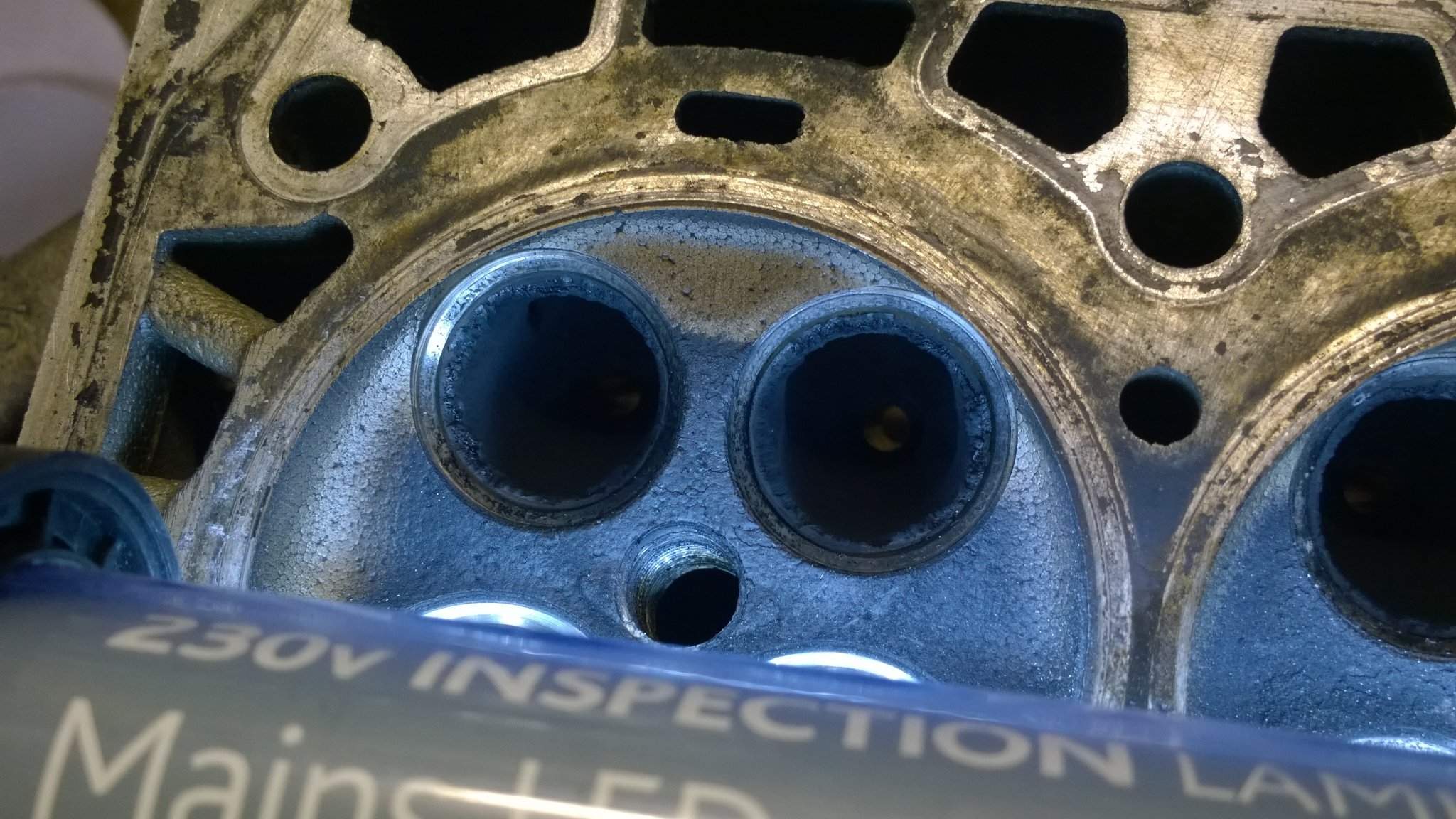

exhaust ports are gunged up with carbon and the seats are pitted

new valve guides at some point

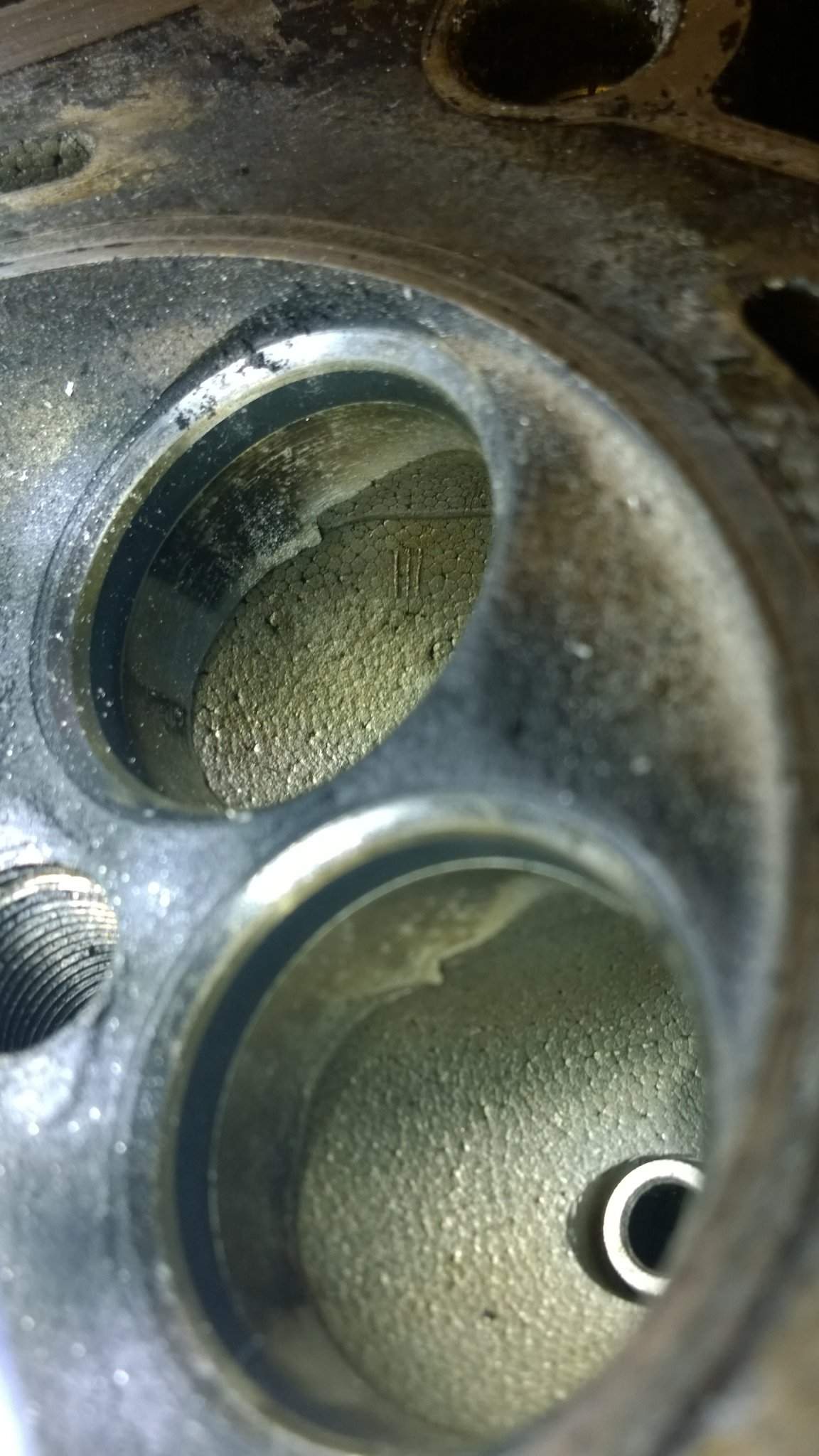

big step in the casting line to be removed 🙂

more soon

evocarlos

@[deleted]
@[deleted]
@[deleted]

hehe 🙂

evocarlos

the tools i use for changing the valve guides these and a hammer and 2 blocks of wood @[deleted]

6mm to get them moving

3mm to push them thru push out from top to bottom then to refit bottom to top

the 3mm is almost the same size as the guide 10mm but once in to the alloy the knurling gets trapped

some modifications shortened the 6mm and ground the knurling off the 3mm

6mm now just pops out 5mm

all the inlet guides were ether to high or to low 10.4mm or 12mm ive now reset them all to the spec 11.2 -.11.4mm 🙂

Dave_Gilbert

Whats this head for then?

Is this the first of the modify n exchange service
haha

evocarlos

Dave Gilbert said:
the first of the modify n exchange

this 🙂 ^

IDI_AMIN

I had to use the handle end of my punch to knock it in as i did not have the correct size of punch , but it still done the job and to remove it was the same method except the punch i had available was maybe only covering 3/4 of the guide to push it through the guide hole once the guide was flush with the head .
i know i followed the correct height specs that you posted on my thread which are also in the haynes manual . If i ever do a guide again i will have to buy correct size for doing the work, the set i had was from machine mart they were different sizes but even the largest head did not completely cover the diameter of the guide.

How is it possible that all the valve guides were the incorrect height on this head . Is it just all the new guides were put in willy nilly without the person following proper specs

evocarlos

IDI AMIN said:
i did not have the correct size of punch

my set is a draper set like this
http://www.tooled-up.com/product/draper-5-piece-200mm-parallel-pin-punch-set/14117/

IDI AMIN said:
How is it possible that all the valve guides were the incorrect height on this head

at some point its probably had bent valves and then had the inlet side valve guides replaced but were just tapped in and not to the exact measurement
im thinking about knocking them all out and replacing them as there not expensive for a set of guides

evocarlos

its now dropped of at the machine shop for cleaning and skimming

i took the new +1 valves with me to see what they thought about fitting them to my head
they drop right in to a stock head lol
just need the seat cutting back a little

evocarlos

its back clean and skimmer need to order the valve guides now 🙂

evocarlos

step one gasket matching 🙂

tried to get a good shot of the runners but this is the best one out the pics i took

milo

So if your doing these heads. How much u doing them for? U got people already lined up? Or just cant sit still atm 😉

Dave_Gilbert

He just cant sit still thats all it is hahahha

N hes doing them just for fun he doesnt want any money for them hahaha (I wish)

Id love 1

evocarlos

milo said:
So if your doing these heads. How much u doing them for? U got people already lined up? Or just cant sit still atm 😉

atm just can't sit still 🙂 but im sure someone will have one 🙂

Dave Gilbert said:

N hes doing them just for fun he doesnt want any money for them hahaha (I wish)

you wish lol

Dave_Gilbert

I said I wish hahaha

Im sure you would do me a great deal on a head (fitted ofcause).

evocarlos

made a start just went out for an hour

evocarlos

had a bit more time on it today

weight saving lol

cleared out to the seat

bottom matched

modded the diy flap wheel to stop the end digging in

lost more sanding to do

Sjdickso

Coming along nicely 🙂

IgorMarkovic

I'm trying to follow exactly what you're trying to do but can't get my finger on it. I see you've cleaned the head and renewed the valve guides, but why are you coloring the inlet ports (or hoe do ypu call them?) blue? What are you exacly trying to do whit the head?

Dave_Gilbert

Porting the holes (making them bigger)
The blue is to show the outline of the gasket so he knows not to go to far with the die grinder.

evocarlos

went and got some more grits

40 then 80 then 120 with wd40

shapes right

shining up

that'll do me 🙂
