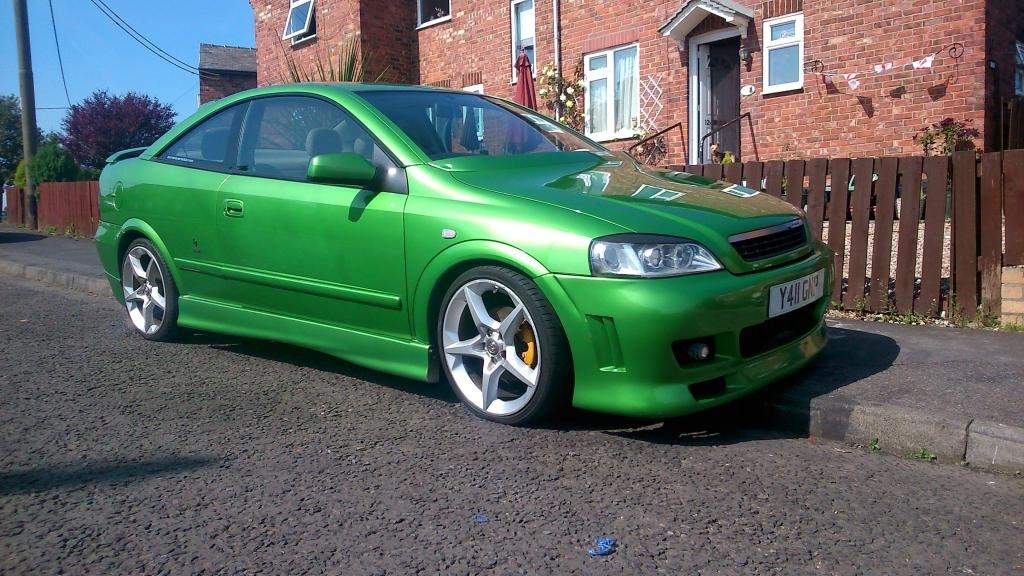

Astra Coupe verde green engine rebuild

danny_s-p

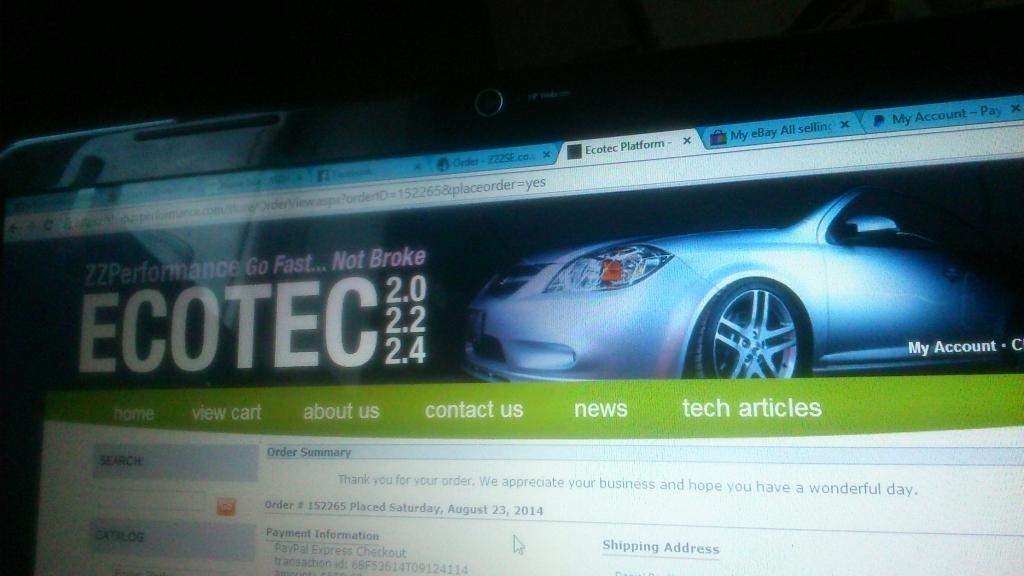

hi so on April the 1st i got my verde green astra coupe 2 months after owning it i had a miss fire code flash up. took another 2 months to fined out the head had cracked an was leaking water in to pot 4 after changing sensors plugs and then finally came to try a new coil pack to fined the plug holes covered in coolant. so off came the head and on went a new one. the problem had been fixed yey. but a big but the water had damaged the bottom end so off to zzp to import all the new gm parts.as it about £150 cheaper to import the engine rebuild parts than it is to buy them in the uk. in the next week i will be striping my new 2.2 with only 45.000 on it why waiting for the parts from zzp arrive there in uk customs as we speak. here some pics

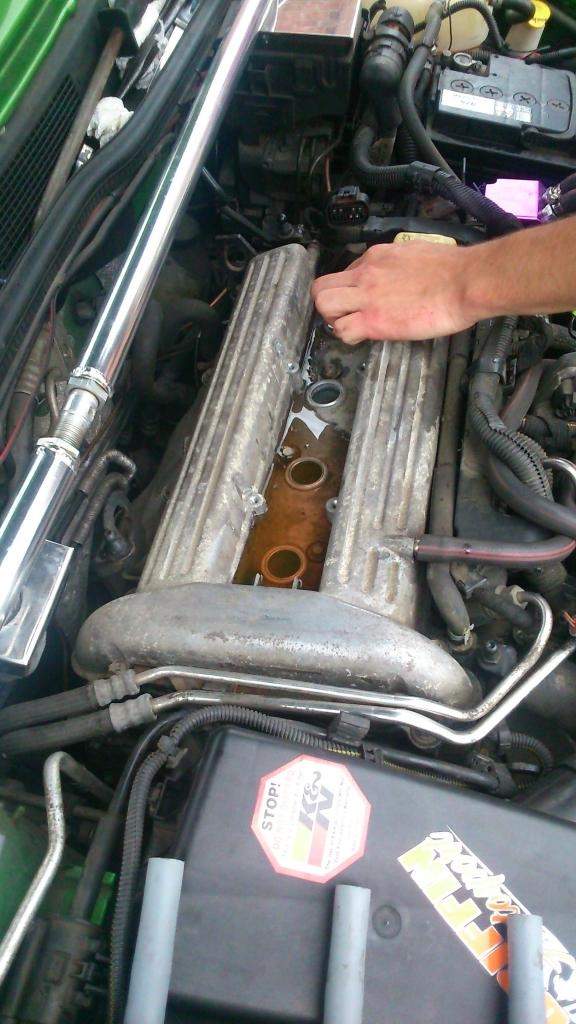

the cracked head found any one see a problem lol

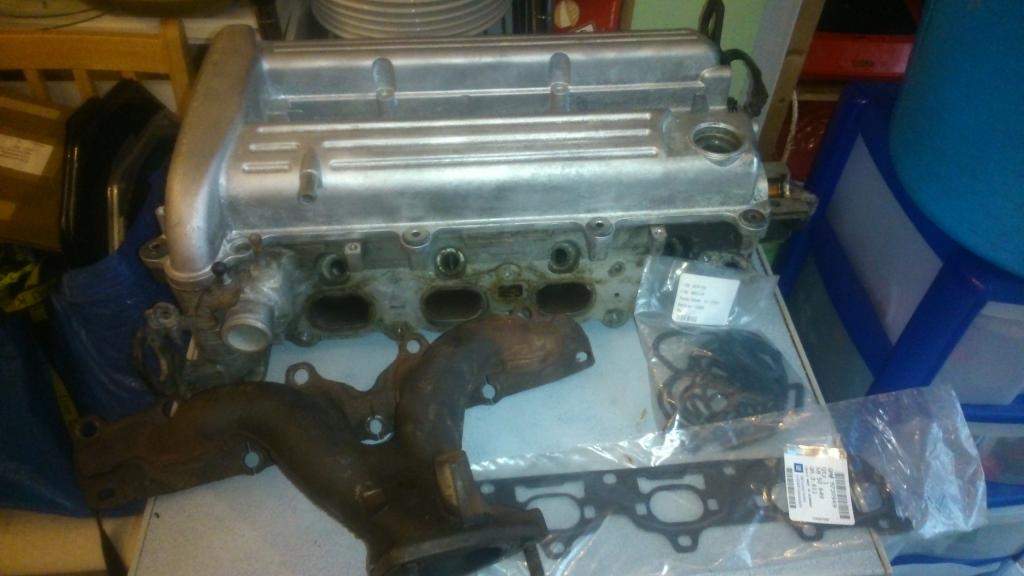

new head

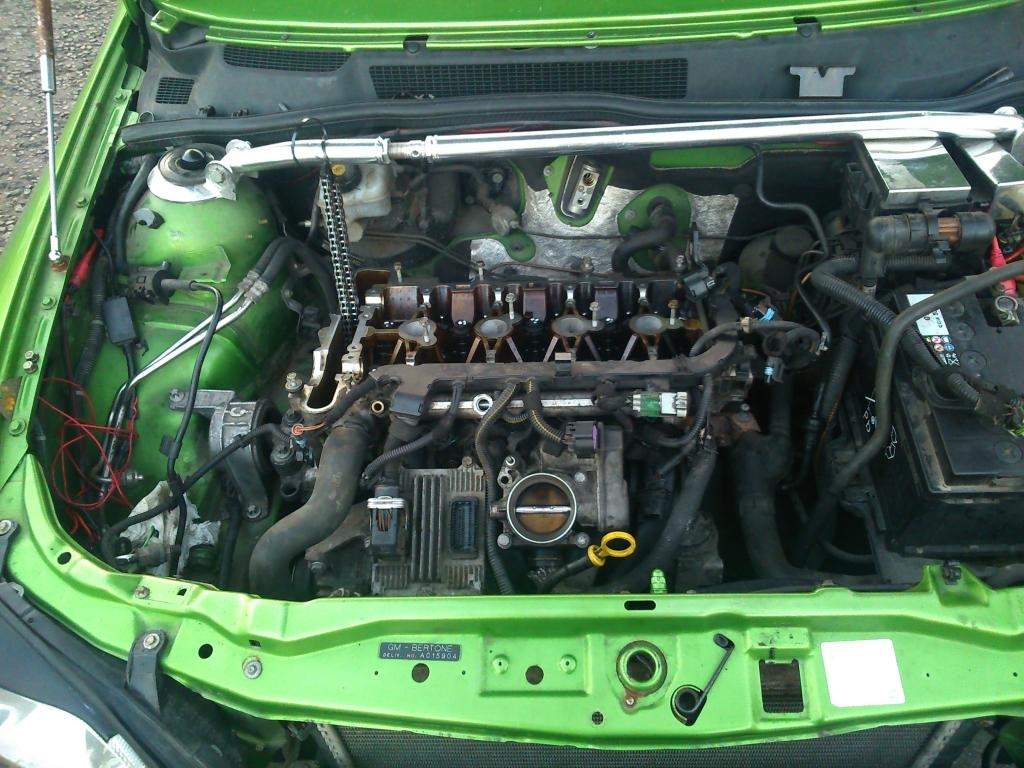

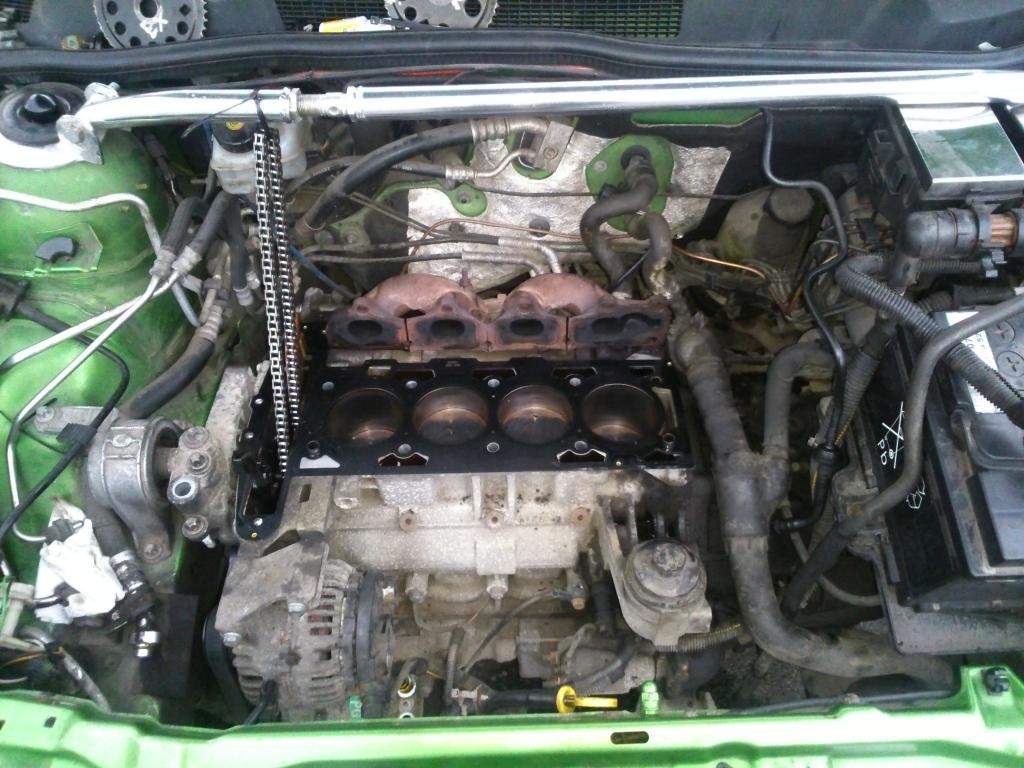

off

then the clouds of smoke started so clickey click

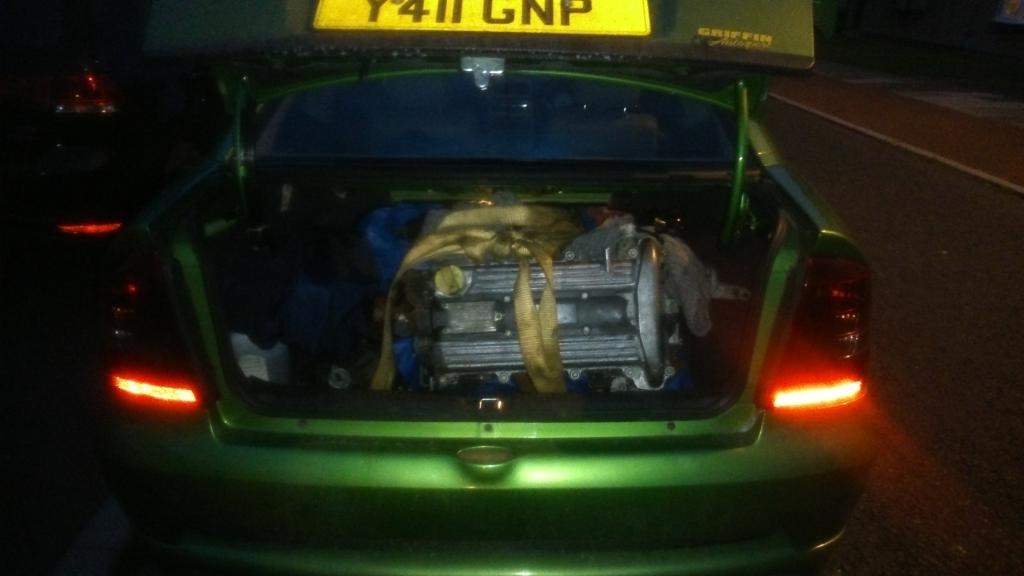

and yup that a z22se and f23 in the boot off a coupe

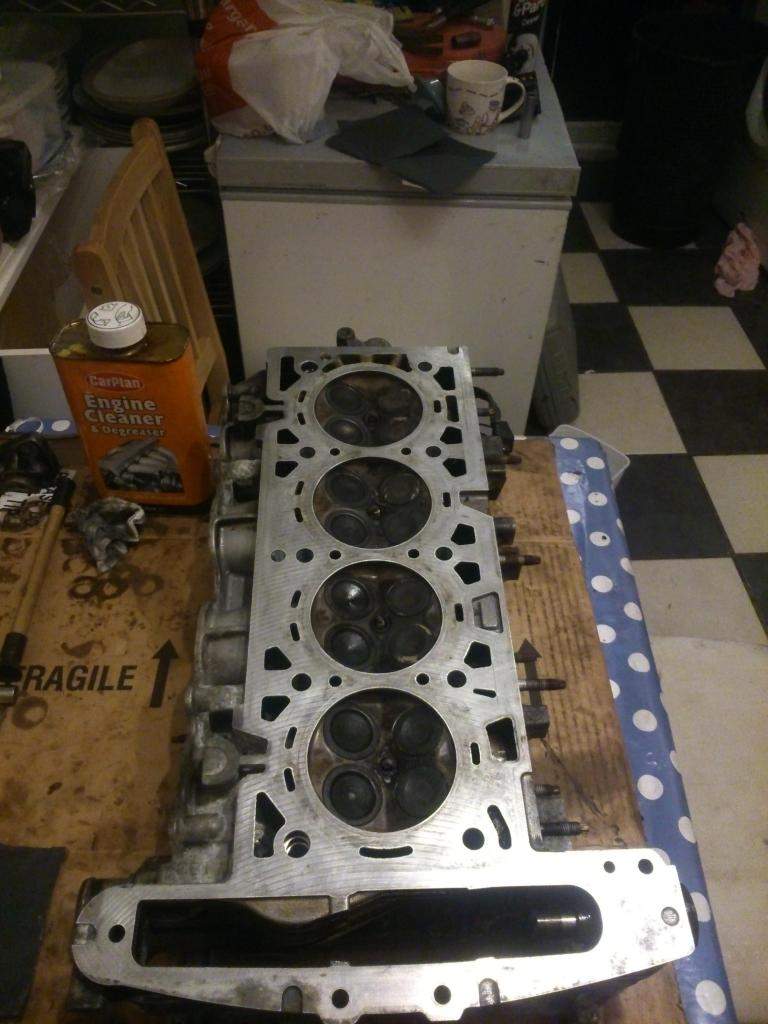

new head that off getting skimmed at the mo

goodies to go in the engine

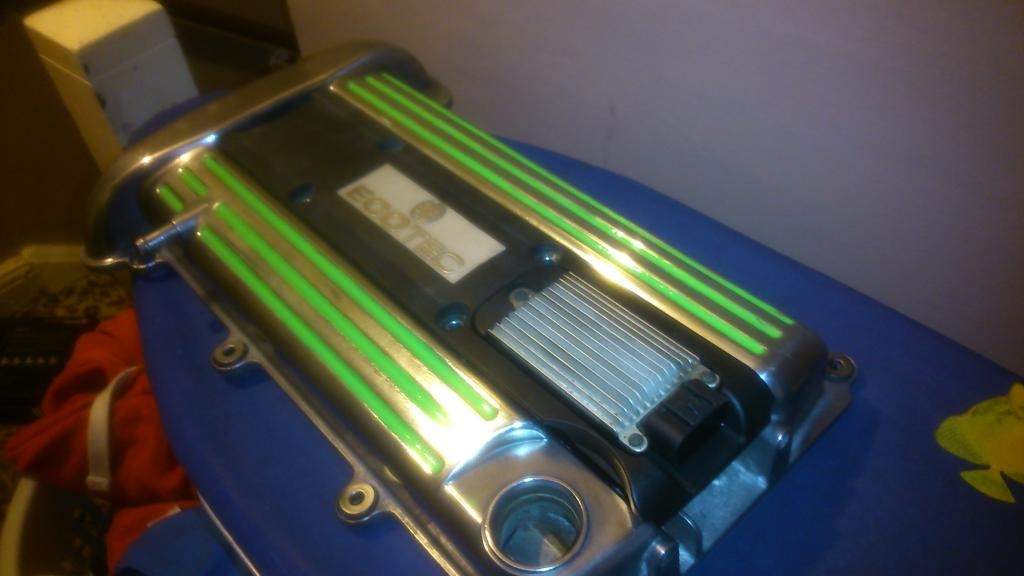

and i got bored so i poised my cam cover

Dave_Gilbert

rocker cover is nice.

good luck on the rebuild

David_Dixon

Not long now Dan Po

danny_s-p

parcel in the north west depo been told it will be with me tomorrow mr dixon

David_Dixon

Loving it :-) ...we hoping for another parcel tomorrow too!

danny_s-p

so got the engine on the stand and spent ten mins taking the top end off

and then this arrived from the usa zzperformance

gm adhesive x 2
timing chain kit + balance shaft kit + znet tensioner
gm rod bearings
gm main bearings
hastings piston rings
zzp viton valve seals
gm timing cover gasket
all for £340 including import tax

danny_s-p

all built up now and got a nice present for the engine off mr pots.

so the full build is

new low mile crank re polished with new ACDelco (GM) main bearings

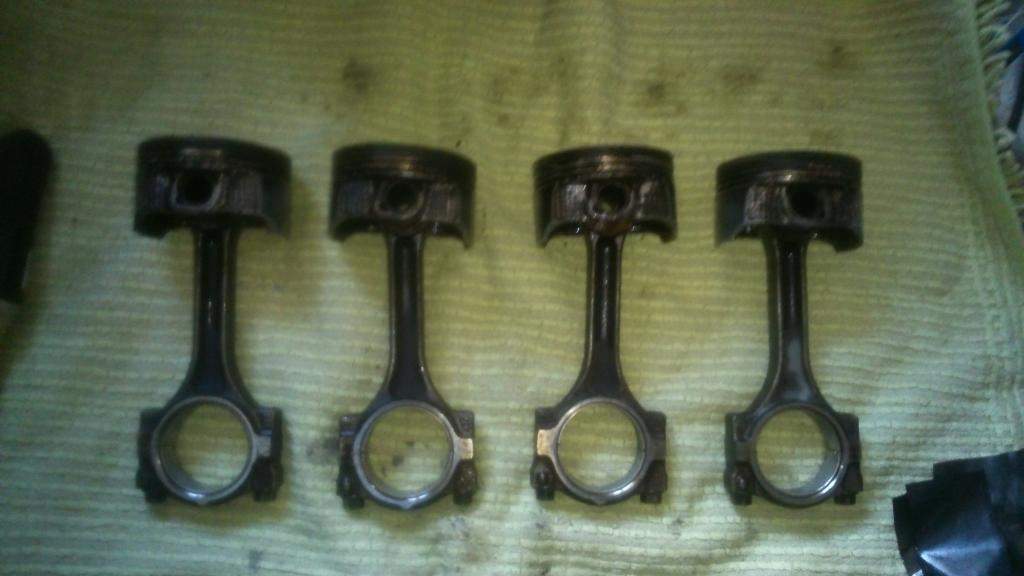

z22yh rods and pistons with Hastings piston rings & new ACDelco (GM) rods bearings
re honed cylinder block & balance shaft delete
skimmed and chemically cleaned head fitted with e85 valve seals
gm timing chain and gen 3 tensioner
all gm or ACDelco gaskets including gm head gasket and head studs now
weapon R manifold 4-2-1
de restricted air box k&n panel filter 3" inlet pip
full egr delete including vw bung in inlet manifold

owww wnd green paint adds extra 20 bhp lol

danny_s-p

balance shaft bearing knocked in

Sjdickso

Great progress but I was under the impression the weapon R wouldn't fit the Astra?

evocarlos

Sjdickso said:
Great progress but I was under the impression the weapon R wouldn't fit the Astra?

it does once you remove the ac pipes and move the fuel lines from what ive been told 🙂

danny_s-p

any think will fit if you try hard enough

evocarlos

lol dont i know this after shoehorning a supercharger in there lol
