new bench for the garage

evocarlos

need to move some stuff around to make room
so i set about a new bench for the garage on this bank holiday weekend 🙂

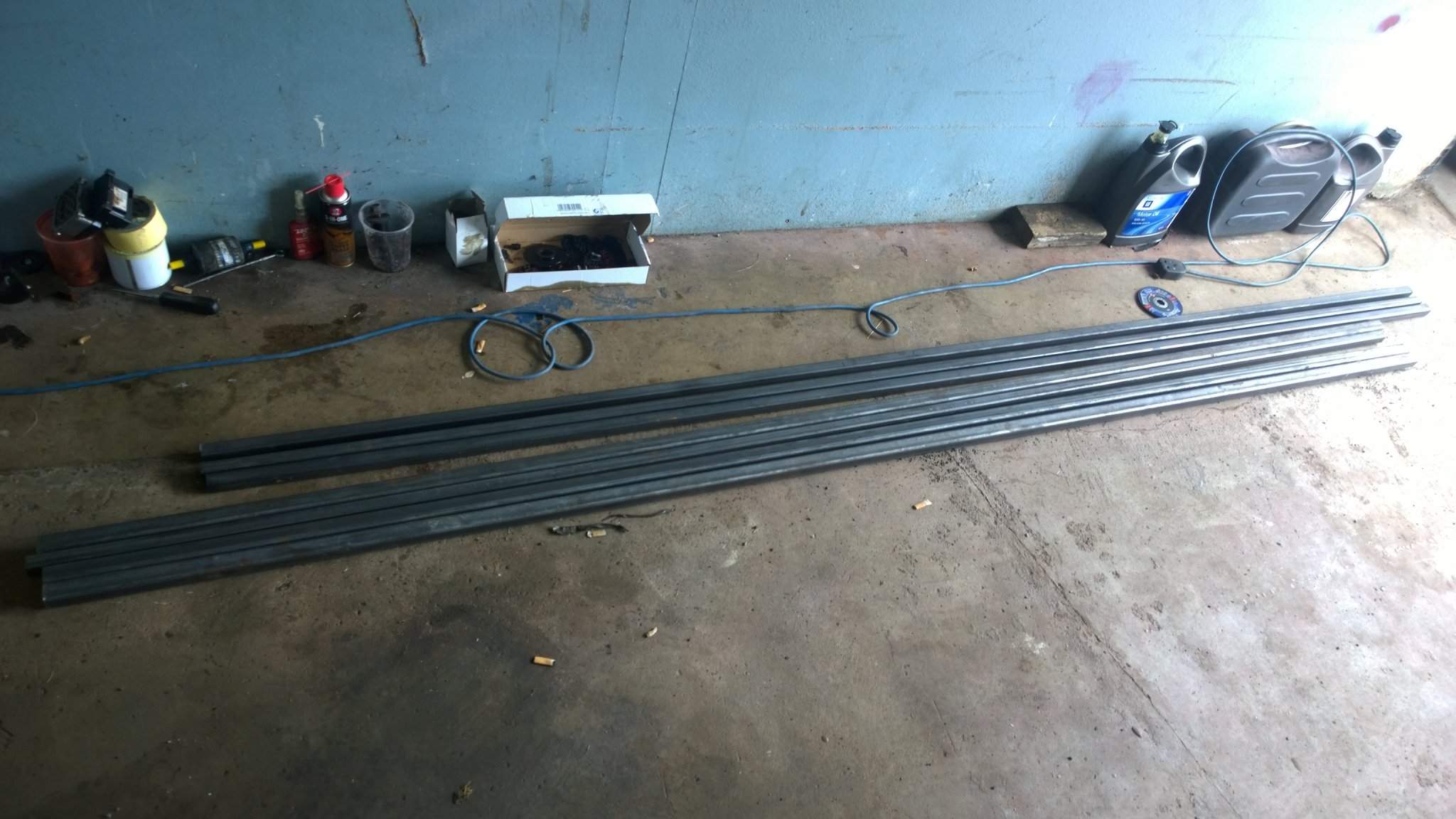

steel stock
4 lengths of 25x25mm for top and leg supports
3 lengths of 30x30mm for the 6 legs

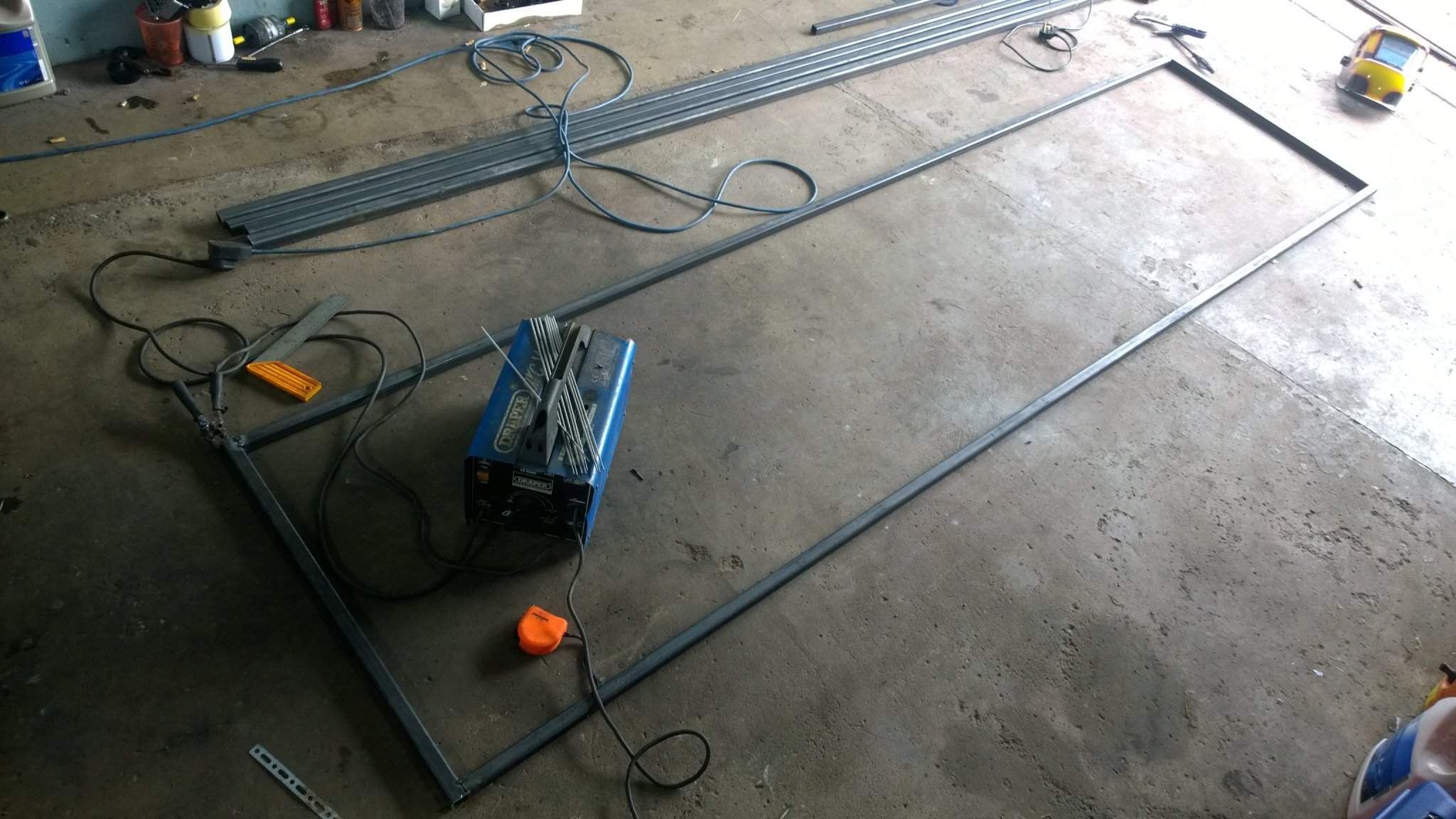

front and back of the top were made form 2 full lengths

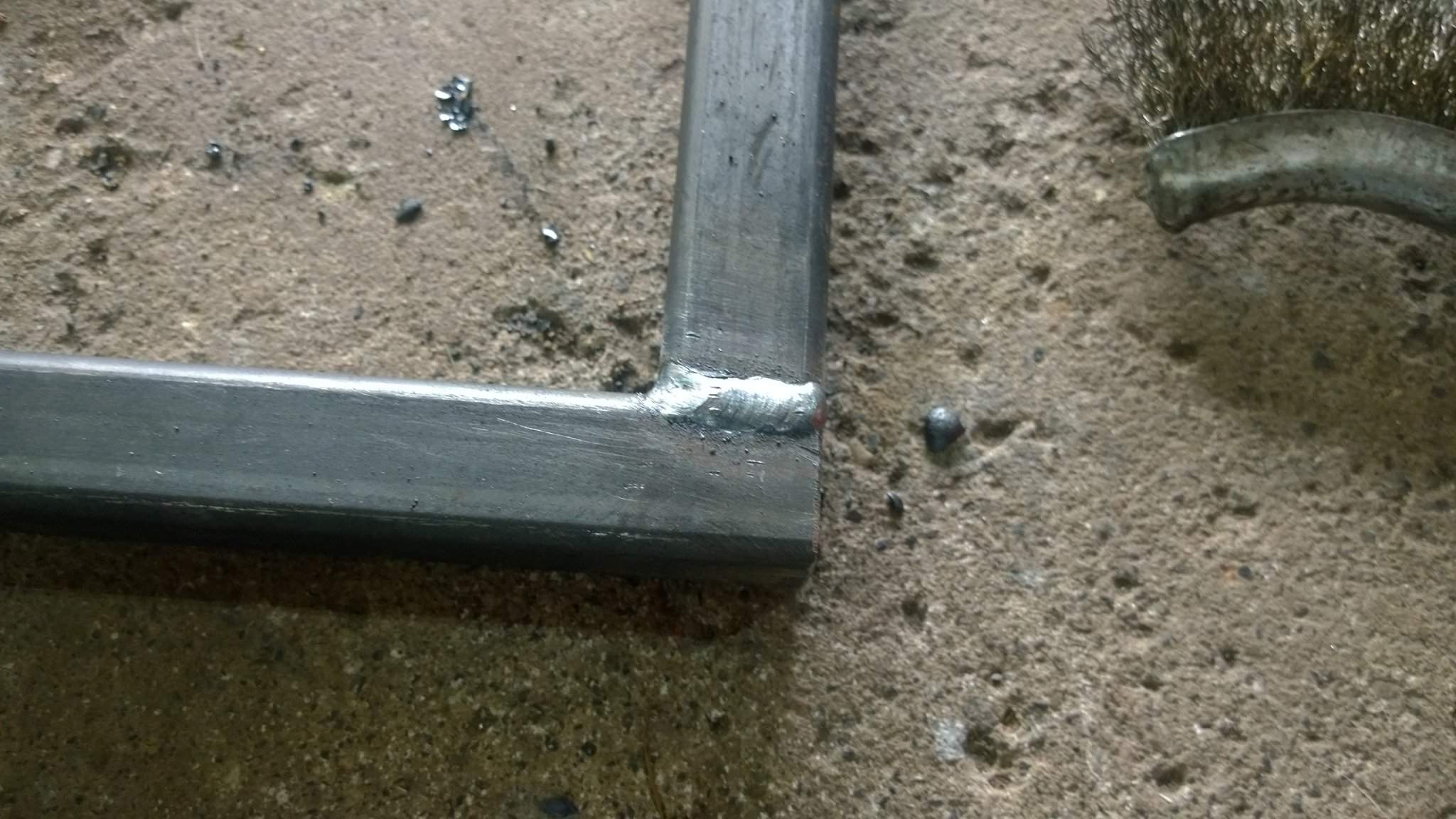

sides were cut and then squared tack'd and measured thrice 🙂
its a squire as ""fuck it"" is to swearing

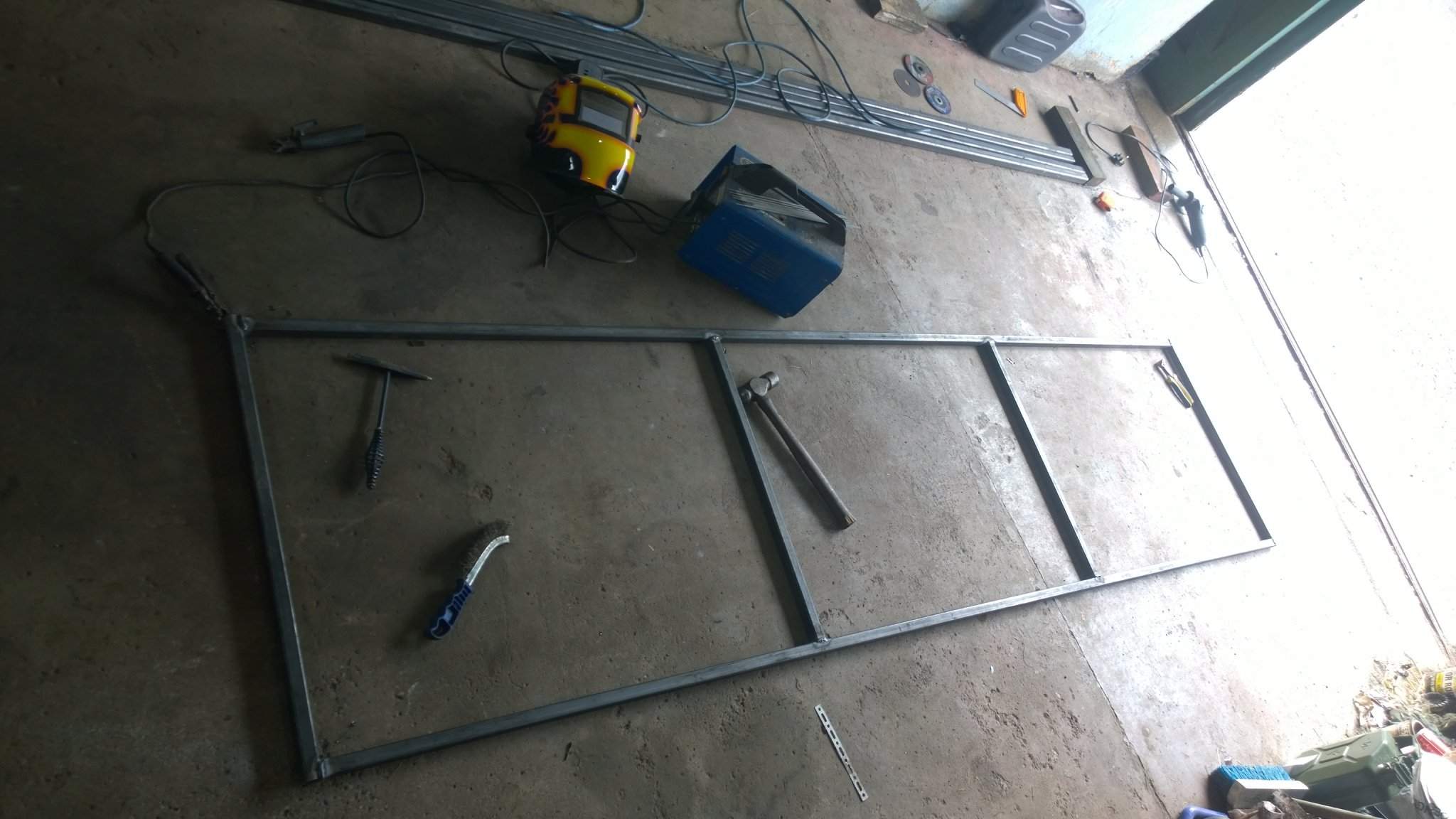

center supports made and the gaps calculated right lol
3000 - 50 / 3 = 983mm and thats what the gaps are between the slats 🙂

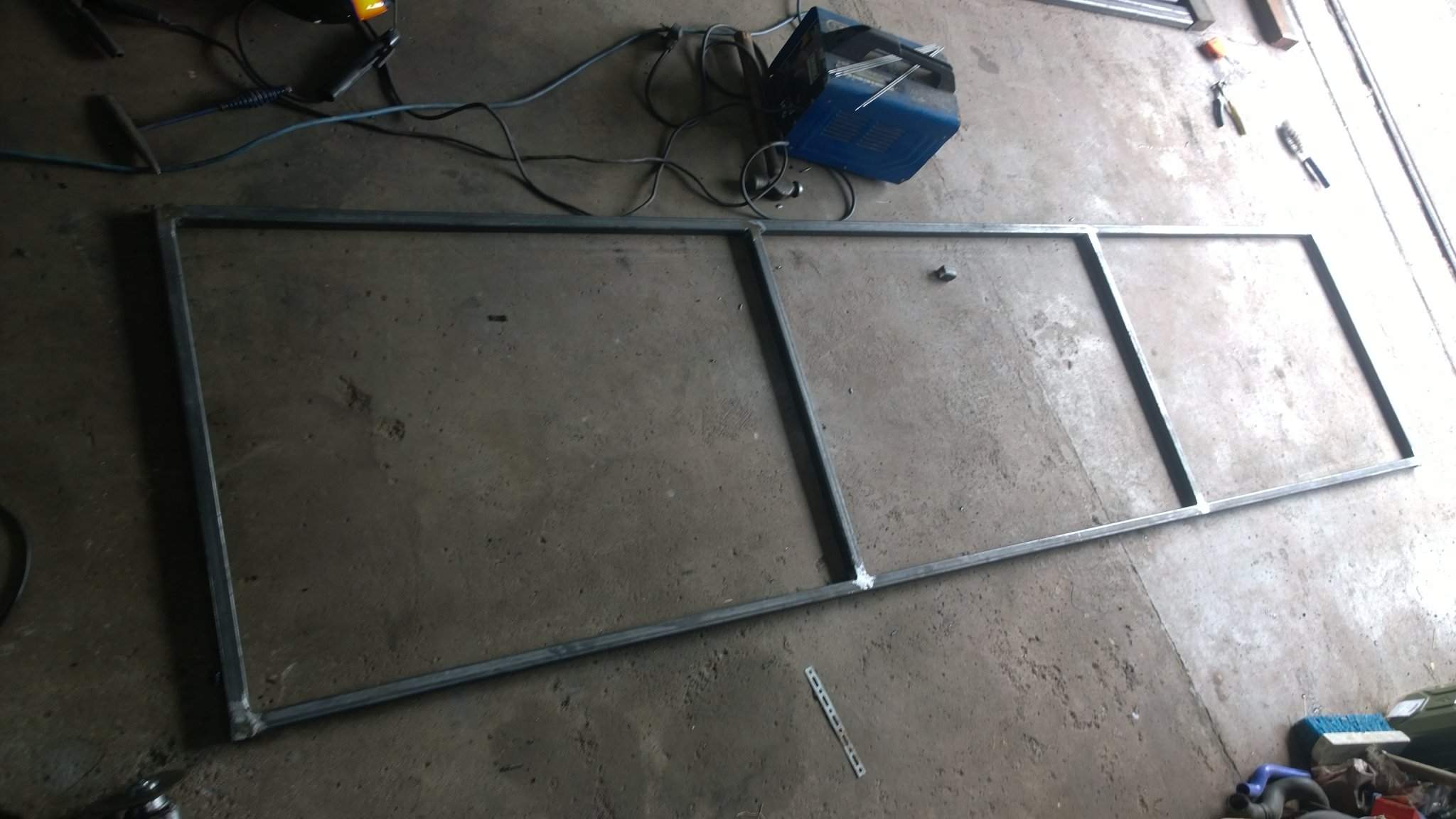

all welded top and bottom side

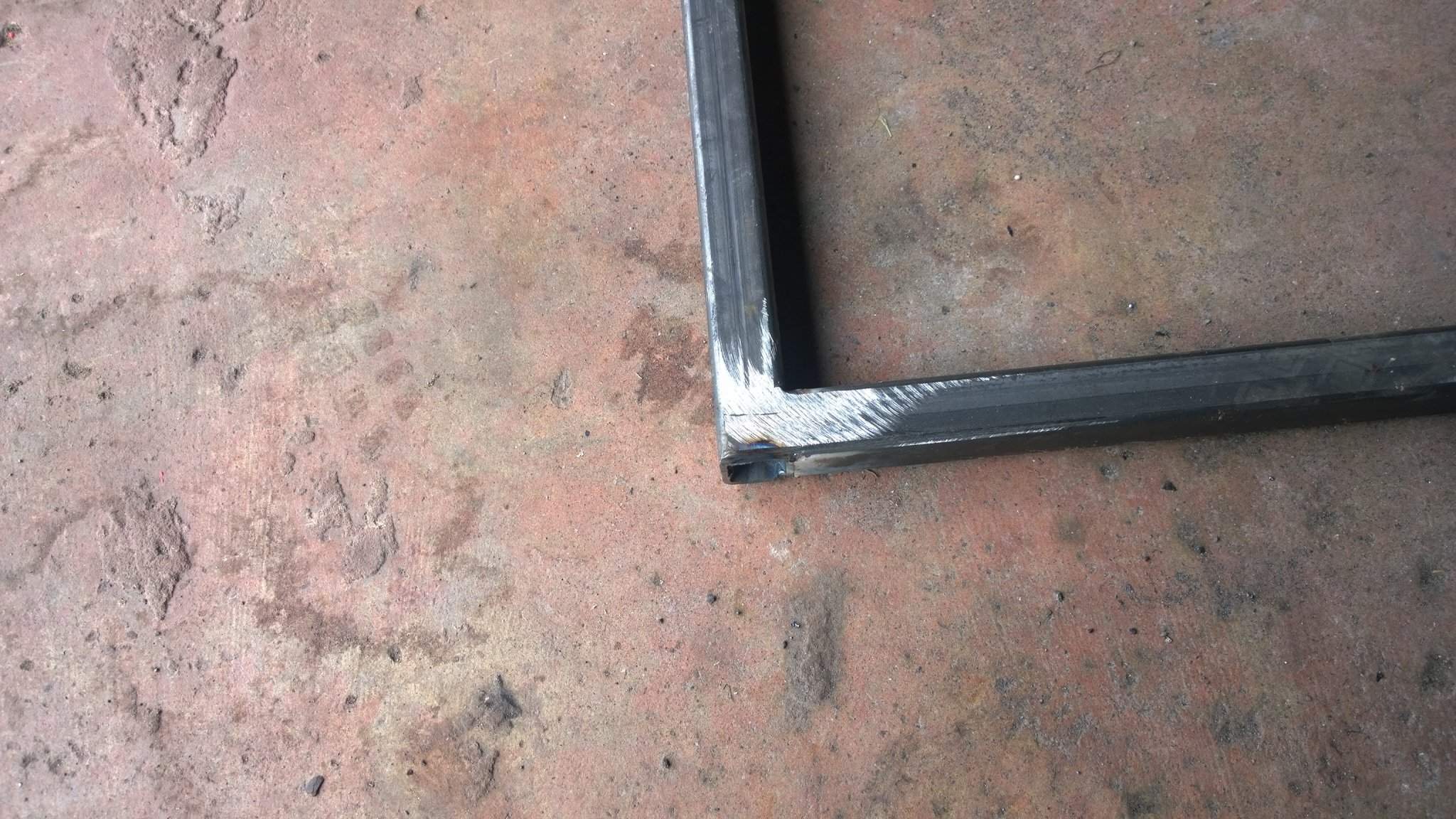

welds ground flat

like so

next step the legs 🙂
but 1st this lol

Dave_Gilbert

nice i had a good tidy in my garage last night, my benches are my old kitchen work tops n worktops iv scavenged out of skips wile out on the hire at work

rushy

The only thing with more storage or workspace is you'll end up collecting more crap to store LOL I di the same in my cellar, bought some shelves and ended up filling them with more useless ebay car parts that i'll never use.

Dave_Gilbert

the benches are rammed with mini parts

i need to build some racking just for mini parts, you wouldnt beleive how.much space all the parts out of such a small car take up

rushy

LOL, why dont you fit that huge VX badge to your new grill :ROFLMAO:

Dave_Gilbert

its the old style badge, iv got all the new style badges or i would hahahahhaaha

evocarlos

legs fitted and brace 6" from the floor

more legs

all done and in place ive now got to shuffle things around again so i can get a car back in there lol

Dave_Gilbert

looks loads better than mine
but then again im sure yours wasnt free so im still.happy with mine hahah.

evocarlos

Dave Gilbert said:
im sure yours wasnt free

ive never had much free lol but there one thing i can guarantee with this one 🙂 it will take the weight of a few engines 🙂

its built to the same spec as the one in the bat cave thats had 3 engines on and the drill press

Dave_Gilbert

im not planning on having big heavy engines on mine, a pitbike or quad engine maybe but nothing rate big

u will need a production line soon. building limited edition carlos specials.

evocarlos

Dave Gilbert said:
u will need a production line soon. building limited edition carlos specials

lol would be nice to get enuff to do it full time then have the easy life lol

painted the bench frame up
red oxide

gloss black

need to get the wood for the top and then clean out the garage more

evocarlos

slats fitted

and screwed down 🙂

just needs an ecotec block on it 🙂

Dave_Gilbert

nice. id plain it n sand it smooth n laquer it just to go over the top with it.

evocarlos

to late lol

carson_sri

Where was this last week my parts where put anywhere there was space. lmao. good work carl(y)

evocarlos

carson_sri said:
Where was this last week my parts where put anywhere there was space. lmao. good work carl(y)

thanks its also one of the reasons for building it 🙂

evocarlos

6 ton axle stands and a shelf system

tidy 🙂 also each shelf can hold upto 150kg

Sjdickso

Got to love decent racking 🙂

evocarlos

found a good use for it in the main batcave
