so after a 5 hour shift at work 5-10am had @[deleted] pop round to have his chains done on his tidy titan gold coupe 🙂
i had some fun 🙂
need to go to sleep now lol heres some pics

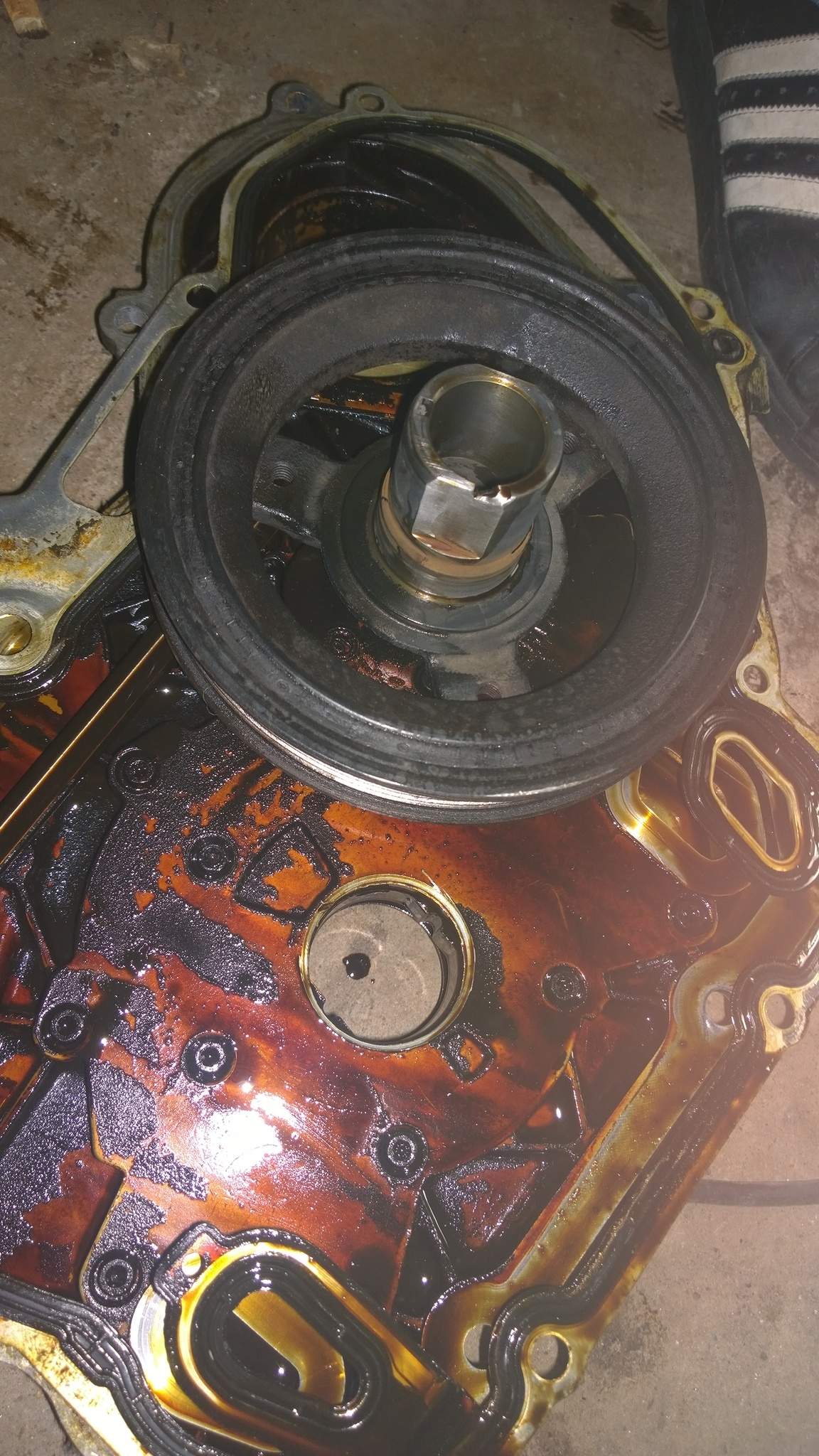

the crank pulley was forced on with the key out of alignment
this damaged the crank pulley and the oil pump case
because the key was bent the sprockets were stuck on

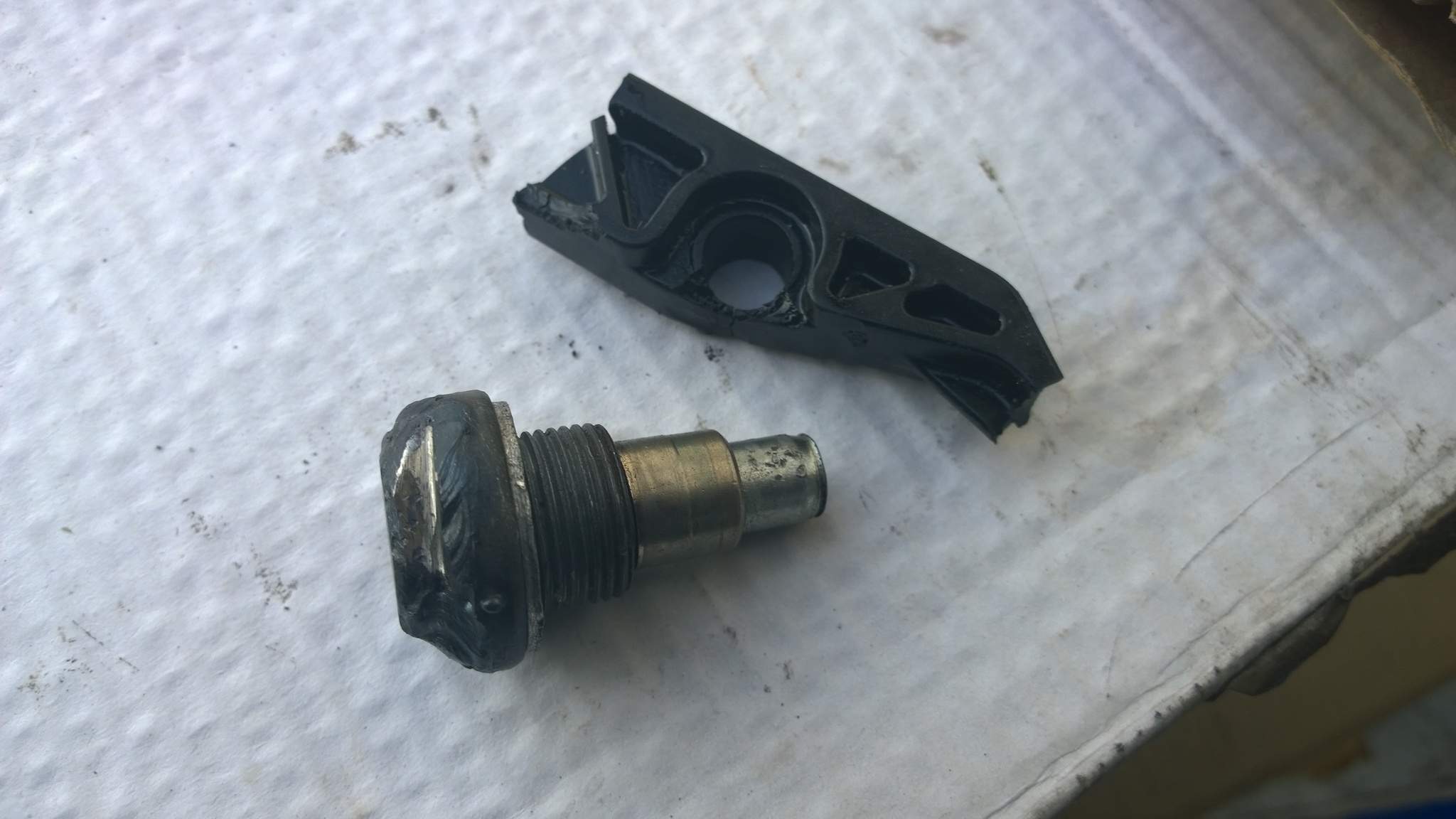

also the balancer tensioner had failed

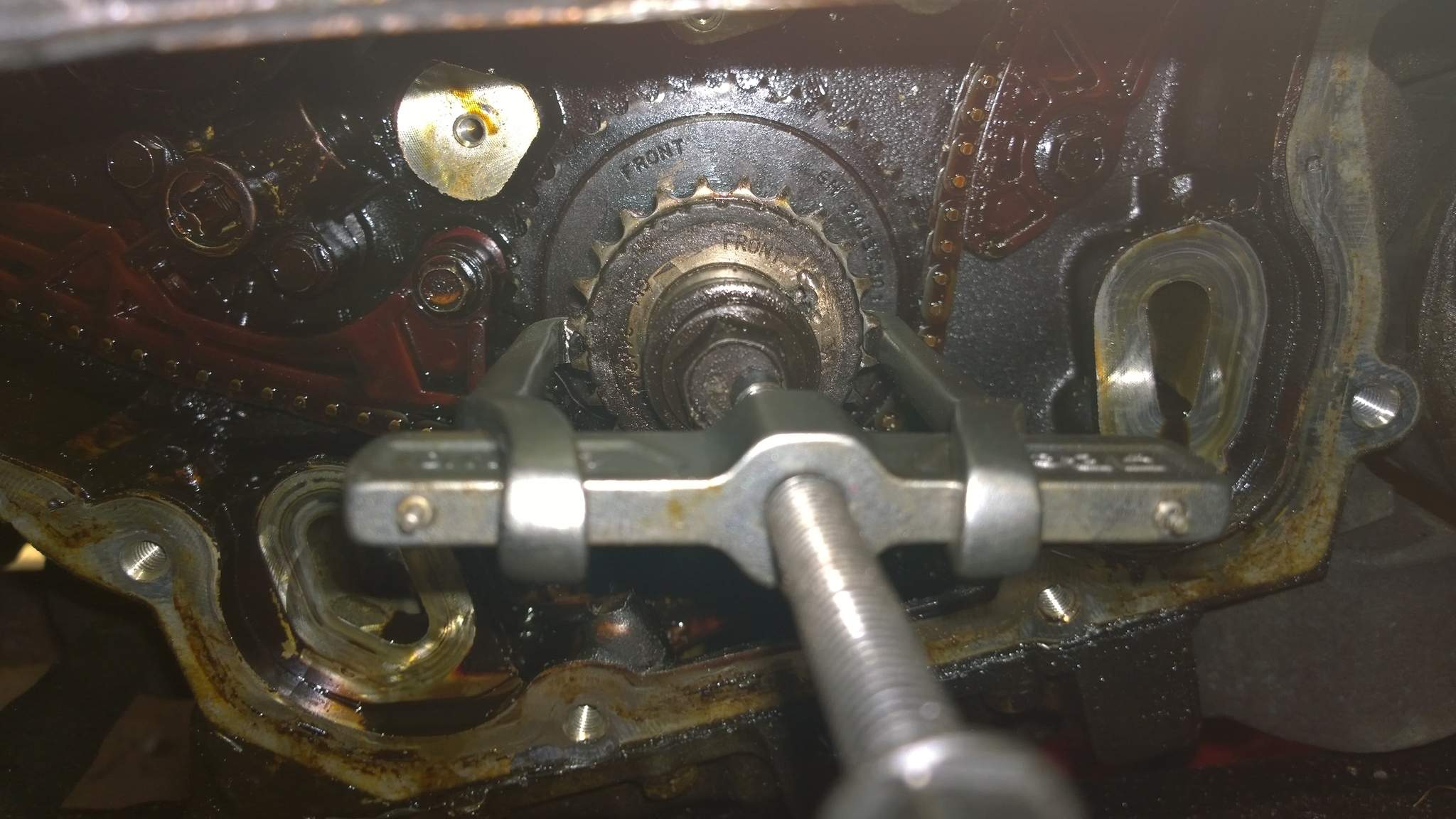

had to file down the key and pull the sprocket off

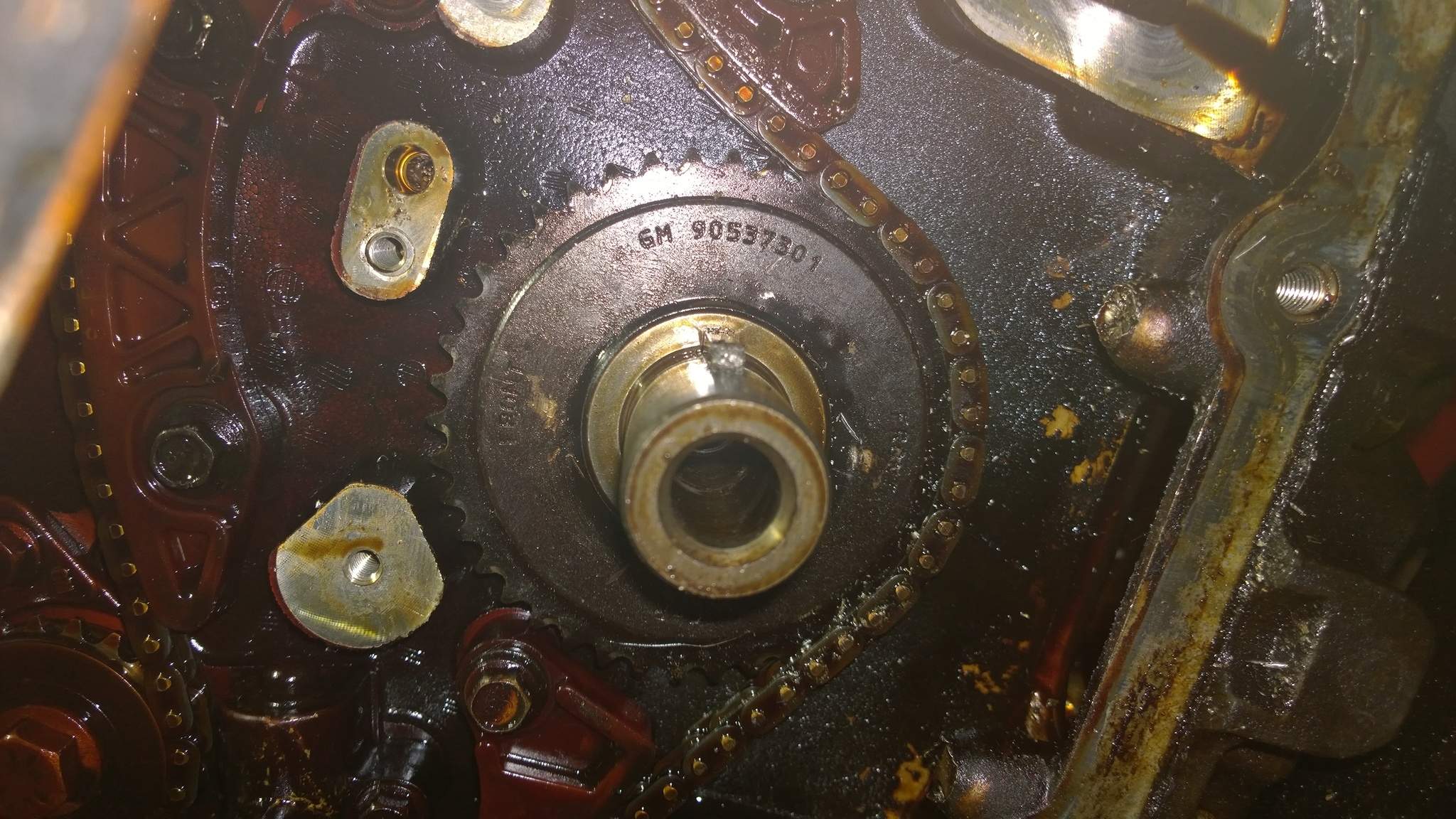

nearly there
the broken key was discarded and a new one fitted

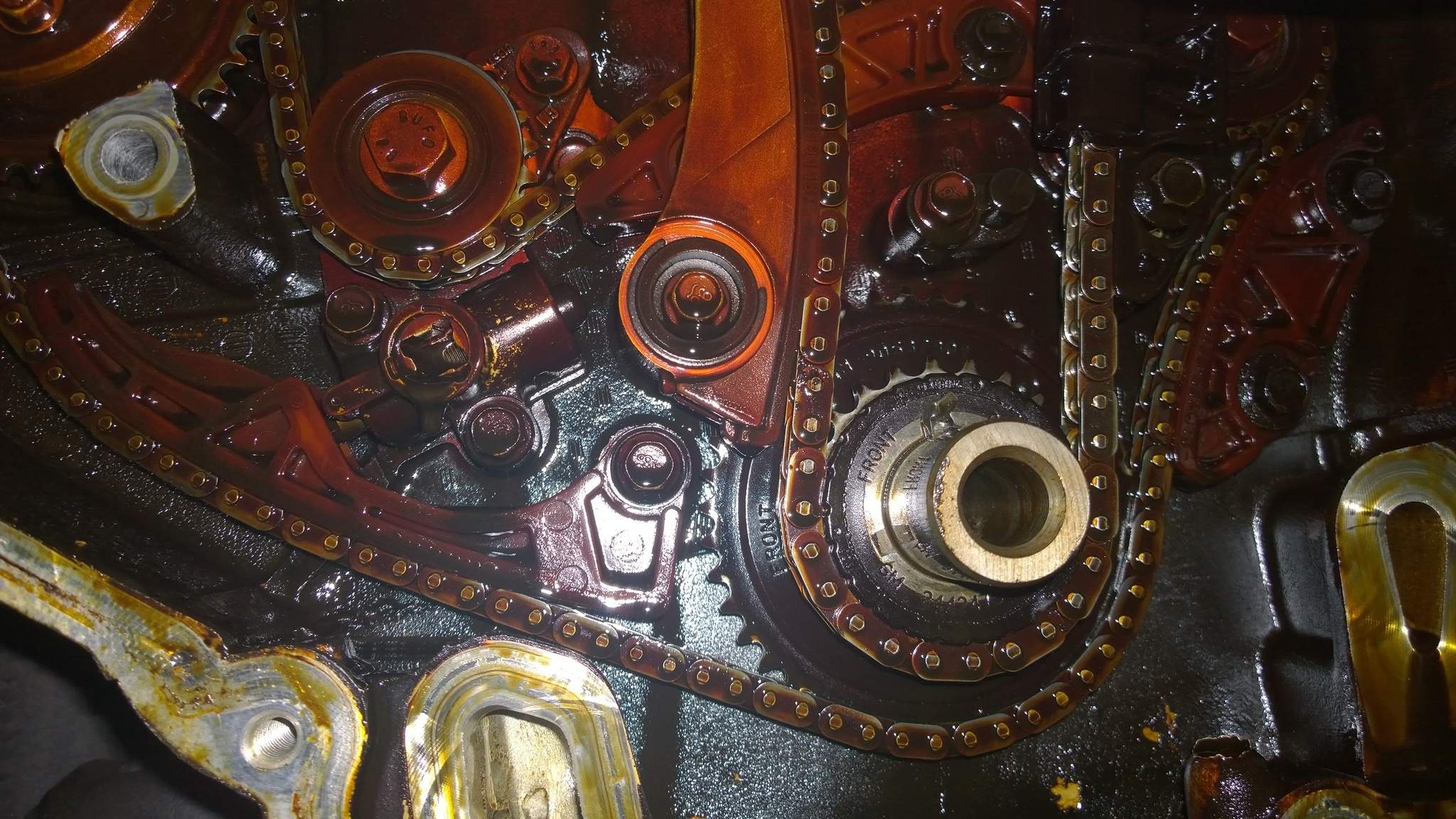

with full new chains

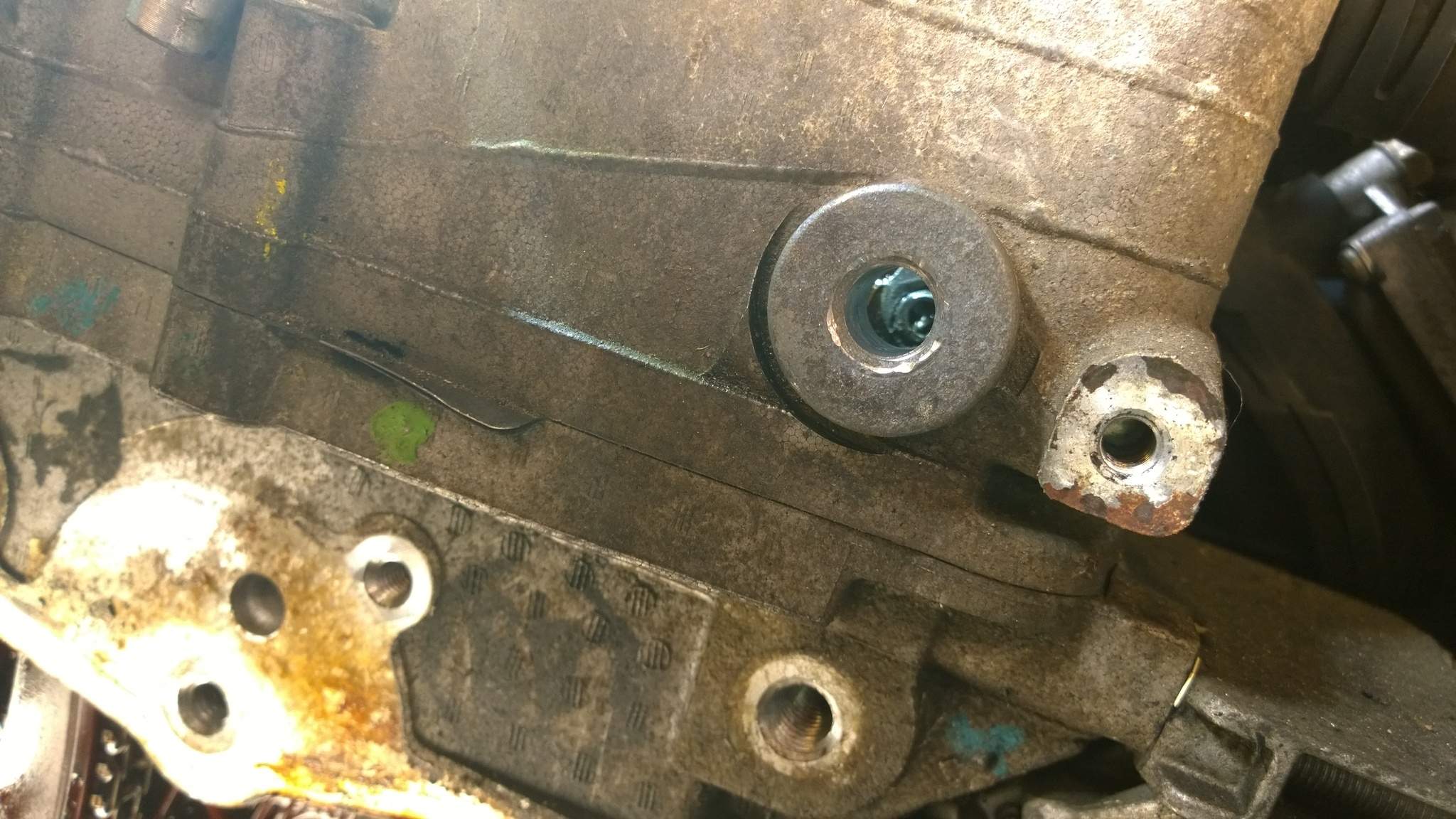

the hole for the front rail bolt had the bolt snapped and then drilled but was unrepairable

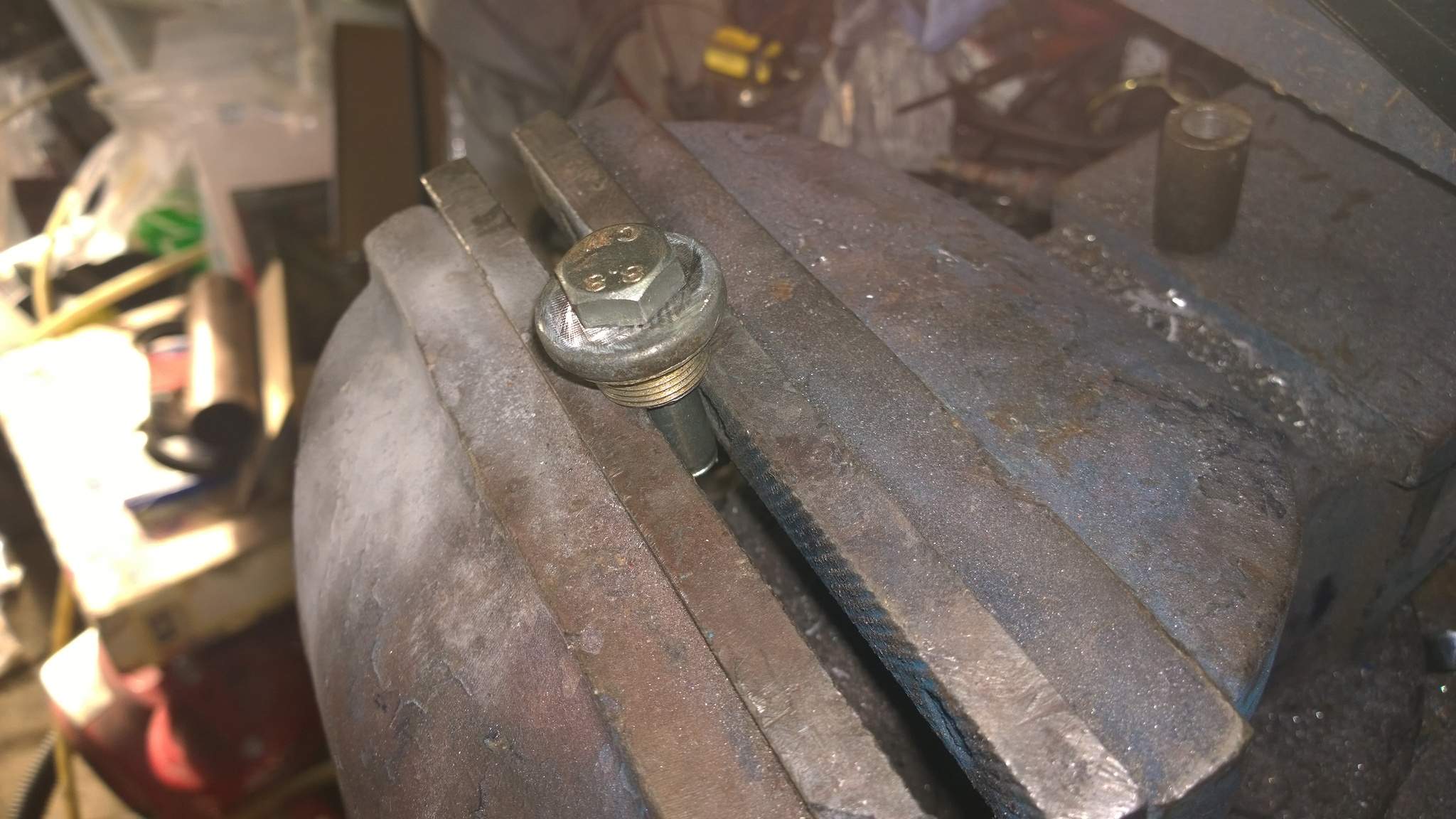

i went with an m12 bolt cut to suit then drilled the plug and welded them together
diy repair plug 🙂
car was finished then rebuilt with the new chain fresh oil
all running sweet
and another satisfied customer 🙂
