Security Codes

PowR_Remap

Just brought this to compliment the rest of my KESS, CarProg, Opcom, Vagcom, OpelImmo & VAGImmo kit....

evocarlos

danprice7134 said:
Let me know if you have any problems setting anything up.
Will be nice to see how many spare ecus turn up and become useable for experimenting with 🙂
I'd love to be able to do a full DIY supercharger conversion one day :-D
And still have a spare standard ecu to throw on a spare engine incase things pop!

its nice to have a spare engine just laying around also lol

the one thing that i remember about my ecu is the egr is shut off by vauxhall 🙂 and is not part of he map but on the ecu control side 🙂
might be worth comparing bin's mine to a normal one 🙂

Matt

danprice7134 said:
Not sure of the pictures are going to work. I can't seem to post word documents as an attachment so I just copied and pasted the document here.
Any suggestions on another file format to post the tutorial in?

Pictures didn't work because you tried to link them to your own local PC drive. To upload to here, just drag and drop them into the reply box.

5M1THY

My van has a 22se ecu but behind the dash there's another key and ignition barrel probably with a transponder I can't see without stripping the dash but to make this all as it should be I really can't get my head around what codes are needed and what I actually need to do.

To re code keys and ecu etc is it just the security code? Then I can surely use the chip and transponder behind the dash and use opcom to code them properly?
I'm confused? :confused:

evocarlos

5M1THY said:
My van has a 22se ecu but behind the dash there's another key and ignition barrel probably with a transponder I can't see without stripping the dash but to make this all as it should be I really can't get my head around what codes are needed and what I actually need to do.

To re code keys and ecu etc is it just the security code? Then I can surely use the chip and transponder behind the dash and use opcom to code them properly?
I'm confused? :confused:

the ecu has a 4 digit code used to add/remove transponders and reset the ecu
without the code entered theres not a lot to do but read and clear codes with op-com
im still not sure why yours has 2 barrels unless the 2nd is just for the key action
with the code you could tell the ecu to use the transponder in your key thats if the loom is intact

and now with vx being hit and miss with supplying the codes proof of ownership and all that this may be a nice cheap way to get your code 🙂

milo

oooo get on top of it!! I love to give someone a few quid at PVS for my security code so I can get a second key

PowR_Remap

Edited

PowR_Remap

milo said:
oooo get on top of it!! I love to give someone a few quid at PVS for my security code so I can get a second key

I'll bring my kit with me if you want to get the pin code for yours?

milo

PowR Remap said:
I'll bring my kit with me if you want to get the pin code for yours?

Cheers bud(y)

PowR_Remap

Could do yours too smithy

PowR_Remap

5M1THY said:
My van has a 22se ecu but behind the dash there's another key and ignition barrel probably with a transponder I can't see without stripping the dash but to make this all as it should be I really can't get my head around what codes are needed and what I actually need to do.

To re code keys and ecu etc is it just the security code? Then I can surely use the chip and transponder behind the dash and use opcom to code them properly?
I'm confused? :confused:

Whatever immobiliser ring is actually plugged and the transponder in the key to match are the ones you want and could probably get away without recoding anything.

I have a feeling that the barrel in place to start is not actually plugged in to the immo, it's just there with the function to start the car.

The other barrel that you can't see with a key in, that's the actual coded immo ring and transponder.

You should be able to swap immo rings around and transponders in the keys to have 1 correct set that will start the car and have the right immo ring an transponder coded.

You might not even need to get the pin to code anything in, only maybe if the transponders are different and need to code another one in.

milo

Just Pm how much u want bud

PowR_Remap

milo said:
Just Pm how much u want bud

Just a drink will do mate (y)

milo

Sound bud

danprice7134

evocarlos said:
the ecu has a 4 digit code used to add/remove transponders and reset the ecu
without the code entered theres not a lot to do but read and clear codes with op-com
im still not sure why yours has 2 barrels unless the 2nd is just for the key action
with the code you could tell the ecu to use the transponder in your key thats if the loom is intact

and now with vx being hit and miss with supplying the codes proof of ownership and all that this may be a nice cheap way to get your code 🙂

You can use opcom to change the odometer reading without the security code on the Astra G 😉

PowR_Remap

danprice7134 said:
You can use opcom to change the odometer reading without the security code on the Astra G 😉

Can you? I have tried a number of different Astra G's. Has never worked on any. Also tried Corsa C's too....?

Only been able to read but not actually write a new value..

jwalker

Yes you can, I am able to do this on my coupe turbo. Clocks have to be VDO ones though afaik

PowR_Remap

Should be able to do it on mine then... It just never worked :-/

5M1THY

So really I need to be brave and unplug the other barrel and plug the transponder into the actual ignition. Where in the key is the chip as it's just the blade and part of the plastic there's no remote part to the key behind the dash?

Also if I unplug the transponder etc once it's plugged back in will it be good to go or in code it self sounds silly but some new renaults need fully re syncing Even if the battery goes flat for too long

PowR_Remap

The barrel you use to start the car with the key, is probably not even plugged in. you just need to remove it, then you need to take the immo ring off this and put to one side.

Then you need to get the other barrel thats hidden, unplug the immo ring and remove the lot out the car.. Take the immo ring off this barrel and place on the other barrel you took out first which you used to start the car.

Put the barrel you have just put the immo ring on back into the car where it should go and plug the immo ring in.

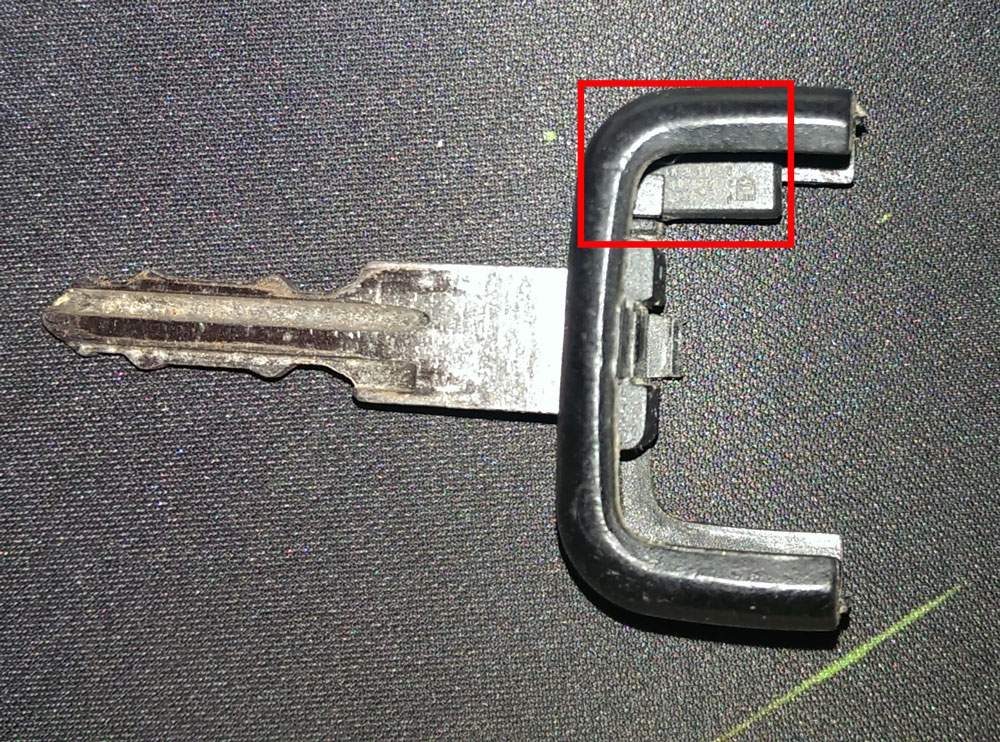

The key I presume looks like this, with the immo transponder attached

Remove the transponder from this key and place into your normal key that starts the car, if there is already one there remove it and place to one side for safe keeping..

You should be all good now.
