z22se strip down

evocarlos

decided to to take the original engine apart for inspection and for somthing to do
the clutch after 64200 miles looked real good

removed the main chain to get the head off

im going to throw my phone in the bin roll on june when i can get a new one lol
pics are getting worse

fuel keeps the pistons clean in the middle 🙂

64200 miles and its still got the honing marks from the factory 🙂

the heads off and looks tip top

more soon 🙂

5M1THY

Just goes to show that regular oil changes and just abit of looking after and no matter how hard you drive it the engine is good it really bugs me when people say these engines are unreliable.

Matt

5M1THY said:
Just goes to show that regular oil changes and just abit of looking after and no matter how hard you drive it the engine is good it really bugs me when people say these engines are unreliable.

Really does. Same for most cars though, a lot of people will let the serving slip as they get older as well.

evocarlos

it really is in good condition i think that may have helped with the 270hp figures when it was rolling roaded
going to strip the block and thinking of changing the rods then porting the head
send the crank off and get the knife edging and balancing done once ive checked the journal size 🙂

evocarlos

pictures will be a bit better now lol just ordered a new phone with a silly MP cam on it 🙂

milo

I can uprade mine now, but wating a bit till I get the new galaxy s5 as dodgy patch going round.

Dave_Gilbert

you should polish n port the head, thats a good idea, then you should fit it on mine, and you can have my head, mines only done 73000 miles and i keep service up so should be good.(y)(y)

evocarlos

milo said:
I can uprade mine now, but wating a bit till I get the new galaxy s5 as dodgy patch going round.

02 refresh new tarrif is the same as the old one but £7 cheaper per month and went with the lumina 1020 had the 900 for the last 2 years and apart from the broken screen cant fault it 🙂

evocarlos

Dave Gilbert said:
you should polish n port the head, thats a good idea, then you should fit it on mine, and you can have my head, mines only done 73000 miles and i keep service up so should be good.(y)(y)

thats the idea mate 🙂
then there will be a supercharger bottom end for sale to 🙂

Dave_Gilbert

but thats no good for me :cry::cry::cry🙁the bottom end that is). well you have your old charger aswell dont you? so u could polish n port the head n do a proper decoration job on the bottom end again n sell it complete, should fetch good money, if you got another ecu to map the new engine on you could sell the old ecu with the full plug and play engine/ecu kit.

(y)(y)

evocarlos

Dave Gilbert said:
but thats no good for me :cry::cry::cry🙁the bottom end that is). well you have your old charger aswell dont you? so u could polish n port the head n do a proper decoration job on the bottom end again n sell it complete, should fetch good money, if you got another ecu to map the new engine on you could sell the old ecu with the full plug and play engine/ecu kit.

(y)(y)

that would take the work out of fitting it lol 🙂

some pics with the new phone there a little better 🙂

milo

Guess who got a new toy lol 😉

evocarlos

milo said:
Guess who got a new toy lol 😉

http://www.nokia.com/gb-en/phones/phone/lumia1020/

evocarlos

bit more done
balancer chain removed

box of bits piling up

lower girdle bolts undone one got the head rounded off with a slip so had to hammer on a 14mm socket to remove it :S

main bearings showing normal wear

crank journal at the chain end looking good

the middle journal had a few marks but not detrimental 🙂

evocarlos

as im off work all week had a play with the old engine again 🙂

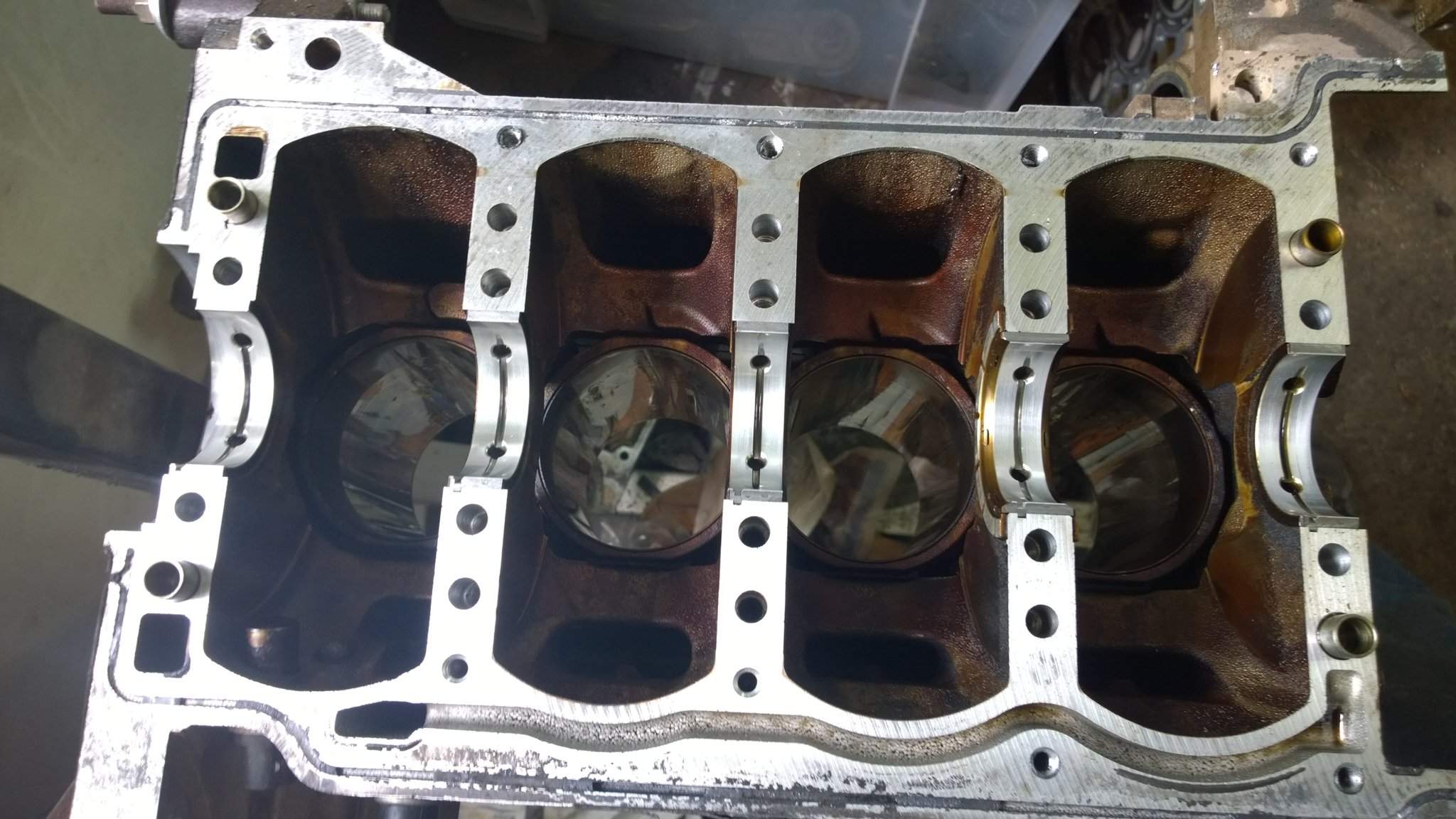

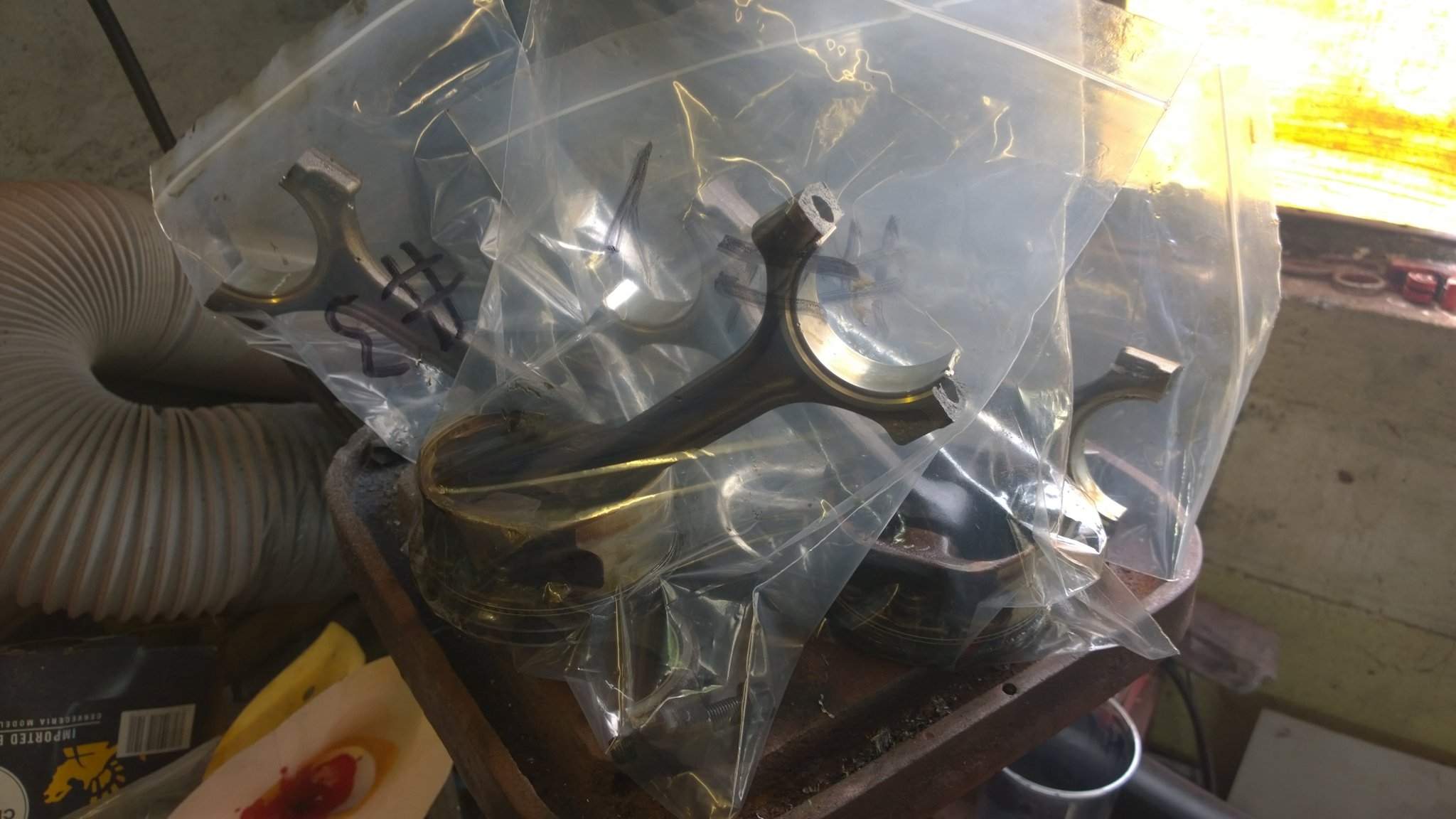

rods and pistons out

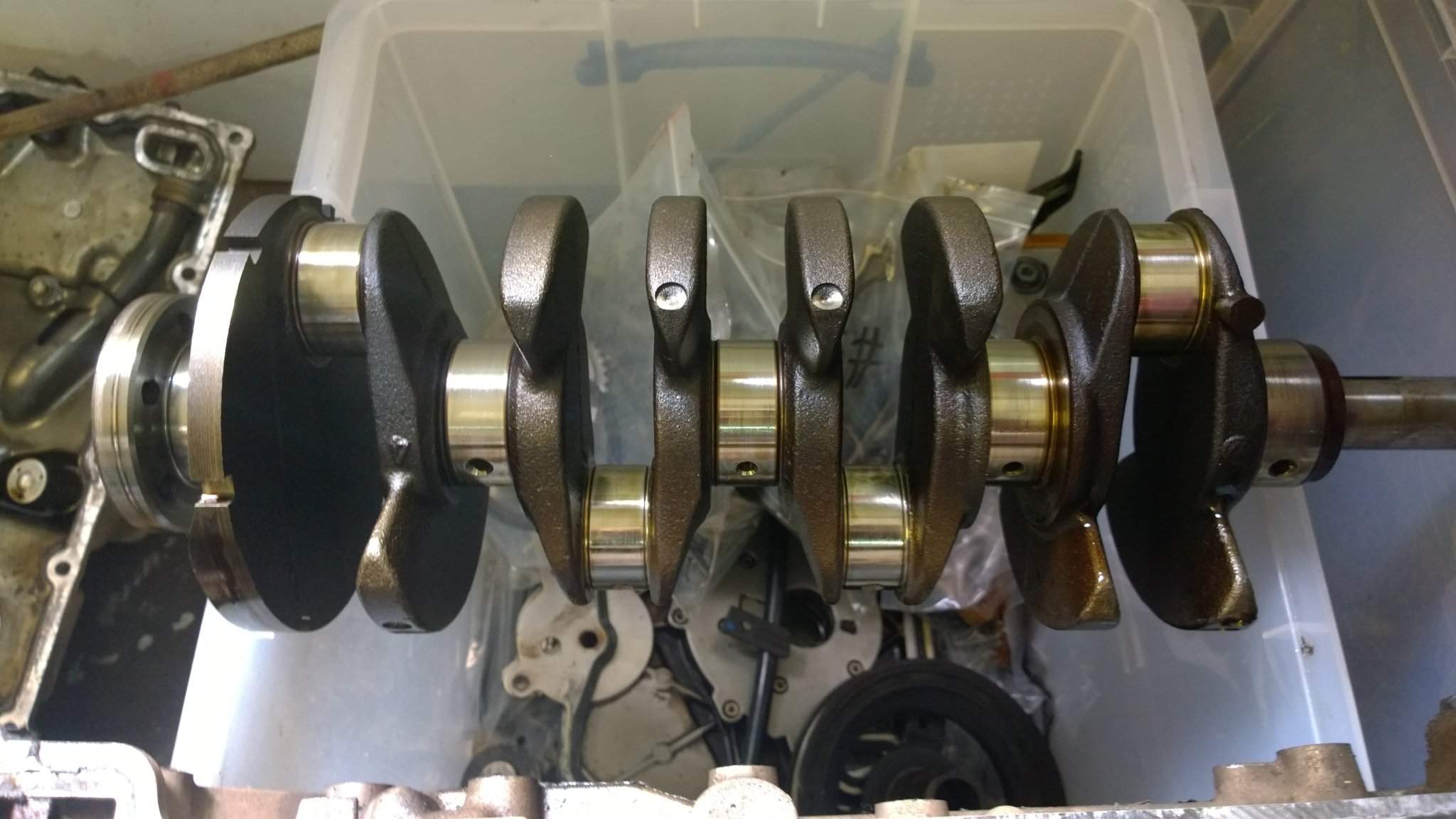

crank out need to measure up the journals then send it of to trevor

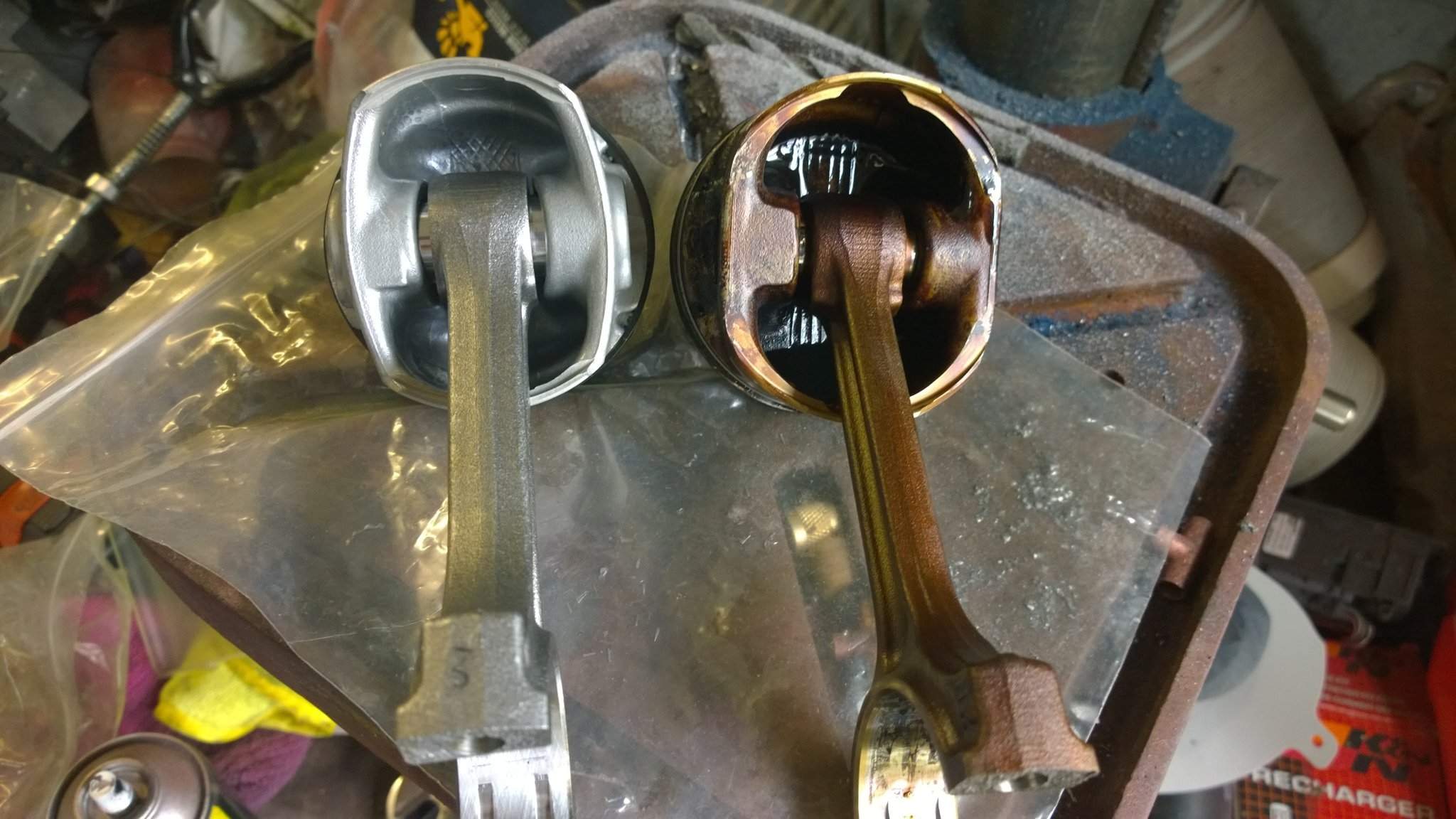

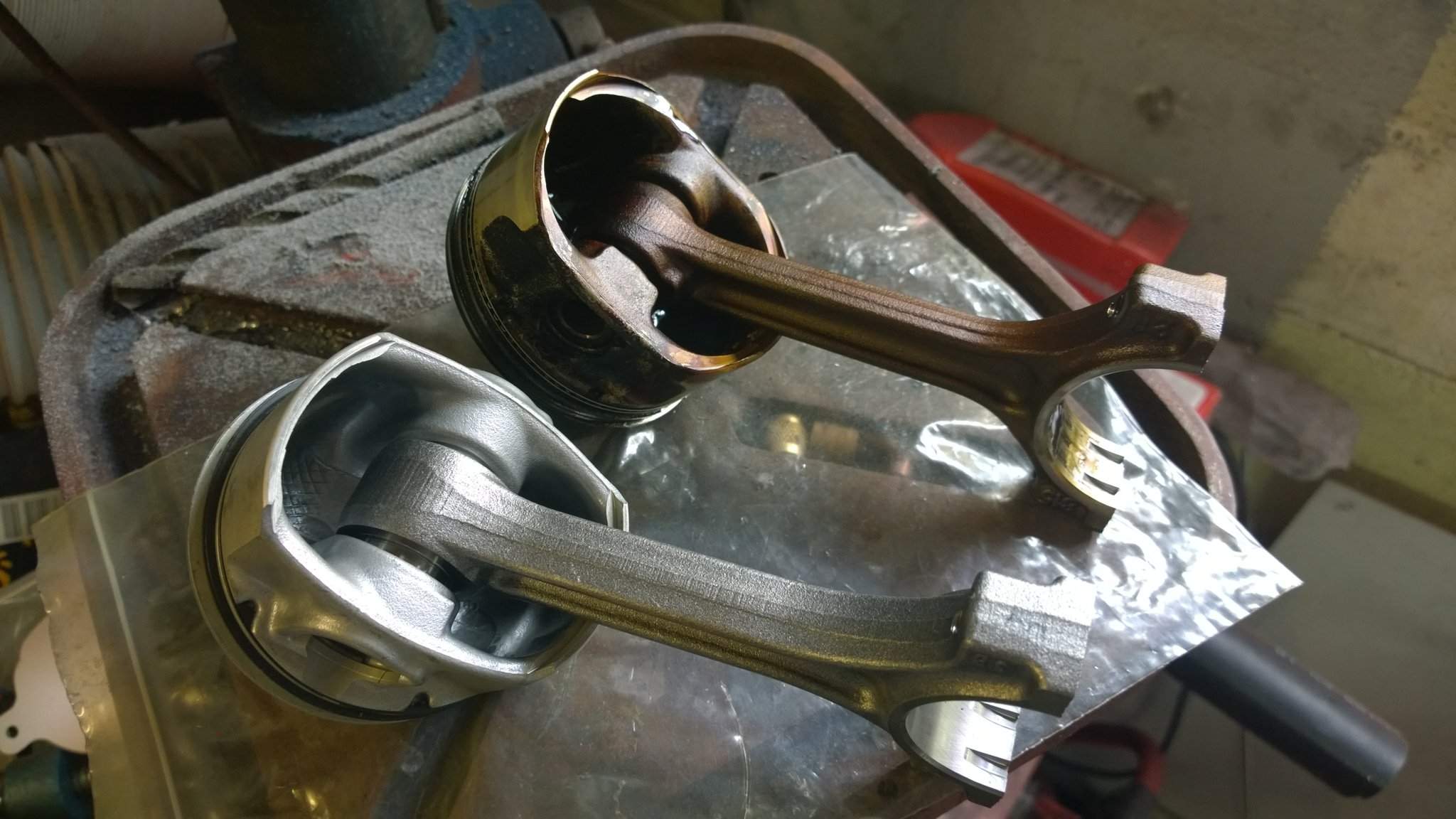

the difference of the b207 rods over the z22se rods so wish the z22se's had a 23mm pin

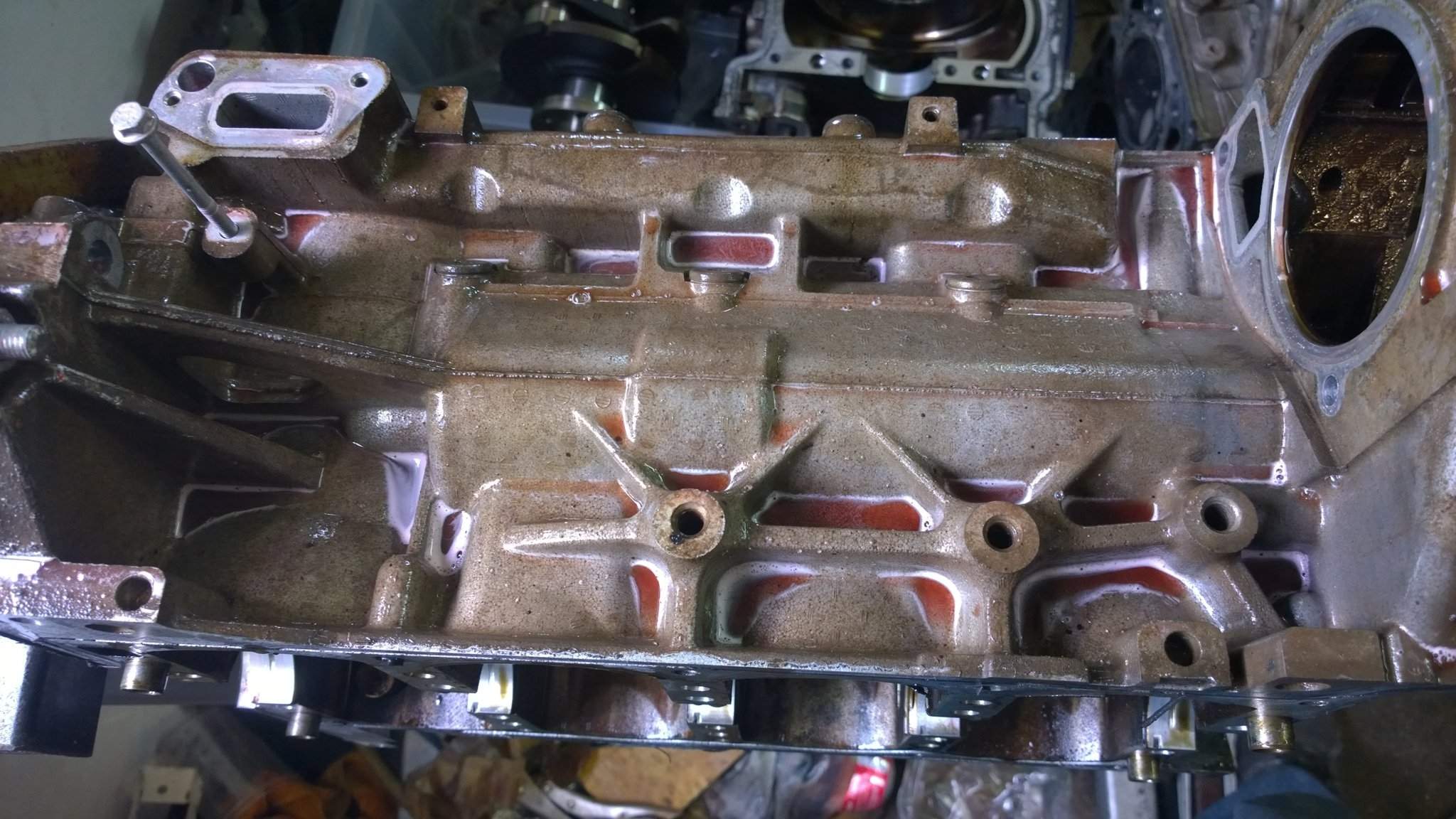

bilberry wheel cleaner and tfr on the block

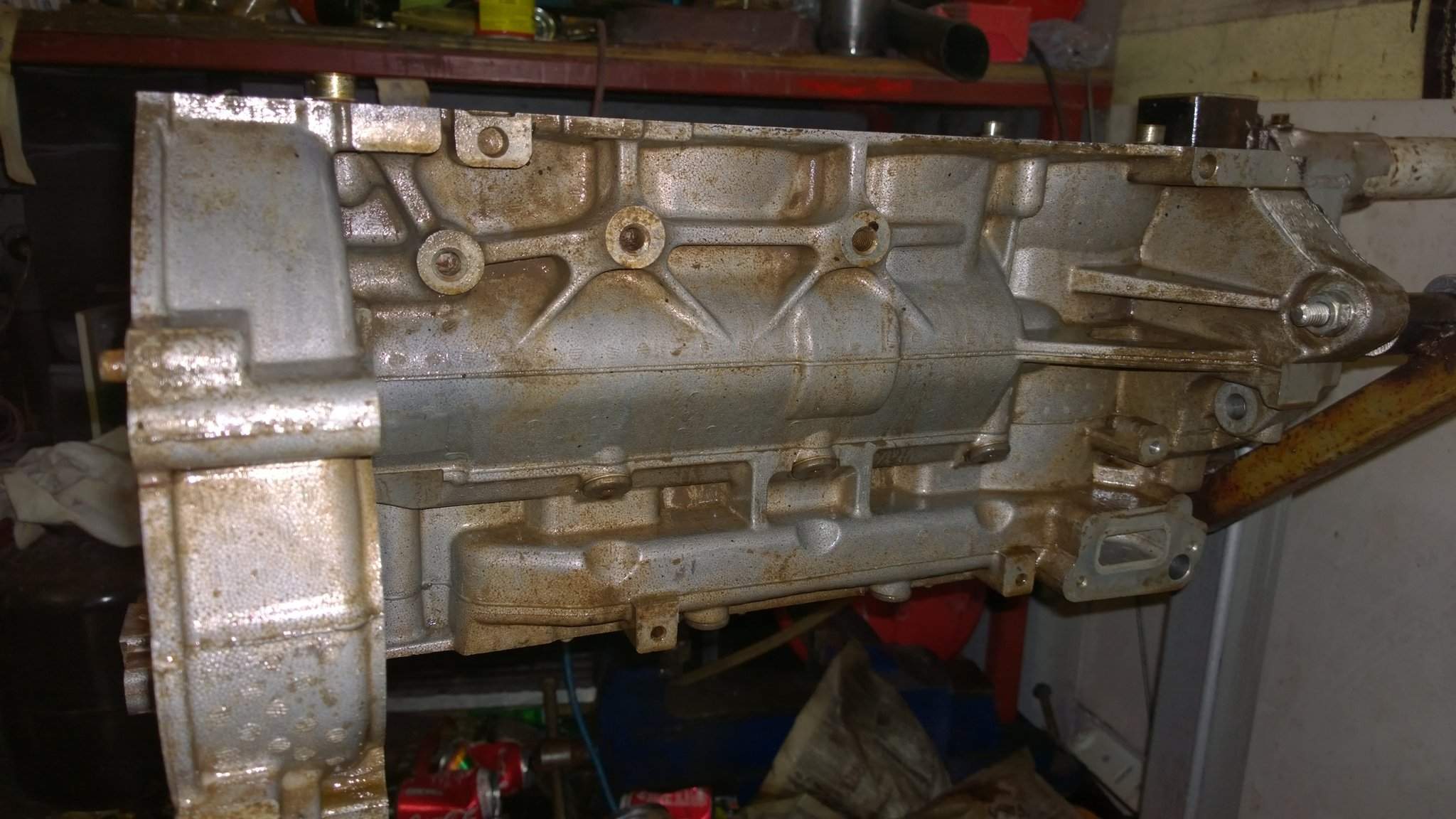

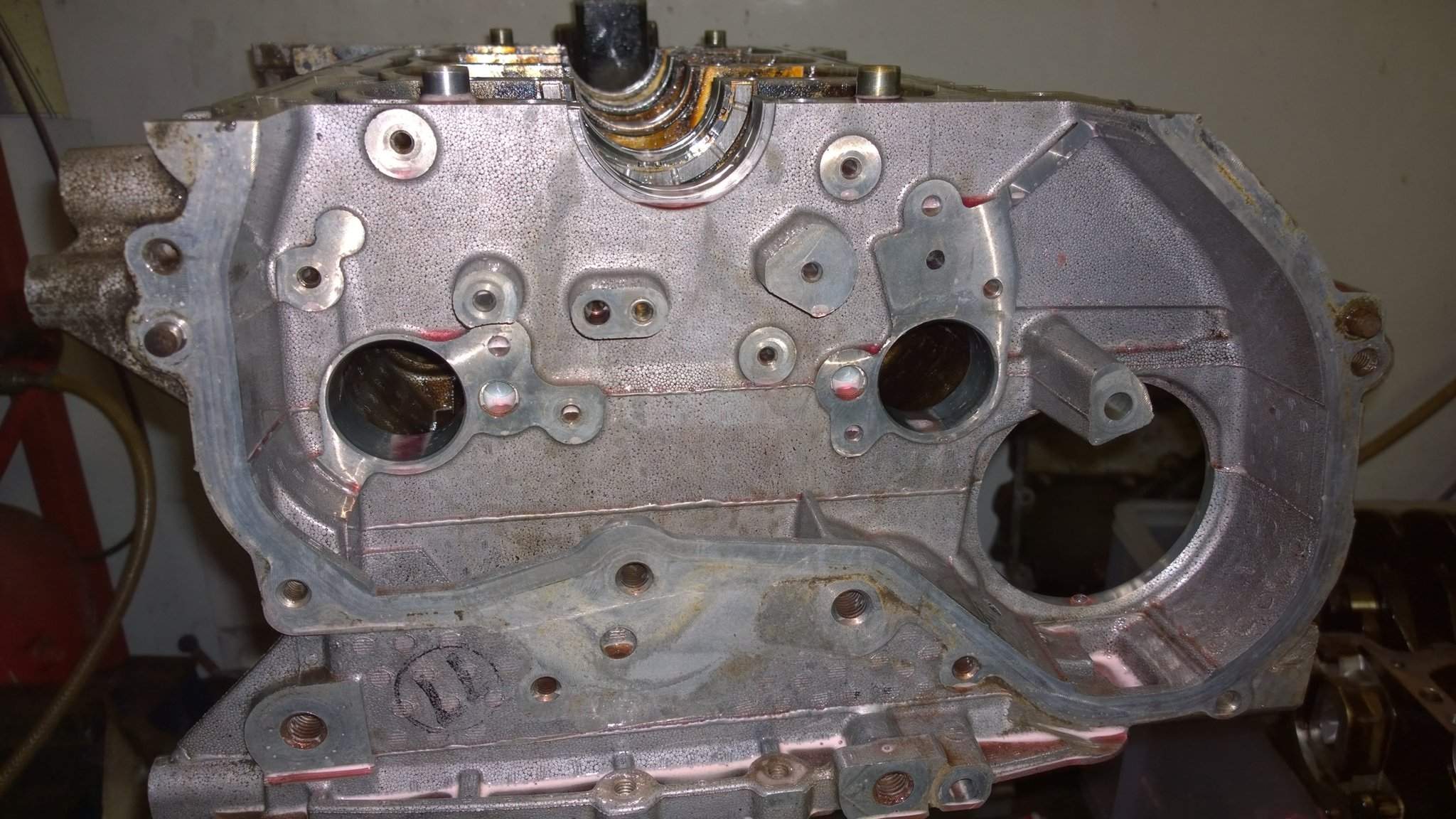

chain end clean

still needs another wash

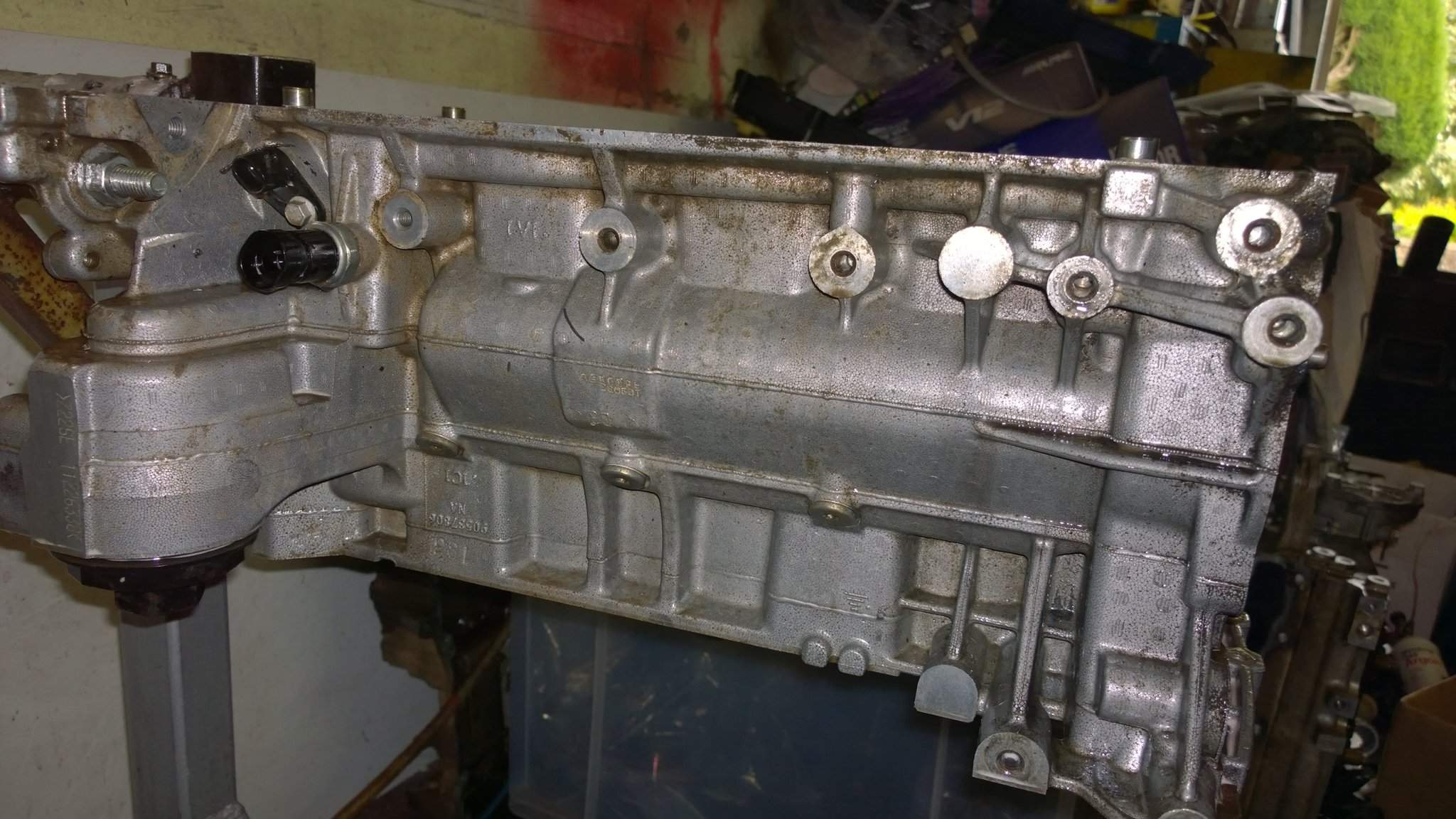

front side came out quite clean

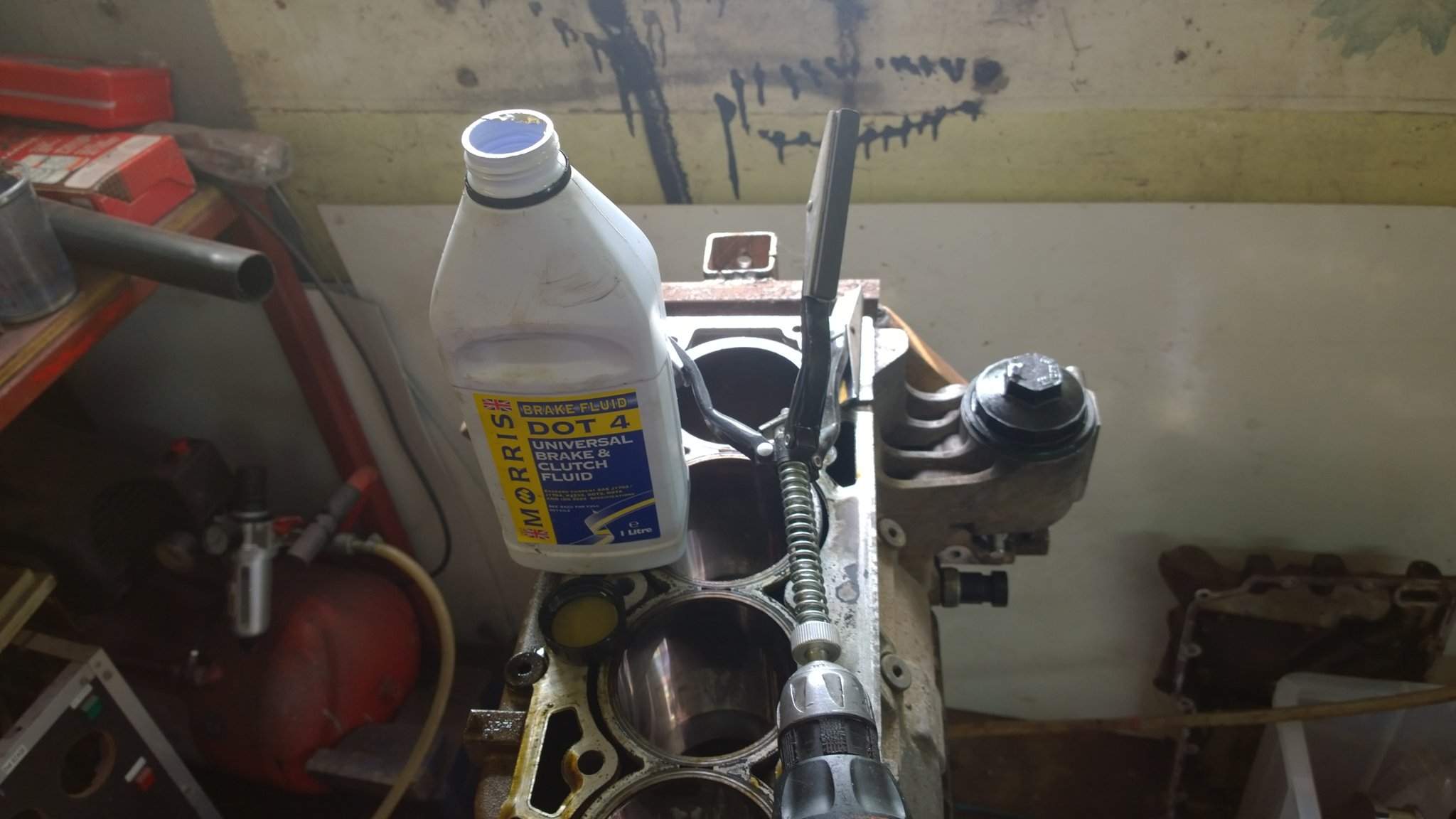

honing tool and brake fluid 🙂

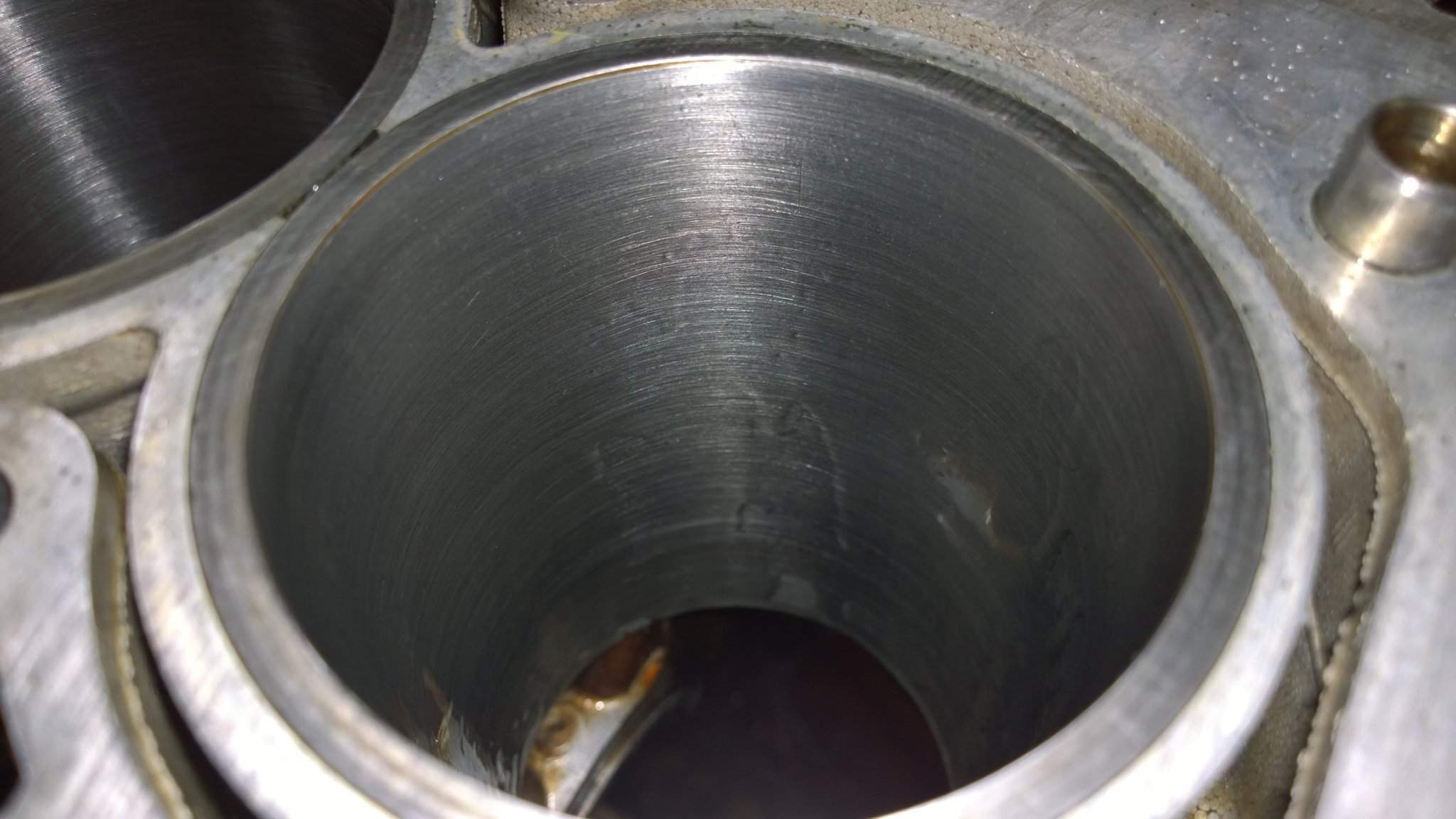

10 passes with the honing tool to each bore

need to clean the inside more

evocarlos

went back out and washed the block more
then scrubbed it with a toothbrush

it came out so clean 🙂 hehe i did actually use alloy paint

the bores got honed again with a scotch pad wrapped round the honing tool for a finner finish

new head gasket to 🙂

need to buy some parts now

@[deleted] 🙂

milo

Are we bored? lol Nice job bud (y)

evocarlos

milo said:
Are we bored? lol Nice job bud (y)

thanks 🙂 what do you do with someone that can't sit still lol

Dave_Gilbert

thats come up clean.

Sjdickso

Nice and clean so what's your full plans for this engine Carl?
