Finally had some time to do the car, so the past few evenings I've made a start on the cage. I'm starting to become short on time for next season, first race is the 18th of March at Donnington. However I go on Xmas leave back home from the 16th of December till the 3rd of Jan and then fly to Norway for 6 weeks a few days later, so once back in the UK I will only have a few weeks to finish it.

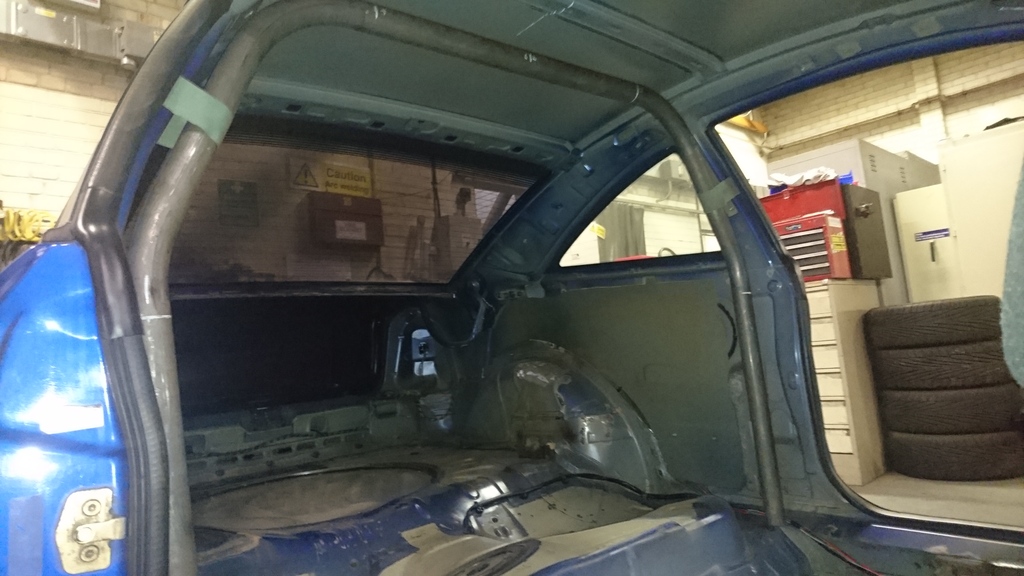

First up was the main hoop.

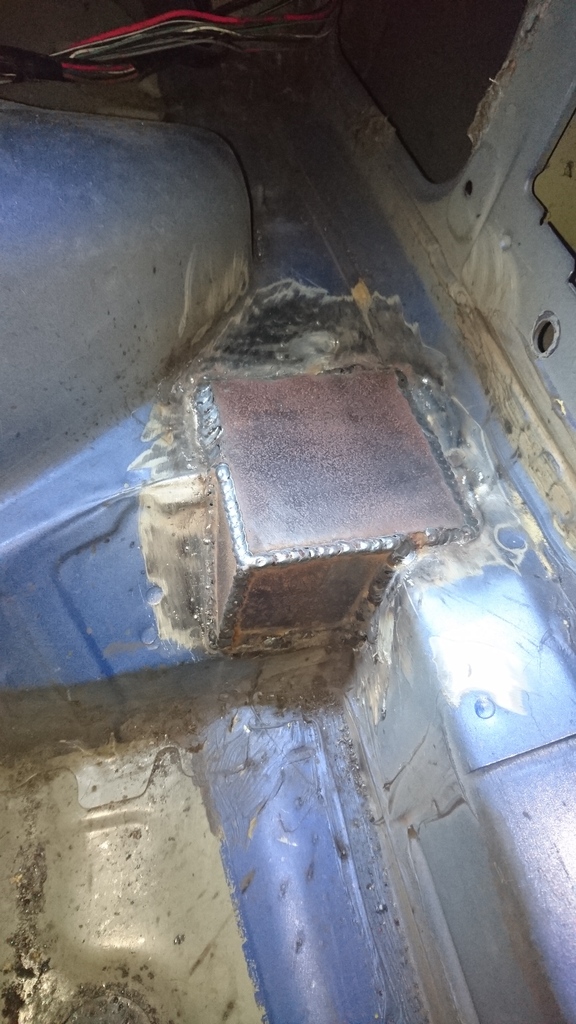

Then made feet bases both sides (120cm square as per msa blue book)

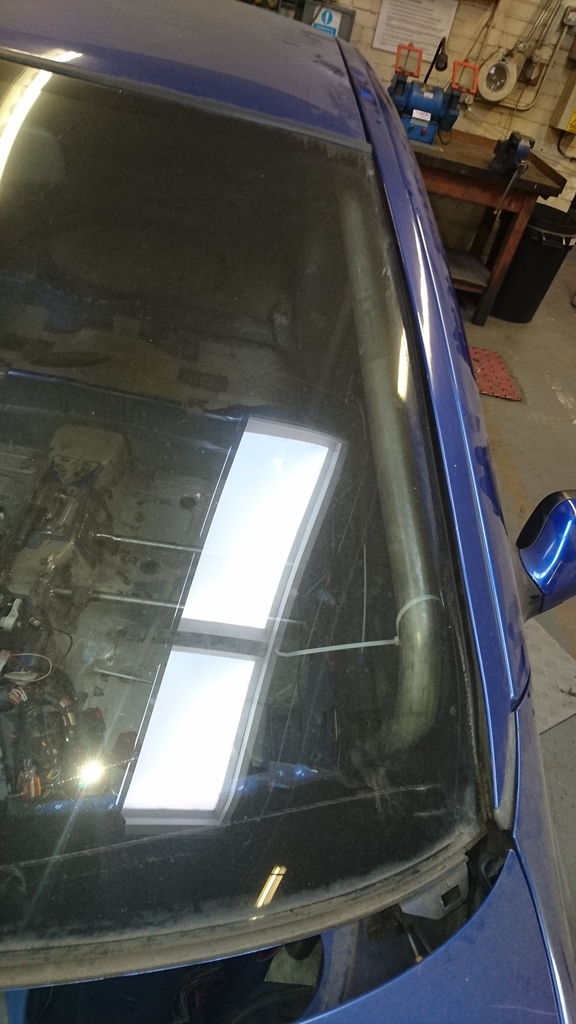

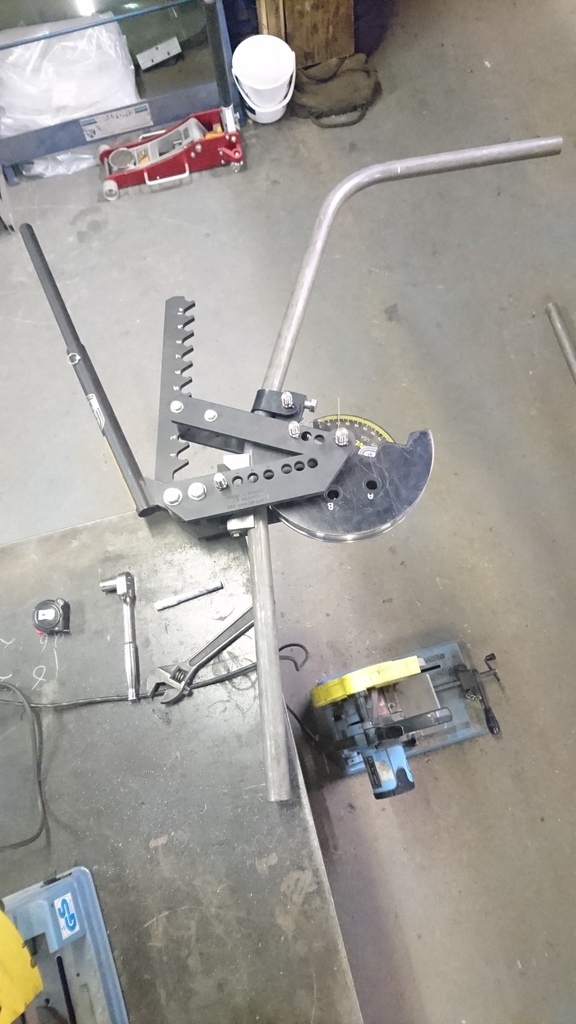

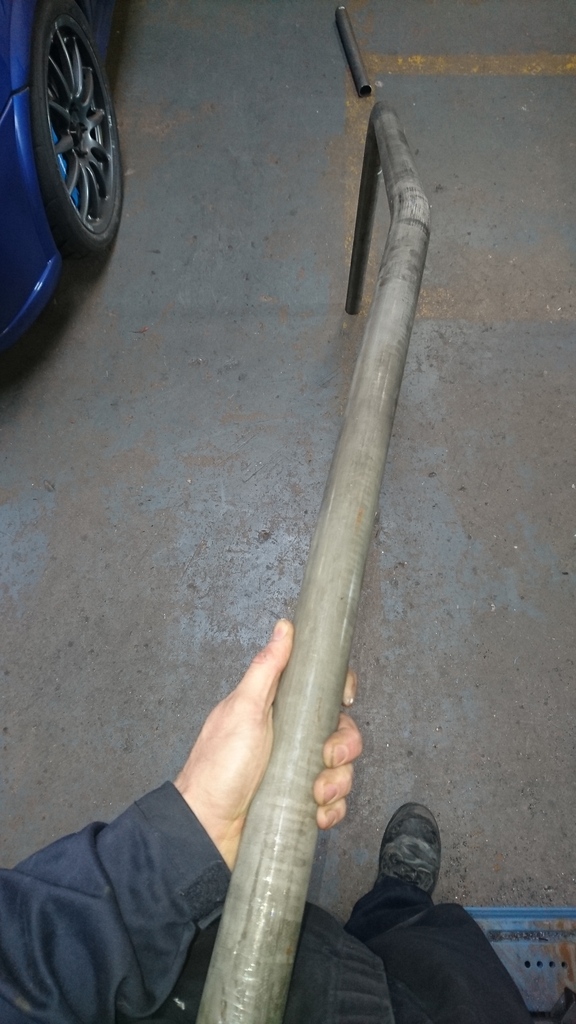

Then onto the A pillar bars, after a few designs this was the best shape I could get as your only allowed two bends in them (unless you run windscreen re enforcement bars. I can't as it would block my side mirrors totally)
Had to offset the bends due to the shape of the coupes roof line

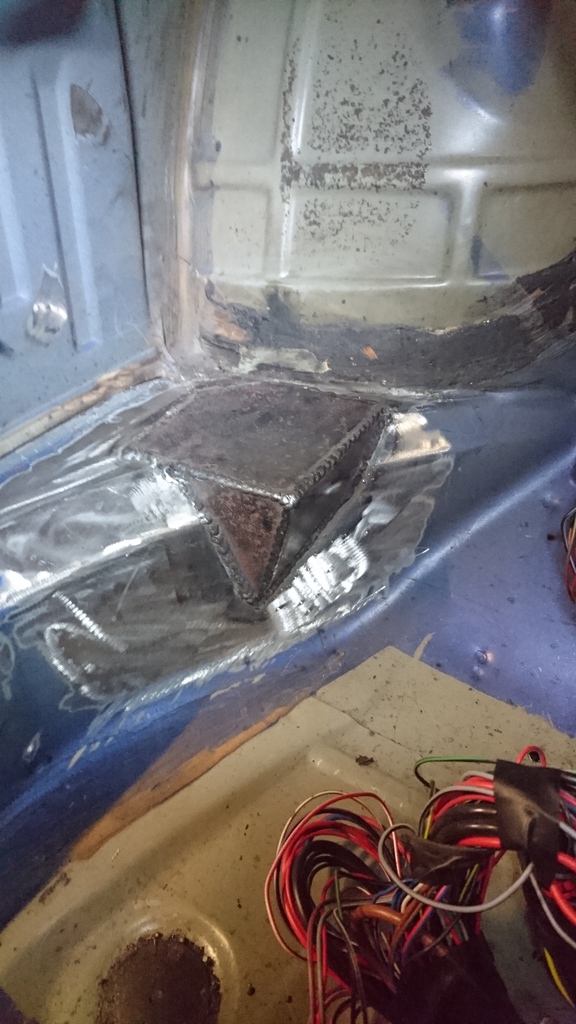

Feet bases made both sides

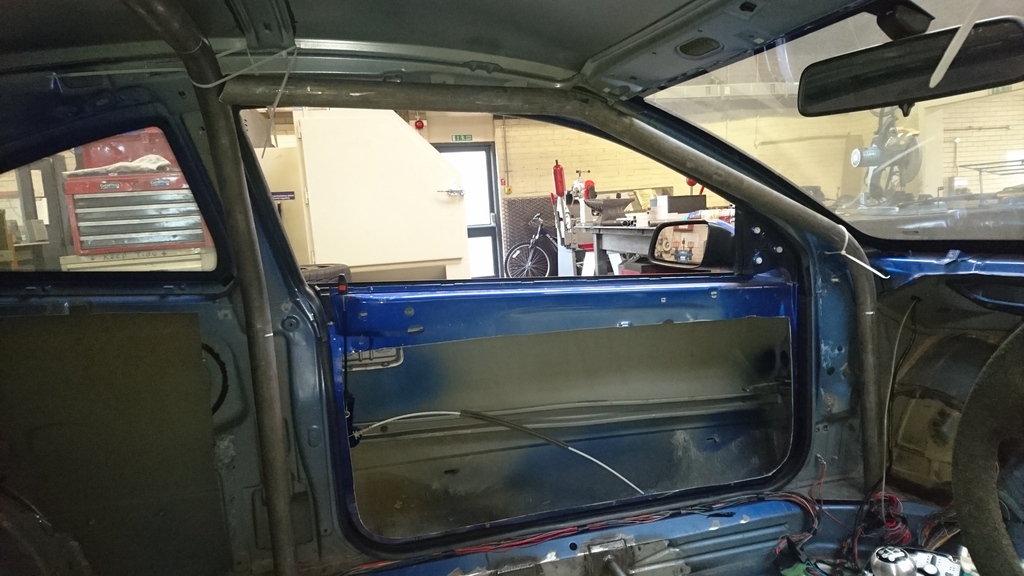

A and B pillars will have gussets welded on, but nice and parallel

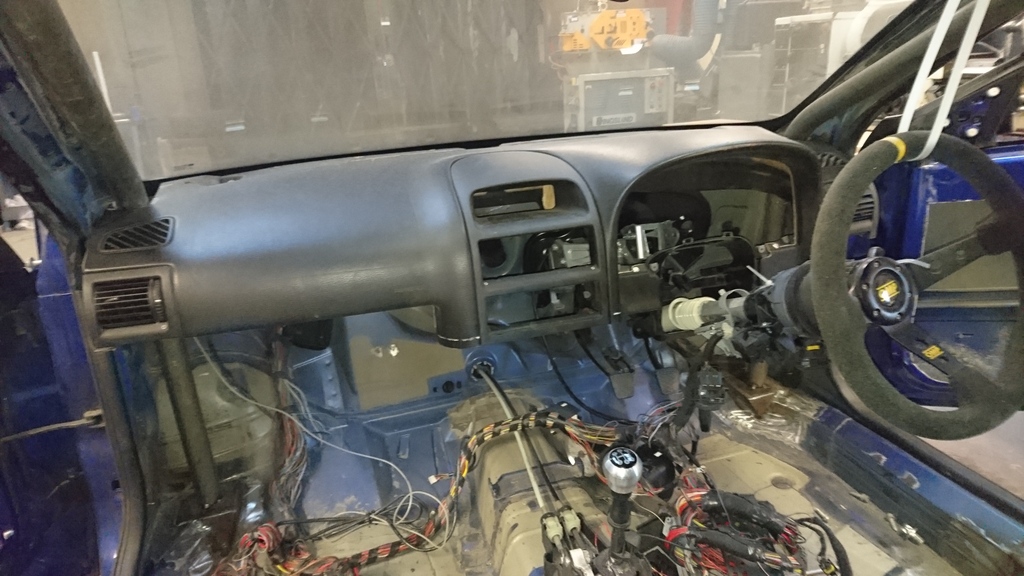

Had to slot the dash top to get it back in, I could now measure where I wanted the dash bar to fit

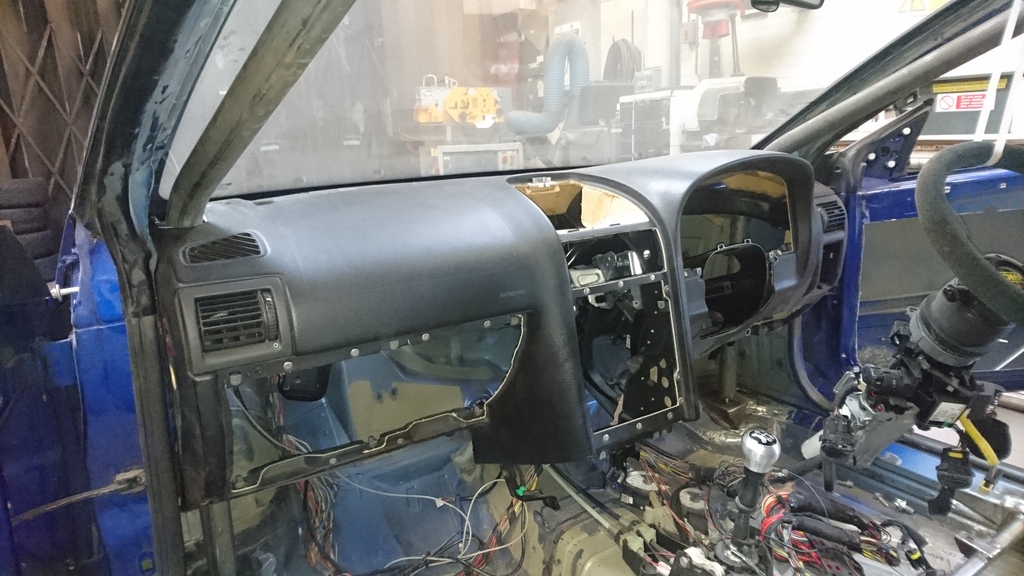

Dash all cut down and lightened

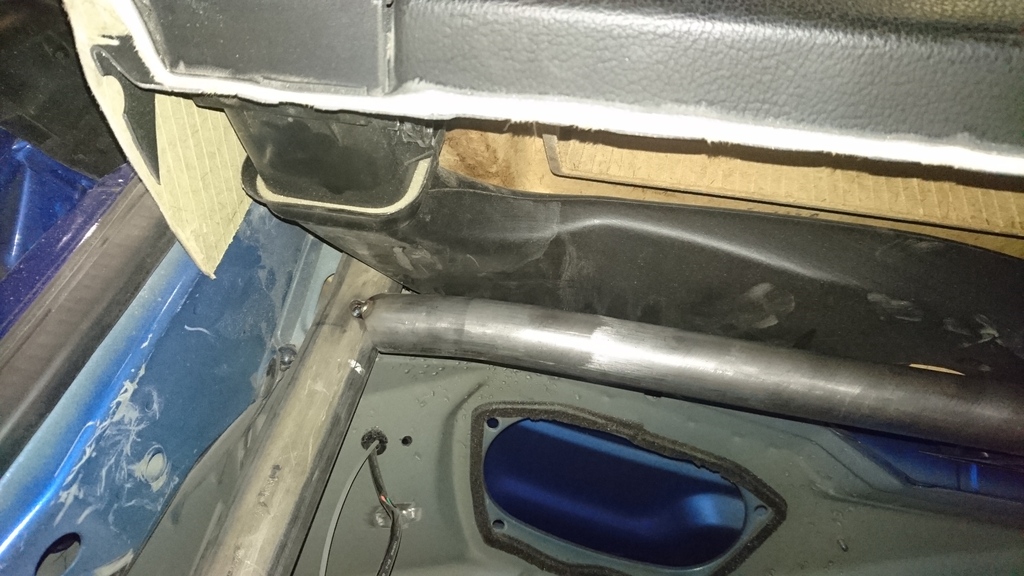

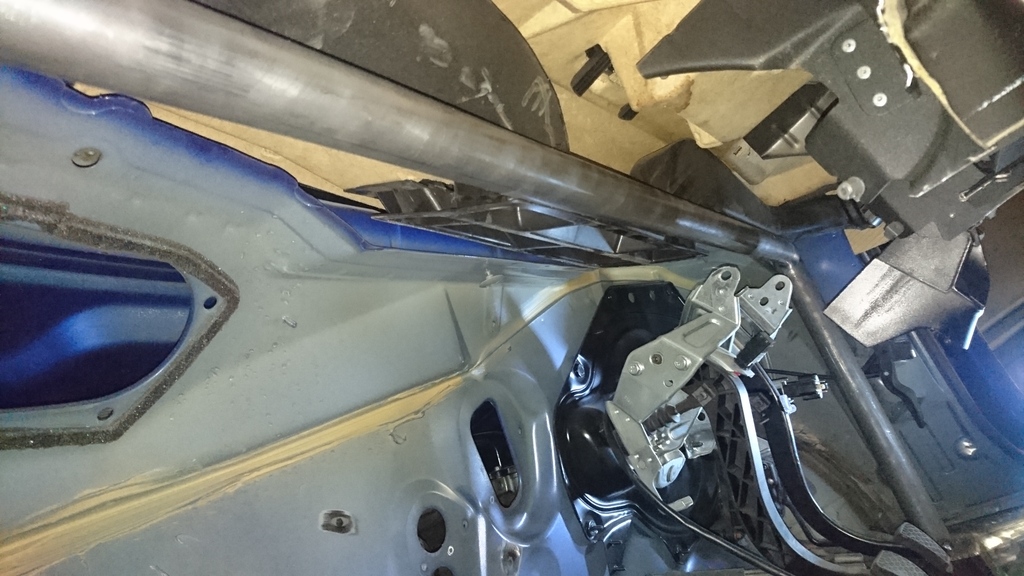

Dash bar fitted, it's all tight under there but I've made it so I can still have the side vents to clear the windows

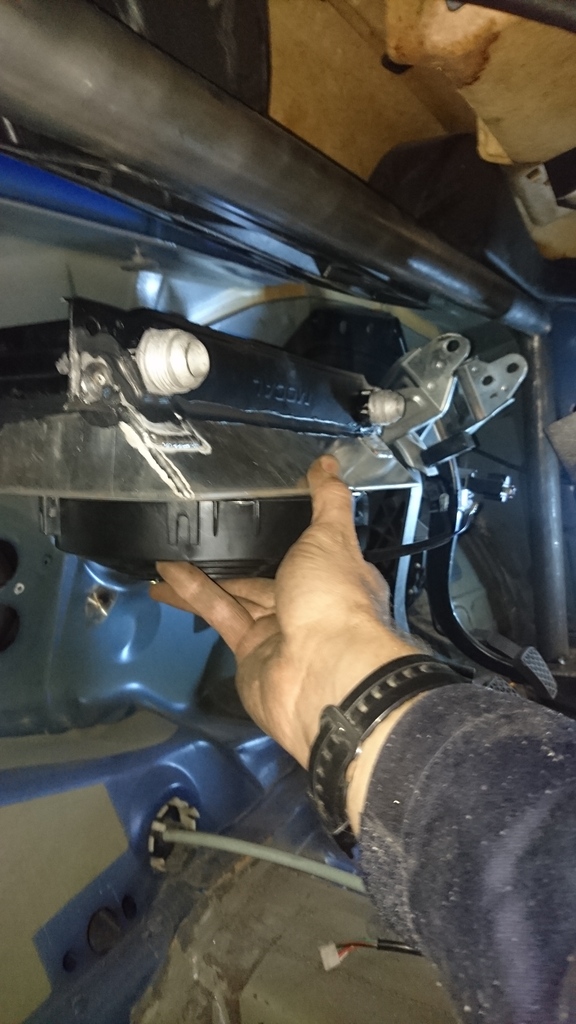

Heater box/blower will sit around here

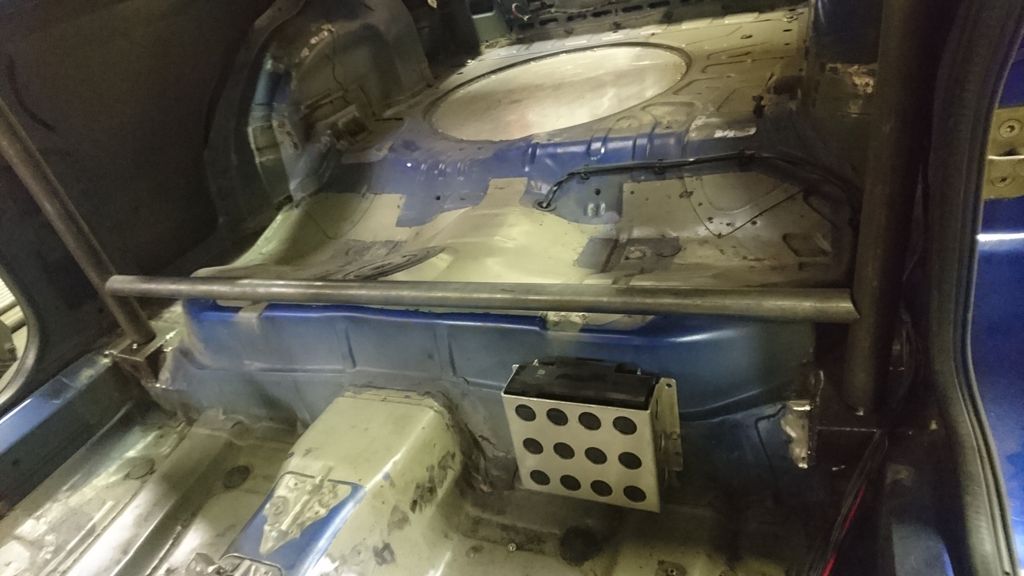

B pillar brace added
Aim is to have it finished inside by end of next week ready for paint
