Project Freeze My engine Off (SAAB B207R Supercharged)

thuan1084nd

ohm, greaty

evocarlos

oooohhh my precious 🙂

milo

evocarlos said:
oooohhh my precious 🙂
[ATTACH]63685[/ATTACH]

[ATTACH]63686[/ATTACH]

[ATTACH]63687[/ATTACH]

That does look rather nice

chill

A lot of the vx220 crowd are going to or have used the aquamist system

With fail safe option
Think a lot of us are waiting for the dual map software to become available from obdtuner

http://www.aquamist-direct.com/806-063-hfs3-v3-1-system-a-truly-progressive-system-utilising-pwm-valve/

So when water runs out the map auto magically changed to a safe non water injection map

chill

Howmuch power were you making Carlos
My plan was only to use water 100% to just keep iat low and try and keep a Consistant 350 ish hp

I'm also going to be injecting after the laminovas with two jets either side

evocarlos

chill said:
A lot of the vx220 crowd are going to or have used the aquamist system

With fail safe option
Think a lot of us are waiting for the dual map software to become available from obdtuner

http://www.aquamist-direct.com/806-063-hfs3-v3-1-system-a-truly-progressive-system-utilising-pwm-valve/

So when water runs out the map auto magically changed to a safe non water injection map

The thing with the aqua mist is its outrageous price I have the option of 2 maps on the aem with a trigger from when the bottle is empty not setup like that tho

chill said:
Howmuch power were you making Carlos
My plan was only to use water 100% to just keep iat low and try and keep a Consistant 350 ish hp

I'm also going to be injecting after the laminovas with two jets either side

well it was 338hp on a 24c day so in colder weather more and with the meth 50/50 mix I would guestimate about 20hp on top
I'm still running the pcv from the rocker cover to the supercharger inlet so having the jet after the charger but before the laminovers the methanol would keep the fins clean the jet before is to stabilise the temp of the charger that also would keep rotor tolerances closer meaning higher boost pressures for longer "in theory"" 🙂

chill

That's a worrying thought as there are a number of vx220 running around the 400 hp mark
Well at least for a few laps lol

chill

So you didn't have the HArrop on when the cracked the block

Did you map for the water meth 50/50 ?

evocarlos

chill said:
So you didn't have the HArrop on when the cracked the block

Did you map for the water meth 50/50 ?

no it broke 2 weeks ago and only got the harrop on monday 🙂
and no it was not mapped to meth i didnt want to rely on the always being fluid in the bottle i just dont have the parts to make a fail safe system running the 2 maps as 1 of the maps is the default cs map and the other is setup to do mots

evocarlos

looking back at some of the old pics it could of just been a fault with the block

evocarlos

took the head in for a skim today at 11am phone call at 2 to say it was ready 🙂

just got the cams back in and all the hardware sumps clean and fitted to the block im just waiting on the new head gasket and crank seals then it will be going back in the car for trial fittment of the harrop

chill

Dosent look like the failure is down to power related from what your saying

evocarlos

chill said:
Dosent look like the failure is down to power related from what your saying

not at 14psi not a chance i have had the rubber coating from the head gasket in the headder tank for a few months made worse by putting the Evans prep fluid in
tbf im glad its gone now before the harrop went on as i dont think it would of lasted long with it installed

Johnny2016

Nice 1 bud keep going, BTW is it me or is it the the bore on the right looks sort of ovalish shape?

evocarlos

its been a long couple of days 🙂

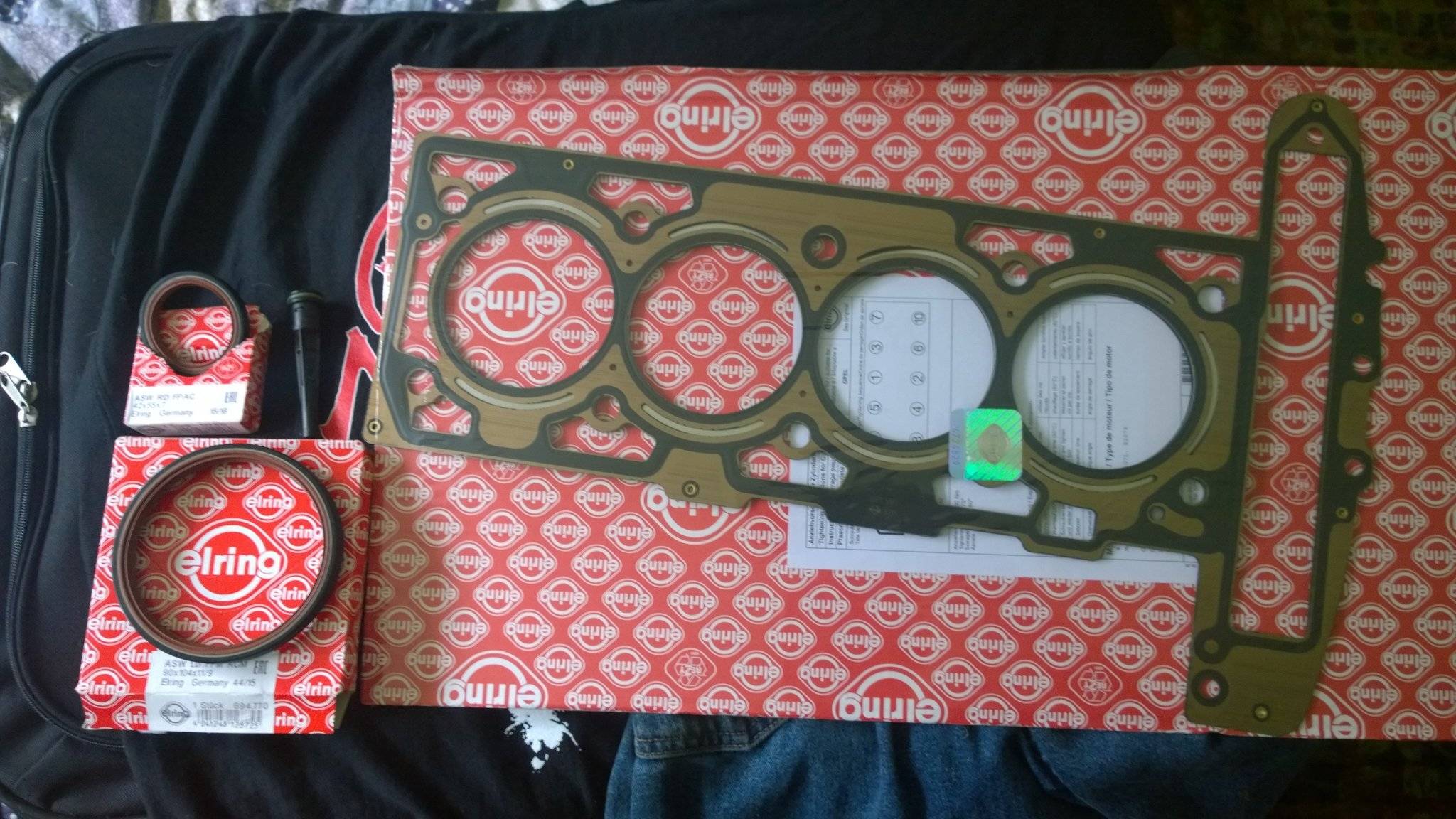

new head gasket and crank seals

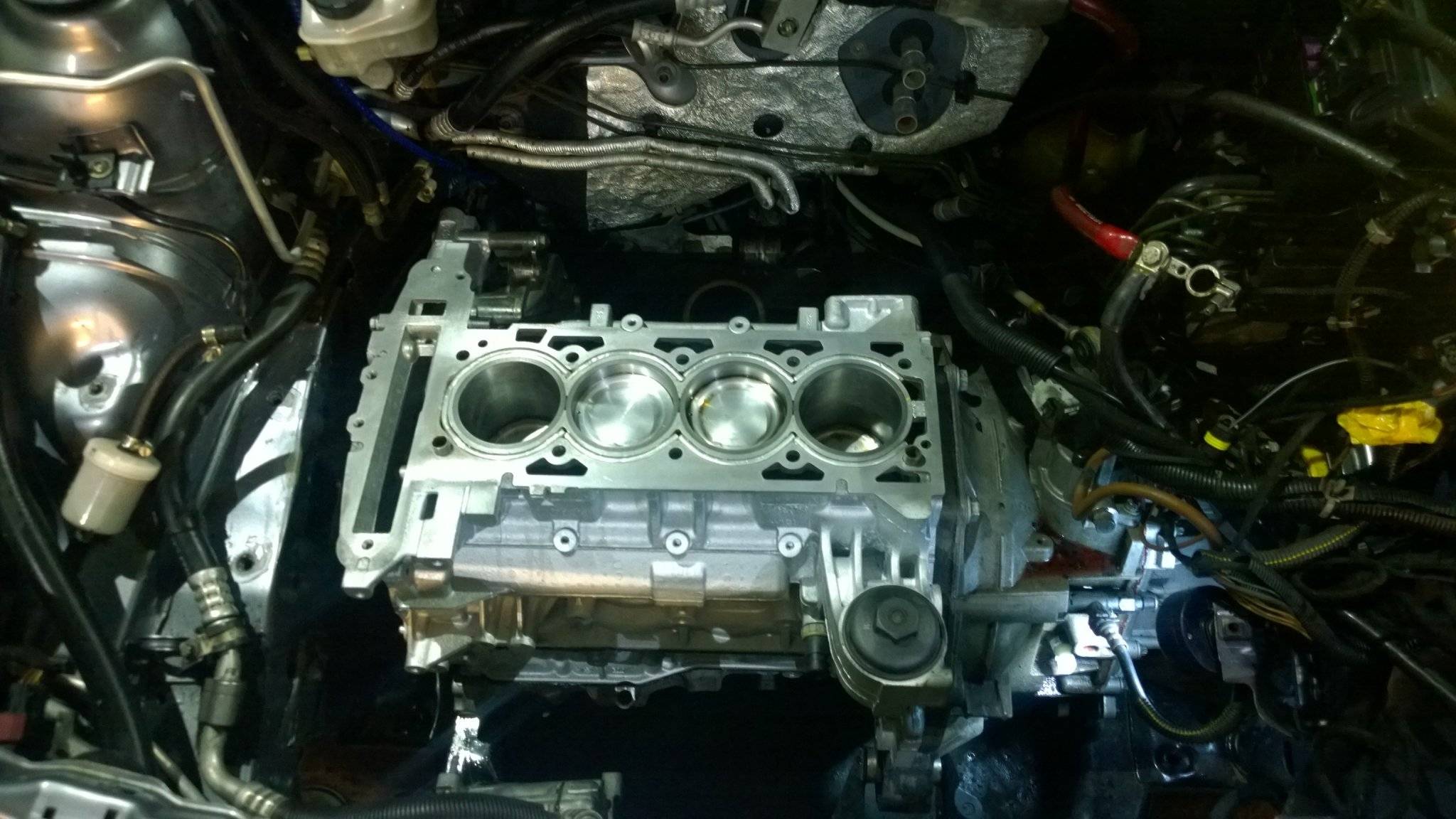

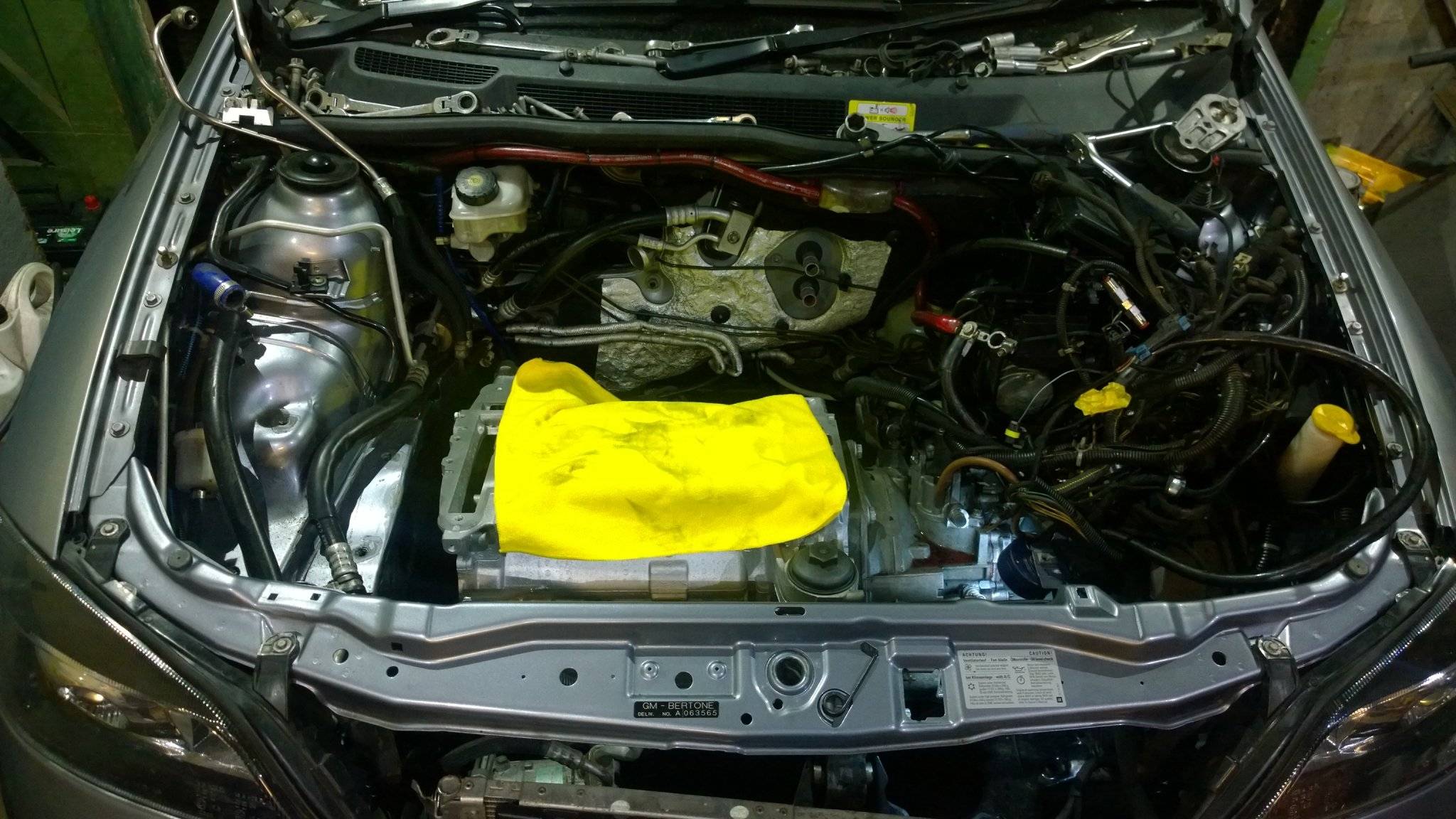

block in the car

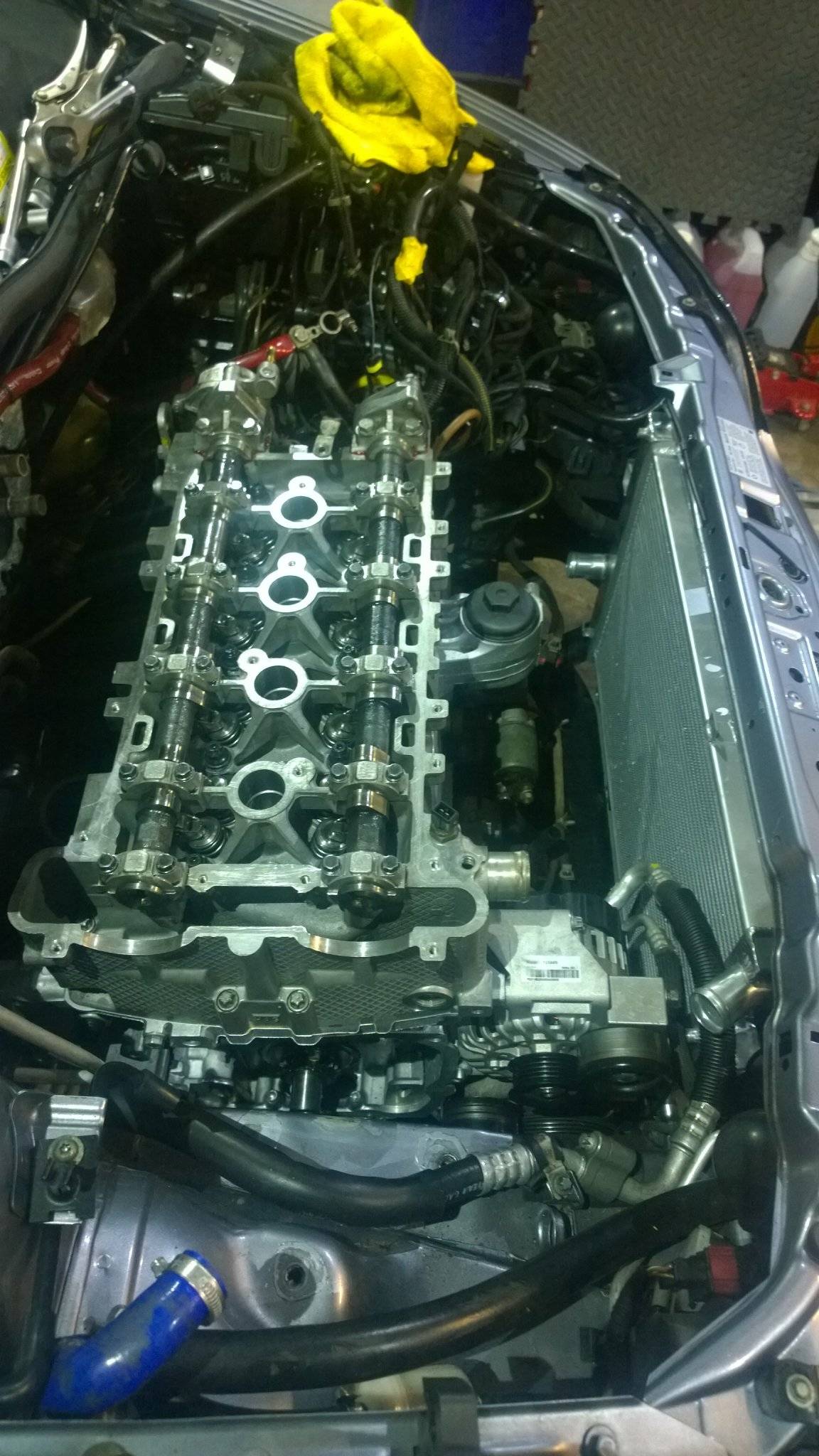

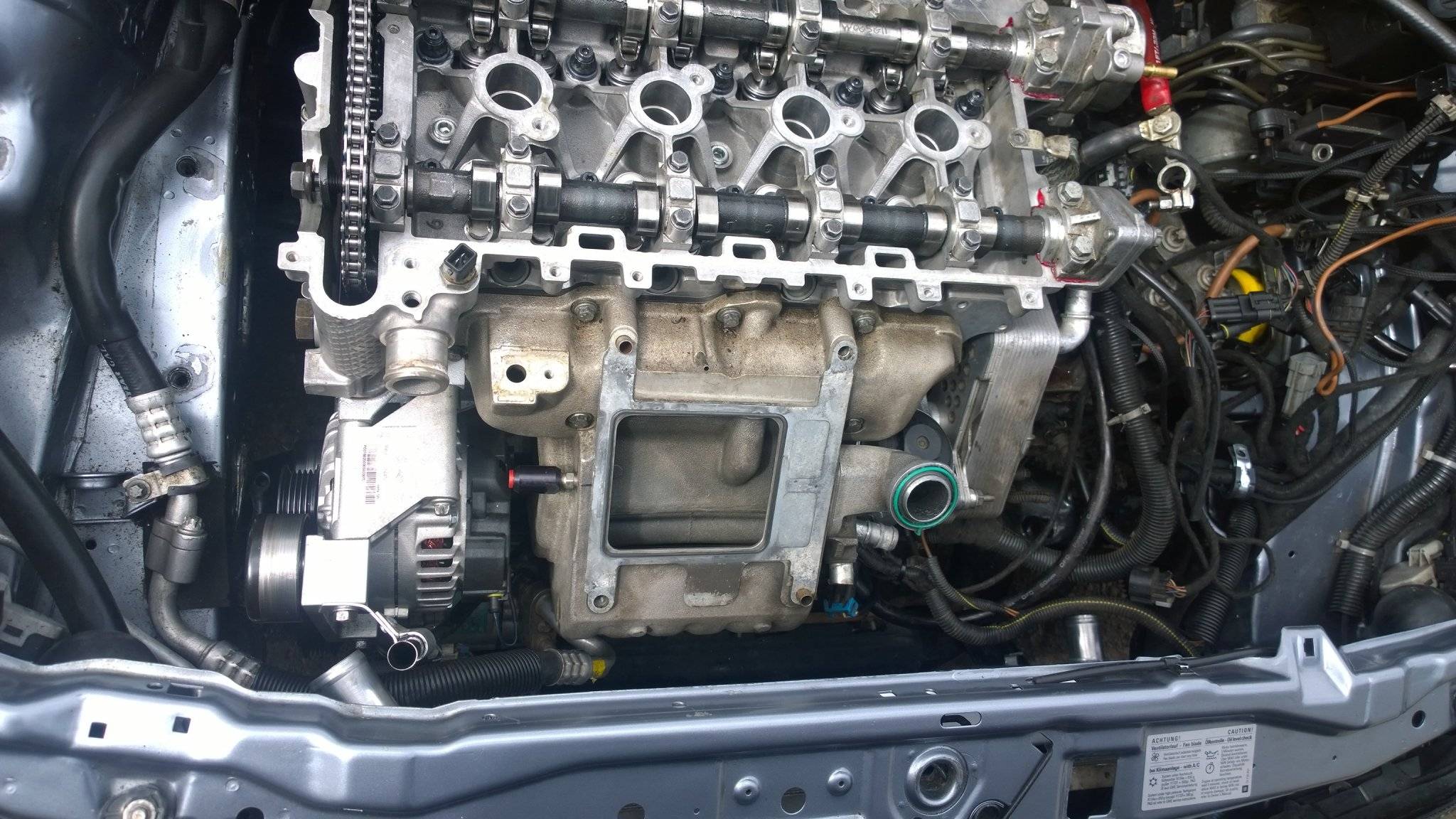

head on bolted down

more parts installed

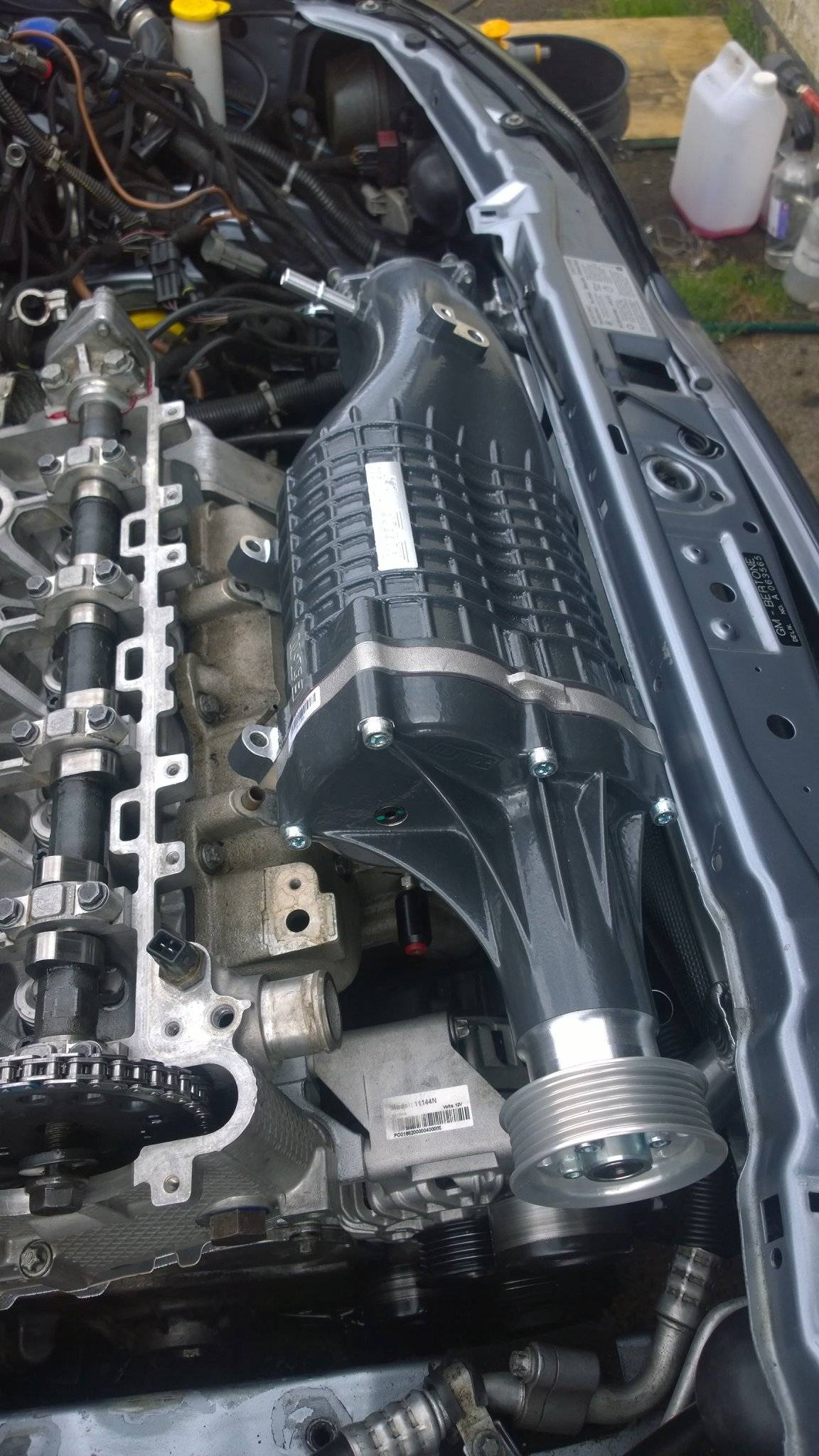

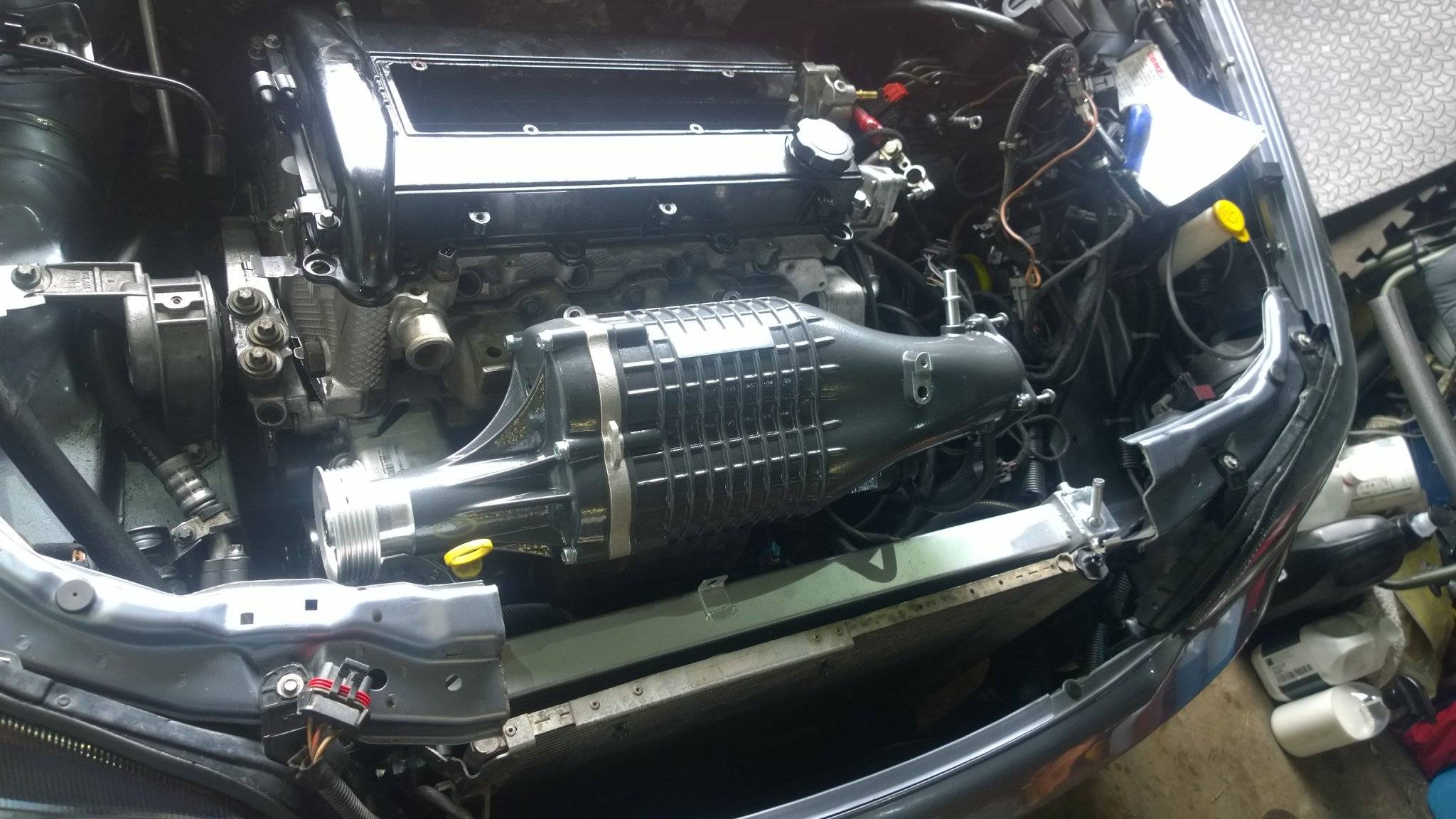

almost fits 🙂

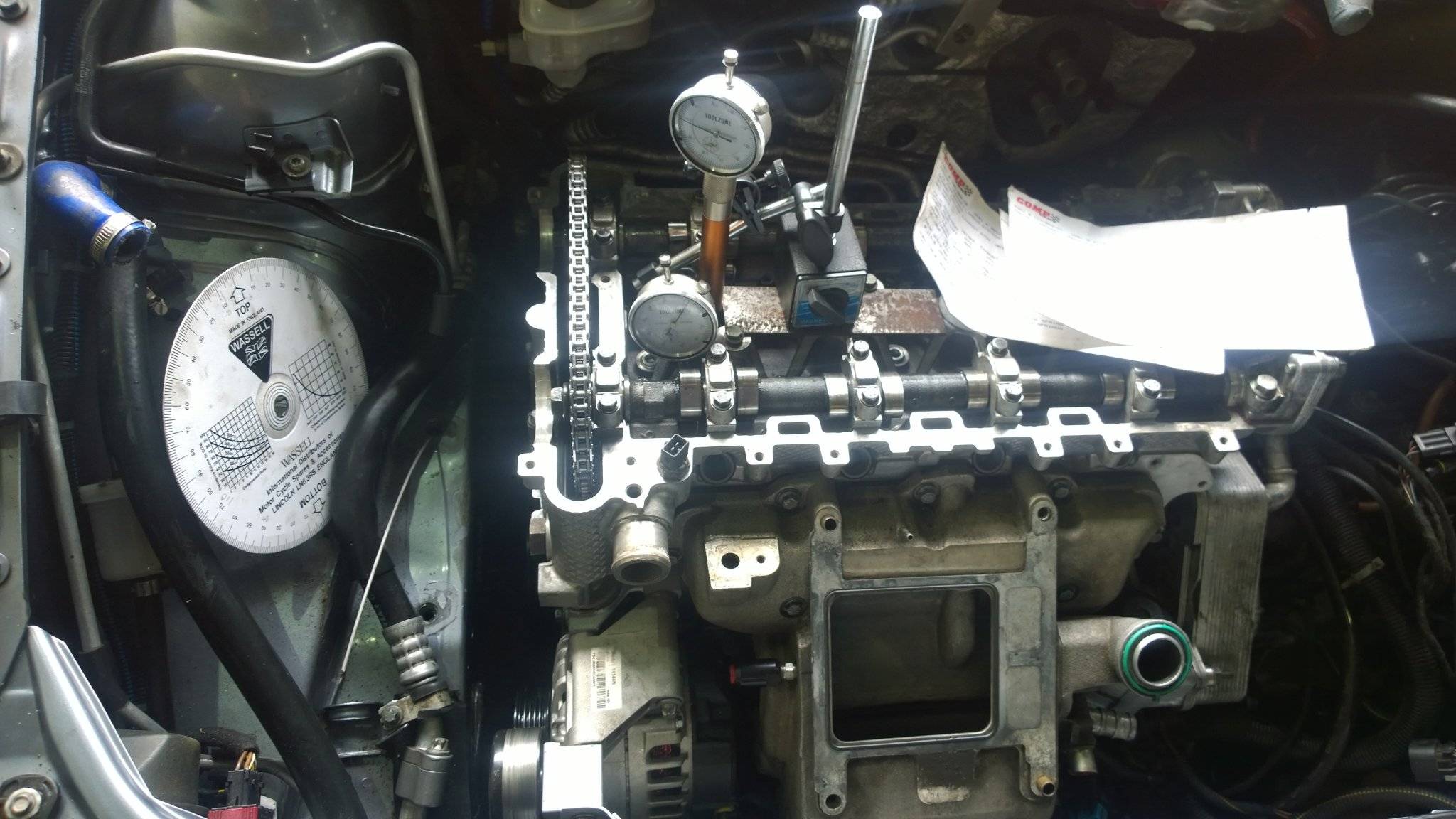

manual timing done in the car what a bitch

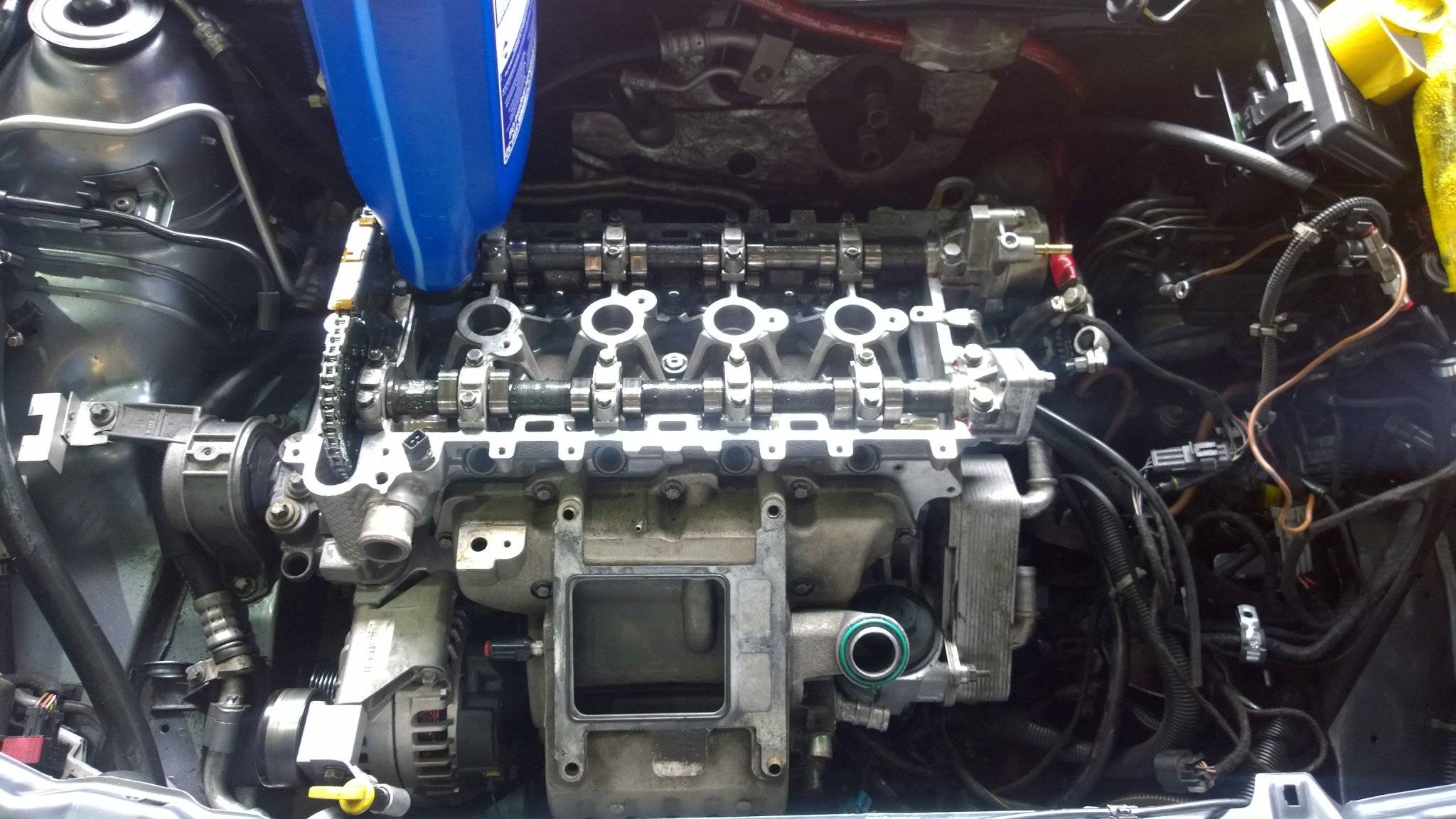

new oil and filter

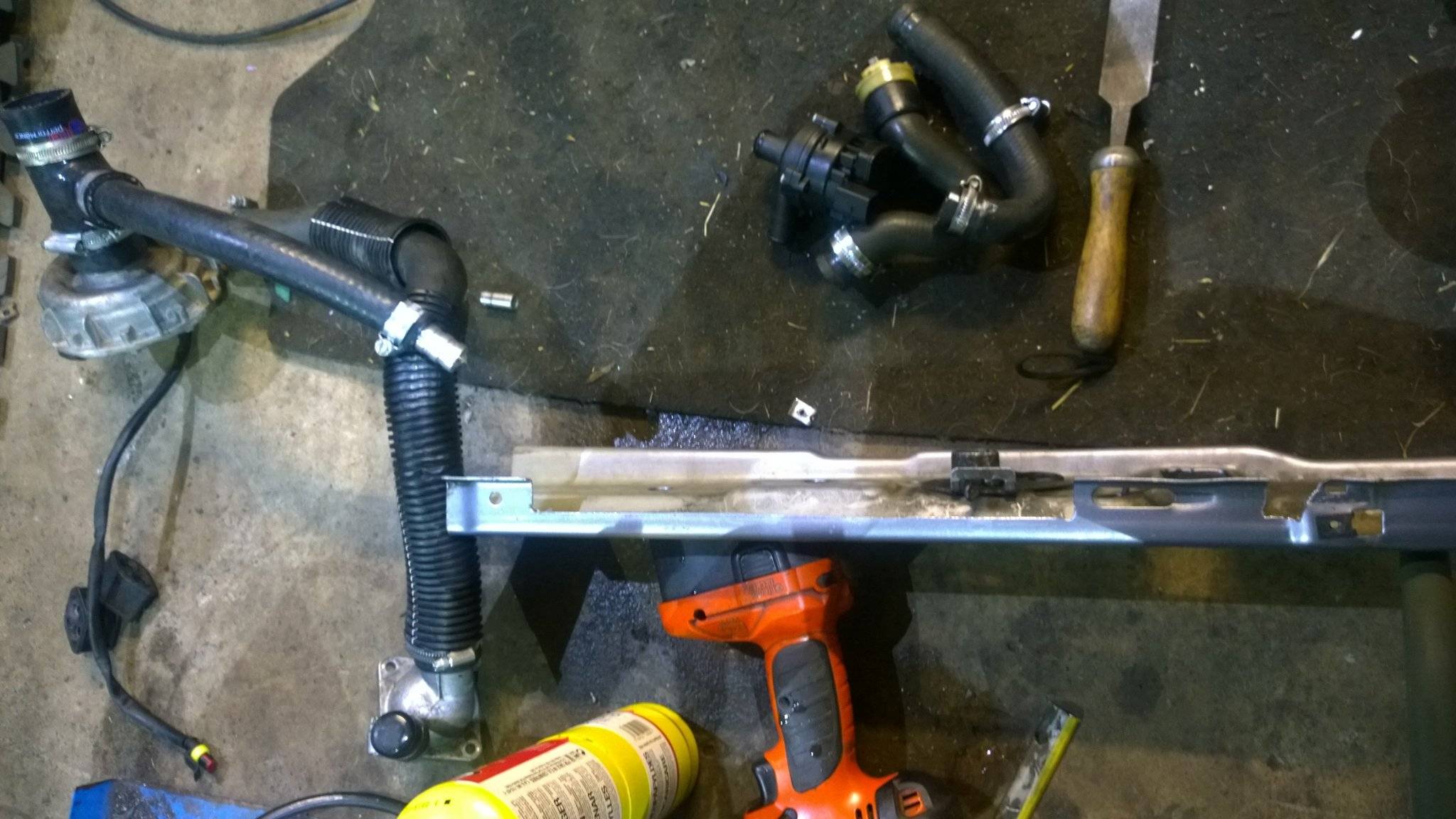

had to do some cutting 🙂

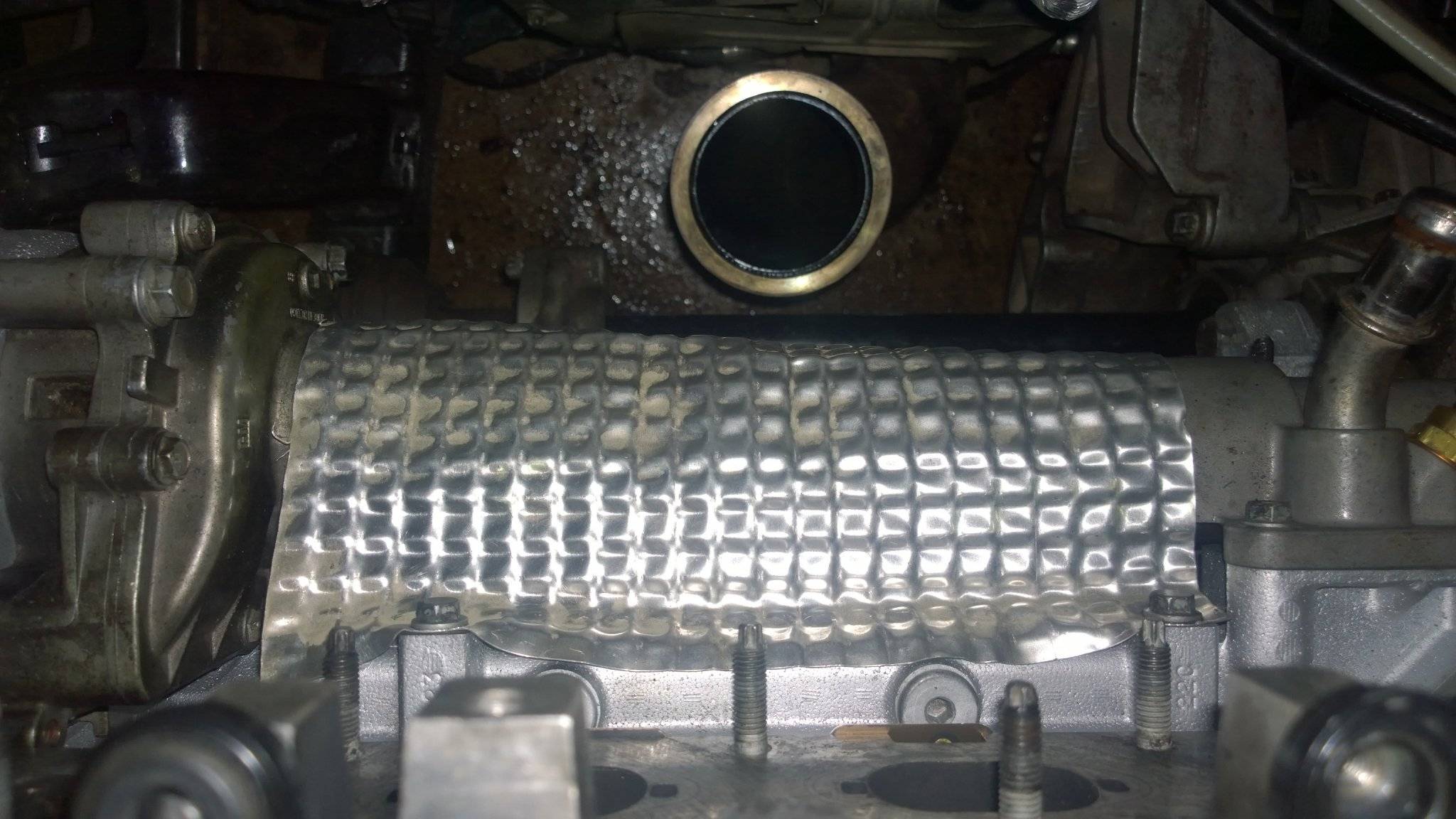

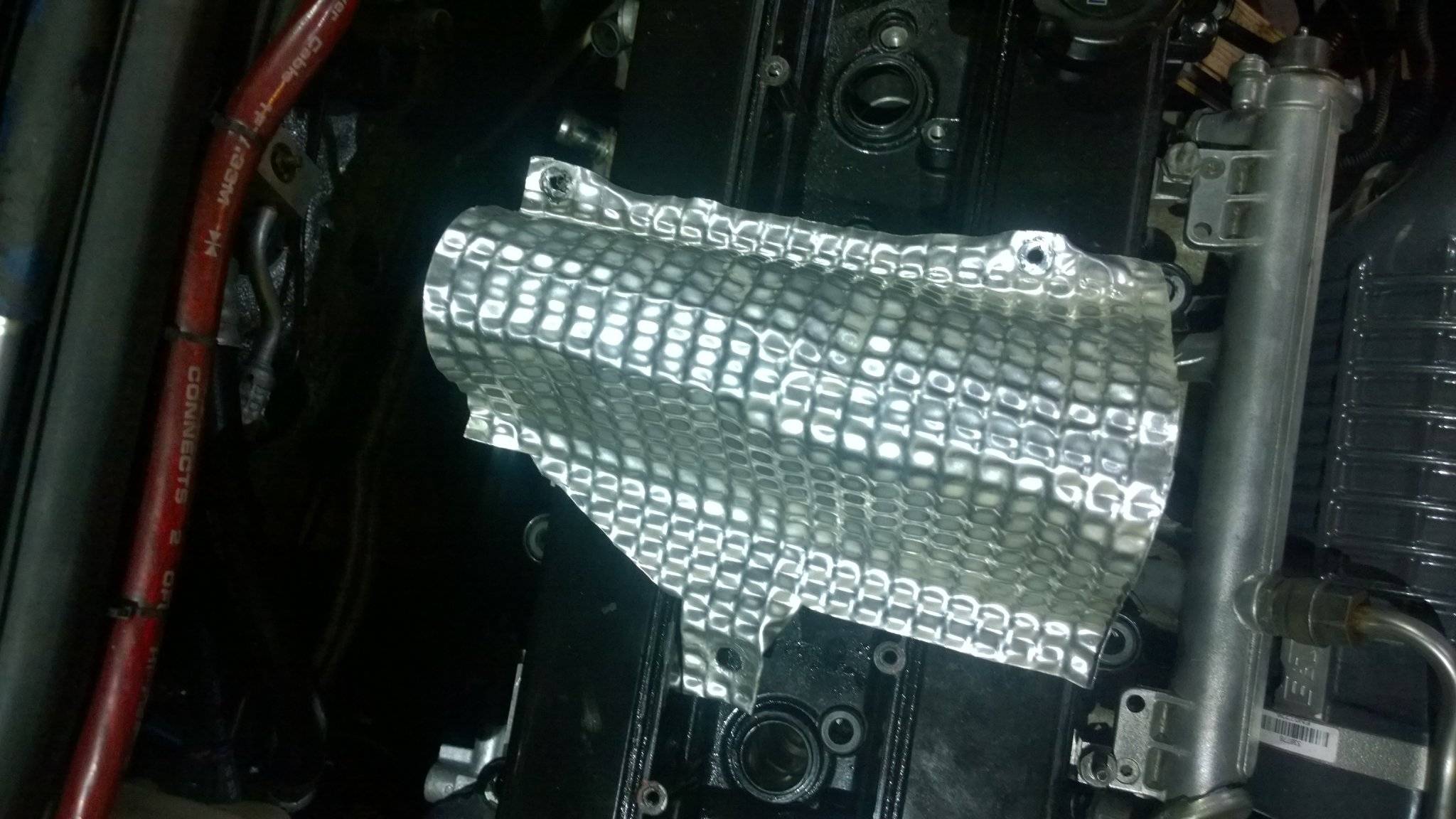

heat shield for the water link tube

maybe keep it a bit cooler in the bay

lots more bits fitted

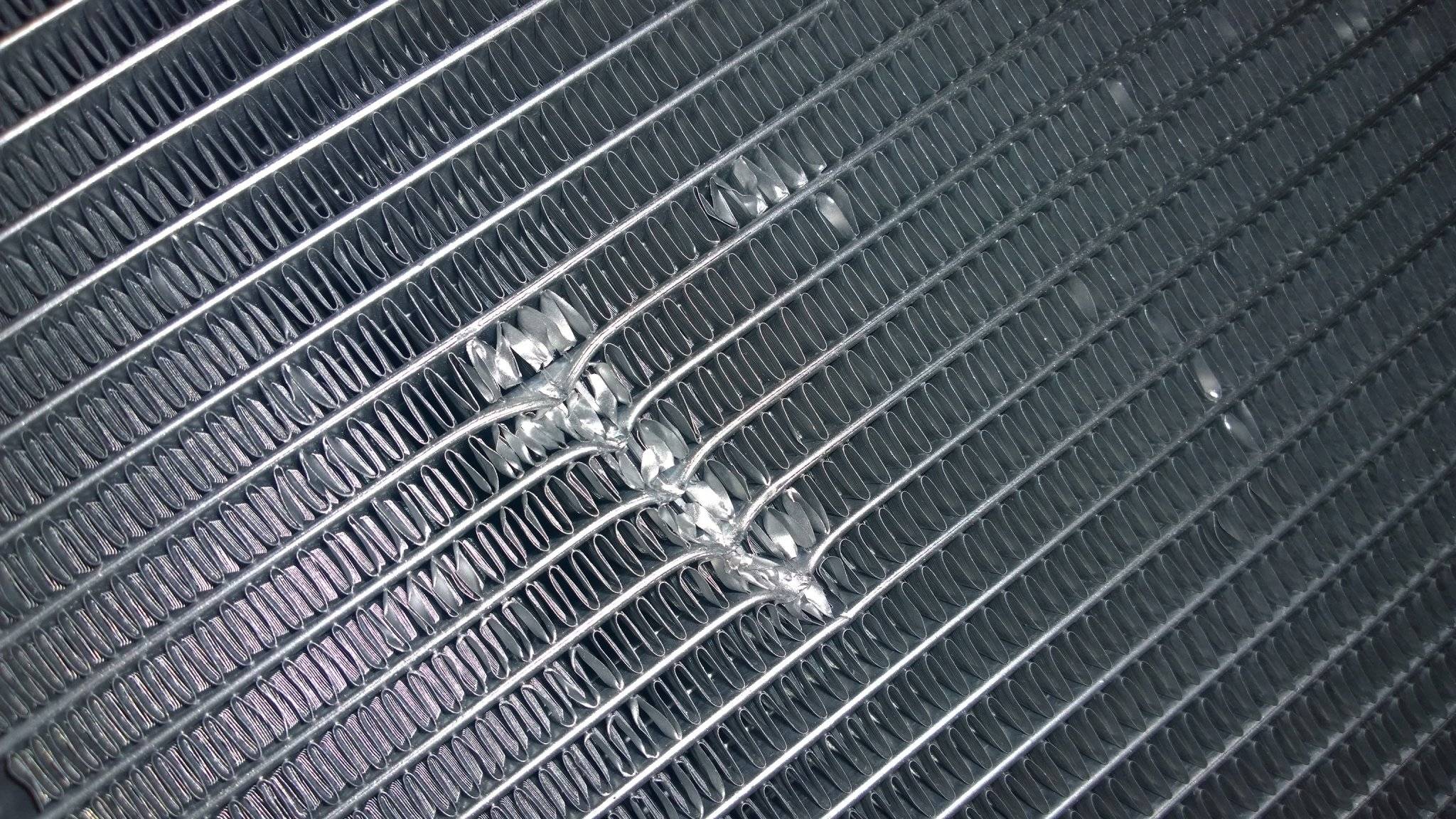

new alloy rad is scrap it was the wrong height and shape anywho

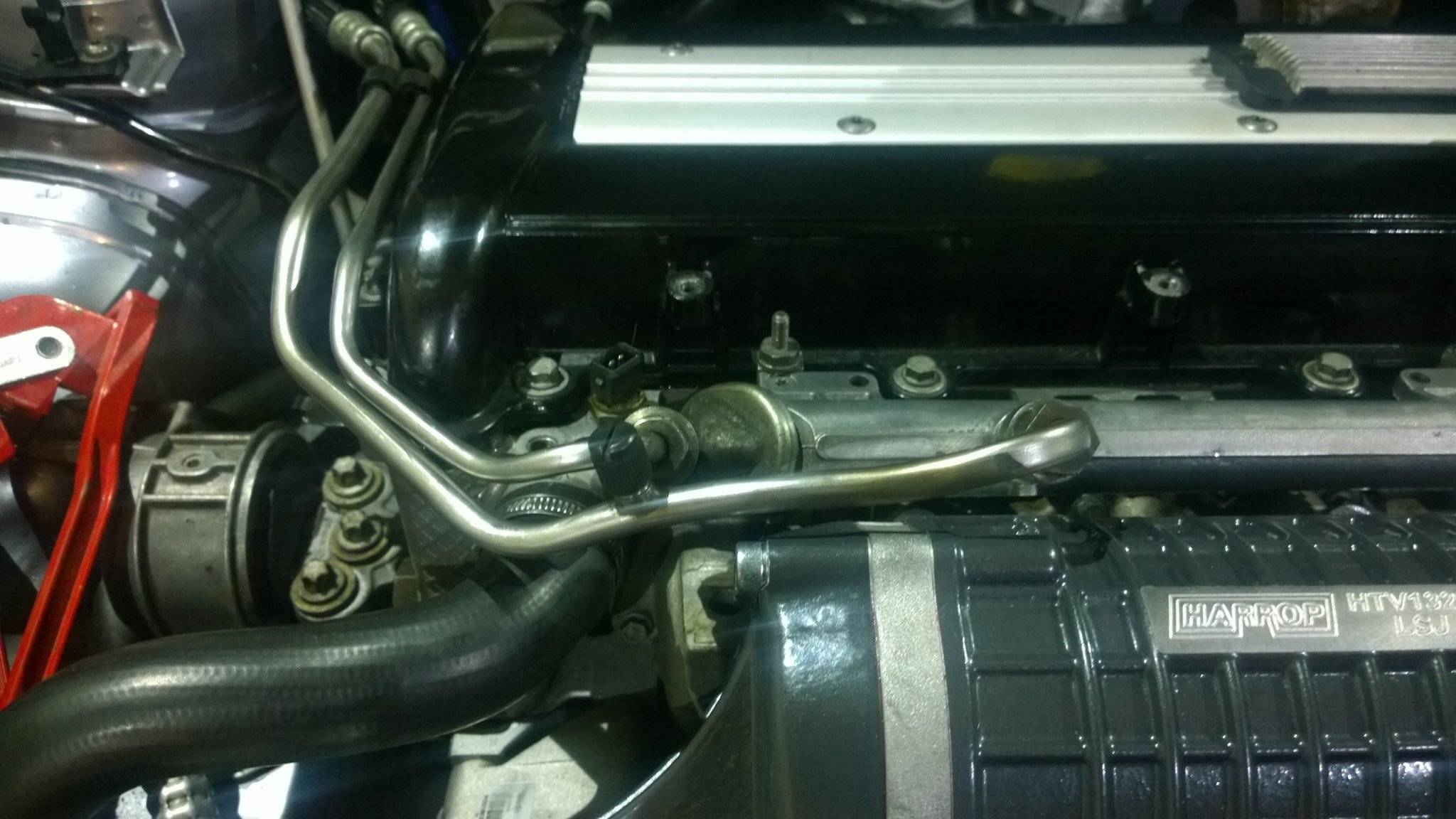

fuel lines adjusted

bonnet shut adjusted in shape

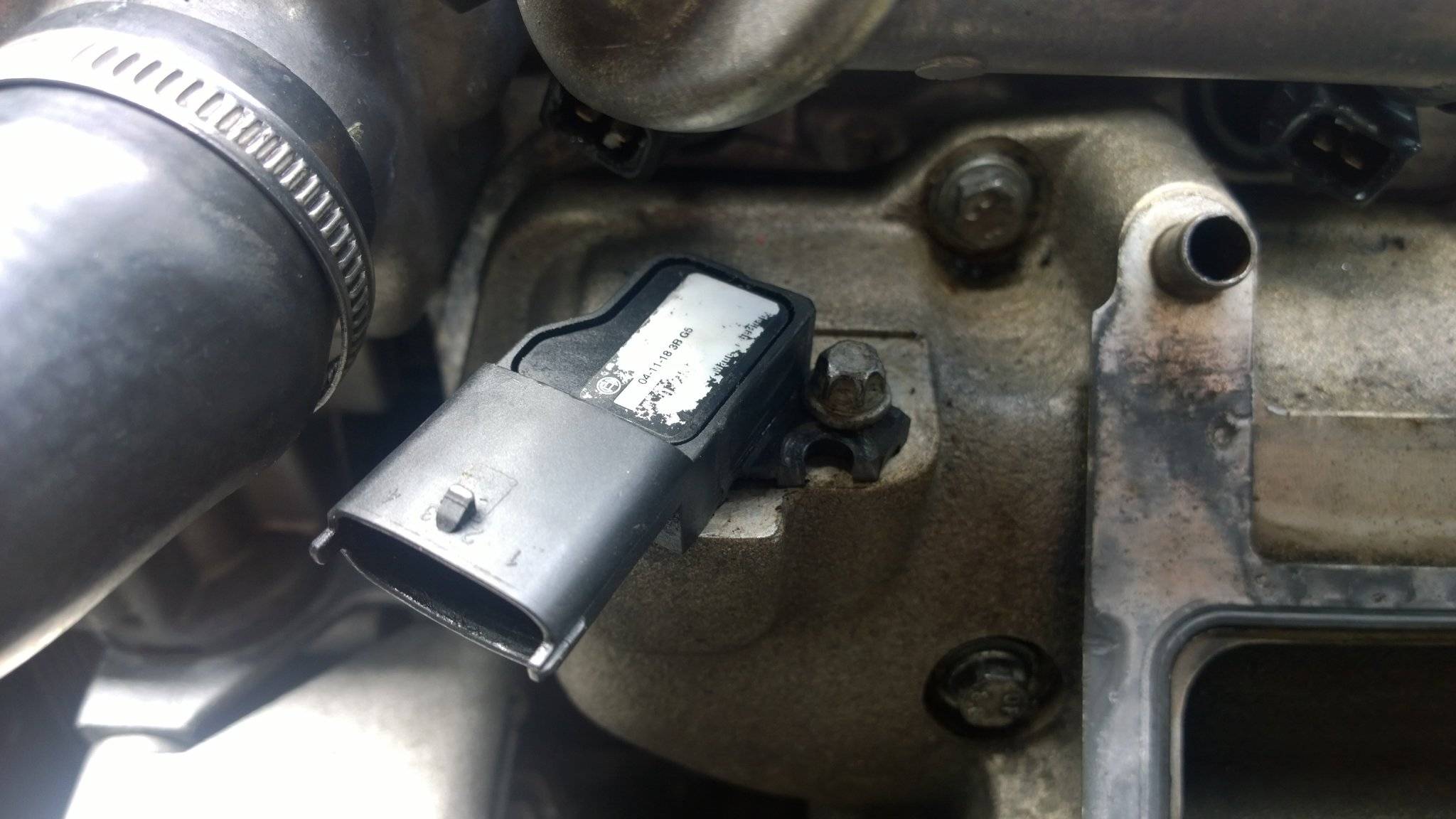

map sensor modified to suit

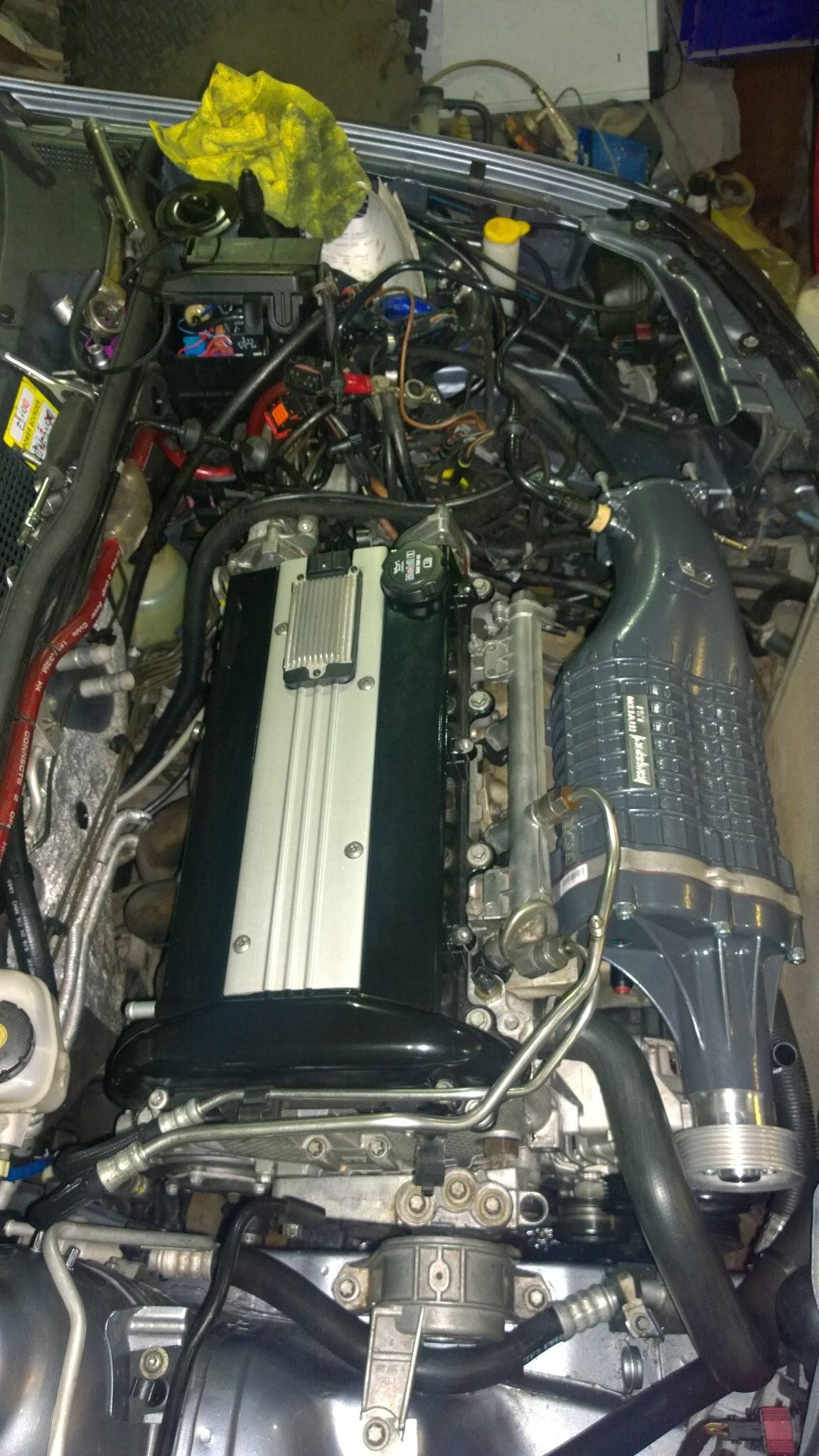

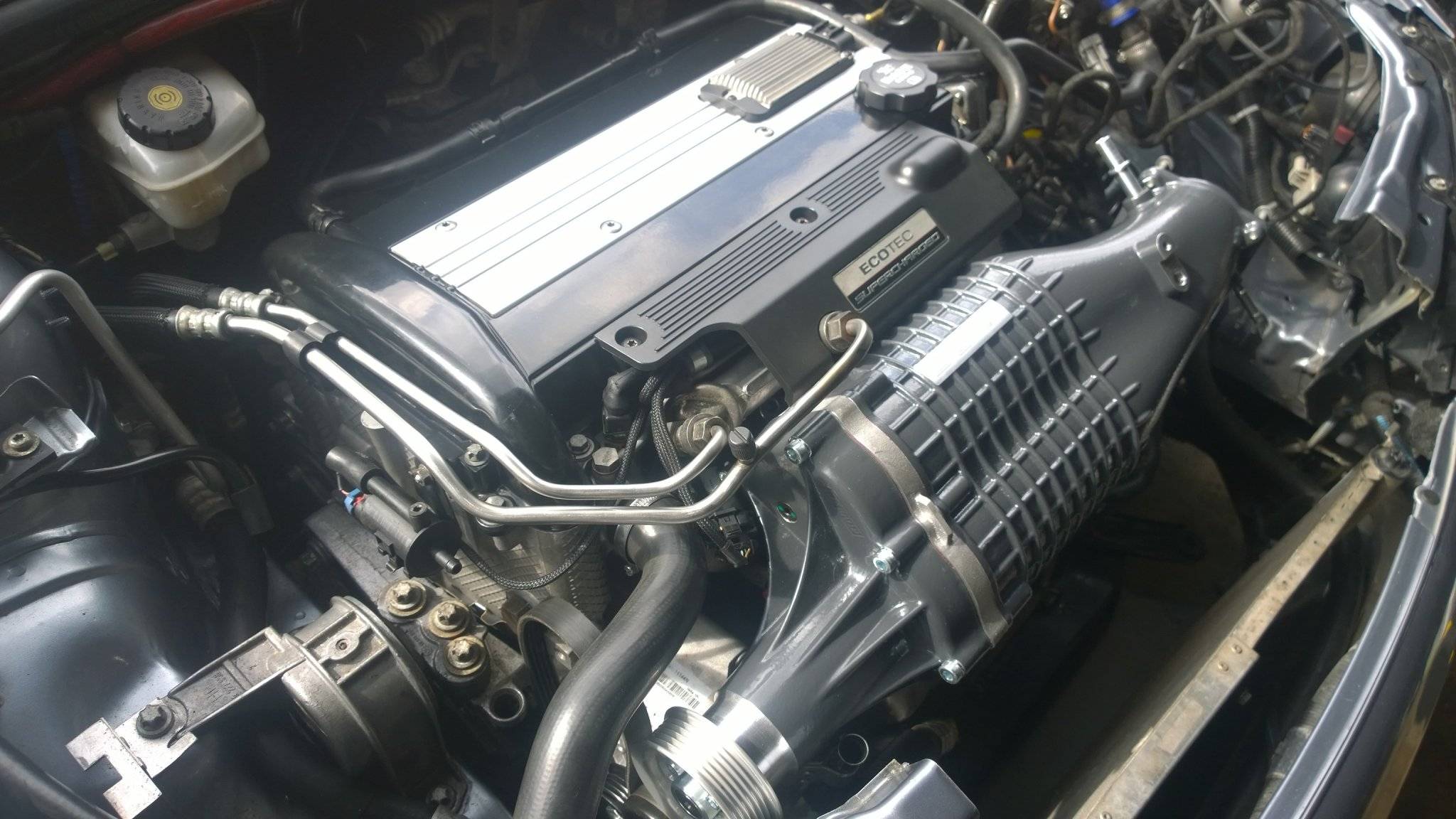

looking more like it 🙂

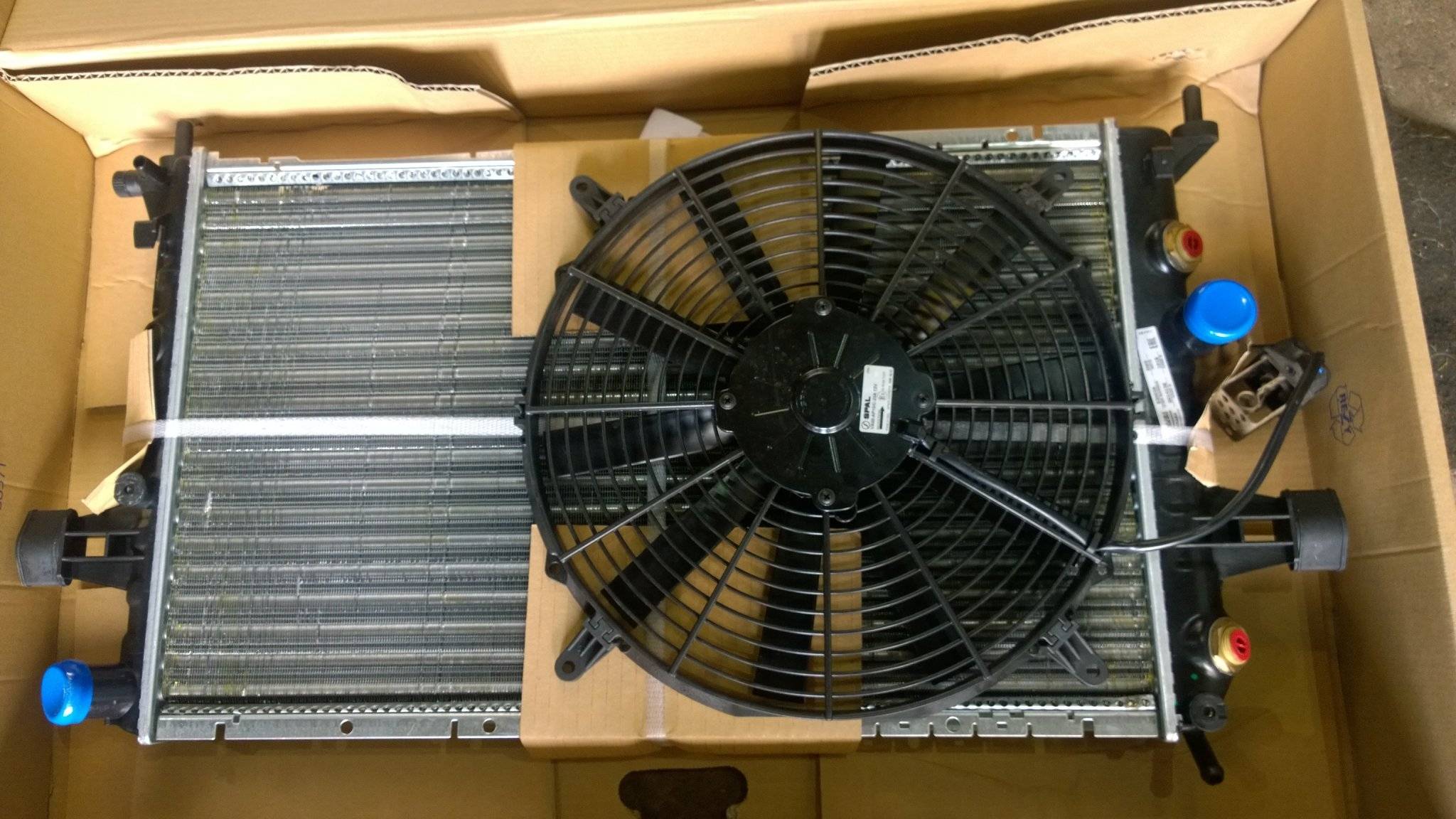

new rad with the spal fan the fits right unlike the alloy one

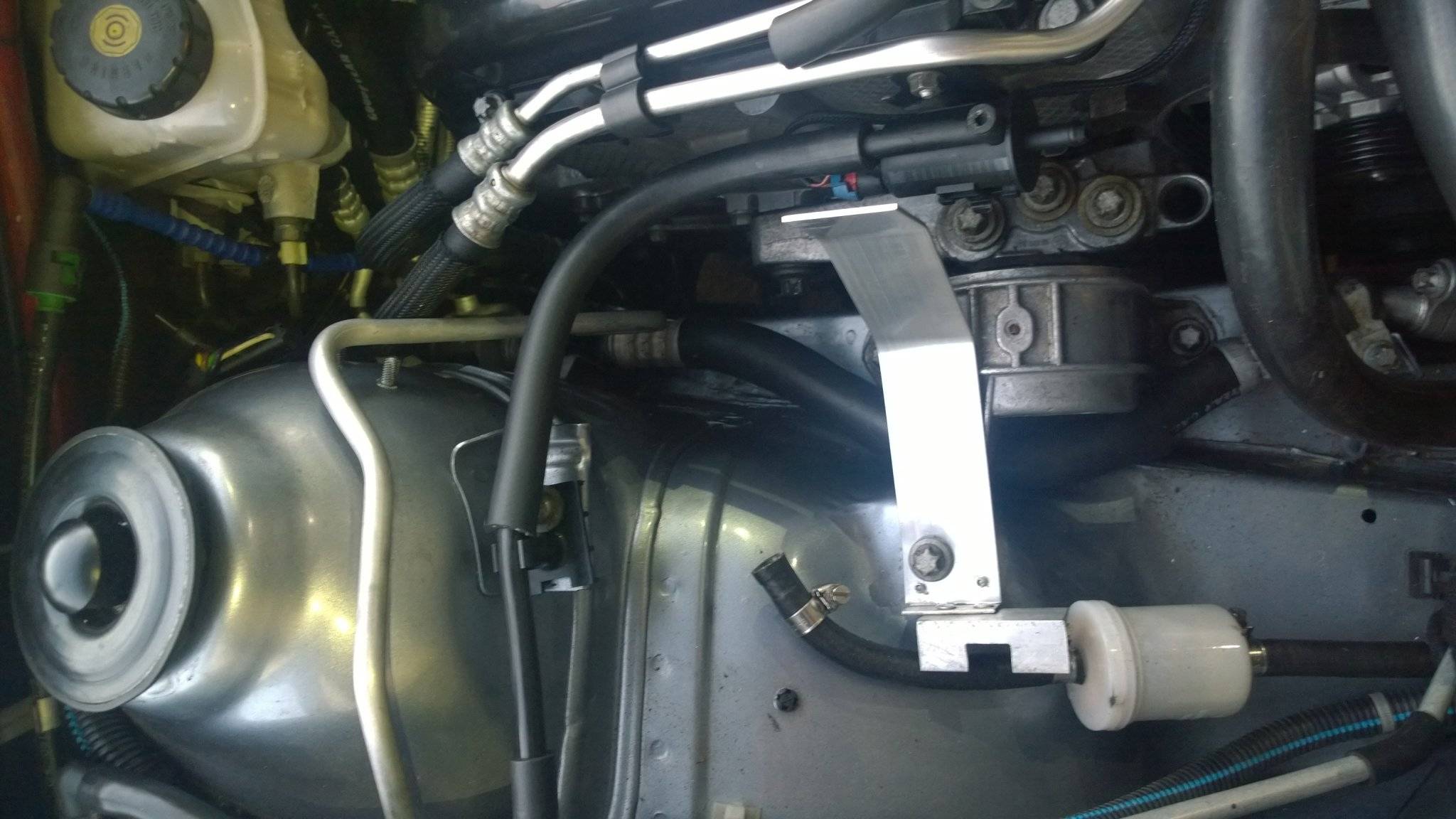

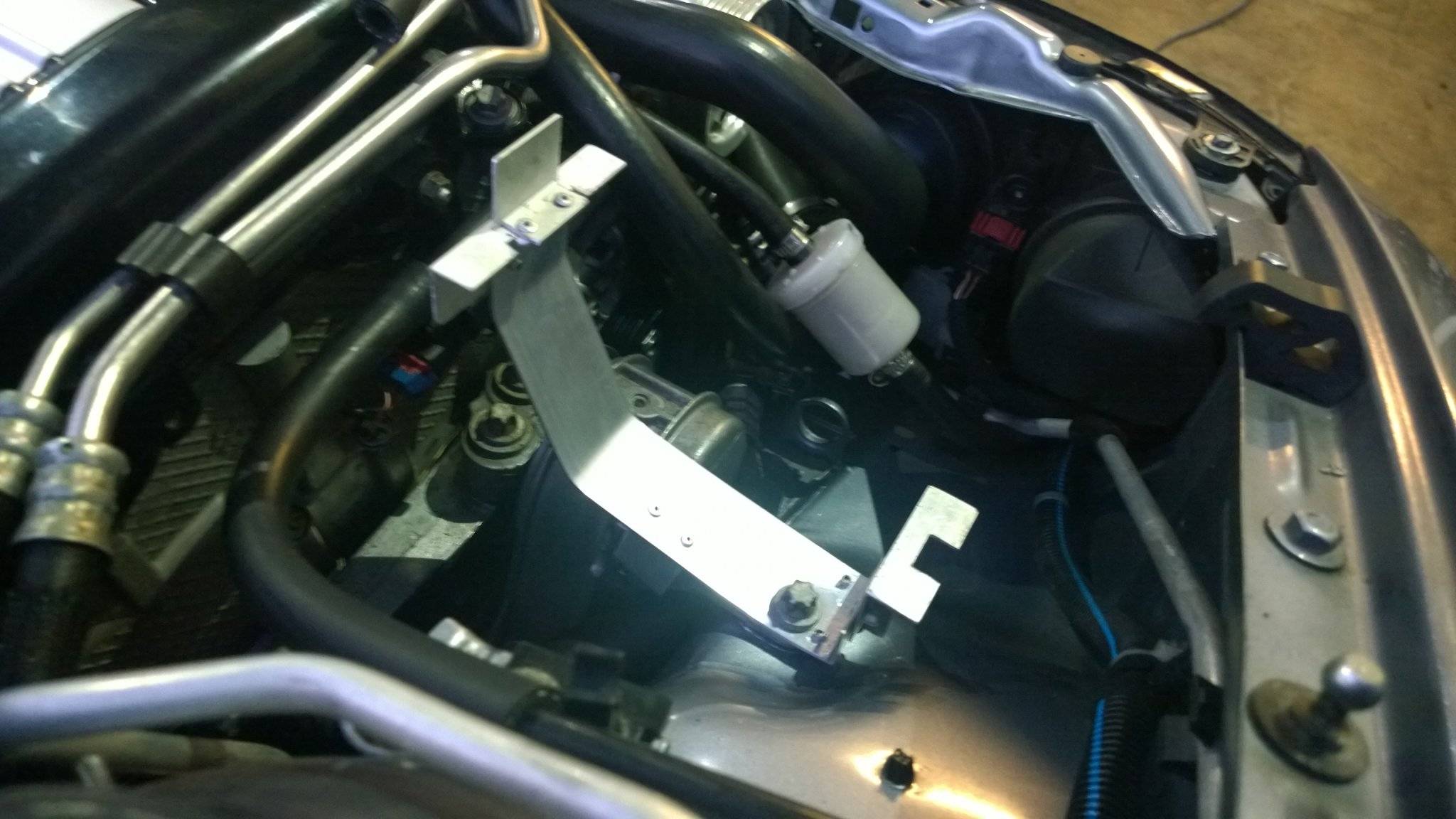

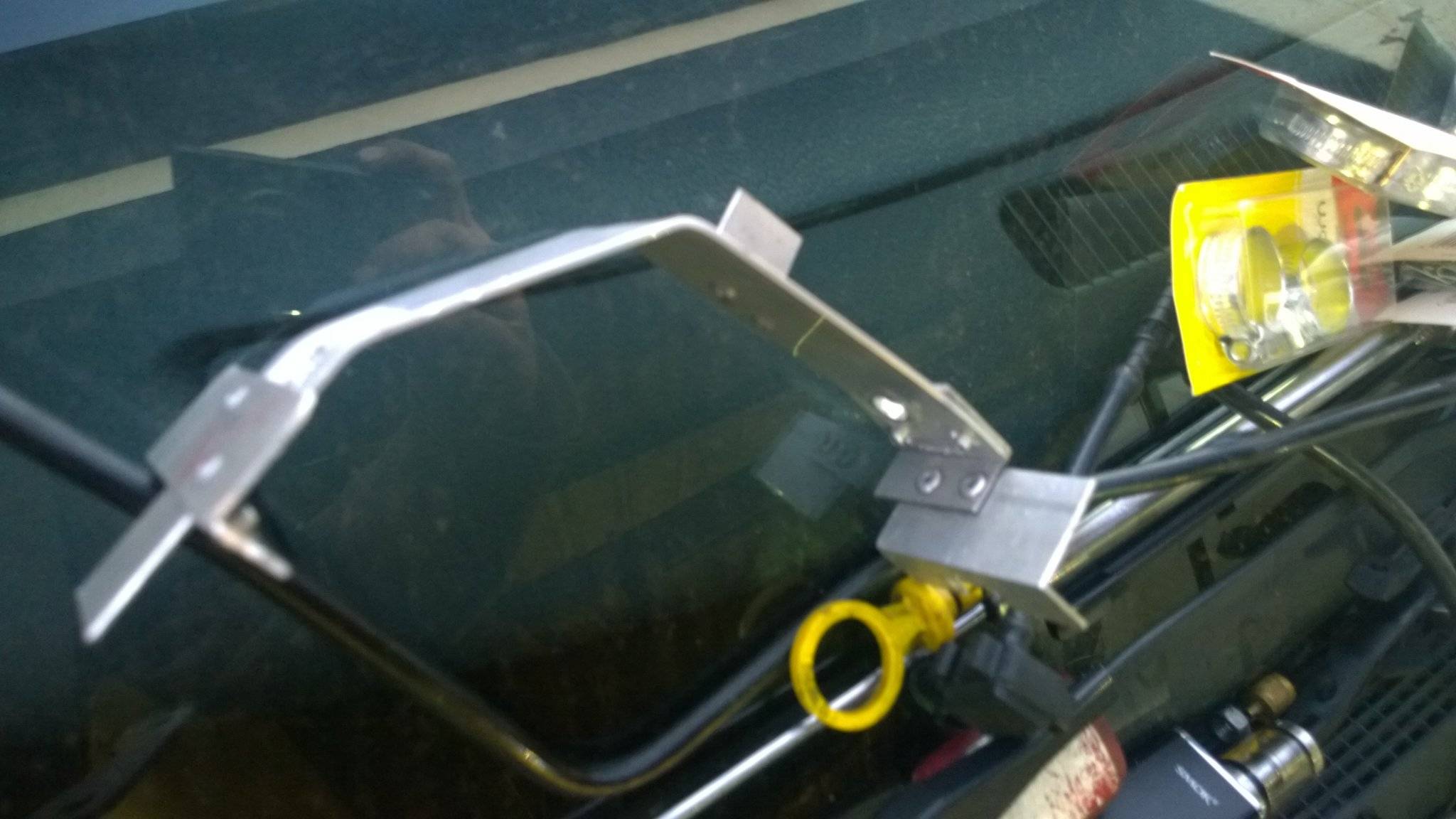

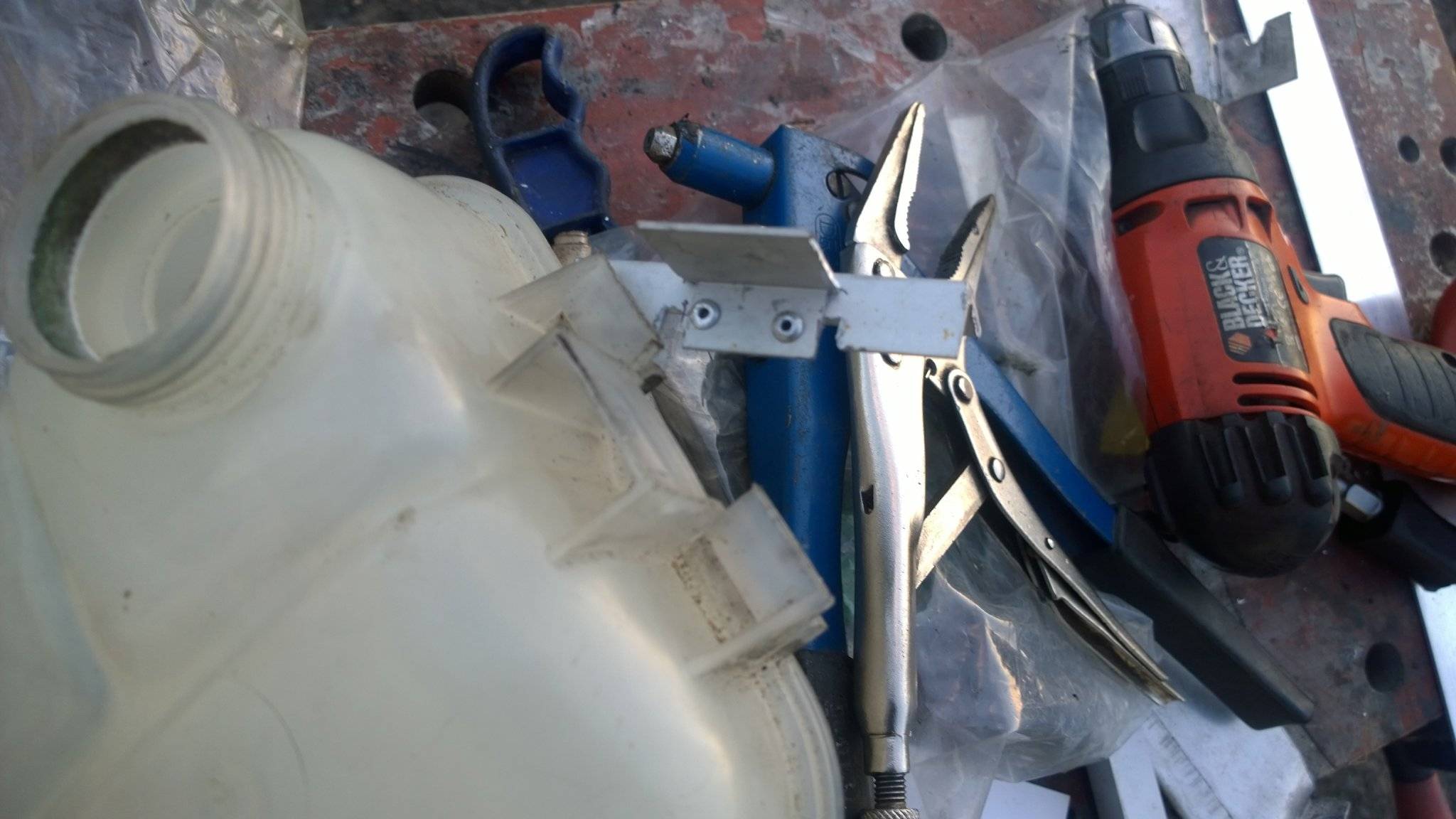

charger cooler bottle got a new bracket

even put a stop on it so it did not twist when tightening the bolt up

nice!

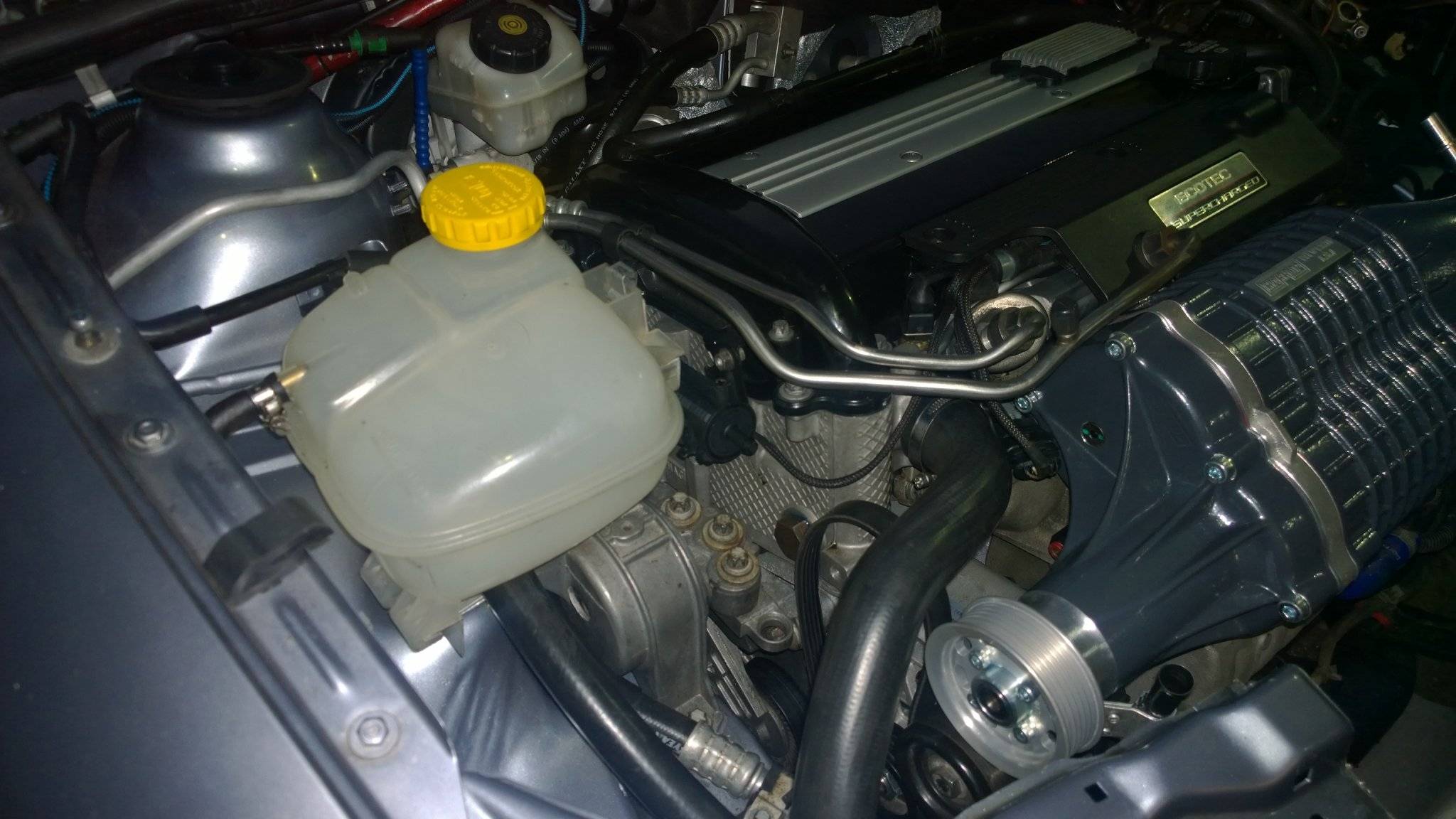

almost done on that side of the bay

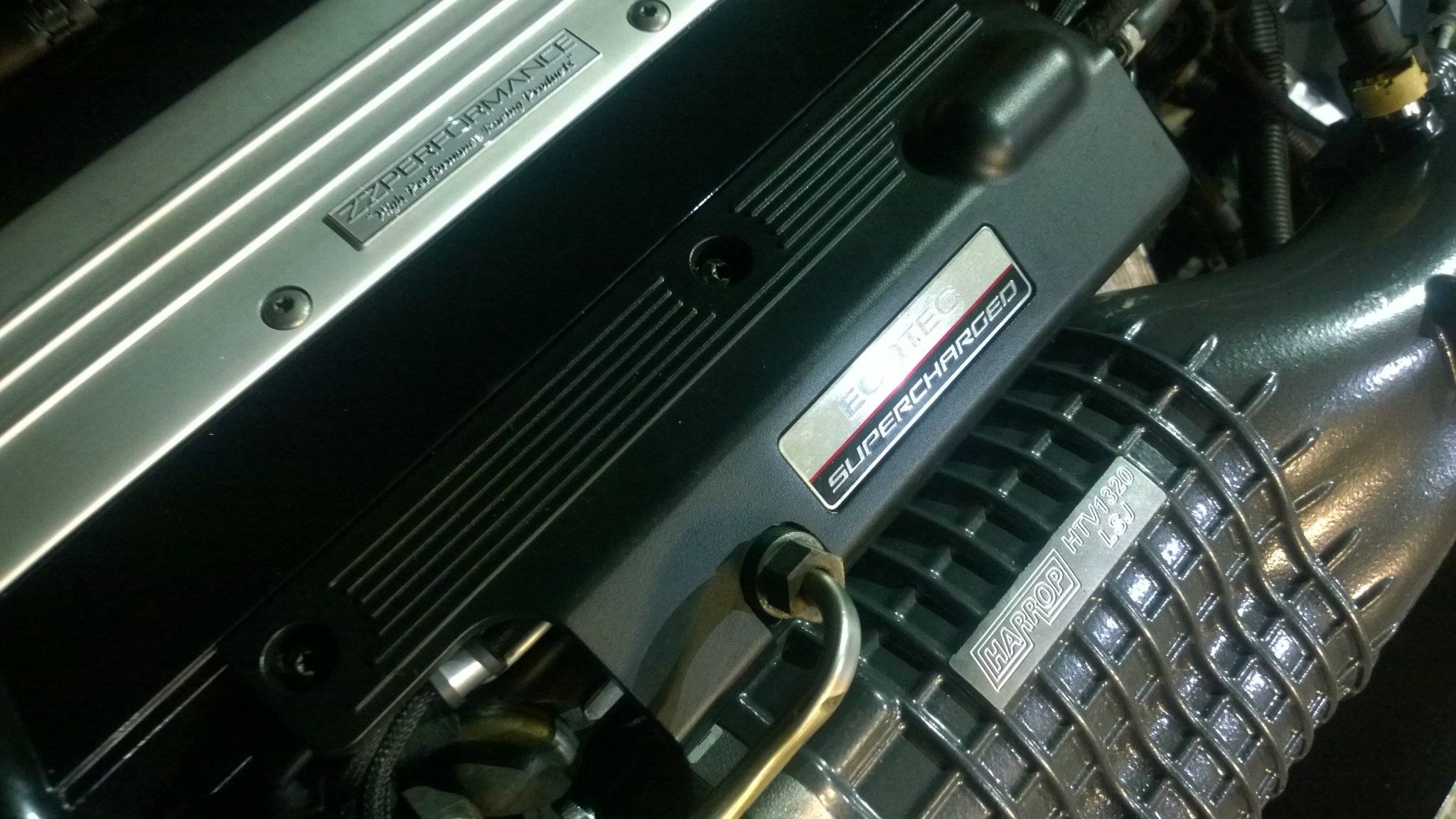

ecotec,supercharged,harrop,zzp, uk edition lol

more soon 🙂

corsaZ22se

looking good mate.
need a trial fit of that in the corsa :ROFLMAO:

identiti66

Very, very cool...
What sorta power you aiming for Carl?

milo

Awesome work as usual Carl (y). Do you have to run with a different throttle body with the harrop?

evocarlos

corsaZ22se said:
looking good mate.
need a trial fit of that in the corsa :ROFLMAO:

There's a fee lol

milo said:
Awesome work as usual Carl (y). Do you have to run with a different throttle body with the harrop?

the lsj and the ls4 bolt right on but I don't think the ls4 works with the Cs software

identiti66 said:
Very, very cool...
What sorta power you aiming for Carl?

what ever its going to output no idea what what its going to be lol

milo

So what u going to be running? lsj? So CS can map it? Or go OBD tune and use the ls4?
