Project Freeze My engine Off (SAAB B207R Supercharged)

evocarlos

swapped the cs plastic pulley for a gm metal one that i can change the bearing if i need to 🙂

evocarlos

going to wire in the watermeth pump to the towbar elecs 🙂 all i have to do is fit a relay and a fuse

evocarlos

the fuse was already in place i just swapped it to a 15 amp ready fro the pump

evocarlos

time to get it in lol

plug on the pump

nice!

and wire extensions added

trying to find an ring terminal lol

evocarlos

loom making what a pain

bottle empty = connection to gnd for lamp

quarter full and connection open and lamp out

testing the pump

all in wires tidy trims all fitted

rocket science

lamps to choose from on the speedo :S

HarleyPete

There cruise control lamps aren't they, lol, something I don't think you'll ever need, lol.

evocarlos

right hand side is auto box error and warning
left hand side is auto leveling that's functional as i put the system in 🙂
the cruse control lamp dont function on the 2.2 as its done in the ecu and not a cable lock solenoid

HarleyPete

Aaaaa I see mate. Looked very similar to the cruise control light on mine, lol. Well you haven't got an auto box so that's a good bet then.

evocarlos

the far right lamp is in use for the water pump controller error status

HarleyPete

Glad you know what your doing mate cause I'd be lost lol.

evocarlos

HarleyPete said:
Glad you know what your doing mate cause I'd be lost lol.

dont tell anyone 🙂 i dont hehe

identiti66

evocarlos said:
i dont hehe

Then the rest of us have no hope at all!!..

Good work old chap, not that I have a clue what's occurring..

Dave_Gilbert

Looks tidy mate, me n jons been putting the injectors in ready on jons astra while we had the charger off n that it made sence. But thats as far as we got. I bet u cant wait to see what difference it makes 🙂

evocarlos

identiti66 said:
Then the rest of us have no hope at all!!..

Good work old chap, not that I have a clue what's occurring..

Thanks 🙂 trying to keep it a tidy install and make it look factory fitted 🙂

Dave Gilbert said:
Looks tidy mate, me n jons been putting the injectors in ready on jons astra while we had the charger off n that it made sence. But thats as far as we got. I bet u cant wait to see what difference it makes 🙂

I've done it pump and tank 1st jon keeps asking if I've done the jet install yet lol I can get that far I don't think I got eunff pipe lol

Dave_Gilbert

We drilled n tapped the manifold n then put a blank in untill he gets the right nozzle for the jet. There either 2 long or 2 short n hit things when threading them in lol but i think we found the right 1, not sure if hes ordered it or not.

But refitted the charger n that so he can run it for the summer and fit meth after show season i think

evocarlos

there was no wire in the autobox plug for the autobox warning lamp so had to fit the wire to the speedo plug

that will do 🙂 at least i will know the bottles getting low

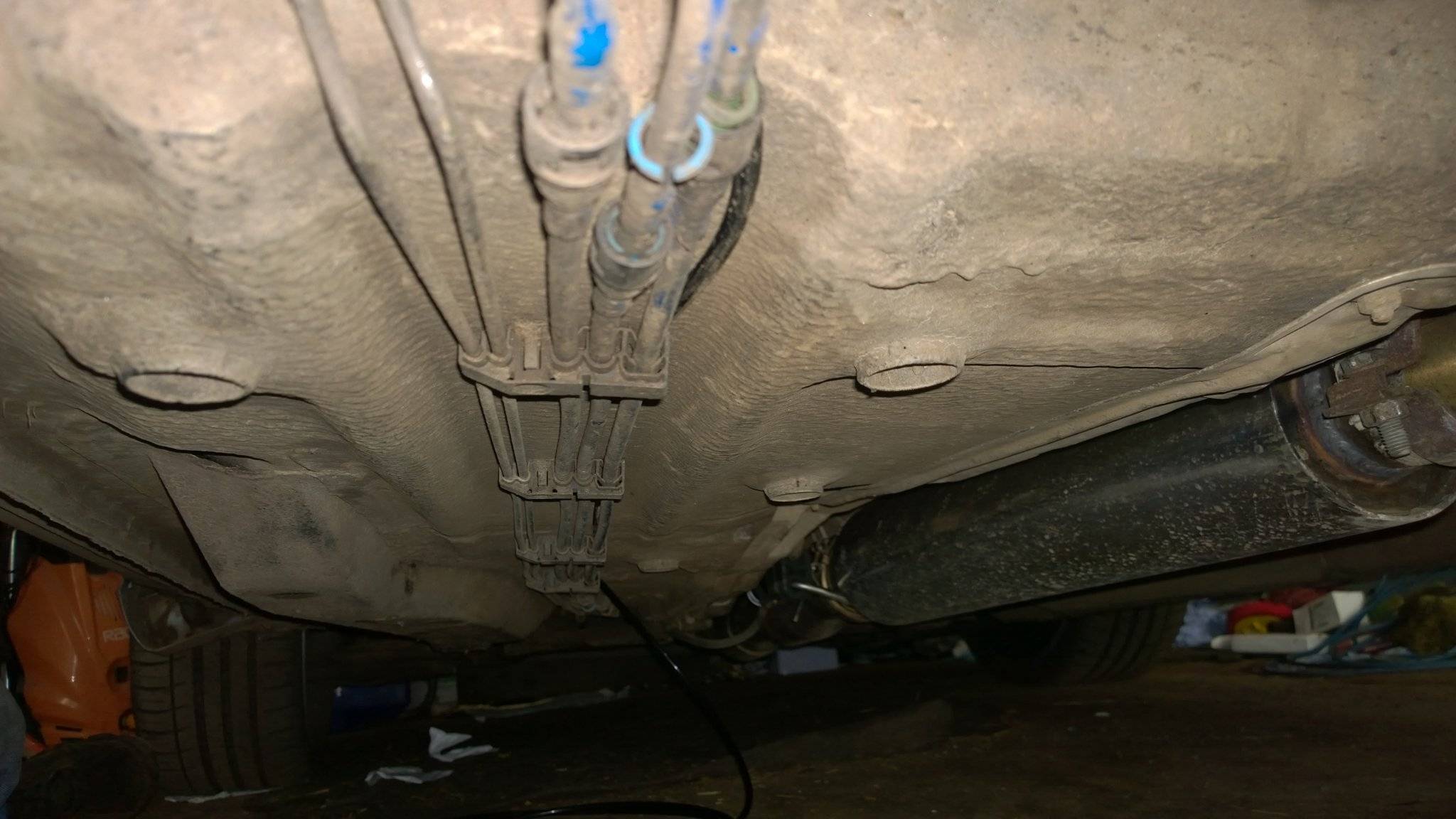

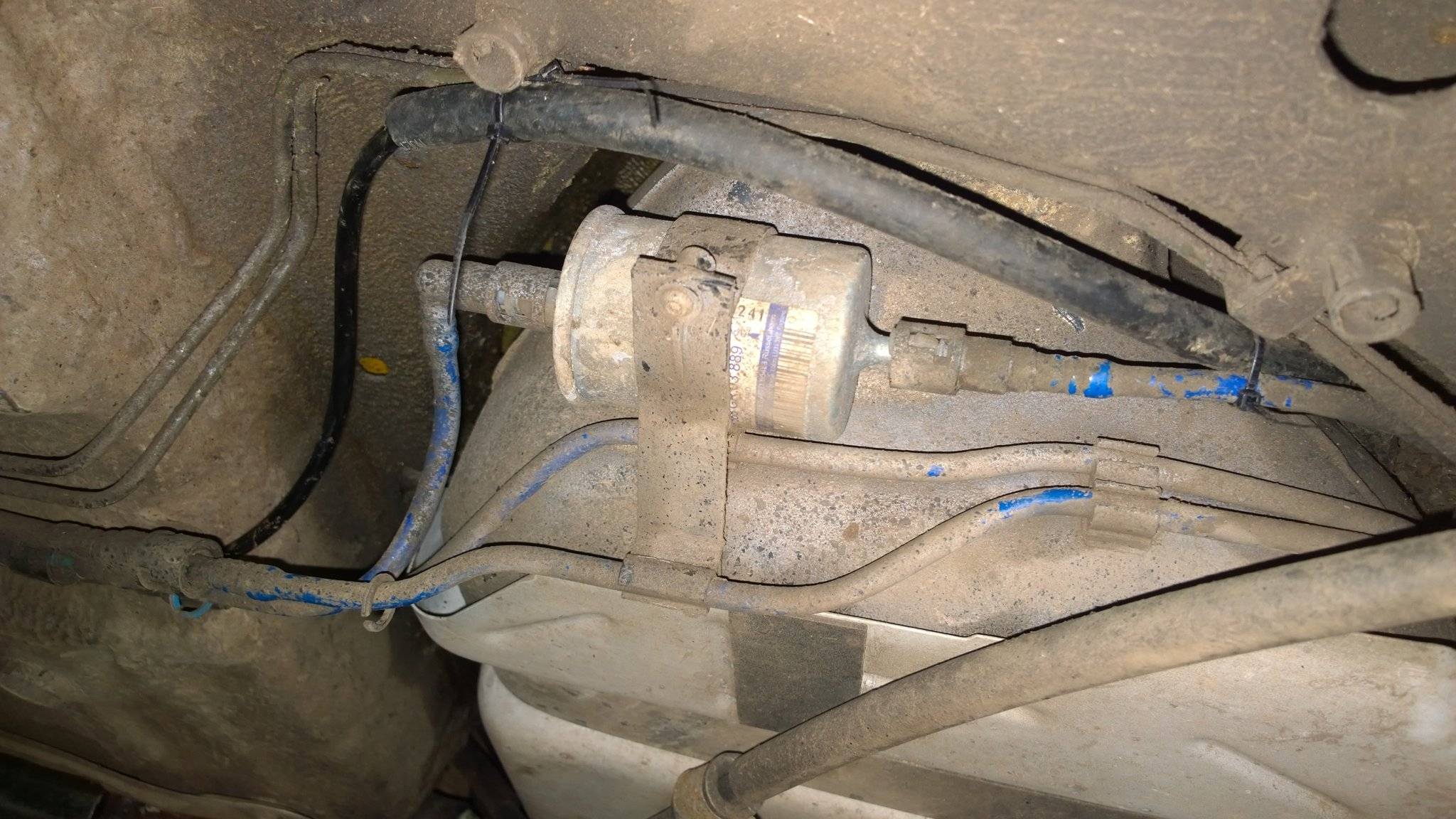

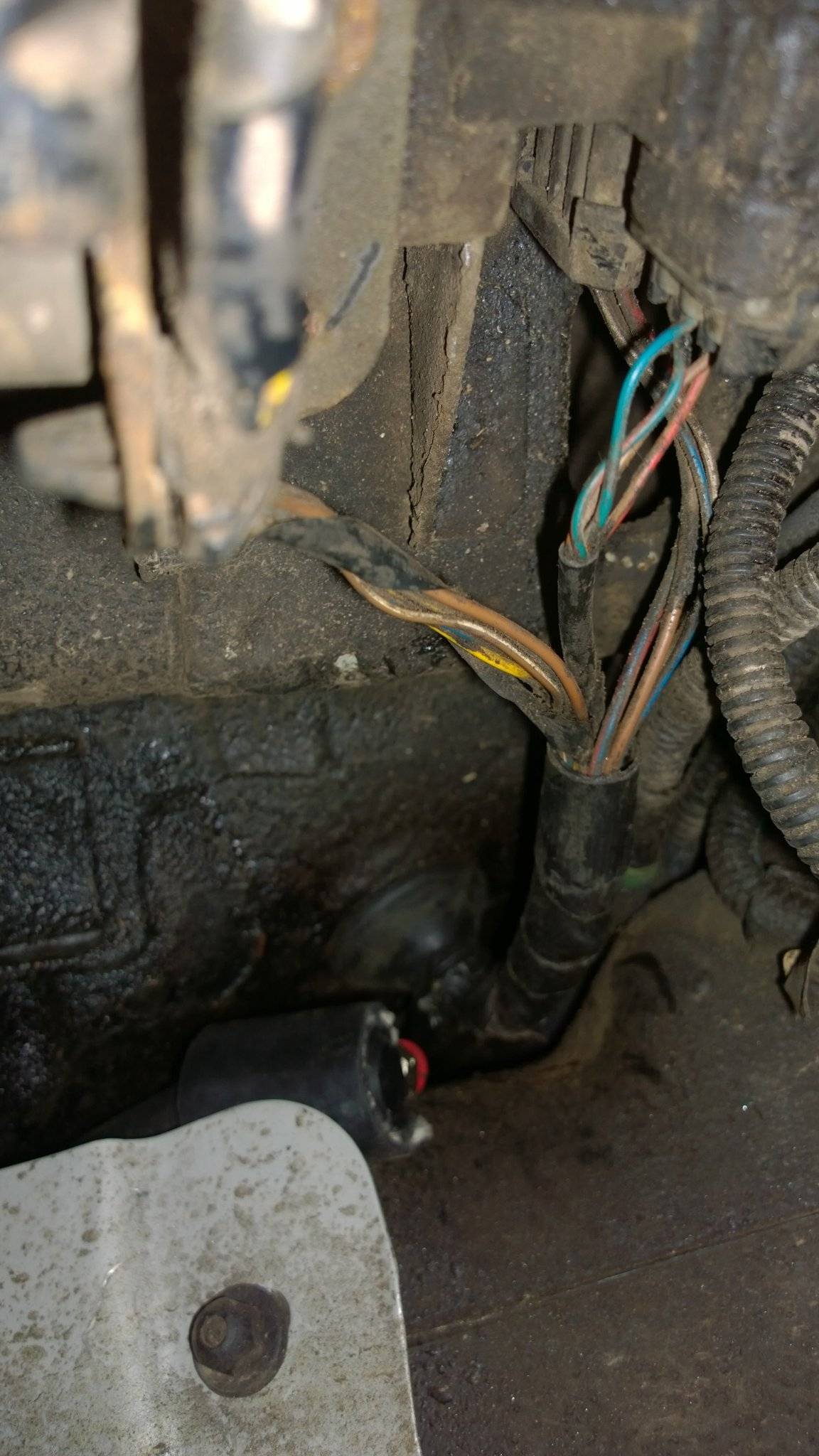

im running the pipe under the car it has quite a bit of movement when the pumps running and there's a grommet for the fuel pump wires right there lol

relay wires run to the front and all tidy and trim seat refitted

evocarlos

last 2 bits for the meth kit 🙂 more pipe and a straight connector for the jet on the inlet manifold

evocarlos

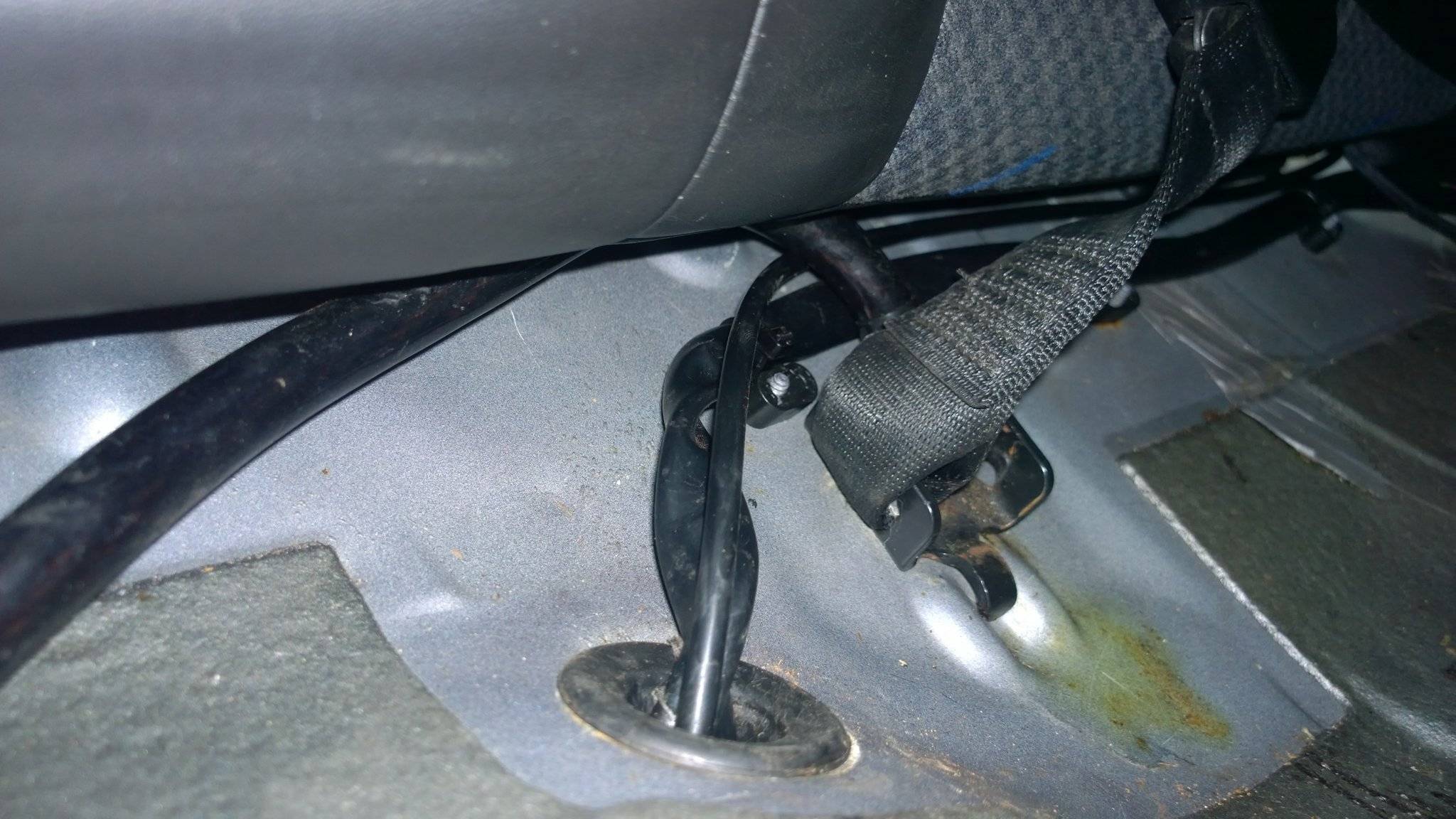

thur the hole under the back seat

the old pipe supplied had a kink so got messed up pulling it thru had to put a fitting in 90* but the fittings supplied and the ones i used leck great!!!

put the pipe inside some fuel hose to keep it safe from the heat of the exhaust

almost hidden 🙂

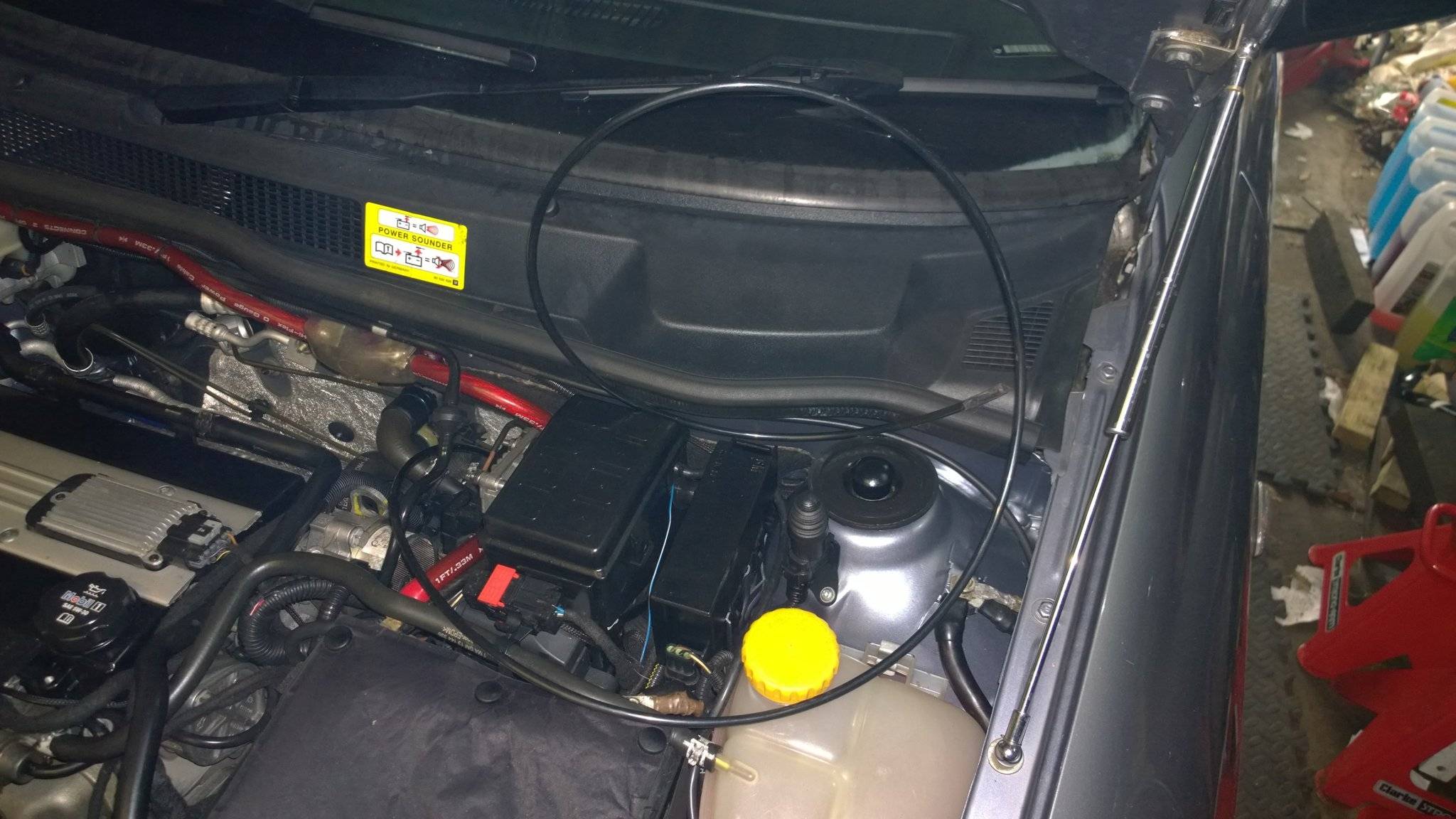

up front now also in fuel hose

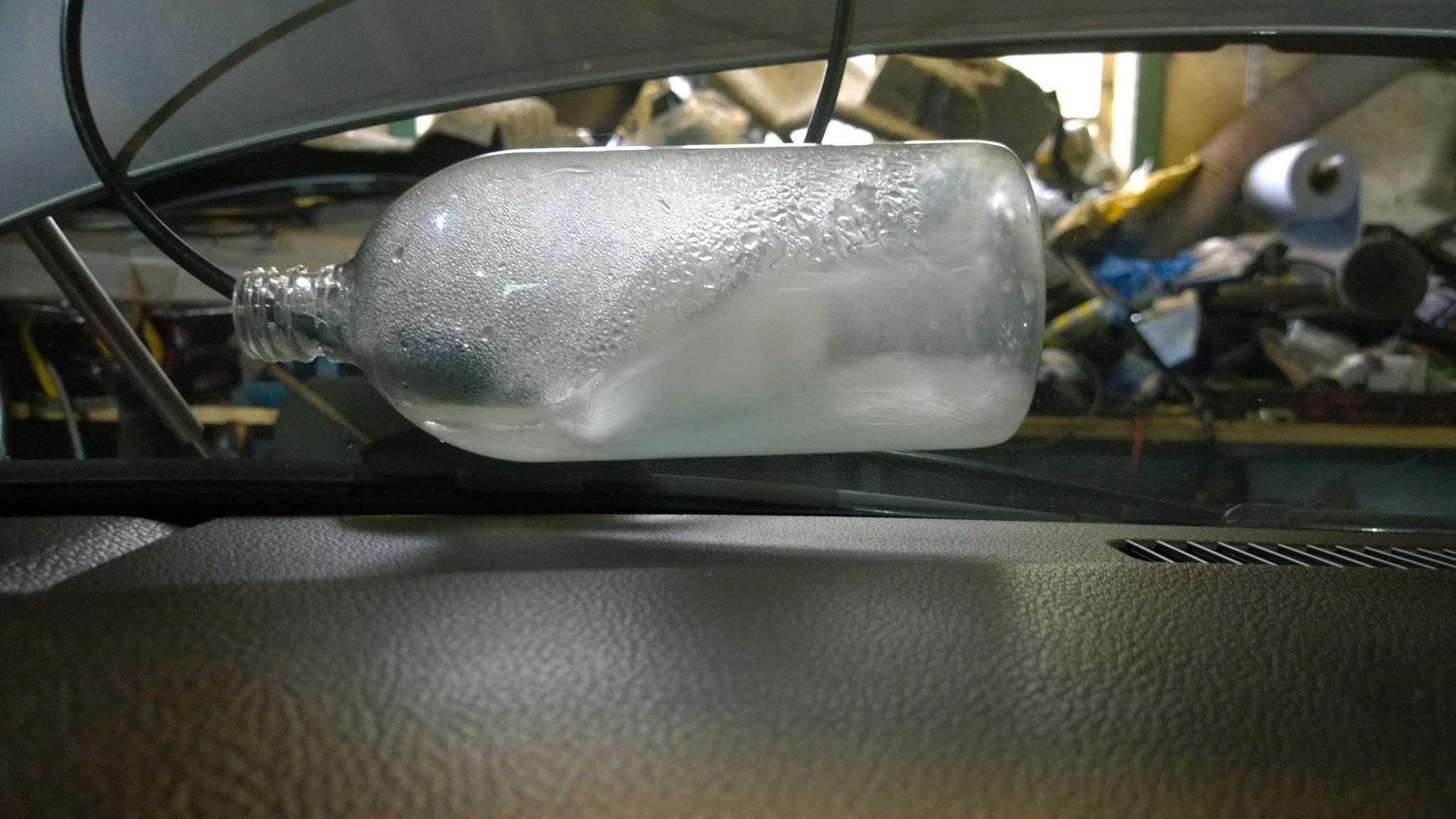

fair bit of water from the #3 jet lol and theres a #1 to go in also

evocarlos

all off

danger

neet 🙂

just where i wanted it

fail fitting

1st jet went in the charger in the end

only issue now is i have the alternator warning lamp but getting 14v on running 🙁 i guess the exciter wire broke

evocarlos

whoops
