Project Freeze My engine Off (SAAB B207R Supercharged)

evocarlos

HarleyPete said:
Buddy, that look sore as hell, I think that's in need of a packet of frozen peas or something similar.

the peas are too cold 🙂

Dave Gilbert said:
Im at work aswell, but I do finish at 3 most days so I have some day light.

As long as there ready for pvs thats all that matters.

i was going to get home earlier tomorrow but got to go and change a thermostat on an unreliable alfa 147

evocarlos

parts haul from the scrappy 🙂

dewismotorsport

You should of said I've got 3 air con pumps you could of had one

evocarlos

dewismotorsport said:
You should of said I've got 3 air con pumps you could of had one

are any from a vec c with the flat ports ? im moving over the z20let a/c pipes so need the pump like this one 🙂 i dont plan to use the pump just swap the end cover and fit it to my a/c pump 🙂

dewismotorsport

Ah no just 1x Astra and 2x Vectra b so no good

evocarlos

dewismotorsport said:
Ah no just 1x Astra and 2x Vectra b so no good

thanks for the offer tho 🙂

Dave_Gilbert

Iv got a vectra c z20net 1

evocarlos

Dave Gilbert said:
Iv got a vectra c z20net 1

is it clean and tidy ?

in other news some final engine parts got ordered

kind of like the plx gauge and the ability to add units to gain other readings /boost/egt/iat etc etc
also the fact it gets rid of the factory lambda and replaces the narrow band with a wide band then feeds the ecu a narrow band signal from the wide bands :S

Dave_Gilbert

Its in a bag in the garage. I will have a look in abit for you.

evocarlos

the twin plate clutch and flywheel are now sold 🙂 waiting for the new one to be made still :S

i asked davies craig if it was suitable to fit the temp sensor in the head they said yes
so went to sort the probe out to save drilling the head

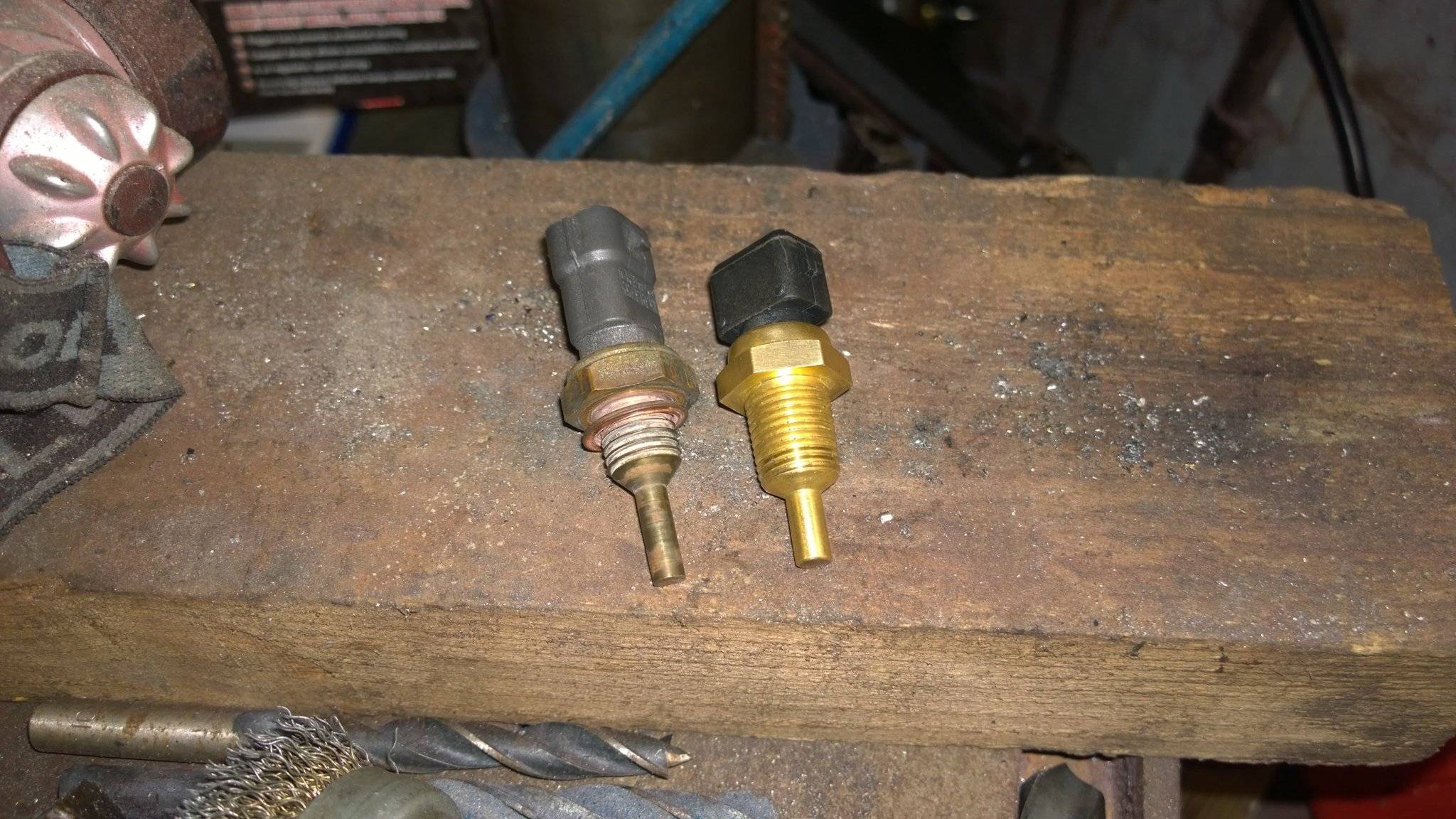

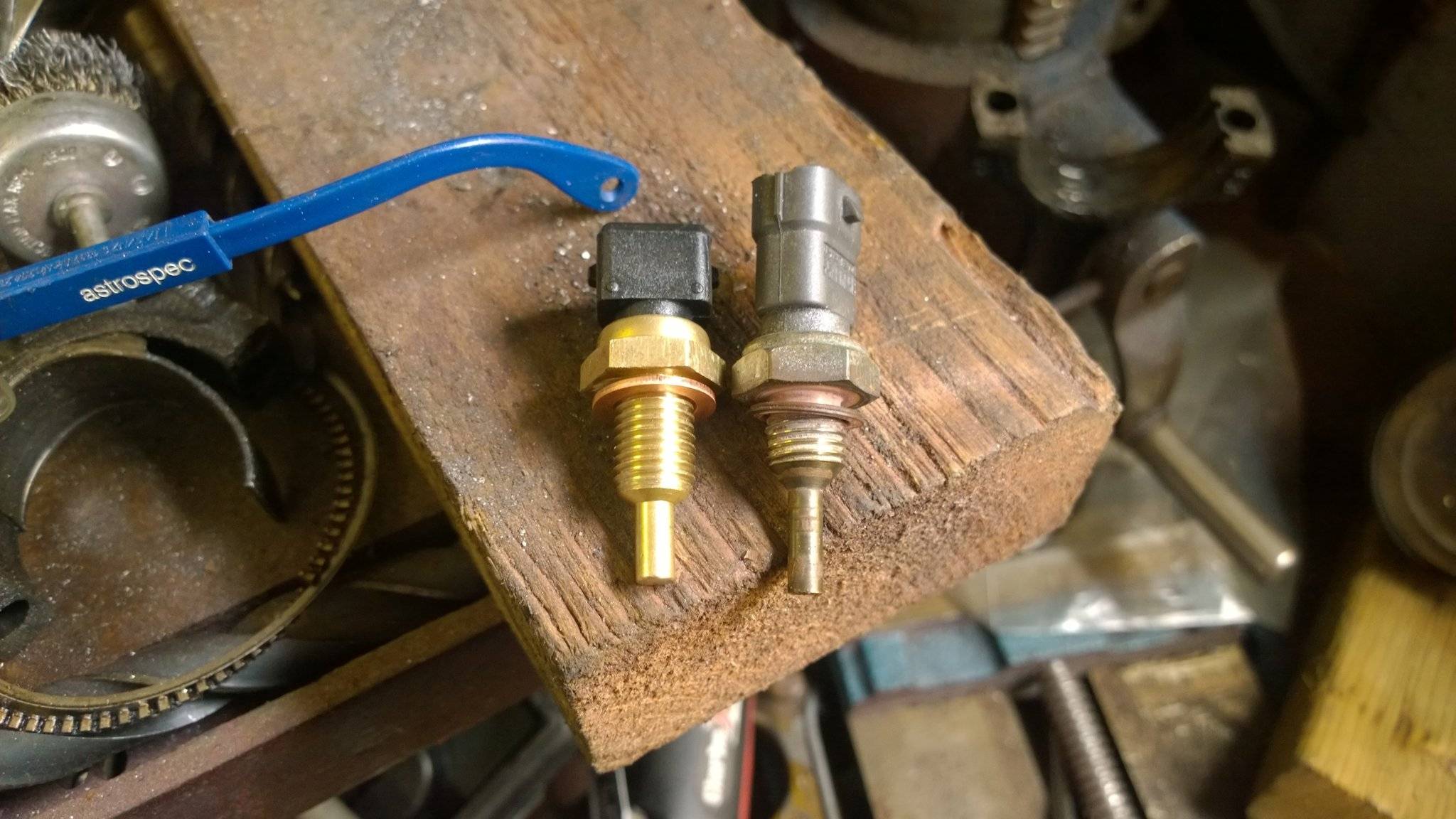

the saab sensor and the DC one m12 x1.5 vs 1/4bsp

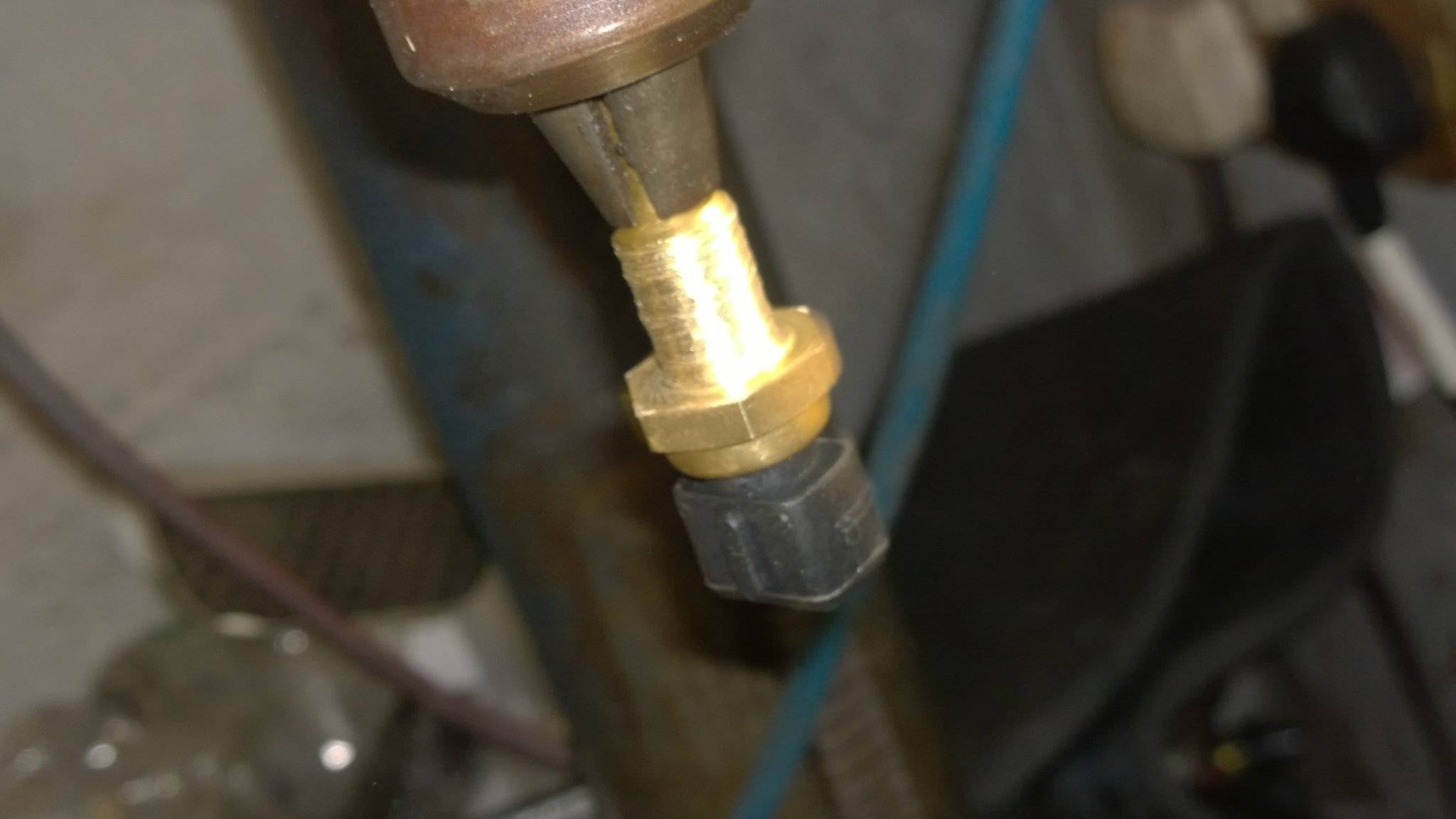

cut it down some in the drill press with a cut off tool

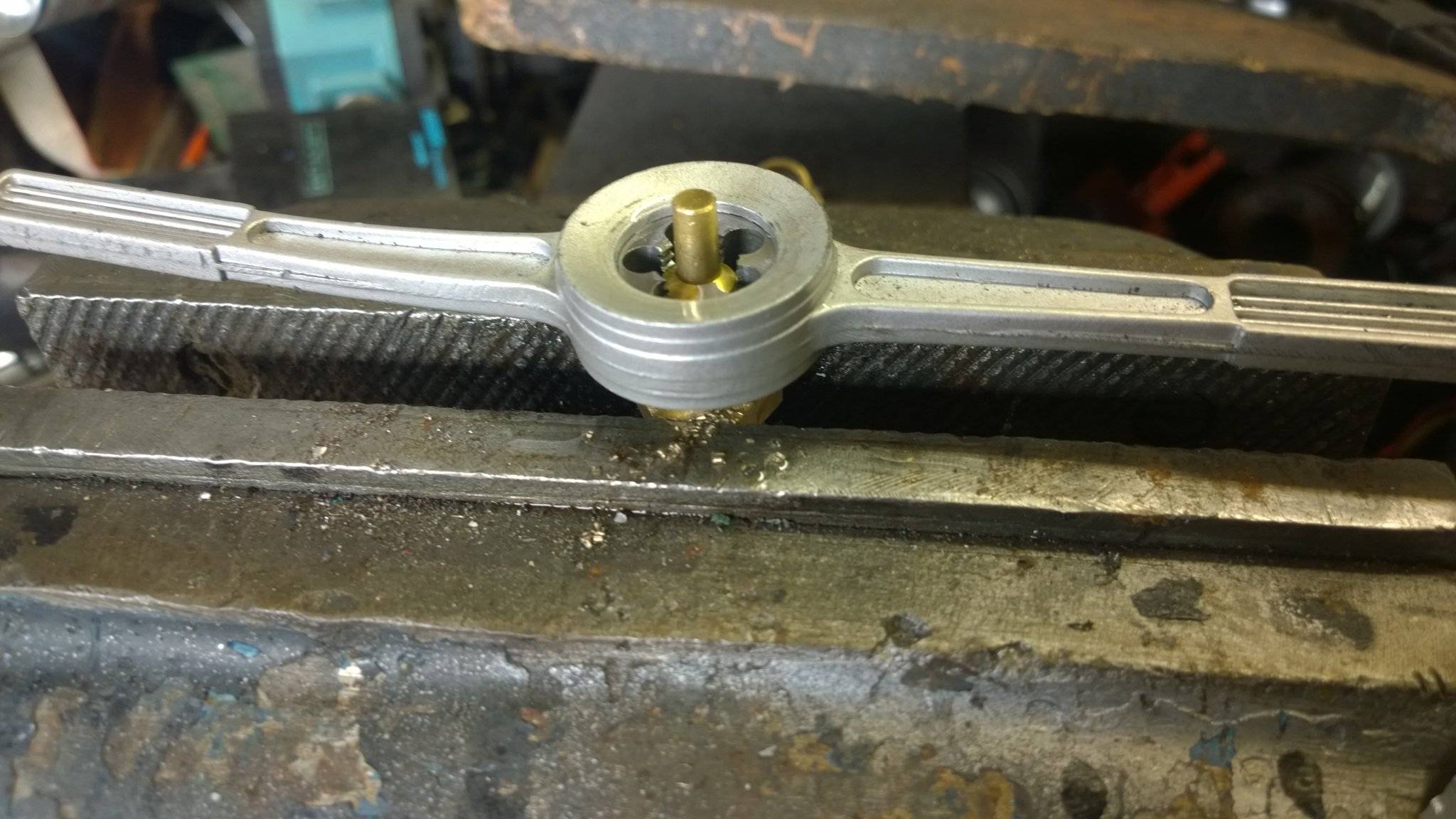

new thread going on

looks good to me

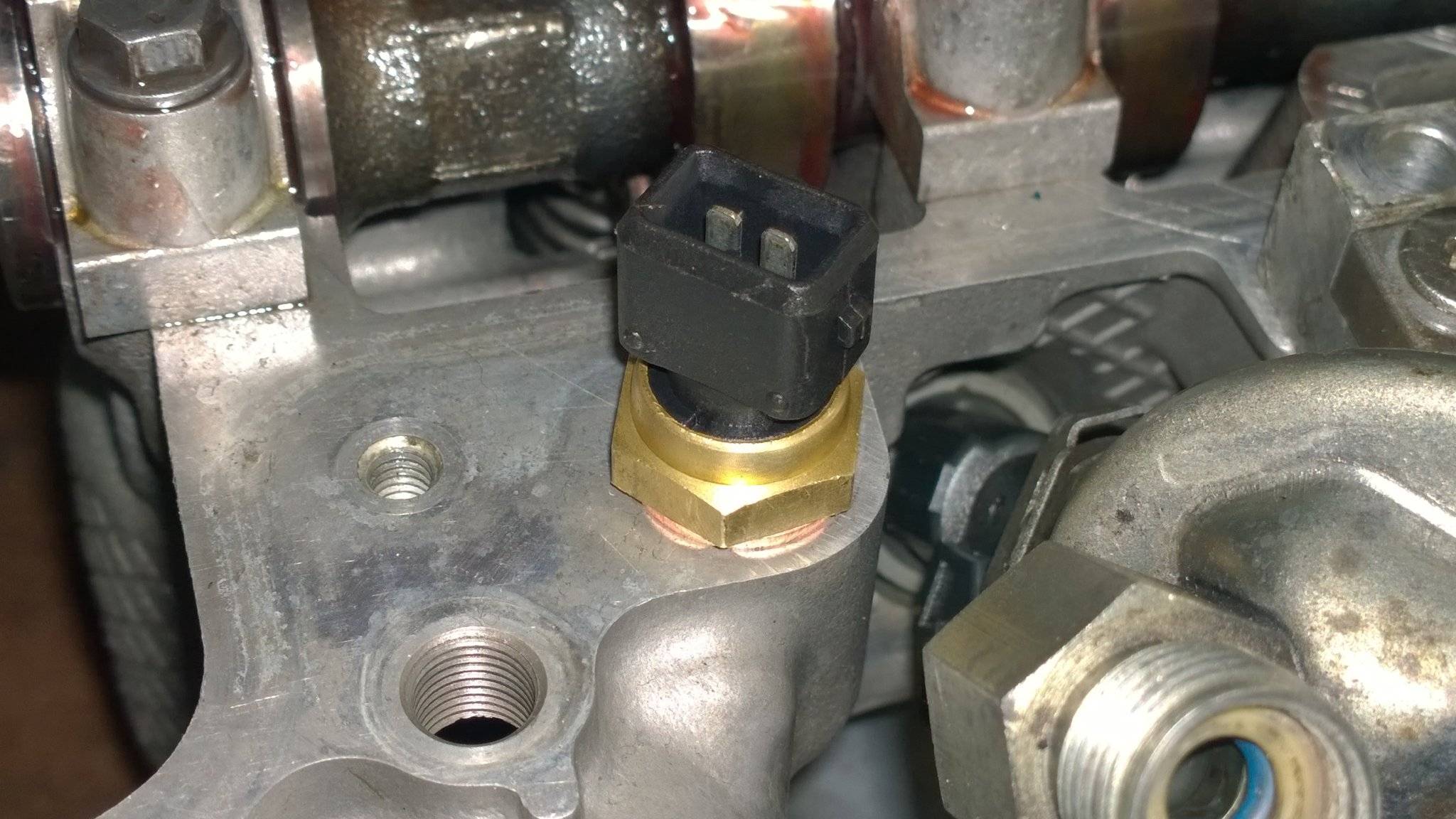

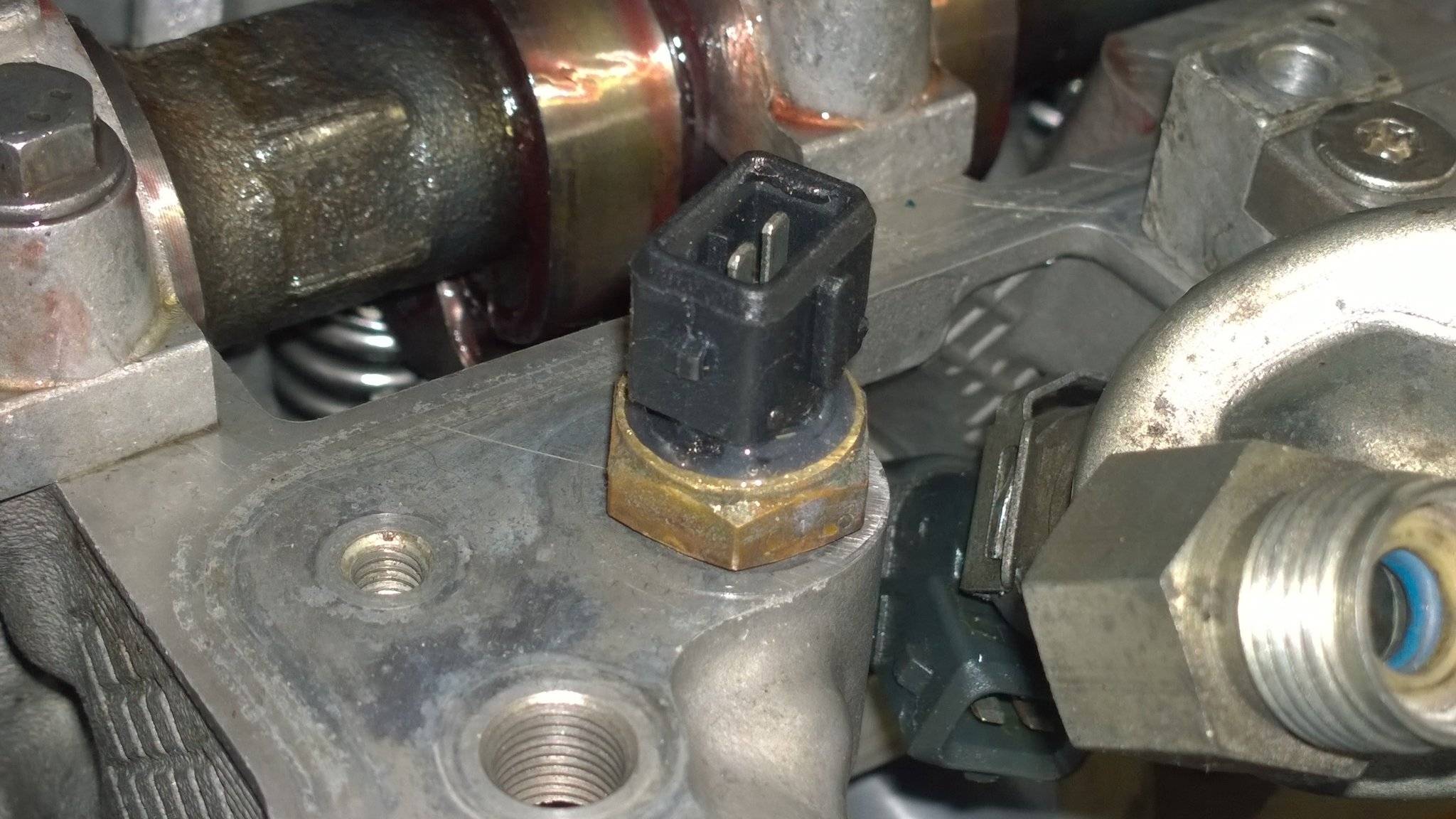

fits sweat 🙂

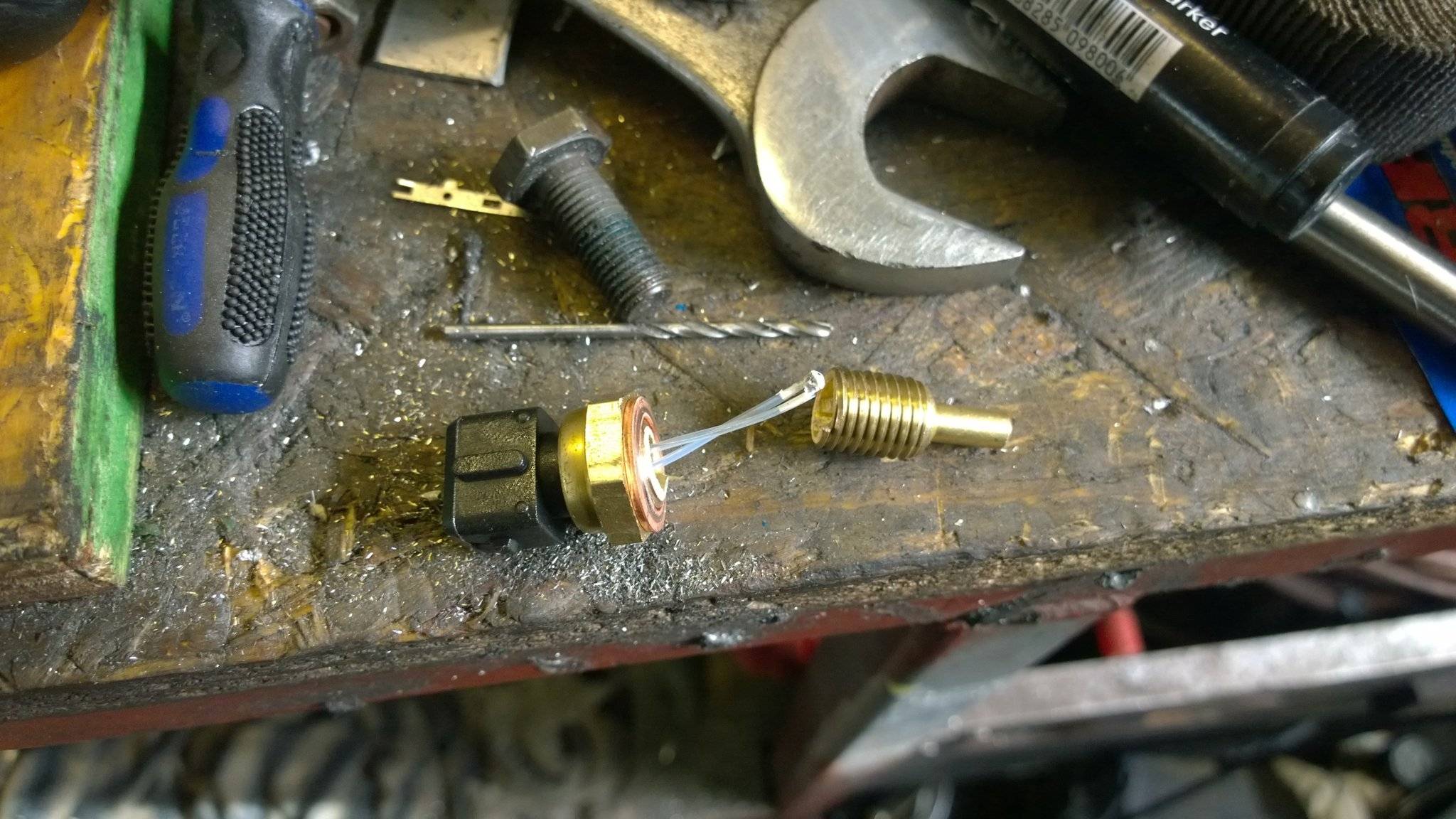

but then! oops tried to tighten it up and it snapped off

plan B fit the DC sensor to a saab sensor case 🙂

HarleyPete

Guess re cutting the thread took too much meat off it which made it weak. Glad you got it out if it broke in situ.

Marty64

evocarlos said:
is it clean and tidy ?

in other news some final engine parts got ordered
[ATTACH]59847[/ATTACH]

kind of like the plx gauge and the ability to add units to gain other readings /boost/egt/iat etc etc
also the fact it gets rid of the factory lambda and replaces the narrow band with a wide band then feeds the ecu a narrow band signal from the wide bands :confused:
[ATTACH]59848[/ATTACH]

Hey Evo that's a great thing this kit
Will surely use one for Wideband sensor with my Dutch software.
Do you have a scheme of the factory lambda narrow band plug to connect the SMR output signal ?

evocarlos

Marty64 said:
Hey Evo that's a great thing this kit
Will surely use one for Wideband sensor with my Dutch software.
Do you have a scheme of the factory lambda narrow band plug to connect the SMR output signal ?

the plx should be here soon got to take the center console out to make room for the controller for it and the water pump controller

smr ?

Marty64

SM=sensor module R is too much, sorry :whistle:🙂
The factory o2 sensor use 4 wires and the PLX module analog output is only 1 wire.
Need to know how to connect this 1 wire to the 4 wire plug.

Found this on one of your posts:

"the 2 blacks are the heater wires and not polarity sensitive
the blue is signal to ecu
the white is the ground"

Correct me if i'm wrong:
I must connect the blue wire of factory plug to the grey analog output signal from SM ?

evocarlos

Marty64 said:
SM=sensor module R is too much, sorry :whistle:🙂
The factory o2 sensor use 4 wires and the PLX module analog output is only 1 wire.
Need to know how to connect this 1 wire to the 4 wire plug.

Found this on one of your posts:

"the 2 blacks are the heater wires and not polarity sensitive
the blue is signal to ecu
the white is the ground"

Correct me if i'm wrong:
I must connect the blue wire of factory plug to the grey analog output signal from SM ?

http://www.plxdevices.com/AppNotes/PLXApp004.pdf

evocarlos

new 5mm alloy plate for making a balancer chain tensioner blank

evocarlos

and heres how it went 🙂

lots of small holes only way i could think of

and cut out

filed / chamfered / mounting holes drilled / sealant applied

im happy with that 🙂

Dave_Gilbert

Much better than a old tensioner. Factory finish and a gram or 2 saved.

evocarlos

not sure why i took this pic but here it is lol

evocarlos

i know why i took the above pic now it was to see if the sensor was in the water flow 🙂

been out and put the fai sprokets on the idlers the gm ones have washers on that would make noise

then with the use of a file and the drill press i made some spacers for the inlet/water pump bracket

and they came out well to 🙂

fitted them and the bracket to the block and sprayed some laquer on the front to stop the dirt getting in the pores
