Project Freeze My engine Off (SAAB B207R Supercharged)

Dave_Gilbert

Or a rocket sciencist.

corsaZ22se

is it running yet?

evocarlos

corsaZ22se said:
is it running yet?

no lol

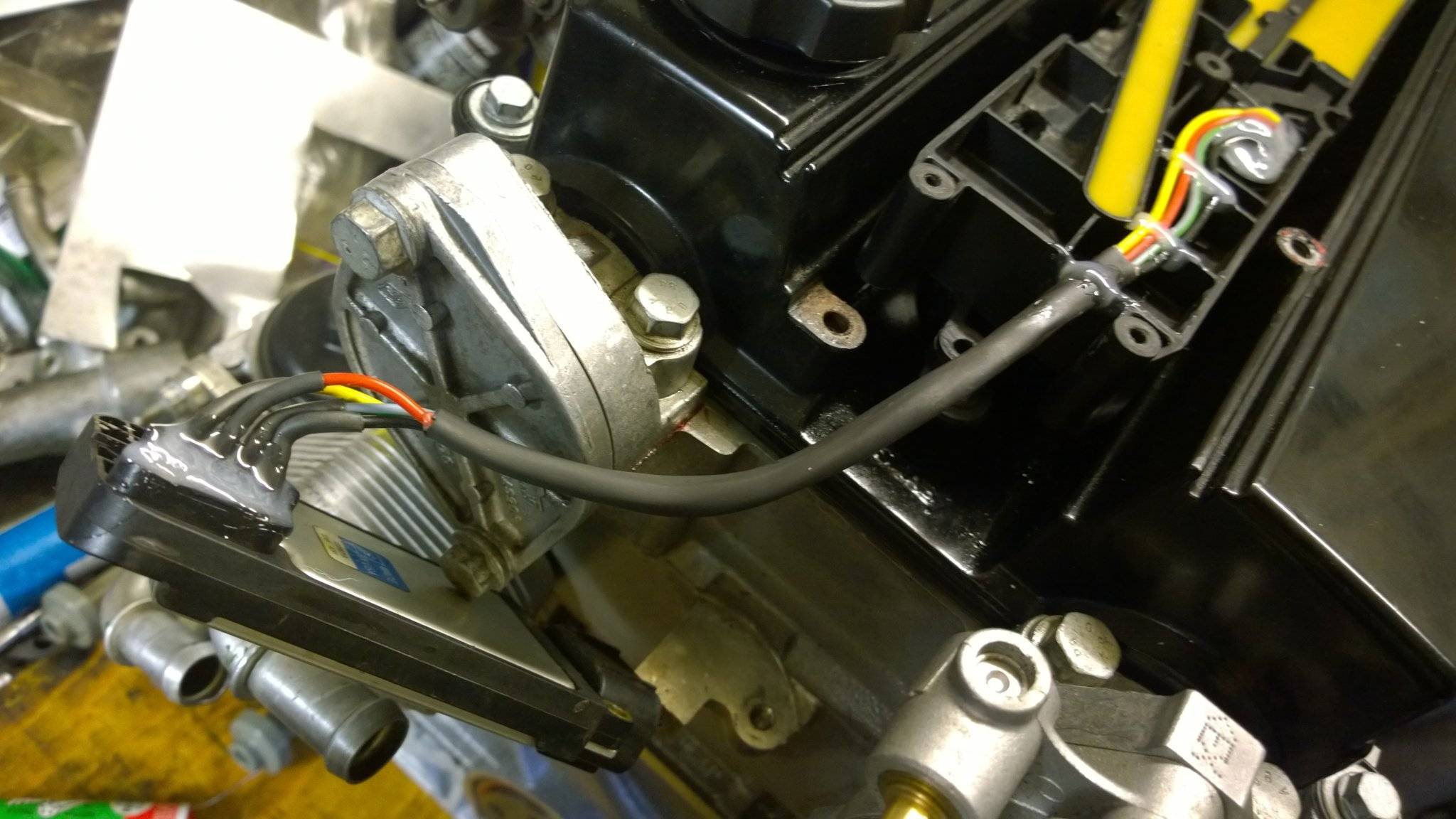

went in the cave and did the wire extension for the coil pack

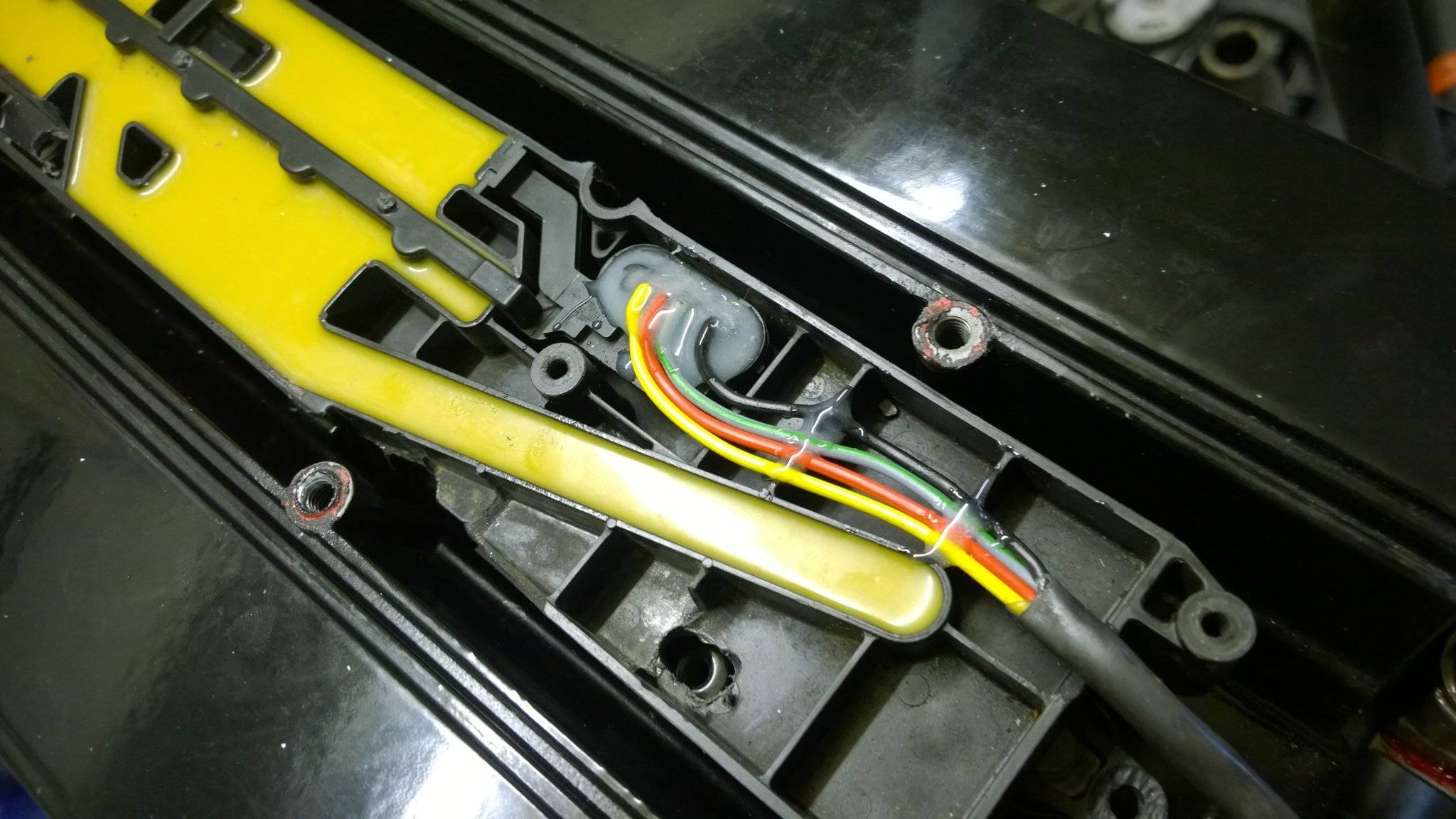

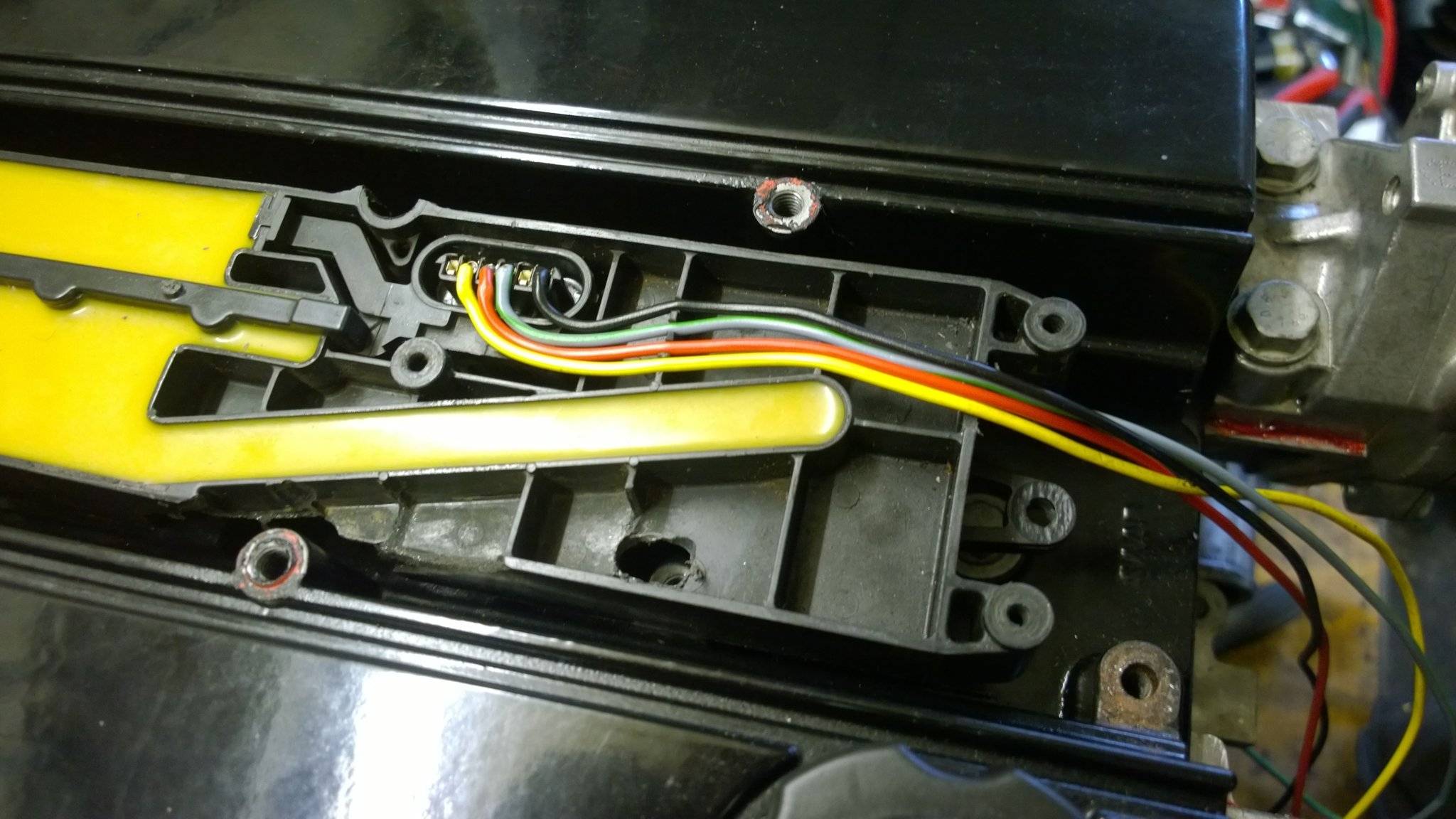

slots cut in the plastic to run the wires

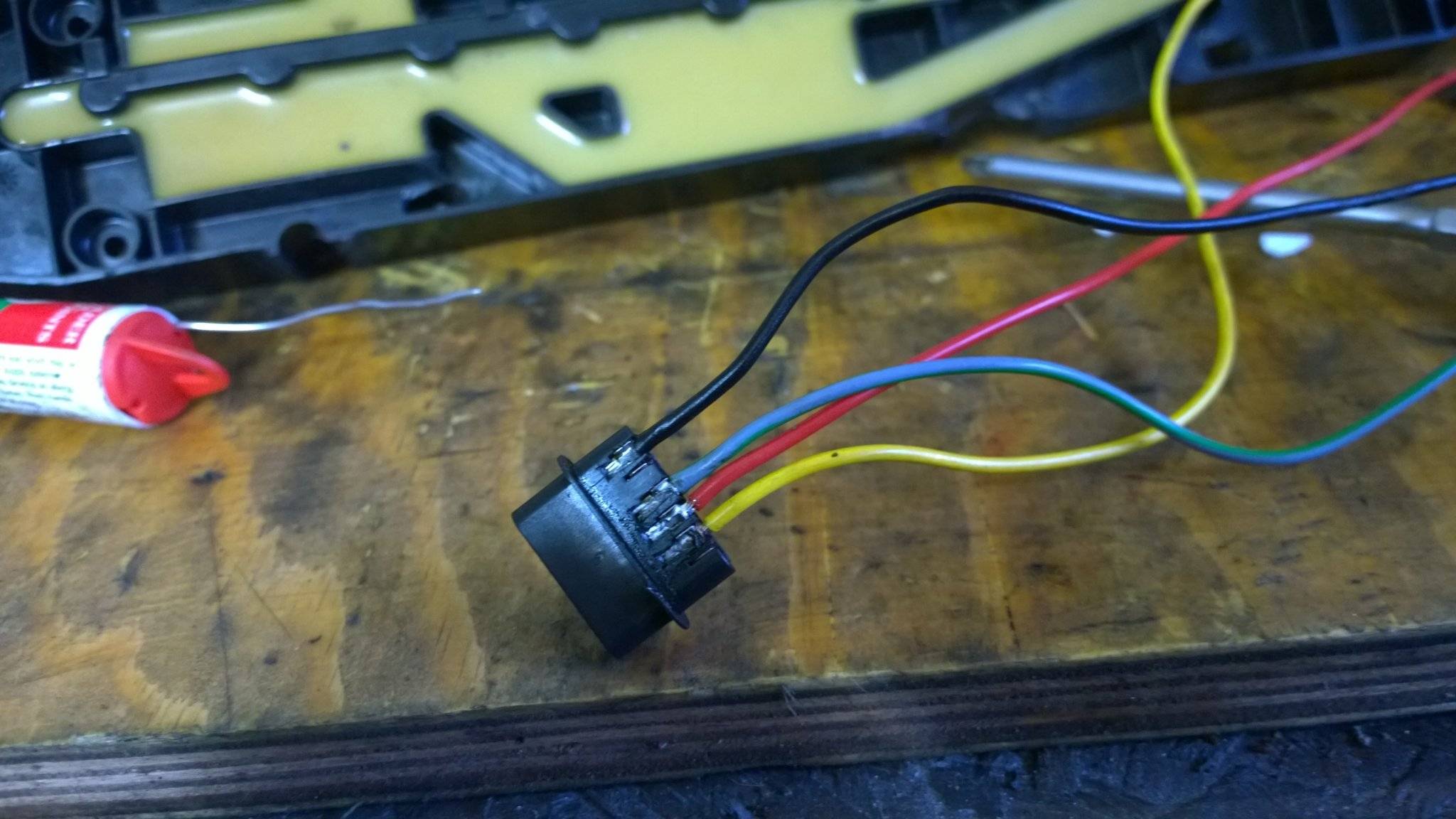

pins soldered and shrink tubed

araldite used as a potting resin to stop any moisture and cable pulling

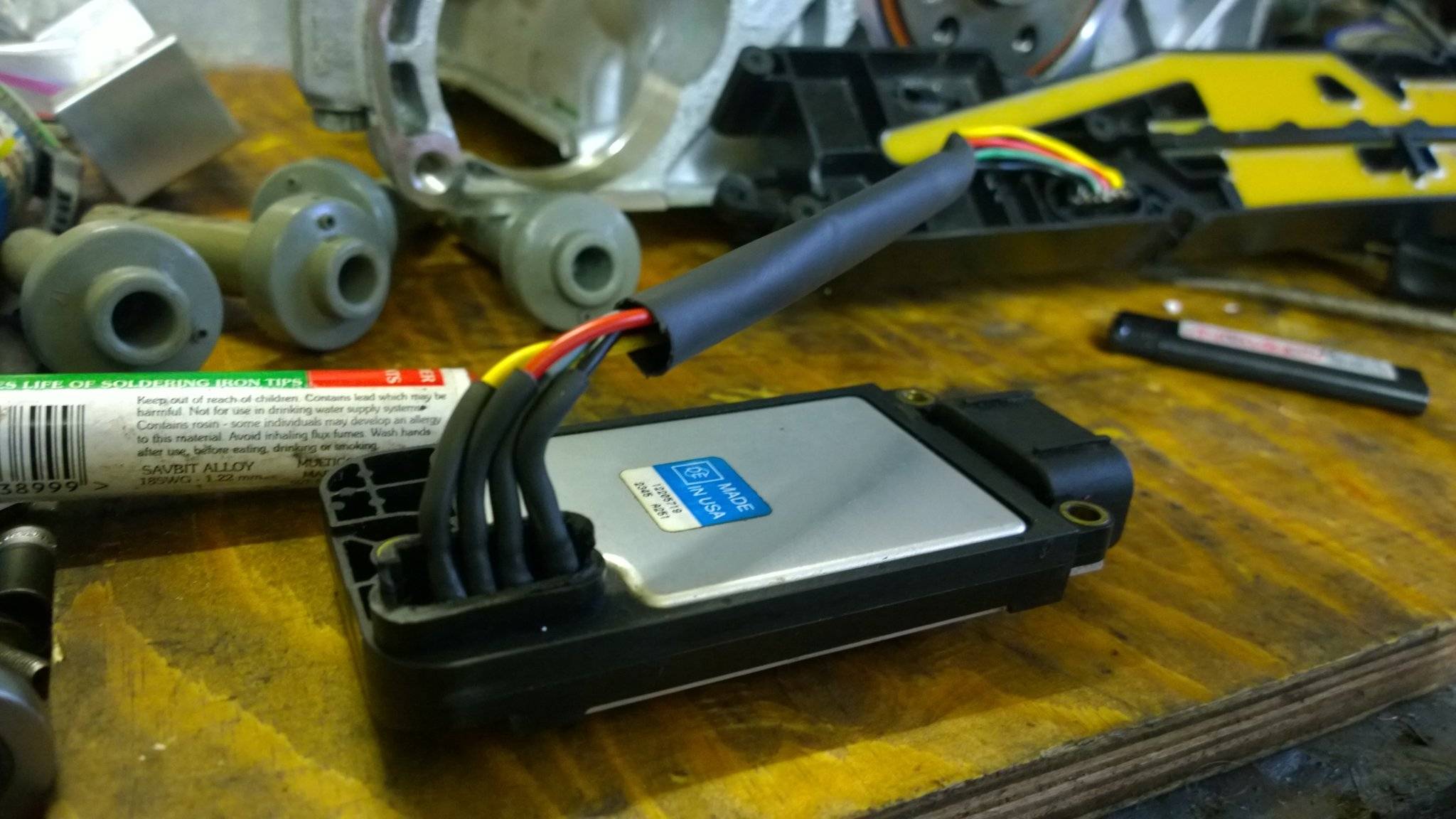

same on the controller 🙂

waiting for it to cure now 🙂

corsaZ22se

must be running by now surely???
looks neat, factory fitted! (y)

Dave_Gilbert

Very professional looking. Nice 1

evocarlos

had a trip to viper expensive performance
to get the pipes i needed for the water pump conversion and to replace the ones that were used on milos car

milo

evocarlos said:
replace the ones that were used on milos ca

Lies all lies 🙂

Dave_Gilbert

I was there I saw it, oooooooooh thats new n shiny, you can have mine thats tried n tested n al have yours haha.

evocarlos

seams a better fit now

heater return fitted

and plugged off the bottle feed

dewismotorsport

Where's the pump from? Something I may do next time I have the engine is out

evocarlos

dewismotorsport said:
Where's the pump from? Something I may do next time I have the engine is out

i got the pump kit from demon tweeks you can get plastic or alloy body 🙂
http://www.demon-tweeks.co.uk/performance/water-pumps/davies-craig-ewp115-water-pump-digital-controller-combo

cant give feedback on the use yet due to not having the engine in lol

Dave_Gilbert

The new pipes look great, I bet they wernt cheap.

evocarlos

Dave Gilbert said:
The new pipes look great, I bet they wernt cheap.

just shy of a ton for all the bits above in the pic but there triple ply so stronger than the cheap 1ply stuff on ebay that i had considered

the issue i had with the tee was they dont have 38x38x19 so had to buy the 38x38x25
i originally put a bit of tube inside the 25mm then put in a 19mm barb
changed my mind so went out and bought a 25-19mm barb

and fitted one of the blanking plugs

i did go to vx and pick up an oil filter and z20net gasket i had ordered and then ordered a 2nd gasket and some cam bolts

evocarlos

opps 🙂

Dave_Gilbert

Please dont say thats your engine

evocarlos

it is my engine swapping out to the 2nd crank 🙂

5M1THY

I wish I could pull my engine apart like that lol

evocarlos

impact gun! 🙂

evocarlos

was bored lol

evocarlos

new parts come
the 2nd gasket
6 bolts that i only need 2 of and 1 short bolt for the bracket for the half shaft
and the new bearing
also got 2 thermostat seals that i dont remember ordering :S
