Project Freeze My engine Off (SAAB B207R Supercharged)

evocarlos

waiting on engine block lol
and the new year to get the clutch sorted as there closed at the moment

Dave_Gilbert

Excuses,

iv been trying to get to the donor car for the last 2 days but cant get out the estate, its like they wasnt expecting snow so the roads are a mess.

evocarlos

heres the mark in the charger its the same size as the mark in the bore

done some more work to my head to make the ports a better more even shape
used the MIC to confirm they were all the same

just need to get the corners of each port the same then blend in to the port

Dave_Gilbert

Is the charger going to be ok with the score?

chill

I've seen a lot worse than that

evocarlos

yeah that mark is nout for the charger my other charger was a lot worse 🙂

Dave_Gilbert

Thats good then

chill

I have a M62 for sale if you want one

Now I have a Harrop

evocarlos

chill said:
I have a M62 for sale if you want one

Now I have a Harrop

do you have an inlet manifold to ?

more work to the head
i think there flippin huge lol

shapes better 🙂

shined them up with 120 grit in the flap wheel

went over them with a final pass with a scotch pad and wd40
deburred the edges with a pipe reamer

with the flash on

next to do the flange and gasket

Dave_Gilbert

Thats easy another 20bhp its gonna be a monster.

evocarlos

Dave Gilbert said:
Thats easy another 20bhp its gonna be a monster.

no good fitting bigger valves if the holes ain't bigger to suit 🙂

lets just look at the comparison 🙂
before

after 🙂

evocarlos

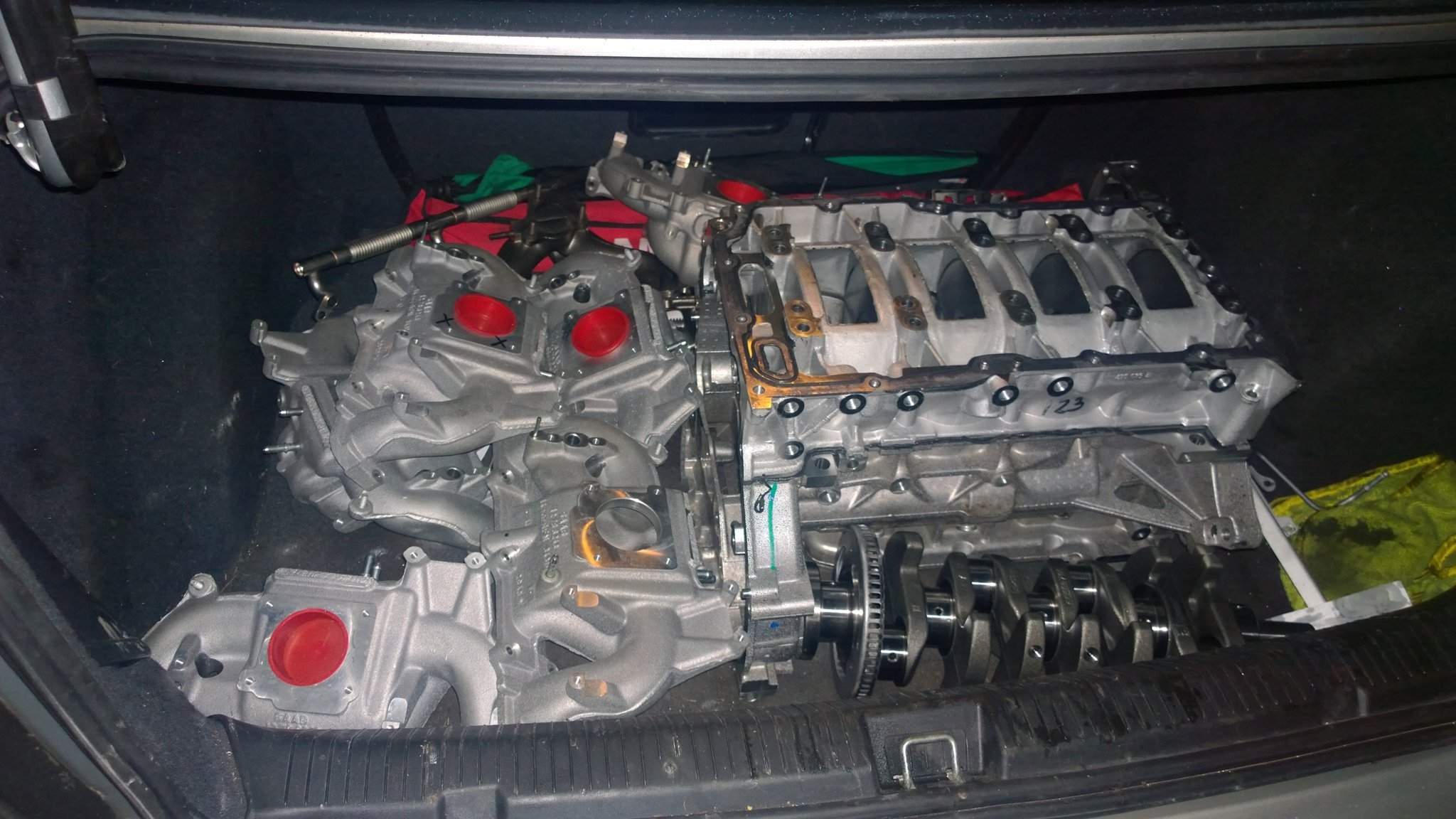

oh the boot 🙂

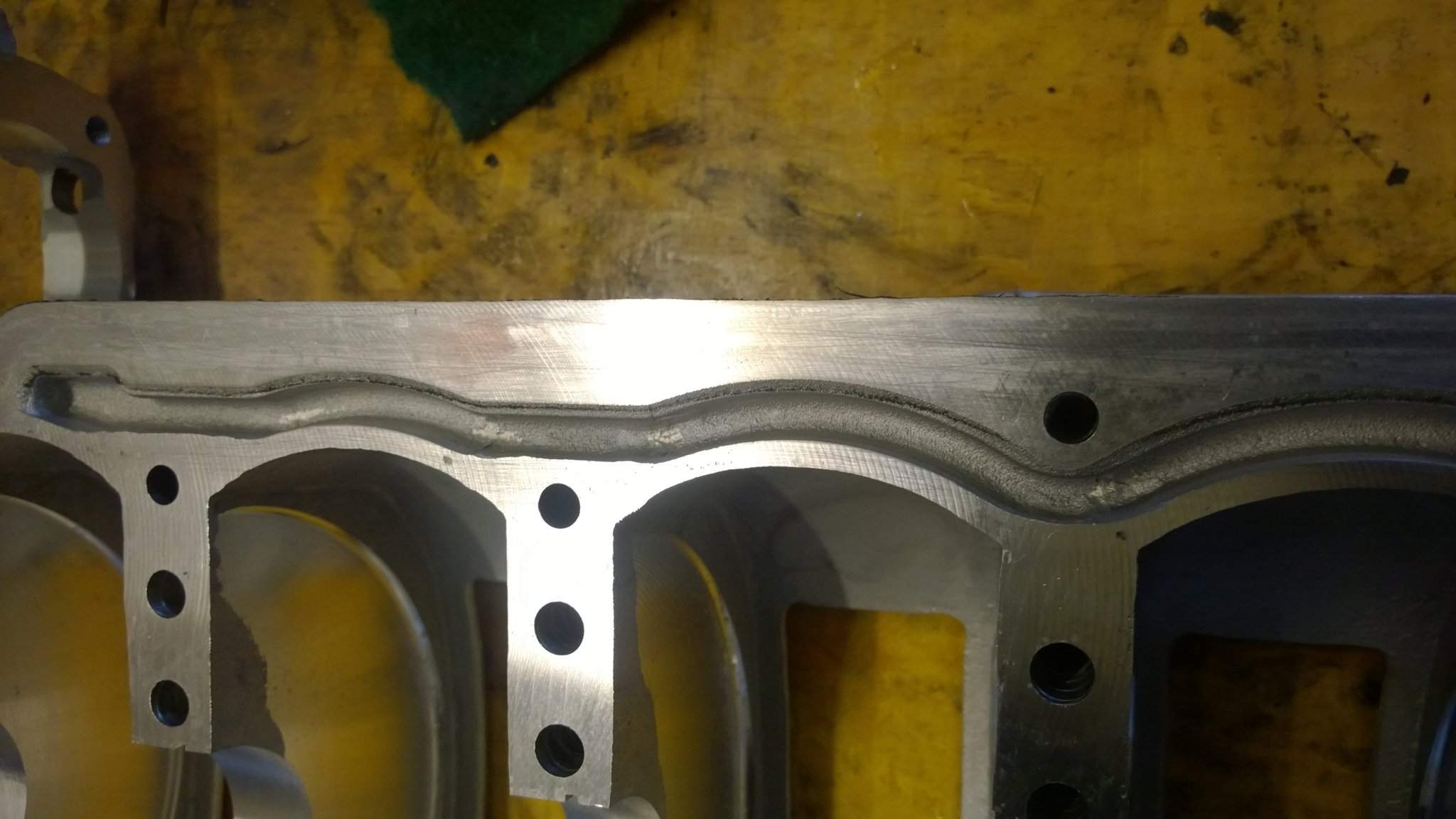

1st pet hate ""made in mexico"" the flash has not been dressed

sorted that 🙂 and cleaned the sealant off

also took some of the flash out the oil pump to oil filter groove

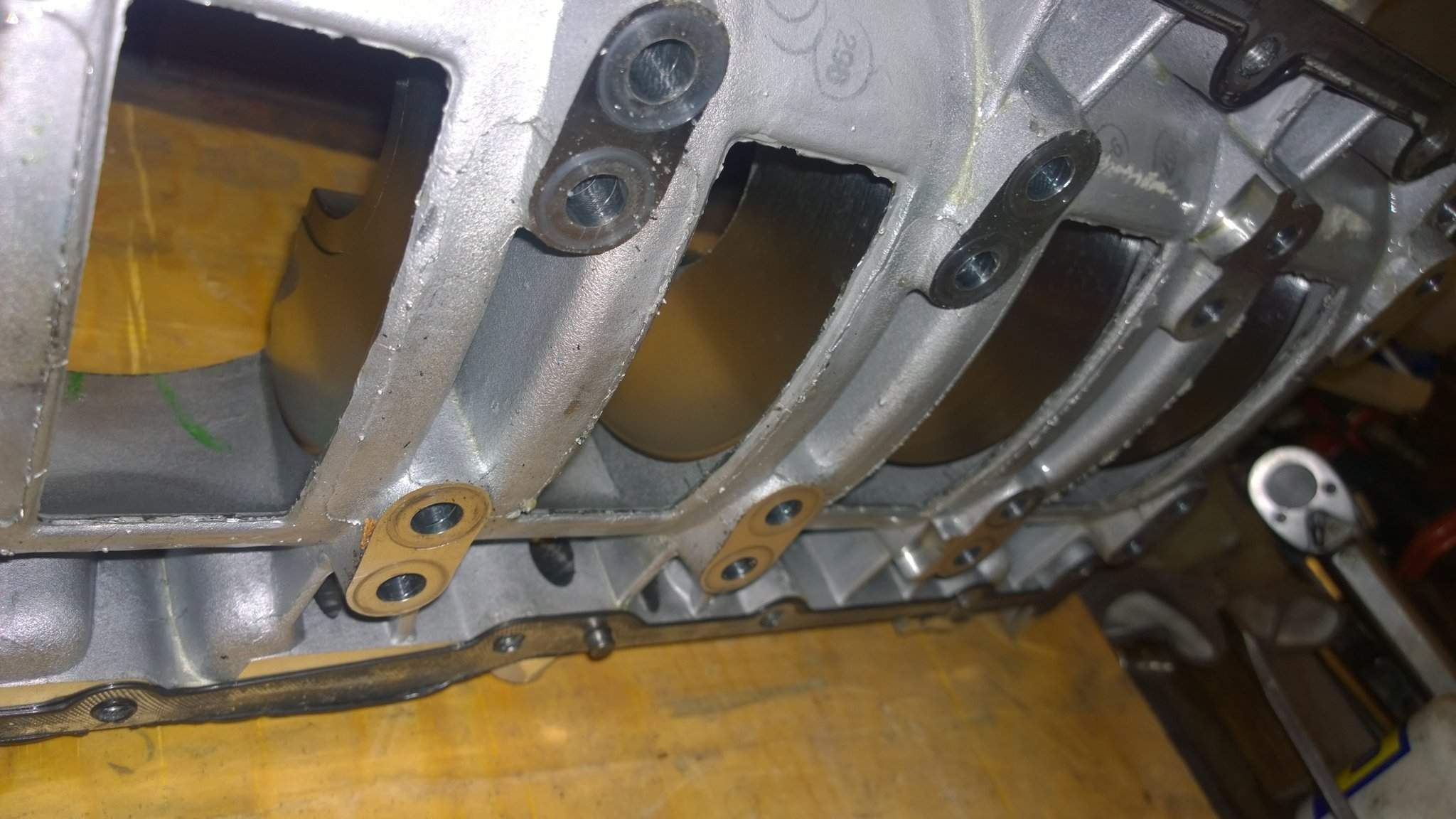

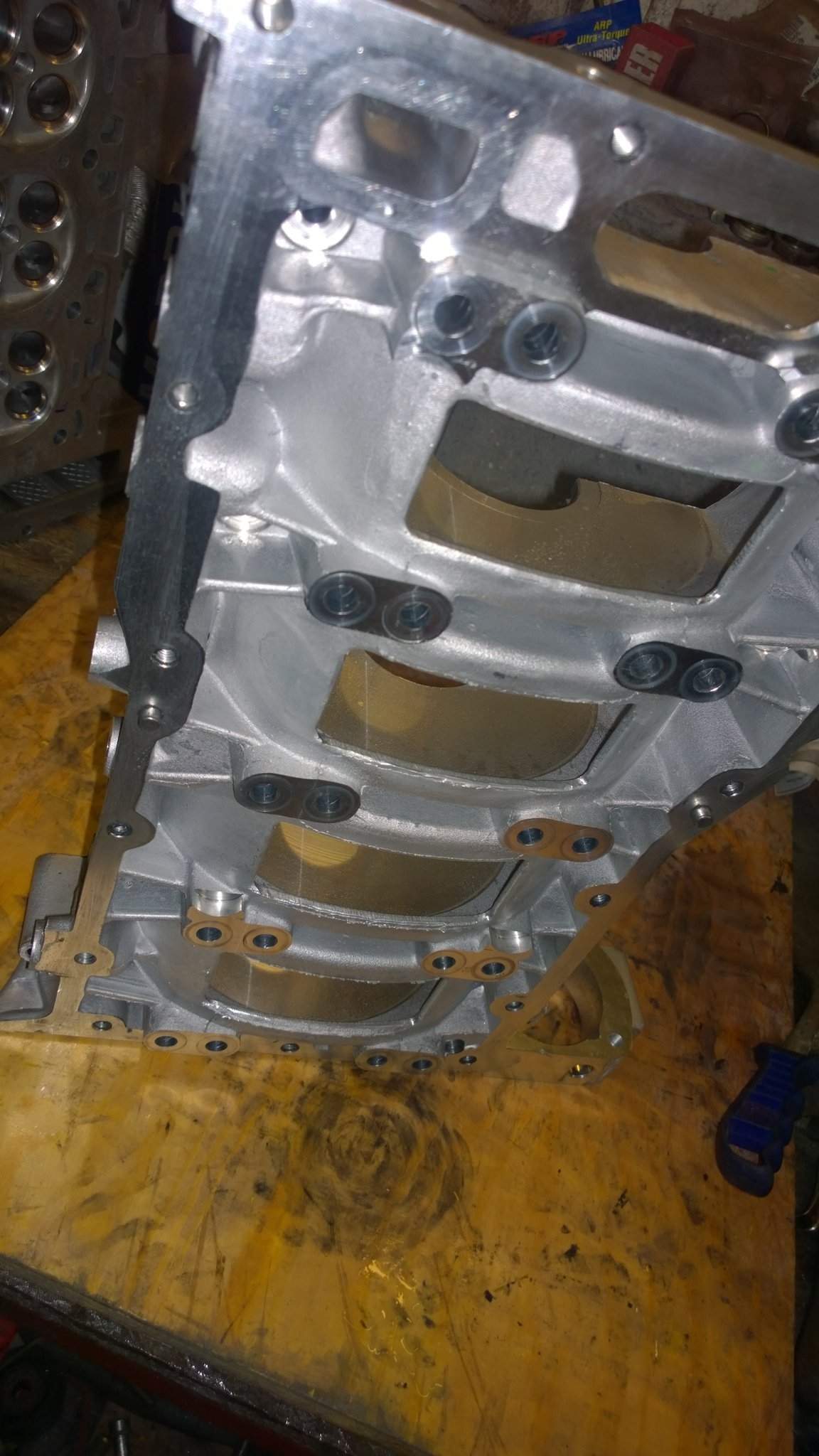

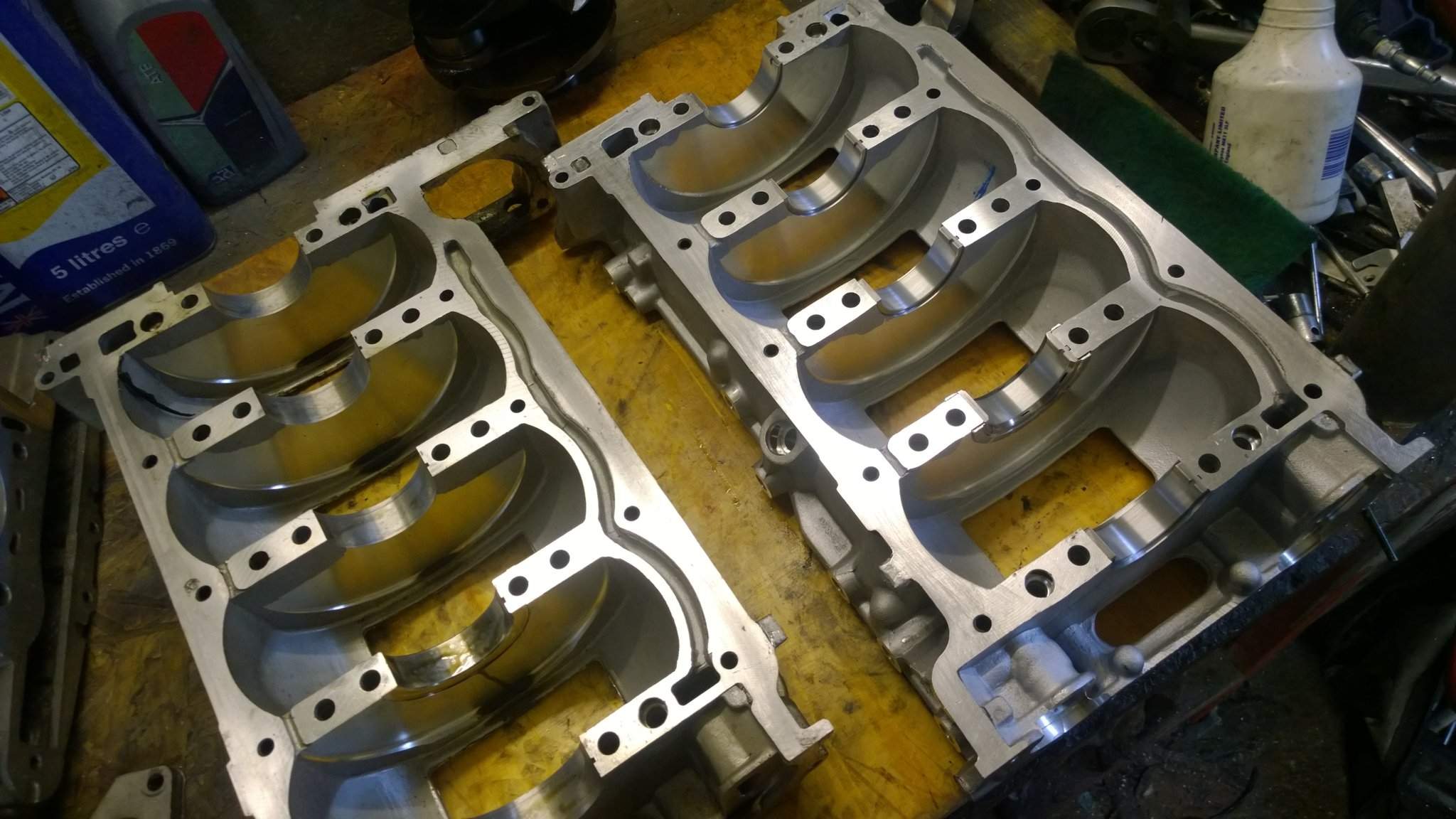

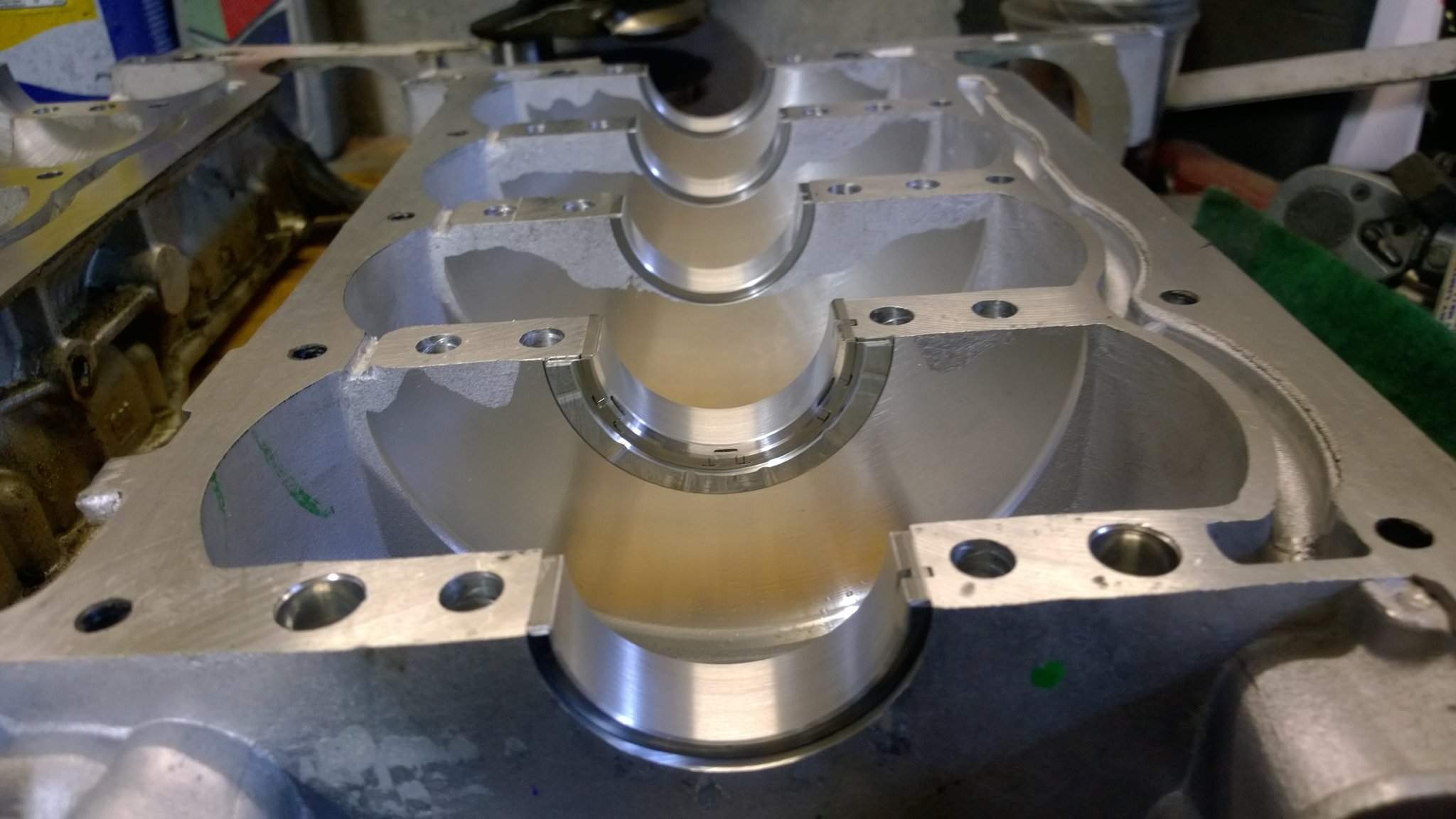

the swap 🙂 shells moved over to the new cradle

mmmm nice

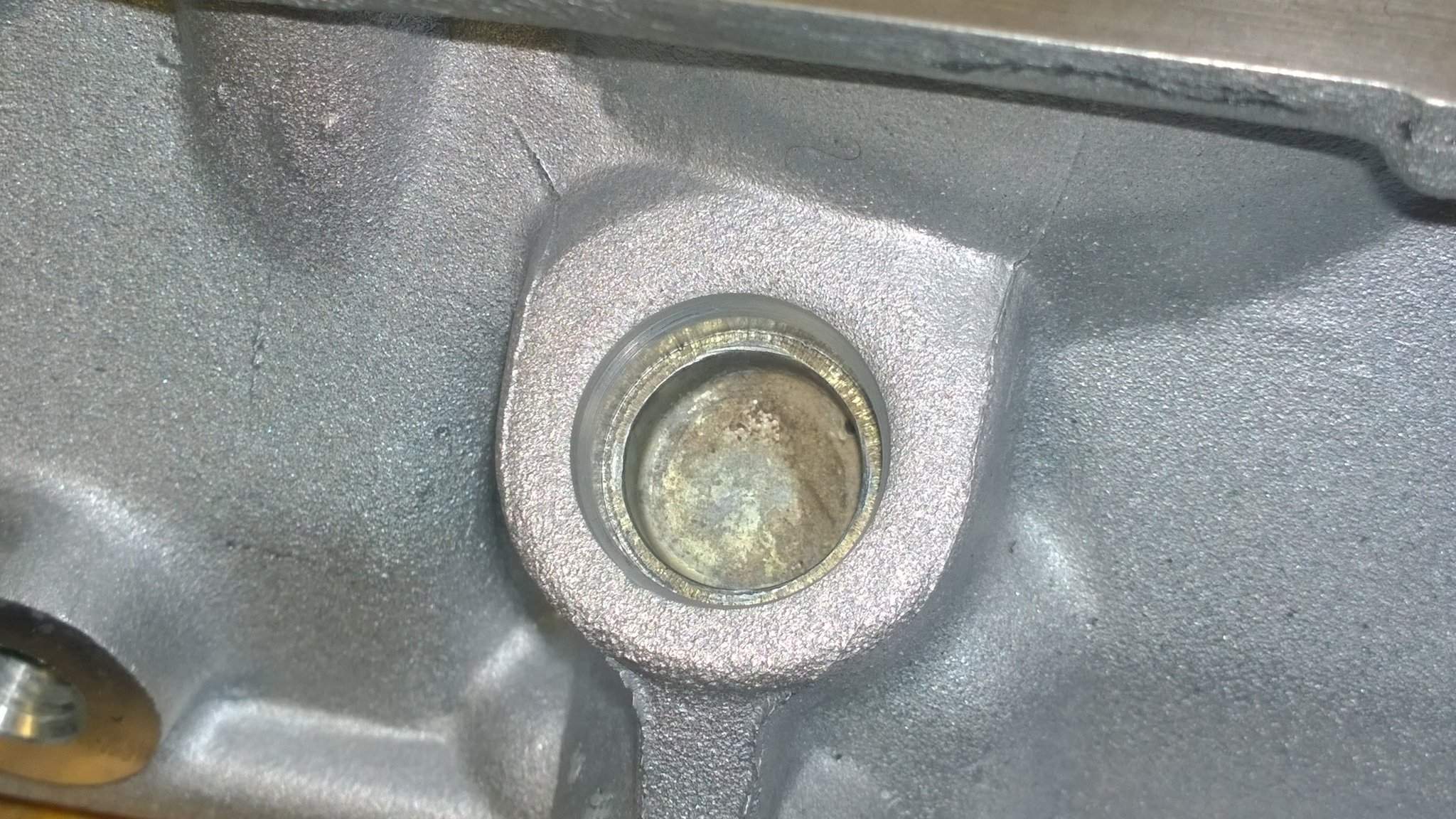

and the core plug for the turbo oil return plugged up

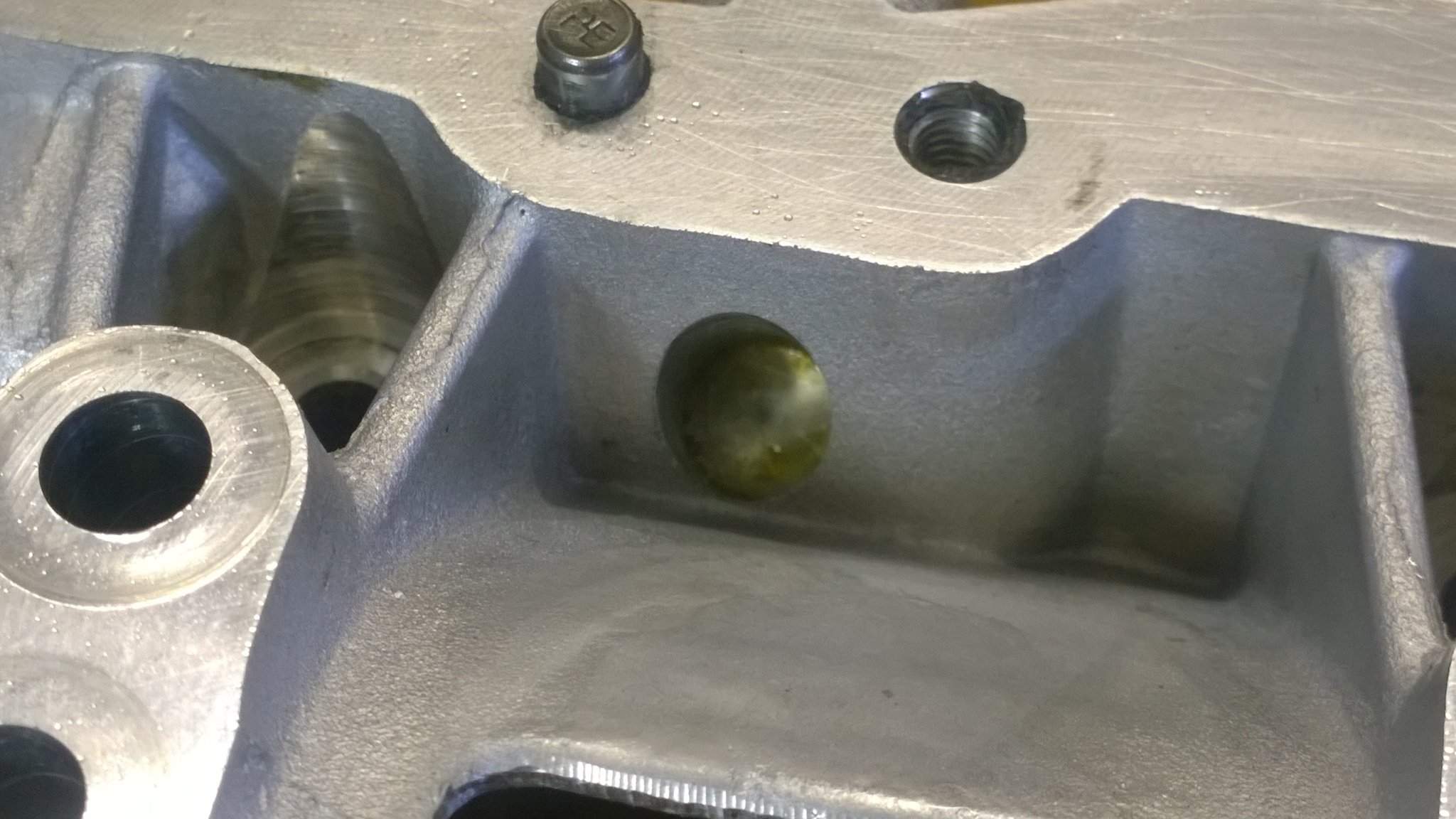

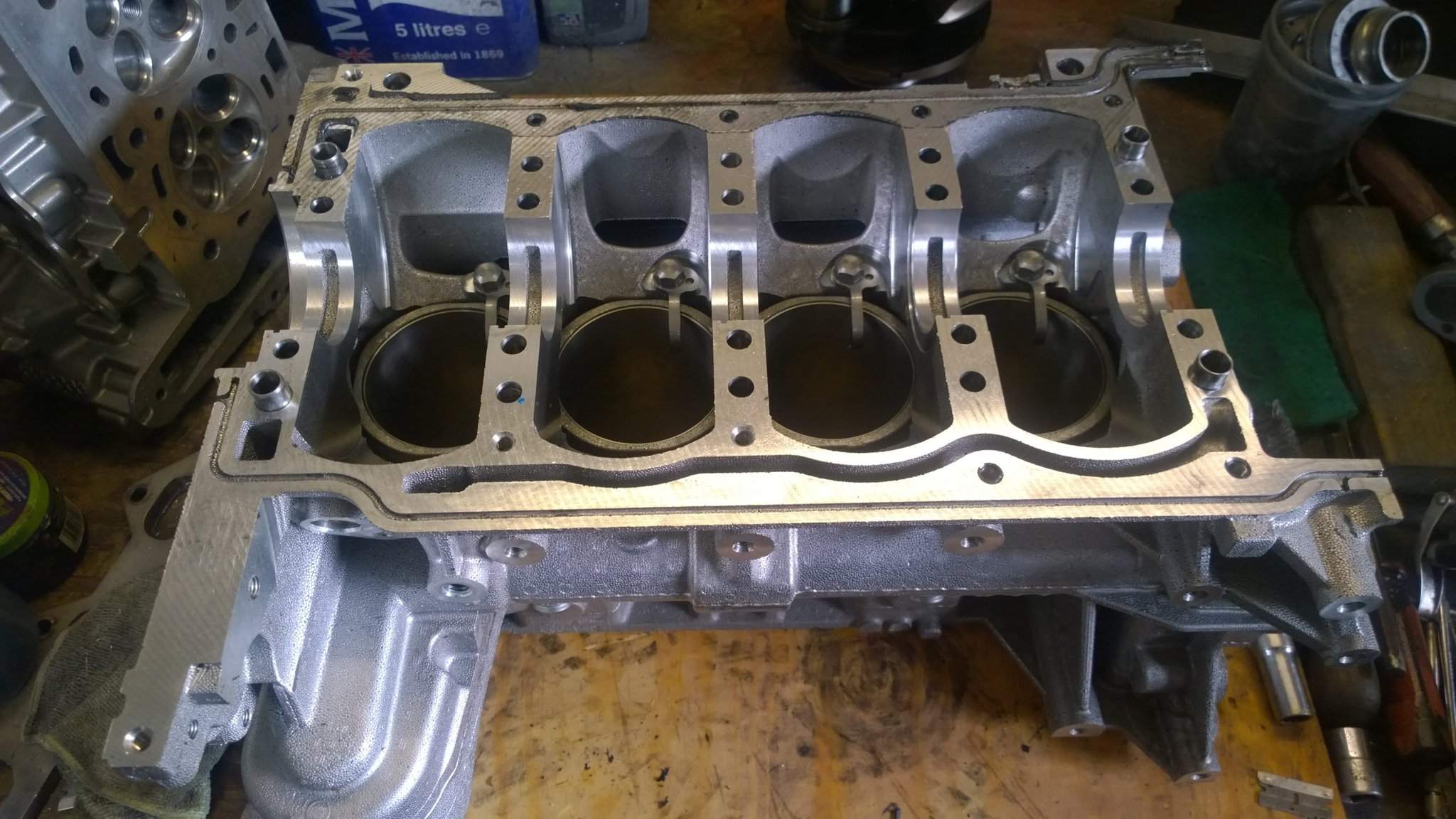

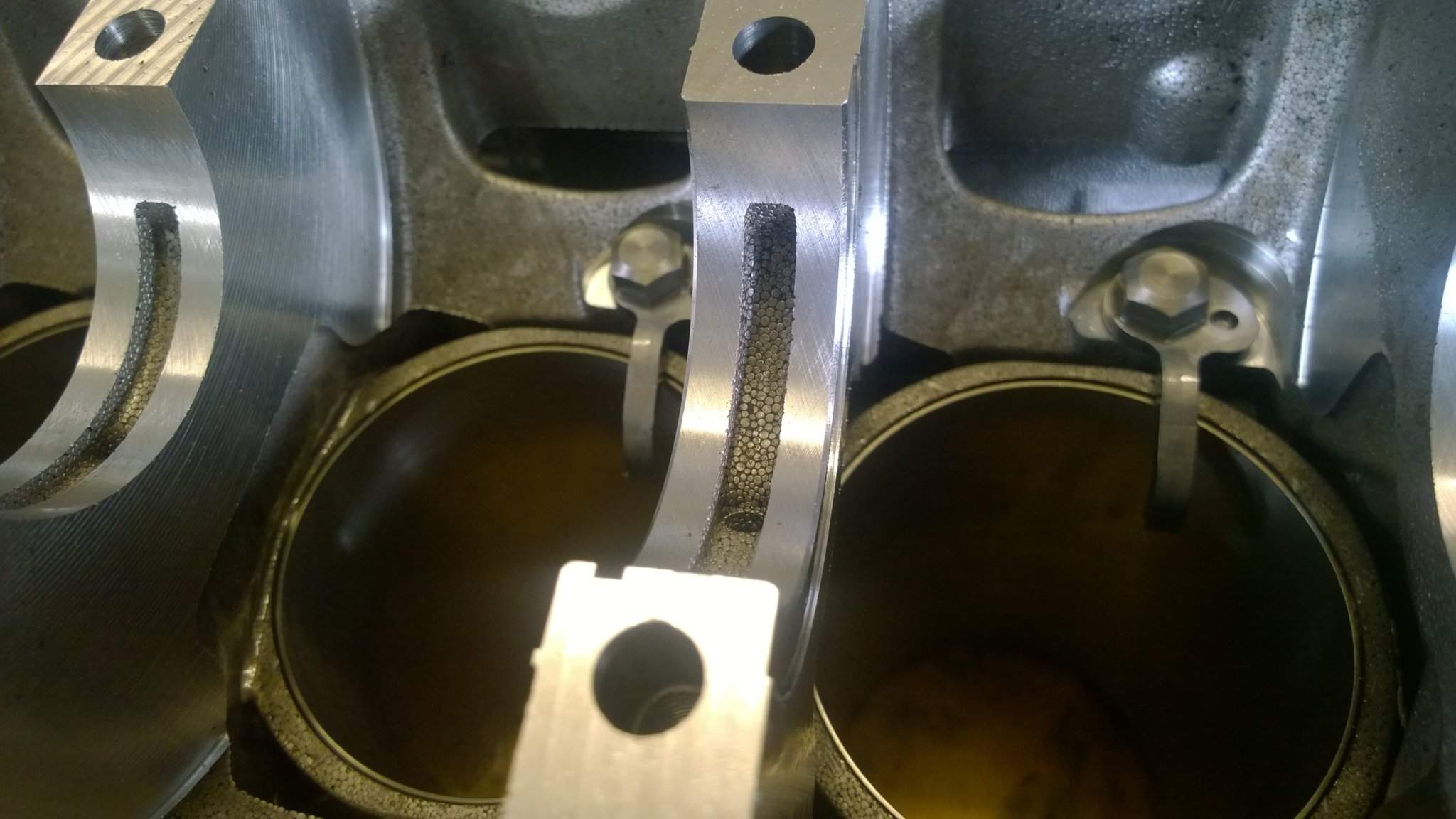

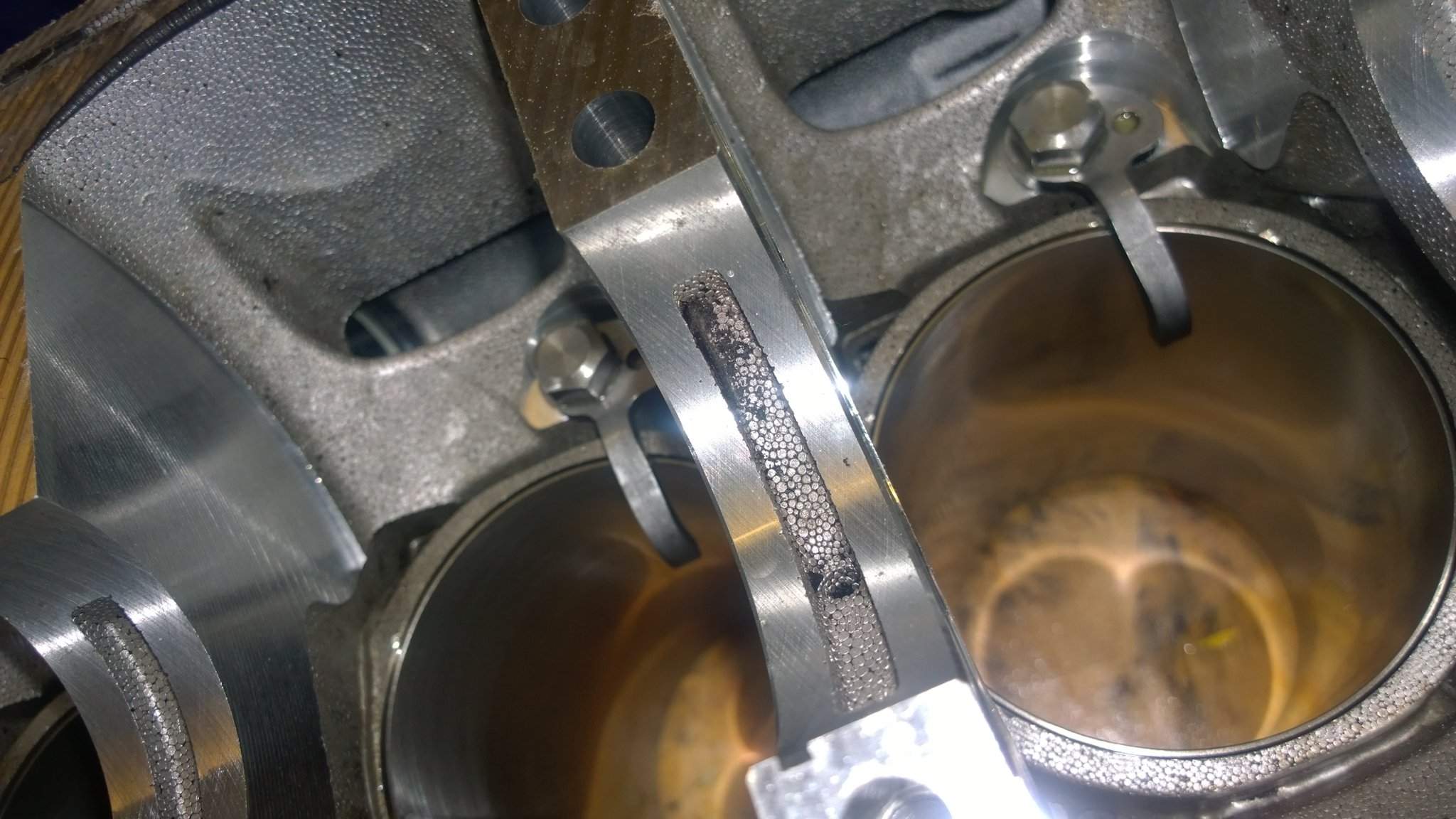

on to the block but whats this! sand from the casting process that wont help the shells any lol

BECAUSE ECOTEC!!!!!!

sand gone 🙂

and the sealant from one side cleaned away

more later 🙂

milo

What are the parts with the red caps in them?

evocarlos

milo said:
What are the parts with the red caps in them?

fake superchargers 🙂

milo

evocarlos said:
fake superchargers 🙂

What's the plan for them?

evocarlos

milo said:
What's the plan for them?

sell them to people who dont know what superchargers look like 🙂

milo

lol

milo

evocarlos said:
sell them to people who dont know what superchargers look like 🙂

Too late I already got mine now 😉

Dave_Gilbert

Can I have 1 please they look like nice chargers hahaha.

they look like inlet manifolds to me but I am on my phone so may be wrong.

corsaZ22se

evocarlos said:
sell them to people who dont know what superchargers look like 🙂

bet them chargers wouldn't fit a z22se corsa C! :ROFLMAO:
