Saab engine build

dewismotorsport

vocky said:
However the chain tensioner will not work after more than a 1.5mm skim

You need a manually adjustable cam chain tensioner for a 2mm skim

Just a thought but by turning down the inner face of the tensioner it would allow it to sit 1mm closer as it would screw in slightly further

vocky

corsaZ22se said:
I need to get me one of them blanking plugs for the saab temp sensor hole.
put a spare temp sensor in at the moment.

coolant pump drain plug (y)

vocky

I picked up the crank assembly from Vibration Free today, so rebuilt the engine 😃

Brand new CompCams stage 3 NA camshafts fitted, PCV mod done - works as per OEM. ITB manifold fitted on sleeve studs to keep it perfectly aligned.

Con rods needed some balancing :eek:

They used the gudgen pins to balance the piston weight

Brand new piston rings fitted

vocky

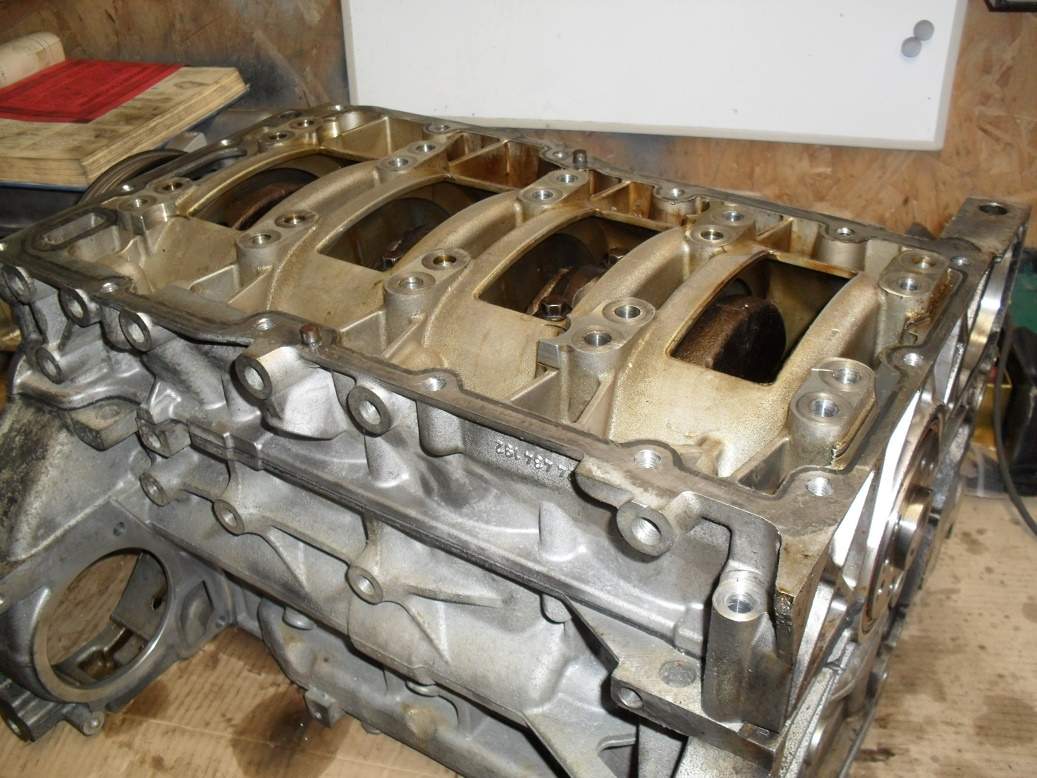

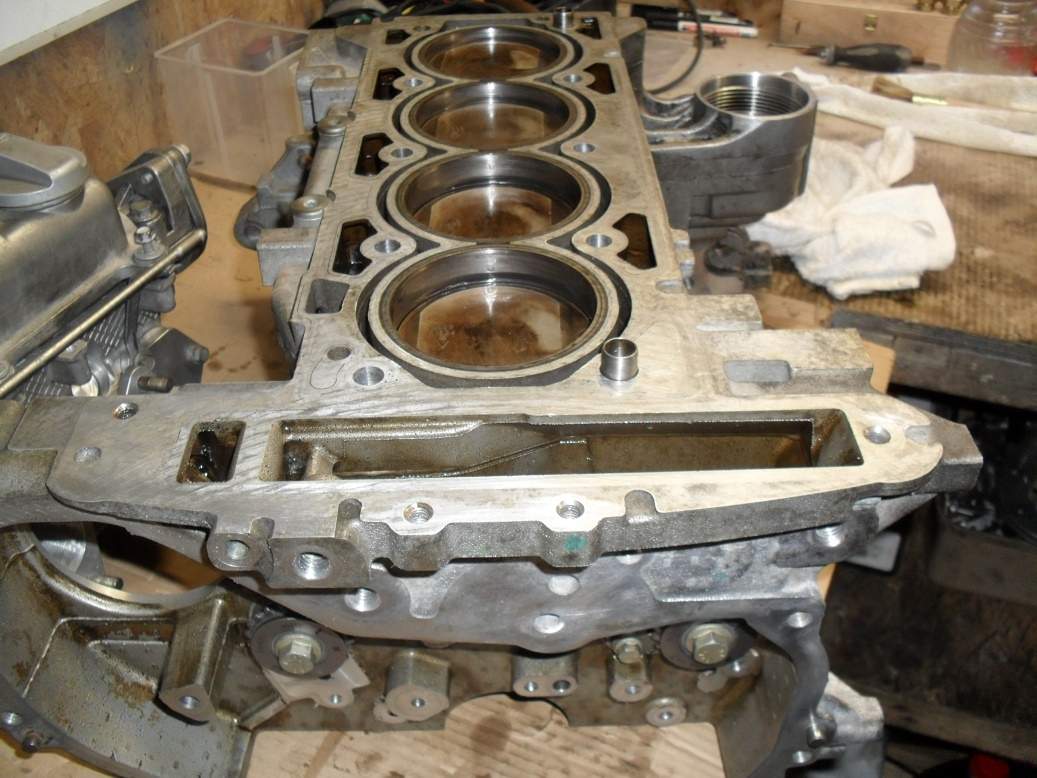

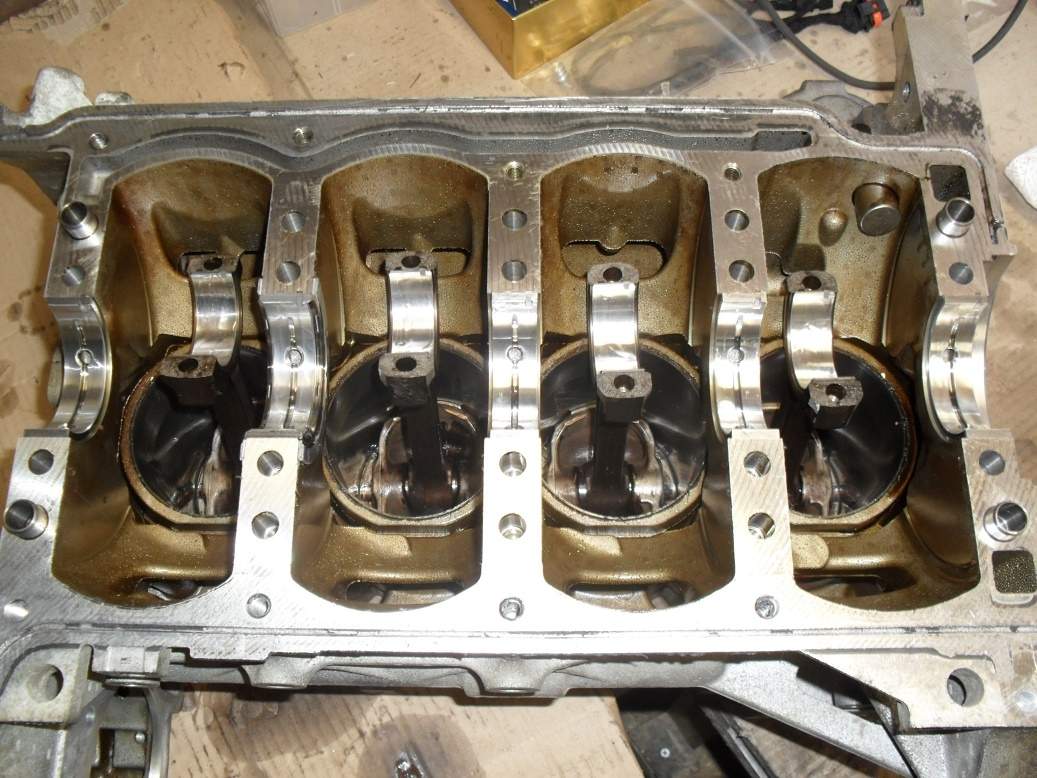

Then the pistons were slipped into the block, balancer delete done and brand new sprockets fitted.

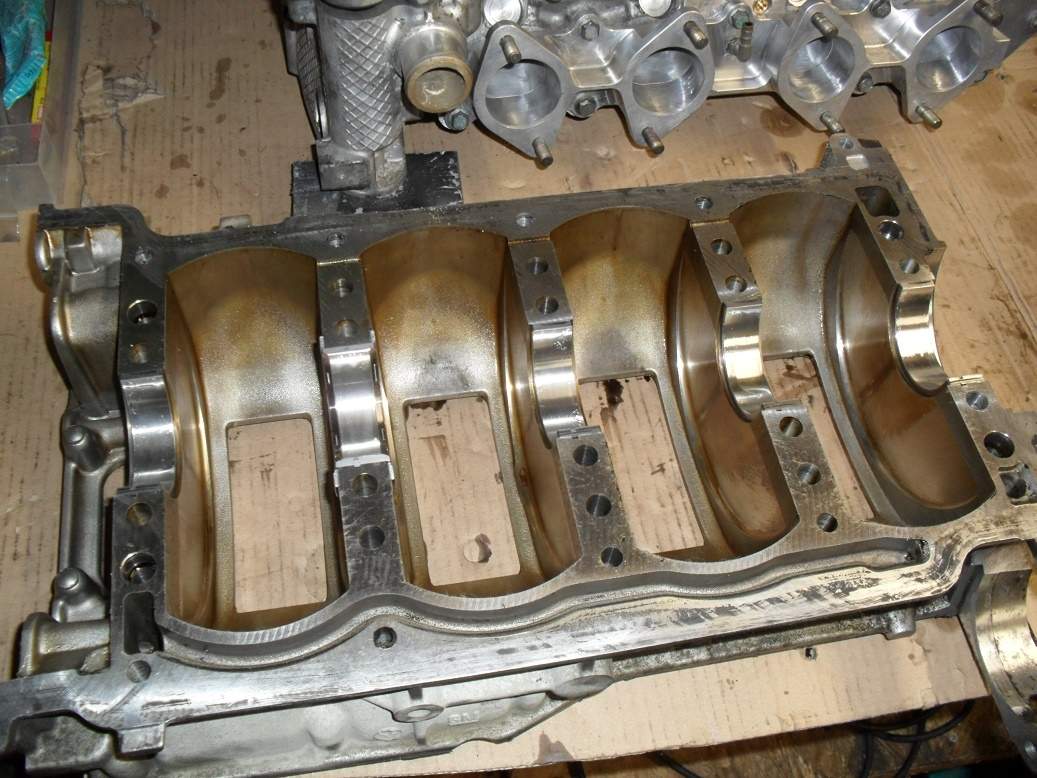

Brand new bearings fitted for the crank

Brand new rear main oil seal

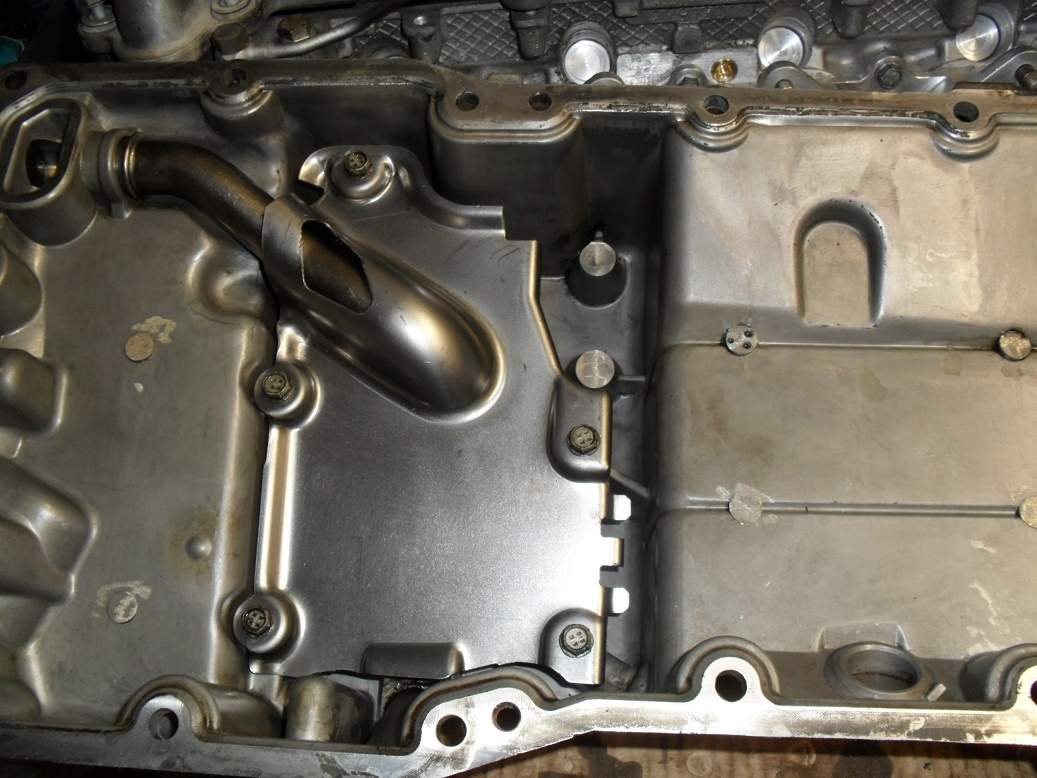

sump washed out

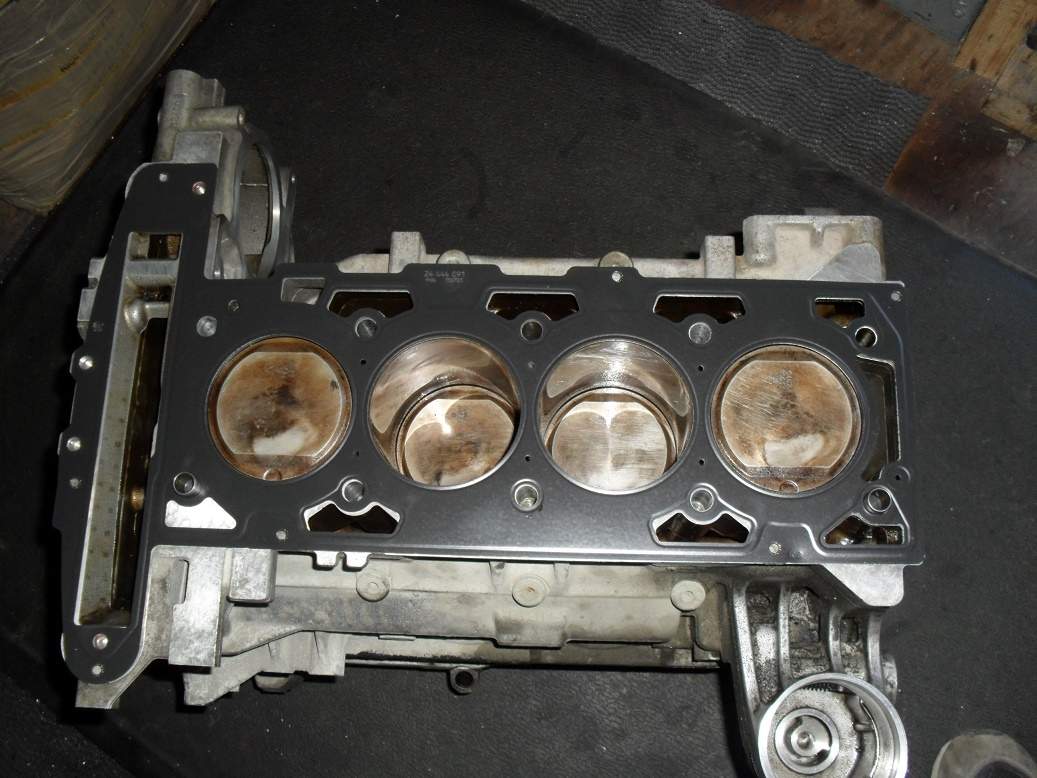

Genuine head gasket and head bolts

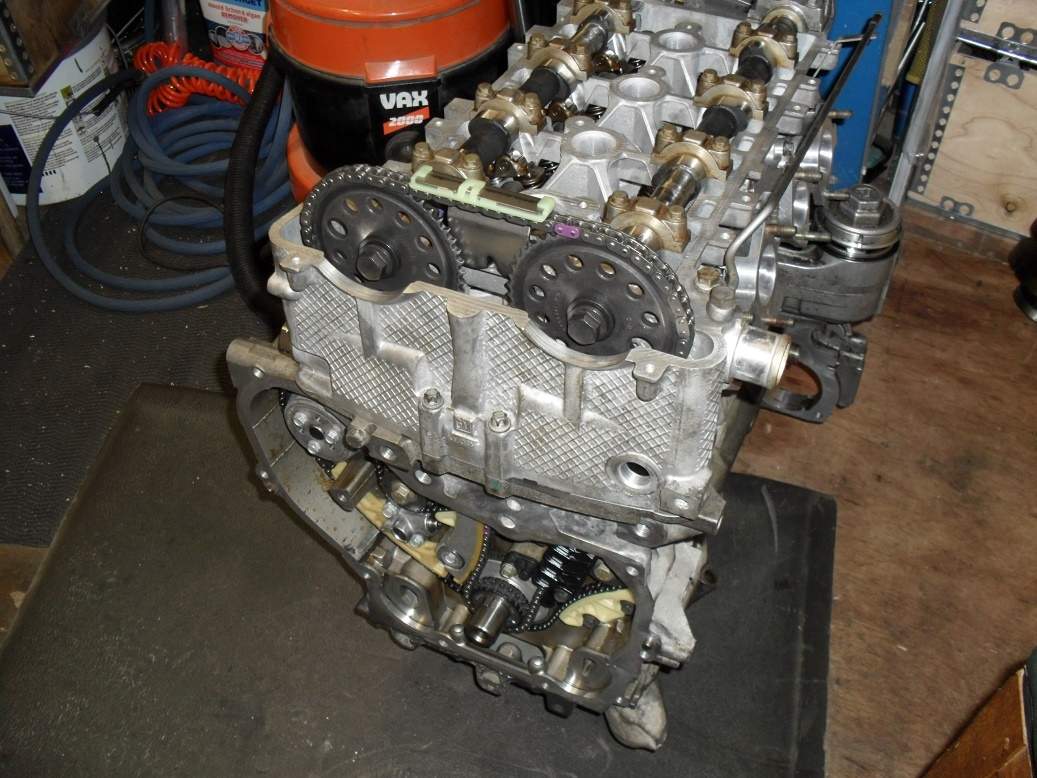

Just need to vernier in the cams with the brand new Saab cam sprockets and brand new genuine chain kits, a job for tomorrow.
A brand new genuine coolant pump was also fitted, the flywheel was also fitted.

vocky

dewismotorsport said:
Just a thought but by turning down the inner face of the tensioner it would allow it to sit 1mm closer as it would screw in slightly further

that would probably work 🙂

corsaZ22se

you do make good progress (y)
next time I find a z22se at the breakers the water pump drain plug may fall into my pocket :sneaky:

Dave_Gilbert

I think i have 1 in my spanner box ambrose mate. Al have a look tomorrow for u

marek8038

Hello, can you give me the diameter of this impulse wheel? do i have thickness? Please provide more detailed information. Regards

stevieturbo

Old thread bump, but seemed a sensible place.

I've recently bought a 220 with a B207 VX/M62 and whilst I had the cam cover off today, it definitely has aftermarket cams fitted. Oddly the exhaust cam, has "intake" written on it, among other text.
Should have took more photos, but alas I did not.
Anyone ID them ? and why the exhaust cam might say intake on it ?

Exhaust cam
https://postimg.cc/MvGzVMBS

Inlet cam
https://postimg.cc/G8rC2HR6

dewismotorsport

stevieturbo said:

Old thread bump, but seemed a sensible place.

I've recently bought a 220 with a B207 VX/M62 and whilst I had the cam cover off today, it definitely has aftermarket cams fitted. Oddly the exhaust cam, has "intake" written on it, among other text.
Should have took more photos, but alas I did not.
Anyone ID them ? and why the exhaust cam might say intake on it ?

Exhaust cam
https://postimg.cc/MvGzVMBS

Inlet cam
https://postimg.cc/G8rC2HR6

At a guess they are most likely LSJ cams so maybe the lift is a good match for the exhaust on a sc car.

stevieturbo

Had another look.....

they have indeed installed the intake cam 8758 on the exhaust side, and the exhaust cam, 8759 on the intake side of the engine.

Why oh why.

On paper the two profiles are very similar anyway.....but doing it makes zero sense. As to whether they're even timed up correctly, that'll have to wait for another day. Too awkward with the engine in-situ and full clam still on the car.
