Project Freeze My Ass Off (rear Poly Bush's Astra G)

evocarlos

charger and inlet coming off after tea 🙂
pics to follow

evocarlos

charger and inlet off took the manifold apart to update the duel pass mod with the new alloy barbs and make it the right angle
i hate my mig welder keep spooling up the wire at the feed wheel!!!
here it is
new fitting and end plate

filed to shape

blatted with weld 🙂

ive had to modify the cs thermal gasket its to high at the top and only has one 6mm hole so its misaligned which ever way its fitted
cut some 3/8 copper tube an popped it in the hole to make up the gap 🙂 more tomorrow

evocarlos

thermal gasket installed

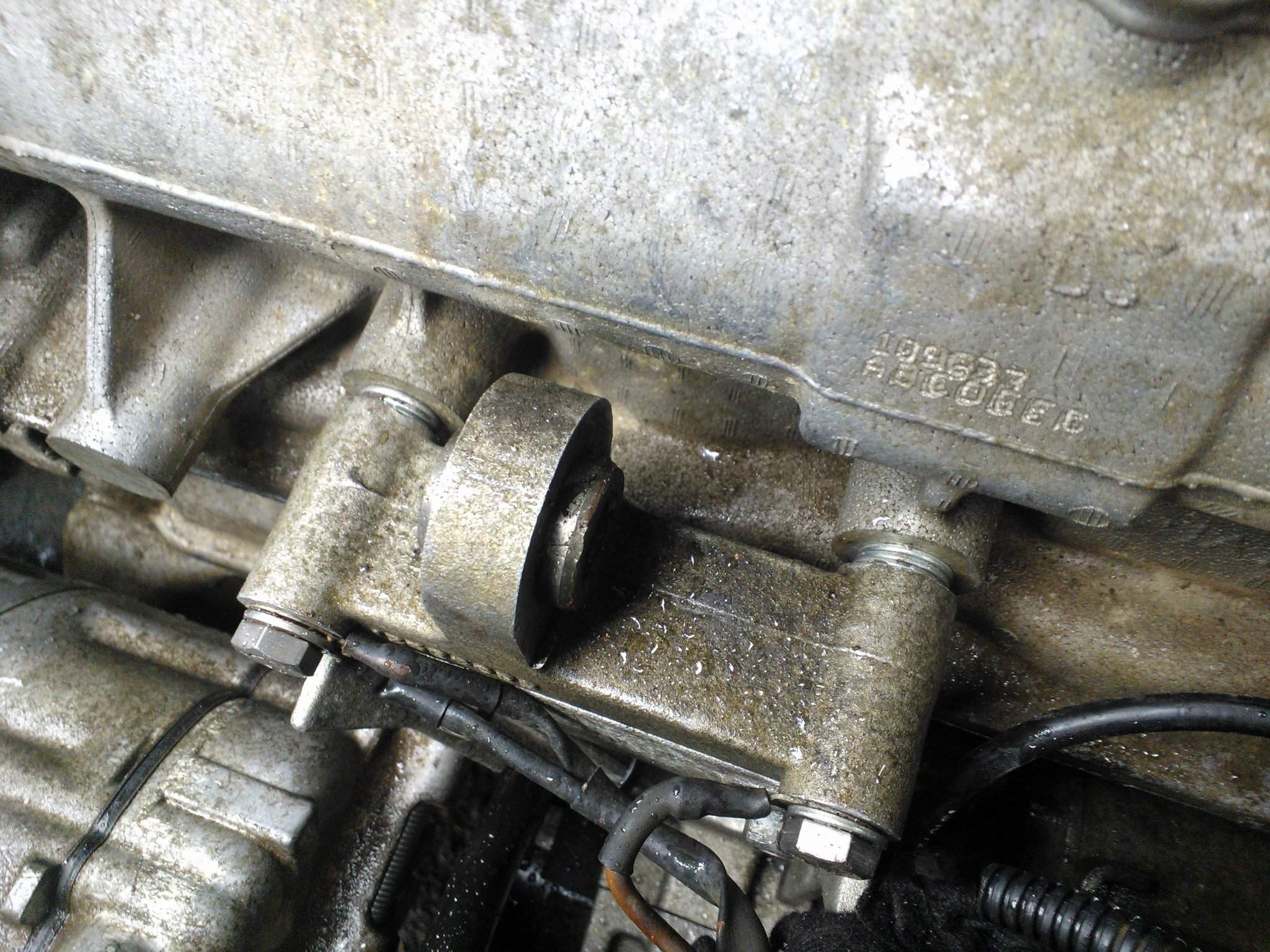

spaced out the bottom bracket to match the holes up

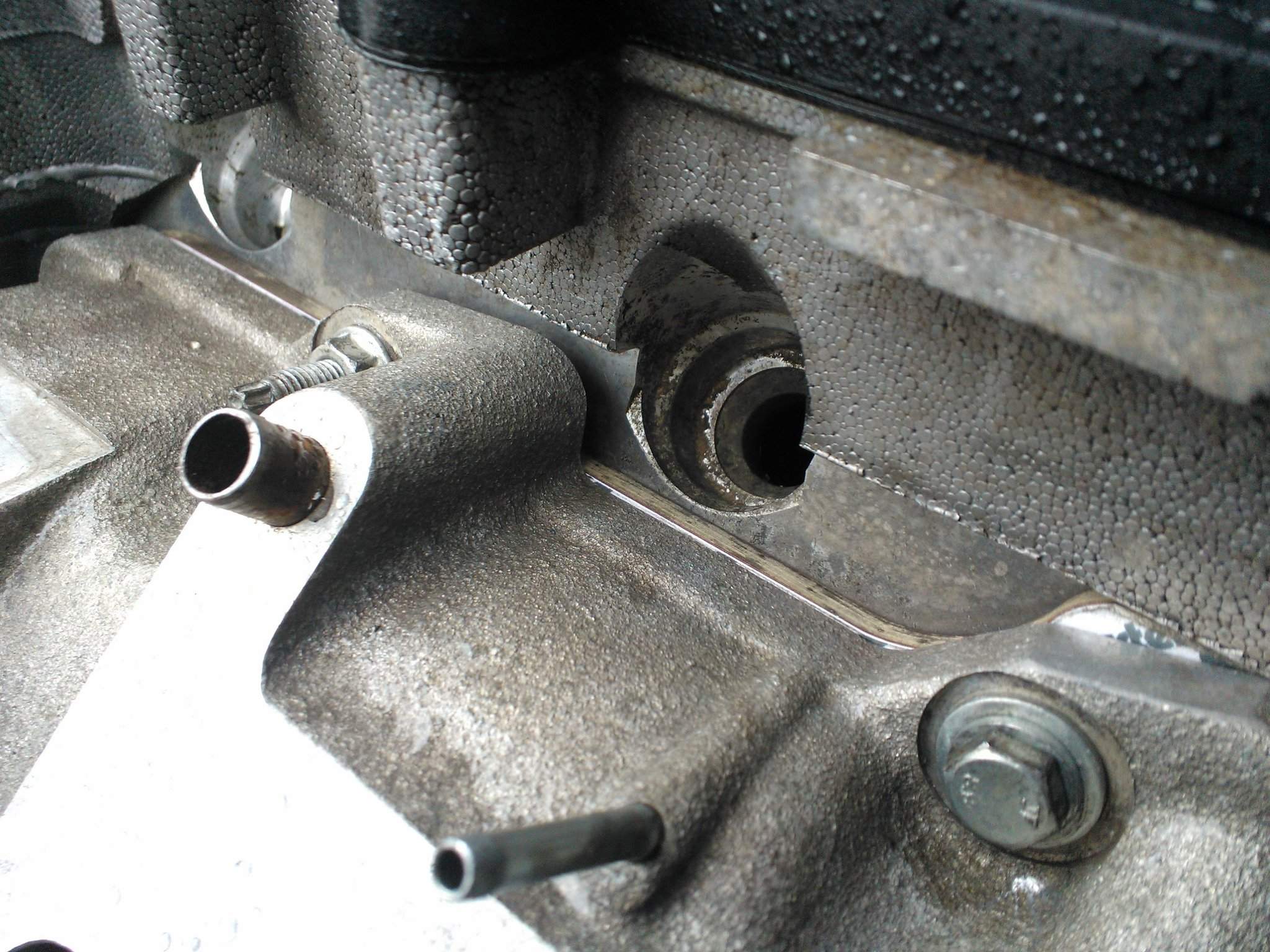

heres the gasket fitted behind the manifold

i then took the charger apart and took out 147ml of oil which is a good sign as i put 150ml in when it had the new seals so its not losing any i did mess up and spray the charger with carb cleaner it stripped the paint off the rotors so had to clean them up
i washed the gear housing out with petrol and applied a fresh bead of sealant then filled it with 100ml of ATF its much quieter and after a trip to viper performance and back the charger was still cool to the touch 🙂 it now makes more whine noise to 🙂

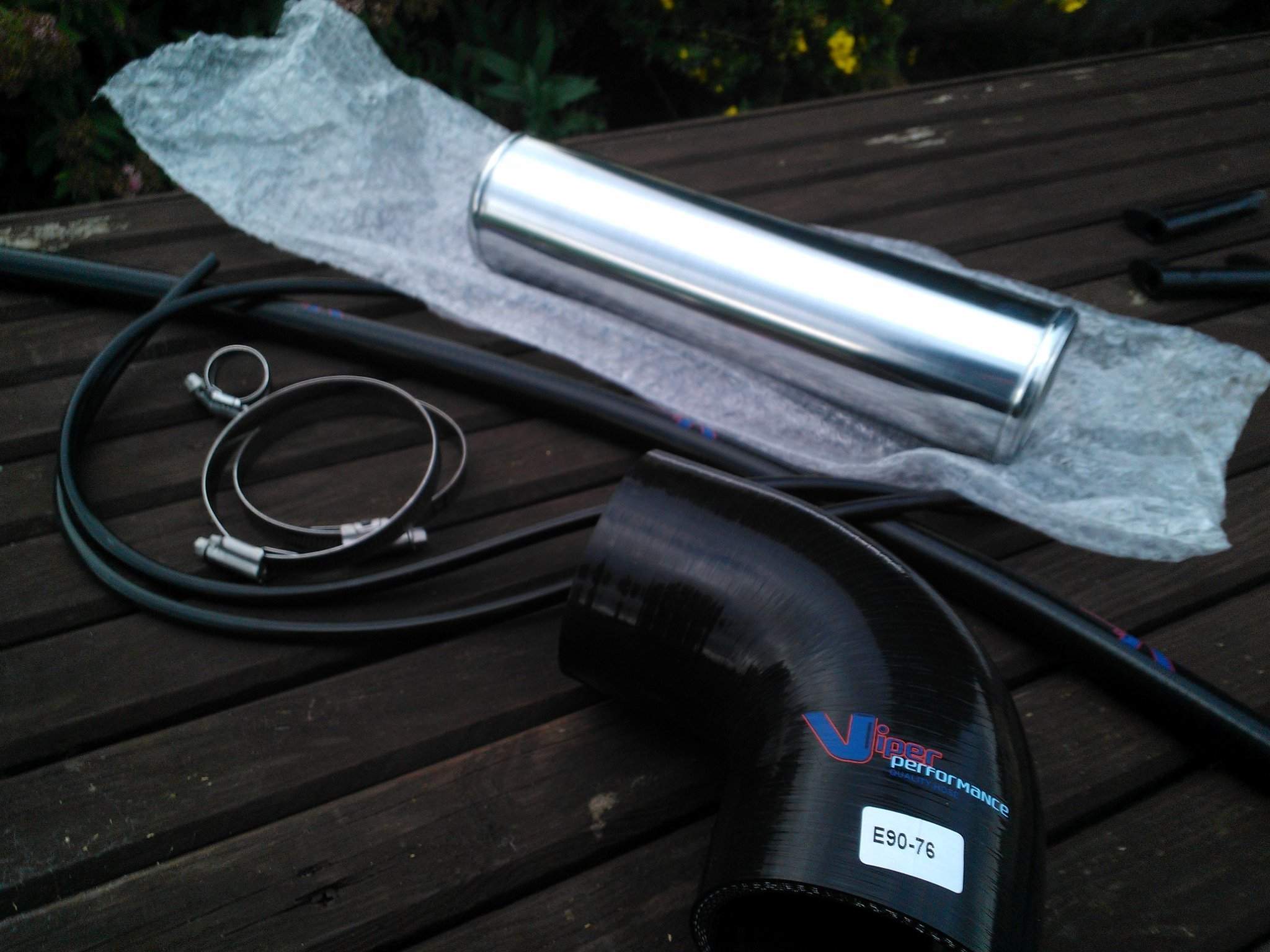

here's what happened at viper performance lol

evocarlos

well after the 100 mile drive home from trax i popped the bonnet and put my hand on the charger it was cool 30 - 40c and not 90c that gasket makes a big difference it will also help with charge cooling as now i don't need to fit a silly huge rad to get the cooling done

corsaZ22se

need to call courteney's up and order 1 for mine. like you say the heat difference is great.

evocarlos

corsaZ22se said:
need to call courteney's up and order 1 for mine. like you say the heat difference is great.

it also means more boost more of the time no heat soak 🙂

MikeS

nice work carl

i got my new toy

2.0 6 cylinder z3 😛

evocarlos

MikeS said:
nice work carl

i got my new toy

2.0 6 cylinder z3 :p

nice

evocarlos

heres the pump fitted in the bracket and bolted on the engine

and the new dipper and tube came including the weather strips for the bumper

evocarlos

broke jack - fixed blowing zorst -went bought new jack lol then it rained its not stopped !

Matt

evocarlos said:
broke jack - fixed blowing zorst -went bought new jack lol then it rained its not stopped !

weather has been shit here all day as well.

corsaZ22se

been raining non stop all day here too. I've been in the workshop allday rewiring a combine engine bay after a fire, when I came out at 8pm there's a small lake in the back yard! :eek:

Matt

I wanted to go for a run tonight at work, but can't be arsed running when it's already raining. Don't mind if it rains when I'm already out.

evocarlos

Matt said:
I wanted to go for a run tonight at work, but can't be arsed running when it's already raining. Don't mind if it rains when I'm already out.

wuss 🙂

evocarlos

a ballast died so 2 new ones went in with 2 new bulbs 🙂

and the SVS light came on again
p1171
p0420

milo

And how's the clutch?

evocarlos

milo said:
And how's the clutch?

seemed completely fine today no squeak or hum when pulling off at the island
must of just been the damp and cold yesterday

evocarlos

clutch and flywheel is a lot cheaper than i thought 🙂 @[deleted] thanks 🙂

got sick of the big hole in the bumper so the charger cooler rad is in the post
http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=281137196693

i see a 6 speed future for the astra 🙂

Daz

Did you give them a ring after Carl?

evocarlos

i did today mate
he told me lightning my flywheel and a clutch made to suite 350bhp under £300
