Project Freeze My Ass Off (rear Poly Bush's Astra G)

pottsey

stokie said:
i was going to say you can have my pipercross cone

I have a pipercross on mine

evocarlos

there flipping huge 🙂 gonna stick to the £24 k&N 🙂 then fit a cold air scoop above the rad

Sjdickso

Looking very tidy.

evocarlos

possible battery replacement same sort of ah but 4cm smaller in lenth
http://www.tayna.co.uk/D21-075-Varta-Silver-Dynamic-Car-Battery-561400060-P7743.html

the standard vx 65ah battery is Lx280 Wx175 Hx175

Matt

Most of the SC's cars I've seen all have the K&N fitted.

evocarlos

yeah theres not much room for anything else
was just looking at the laminova cooler the pipe tails are inside the fan case lol

z22se-fan

evocarlos said:
yeah theres not much room for anything else
was just looking at the laminova cooler the pipe tails are inside the fan case lol

Yes, you'll need some elbows to divert

evocarlos

it official 🙂
off it goes

evocarlos

z22se-fan said:
Yes, you'll need some elbows to divert

did you cut the hose tail down any ?

z22se-fan

evocarlos said:
did you cut the hose tail down any ?

Yes a lot. Just so it just diverts before the fan case. What kind of rad you'll be using? You have the GSI front bumper am I right? That has a lot more space for a front mounted rad than my coupe bumper

evocarlos

z22se-fan said:
Yes a lot. Just so it just diverts before the fan case. What kind of rad you'll be using? You have the GSI front bumper am I right? That has a lot more space for a front mounted rad than my coupe bumper

i do have a gsi bumper not fitted but i like the coupe bumper i have yet to make a decision
taking me dad up the scrap yard to see what bit i can find to use on the build use 🙂

stokie

evocarlos said:
is it clean and what or its dimensions ? needs a 75mm opening and less than 130 diameter

whats this lark a about the battery not fitting 🙂
[ATTACH]14150[/ATTACH] [ATTACH]14151[/ATTACH]

also moved the fuel vent solenoid
[ATTACH]14149[/ATTACH]

it is clean and i will get the dimensions today and i will take a picture of it

evocarlos

the scrap yard haul got me some new seals for the ecu plugs and enuff rubber elbows to fit the job also picked up a right angle fitting for the dual by pass endplate and some all thread to make longer bolts from

jwalker

Will you be using the Courtenay idler pulley?

evocarlos

jwalker said:
Will you be using the Courtenay idler pulley?

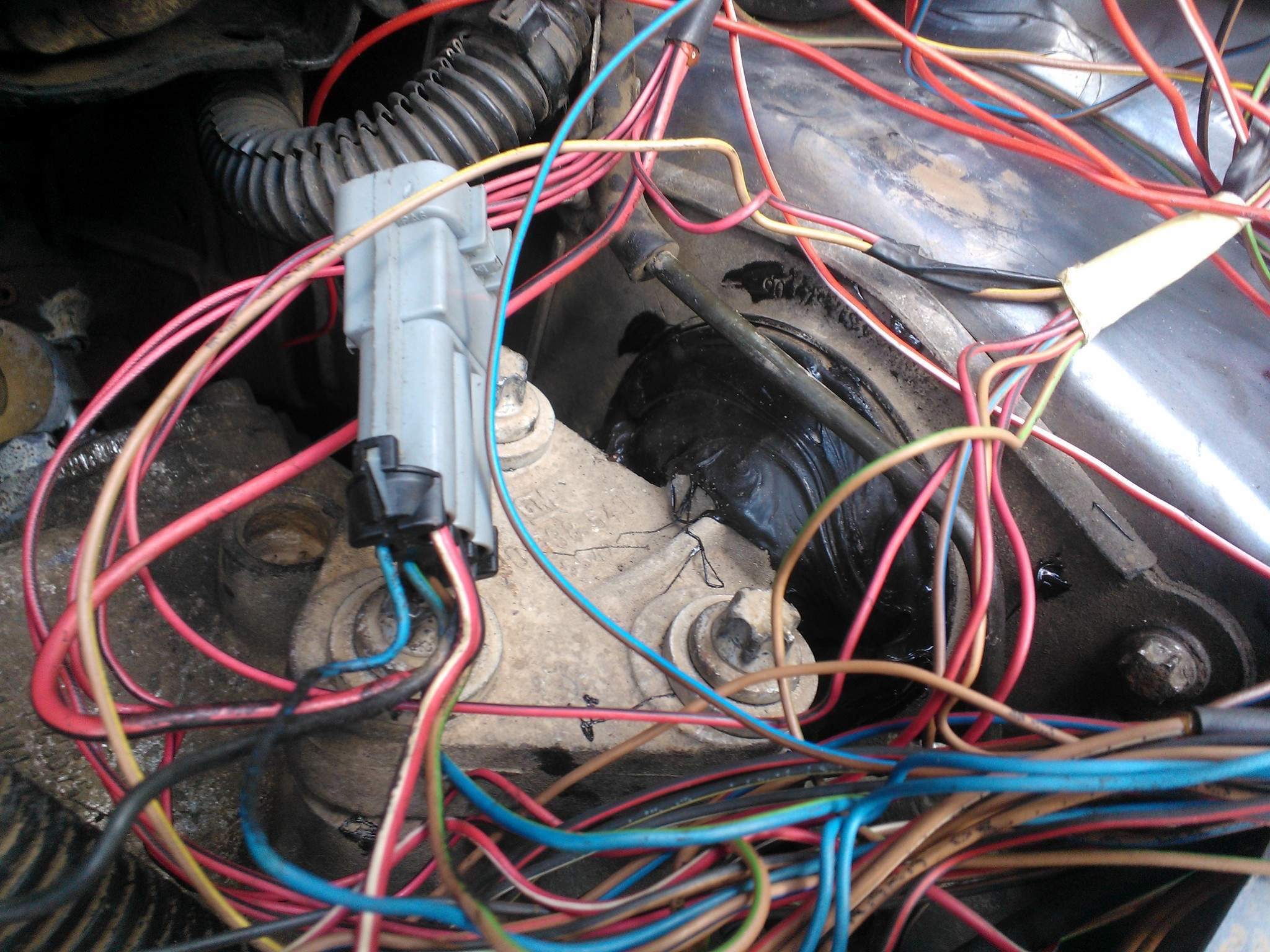

was going to make one from a z22se tensioner pulley and part of the usa bracket will see close to the install time trying to sort the wiring if the rain ever stops

evocarlos

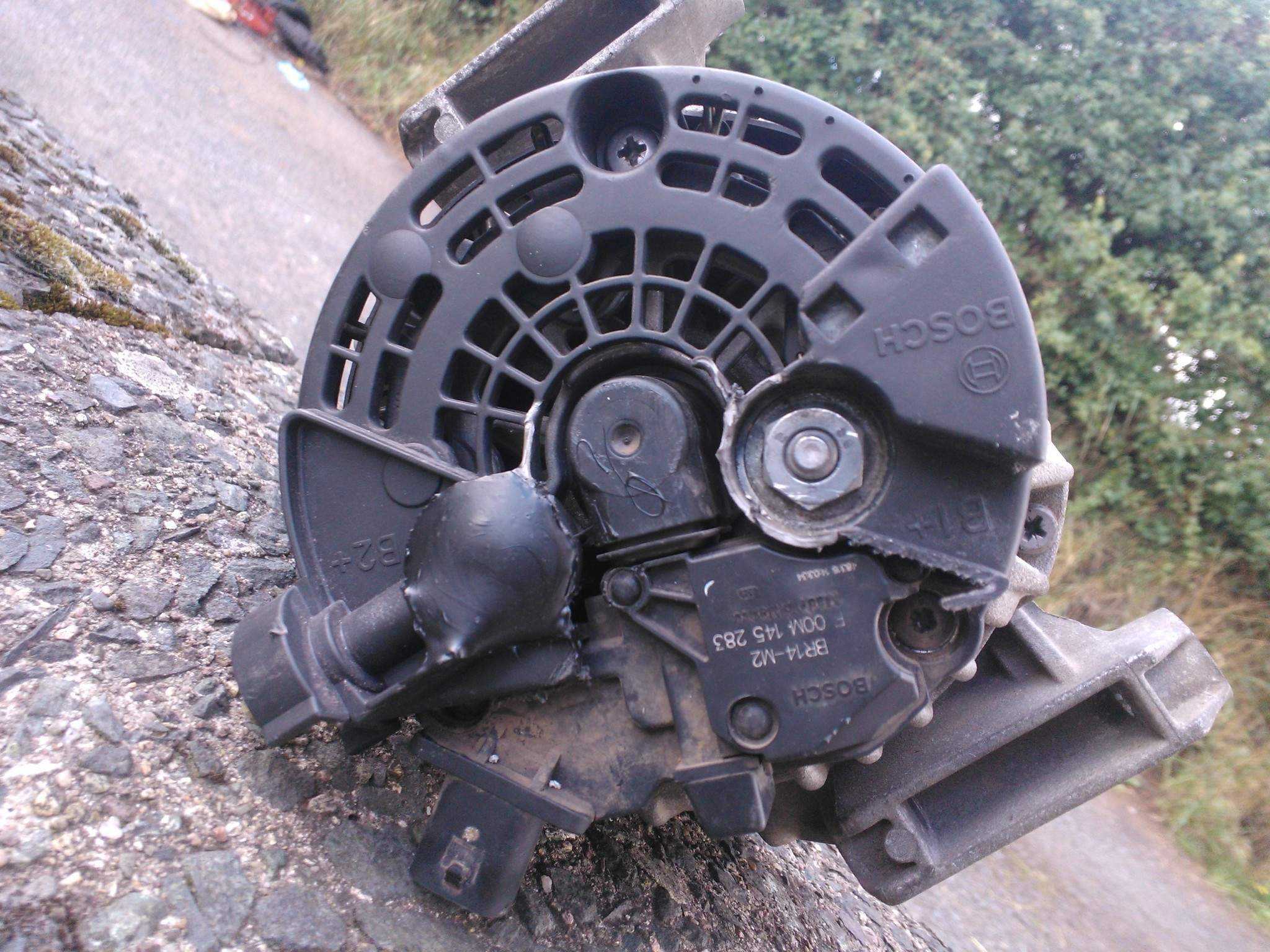

120amp fitted with rear cover and suppressor 🙂

120amp cover off

you can just see the suppressor at the back

still a little concerned about the nut on the output shaft

pottsey

that stud looks a bit close carl ,I take it your cutting it back

evocarlos

pottsey said:
that stud looks a bit close carl ,I take it your cutting it back

it sure is close but i think im just going to pack the alternator out 5mm to be sure 🙂

evocarlos

its close
packed it out with 4 washers it looks better 🙂

evocarlos

one 120amp alternator fitted plenty of clearance now and i've not used any washers to pack it out theres about 5 mm clear between the output pin and the inlet case
put a big gob of liquid insulation tape on the nut to stop any problems 🙂

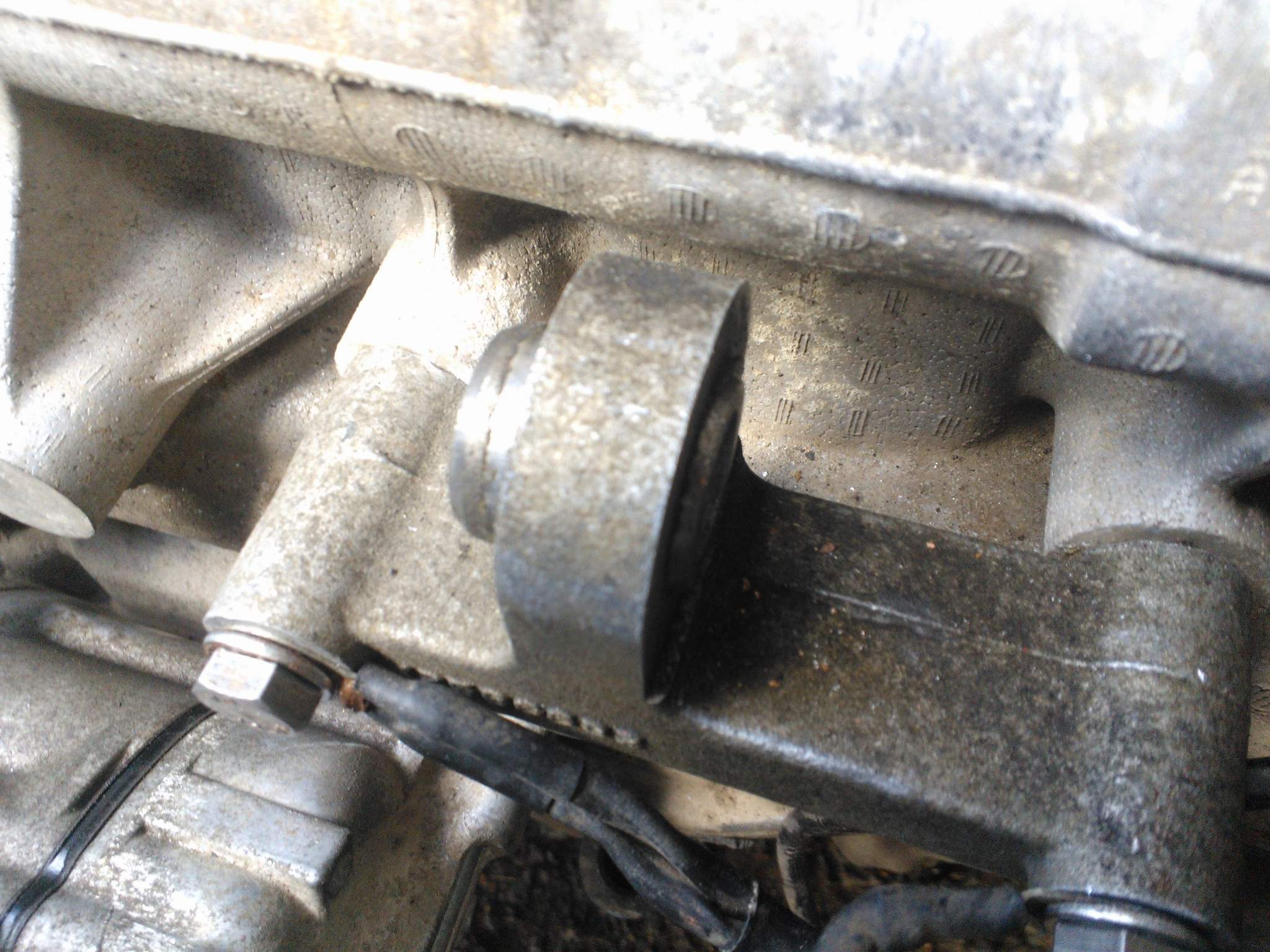

fixed both the engine mount and gear box mount with PU18 (aka tigerseal)

pushed the inlet mount collar back so it clamps down to my engine layout and not an lsj

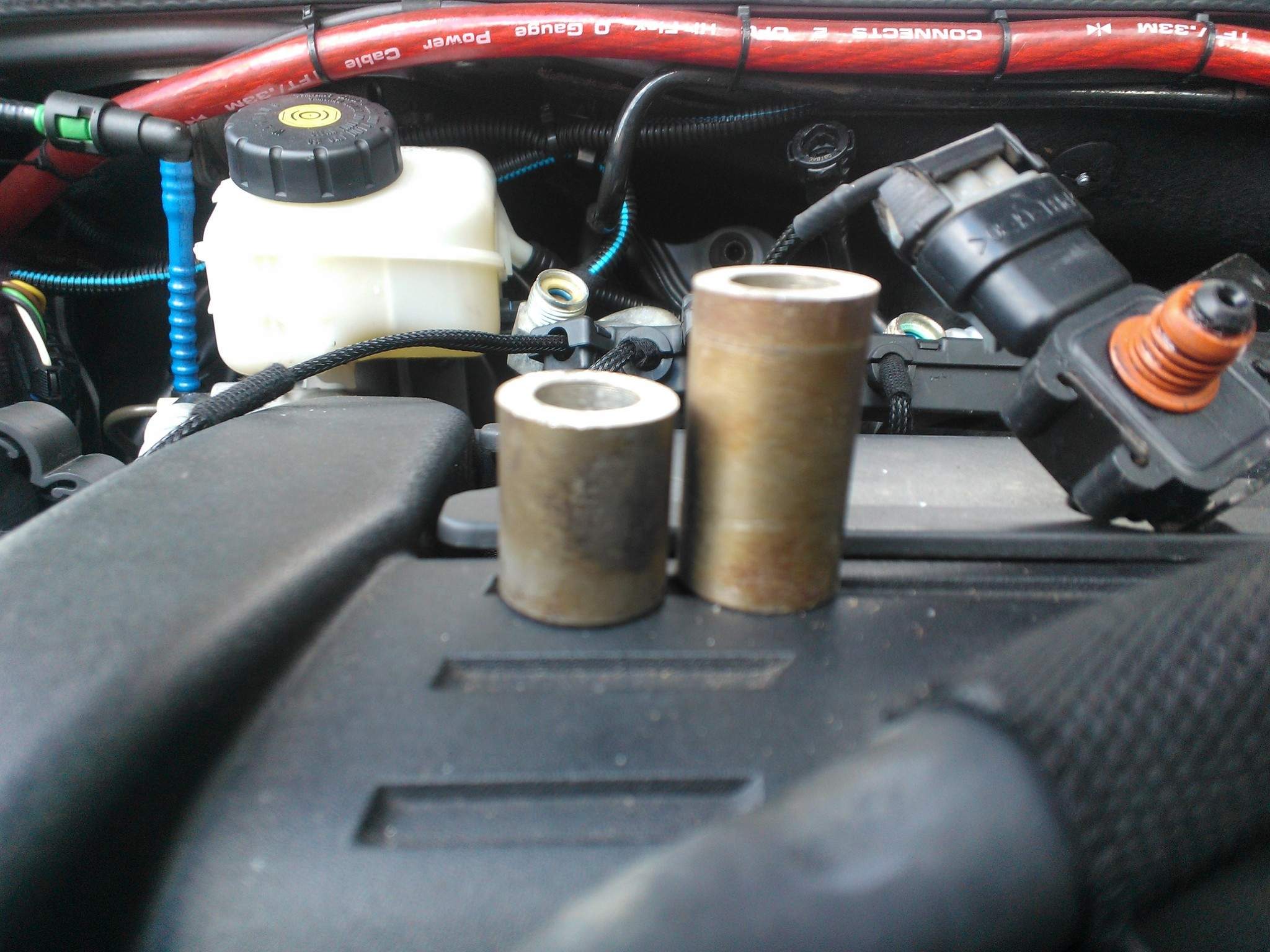

spacers made for the A/C pump 35mm wont fit lol this is now my next problem

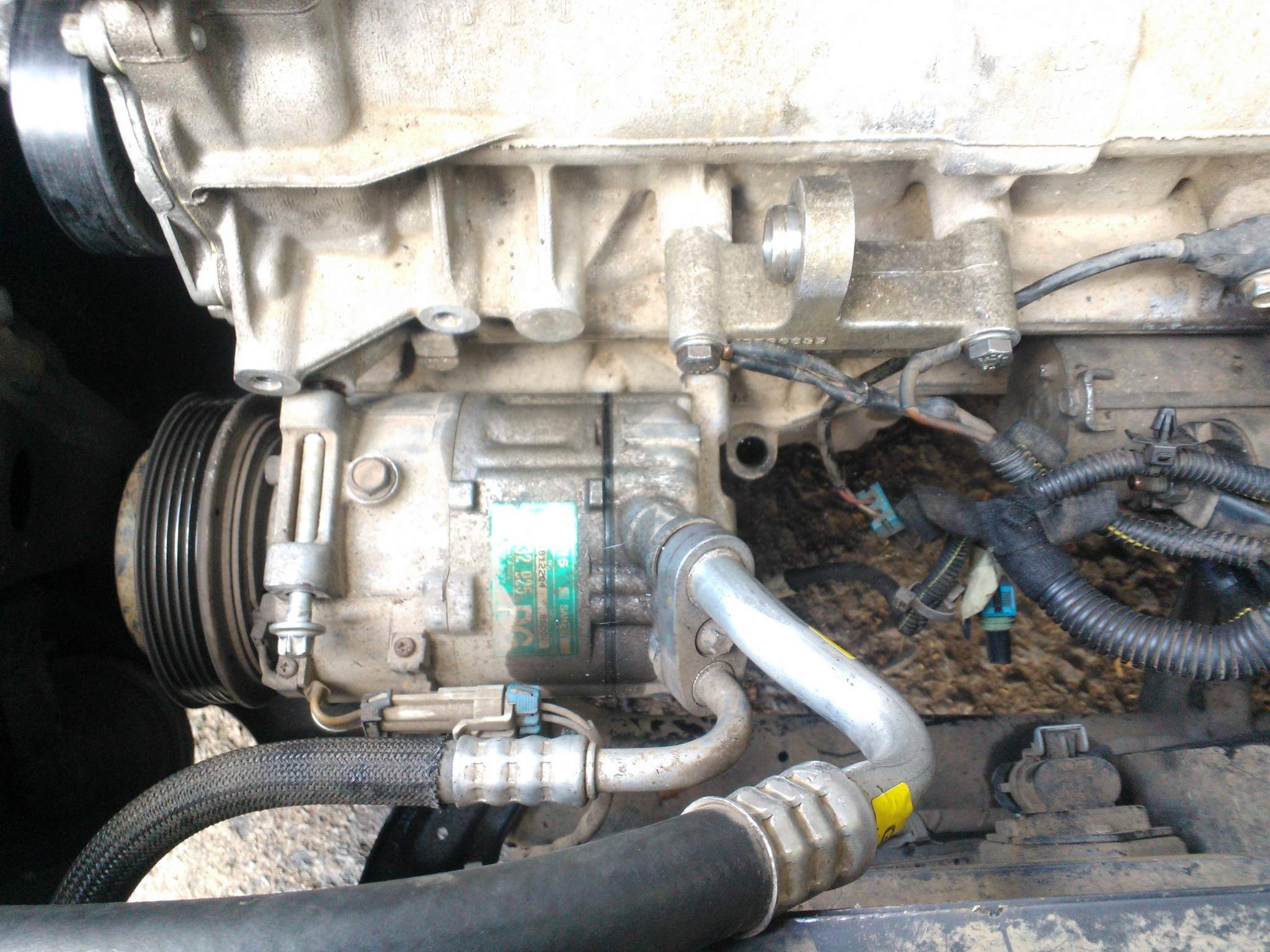

gahhhh!! look at that stupid pipe sticking up

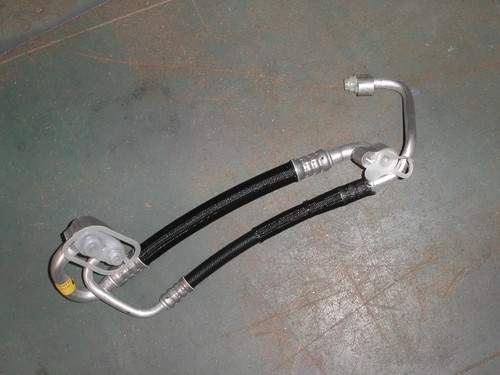

why is it not like this one from an astra g 1.7dt 1998

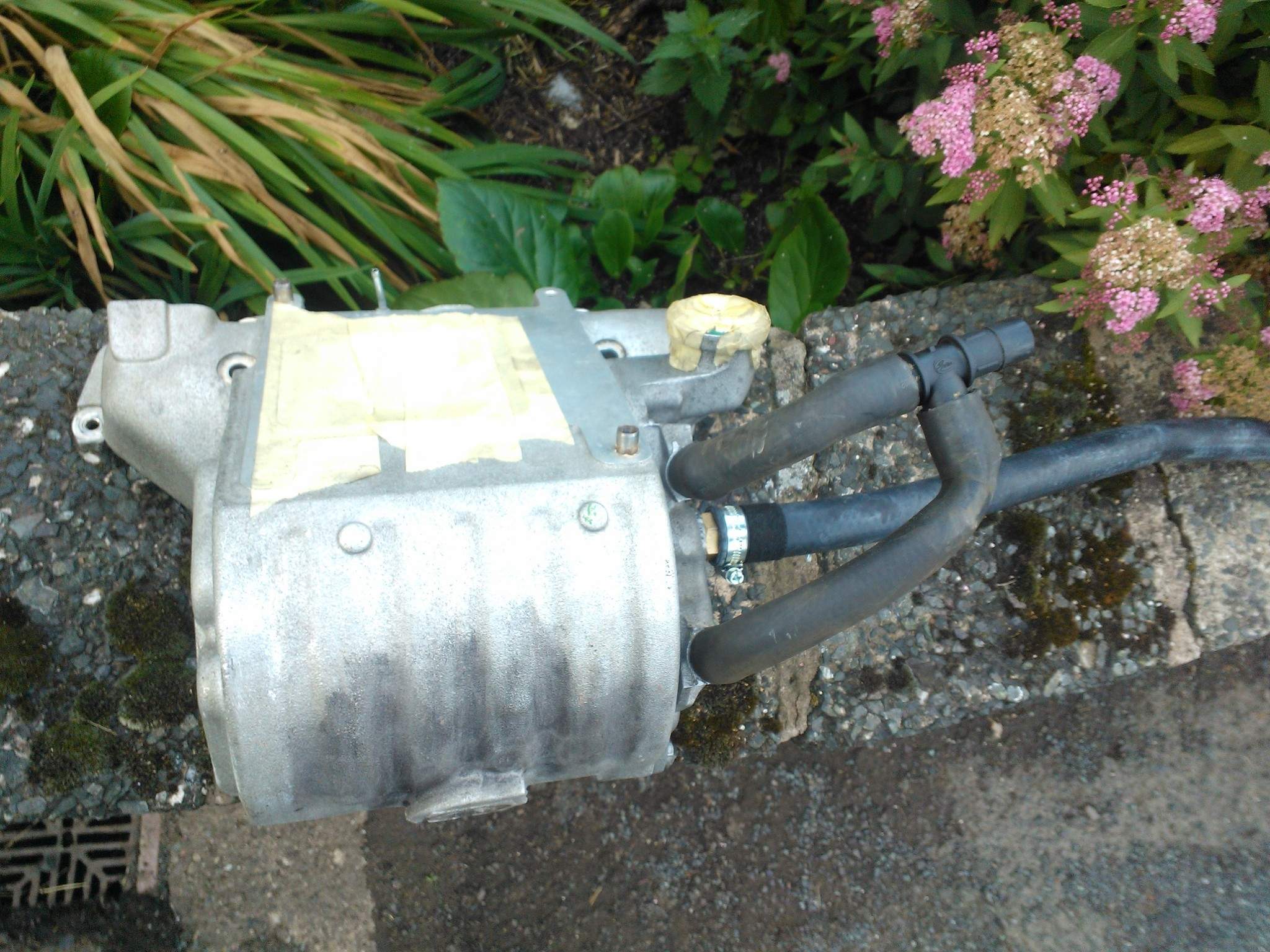

inlet dual pass sort of setup needs a little work to be right
