Project Freeze My Ass Off (rear Poly Bush's Astra G)

evocarlos

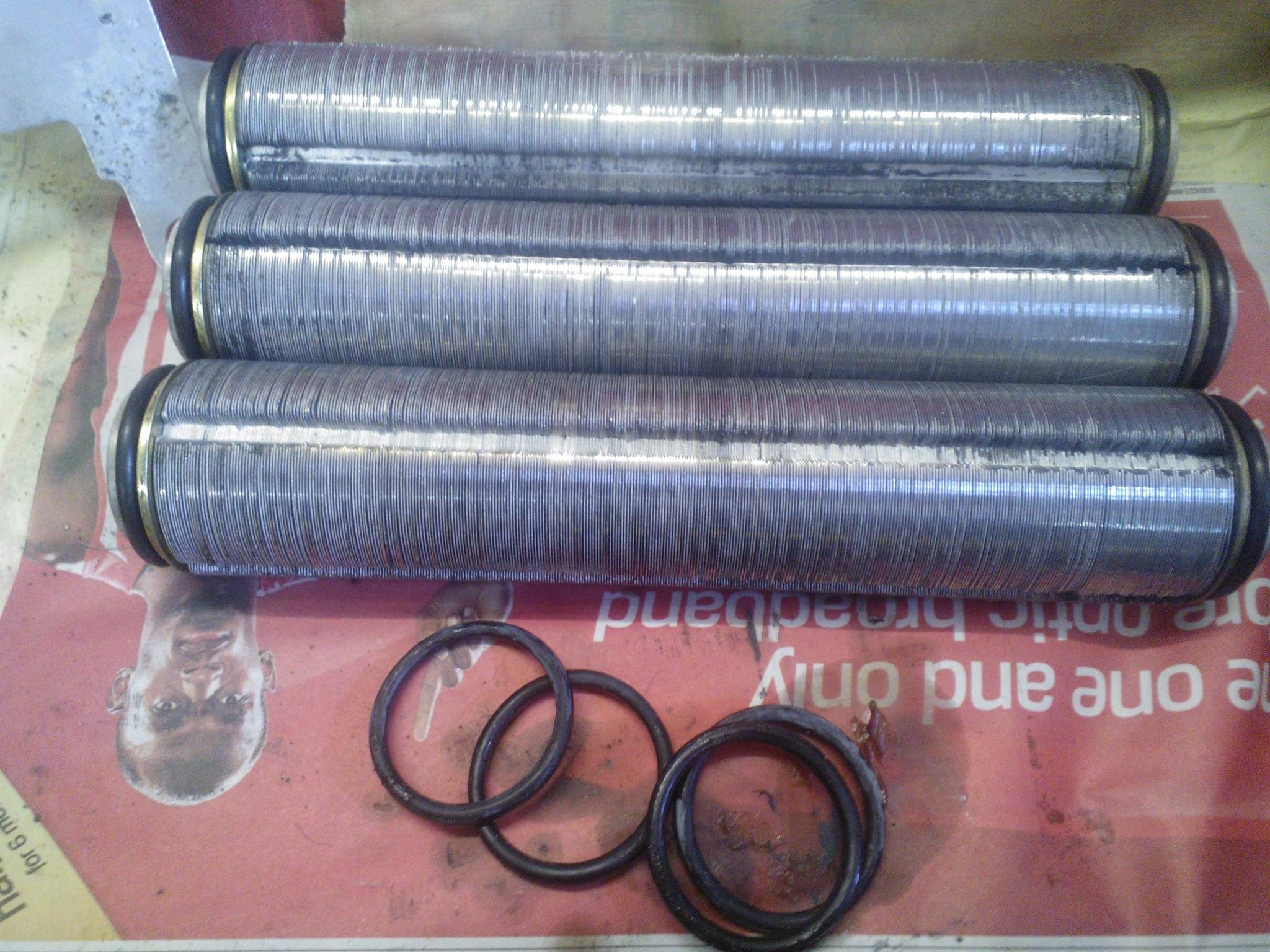

found a box of brand new o-rings in dads tool kit so i emptied the box and put them on the clean laminovers

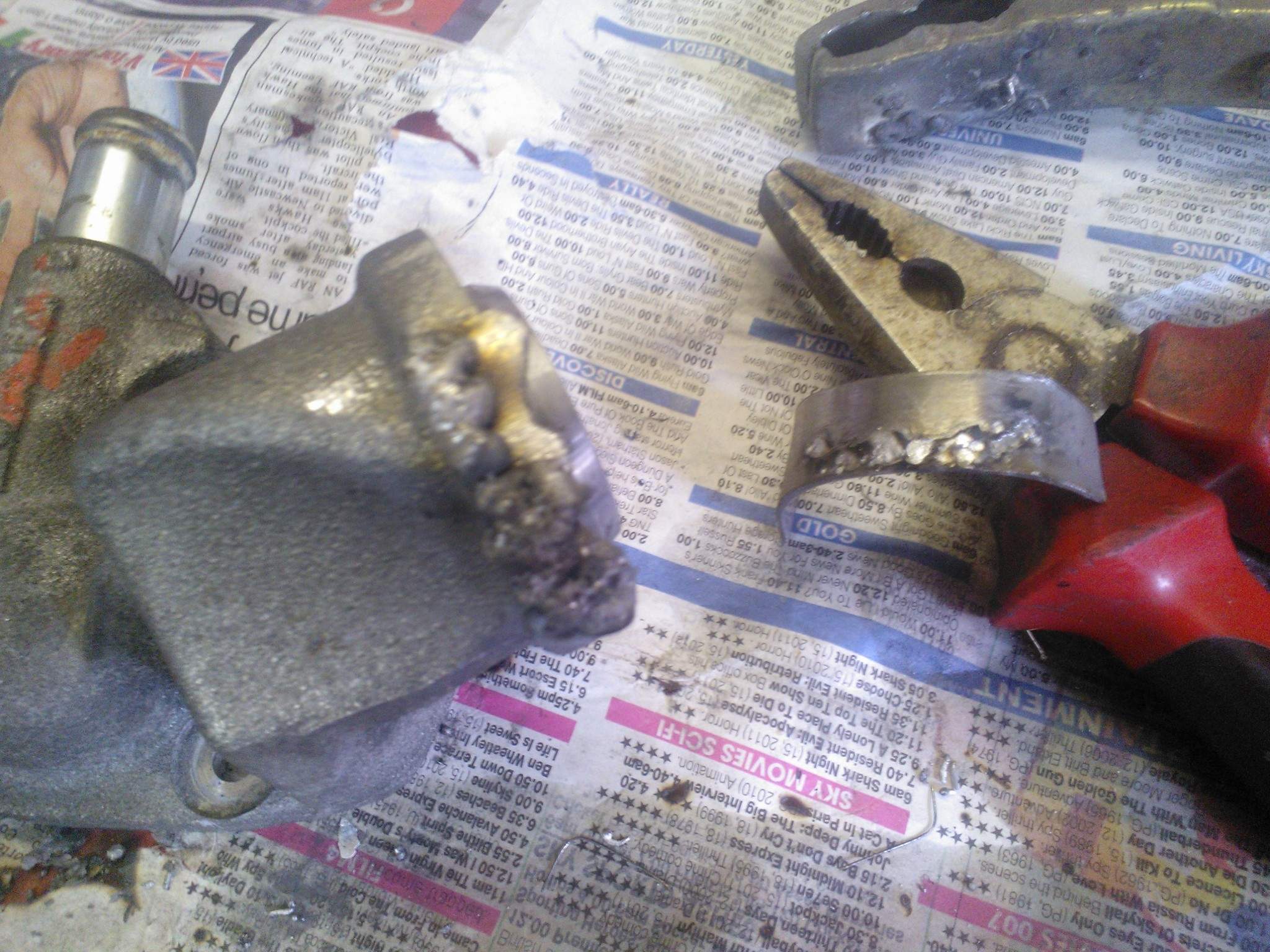

also had to repair the chargecooler end plate looks like it was chipped in transit from the usa

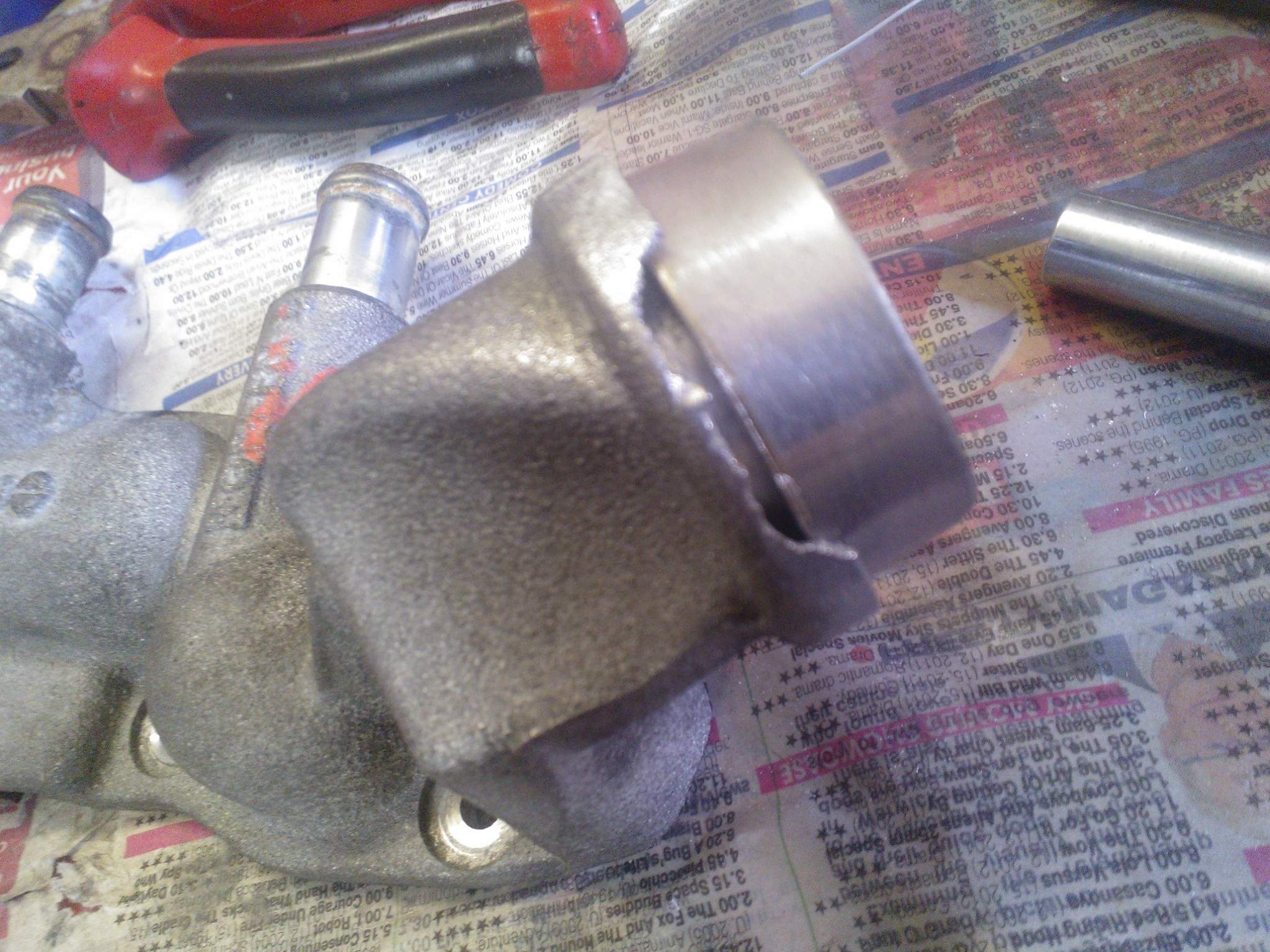

used some stainless steel sheet bent to shape then filled over so i could keep the gasket groove

bird poo lol need a new lance for me welder

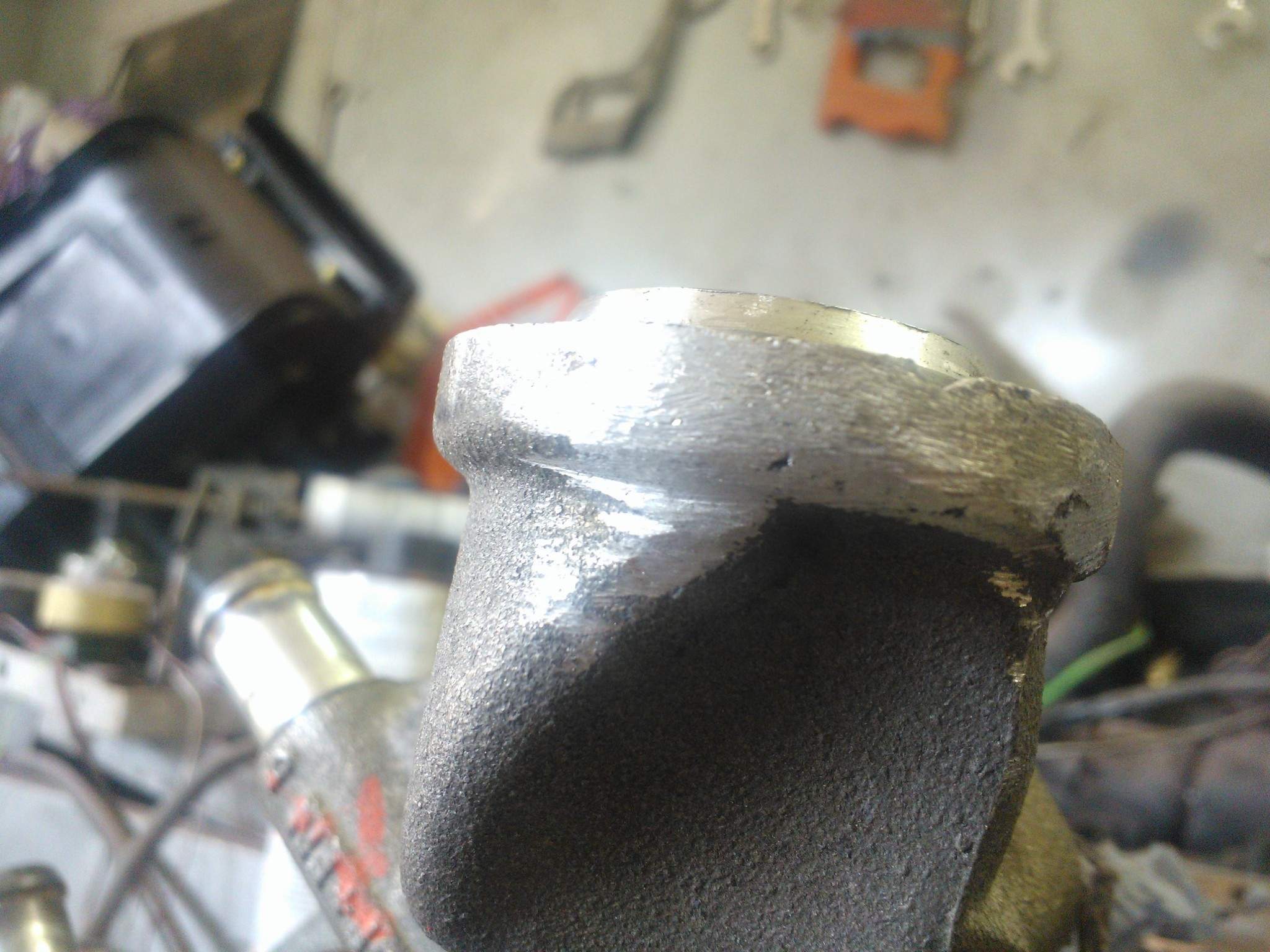

filed down

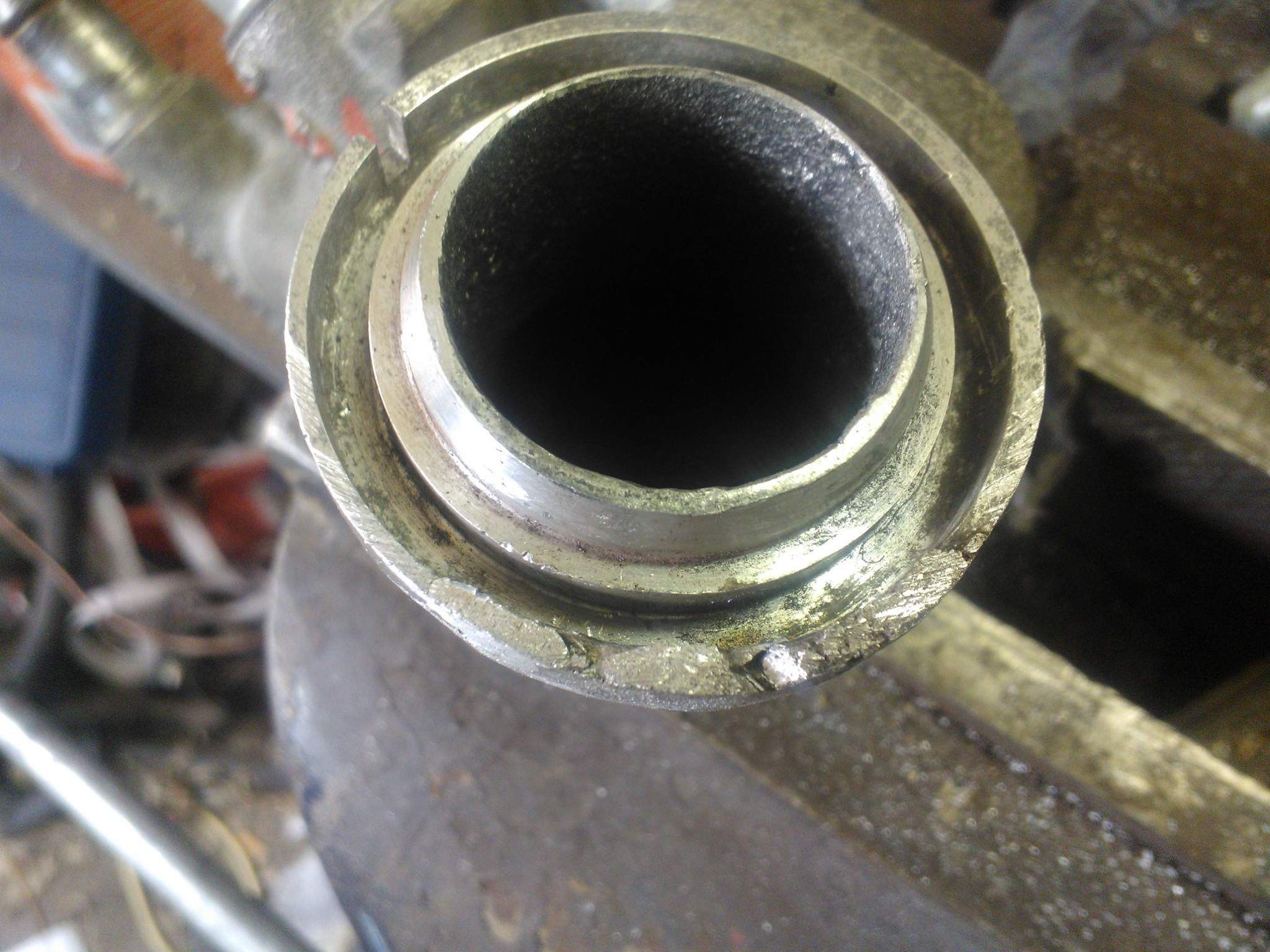

groove was opened up with a 3mm drill and a steady hand

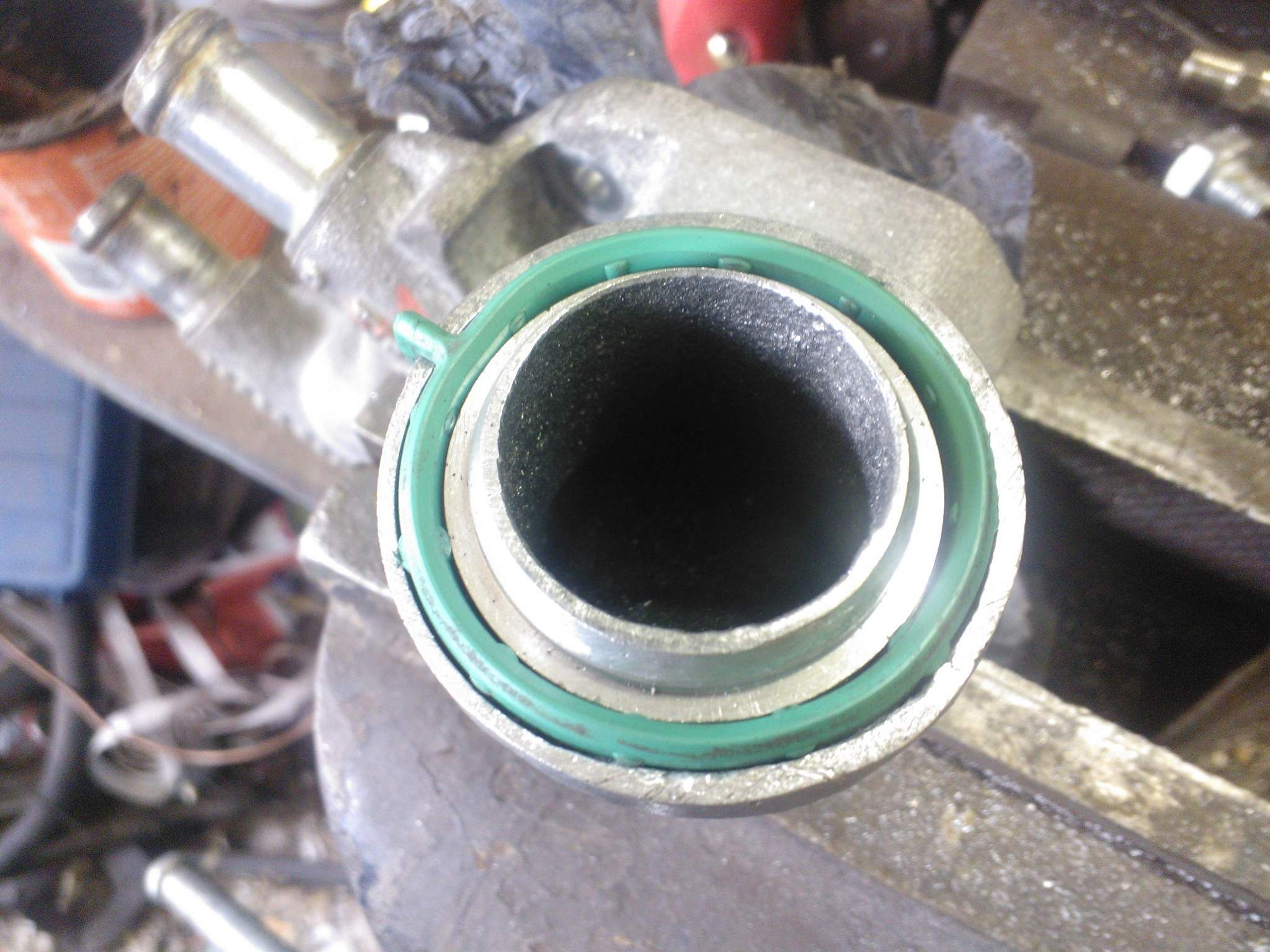

all done 🙂

just need to get an elbow and a 19mm barb to make the input pipe

Matt

Not hanging around with that are you Carl!

evocarlos

the chargers going to take a small miracle to get it working right lol but the rest is ok 🙂

Matt

evocarlos said:
the chargers going to take a small miracle to get it working right lol but the rest is ok 🙂

Why? What's wrong with it?

evocarlos

all the bearings are too loose for my liking so im going to change them all

Matt

evocarlos said:
all the bearings are too loose for my liking so im going to change them all

Do you just buy a kit to do that then?

evocarlos

yeah that or just buy a hole new rear case 🙂
http://shop.zzperformance.com/store/p/1196-EATON-M62-Case-LSJ.aspx

just trying to find the full kit in the uk there are parts that are the same in the range of eaton sc e45/e62/e90/e112/e122 but just need to get the right needle bearings
http://www.ebay.com/itm/MINI-COOPER-SUPERCHARGER-REFRESH-KIT-/370854442355?pt=Motors_Car_Truck_Parts_Accessories&vxp=mtr&hash=item5658a5b573

evocarlos

buy a pulley puller they said it will work they said

i made my own 🙂 after fixing it and welding a bar to it
pulley off incoming modular 🙂

also the shout has been checked over and seams the bearings are strong and good so only need the 4 main bearings to replace
heres me playing 🙂

https://www.youtube.com/watch?v=oTtXnfK8tRw

pottsey

good work carl ,how much bhp is that vice putting out lol

evocarlos

pottsey said:
good work carl ,how much bhp is that vice putting out lol

thanks 🙂
surprisingly its 0bhp lol

Sjdickso

You loosing all your climate control Carl? Presume you are going stage 2?

evocarlos

hope not lol
yeah im setting up for stage 2 🙂 but with a modular pulley i can go quite small hence the need to change the bearings for brand new ones
i have a gsi bumper ready with the front cut for the large water rad 🙂
the water pump bracket for the charge cooler is like 5kg lol thats getting modded to be lighter its only there to hold the pump

lots of work to do and tools n parts to buy

Matt

What sort of impact is adding the SC going to have on your insurance then Carl?

z22se-fan

Sjdickso said:
You loosing all your climate control Carl? Presume you are going stage 2?

Climate control will work with the supercharger
@[deleted] Nice work!

evocarlos

Matt said:
What sort of impact is adding the SC going to have on your insurance then Carl?

i have no idea lol

z22se-fan said:
Climate control will work with the supercharger
@[deleted] Nice work!

thanks
have they not coded the ecu flash with idle control then ?
its not really climate control just automatic air con

overnight parts from the states 🙂

also have the injector plugs coming

im taking the charge cooler end plate to work tomorrow and having a alloy block tig'd on then drilled and tapped to take the input pipe 🙂

z22se-fan

evocarlos said:
i have no idea lol

thanks
have they not coded the ecu flash with idle control then ?
its not really climate control just automatic air con

I don't know. I retrofitted ECC also and it works fine after installing the S/C.
Are u using the belt tensioner that came with the kit? Or just the original one?
I think you'll need a different alternator to use the original tensioner of the cobalt ss. One which spins in reverse order.

evocarlos

z22se-fan said:
I don't know. I retrofitted ECC also and it works fine after installing the S/C.
Are u using the belt tensioner that came with the kit? Or just the original one?
I think you'll need a different alternator to use the original tensioner of the cobalt ss. One which spins in reverse order.

thats good news that it still works 🙂
well i have looked at the belt tensioner but not decided on a root of action yet
what harm will running the alternator backwards have apart from the cooling fan not working right ??
just went for a look in your thread but all the images are dead ? 🙁

z22se-fan

I was told regular alternator might break as it is designed to spin in a certain way.
I will look at those photos tonight.
Another Astra supercharged: nice!!

Matt

It is good seeing another Astra getting SC'd and not another Vectra B!

ben8719

Good to see it being done for less than 6k too.
